Aiwa CSD-FD89, CSD-FD79, CSD-FD77 User Manual

OPERATING INSTRUCTIONS INSTRUCCIONES DE MANEJO

CSD-FD89

MODE D’EMPLOI

CSD-FD79 CSD-FD77

CD STEREO RADIO CASSETTE RECORDER RADIOCASETE ESTÉREO CON

REPRODUCTOR DE DISCOS COMPACTOS RADIO-CASSETTE LECTEUR DE CD STEREO

English : See page 2.

Español : Ver la página 12.

Français : Voir page 22.

8C-CHE-903-11 020201BCK-I-FM

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

“CAUTION:TO REDUCE THE RISK OF

ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.”

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

OWNER’S RECORD

For your convenience, record the model number (you will find it at the bottom of the unit) and serial number (you will find it in the battery compartment) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. Serial No.

IMPORTANT SAFETY

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Warning

To prevent electric shock or injury, these safety instructions should be followed in the installation, use and servicing the unit.

Installation

Attachments – Do not use attachments not

recommended by the unit manufacturer as they may result in the risk of fire, electric shock or injury to persons. Water and Moisture – Do not use this unit near water

- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. Heat – Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5˚C (41˚F) or greater than 35˚C (95˚F). Mounting surface – Place the unit on a flat, even surface. Accessories – Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the unit. Any mounting of the appliance should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. Portable cart – An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. Ventilation – The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm clearance from the rear and the top of the unit, and 5 cm from the each side. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the unit and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug or other similar surface. This unit should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

2 ENGLISH

INSTRUCTIONS

Object and Liquid Entry – Never push objects of any

kind into this unit through the cabinet slots as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

Electric Power

Power Sources – This unit should be operated only

from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. To operate unit on battery power, or other sources, refer to the operating instructions. Grounding or Polarization – This unit is provided with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. Overloading – Do not overload wall outlets, extension cords, integral convenience receptacles as this can result in a risk of fire or electric shock.

Lightning

For added protection for this unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the unit due to lightning and powerline surges.

Damage Requiring Service

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

1) When the power cord or plug is damaged.

2) If liquid has been spilled, or objects have fallen into the unit.

3) If the unit has been exposed to rain or water.

4) If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to normal operation.

5) If the unit has been dropped or the cabinet has been damaged.

6) When the unit exhibits a distinct change in performance - this indicates a need for service.

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. Safety Check – Upon the completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

Maintenance

Cleaning – Unplug this unit from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Condensation – Moisture may form on the CD pickup lens when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

ENGLISH 3

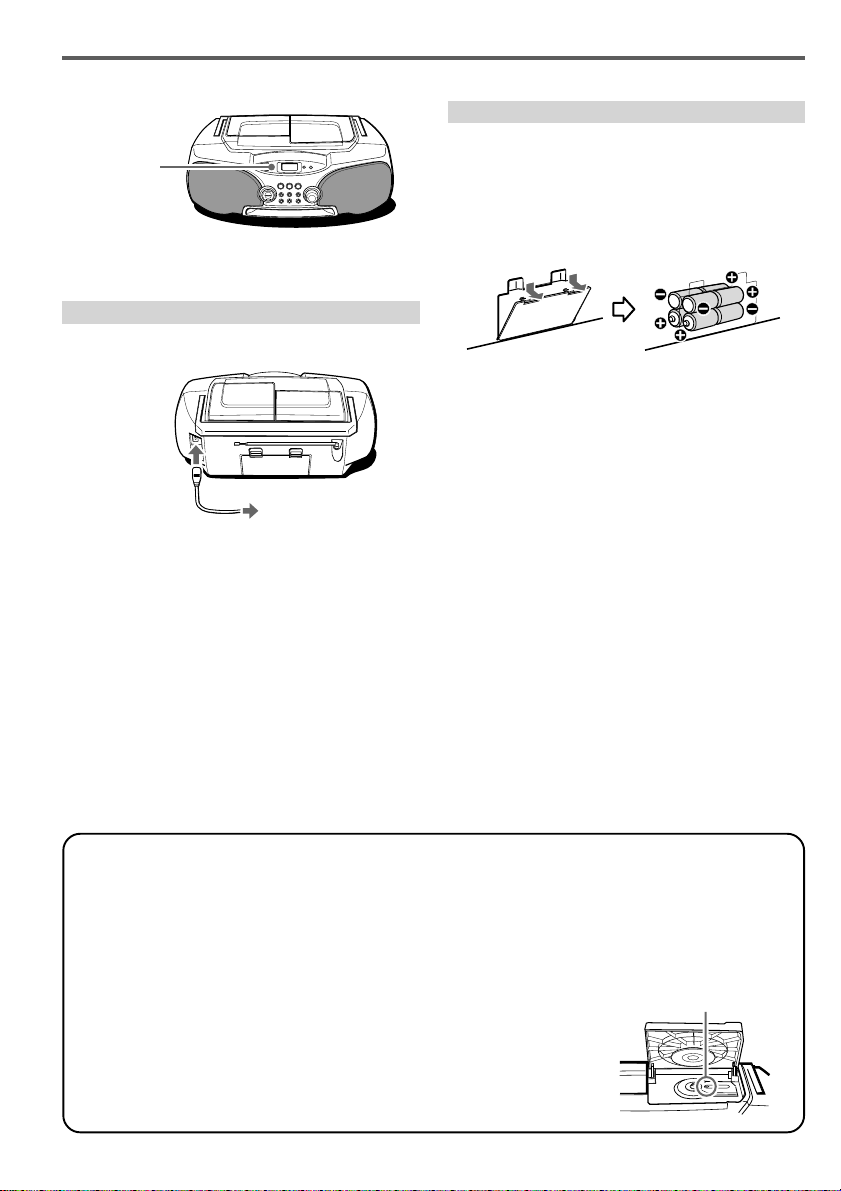

Power supply

OPE/BATT

The OPE/BATT indicator lights up while the power is on.

Using on batteries

Open the lid of the battery compartment on the rear and insert eight R14 (size C) batteries, not supplied, as illustrated below. Then close the lid.

To switch from AC power supply to battery supply,

disconnect the AC cord from the AC inlet.

Using on AC house current

Connect the AC cord as illustrated below.

1 to the AC inlet of

the unit

supplied AC cord

• The rated voltage of the unit is 120 V AC.

• If abnormal high voltage is supplied, “Hi” flashes in

the display and the unit does not accept any operation. Disconnect the AC cord.

CAUTION

Use only the supplied AC cord. Use with other cords may result in the risk of fire.

Maintenance

To clean the cabinet

Use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents such as alcohol, benzine or thinner.

To clean the heads

When the tape heads are dirty;

- high frequency sound is not emitted

- the sound is not adequately high

- the sound is off-balance

- the tape cannot be erased

- the tape cannot be recorded on

2 to an AC outlet

(AC 120 V, 60 Hz)

R14 (C)

• When using the unit on the batteries, the display light is out.

When the OPE/BATT indicator becomes dim, volume decreases, or sound is distorted during operation, replace the batteries.

When the batteries become weak during tape operation, “Lo” flashes in the display. In stop mode, the

unit will not accept w REC, e PLAY/PAUSE, f and g. In playback or recording mode, the unit will be stopped and turned off. Replace the batteries.

Notes on batteries

To avoid damage from leakage or explosion, observe the following:

• Insert the batteries with the 0 and 9 marks correctly aligned.

• Do not mix different types of batteries or old batteries with new ones.

• When the unit is not to be used for a long period, remove the batteries.

• Never recharge the batteries, apply heat to them or take them apart.

• Remove dead batteries.

If liquid leaks from the batteries, wipe thoroughly to remove.

After every 10 hours of use, clean the tape heads with a head cleaning cassette. Use separately sold dry-type or wet-type cleaning cassette. Refer to the instructions of the cleaning cassette for details.

To clean the lens

Use a cotton swab slightly moistened with cleaning fluid. Wipe gently from the center to the edge.

Lens

4 ENGLISH

Remote control (CSD-FD89/79 only)

Insert two R6 (size AA) batteries.

R6 (AA)

When the reach of the remote control signal is less than 5 meters (16 feet), replace the batteries.

The remote control may not operate correctly when:

- The unit is exposed to intense light, such as direct sunlight

- Objects block the remote control signal to the unit

To use the buttons on the remote control

Buttons on the remote control and the main unit with identical indications have the same functions.

To turn the power on

Press POWER to turn on the display. When using the unit on the batteries, this button will not turn the power on.

To turn the power off

Press POWER to turn off the display.

To use the FUNCTION button

Each time FUNCTION is pressed while the power is on, the function is selected cyclically.

CD TAPE TUNER

Specifications

Tuner section

Frequency range, antenna – FM: 87.5 - 108.0 MHz Rod antenna, AM: 530/531 - 1,710/1,602 kHz (10/9 kHz step) Ferrite bar antenna

Deck section

Track format – 4 tracks, 2 channels / Frequency range – Normal tape: 50 - 12,500 Hz (EIAJ) / Recording system – AC bias / Erasing system – AC erase / Heads – Recording/playback head (1), Erasure head (1)

CD player section

Disc – Compact disc / Scanning method – Non-contact optical scanner (semiconductor laser)

General

Speaker – 100 mm cone type (2), 36 mm cone type (2) / Output – Headphones jack (stereo mini-jack) / Power output – CSD-FD89: 4.5 W + 4.5 W (EIAJ, 3.2 ohms, THD 10% DC). CSD-FD79, CSD-FD77: 2.5 W + 2.5 W (EIAJ, 7 ohms, THD 10% DC). / Power requirements – DC 12 V using eight size C (R14) batteries, AC 120 V, 60 Hz / Power consumption – CSD-FD89: 21 W. CSDFD79, CSD-FD77: 16 W. / Dimensions (W × H × D) –

464.7 × 186 × 314.3 mm (18 Weight (excluding batteries) – CSD-FD89: 4.1 kg (9 lbs. 1 oz.). CSD-FD79, CSD-FD77: 3.9 kg (8 lbs. 10 oz.). / Accessories – Remote control (1, CSD-FD89/79 only), AC cord (1)

Specifications and external appearance are subject to change without notice.

Please check the copyright laws relating to recordings from disc, radio or external tape for the country in which the machine is being used.

/8 × 73/8 × 123/8 in.) /

POWER

FUNCTION

If an erroneous display or malfunction occurs

Turn off the unit and press POWER 6 STANDBY/ON while pressing s. If the unit cannot be reset in the way above, disconnect the AC cord and remove all the batteries to turn off the display. Leave the unit for a while and turn the power back on.

ENGLISH

\PHONES

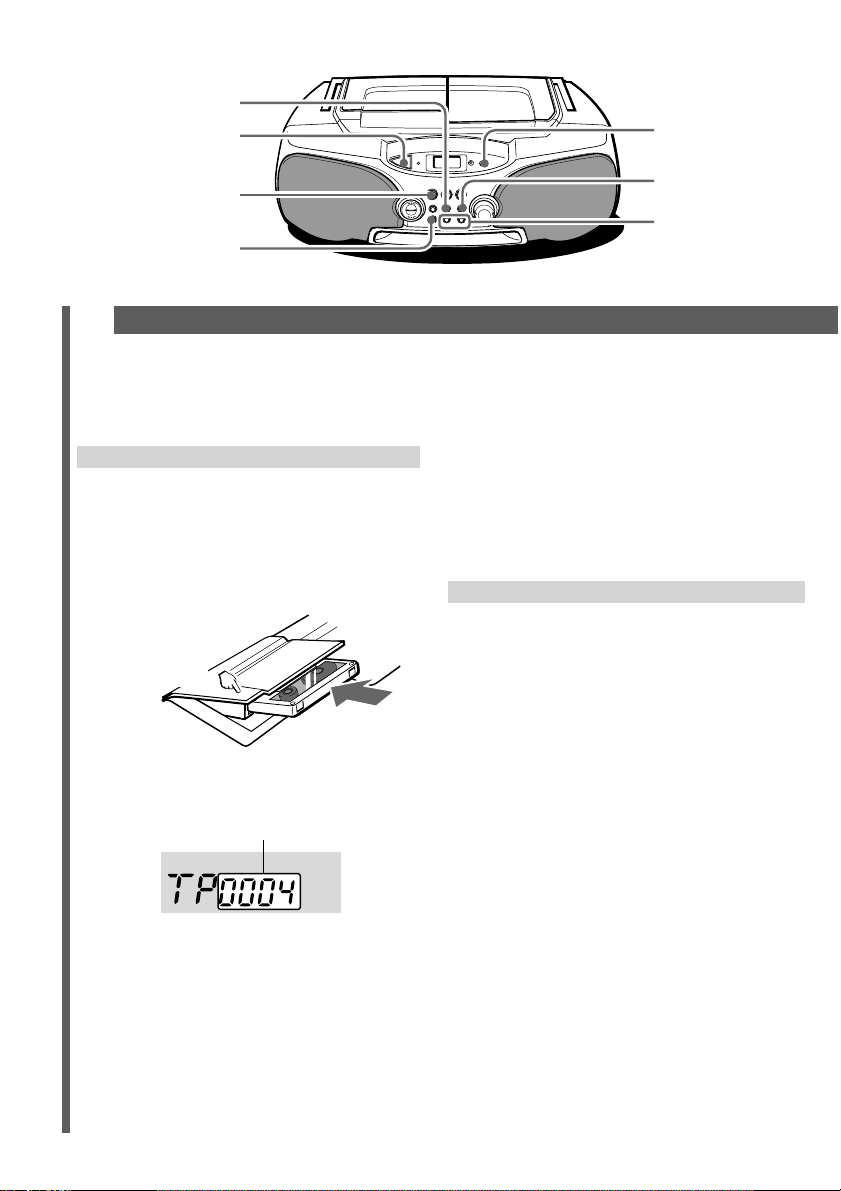

s STOP/SET/CLEAR

POWER 6STANDBY/

T-BASS

3-MODE EQ

PRESET

TUNER OPERATION

Press RADIO BAND* repeatedly to select

the desired band.

FM AM

The power is turned on and the previously tuned station is received.

* or BAND on the remote control (applicable

when the AC cord is connected, CSD-FD89/79 only)

Press f, g (TUNING -, +) to select

a station.

During FM stereo reception, is displayed.

After listening, press POWER 6 STANDBY/ON to turn the power off.

For better reception

AMFM

Extend the rod antenna and orient it for the best reception.

The antenna is inside the unit. Position the unit for the best reception.

RADIO BAND REPEAT/MODE/

SLEEP e PLAY/PAUSE VOLUME f, g

(TUNING -, +)

REPEAT/MODE/SLEEP*

- If an FM stereo broadcast contains noise, press the button so that is displayed. Noise is reduced, although reception is monaural. To restore stereo reception, press the button again.

- If a high-pitched sound is heard during AM recording, press the button repeatedly to display “b1” or “b2”, so as to eliminate the noise.

* or MODE on the remote control (CSD-FD89/79 only)

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/ step. If you use the unit in an area where the frequency allocation system is 9 kHz/step, change the interval as follows.

1 Press RADIO BAND. 2 Press POWER 6 STANDBY/ON while pressing

RADIO BAND. When the AM tuning interval is changed, the preset stations are cleared.

NOTE

If the unit picks up noise from other electrical appliances nearby, like a TV or fluorescent lights, move the unit.

For quick tuning (Auto Search)

Keep f, g pressed until the tuner starts searching for a station. When a station is tuned to, the search stops. If the broadcast signal is weak, it does not stop. To stop the search manually, press f or g.

To listen with the headphones

Connect headphones with a stereo mini plug to the \ PHONES jack on the rear of the unit.

6 ENGLISH

0-9, +10

DISPLAY

BAND

MODE EQ

VOL k, i

e PLAY/

PAUSE

f, g s STOP

(CSD-FD89/79 only)

PRESETTING STATIONS

You can preset up to 15 stations in each band.

Select a station.

Press s STOP/SET/CLEAR* once so that

“M” is displayed to store the station.

A station is assigned a preset number, beginning from 1 in consecutive order for each band.

Preset number

Frequency

* or s STOP on the remote control (CSD-FD89/79

only)

Repeat steps 1 and 2.

The next station will not be stored if a total of 15 preset stations have already been stored for a band.

SOUND ADJUSTMENT

Volume or tone adjustment does not affect recording.

VOLUME (VOL, CSD-FD89/79 only)

Turn VOLUME on the unit or press VOL i or k on the remote control. The volume level is displayed as a number from 0 to 25.

• The volume level is automatically set to 14 if the power is turned off when the volume level is set to 15 or more.

• Pressing DISPLAY on the remote control displays the adjusted volume level (CSD-FD89/ 79 only).

3-MODE EQ* (equalizer)

Press 3-MODE EQ repeatedly until the desired mode is displayed. The equalizer mode changes to R (Rock), P (Pop), J (Jazz) or no equalization, cyclically. Rock - Emphasizes the high and low range of music.

Pop - Emphasizes voice and midrange of music. Jazz - Emphasizes the low range of music.

* or EQ on the remote control (CSD-FD89/79 only)

T-BASS system

The T-BASS system enhances the realism of lowfrequency sound. Press T-BASS to turn it on or off.

To listen to preset stations

Select a band then press PRESET or e PLAY/ PAUSE repeatedly.

To select a preset number directly with the remote control (CSD-FD89/79 only)

Press the numbered buttons 0-9 and +10. Example: To select number 15, press +10 and 5. To select number 10, press +10 and 0.

To clear a preset station

Select the preset number first. Within 4 seconds, hold down s until “M” and the preset number disappear. The higher numbers in the band are decreased by one.

ENGLISH 7

POWER 6STANDBY/

s STOP/SET/CLEAR

f, g

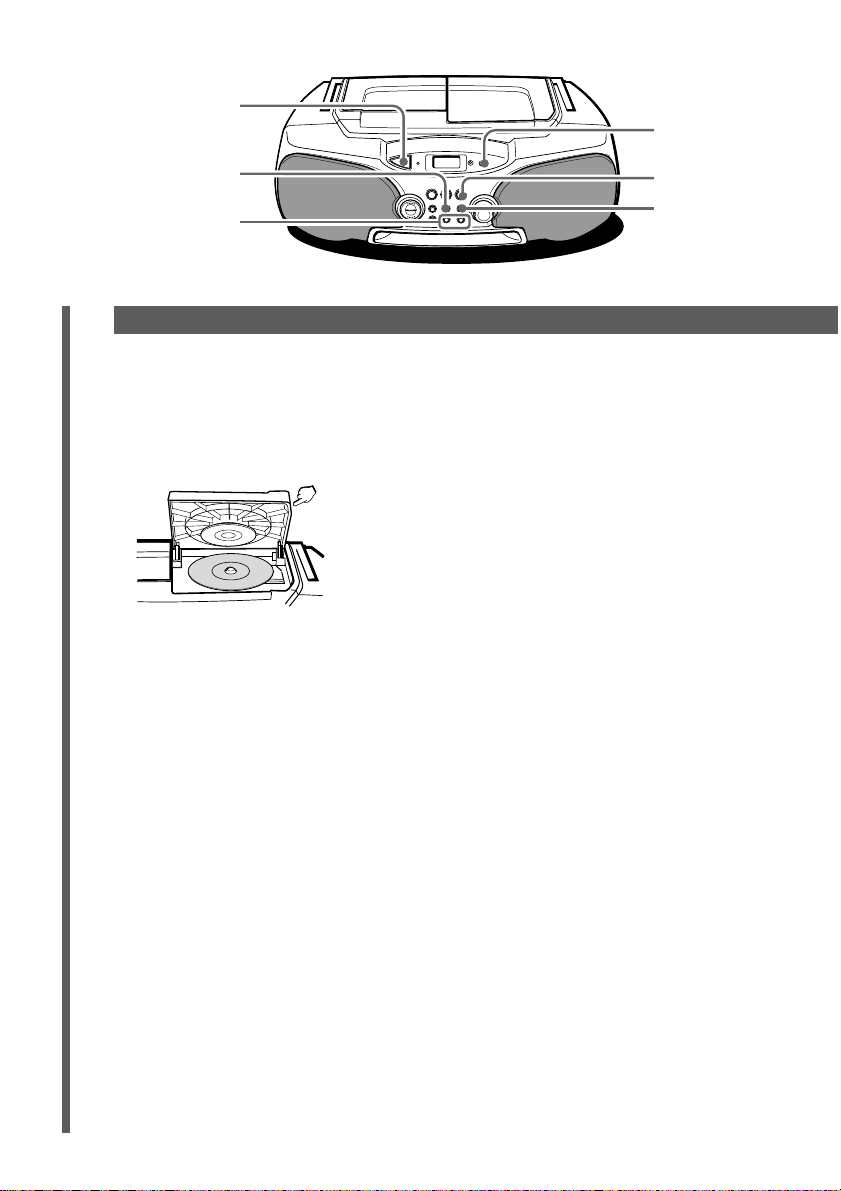

CD OPERATION

REPEAT/MODE/ SLEEP

CD e PLAY/PAUSE

Press CD.

The power is turned on.

Press PUSH OPEN to open the disc

compartment. Place a disc with the printed side up and close the disc compartment.

PUSH OPEN

Total number of tracks and total playing time are displayed. It will take about 15 seconds when loading a CD-RW disc.

Press e PLAY/PAUSE to start play.

The number of the track being played and elapsed playing time are displayed.

s STOP/SET/CLEAR* – Stops play.

* or s STOP on the remote control (CSD-FD89/79

only) e PLAY/PAUSE – Pauses play. To resume play, press again. f, g – Searches for a particular point during playback. Hold down f or g and then release it.

– Skips to the beginning of a track. Press f or g

repeatedly.

To select a track directly with the remote control (CSD-FD89/79 only), press the numbered buttons 0-9

and +10. CD play starts from the selected track and continues to the last track. Example: To select number 25, press +10, +10 and 5. To select number 10, press +10 and 0.

After listening, press POWER 6 STANDBY/ON to turn the power off.

NOTE

• Do not use irregular shape CDs (example: heartshaped, octagonal ones). It may result in malfunctions.

• Do not place more than one disc in the disc compartment.

• Do not try to open the disc compartment during play.

• Do not touch the lens. Doing so may cause

malfunctions.

• The unit may not play a CD-R/RW disc that is recorded on personal computers or some kinds of CD-R/RW recorders because of differences in recording platforms.

• Do not attach any seal or label to either side (the recordable side or the labeled side) of a CD-R/RW disc. It may cause malfunction.

• Do not load an unrecorded CD-R/RW disc. It will take over 30 seconds to read the disc. The disc may be damaged if you try to open the disc compartment while reading the disc.

8 ENGLISH

f, g

0-9, +10

REPEAT

e PLAY/PAUSE

s STOP

(CSD-FD89/79 only)

PROGRAMMED PLAY

Up to 30 tracks can be programmed from the disc.

In stop mode, hold down s STOP/SET/

CLEAR* until “M” flashes in the display.

The program number, “P-01” is also displayed.

* or s STOP on the remote control (CSD-FD89/79

only)

Press f or g to select a track, then

press s to store it.

Selected track number

Total playing time of the selected tracks

Pressing the numbered buttons 0-9 and +10 on the remote control selects and stores the track at the same time (CSD-FD89/79 only).

Repeat step 2 to program other tracks.

Hold down s to finish the program.

Total number and total playing time of the selected tracks are displayed.

Total playing time of the selected tracks

Total number of the selected tracks

Pressing e finishes the program and starts programmed play.

Next program number

To check the program, press f or g. To clear the program, press s once in stop mode so

that “M” disappears in the display. To change the programmed tracks, clear the program and repeat all the steps again.

NOTE

The total playing time of the selected tracks will be displayed as “ ”:

- When it exceeds “99:59”.

- When a track number 31 or higher is selected.

REPEAT, RANDOM PLAY

A single track or all tracks can be played repeatedly, and all the tracks randomly. Random play can be repeated as well. Press REPEAT/MODE/SLEEP* repeatedly. The mode changes as follows:

: Repeats a single track. Select a track with f

or g.

: Repeats all the tracks. RANDOM: Plays all the tracks randomly. RANDOM and : Plays all the tracks repeatedly in

random order. To cancel, press the button repeatedly so that and/

or RANDOM disappears.

* or REPEAT on the remote control (CSD-FD89/79

only)

NOTE

• During random play, you cannot skip back to the previous track with f.

• When selecting a track with the numbered buttons, random play is canceled.

• During programmed play, you cannot select RANDOM and .

ENGLISH 9

s STOP/SET/CLEAR

POWER 6STANDBY/

TAPE OPERATION

TAPE

w REC

REPEAT/MODE/ SLEEP

e PLAY/PAUSE

f, g

• Use Type I (normal) tapes only.

• The unit plays (records on) the side facing up.

PLAYBACK

Press TAPE.

The power is turned on.

Press PUSH EJECT to open the cassette

holder and insert a tape with the side to be played facing up and the exposed side facing forward.

PUSH EJECT

Press PUSH EJECT to close.

Press e PLAY/PAUSE to start

playback.

To set the tape counter to “0000”

Press s in stop mode. The counter is also set to “0000” when opening the cassette holder.

s STOP/SET/CLEAR* – Stops play.

* or s STOP on the remote control (CSD-FD89/79

only) e PLAY/PAUSE – Pauses play. During pause mode, the tape counter flashes. To resume play, press again. f/g – Rewinds/ fast forwards. To stop the winding, press s.

After listening, press POWER 6 STANDBY/ON to turn the power off.

Tape counter

RECORDING

Insert a tape with the side to be recorded

on facing up and the exposed side facing forward.

Get ready to record from the source.

To record from a CD, press CD and load the disc. To record from a radio broadcast, press

RADIO BAND and tune to a station.

Press w REC.

The unit enters recording pause mode and “REC” flashes slowly in the display.

Press e to start recording.

“REC” lights up in the display. When the selected function is CD, CD play and recording starts simultaneously.

To record only the selected tracks of a CD

1 Follow steps 1 to 4 of PROGRAMMED PLAY on

page 9 to program tracks.

2 Press w. 3 Press e.

To stop recording, press s. To pause recording (only when the source is RADIO),

press e. During recording pause mode, “REC” flashes slowly. To resume, press it again. To erase recording, press TAPE and start recording (press w then e). After recording, press POWER 6 STANDBY/ON to turn the power off.

10 ENGLISH

+ 22 hidden pages
