CSD-A220
HA, LH
CSD-A229
LH
SERVICE MANUAL
COMPACT DISC STEREO
RADIO CASSETTE RECORDER
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
(S/M Code No. 09-002-427-8T1).
BASIC TAPE MECHANISM : TN-21ZVC-2000
BASIC CD MECHANISM : DA11T3C
S/M Code No. 09-005-427-8R1
REVISION
DATA
Page 2

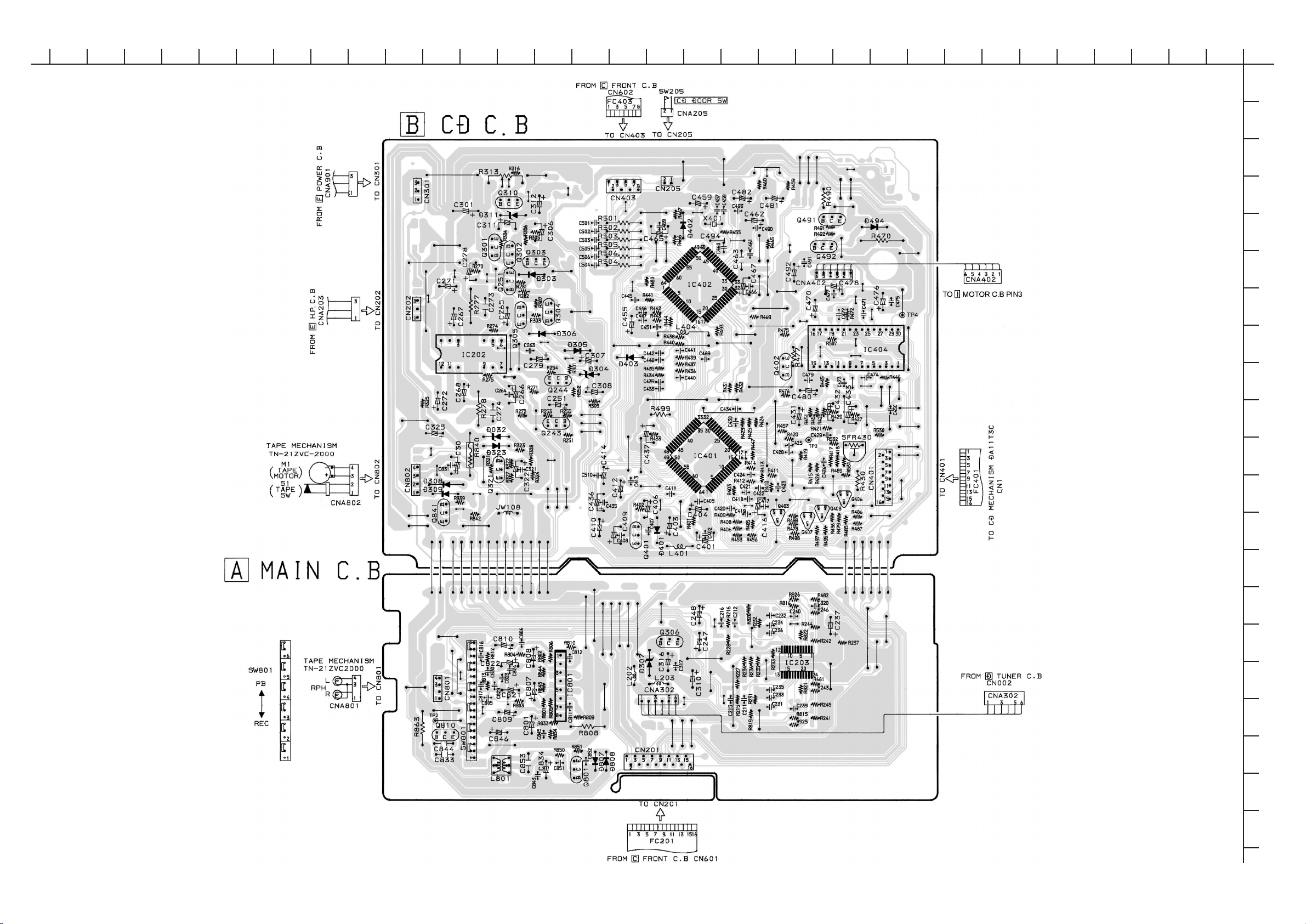

WIRING – 2 (FRONT / H.P. / POWER / BATT / VOLTAGE)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 11 –
R
S
T
U
Page 3

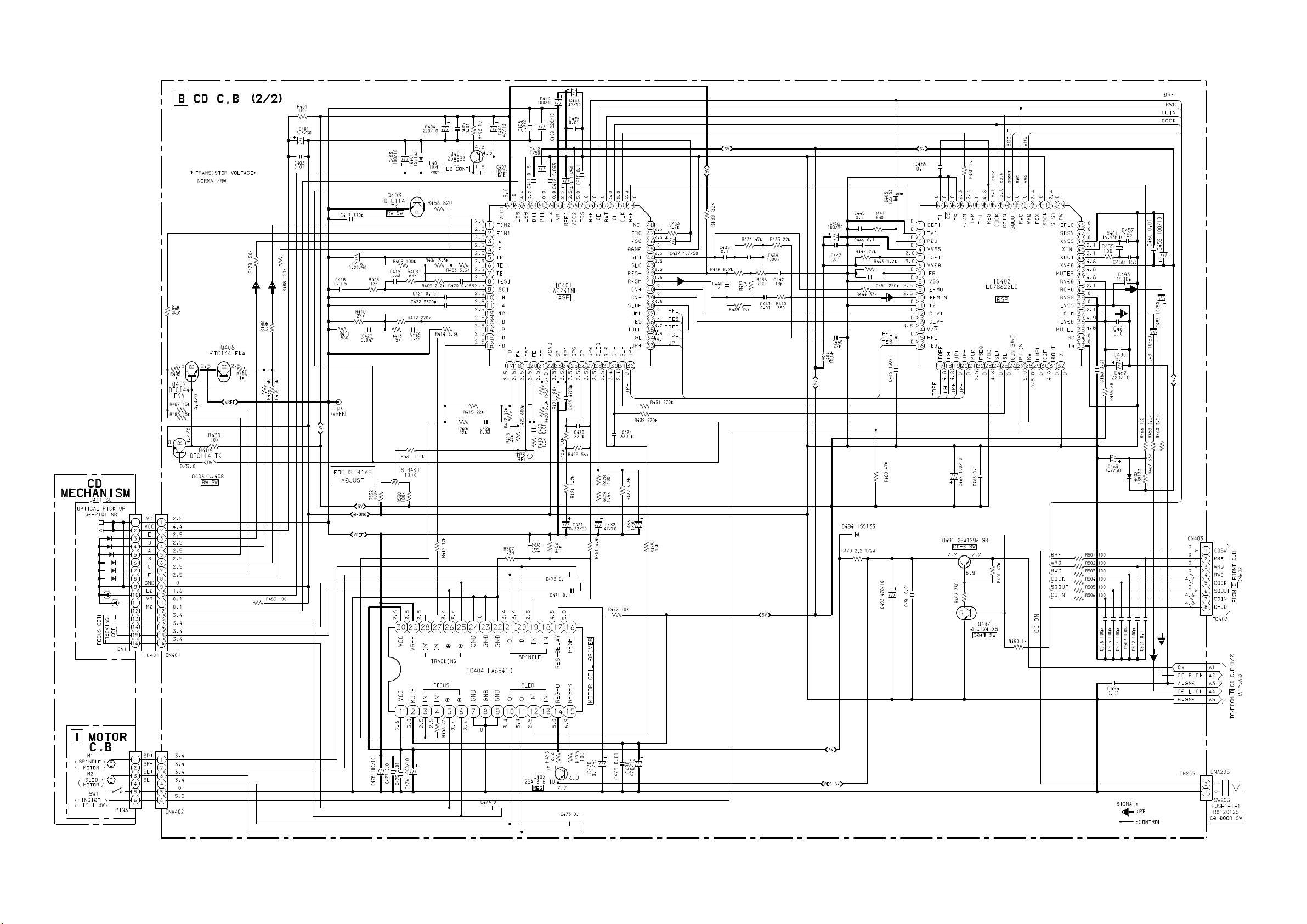

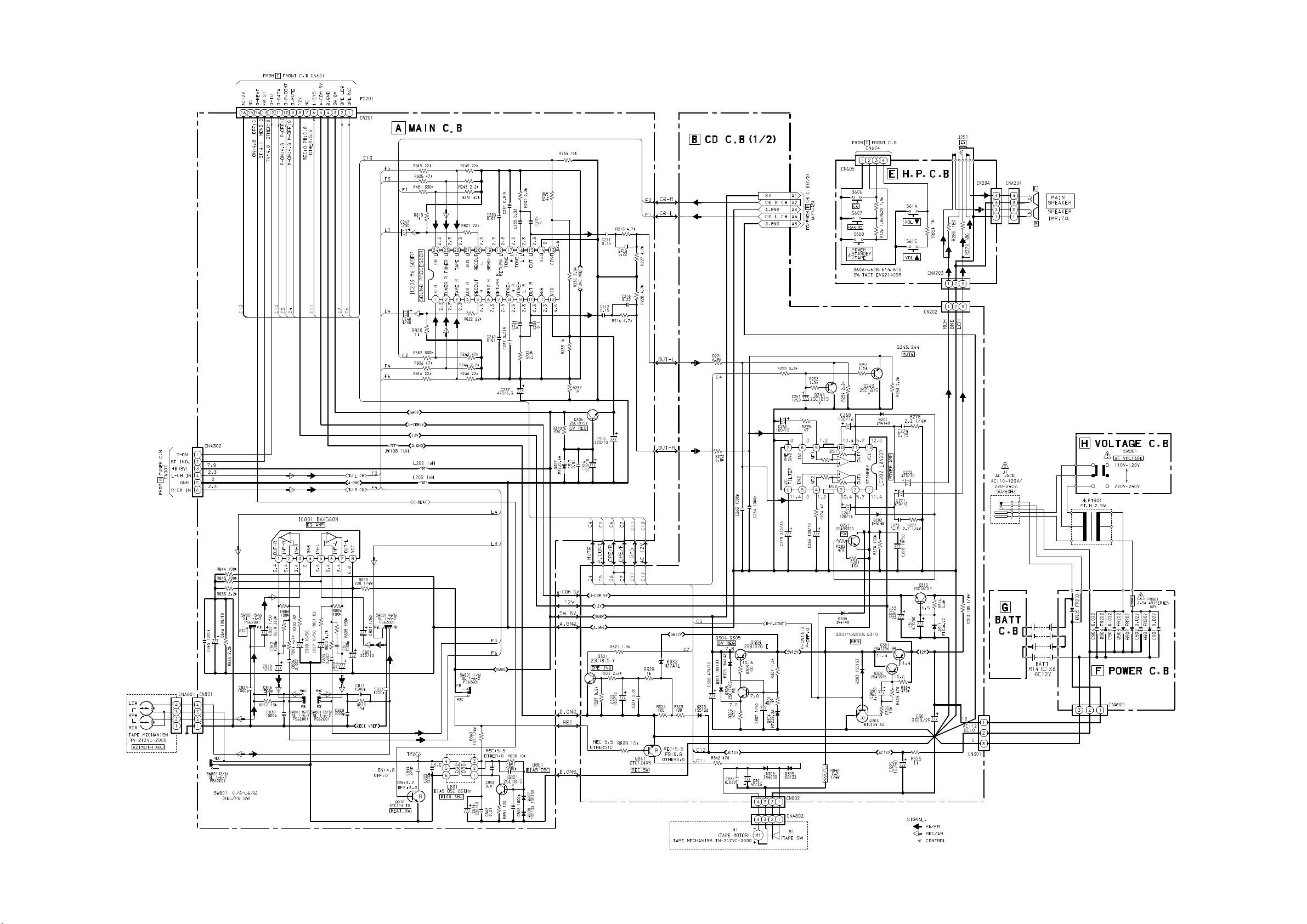

SCHEMATIC DIAGRAM – 3 (FRONT)
– 12 –
Page 4
WIRING – 3 (TUNER)
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 13 –
R
S
T
U
Page 5
SCHEMATIC DIAGRAM – 4 (TUNER)
– 14 –
Page 6
WIRING – 4 (MOTOR)
123456789101112131415
A
B
C
I MOTOR C.B
M2
+
(SLED MOTOR)
_
(INSIDE LIMIT SW)
SW1
PIN3
FROM B CD C.B CNA402
PICK UP ASSY
SF-P101NR
M2
SW1
(SPINDLE MOTOR)
_
M1
M1
D
E
F
G
H
+
I
J
K
L
16
M
N
CN1
O
P
1
Q
FC401
R
FROM B CD C.B CN401
S
T
U
– 15 –
Page 7
IC BLOCK DIAGRAM
– 16 –
Page 8
IC DESCRIPTION
IC, LC78622ED
Pin No. Pin Name I/O Description
1 DEFI I Defect detection signal (DEF) input.
2 TAI I Test input. A pull-down resistor is built in. Must be connected to 0V.
3 PDO O External VCO control phase comparator output.
4 VVSS – Internal VCO ground. Must be connected to 0V.
5 ISET O PDO output current adjustment resistor connection.
6 VVDD – Internal VCO power supply.
7 FR I VCO frequency range adjustment.
8 VSS – Digital system ground. Must be connected to 0V.
9 EFMO O Slice level control; EFM signal output.
10 EFMIN I Slice level control; EFM signal input.
11 T2 I Test input. A pull-down resistor is built in. Must be connected to 0V.
12 CLV+
O
13 CLV–
Disc motor control output.
Three-value ouput is also possible when specified by microprocessor command.
14 V/P O
15 HFL I Track detection signal input. This is a Schmitt input.
16 TES I Tracking error signal input. This is a Schmitt input.
17 TOFF O Tracking off output.
18 TGL O Tracking gain switching output. Increase the gain when low.
19 JP+
O
20 JP–
21 PCK O
22 FSEQ O signal detected from the EFM signal and the internally generated synchronization signal
23 VDD – Digital system power supply.
24 SL+
O Serial data command sled signal output terminal from microprocessor.
25 SL–
26 CONT3 – Not used.
27 PU IN I CD pickup inside limit switch.
Rough servo/phase control automatic switching monitor output. Outputs a high level
during rough servo and a low level during phase control.
Track jump output.
Three-value output is also possible when specified by microprocessor command.
EFM data playback clock monitor. Outputs 4.3218 MHz when the phase is locked.
(Not used)
Synchronization signal detection ouput. Outputs a high level when the synchronization
agree. (Not used)
28 RW O Serial data command sled output terminal from microprocessor.
29 EMPH O
30 C2F O C2 flag output. (Not used)
31 DOUT O Digital output (EIAJ format). (Not used)
32 T3
33 T4
34 NC – Unused. Must be left open.
35 MUTEL O Left channel one-bit D/A converter mute output. (Not used)
36 LVDD – Left channel one-bit D/A converter power supply.
37 LCHO O Left channel one-bit D/A converter output.
De-emphasis monitor pin. A high level indicates playback of a de-emphasis disk.
(Not used)
I Test input. A pull-down resistor is built in. Must be connected to 0V.
– 17 –
Page 9
Pin No. Pin Name I/O Description
38 LVSS – Left channel one-bit D/A converter ground. Must be connected to 0V.
39 RVSS – Right channel one-bit D/A converter ground. (Must be connected to 0V.)
40 RCHO O Right channel onr-bit D/A converter output.
41 RVDD – Right channel one-bit D/A converter power supply.
42 MUTER O Right channel one-bit D/A converter mute output. (Not used)
43 XVDD – Crystal oscillator power supply.
44 XOUT O
45 XIN I
46 XVSS – Crystal oscillator ground. (Must be connected to 0V.)
47 SBSY O Subcode clock synchronization signal output. (Not used)
48 EFLG O C1, C2, sigle an double error correction monitor. (Not used)
49 PW O Subcode P, Q, R, S, T, U and W output. (Not used)
50 SFSY O
51 SBCK I Subcode readout clock input. This is a Schmitt input.
52 FSX O Output pin for the 7.35 kHZ synchronization signal divided from the crystal oscillator. (Not used)
53 WRQ O Subcode Q output standby output.
54 RWC I Read/write control input. This is a Schmitt input.
55 SQOUT O Subcode Q output.
56 COIN I Command input pin from control microprocessor.
57 CQCK I
58 RES I Reset input. This pin must be set low briefly after power is first applied.
59 T11 O Test output. Leave open. (Normally output a low level). (Not used)
Connections for a 16.9344 MHz crystal oscillator element.
Subcode frame synchronization signal output. This signal falls when the subcode are
in standby state. (Not used)
Input for both the command input acquisition clock and the SQOUT pin subcode
readout clock input pin. This is Schmitt input.
60 16M O 16.9344 MHz output. (Not used)
61 4.2M O 4.2336 MHz output.
62 T5 I Test input. A pull-down resistor is built-in. (Must be connected to 0V.)
63 CS I
64 T1 I Test input. No pull-down resistor. (Must be connected to 0V.)
Chip seledt input. A pull-down resistor is built-in.
(Must be connected to 0V if not controlled.)
– 18 –
Page 10
IC, LA9241ML
Pin No.
1 FIN2 O
2 FIN1 O For the connection of the pickup photodiode.
3EO
4 F O For the connection of the pickup photodiode.
5 TB I Inputs the DC components in the TE signal.
6 TE– O
7 TE O TE signal output.
8 TESI I TES (track error sense) comparator input.The TE signal is passed through a BPF.
9 SCI I Shock detection input.
10 TH I Sets the time constant for the tracking gain.
11 TA O TA amp output.
12 TD– I Composes the tracking phase compensation constant between the TD and VR pins.
13 TD O Sets the tracking phase compensation.
14 JP I Sets the amplitude of the tracking jump signal (kick pulses).
Pin Name I/O
For the connection of the pickup photodiode. Addition to the FIN1 pin creates an RF
signal and subtraction from it create an EF signal.
For the connection of the pickup photodiode. Subtraction from the F pin creates a TE
signal.
For the connection of a resistor which sets the gain of the TE signal between this pin
and the TE pin.
Description
15 TO O Tracking control signal output.
16 FD O Focusing control signal output.
17 FD– I Composes the focusing phase compensation constant between the FD and FA pins.
18 FA O Composes the focusing phase compensation constant between the FD- and FA- pins.
19 FA– I Composes the focusing phase compensation constant between the FA and FE pins.
20 FE O FE signal output.
21 FE– I
22 AGND O Ground of analog signals.
23 SP O Single-ended output of the signals input to the CV+ and CV- pins.
24 SPI I Spindle amp input.
25 SPG I For the connection of a resistor which sets the gain in the spindle 12cm mode.
26 SP– I For the connection of the spindle phase compensation constant with the SPD pin.
27 SPD O Spindle control signal output.
28 SLEQ I For the connection of sled phase compensation constant.
29 SLD O Sled control signal output.
30 SL–
31 SL+
For the connection of a resistor which sets the gain of the FE signal between this pin
and the TE pin.
I Sled feed signal input from the microprocessor.
32 JP–
33 JP+
34 TGL I Tracking gain control signal input from the DSP. Low gain when TGL is "H".
35 TOFF I Tracking off control signal input from the DSP. Off when TOFF is "H".
36 TES O TES signal output to the DSP.
I Tracking signal input from the DSP.
– 19 –
Page 11
Pin No.
37 HFL O
38 SLOF I Sled servo off control input.
Pin Name
I/O Description
The HFL (high frequency level) signal is used to judge whether the main beam is positioned on
the pit or on the mirror.
39 CV–
40 CV+
41 RFSM O RF output.
42 RFS– O Sets the RF gain and the EFM signal's 3T compensation constant together with the RFSM pin.
43 SLC O
44 SL1 I Input to control the DSP's data slice level.
45 DGND – Ground of digital signals.
46 FSC O Output for the focus search smoothing capacitor.
47 TBC I The TBC (tracking balance control) signal sets the EF balance variation range.
48 NC – Not connected.
49 DEF O Disc defect detection output.
50 CLK I Reference clock input. 4.23 MHz is input from the DSP.
51 CL I Microprocessor command clock input.
52 DAT I Microprocessor command data input.
53 CE I Microprocessor chip enable input.
54 DRF O DRF (detect RF) is an output to detect the RF level.
55 FSS I
I CLV error signal input from the DSP.
The SLC (slice level control) signal is output to control the DSP's data slice level of the RF
waveform.
The FSS (focus search select) signal switches the focus search modes (+/-search / +search with
respect to the reference voltage).
56 VCC2 – VCC of servo and digital circuits.
57 REF1 – For the connection of bypass capacitor for the reference voltage.
58 VR O Reference voltage output.
59 LF2 – Sets the time constant for disc defect detection.
60 PHI – For the connection of a capacitor to hold the RF signal peak.
61 BHI – For the connection of a capacitor to hold the RF signal bottom.
62 LDD O APC circuit output.
63 LDS I APC circuit input.
64 VCC1 – VCC of RF signal circuits.
– 20 –
Page 12
IC, LC865516A-5L26
Pin No. Pin Name I/O Description
1
SEG E
O
SEG E control.
10
11
12
13
14
15
16
17
18
2
3
4
5
6
7
8
9
SEG F
SEG G
NC
I-RES
XT1 (IN)
NC
XT2 (OUT)
VSS
CF1 (IN)
CF2 (OUT)
VDD
I-KEY0
I-KEY1
I-MOTOR
I-CDSW
O-SHIFT
NC
O
SEG F control.
O
SEG G control.
–
Not connected.
I
Microprocessor reset input.
I
Connected to an external 32.768 kHz crystal oscillator.
–
Not connected.
O
Connected to an external 32.768 kHz crystal oscillator.
–
GND.
I
Connected to an external 5.76 MHz ceramic filter.
O
Connected to an external 5.76 MHz ceramic filter.
–
Microprocessor power supply (+5 V).
I
Key AD input. (AD)
I
Key AD input. (AD)
I
Deck status input. (AD)
I
CD door switch status input.
O
Main clock shift output.
–
Not connected.
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
O-BASS LED
O-QS CONT
O-SFT LED
I-DRF
I-WRQ
NC
I-REM
O-CD ON
O-TU ON
O-P.CONT
NC
O-BEAT
O-MUTE
O-DIGIT
O-SEG REPEAT
O-COIN
I-SQOUT
O
BASS LED ON/OFF control output. (Not used)
O
Q sound LED ON/OFF control output.
–
Not used.
I
CD RF level detection input.
I
CD subcode Q standby input.
–
Not connected.
I
Remote control input.
O
CD power control output.
O
TU power control output.
O
The main power supply control output.
–
Not connected.
O
Beat sw control output.
O
Main mute output.
O
7-segment LED power supply control output.
O
REPEAT LED ON/OFF control output.
O
CD command output.
I
CD subcode Q input.
36
37
38
39
40
41
O-CQCK
O-RWC
O-DATA
O-CD LED
O-TU LED
O-TA LED
O
CD command/CLK for subcode.
O
CD read/write control output.
O
Data output to M61509FP.
O
LED ON/OFF control output for the CD function.
O
LED ON/OFF control output for the TU function.
O
LED ON/OFF control output for the TA function. (Not used)
– 21 –
Page 13
Pin No. Pin Name I/O Description
42
43
44
45
46
47
48
NC
SEG DP
SEG A
SEG B
SEG C
SEG D
NC
–
O
O
O
O
O
–
Not connected.
SEG DP control.
SEG A control.
SEG B control.
SEG C control.
SEG D control.
Not connected.
– 22 –
Page 14
ADJUSTMENT <TUNER / DECK / CD>
D TUNER C.B
TP6 (RCH)
TP5 (LCH)
L009
4
6
1
~
6
IC001
L006
PVC001
1
TC003
TC004
2
5
L005
TC001
TC002
L004
L003
L007
3
L008
6
2

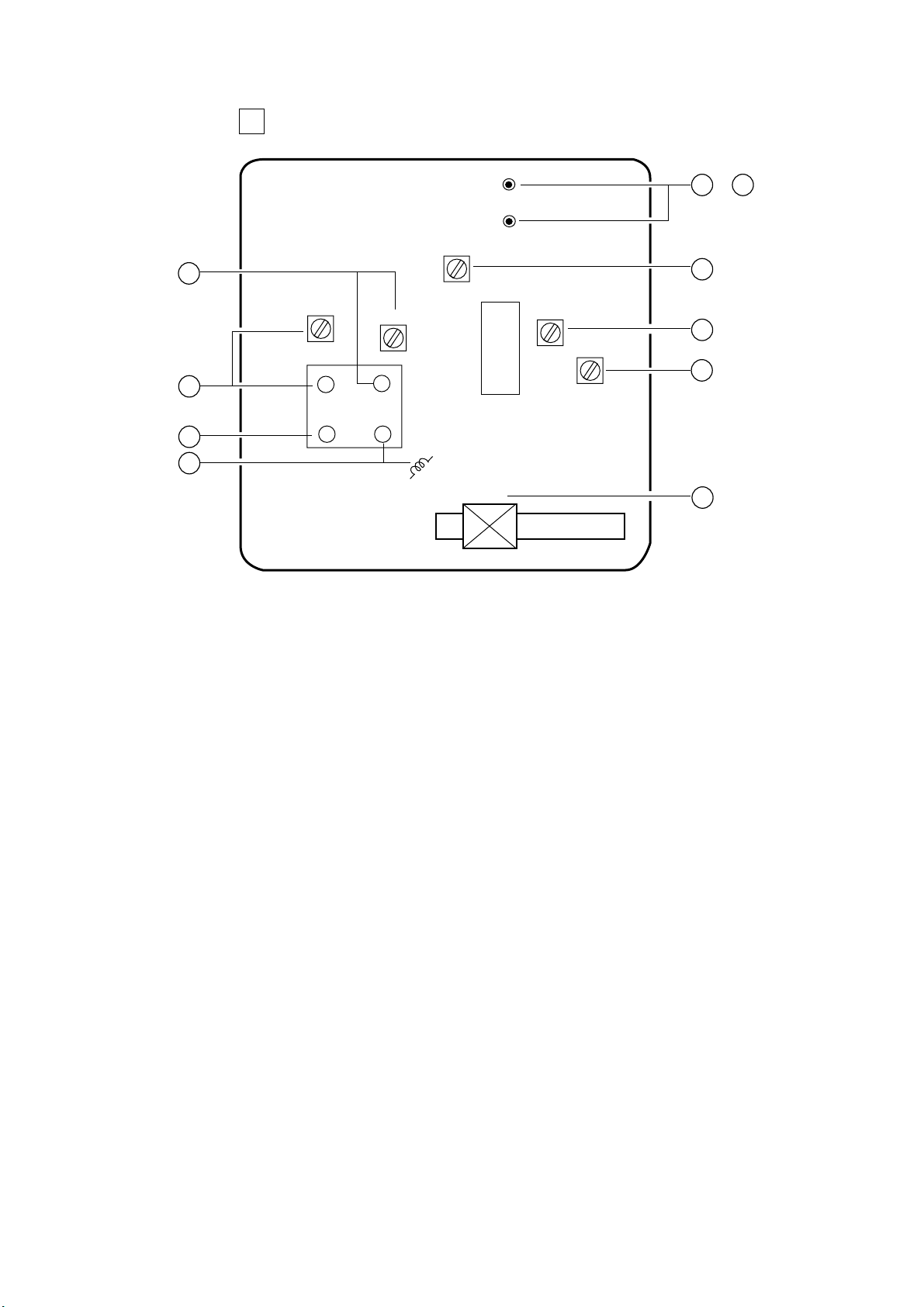

< RADIO SECTION >
1. AM Frequency Range Adjustment
• Test Point: TP5 (LCH), TP6 (RCH)
• Adjustment location: L006, TC003
• Method:
L006 ....................................................................... 517kHz
TC003 ................................................................... 1750kHz
2. AM Tracking Adjustment
• Test Point: TP5 (LCH), TP6 (RCH)
• Adjustment location: L003, TC004
• Method:
L003 ....................................................................... 600kHz
TC004 ................................................................... 1400kHz
3. AM IF Adjustment
• Test Point: TP5 (LCH), TP6 (RCH)
• Adjustment location: L007
• Method:
L007 ....................................................................... 455kHz
4. FM Frequency Range Adjustment
• Test Point: TP5 (LCH), TP6 (RCH)
• Adjustment location: L005, TC001
• Method:
L005 ........................................................................ 87MHz
TC001 .................................................................... 109MHz
5. FM Tracking Adjustment
• Test Point: TP5 (LCH), TP6 (RCH)
• Adjustment location: L004, TC002
• Method:
L004 ........................................................................ 88MHz
TC002 ....................................................................108MHz
6. FM IF Adjustment
• Test Point: TP5 (LCH), TP6 (RCH)
• Adjustment location: L008, L009
• Method:
L008, L009 ...........................................................10.7MHz
– 23 –
Page 15
B CD C.B
1
TP4
1
A MAIN C.B
IC404
SFR430
TP3
IC401
L801
TP2
2
3

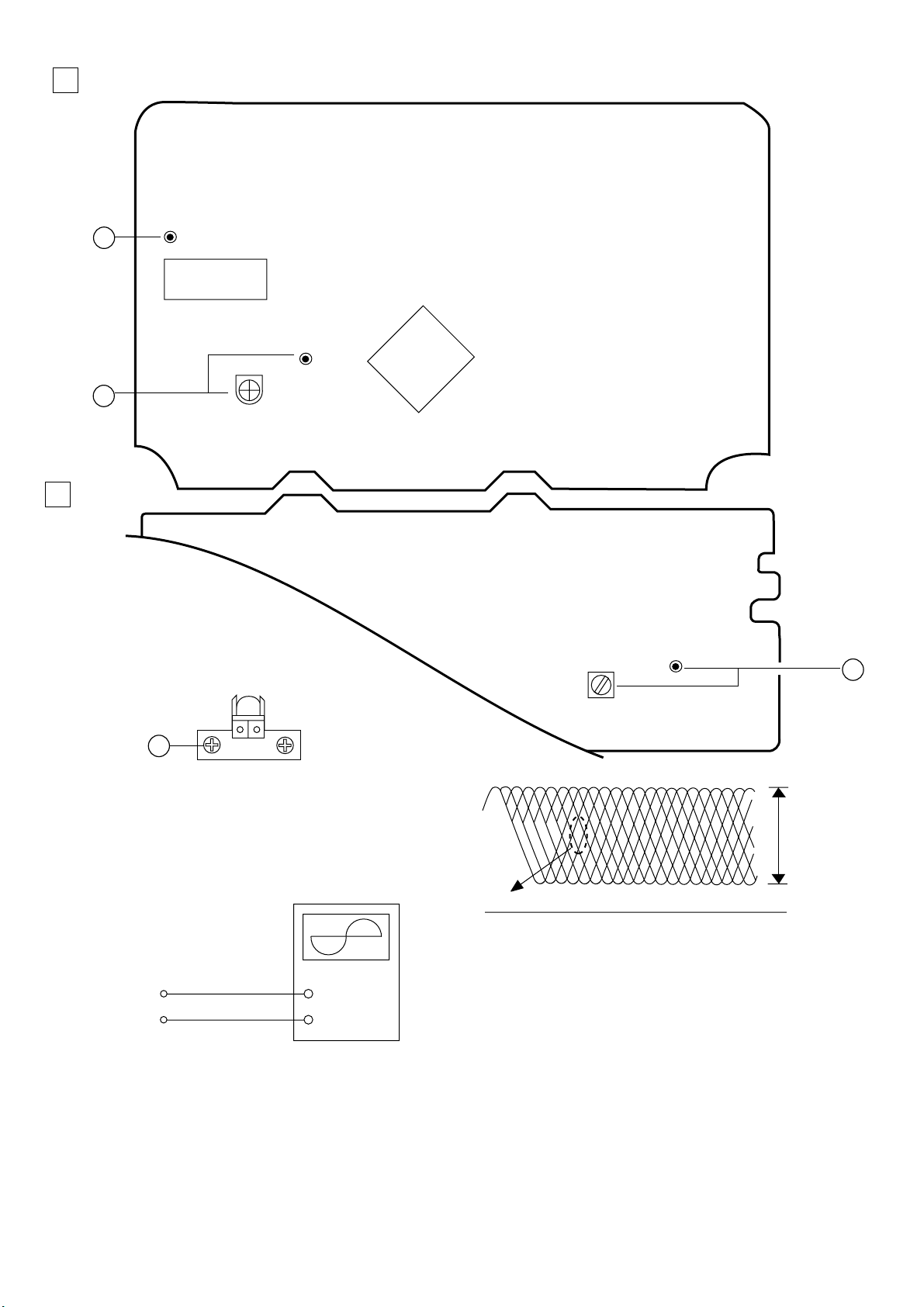

< CD SECTION >
1. Focus Bias Adjustment
Make the focus bias adjustment when replacing and repairing
the optical block.
Oscilloscope
(DC range)
TP3 (RF)
TP4 (VREF)
1) Connect an oscilloscope to the test point TP3 (RF) and TP4
(VREF).
2) Turn on the power switch.
3) Insert test disc TCD-782 (YEDS-18) and play back the second
composition.
4) Adjust SFR430 so that RF signal of the test point TP3 (RF) is
MAX and CLEAREST.
+
-
MAX
0V
EYE PATTERN
must be CLEAR and MAX
VOLT / DIV: 200mV
TIME / DIV: 0.5µs
< TAPE RECORDER SECTION >
2. Bias Adjustment
• Test tape: TTA-630
• Test Point: TP2
• Adjustment location: L801
• Method:
L801 .............................................................. 85kHz±2kHz
3. Azimuth Adjustment
Condition: • Test tape: TTA-320
• Test point: PHONE JACK
• Adjustment location:Azimuth adjustment screw
Method: Play back the test tape and adjust the screw so that the
output is maximum.
– 24 –
Page 16

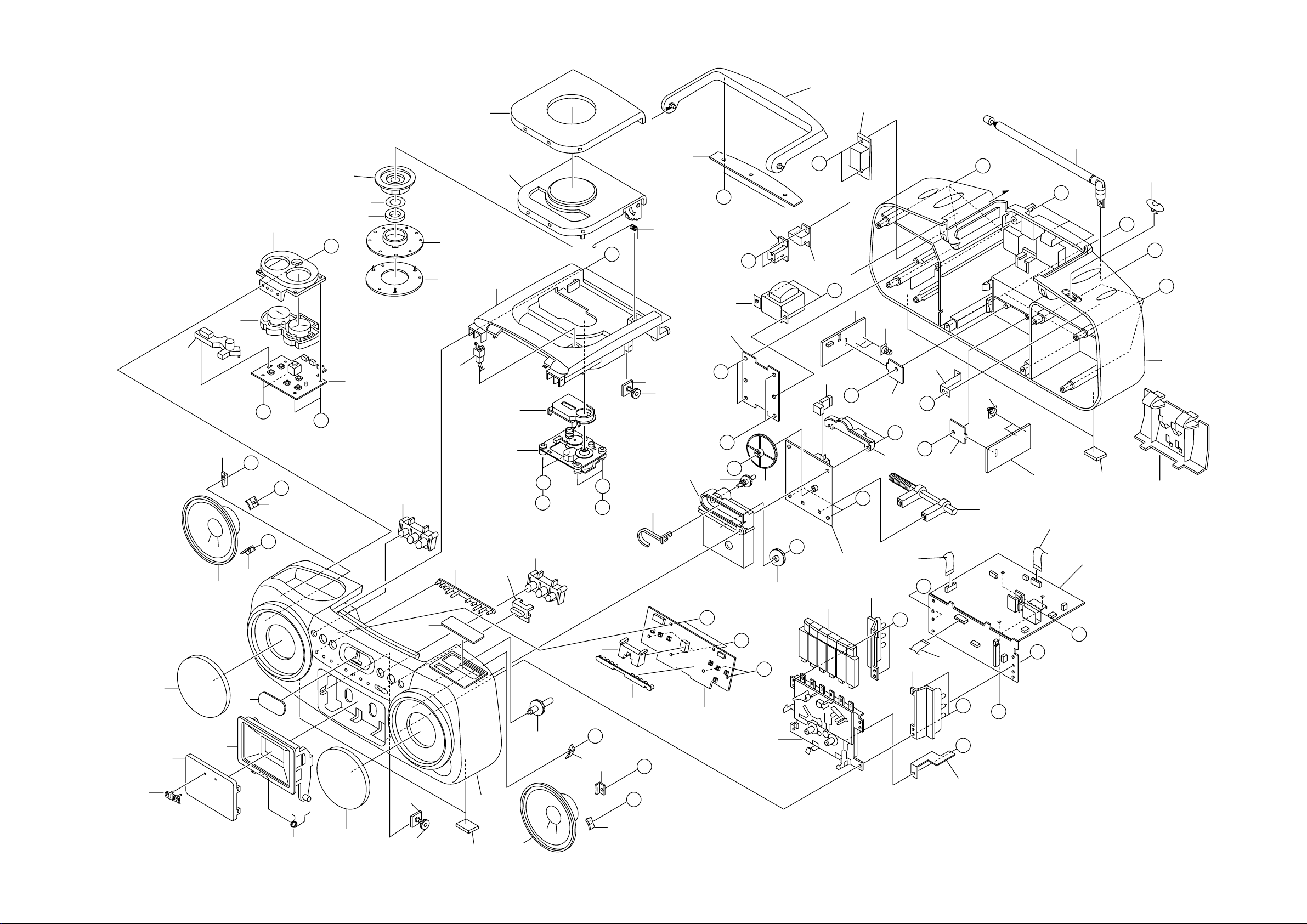

MECHANICAL EXPLODED VIEW 1 / 1
43
GRILLE,
FRONT L
17
F
P.C.B
60
P.C.B
B
J
51
50
P.C.B
38
45
A
J
49
B
J
B
P.C.B
58
B
B
57
52
50
P.C.B
57
20
B
B
B
55
P.C.B
E
46
A
H
A
47
48
26
44
25
24
19
18
B
B
10
C
C
10
C
10
9
5
23
C
P.C.B
14
22
21
30
13
12
27
29
DA11T3C
31
15
16
C
28
B
40
6
7
L
I
L
I
56
CHAS,TU
33
32
D
D
34
C
P.C.B
41
K
39
N
36
35
C
C
K
42
37
M
54
10
C
10
C
C
10
TN-21ZVC-2000
G
53
4
2
1
3
GRILLE,
FRONT R
6
7
7
55
11
9
– 25 –
Page 17
MECHANICAL PARTS LIST 1 / 1
PART NO.
1 87-B00-010-010 BADGE,AIWA 30.5-5.2 S 2.5L
2 8A-CD9-083-010 WINDOW,CASS-X
3 8A-CD9-232-010 SPR-T,CASS
4 8A-CD9-082-010 BOX,CASS-X
5 8A-CD9-033-010 WINDOW,LED
6 84-CD5-216-010 BRACKET
7 84-CD5-215-010 GEAR
8 8A-CD9-074-010 CABI,FR B1-2 ASSY
9 88-CD9-626-010 SPKR,100 7OHM 3W
10 8A-CD9-222-010 HLDR,SPEAKER
11 8A-CD9-026-010 KNOB,RTRY TU
12 8A-CD9-034-010 WINDOW,TU U
13 8A-CD9-022-010 LENS,LED
14 8A-CD9-015-010 BTN,CD A
15 8A-CD9-017-010 BTN,QSOUND
16 8A-CD9-016-010 BTN,CD B
17 8A-CD9-203-010 GUIDE,VOL
18 8A-CD9-014-010 BTN,VOL
19 8A-CD9-013-010 PANEL,VOL
20 8A-CD9-622-010 FF-CABLE, 8P CD-FR
21 8Z-CH4-212-010 RING,CHUCK
22 8Z-CH4-211-010 BASE,CHUCK
23 87-036-368-010 MAGNET
24 84-CD5-217-010 PLATE,MAGNET
25 8Z-CH4-225-010 HLDR,CHUCK A(S)
26 8A-CD9-081-010 WINDOW,CD-X
27 8A-CD9-078-010 BOX,CD LH<EXCEPT 229LH>
28 8A-CD9-231-010 SPR-T,CD
29 8A-CD9-005-010 CHAS,CD A
30 87-036-389-010 SW,PUSH LOCK
31 8Z-CDB-169-010 PANEL,CD SANYO
32 8A-CD9-202-010 GUIDE,LED
33 8A-CD9-023-010 POINTER,TU
34 8A-CD9-207-010 GEAR,TU B
35 8A-CD9-206-010 GEAR,TU A
36 8A-CD9-208-010 DRUM,TU
37 8A-CD9-209-010 LEVER,BAND A
38 8A-CD9-205-010 GUIDE,GEAR
39 8A-CH4-209-010 HLDR,PT
40 8A-CD9-608-010 PT,H 2.5W
!
NO.
DESCRIPTIONREF. NO. KANRI
PART NO.
41 8Z-CD5-634-010 COVER,AC SOCKET
42 87-A60-178-010 JACK,AC E W/SW
!
43 8A-CD9-012-010 HANDL,GRIP
44 8A-CD9-011-010 HANDL,ARM
45 8Z-CH4-640-010 ANT,ROD
46 8A-CD9-027-010 KNOB,SL BAND
47 8A-CD9-004-010 CABI,REAR B1
48 8A-CD9-010-010 LID,BATT
49 8A-CD9-221-010 HLDR,ANT
50 87-CD6-213-010 SPR-C,BATT (-)
51 8A-CD9-211-010 HLDR,PWB L
52 8A-CD9-212-010 HLDR,PWB R
53 8A-CD9-223-010 SPR-P,REC TN21
54 8A-CD9-024-010 KEY,CASS TN21
55 86-CT4-218-010 CUSHION,FOOT/PORON
56 8A-CD9-201-010 HLDR,DISPLAY
57 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN
58 8A-CD9-621-010 FF-CABLE, 16P CD-RF
59 8A-CD9-660-010 BAR,ANT MW 2B-ACO
60 87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700
!
A 87-B10-242-010 UT2+3-30 W/O CR
B 87-741-096-410 UT2+3-10
C 87-B10-239-010 QT2+3-8 W/O CR
D 87-661-097-410 TAPPING SCREW, VFT1+3-12
E 87-751-094-410 VT2+3-6 W10SL0T
F 87-067-566-010 TAPPING SCREW, VFTT+3-6
G 87-571-033-410 TAPPING SCREW, VIT+2-4
H 87-255-096-410 U+3-10 NI
I 87-342-074-010 UT2+2.6-8
J 87-B10-269-010 UT2+3-12 W/O CR
K 87-352-075-210 VT2+2.6-10
L 87-WA5-253-010 W,3.3-10-0.8
M 87-661-095-410 VFT1+3-8
N 87-251-073-410 SCREW,U+2.6-6
NO.
DESCRIPTIONREF. NO. KANRI
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
– 26 –
Page 18

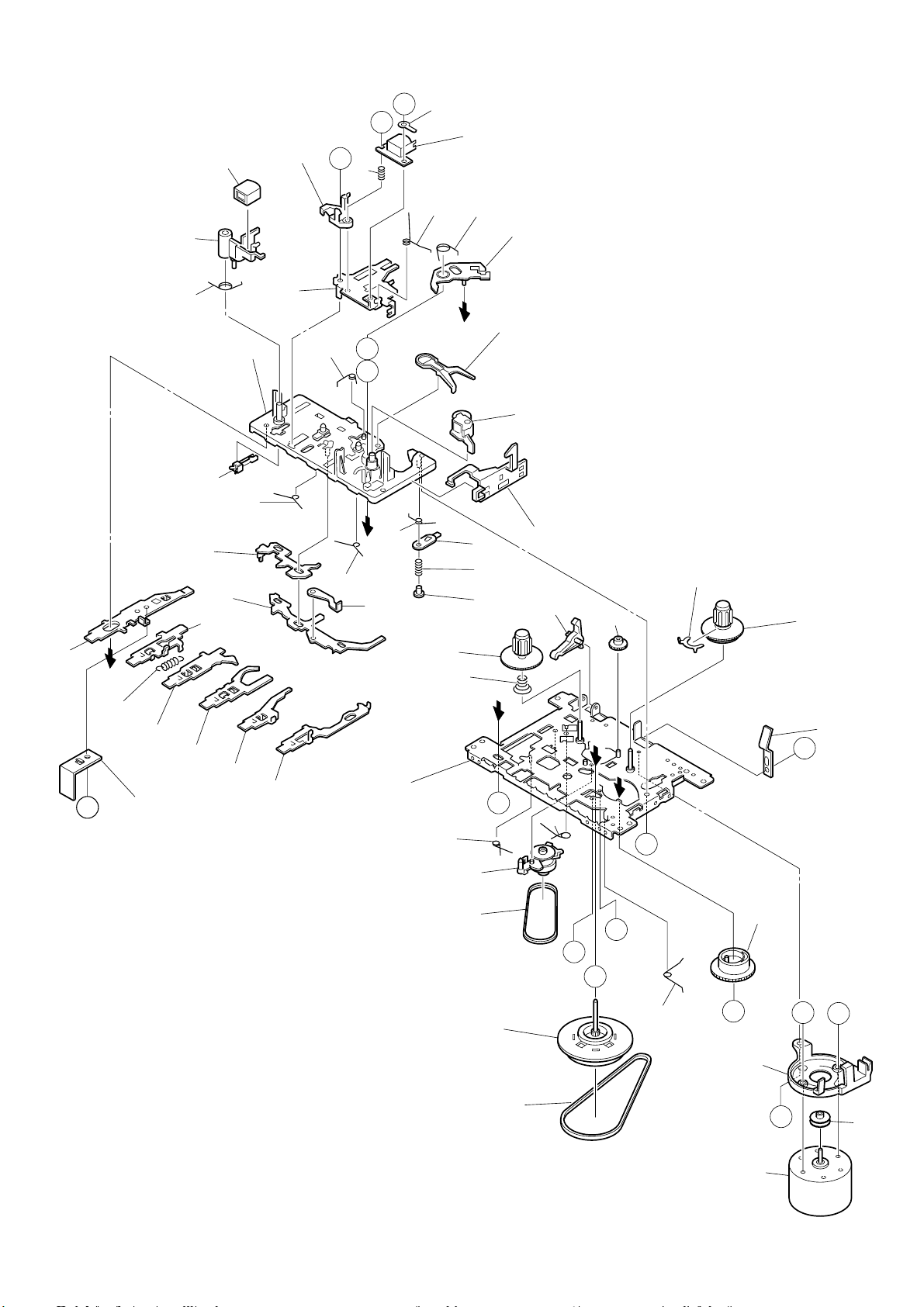

TAPE MECHANISM EXPLODED VIEW 1 / 1
F
G
1
46
47
E
2
LUG PLATE
52
4
3
5
36
25
21
20
22
23
24
c
51
26
27
28
A
6
8
11
a
10
18
J
L
b
19
14
12
15
16
17
34
35
7
37
13
31
49
c
C
48
30
b
a
C
32
33
A
9
29
38
39
– 27 –
42
43
D
D
K
41
40
I
50
45
B
B
H
44
Page 19
TAPE MECHANISM PARTS LIST 1 / 1
PART NO.
NO.
1 S1-921-030-4A0 HEAD BASE
2 S1-821-030-070 AZIMUTH SPRING
3 S1-921-030-090 PANEL P SPRING
4 S1-921-260-050 GEAR PLATE SPRING
5 S1-921-265-020 GEAR PLATE ASSY
6 S1-510-020-020 REC SPRING PLATE
7 S1-921-015-010 CHASSIS ASSY
8 S1-921-030-110 HEAD PANEL
9 S1-921-143-160 BASE ASSY
10 S1-921-141-8A0 M CONTROL SPRING
11 S1-921-260-4A0 SENSING LEVER
12 S1-921-043-100 PINCH ROLLER ARM ASSY
13 S1-921-130-010 EJECT SLIDE LEVER
14 S1-921-141-3A0 P CONTROL SPRING
15 S1-921-140-550 PAUSE LEVER(E)
16 S1-921-140-120 PAUSE LEVER SPRING
17 S1-921-140-110 PAUSE STOPPER
18 S1-921-140-150 BUTTON LEVER SPRING(B)
19 S1-821-011-590 E KICK LEVER
20 S1-921-141-070 BUTTON LEVER SPRING(A)
21 S6-401-011-490 LEAF SW MSW-1541T
22 S1-921-140-090 SWITCH ACTUATOR
23 S1-921-140-080 PUSH BUTTON ACTUATOR
24 S1-921-140-190 PLAY BUTTON LEVER
25 S1-921-030-100 MG ARM SPRING
26 S1-921-140-040 REW BUTTON LEVER
27 S1-921-140-050 FF,BUTTON REVER
28 S1-921-140-060 STOP BUTTON LEVER
29 S1-921-140-600 PAUSE BUTTON LEVER
30 S1-821-100-700 FF GEAR
31 S1-921-050-060 SENSER
32 S1-921-053-100 TAKE UP REEL ASSY
33 S1-829-100-010 PACK SPRING
34 S1-921-050-150 S REEL HUB
35 S1-921-050-220 BACK TENSION SPRING
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
36 S1-921-140-030 REC BUTTON LEVER
37 S1-921-140-170 P.S.LEVER SPRING
38 S1-921-073-040 RF CLUTCH ASSY
39 S1-921-070-030 RF BELT
40 S1-921-260-020 CAM GEAR
41 S1-921-140-160 E ACTUATOR SPRING
42 S1-921-093-210 FLYWHEEL ASSY
43 S1-921-090-380 MAIN BELT
44 S1-921-120-590 MOTOR PULLEY
45 S6-002-030-220 MOTOR EG530AD-2B
46 S6-209-100-100 E HEAD PH-K380-MS1
47 S1-921-030-050 MG ARM
48 S1-921-140-210 REC BUTTON LEVER SPRING
49 S1-821-100-690 RECORD SAFETY LEVER
50 S1-821-128-9A0 MOTOR BRACKET
51 S1-821-010-500 PLAY BUTTON LEVER SPRING
52 S6-201-011-110 HEAD,RP7442ES-0951
A S9-P04-200-310 C TAPPING SCREW 2-3
B S1-921-120-020 MOTOR COLLER SCREW
C S9-B10-200-510 P TAPPING BIND SCREW M2-5
D S9-C07-204-510 SCREW,TAPPING(CAMERA)M2-4.5
E S9-P01-200-610 SCREW,M2-6
F S9-B01-200-310 (+)BIND SCREW M2-3
G S9-F08-200-710 AZIMUTH SCREW M2-7
H S1-921-120-030 MB SCREW
I S9-W02-300-100 P WASHER CUT 1.2-3.8-0.3
J S9-W02-500-100 P WASHER CUT 1.45-3.8-0.5
K S9-W01-400-100 P WASHER 2-3.5-0.4
L S9-W01-130-200 P WASHER 2.1-4-0.13
DESCRIPTIONREF. NO. KANRI
– 28 –
Page 20

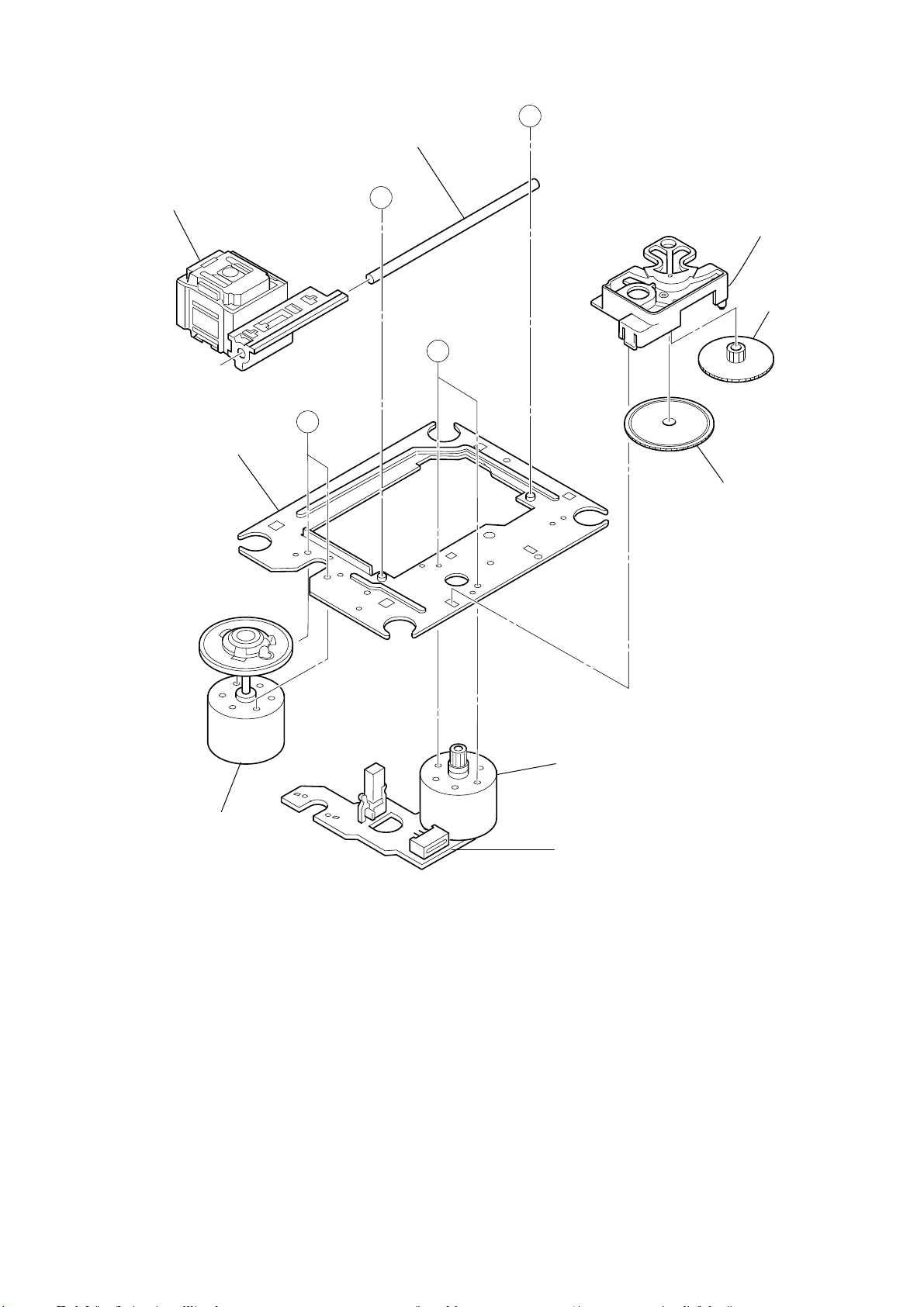

CD MECHANISM EXPLODED VIEW 1 / 1
SF-P101NR
CHASSIS
SHAFT,SLIDE
B
B
1
2
A
A
3
SPINDLE
MOTOR(M1)
SLED MOTOR
(M2)
MOTOR C.B
– 29 –
Page 21
CD MECHANISM PARTS LIST 1 / 1
PART NO.
NO.
1 S2-121-A28-400 COVER GEAR
2 S2-511-A21-000 GEAR MIDDLE
3 S2-511-A21-100 GEAR,DRIVE
A S1-PN2-03R-OSE SCR PAN PCS 2-3
B 87-261-073-410 SCR S-TPG FLT 2.6-6
ALL M8-ZZK-E90-070 DA11T3C
DESCRIPTIONREF. NO. KANRI
– 30 –
Page 22
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore9820543 0251431
Page 23
SPECIFICATIONS
Tuner section
Frequency range
FM : 87.5 MHz - 108.0 MHz
Antenna : Rod antenna
AM : 530 kHz - 1,710 kHz
Antenna : Ferrite bar antenna
Deck section
Track format 4 tracks, 2 channels
Frequency range Normal tape : 50 Hz - 12,500 Hz (EIAJ)
Recording system AC bias
Erasing system Magnet erase
Heads Recording/Playback head x 1/
Erasure head x 1
CD player section
Disc Compact disc
Scanning methodd Non-contact optical scanner
(semiconductor laser)
General
Speaker 100 mm cone type (2)
Output Headphones jack (stereo mini-jack)
Power output 2.5 W + 2.5 W (EIAJ 7 ohms, THD 10%)
1.9 W + 1.9 W (DIN 1% Rated Power)
Power requirements DC 12 V using eight size C (R14) batteries,
AC 110 - 120 V/220 - 240 V
switchable, 50/60 Hz
Power consumption 16 W
Dimensions (W x H x D) 445 x 277 x 184 mm
Weight 3.7 kg (excluding batteries)
• Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
PART NO.
1 8A-CD9-902-010 IB,LH(ESP)B<220LH,220HA>
1 8A-CD9-940-010 IB,B-KIT<229LH>
!
2 87-A80-036-010 AC CORD SET ASSY,E W/FLTR VOL
!
3 87-A91-017-010 PLUG,CONVERSION JT-0476<220HA>
NO.
DESCRIPTIONREF. NO. KANRI
– 2 –
Page 24
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
Solder
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
s Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
s Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Precaution to replace Optical block
(SF-P101NR)
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
1) After the connection, remove solder shown in
the right figure.
PICK-UP Assy P.C.B
– 3 –
Page 25
ELECTRICAL MAIN PARTS LIST
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
IC
87-A20-955-010 IC,LA1828
87-A21-064-010 IC,LA4227
87-A21-520-040 C-IC,M61509FP
87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED
87-A21-093-010 IC,LA6541D
8A-CD9-610-010 C-IC,LC865516A-5L26
87-A21-431-010 IC,BA4560N
TRANSISTOR
89-327-143-080 TR,2SC2714(O)(0.1W)
87-026-463-080 TR,2SA933SS(0.3W)
87-026-213-080 CHIP-TR,DTC114YK
89-112-965-080 TR,2SA1296GR(0.75W)
87-026-291-080 TR,DTC124XS
89-213-702-080 TR,2SB1370E
89-318-154-080 TR,2SC1815Y(0.4W)
89-113-187-080 TR,2SA1318TU
87-026-239-080 C-TR,DTC114TK
87-026-210-080 C-TR,DTC144EK
87-026-215-010 TR,DTC114YS
89-317-403-080 TR,2SC1740SS
87-026-464-080 TR,DTC114TS (0.3W)
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-027-703-080 ZENER,HZ7A1L
87-070-345-080 DIODE,1N4148
87-A40-648-080 ZENER,MTZJ8.2A
87-A40-234-080 ZENER,MTZJ5.6A
87-017-978-080 DIODE,1N4003
87-027-702-080 DIODE,ZENER MTZJ6.2C
87-A40-465-010 DIODE,FR202
MAIN C.B
C211 87-A11-693-080 C-CAP,0.15-25V
C212 87-A11-693-080 C-CAP,0.15-25V
C215 87-016-460-080 C-CAP,S 0.22-16 B
C216 87-016-460-080 C-CAP,S 0.22-16 B
C231 87-010-213-080 C-CAP,S 0.015-50 B
C232 87-010-213-080 C-CAP,S 0.015-50 B
C233 87-A10-201-080 C-CAP,S0.33-16 KB
C234 87-A10-201-080 C-CAP,S0.33-16 KB
C235 87-016-669-080 C-CAP,S 0.1-25 K B
C236 87-016-669-080 C-CAP,S 0.1-25 K B
C237 87-010-371-080 CAP, E 470-6.3 M SME
C239 87-010-197-080 CAP, CHIP 0.01 DM
C240 87-010-197-080 CAP, CHIP 0.01 DM
C247 87-010-401-080 CAP, ELECT 1-50V
C248 87-010-401-080 CAP, ELECT 1-50V
C310 87-010-248-080 CAP, ELECT 220-10V
C316 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-197-080 CAP, CHIP 0.01 DM
C801 87-010-248-080 CAP, ELECT 220-10V
C805 87-012-365-080 C-CAP,S 0.027-25VBK
C806 87-012-365-080 C-CAP,S 0.027-25VBK
C807 87-010-405-080 CAP, ELECT 10-50V
C808 87-010-405-080 CAP, ELECT 10-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-401-080 CAP, ELECT 1-50V
C811 87-010-178-080 CHIP CAP 1000P
C812 87-010-178-080 CHIP CAP 1000P
C816 87-010-180-080 C-CER 1500P
C817 87-010-180-080 C-CER 1500P
C821 87-010-401-080 CAP, ELECT 1-50V
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
C822 87-010-401-080 CAP, ELECT 1-50V
C823 87-010-178-080 CHIP CAP 1000P
C824 87-010-178-080 CHIP CAP 1000P
C829 87-010-178-080 CHIP CAP 1000P
C830 87-010-178-080 CHIP CAP 1000P
C834 87-010-248-080 CAP, ELECT 220-10V
C843 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-018-124-080 CAP, CER 270P-50V
C845 87-010-178-080 CHIP CAP 1000P
C846 87-010-263-080 CAP, ELECT 100-10V
C851 87-010-186-080 CAP,CHIP 4700P
C852 87-010-178-080 CHIP CAP 1000P
C853 87-018-211-080 CAP,TC U 0.01-50 Z F SA<229>
C853 87-A11-145-080 CAP,TC U 0.01-50 Z F<220>
CN201 87-099-018-010 CONN,16P
CN801 87-A60-110-010 CONN,4P V S2M-4W
CNA302 8A-CD9-629-010 CONN ASSY,6P MA-TU
FC201 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN
JW108 87-003-097-080 COIL,1.0UH K LAL02
JW132 87-003-097-080 COIL,1.0UH K LAL02
JW133 87-003-097-080 COIL,1.0UH K LAL02
L801 87-007-342-010 COIL,OSC 85K BIAS
SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01
CD C.B
C30 87-010-260-080 CAP, ELECT 47-25V
C251 87-010-401-080 CAP, ELECT 1-50V
C263 87-010-178-080 CHIP CAP 1000P
C264 87-010-178-080 CHIP CAP 1000P
C265 87-010-263-080 CAP, ELECT 100-10V
C266 87-010-263-080 CAP, ELECT 100-10V
C267 87-010-112-080 CAP, ELECT 100-16V
C268 87-010-112-080 CAP, ELECT 100-16V
C271 87-010-221-080 CAP, ELECT 470-10V
C272 87-010-221-080 CAP, ELECT 470-10V
C278 87-010-405-080 CAP, ELECT 10-50V
C279 87-010-385-080 CAP, ELECT 220-25V
C301 87-016-495-000 CAP,E 3300-25 M SMG
C306 87-010-404-080 CAP, ELECT 4.7-50V
C307 87-010-401-080 CAP, ELECT 1-50V
C308 87-010-221-080 CAP, ELECT 470-10V
C311 87-010-404-080 CAP, ELECT 4.7-50V
C312 87-010-385-080 CAP, ELECT 220-25V
C321 87-010-197-080 CAP, CHIP 0.01 DM
C322 87-010-263-080 CAP, ELECT 100-10V
C325 87-010-405-080 CAP, ELECT 10-50V
C401 87-010-403-080 CAP, ELECT 3.3-50V
C402 87-010-197-080 CAP, CHIP 0.01 DM
C403 87-010-263-080 CAP, ELECT 100-10V
C404 87-010-248-080 CAP, ELECT 220-10V
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-374-080 CAP, ELECT 47-10V
C407 87-010-178-080 CHIP CAP 1000P
C408 87-010-198-080 CAP, CHIP 0.022
C409 87-010-248-080 CAP, ELECT 220-10V
C410 87-010-263-080 CAP, ELECT 100-10V
C411 87-A11-177-080 C-CAP,S 0.15-16 K B
C412 87-010-401-080 CAP, ELECT 1-50V
C413 87-016-369-080 C-CAP,S 0.033-25 B K
C414 87-010-405-080 CAP, ELECT 10-50V
C416 87-010-545-080 CAP, ELECT 0.22-50V
C417 87-012-157-080 C-CAP,S 330P-50 CH
C418 87-010-213-080 C-CAP,S 0.015-50 B
C419 87-A11-608-080 C-CAP,S 0.33-25 K B
C420 87-016-369-080 C-CAP,S 0.033-25 B K
C421 87-A11-177-080 C-CAP,S 0.15-16 K B
C422 87-010-184-080 CHIP CAPACITOR 3300P(K)
C423 87-010-992-080 C-CAP,S 0.047-25 B
C424 87-016-460-080 C-CAP,S 0.22-16 B
– 4 –
Page 26
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
C425 87-010-176-080 C-CAP,S 680P-50 SL
C426 87-A11-608-080 C-CAP,S 0.33-25 K B
C428 87-010-197-080 CAP, CHIP 0.01 DM
C429 87-010-186-080 CAP,CHIP 4700P
C430 87-012-156-080 C-CAP,S 220P-50 CH
C431 87-010-545-080 CAP, ELECT 0.22-50V
C432 87-010-374-080 CAP, ELECT 47-10V
C433 87-010-401-080 CAP, ELECT 1-50V
C434 87-010-184-080 CHIP CAPACITOR 3300P(K)
C435 87-010-197-080 CAP, CHIP 0.01 DM
C436 87-010-374-080 CAP, ELECT 47-10V
C437 87-010-404-080 CAP, ELECT 4.7-50V
C438 87-012-368-080 C-CAP,S 0.1-50 F
C439 87-010-178-080 CHIP CAP 1000P
C440 87-010-145-080 C-CAP,S 1P-50 C CH GRM
C441 87-010-197-080 CAP, CHIP 0.01 DM
C442 87-010-313-080 CAP, CHIP 18P
C445 87-012-368-080 C-CAP,S 0.1-50 F
C446 87-012-368-080 C-CAP,S 0.1-50 F
C447 87-012-368-080 C-CAP,S 0.1-50 F
C448 87-010-315-080 C-CAP,S 27P-50 CH
C450 87-012-140-080 CAP 470P
C451 87-012-156-080 C-CAP,S 220P-50 CH
C455 87-010-247-080 CAP, ELECT 100-50V
C457 87-010-312-080 C-CAP,S 15P-50 CH
C458 87-010-312-080 C-CAP,S 15P-50 CH
C459 87-010-263-080 CAP, ELECT 100-10V
C460 87-015-819-080 CAPACITOR,0.01
C461 87-010-197-080 CAP, CHIP 0.01 DM
C462 87-010-248-080 CAP, ELECT 220-10V
C463 87-010-197-080 CAP, CHIP 0.01 DM
C465 87-010-404-080 CAP, ELECT 4.7-50V
C466 87-012-368-080 C-CAP,S 0.1-50 F
C467 87-010-263-080 CAP, ELECT 100-10V
C469 87-012-154-080 C-CAP,S 150P-50 CH
C470 87-010-544-080 CAP, ELECT 0.1-50V
C471 87-012-368-080 C-CAP,S 0.1-50 F
C472 87-012-368-080 C-CAP,S 0.1-50 F
C473 87-012-368-080 C-CAP,S 0.1-50 F
C474 87-012-368-080 C-CAP,S 0.1-50 F
C475 87-010-197-080 CAP, CHIP 0.01 DM
C476 87-010-236-080 CAP,E 1000-10 SME
C477 87-010-197-080 CAP, CHIP 0.01 DM
C478 87-010-263-080 CAP, ELECT 100-10V
C479 87-010-197-080 CAP, CHIP 0.01 DM
C480 87-010-221-080 CAP, ELECT 470-10V
C481 87-010-405-080 CAP, ELECT 10-50V
C482 87-010-405-080 CAP, ELECT 10-50V
C489 87-012-368-080 C-CAP,S 0.1-50 F
C490 87-012-368-080 C-CAP,S 0.1-50 F
C491 87-010-197-080 CAP, CHIP 0.01 DM
C492 87-010-221-080 CAP, ELECT 470-10V
C493 87-010-180-080 C-CAP,S 1500P-50 K B
C494 87-010-197-080 CAP, CHIP 0.01 DM
C501 87-012-368-080 C-CAP,S 0.1-50 F
C502 87-010-322-080 C-CAP,S 100P-50 CH
C503 87-010-322-080 C-CAP,S 100P-50 CH
C504 87-010-322-080 C-CAP,S 100P-50 CH
C505 87-010-322-080 C-CAP,S 100P-50 CH
C506 87-010-322-080 C-CAP,S 100P-50 CH
C510 87-016-669-080 C-CAP,S 0.1-25 K B
C831 87-010-198-080 CAP, CHIP 0.022
CN202 8A-CH4-689-010 CONN,3P V 2.5
CN205 87-A60-109-010 CONN,2P V S2M-2W
CN301 8A-CH4-689-010 CONN,3P V 2.5
CN401 87-A60-424-010 CONN,16P V TOC-B
CN403 87-099-201-010 CONN,8P 6216 H
CN802 8A-CH4-687-010 CONN,4P V 2.5
CNA402 8A-CD9-625-010 CONN ASSY,6P CD-ME
FC401 8A-CD9-621-010 FF-CABLE, 16P CD-RF
DESCRIPTIONREF. NO. KANRI
PART NO.
NO.
FC403 8A-CD9-622-010 FF-CABLE, 8P CD-FR
L401 87-003-102-080 COIL, 10UH
L404 87-003-152-080 COIL, 100UH
R840 87-029-124-010 RES,FUSE 2.2-1/4
SFR430 87-024-437-080 SFR100K,RH063EC
X401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2
FRONT C.B
C601 87-010-313-080 CAP, CHIP 18P
C602 87-010-315-080 C-CAP,S 27P-50 CH
C603 87-010-319-080 C-CAP,S 56P-50 CH
C604 87-010-317-010 CHIP CAP,S 39P CH
C605 87-010-264-040 CAP,E 100-10 5L
C606 87-010-805-080 CAP, S 1-16
C607 87-010-452-080 C-CAP, 1-16 Z F GRM42-6
C608 87-010-401-080 CAP, ELECT 1-50V
C609 87-010-400-080 CAP, ELECT 0.47-50V
C611 87-A10-189-040 CAP,E 220-10
C612 87-010-405-080 CAP, ELECT 10-50V
C613 87-012-368-080 C-CAP,S 0.1-50 F
C614 87-010-312-080 C-CAP,S 15P-50 CH
C615 87-010-805-080 CAP, S 1-16
C616 87-010-805-080 CAP, S 1-16
C619 87-010-401-080 CAP, ELECT 1-50V
CN601 87-099-033-010 16P 6216 H
CN602 87-099-201-010 CONN,8P 6216 H
CN604 8A-CD9-623-010 CONN ASSY,4P KEY
L603 87-003-098-080 COIL,2.2UH
L604 87-003-098-080 COIL,2.2UH
L606 87-003-098-080 COIL,2.2UH
L607 87-003-098-080 COIL,2.2UH
L608 87-003-098-080 COIL,2.2UH
L609 87-003-098-080 COIL,2.2UH
LED602 88-CD6-630-010 LED,934ID RED
LED606 88-CD6-630-010 LED,934ID RED
LED607 88-CD6-630-010 LED,934ID RED
LED608 88-CD6-630-010 LED,934ID RED
LED610 88-CD6-631-010 LED,934GD GRN
LED611 87-CD8-616-010 LED,SA36-11 HWA-11.0
S601 87-A91-704-080 SW,TACT EVQ 214 05R
S602 87-A91-704-080 SW,TACT EVQ 214 05R
S603 87-A91-704-080 SW,TACT EVQ 214 05R
S604 87-A91-704-080 SW,TACT EVQ 214 05R
S605 87-A91-704-080 SW,TACT EVQ 214 05R
S609 87-A91-704-080 SW,TACT EVQ 214 05R
S611 87-A91-704-080 SW,TACT EVQ 214 05R
X601 87-030-273-010 VIB,XTAL 32.768K5PPM
X602 87-030-376-080 VIB,CER CSA5.76MG200
TUNER C.B
C1 87-010-312-080 C-CAP,S 15P-50V
C2 87-010-316-080 C-CAP,S 33P-50 CH
C3 87-010-312-080 C-CAP,S 15P-50V
C4 87-010-148-080 C-CAP,S 4P-50 C CH GRM
C5 87-010-378-080 CAP, ELECT 10-16V
C7 87-012-156-080 C-CAP,S 220P-50 J CH GRM
C8 87-010-197-080 CAP, CHIP 0.01 DM
C9 87-010-311-080 CAP 12P
C10 87-010-197-080 CAP, CHIP 0.01 DM
C11 87-010-152-080 C-CAP,S 8P-50 CH
C12 87-010-314-080 C-CAP,S 22P-50V
C13 87-010-322-080 C-CAP,S 100P-50 CH
C14 87-010-148-080 C-CAP,S 4P-50 C CH GRM
C15 87-016-669-080 C-CAP,S 0.1-25 K B
C16 87-010-178-080 CHIP CAP 1000P
C17 87-016-669-080 C-CAP,S 0.1-25 K B
C18 87-010-197-080 CAP, CHIP 0.01 D M
C19 87-016-669-080 C-CAP,S 0.1-25 K B
– 5 –
Page 27
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
C20 87-010-400-080 CAP, ELECT 0.47-50V
C21 87-010-403-080 CAP, ELECT 3.3-50V
C22 87-010-197-080 CAP, CHIP 0.01 DM
C24 87-010-197-080 CAP, CHIP 0.01 DM
C25 87-010-197-080 CAP, CHIP 0.01 DM
C26 87-016-669-080 C-CAP,S 0.1-25 K B
C27 87-016-669-080 C-CAP,S 0.1-25 K B
C28 87-010-992-080 C-CAP,S 0.047-25 B
C29 87-010-992-080 C-CAP,S 0.047-25 B
C30 87-010-248-080 CAP, ELECT 220-10V
C31 87-010-379-080 CAP, ELECT 22-16V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-197-080 CAP, CHIP 0.01 DM
C34 87-010-197-080 CAP, CHIP 0.01 DM
C35 87-010-197-080 CAP, CHIP 0.01 DM
C36 87-010-263-080 CAP, ELECT 100-10V
C37 87-010-197-080 CAP, CHIP 0.01 DM
C51 87-010-197-080 CAP, CHIP 0.01 DM
C56 87-010-148-080 CAP, CHIP S 4P-50V
CF1 87-A90-128-010 FLTR,AM IF CFAL-455
CF2 87-008-261-010 FILTER, SFE10.7MA5-A
CF3 87-008-261-010 FILTER, SFE10.7MA5-A
CN2 87-A60-116-010 CONN,6P H S2M-6WR
D3 87-A40-128-080 C-VARI-CAP,HVU202A
L2 87-A50-560-010 COIL,FM BPF(ACD)
L3 8A-CD9-660-010 BAR-ANT,MW 2B-ACD(COI)
L4 87-A50-562-010 COIL,FM RF EX(ACD)
L5 87-A50-564-010 COIL,FM OSC EX(ACD)
L6 87-A50-337-010 COIL,AM OSC (TOKO)
L7 87-A50-579-010 COIL,AM IFT(ACD)
L8 87-A50-335-010 COIL,FM IFT (TOKO)
L9 87-A50-577-010 COIL,FM DET(ACD)
L10 87-005-849-080 COIL,10UH(CECS)
PVC1 87-A91-167-010 TUN-CAP,20P-160P FA-22125 N000
SW1 87-A91-548-010 SW,SL-2-3 SK23E01G06
DESCRIPTIONREF. NO. KANRI
PART NO.
H.P. C.B
CN204 87-A60-685-010 CONN,4P H WHT EH
CN605 87-A60-114-010 CONN,4P H S2M-4WR
CNA203 8A-CD9-628-010 CONN ASSY,3P MA-HP
J251 87-A60-569-010 JACK,HTJ-035-18
S606 87-A91-704-080 SW,TACT EVQ 214 05R
S607 87-A91-704-080 SW,TACT EVQ 214 05R
S608 87-A91-704-080 SW,TACT EVQ 214 05R
S614 87-A91-704-080 SW,TACT EVQ 214 05R
S615 87-A91-704-080 SW,TACT EVQ 214 05R
POWER C.B
C901 87-010-192-080 C-CAP,S 0.022-50 F
C902 87-010-192-080 C-CAP,S 0.022-50 F
C903 87-010-192-080 C-CAP,S 0.022-50 F
C904 87-010-192-080 C-CAP,S 0.022-50 F
CNA901 8A-CD9-627-010 CONN ASSY,3P PWR
PR901 87-A90-092-080 PROTECTOR,2.5A 491
!
BATT C.B
VOLTAGE C.B
!
SW901 87-036-389-010 SW,PUSH 1-1-1 R8120125
MOTOR C.B
M2 9X-262-576-910 MOTOR GEAR ASSY
PIN3 91-564-722-110 CONNECTOR 6P
SW1 91-572-085-120 LEAF SW
NO.

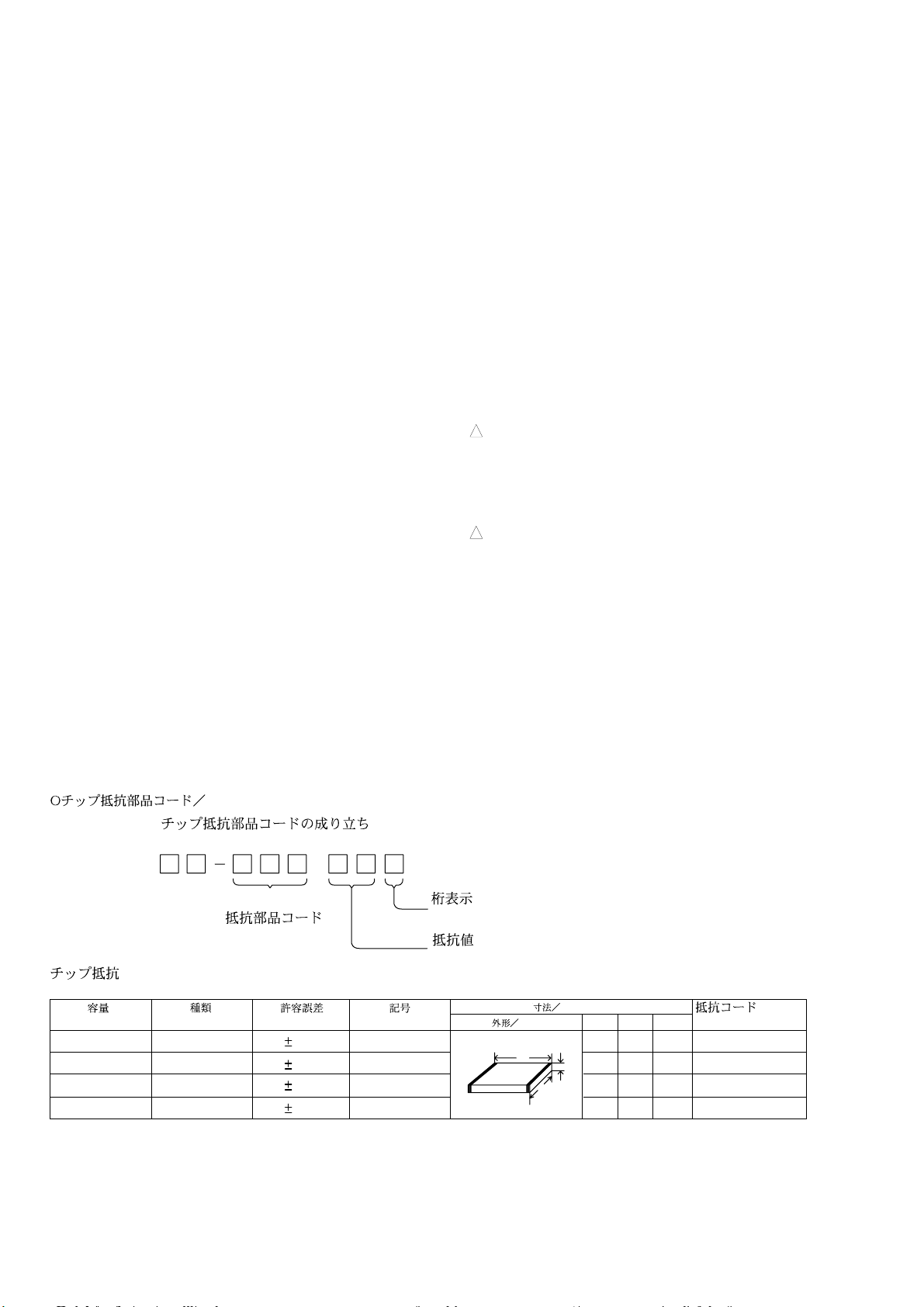

CHIP RESISTOR PART CODE
Chip Resistor Part Coding
88
A
Resistor Code
Chip resistor
Wattage Type Tolerance
1/16W 1005 5% CJ
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
Symbol
CJ
CJ
CJ
Figure
Value of resistor
Form
L
– 6 –
Dimensions (mm)
t
W
0.55
Resistor Code
108
118
128
LW t
1.0 0.5 0.35 104
1.6 0.8 0.45
2 1.25 0.45
3.2
1.6
: A
: A
Page 28

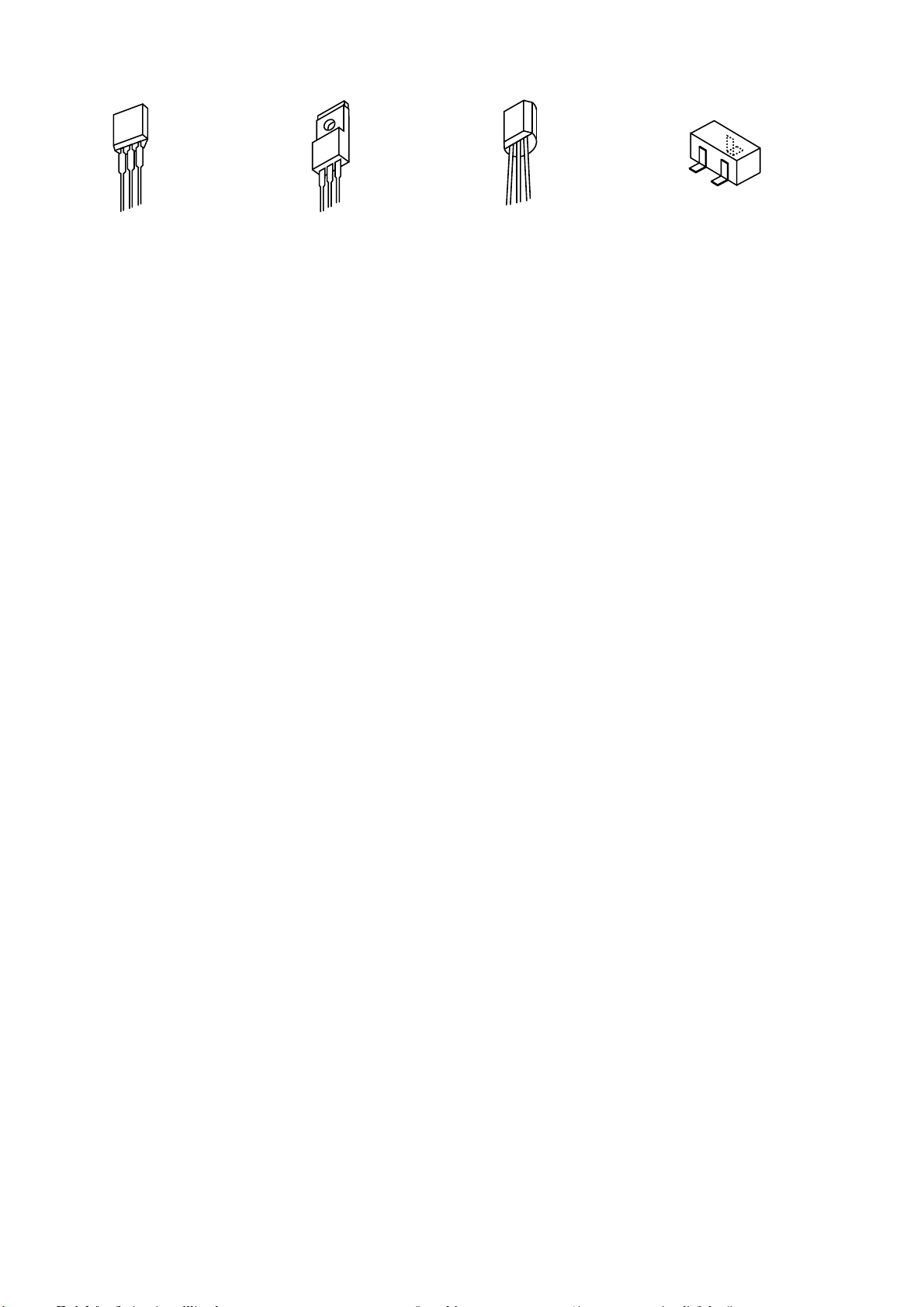

TRANSISTOR ILLUSTRATION
C
B
E
E C B
2SA933SS
2SC1740SS
DTC114TS
DTC124XS
B C E
E C B
2SB1370E 2SA1296GR
2SA1318TU
2SC1815Y
2SC2714
DTC114TK
DTC114YK
DTC114YS
DTC144EK
–7 –
Page 29
WIRING – 1 (MAIN / CD)
101112131415161718192021222324
1234567892526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
– 8 –
R
S
T
U
Page 30
SCHEMATIC DIAGRAM – 1 (MAIN / CD : 1 / 2 / H.P. / POWER / BATT / VOLTAGE)
– 9 –
Page 31
SCHEMATIC DIAGRAM – 2 (CD : 2 / 2)
– 10 –
Loading...
