CSD-A170

U(S),K(S),HA(S)

CSD-A110 CSD-A100 CSD-A99

EZ(S,L),HR(S) K(S),EZ(S,L,P)

,HE(S),HT(S) K(S)

SERVICE MANUAL

COMPACT DISC RADIO

CASSETTE RECORDER

This Service Manual is the "Revision Publishing" and replaces "Simple Manual" CSD-A100 K(S),EZ(S)/A110 EZ(S)/A170 K(S)(S/M Code No. 09-003-342-2T2) CSD-A170 U(S),HA(S)/A110 EZ(L),HR(S)/A100 HE(S),HT(S),EZ(L,P)/A99 K(S) (S/M Code No. 09-003-342-2T4).

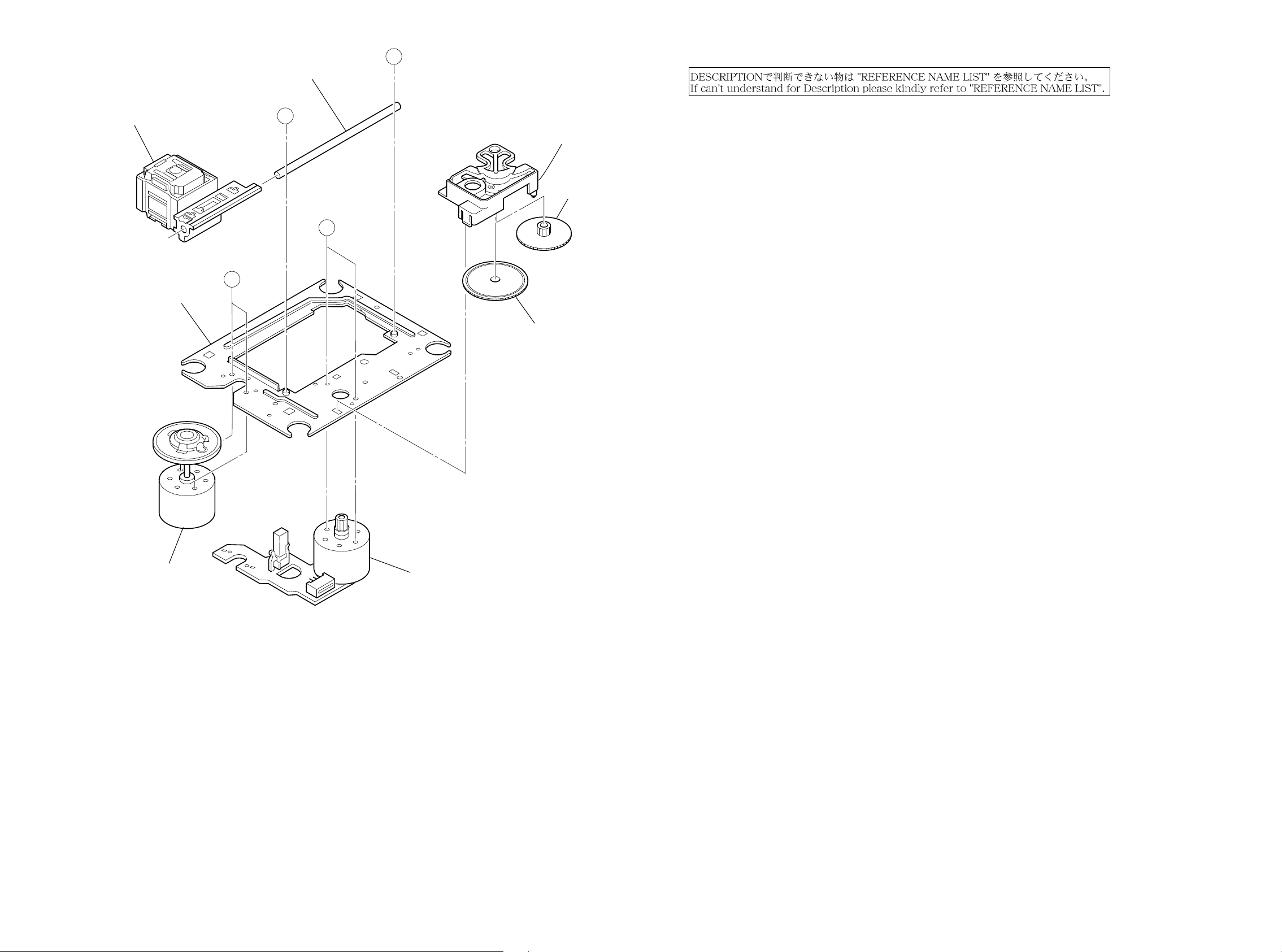

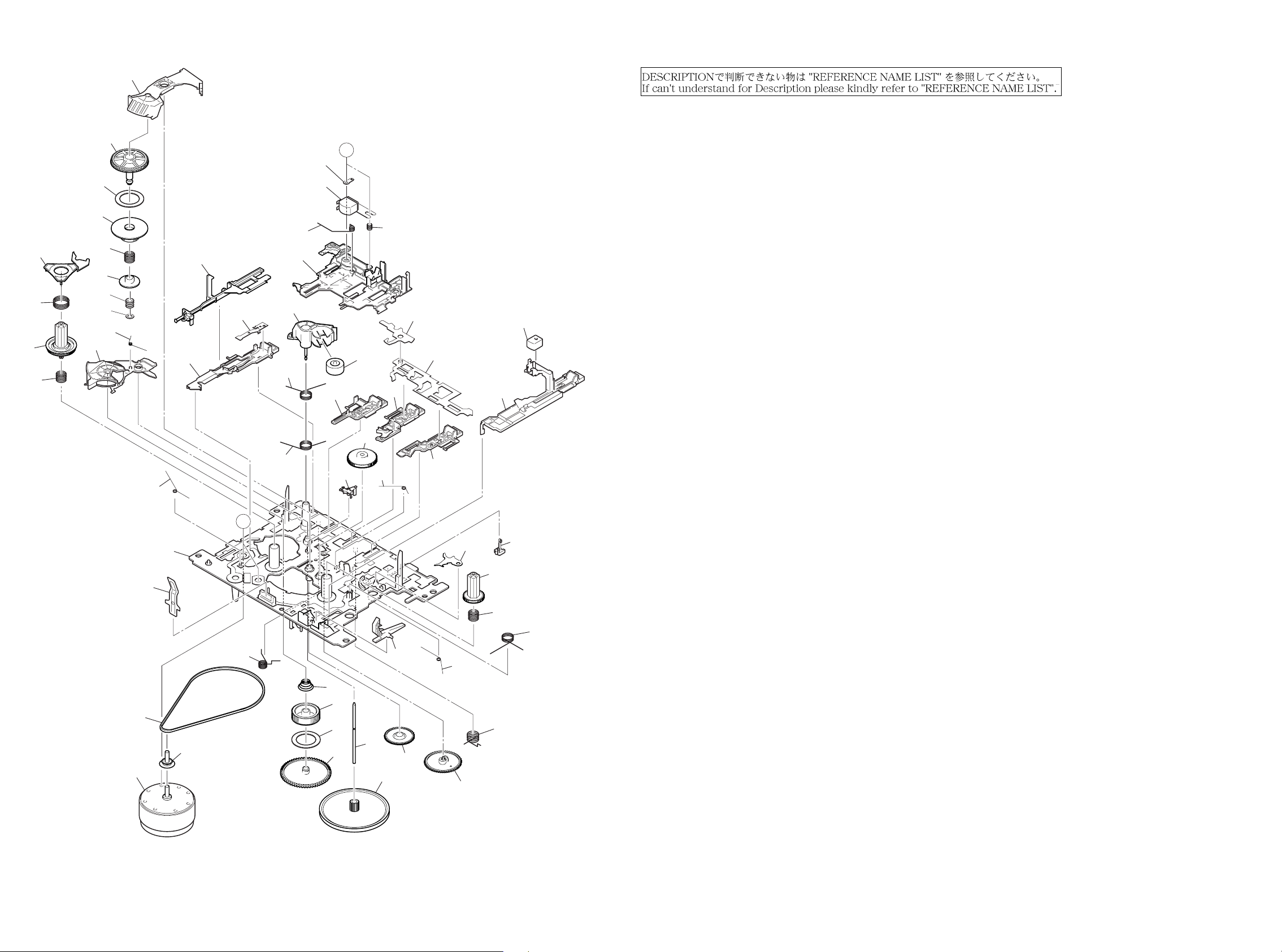

BASIC TAPE MECHANISM : ZZM-1 YR2NF BASIC CD MECHANISM : DA11T3C

S/M Code No. 09-003-342-2R2

REVISION

DATA

SPECIFICATIONS

HR, HE MODELS K, EZ MODELS

Design and specifications are subject to change

•

without notice

Design and specifications are subject to change

•

without notice

HA MODEL U MODEL

Design and specifications are subject to change

•

without notice

Design and specifications are subject to change

•

without notice

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1

LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT

This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

Caution: Invisible laser radiation when open and interlocks defeated avoid exposure to beam. Advarsel:Usynling laserståling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

ATTENTION

L'utilisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations.

ADVARSEL!

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.

Precaution to replace Optical block (SF-P101NR)

Body or clothes electrostatic potential could ruin laser diode in the optical block. Be sure ground body and workbench, and use care the clothes do not touch the diode.

1) After the connection, remove solder shown in the right figure.

PICK UP ASSY

SF-P101NR

Solder

TO/FROM CD C.B

ELECTRICAL MAIN PARTS LIST

REF. NO PART NO. KANRI DESCRIPTION

NO.

87-A20-955-010 IC,LA1828 87-A21-064-010 IC,LA4227 87-A21-520-040 C-IC,M61509FP

<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>

87-A21-443-040 C-IC,M62495AFP

87-A20-446-010 C-IC,LA9241ML 87-A20-459-010 C-IC,LC78622ED

87-A21-093-010 IC,LA6541D 8A-CD9-610-010 C-IC,LC865516A-5P16 87-A20-650-010 IC,RPM6938-V11

<170U(S),170K(S),170HA(S)>

87-A21-607-010 IC,NJM14558LD

TRANSISTOR 89-327-143-080 TR,2SC2714 (0.1W)

87-026-447-080 TR,2SC1740S R 87-026-463-080 TR,2SA933S (0.3W) 87-026-213-080 CHIP-TR,DTC114YK 89-318-154-080 TR,2SC1815 (0.4W)

89-112-965-080 TR,2SA1296 (0.75W) 87-026-291-080 TR,DTC124XS 89-213-702-010 TR,2SB1370 (1.8W) 87-026-462-080 TR,2SC1740 S(RS 0.3W) 89-109-332-380 TR,2SA933RS

89-113-187-080 TR,2SA1318TU 87-026-295-080 TR,DTC144TK 89-317-403-080 TR,2SC1740S 87-026-239-080 TR,DTC114TK (0.2W) 87-026-237-080 CHIP-TR,DTC124XK

<170U(S),170K(S),170HA(S)>

87-026-464-080 TR,DTC114TS (0.3W)

DIODE 87-020-465-080 DIODE,1SS133 (110MA)

87-A40-128-080 C-VARI-CAP,HVU202A 87-A40-650-080 ZENER,MTZJ6.8A 87-070-345-080 DIODE,IN4148 87-A40-648-080 ZENER,MTZJ8.2A

87-A40-234-080 ZENER,MTZJ5.6A 87-017-978-080 DIODE,1N4003 87-017-932-080 ZENER,MTJ6.2B 87-A40-465-010 DIODE,FR202

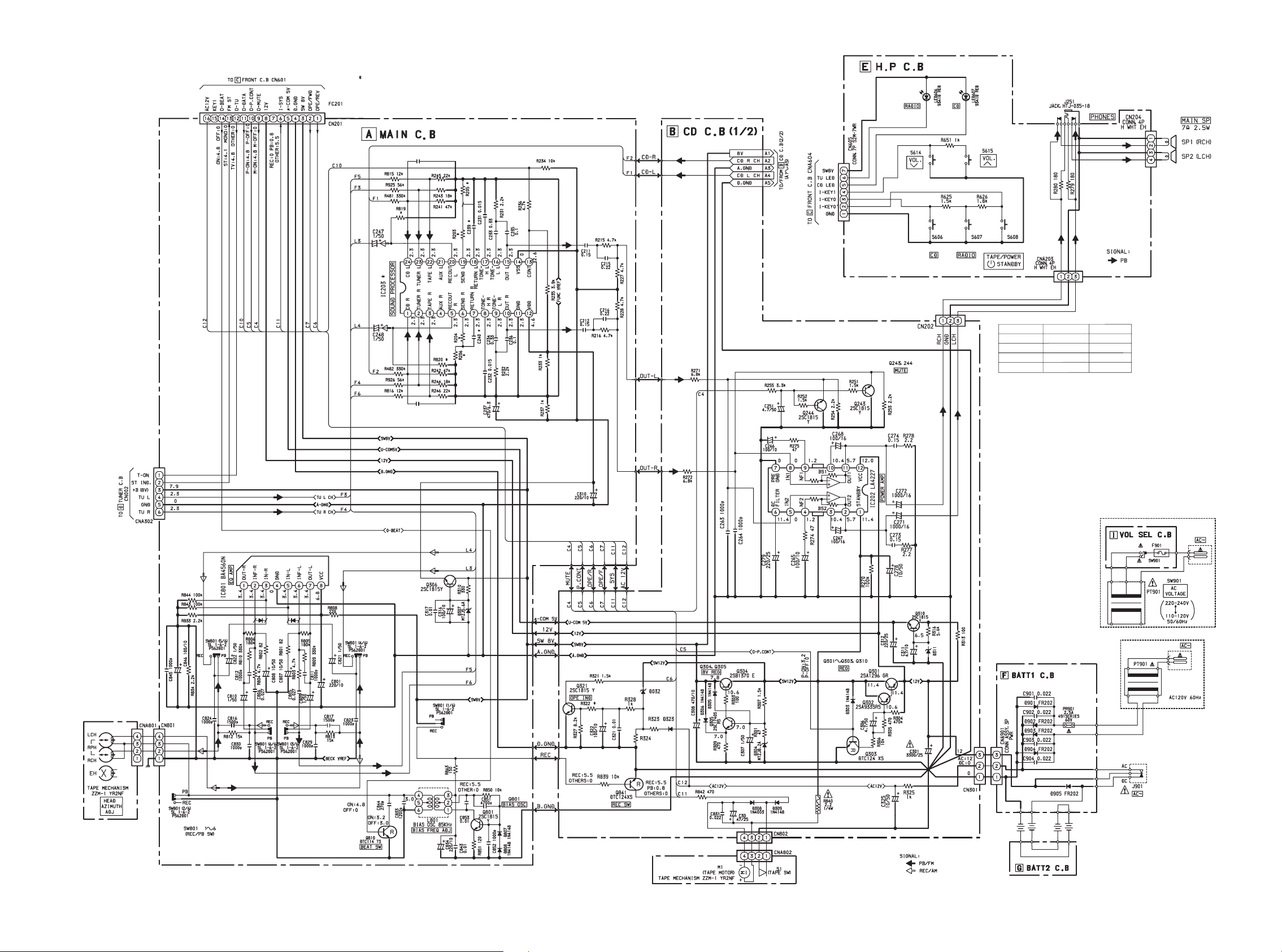

MAIN C.B

C211 87-A11-177-080 C-CAP,S 0.15-16 K B C212 87-A11-177-080 C-CAP,S 0.15-16 K B C215 87-016-460-080 C-CAP,S 0.22-16 B C216 87-016-460-080 C-CAP,S 0.22-16 B C231 87-010-213-080 C-CAP,S 0.015-50 B

C232 87-010-213-080 C-CAP,S 0.015-50 B C233 87-A10-201-080 C-CAP,S0.33-16 KB C234 87-A10-201-080 C-CAP,S0.33-16 KB C235 87-016-669-080 C-CAP,S 0.1-25 K B C236 87-016-669-080 C-CAP,S 0.1-25 K B

C237 87-010-371-080 CAP, ELECT 470-6.3V C239 87-010-197-080 CAP, CHIP 0.01 DM

<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>

C239 87-010-805-080 CAP, S 1-16

C240 87-010-197-080 CAP, CHIP 0.01 DM

<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)>

C240 87-010-805-080 CAP, S 1-16

REF. NO PART NO. KANRI DESCRIPTION

C247 87-010-401-080 CAP, ELECT 1-50V C248 87-010-401-080 CAP, ELECT 1-50V C310 87-010-248-080 CAP, ELECT 220-10V C316 87-010-263-080 CAP, ELECT 100-10V C317 87-015-819-080 CAPACITOR,0.01

C322 87-010-260-080 CAP, ELECT 47-25V C483 87-012-156-080 C-CAP,S 220P-50 CH C484 87-012-156-080 C-CAP,S 220P-50 CH C801 87-010-248-080 CAP, ELECT 220-10V C805 87-012-365-080 C-CAP,S 0.027-25VBK

C806 87-012-365-080 C-CAP,S 0.027-25VBK C807 87-010-405-080 CAP, ELECT 10-50V C808 87-010-405-080 CAP, ELECT 10-50V C809 87-010-401-080 CAP, ELECT 1-50V C810 87-010-401-080 CAP, ELECT 1-50V

C811 87-010-178-080 CHIP CAP 1000P C812 87-010-178-080 CHIP CAP 1000P C816 87-010-180-080 C-CER 1500P C817 87-010-180-080 C-CER 1500P C821 87-010-401-080 CAP, ELECT 1-50V

C822 87-010-401-080 CAP, ELECT 1-50V C823 87-010-178-080 CHIP CAP 1000P C824 87-010-178-080 CHIP CAP 1000P C829 87-010-178-080 CHIP CAP 1000P C830 87-010-178-080 CHIP CAP 1000P

C833 87-018-195-080 CAP, CER 1200P-16V C834 87-010-248-080 CAP, ELECT 220-10V C843 87-010-197-080 CAP, CHIP 0.01 DM C844 87-018-124-080 CAP, CER 270P-50V C845 87-010-178-080 CHIP CAP 1000P

C846 87-010-263-080 CAP, ELECT 100-10V C851 87-010-186-080 CAP,CHIP 4700P C852 87-010-178-080 CHIP CAP 1000P C853 87-A11-132-080 CAP,TC U 0.01-50 K B CN201 87-099-018-010 CONN,16P

CN801 87-A60-110-010 CONN,4P V S2M-4W CNA302 8A-CDA-629-010 CONN ASSY,6P MA-TU L801 87-007-342-010 COIL,OSC 85K BIAS SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01

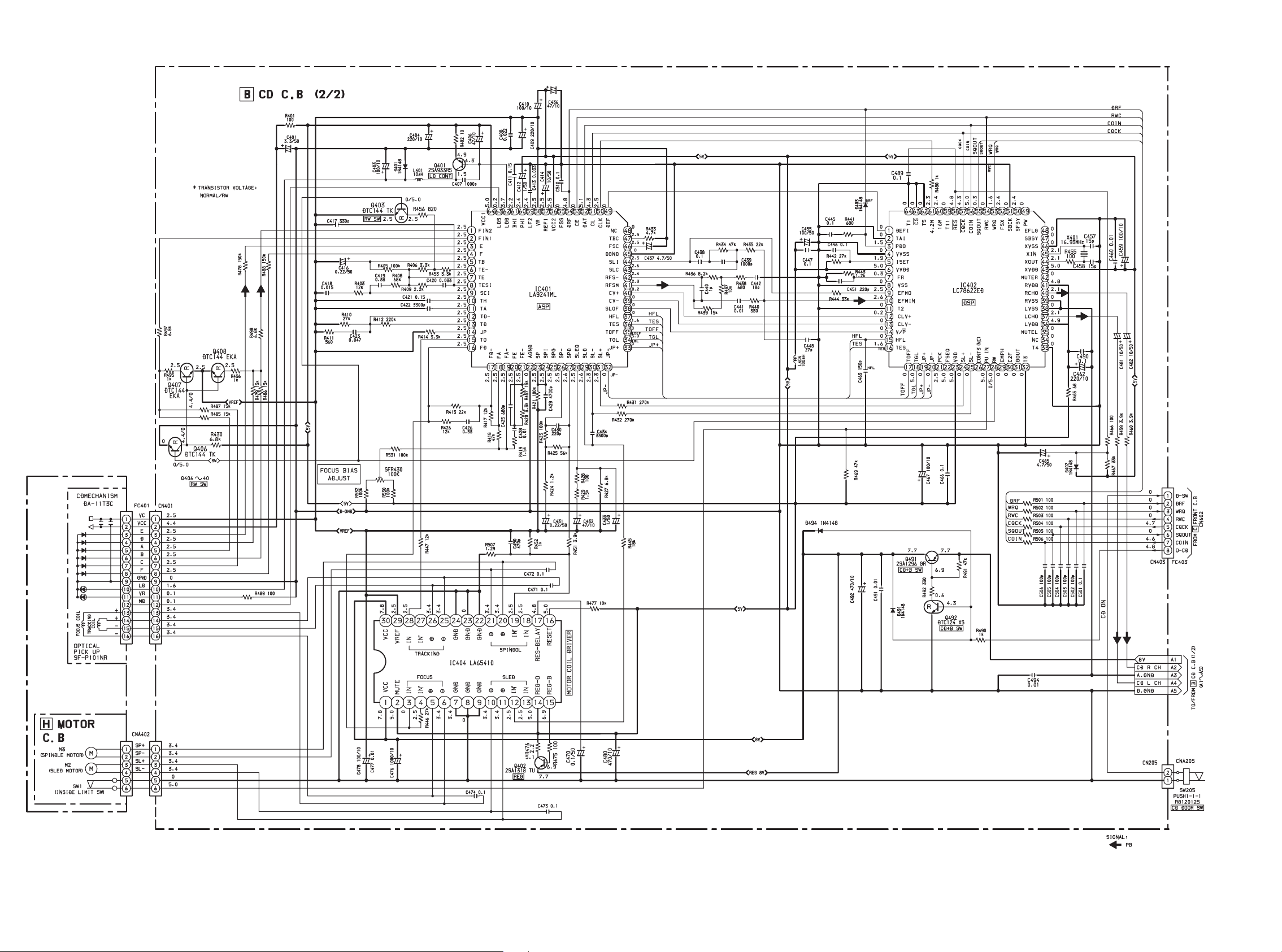

CD C.B

C30 87-010-260-080 CAP, ELECT 47-25V C251 87-010-404-080 CAP, ELECT 4.7-50V C261 87-010-402-080 CAP, ELECT 2.2-50V C262 87-010-402-080 CAP, ELECT 2.2-50V C263 87-010-178-080 CHIP CAP 1000P

C264 87-010-178-080 CHIP CAP 1000P C265 87-010-263-080 CAP, ELECT 100-10V C266 87-010-263-080 CAP, ELECT 100-10V C267 87-010-112-080 CAP, ELECT 100-16V C268 87-010-112-080 CAP, ELECT 100-16V

C271 87-010-237-080 CAP, ELECT 1000-16V C272 87-010-237-080 CAP, ELECT 1000-16V C278 87-010-405-080 CAP, ELECT 10-50V C279 87-010-385-080 CAP, ELECT 220-25V C301 87-016-495-000 CAP,E 3300-25 M SMG

C306 87-010-404-080 CAP, ELECT 4.7-50V C307 87-010-401-080 CAP, ELECT 1-50V C308 87-010-221-080 CAP, ELECT 470-10V C311 87-010-374-080 CAP, ELECT 47-10V C312 87-010-385-080 CAP, ELECT 220-25V

C321 87-010-197-080 CAP, CHIP 0.01 DM C322 87-010-263-080 CAP, ELECT 100-10V C325 87-010-405-080 CAP, ELECT 10-50V C401 87-010-403-080 CAP, ELECT 3.3-50V C402 87-010-197-080 CAP, CHIP 0.01 DM

C403 87-010-263-080 CAP, ELECT 100-10V C404 87-010-248-080 CAP, ELECT 220-10V C405 87-010-197-080 CAP, CHIP 0.01 DM

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

C406 87-010-374-080 CAP, ELECT 47-10V C407 87-010-178-080 CHIP CAP 1000P C408 87-010-198-080 CAP, CHIP 0.022 C409 87-010-248-080 CAP, ELECT 220-10V C410 87-010-263-080 CAP, ELECT 100-10V

C411 87-A11-177-080 C-CAP,S 0.15-16 K B C412 87-010-401-080 CAP, ELECT 1-50V C413 87-016-369-080 C-CAP,S 0.033-25 B K C414 87-010-405-080 CAP, ELECT 10-50V C416 87-010-545-080 CAP, ELECT 0.22-50V

C417 87-012-157-080 C-CAP,S 330P-50 CH C418 87-010-213-080 C-CAP,S 0.015-50 B C419 87-A11-608-080 C-CAP,S 0.33-25 K B C420 87-016-369-080 C-CAP,S 0.033-25 B K C421 87-A11-177-080 C-CAP,S 0.15-16 K B

C422 87-010-184-080 CHIP CAPACITOR 3300P(K) C423 87-010-992-080 C-CAP,S 0.047-25 B C425 87-010-176-080 C-CAP,S 680P-50 SL C426 87-A11-608-080 C-CAP,S 0.33-25 K B C428 87-010-197-080 CAP, CHIP 0.01 DM

C429 87-010-186-080 CAP,CHIP 4700P C430 87-012-156-080 C-CAP,S 220P-50 CH C431 87-010-545-080 CAP, ELECT 0.22-50V C432 87-010-374-080 CAP, ELECT 47-10V C433 87-010-401-080 CAP, ELECT 1-50V

C434 87-010-184-080 CHIP CAPACITOR 3300P(K) C435 87-010-197-080 CAP, CHIP 0.01 DM C436 87-010-374-080 CAP, ELECT 47-10V C437 87-010-404-080 CAP, ELECT 4.7-50V C438 87-016-669-080 C-CAP,S 0.1-25 K B

C439 87-010-178-080 CHIP CAP 1000P C440 87-010-145-080 C-CAP,S 1P-50 CH C441 87-010-197-080 CAP, CHIP 0.01 DM C442 87-010-313-080 CAP, CHIP 18P C445 87-012-368-080 C-CAP,S 0.1-50 F

C446 87-012-368-080 C-CAP,S 0.1-50 F C447 87-012-368-080 C-CAP,S 0.1-50 F C448 87-010-315-080 C-CAP,S 27P-50 CH C450 87-012-140-080 CAP 470P C451 87-012-156-080 C-CAP,S 220P-50 CH

C455 87-010-247-080 CAP, ELECT 100-50V C457 87-010-312-080 C-CAP,S 15P-50 CH C458 87-010-312-080 C-CAP,S 15P-50 CH C459 87-010-263-080 CAP, ELECT 100-10V C460 87-015-819-080 CAPACITOR,0.01

C461 87-010-197-080 CAP, CHIP 0.01 DM C462 87-010-248-080 CAP, ELECT 220-10V C463 87-010-197-080 CAP, CHIP 0.01 DM C465 87-010-404-080 CAP, ELECT 4.7-50V C466 87-012-368-080 C-CAP,S 0.1-50 F

C467 87-010-263-080 CAP, ELECT 100-10V C469 87-012-154-080 C-CAP,S 150P-50 CH C470 87-010-544-080 CAP, ELECT 0.1-50V C471 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z C472 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z

C473 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z C474 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z C475 87-010-197-080 CAP, CHIP 0.01 DM C476 87-010-236-080 CAP,E 1000-10 SME C477 87-010-197-080 CAP, CHIP 0.01 DM

C478 87-010-263-080 CAP, ELECT 100-10V C479 87-010-197-080 CAP, CHIP 0.01 DM C480 87-010-221-080 CAP, ELECT 470-10V C481 87-010-405-080 CAP, ELECT 10-50V C482 87-010-405-080 CAP, ELECT 10-50V

C489 87-012-368-080 C-CAP,S 0.1-50 F C490 87-012-368-080 C-CAP,S 0.1-50 F C491 87-010-197-080 CAP, CHIP 0.01 DM C492 87-010-221-080 CAP, ELECT 470-10V C493 87-010-180-080 C-CER 1500P<170U(S)>

REF. NO PART NO. KANRI DESCRIPTION

C494 87-010-197-080 CAP, CHIP 0.01 DM C501 87-012-368-080 C-CAP,S 0.1-50 F C502 87-010-322-080 C-CAP,S 100P-50 CH C503 87-010-322-080 C-CAP,S 100P-50 CH C504 87-010-322-080 C-CAP,S 100P-50 CH

C505 87-010-322-080 C-CAP,S 100P-50 CH C506 87-010-322-080 C-CAP,S 100P-50 CH C510 87-016-669-080 C-CAP,S 0.1-25 K B C831 87-010-198-080 CAP, CHIP 0.022 CN202 8A-CH4-689-010 CONN,3P V 2.5

CN205 87-A60-109-010 CONN,2P V S2M-2W CN301 8A-CH4-689-010 CONN,3P V 2.5 CN401 87-A60-424-010 CONN,16P V TOC-B CN403 87-099-201-010 CONN,8P 6216 H CN802 8A-CH4-687-010 CONN,4P V 2.5

CNA402 8A-CDA-625-010 CONN ASSY,6P CD-ME L401 87-003-102-080 COIL, 10UH L404 87-003-152-080 COIL, 100UH

R840 87-029-124-010 RES,FUSE 2.2-1/4

SFR430 87-024-437-080 SFR100K,RH063EC

X401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2

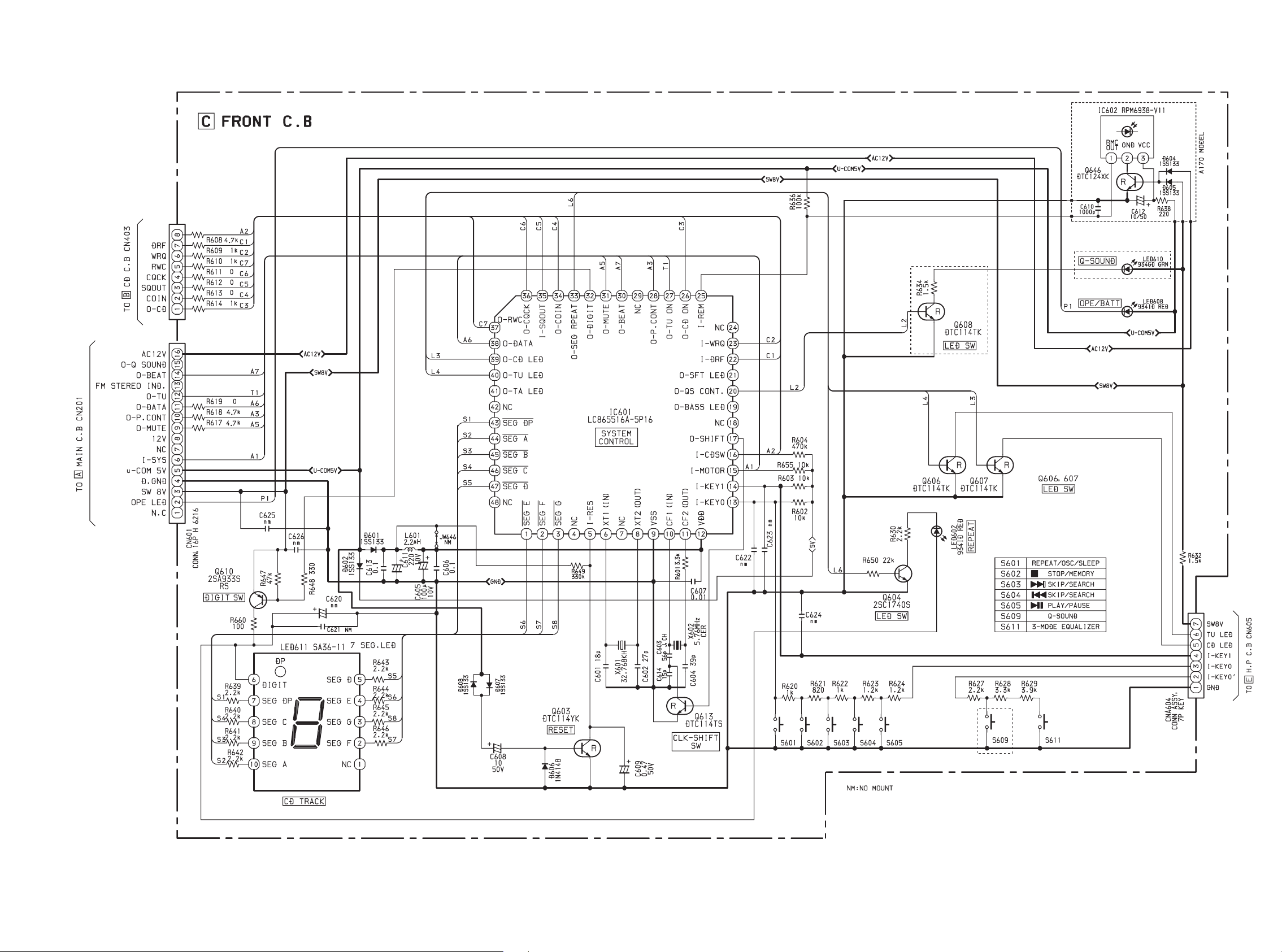

FRONT C.B

C601 87-010-313-080 CAP, CHIP 18P C602 87-010-315-080 C-CAP,S 27P-50 CH C603 87-010-319-080 C-CAP,S 56P-50 CH C604 87-010-317-010 CHIP CAP,S 39P CH C605 87-010-264-040 CAP,E 100-10 5L

C606 87-012-368-080 C-CAP,S 0.1-50 F C607 87-015-779-010 CHIP CAPACITOR, 0.01 C608 87-010-415-080 CAP ELE SRE 10-50V C609 87-010-493-080 CAP,E 0.47-50 GAS C610 87-010-178-080 CHIP CAP 1000P

C611 87-A10-189-040 CAP,E 220-10 C612 87-010-415-080 CAP ELE SRE 10-50V

C613 87-012-368-080 C-CAP,S 0.1-50 F C614 87-010-312-080 C-CAP,S 15P-50 CH C627 87-015-779-010 CHIP CAPACITOR, 0.01

C628 87-015-779-010 CHIP CAPACITOR, 0.01 C629 87-015-779-010 CHIP CAPACITOR, 0.01 C630 87-010-264-040 CAP,E 100-10 5L C631 87-015-779-010 CHIP CAPACITOR, 0.01 CN601 87-099-757-010 CONN,16P 9604S F

CN602 87-A60-079-010 CONN,08P H 9604S-08F CNA604 8A-CDA-623-010 CONN ASSY,7P KEY JW603 87-008-372-080 FILTER, EMI BL OIRNI JW605 87-003-097-080 COIL,1UH JW606 87-003-097-080 COIL,1UH

JW608 87-003-097-080 COIL,1UH JW627 87-008-372-080 FILTER, EMI BL OIRNI JW633 87-003-098-080 COIL,2.2UH L601 87-003-098-080 COIL,2.2UH LED602 88-CD6-630-010 LED,934ID RED

LED608 88-CD6-630-010 LED,934ID RED LED610 88-CD6-631-010 LED,934GD GRN

<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)> LED611 87-CD8-616-010 LED,SA36-11 HWA-11.0 S601 87-A91-704-080 SW,TACT EVQ 214 05R S602 87-A91-704-080 SW,TACT EVQ 214 05R

S603 87-A91-704-080 SW,TACT EVQ 214 05R S604 87-A91-704-080 SW,TACT EVQ 214 05R S605 87-A91-704-080 SW,TACT EVQ 214 05R S609 87-A91-704-080 SW,TACT EVQ 214 05R

<110HRJ(S),110EZ(S),110EZ(L),170U(S),170K(S),170HA(S)> S611 87-A91-704-080 SW,TACT EVQ 214 05R

X601 87-030-273-010 VIB,XTAL 32.768K5PPM X602 87-030-376-080 VIB,CER CSA5.76MG200

NO.

<170U(S),170K(S),170HA(S)>

REF. NO PART NO. KANRI DESCRIPTION

NO.

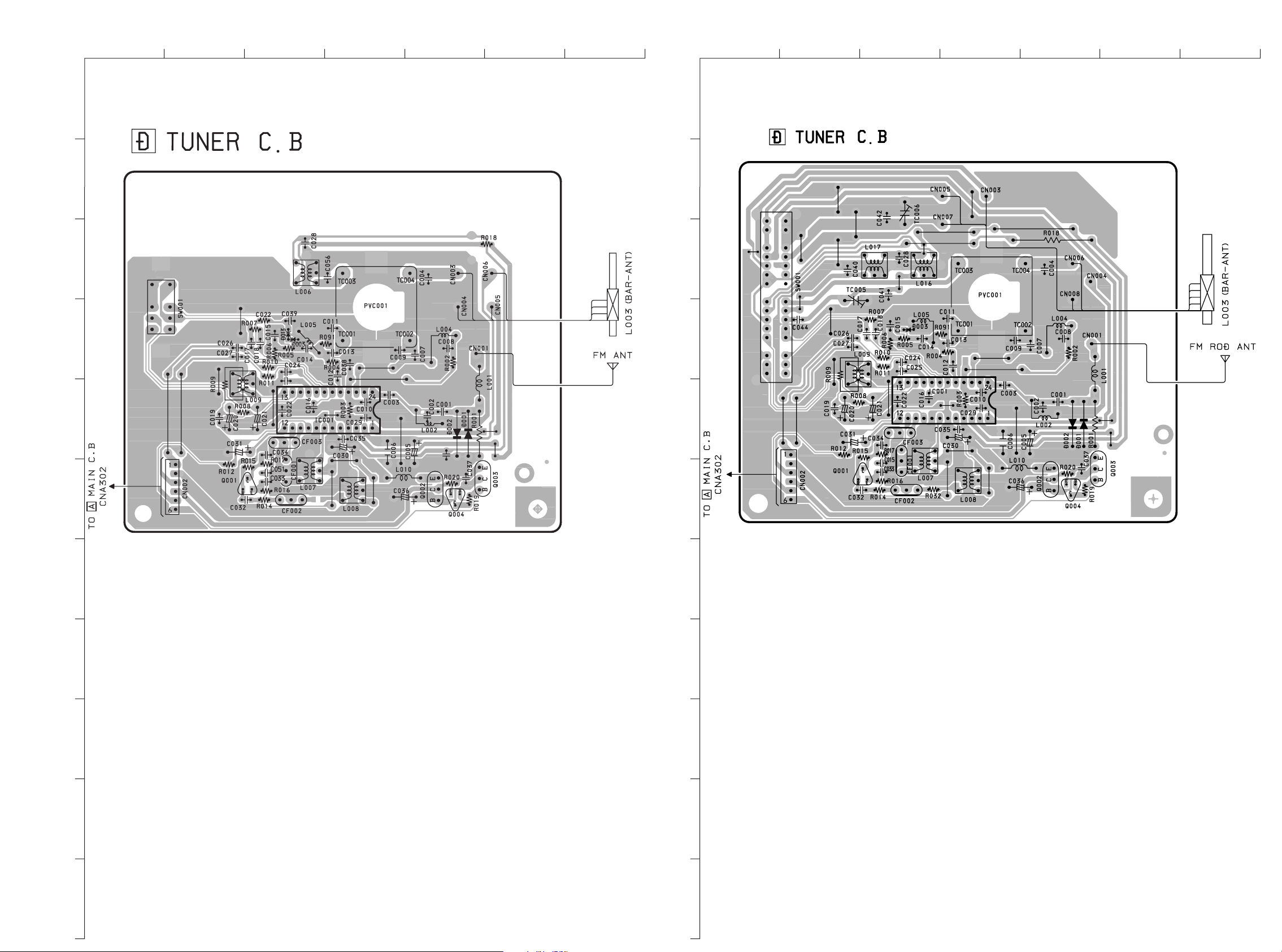

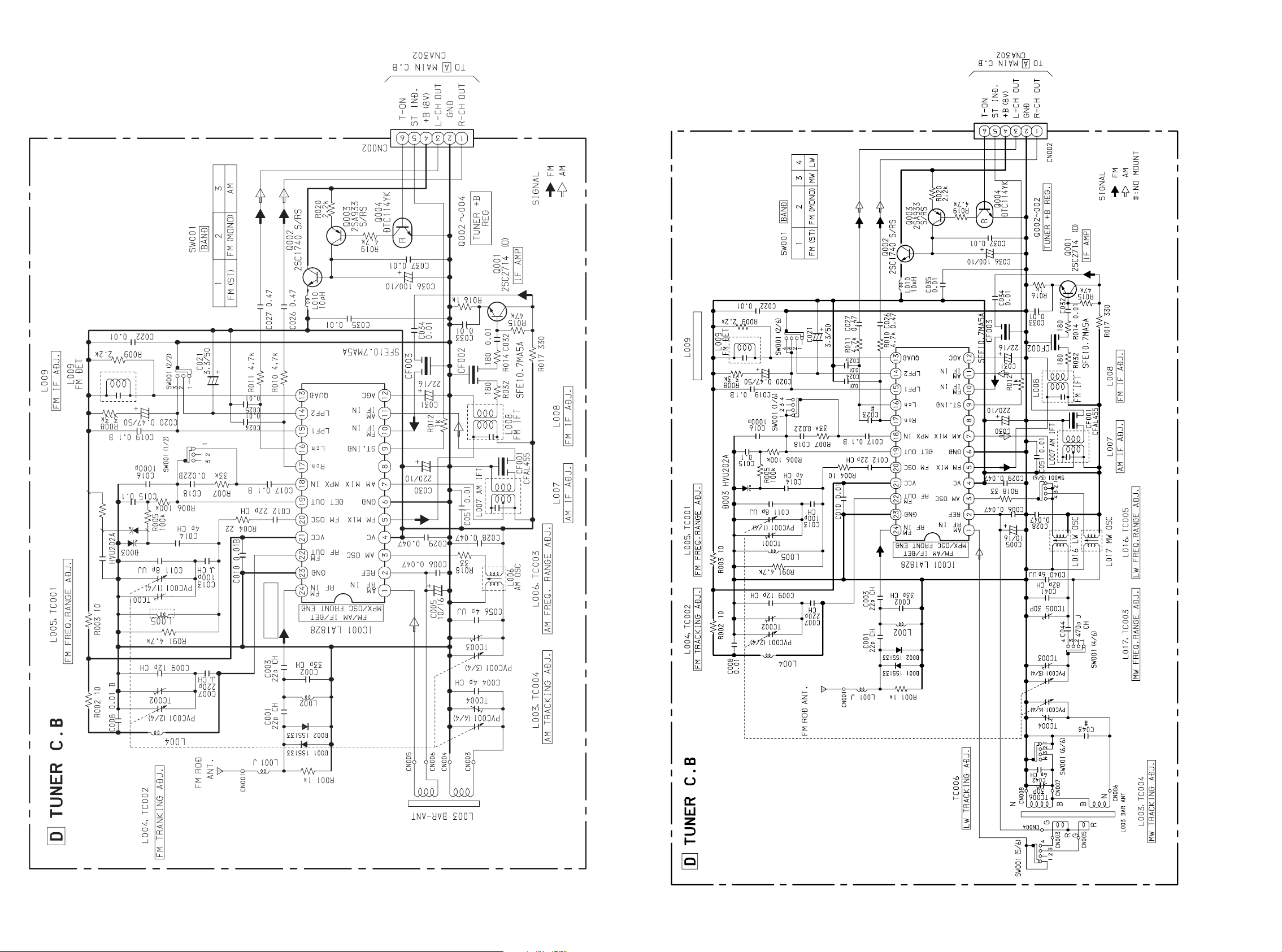

TUNER C.B C1 87-010-314-080 C-CAP,S 22P-50V

C2 87-010-316-080 C-CAP,S 33P-50 CH C3 87-010-314-080 C-CAP,S 22P-50V C4 87-010-148-080 CAP, CHIP S 4P SL

<110HRJ(S),100HRJ(S),170U(S),170HA(S)>

C5 87-010-378-080 CAP, ELECT 10-16V

C7 87-012-156-080 C-CAP,S 220P-50 CH C8 87-010-197-080 CAP, CHIP 0.01 DM C9 87-010-311-080 CAP 12P C10 87-010-197-080 CAP, CHIP 0.01 DM C11 87-010-152-080 C-CAP,S 8P-50 CH

C12 87-010-314-080 C-CAP,S 22P-50V C13 87-010-322-080 C-CAP,S 100P-50 CH C14 87-010-148-080 CAP, CHIP S 4P SL C15 87-016-669-080 C-CAP,S 0.1-25 K B C16 87-010-178-080 CHIP CAP 1000P

C17 87-016-669-080 C-CAP,S 0.1-25 K B C18 87-010-198-080 CAP, CHIP 0.022 C19 87-016-669-080 C-CAP,S 0.1-25 K B C20 87-010-400-080 CAP, ELECT 0.47-50V C21 87-010-403-080 CAP, ELECT 3.3-50V

C22 87-010-197-080 CAP, CHIP 0.01 DM C24 87-010-197-080 CAP, CHIP 0.01 DM C25 87-010-197-080 CAP, CHIP 0.01 DM C26 87-012-358-080 C-CAP,S 0.47-10 F Z C27 87-012-358-080 C-CAP,S 0.47-10 F Z

C28 87-010-992-080 C-CAP,S 0.047-25 B C29 87-010-992-080 C-CAP,S 0.047-25 B C30 87-010-248-080 CAP, ELECT 220-10V C31 87-010-379-080 CAP, ELECT 22-16V C32 87-010-197-080 CAP, CHIP 0.01 DM

C33 87-010-197-080 CAP, CHIP 0.01 DM C34 87-010-197-080 CAP, CHIP 0.01 DM C35 87-010-197-080 CAP, CHIP 0.01 DM C36 87-010-263-080 CAP, ELECT 100-10V C37 87-010-197-080 CAP, CHIP 0.01 DM

C38 87-010-197-080 CAP, CHIP 0.01 DM C39 87-010-197-080 CAP, CHIP 0.01 DM

<110HRJ(S),100HRJ(S),170U(S),170HA(S)>

C40 87-010-150-080 C-CAP,S 6P-50 CH

C41 87-010-321-080 CHIP CAPACITOR,82P(J)

C42 87-010-150-080 C-CAP,S 6P-50 CH

C44 87-012-140-080 CAP 470P

<EXCEPT 110HRJ(S),100HRJ(S),170U(S),170HA(S)> C51 87-010-197-080 CAP, CHIP 0.01 DM C56 87-010-152-080 C-CAP,S 8P-50 CH

<110HRJ(S),100HRJ(S),170U(S),170HA(S)> CF1 87-A90-128-010 FLTR,AM IF CFAL-455 CF2 87-008-261-010 FILTER, SFE10.7MA5-A

CF3 87-008-261-010 FILTER, SFE10.7MA5-A CN2 87-A60-116-010 CONN,6P H S2M-6WR L2 87-A50-560-010 COIL,FM BPF(ACD) L3 8A-CD9-660-010 BAR-ANT,MW 2B-ACD(COI)

<110HRJ(S),100HRJ(S),170U(S),170HA(S)> L3 8A-CD9-661-010 BAR-ANT,MW/LW 3B-ACD(COI)

L4 87-A50-562-010 COIL,FM RF EX(ACD) L5 87-A50-564-010 COIL,FM OSC EX(ACD) L6 87-A50-337-010 COIL,AM OSC (TOKO)

<110HRJ(S),100HRJ(S),170U(S),170HA(S)> L7 87-A50-579-010 COIL,AM IFT(ACD) L8 87-A50-335-010 COIL,FM IFT (TOKO)

L9 87-A50-577-010 COIL,FM DET(ACD) L10 87-005-849-080 COIL,10UH(CECS) L16 87-A50-569-010 COIL,LW OSC-ACD(COI)

REF. NO PART NO. KANRI DESCRIPTION

L17 87-A50-337-010 COIL,AM OSC (TOKO) S1 87-A91-548-010 SW,SL-2-3 SK23E01G06

S1 87-A91-549-010 SW,SL-6-4 SK64D01G06 TC5 87-011-253-080 TRIMER,30P LAR TC6 87-011-253-080 TRIMER,30P LAR

VC1 87-A91-635-010 TUN-CAP,20P-140P E-ACD(MITSUMI VC1 87-A91-167-010 TUN-CAP,20P-160P FA-22125 N000

VC1 87-A91-170-010 TUN-CAP,20P-335P FA-2217 N000-

HP C.B CN204 87-A60-685-010 CONN,4P H WHT EH

CN605 87-A60-117-010 CONN,7P H S2M-7WR CNA203 8A-CDA-628-010 CONN ASSY,4P MA-HP J251 87-A60-569-010 JACK,HTJ-035-18 LED606 88-CD6-630-010 LED,934ID RED

LED607 88-CD6-630-010 LED,934ID RED S606 87-A91-704-080 SW,TACT EVQ 214 05R S607 87-A91-704-080 SW,TACT EVQ 214 05R S608 87-A91-704-080 SW,TACT EVQ 214 05R S614 87-A91-704-080 SW,TACT EVQ 214 05R

S615 87-A91-704-080 SW,TACT EVQ 214 05R

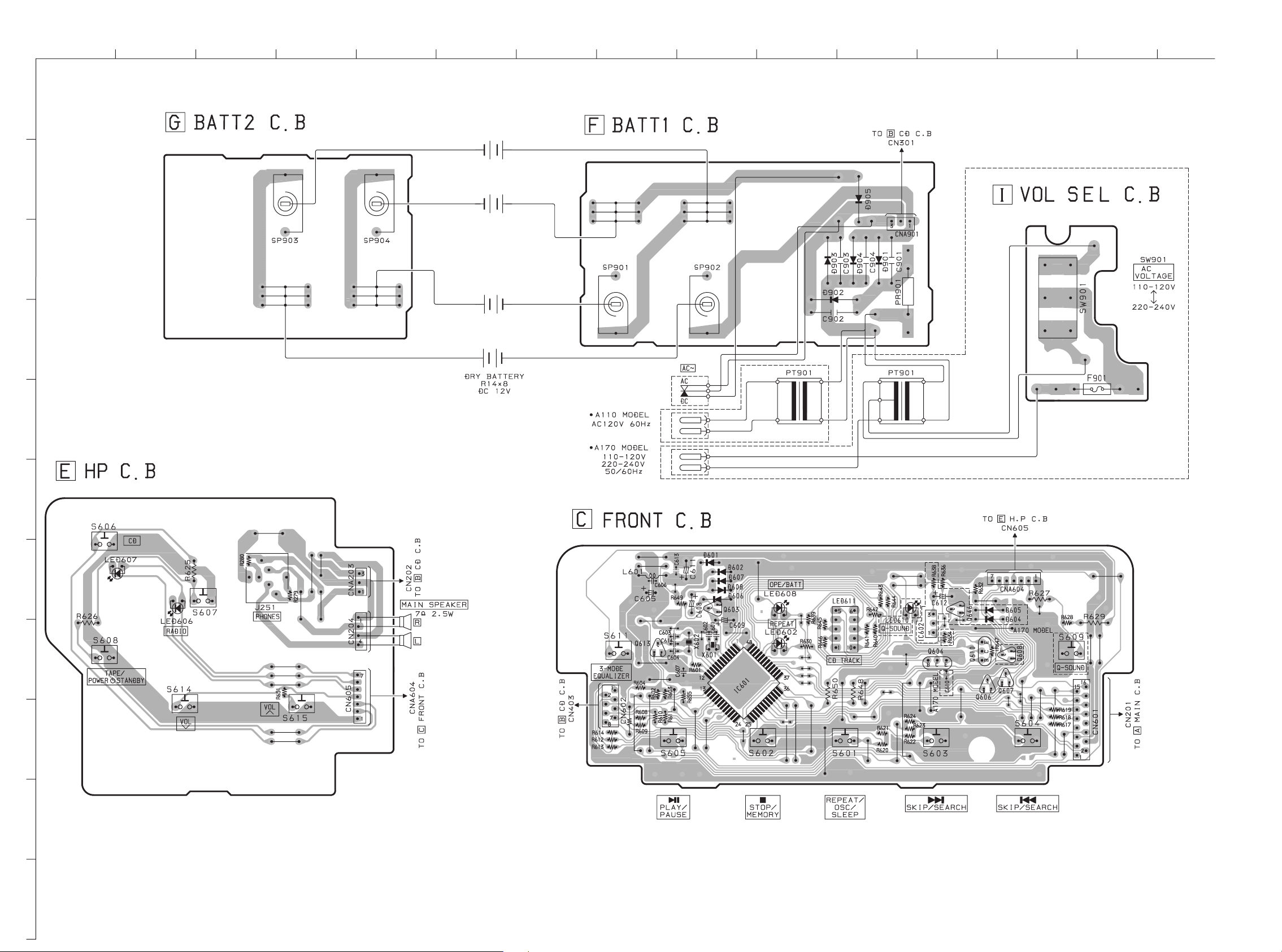

BATT1 C.B C901 87-010-192-080 C-CAP,S 0.022-50 F

C902 87-010-192-080 C-CAP,S 0.022-50 F C903 87-010-192-080 C-CAP,S 0.022-50 F C904 87-010-192-080 C-CAP,S 0.022-50 F CNA901 8A-CDA-627-010 CONN ASSY,3P PWR

PR901 87-A90-092-080 PROTECTOR,2.5A 491 SP901 87-CD6-213-010 SPR-C,BATT (-) SP902 87-CD6-213-010 SPR-C,BATT (-)

BATT2 C.B SP903 87-CD6-213-010 SPR-C,BATT (-)

SP904 87-CD6-213-010 SPR-C,BATT (-)

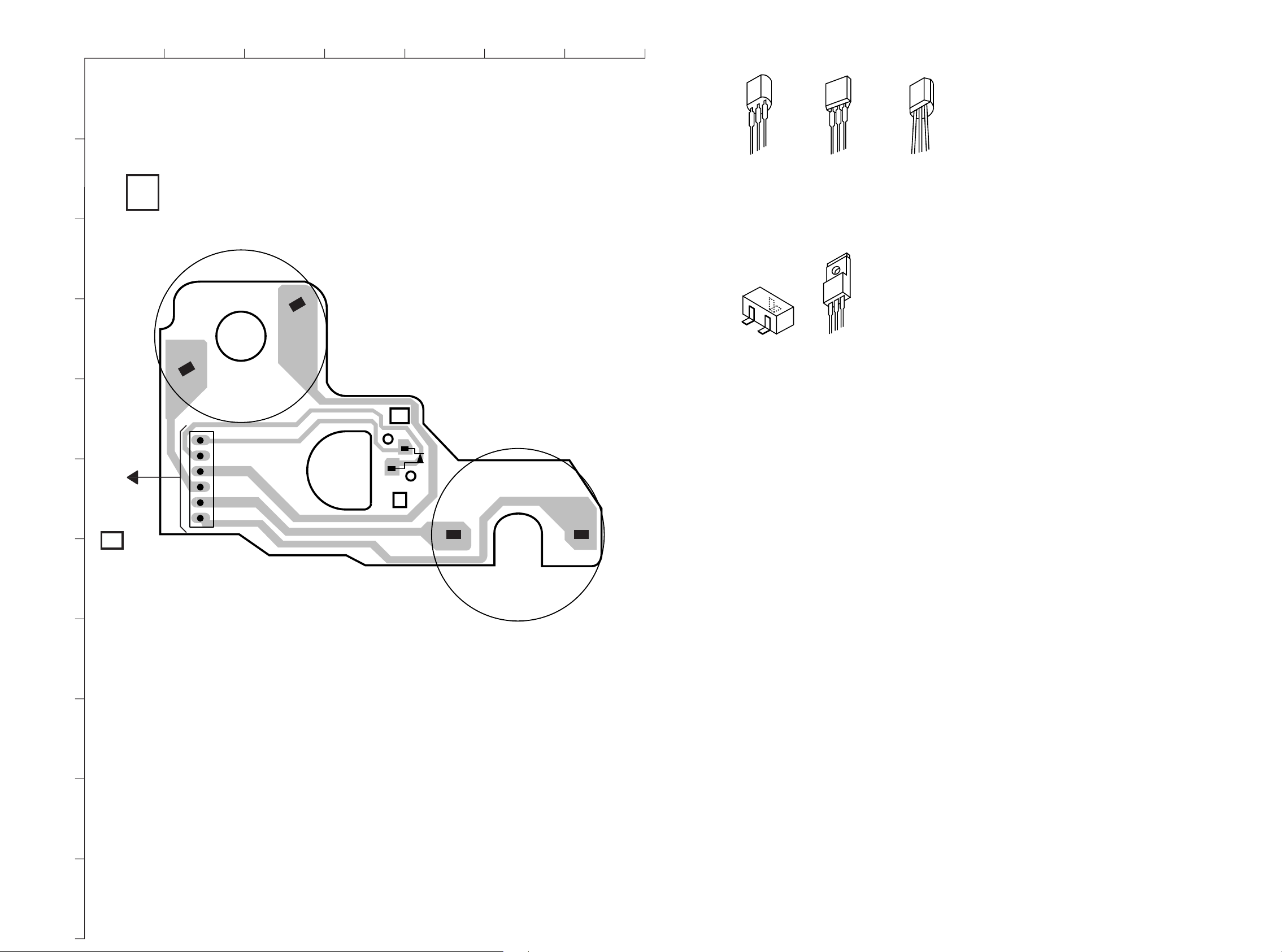

MOTOR C.B M2 9X-262-576-910 MOTOR GEAR ASSY

PIN3 91-564-722-110 CONNECTOR 6P SW1 91-572-085-120 LEAF SW

VOL SEL C.B<170HA(S)>

F901 87-035-347-010 FUSE, 2.5A 250V T<170HA(S)> FC901 87-033-213-010 CLAMP, FUSE SMK<170HA(S)> FC902 87-033-213-010 CLAMP, FUSE SMK<170HA(S)>

NO.

<110HRJ(S),100HRJ(S),170U(S),170HA(S)>

<170U(S),170HA(S)>

<100HE(S)>

• Regarding connectors, they are not stocked as they are not the initial order items.

mono. SW

Control logic

The connectors are available after they are supplied from connector manufacturers upon the order is received.

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

IC, LA6541D IC, M61509FP

Resistor Code

Chip resistor

Wattage Type Tolerance 1/16W 1005 5% CJ

1/16W 1/10W

1/8W

1608 2125

3216

5% 5%

IC BLOCK DIAGRAM IC, M62495AFP

Symbol

CJ CJ

Figure

Value of resistor

Form

Dimensions (mm)

0.55

Resistor Code

108 118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45 2 1.25 0.45

3.2

1.6

: A : A

IC, LA1828 IC, BA4560N

AUTO RESET

WIRING-1 (MAIN/CD)

234567

11 12 13

A99, A100

109
