OPERATING INSTRUCTIONS MODE D’EMPLOI MANUAL DE INSTRUCCIONES

CDC-X10
STEREO CAR CD RECEIVER RADIO-TOCADISCOS DE CD ESTEREOFONICO PARA AUTOMOVIL
YU

FRANÇAIS:

ESPAÑOL:

DIGITAL AUDIO

Page 2

Pagáis
Página 34

OWNER’S RECORD

For your convenience, record the model number and
serial number (you will find them on the bottom of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.
Model No. |CDC-X10 ~l
Serial No.
I ^ I

TABLE OF CONTENTS

PRECAUTIONS........................................................................................................................................................................................3
DETACHING THE CONTROL PANEL.....................................................................................................................................................4
CONTROL PANEL....................................................................................................................................................................................5
TURNING ON/OFF THE UNIT..................................................................................................................................................................6
SOUND ADJUSTMENTS......................................................................................................................................................................... 7
RADIO OPERATION................................................................................................................................................................................8
PRESETTING STATIONS......................................................................................................................................................................10
CD PLAYBACK....................................................................................................................................................................................... 12
PROGRAM PLAY................................................................................................................................................................................... 14
SPECIFICATIONS.................................................................................................................................................................................. 16
TROUBLESHOOTING ........................................................................................................................................................................... 17
NOTE FOR USE IN THE U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user’s right or authority to operate this product.

PRECAUTIONS

• Do not attempt to disassemble this unit. Laser rays from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctioning, or a safety hazard such as electrical shock or exposure of laser rays.
• When your car Is parked under direct sunlight in summer, there may be a considerable rise in temperature inside the car. Ensure to let the ambient temperature cool down before operating the unit.
• This unit is designed to be operated on a 12 volt DC negative ground electrical system only.
• When replacing the fuse, be sure to use the fuse whose amperage rating is identical. Use of a fuse with higher amperage may cause serious damage to the unit.

Notes on CDs

•A defective or soiled disc inserted into the unit can cause sound to drop out during playback.
• Handle the disc by holding its inner and outer edges.
• Do not touch the surface of the unlabeled side of the disc.
* Do not stick paper or tape etc. on the surface.
• Do not expose the disc to direct sunlight or
excessive heat.
(Q
m
3
• Clean the disc before playback. Wipe the disc
from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol
to clean the disc.
• Do not use an adaptor when playing a 3-inch
(8 cm) CD. It may cause malfunctioning.

DETACHING THE CONTROL PANEL

You can detach the control panel from the unit and carry it with you when you leave your car unattended.
damage to the unit.
2 Press POWER to turn the unit off.
press C~i^ to release one side of the panel. Care must be taken not to drop the panel as it may suddenly eject at this point.
remove it by pulling away from the unit.
Note
• Put the control panel inside the supplied carrying case to protect it from being damaged when you carry it with you.
Attaching the control panel
®

CONTROL PANEL

Display window
msgliPFi^tPROGl PirfRjH IBEIIILUH In
SBStiHhifc
m
3
(Q
» 3-
® A (detach) button (D POWER • button
(D Disc compartment (4) LOAD/EJECT button ® Preset Station buttons 1-6 ® INT (intro) button @ RPT (repeat) button ® RDM (random) button ® PRO (program) button ® ^11 (play/pause) button
@ AT (up/down) button @MODE button @ A.M (auto memory) button ()|>BAND button
@ «1- TUNE +/►► button
® M^SEEKPW button @ R/CD (radio/CD) button @ LOUD button
!) CD-S (CD single) indicator i) DISC indicator )ST (stereo) indicator D RNDM (random) indicator S) PROG (program) indicator !) INTRO indicator !) RPT (repeat) indicator ILUD (loud) indicator ^ Main Display section

TURNING ON/OFF THE UNIT

To turn on the unit
Press POWER or any other button (except (~^).
To turn off the unit
Press POWER.

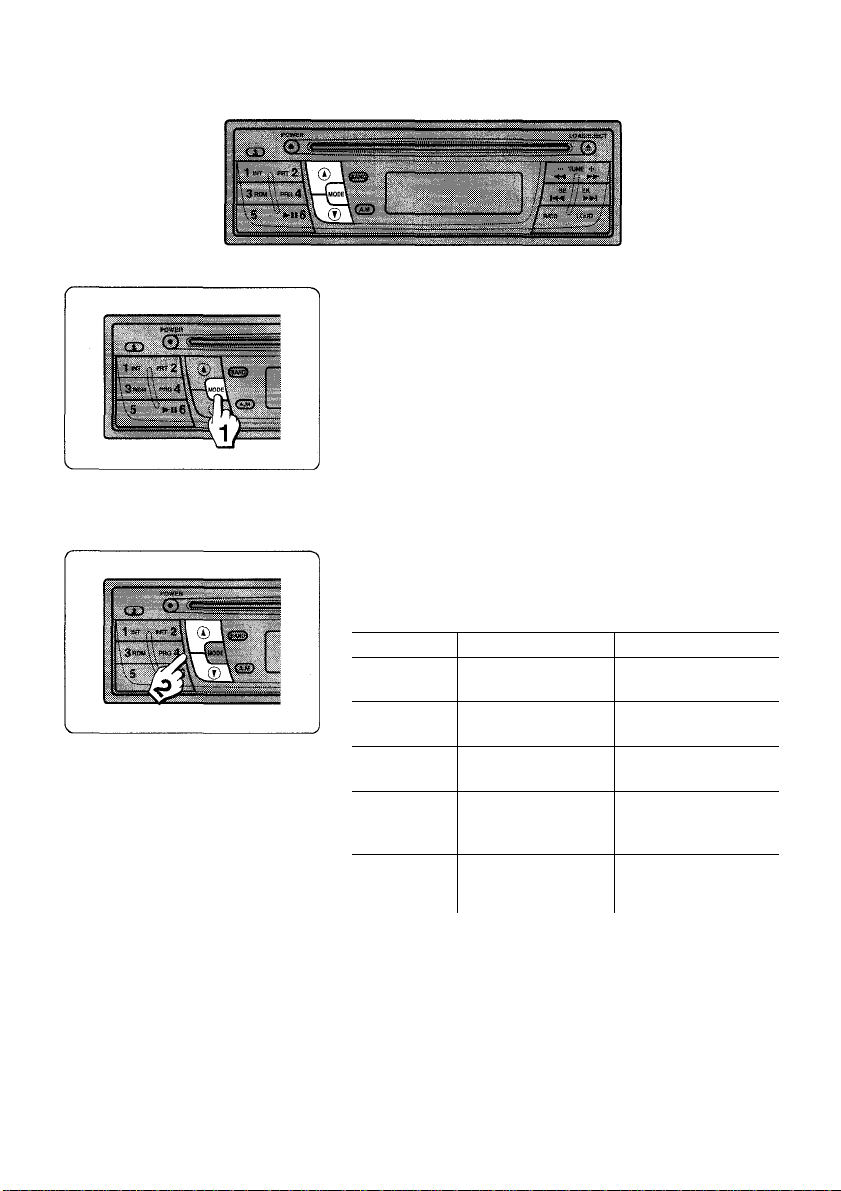

SOUND ADJUSTMENTS

1 Press MODE to select the mode you want to adjust
from VOL (volume), BAS (bass), TRE (Treble), BAL (balance), and FAD (fader).
The mode indicator lights up in the following order.
irni .
V Ul_
r
The selected mode changes to the volume mode when MODE is pressed for more than 5 seconds.
2 Press ▲ or ▼ (for less than 0.5 seconds) to adjust
the sound quality.
To change the level rapidly, press and hold A or T down longer.
l/ril V Ul_
1R5 TF?E
SRL
COT)
rnjL!
IRS—TRE^JRL—FRJ
A side ▼ side
Increases the
volume level.
Increases the bass
level. Increases the treble
level. Decreases the level
of the left speaker(s).
Decreases the level of the front speakers.
Decreases the volume level.
Decreases the bass level.
Decreases the treble level.
Decreases the level of the right
speaker(s). Decreases the level
of the rear speakers.
m
3
(Q

Note

• Without selecting any mode with MODE, only the volume level can be adjusted by pressing A or T.
LOUD (loudness) function
Press LOUD to reinforce bass and treble especially when listening at low volume level. To cancel the
loudness, press LOUD again.

To set the turn-on volume level

The unit can be set to always turn on at the same volume level.
After adjusting the volume with A or T, press and hold POWER down for more than 2 seconds until a
beep tone is heard.

RADIO OPERATION

1 Press any button (except ( a )) to turn on the unit.

The radio frequency is displayed.
If the unit is in the CD operation, press R/CD to select the radio
operation.
2 Press BAND to select the desired band from FM1,
FM2, FM3, and AM.
The band indicator [FM1, FM2, FM3, or AM] is displayed.
3 Press —TUNE+ repeatedly to tune in the desired
station.
Press + to increase and — to decrease the frequency.
To change the frequency rapidly, press and hold + or ■
down longer.

4 Adjust the volume with ▲ or T.

8

Note

• FM1, FM2, and FM3 have the same frequency range.
•ST indicator iights up when an FM stereo broadcast is received with a sufficient signal strength.

Seek Tuning

The seek function is used to search for the station automatically.
1 Press BAND to select the desired band.
2 Press SEEK to start the seek function.
Press to search for the higher frequencies and for the lower frequencies.
The seeking stops when the nearest station with good reception is tuned in.
Press or HM repeatedly until the desired station is received.

To turn off the radio

Press R/CD or insert a disc. The radio is turned off and the CD operation starts.
m
3
(Q
W 3"

PRESETTING STATIONS

Up to 6 stations for each band [FM1, FM2, FM3, and AM] can be stored on the preset station buttons.
1 Press BAND to select the desired band from FM1,
FM2, FM3, and AM.

2 Tune in the station to be preset.

3 Press one of the preset station buttons (1 - 6) for
more than 2 seconds untii a beep tone is heard.
The number of the pressed preset station button is displayed.
ri I I
I
‘icCl])
I.D

4 Repeat steps 2 and 3 to preset other stations.

Note

• As FM1, FM2, and FM3 have the same frequency range, up to 18 stations can be preset for FM.
• When a station is preset on the preset station button on which another station of the same band has already been preset, the previously preset station is automatically erased.
10

Automatic Presetting

The automatic presetting function is used to automaticaliy preset up to 6 stations for each band.
1 Press BAND to seiect the desired band. 2 Press and hoid A.M down for more than 2 seconds until a beep tone is heard.
The scanning starts from the currentiy dispiayed frequency to higher frequencies and stops when 6 stations have been preset or the receivable frequencies have been scanned once.

Note

•The presetting is not performed if there is no station to be tuned in.
• When the automatic presetting is performed, the previously preset stations are automatically erased.
•To stop the automatic presetting, press A.M again or press any of the preset station buttons (1 - 6).

To scan the preset stations

Press A.M for less than 1 second. Each preset station is tuned in for 5 seconds in order. To stop the scanning, press A.M again or any of the preset station buttons (1 6).

To tune in the preset stations

Press BAND to select the desired band and press the desired preset station button (1 - 6). The number of the preset station button is displayed and the preset station is received.
m
3
w
3
"
11

CD PLAYBACK

Press any button (except rS"^) to turn on the unit.
1 Insert a disc with the iabeied side up to start
piayback.
If a disc is already inserted, press R/CD to select the CD operation. DISC indicator lights up, and the track number and elapsed playing time are displayed. If a 3-inch (8 cm) CD is inserted, both CD and CD-S indicators light up.
2 Adjust the volume with A or T.
Press these buttons to operate CD playback.
Press To
^11 Pause play.
►►
◄◄
►M
Load or eject a disc.
The track number and elapsed playing time flash on and off. To resume play, press ►!! again.
Fonward on the disc. Press and hold ►>- down until the start of the desired passage, then release it.
Reverse on the disc. Press and hold ◄◄ down until the start of the desired passage, then release it.
Skip to the next track with a short press (for less than 0.5 seconds). Each extra press skips forward one extra track. To skip forward rapidly, press and hold PW down until the desired track number is displayed, then release it.
Restart the track currently in play with a short press (for less than 0.5 seconds). Each extra press skips backward one extra track. To skip backward rapidly, press and hold down until the desired track number is displayed, then release it.
12

Note

•The disc is neither inserted nor ejected when the unit is not turned on.
• Smaller 3-inch (8 cm) CDs can be played on this unit without an adaptor. Do not use an adaptor as it may cause malfunctioning.
•The playback starts from the first track on the disc only when inserting a disc. In other cases (when switching from the radio operation or turning on the unit), the playback starts from the beginning of the track being played when the playback has stopped.
• A disc can be inserted by putting it into the disc compartment slot, and either pushing it lightly with fingers or pressing LOAD/EJECT.

Intro Play

Press INT during playback. INTRO indicator lights up and the first 10 seconds
of all the tracks on the disc are played in order.
When the desired track is found, press INT again. The unit returns to the normal playback.

Note

•The intro play cannot be performed with the repeat or random play.

Repeat Play

Press RPT during playback. RPT indicator lights up and the currently selected
track is played repeatedly.
To cancel the repeat play, press RPT again.

Note

• If the repeat play is not selected, all the tracks on the disc are played repeatedly.
•The repeat play cannot be performed with the intro or random piay.

Random Play

Press RDM during playback.
RNDM indicator lights up and the tracks on the
disc are played randomly.
To cancel the random play, press RDM again.
Note
• The random play cannot be performed with the intro or program play. If the repeat play is selected during the random play, the random play is canceled.
• During the random play, even If is pressed repeatedly, the track currently in play is restarted.
113

PROGRAM PLAY

Up to 10 tracks can be set in the program memory in any order.
1 Press PRG.
2 Select a desired track by pressing SEEK^H
until its number is displayed.
PROG indicator lights up.
©Track number ® Program number
14
3 Press PRG to set the track in the program memory.
If PRG is not pressed within 5 seconds, the program play is
canceled.
4 Repeat steps 2 and 3 to set other tracks.
5 To start the program play, press ^11.

To confirm the programmed tracks

Press PRG in sequence. The track and program numbers are displayed in the order of the piayback. To stop the program piay, press PRG again.

Note

•The program memory of the disc is not erased even after turning off the unit. The program memory is
erased when ejecting the disc and inserting another disc.
•The program play cannot be performed with the intro, repeat, or random play.
115

SPECIFICATIONS

RADIO SECTION FM
Frequency Range: 87.5 MHz-108 MHz Usable Sensitivity: 12.7dBf 50 dB Quieting Sensitivity:
IF Rejection: 80 dB Frequency Response: 30 Hz - 15,000 Hz S/N Ratio: 63 dB Stereo Separation: Alternate Channel Selectivity:
Capture Ratio: 3dB
17.2 dBf
35 dB at 1 kHz
70 dB
AM
Frequency Range: 530 kHz - 1,710 kHz Usable Sensitivity:
30 pV (30 dB)
CD SECTION
Frequency Response: Dynamic Range: More than 85 dB Channel Separation: More than 70 dB S/N Ratio: Wow/Flutter: Unmeasurable
17 Hz-20 kHzH-0/-3dB
More than 90 dB
AUDIO SECTION
Max. Power Output: 25 W t- 25 W (rear)
7 W + 7 W (front)

GENERAL

Power Supply Voltage:
Load Impedance: Tone Control:
Pre-amp Output Voltage:
Installation Size: 182 (W) x 53 (H) x
Accessory Supplied: Carrying case (1)
•Specifications and external appearance are subject to change without notice due to product
improvement.
14.4 V (11 to 16 V allowable), DC, negative ground 4Q Bass ± 10 dB at 100 Hz Treble ± 10 dB at 10 kHz
3 V (max,)
155 (D) mm
(71/4(W)x2'/8(H)x
6 Vg (D) inches)
