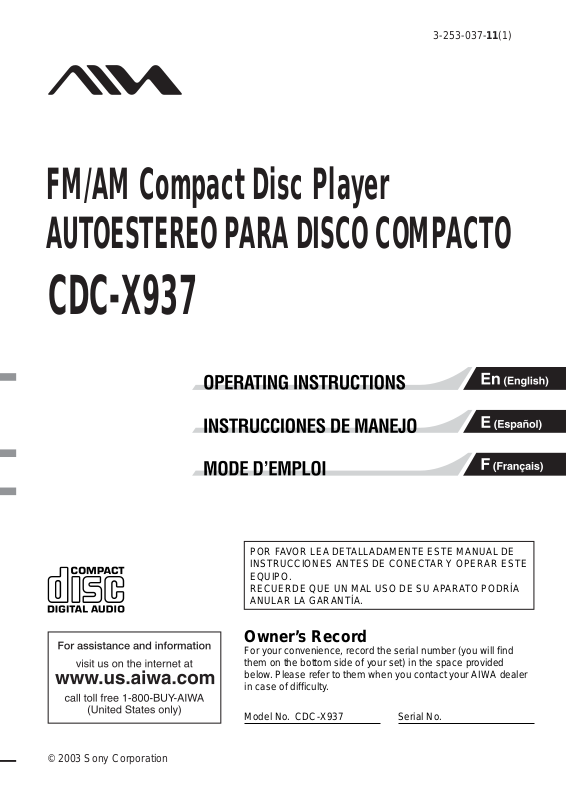

AIWA CDC-X937 Operating Instructions

3-253-037-11(1)

FM/AM Compact Disc Player AUTOESTEREO PARA DISCO COMPACTO

CDC-X937

POR FAVOR LEA DETALLADAMENTE ESTE MANUAL DE INSTRUCCIONES ANTES DE CONECTAR Y OPERAR ESTE EQUIPO. RECUERDE QUE UN MAL USO DE SU APARATO PODRÍA ANULAR LA GARANTÍA.

Owner’s Record

For your convenience, record the serial number (you will find them on the bottom side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. CDC-X937 Serial No.

PRECAUTIONS

• Use only in a 12-volt DC negative-ground electrical system.

• Disconnect the vehicle’s negative battery terminal while mounting and connecting the unit.

•

When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

• Do NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.

• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser-beam exposure.

• When your vehicle has been parked in direct sunlight resulting in a considerable rise in the temperature inside, allow the unit to cool off before operating it.

• Keep the volume at a level at which you can hear outside warning sounds (horns, sirens, etc.).

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Caution

The use of optical instruments with this product will increase eye hazard.

CAUTION

Modifications or adjustments to this product that are not expressly approved by the manufacturer may void the user’s right or authority to operate this product.

In addition to ordinary CDs, CD-Rs or CD-RWs can be read by this unit. However, NEVER use a CD-R or CD-RW that contains no data or data in the wrong format, such as MP3 or other computer files.

For installation and connections, refer to the separate “INSTALLATION AND CONNECTIONS”.

CD Notes

• Playing a defective or dusty CD can cause dropouts in sound.

• Hold CDs as illustrated.

• Do NOT touch the unlabeled side.

• Do NOT attach any seal, label or data protection sheet to either side of a disc.

• Do NOT expose a CD to direct sunlight or excessive heat.

• Wipe a dirty CD from the center outward with a cleaning cloth. Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch (8 cm) CDs.

• NEVER insert a 3-inch CD contained in the adapter or any irregularly shaped CD. The unit may not be able to eject it, resulting in a malfunction.

ENGLISH

TABLE OF CONTENTS

THEFT PROTECTION .............................................. 2

BASIC OPERATION, AUDIO AND CLOCK

ADJUSTMENT ..................................................... 3

RADIO OPERATION ................................................. 4

CD PLAYER OPERATION ........................................ 5

AUXILIARY EQUIPMENT ......................................... 6

OTHER FUNCTIONS................................................ 7

CARD REMOTE CONTROL ..................................... 7

TROUBLESHOOTING .............................................. 8

MAINTENANCE ........................................................ 8

SPECIFICATIONS .................................................... 9

Note

Some buttons are assigned two or more functions. For detailed descriptions, refer to the related pages.

Resetting the unit

Before operating the unit for the first time or after replacing the car battery, you must reset the unit. Press the reset button with a pointed object such as a pencil.

Reset button

Note

Pressing the reset button will erase the clock and some memorized functions.

DEMO (Demonstration) mode

The unit has an extra display (DEMO) mode which demonstrates the illumination modes of the unit. The unit switches to DEMO mode automatically if you turn the unit on and leave it as it is for 5 seconds after all the connections have been completed.

To cancel DEMO mode

1 Press and hold SRC (SOURCE) until “CONT.”

appears on the display.

2 Press t or r until “DEMO.” appears on the

display.

3 Press + or - to select “OFF”.

To resume DEMO mode, select “ON” in step 3. (See the illustration on page 3.)

THEFT PROTECTION

(Retractable Front Panel)

When your car’s ignition switch is turned off, the front panel will be retracted automatically as if there were no car audio in the console. When the ignition switch is set to the ACC or ON position, the front panel will appear automatically.

Note

Do not touch and put excessive pressure on the front panel while it is rotating.

You can also detach the upper part of the panel while the front panel appears. Take the front panel with you when leaving the car, and keep it in the supplied carrying case.

Detaching the front panel

Before detaching the front panel, remove the CD to prevent possible damage to the unit.

1 Press z to remove the CD. 2 Press the panel upward to close it. 3 Press and hold PWR/ATT until the unit turns off. 4 Press RELEASE. (Hold the panel with one hand to

prevent accidentally dropping it.)

5 Remove the panel.

PWR/ATT

RELEASE

ENGLISH

Attaching the front panel

If the ignition switch is turned off while the upper part of the panel is being detached, the lower part of the panel will be retracted automatically. If the ignition switch is set to the ACC or ON position, the lower part of the panel will appear automatically. Then attach the upper part of the panel.

1 Set the ignition switch to the ACC or ON position so

that the lower part of the panel appears.

2 Engage the left side of the front panel to the left catch

on the unit.

3 Push the panel forward until it locks. Be sure not to

press any buttons while you are attaching the panel.

Note

Do not touch the connectors on the bottom of the upper panel and the top of the lower panel. This could cause a poor or faulty connection.

BASIC OPERATION, AUDIO AND CLOCK ADJUSTMENT

+/–

/r/

S(SEL)

D(DSPL)

TU(TUNER)

Turning the unit on/off

• You can turn the unit on by pressing PWR/ATT, +/- /r/t and SRC (SOURCE). The unit also turns on

when you press z and insert a CD.

• Press and hold PWR/ATT until the unit turns off.

EJECTzSRC(SOURCE)PWR/ATT

Changing the source mode

1 Press SRC (SOURCE).

Pressing SRC (SOURCE) cycles through source modes in the following order:

* “DISC” does not appear on the display when there is

no CD in the unit.

Adjusting the volume

1 Press + or -.

VOL (volume) indication appears.

Muting the sound

1 Press PWR/ATT briefly.

“ATT ON” appears on the display.

To restore volume, briefly press PWR/ATT again.

Adjusting sound

You can select the following modes for adjusting sound depending on the music you listen to: BASS (low frequencies), TRE (high frequencies), BAL (left/right), FAD (front/rear), H-BASS (high bass)*, DSSA (Drivers Sound Stage Adjustment)** and BBE***. * You can reinforce the bass sound. ** You can adjust sound stage and tone balance to best

serve a particular seat in the car.

*** You can enhance the clarity of high-frequency sound.

1 Press S (SEL) repeatedly to select the mode to be

adjusted. Pressing S (SEL) cycles through the modes. The selected mode appears on the display.

2 Press + or - to increase or decrease the level for

the selected mode (except for H-BASS, DSSA and BBE). In H-BASS mode, press + or - to select 1, 2, 3, or OFF. In DSSA mode, press + or - to select L (for the front left seat), R (for the front right seat), or OFF.

In BBE mode, press + or - to select 1, 2, or OFF.

Notes

• Adjust the level or select an item within 5 seconds, or the selected mode will return to previous state.

• When DSSA is activated, you cannot adjust BAL and FAD.

Note

Most operations described in this manual require the unit to be turned on before starting the operation, unless explicitly stated otherwise.

ENGLISH

Aligning the source levels

(Source Level Adjuster)

Volume may vary each time you change the source mode. In this case, you can align each source mode’s volume to almost the same level.

1 Press SRC (SOURCE) repeatedly to select the

desired mode.

2 Press D (DSPL) while pressing S (SEL).

“LEVEL 0” appears on the display.

3 Press + or - to adjust the level.

Note

Adjust the level within 5 seconds, or this function will be canceled.

Restoring the factory settings

1 Turn off the unit. 2 Press and hold D (DSPL) until “LEVEL --” appears

on the display.

Note

You can restore the factory settings only for VOL, BASS, TRE, BAL, FAD, H-BASS, DSSA and BBE as well as aligned source volume levels.

Setting the beep tone

1 Turn off the unit. 2 Press and hold S (SEL) until “BEEP” appears on the

display.

3 Press + or - to select “ON” or “OFF”. 4 Press S (SEL).

The unit turns off.

Setting the clock

1 Press and hold D (DSPL) until the clock indicator

flashes on the display.

2 Press r (to set hour) or t (to set minute)

and press + or -.

3 Press D (DSPL).

Displaying the clock

1 Press D (DSPL).

To return to the former display, press D (DSPL)

again.

RADIO OPERATION

Tuning in to a station

(Seek/Manual Tuning)

r/t

TU(TUNER) ST LO

Stereo indicator

Band indication

Frequency indication

1 Press TU (TUNER) repeatedly to select the desired

band (

, , , or ).

2 Press t (to move to higher frequencies) or r

(to move to lower frequencies) to tune in to a station. “ST” appears on the display when an FM station is broadcasting in stereo, and receiving conditions are good.

Seek Tuning and Manual Tuning

• Press and hold t or r until Seek Tuning starts. The unit locates a station automatically (Seek Tuning).

To stop Seek Tuning, press t or r again.

• Press t or r repeatedly to search for a desired station while increasing or decreasing the frequency step by step (Manual Tuning).

Monaural mode

When FM signals become weak, or FM reception becomes poor, the unit automatically switches to Monaural mode to reduce noise.

Note

When stereo sound is received, you can also press ST and select “MONO” to listen in monaural mode. To resume stereo sound receiving, press ST to “AUTO ST”.

Local mode

Local mode allows you to tune in only to strong stations during Seek Tuning.

1 Press LO before you start seek tuning.

“LO” appears on the display. To return to Distant mode, press LO again. “LO” disappears and the unit tunes in to all receivable stations.

Local indicator

Tuner indicator

ENGLISH

Using preset stations

You must preset stations before you can tune in to a station using preset station number buttons.

r/t

SRC(SOURCE)

Tuning in to a preset station

1 Press TU (TUNER) repeatedly to select the desired

band (

, , , or ).

2 Press the preset station button on which the desired

station is stored.

Active tuning reception control (ATRC)

The unit automatically suppresses FM noise caused by vehicle movement, and maintains sound quality.

TU(TUNER)

Preset station buttons 1 – 6

PS/A.ME

Preset station number

Presetting stations automatically

(Auto Memory)

1 Press TU (TUNER) repeatedly to select the desired

band (

, , , or ).

2 Press and hold PS/A.ME until automatic presetting

starts. “A MEM” appears on the display. The unit automatically stores up to 6 stations for each band. After completion of automatic presetting, the unit tunes in to all the stations stored on the preset station buttons in order (Preset Scan).

To cancel automatic presetting, press PS/A.ME again.

Checking the preset stations (Preset Scan)

1 Press PS/A.ME briefly.

Each preset station will be tuned in for 5 seconds in

order. To cancel Preset Scan, press PS/A.ME again or any preset station button.

Presetting stations manually

(Manual Memory)

1 Press TU (TUNER) repeatedly to select the desired

band (

, , , or ).

2 Press t or r to tune in to a desired station (see

“Tuning in to a station,” page 4).

3 Press and hold the desired preset station button until

the unit beeps.

Note

A newly preset station replaces the station on the same band that was previously stored on that preset station button.

CD PLAYER OPERATION

Playing a CD

You can play CDs, CD-Rs and CD-RWs using the procedure described below.

r/t

1 Press z to open the front panel. 2 Insert a CD.

SRC(SOURCE)

INT REP1 SHUF

The front panel will be closed automatically and “DISC” appears on the display. CD play starts. If a CD is already inserted, press SRC (SOURCE) repeatedly to select CD play mode. In normal play, when the last track finishes, the unit returns to the first track and continues to play.

Labeled-side up

CD indicator Elapsed playing time

Track number

EJECTz

ENGLISH

Eject a CD Skip to the next track Go back to the beginning

of the current track Each extra press skips backward one extra track

Locate a specific point in a track

* When you remove the CD, the front panel will be

closed automatically after a while. To close the front panel manually, press the panel upward.

Press

z* t r

Press and hold r or t until you find the

point.

Notes

• When you play a CD that is already inserted, CD play starts at the point where it stopped the previous time. A newly inserted CD starts from the first track.

•A CD-R or CD-RW may take some time to start playing back, but this is not a malfunction.

• If a CD-R or CD-RW with no data is inserted, “ERROR03” will appear on the display. (See the section “TROUBLESHOOTING”.) The unit cannot play such discs.

Intro Play

You can locate a desired track by monitoring the first 10 seconds of all the tracks on a CD.

1 Press INT during CD play.

“INTRO” appears on the display.

2 Press INT again when the desired track is played.

The unit returns to normal CD play.

One Track Repeat Play

You can play a track repeatedly.

1 Press REP1 during CD play.

“REP1” appears on the display.

To cancel One Track Repeat Play, press REP1 again.

Shuffle Play

You can play all the tracks in random order.

1 Press SHUF during CD play.

“SHUF” appears on the display.

To cancel Shuffle Play, press SHUF again.

Note

During Shuffle Play, pressing r allows you to skip only to the beginning of the current track, not to the previous track.

AUXILIARY EQUIPMENT

Listening to a cassette/MD/MP3 portable player or other equipment

You can listen to music through equipment connected to the unit. Refer to the operating instructions for the corresponding equipment for more detailed information. Be sure to remove any loaded CD to prevent possible damage to the unit before connecting the equipment.

SRC(SOURCE)

AUX IN jack

1 Connect a cassette/MD/MP3 portable player or other

equipment via the unit’s AUX IN jack (3.5 mm dia.).

2 Press SRC (SOURCE) repeatedly until “AUX IN”

appears on the display.

Note

When a connecting cord is plugged into the AUX IN jack, you cannot insert or eject a CD even if you press z. Be sure to disconnect the cord before inserting or ejecting the CD. Likewise, be sure to disconnect it before you turn off the ignition switch, otherwise the front panel won’t be retracted.

ENGLISH

OTHER FUNCTIONS

+/–

/r/

Changing the display contrast

1 Press and hold SRC (SOURCE) until “CONT.”

2 Press + or - to adjust the contrast.

Changing the key illumination color

You can choose blue or red as the key illumination color.

1 Press and hold SRC (SOURCE) until “CONT.”

2 Press t or r until “ILL” appears on the display. 3 Press + or - to select “1 (for blue)” or “2 (for red)”.

Setting the dimmer of the display

1 Press and hold S (SEL) until “DIMMER” appears on

2 Press + or - to select “0 (bright)” or “1 (dimmed)”.

Displaying the VU level indicator

1 Turn off the unit. 2 Press and hold PS until “VU” appears in the display. 3 Press + or - to select “ON” or “OFF”. 4 Press PS.

SRC(SOURCE)

appears on the display.

the display.

PSS(SEL)

CARD REMOTE CONTROL

Names of parts

1 TUNER button 2 CD button 3 rAMS (Auto music sensor) button 4 tAMS (Auto music sensor) button 5 PS (preset) button 6 TUNING UP/DOWN buttons 7 VOLUME +/- buttons

Preparations

A lithium battery is installed in the remote control at the factory. Before you use the remote control, be sure to remove the insulating sheet by simply pulling it out.

Remote control (back)

ENGLISH

Insulating sheet

Replacing the battery

1 Insert the tip of a pointed object A into the hole B

and pull out the battery holder to remove the lithium battery (CR2025).

Remote control (back)

Battery holder

2 Install a new lithium battery (CR2025) with the )

side facing up in the battery holder.

TROUBLESHOOTING

Error code

In the following cases the corresponding error code indication appears. Follow the suggestions below to solve such problems.

ERROR03 Focus error. Check that the CD is loaded

properly (right side up, etc.), and the CD contains valid data.

Reset button

If a CD does not operate properly, press the reset button with a pointed object such as a pencil, etc. Note that all your settings will be erased if this button is pressed.

Reset button

MAINTENANCE

3 Push the battery holder into the unit until it clicks.

Note

When the infrared receptor on the main unit is exposed to direct sunlight, it may not respond to signals from the remote control.

CAUTIONS

• Lithium battery (CR2025) for the remote control Replace the battery with Hitachi Maxell, Panasonic or Sony Part No. CR2025 only. Use of another battery may present a risk of fire or explosion. The battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.

• Keep the lithium battery out of the reach of children. If swallowed, consult a doctor immediately.

• To prevent a short circuit, never pinch the battery with pliers, etc.

Cleaning the front panel

Wipe the surface with a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.

Cleaning the connectors

The connectors need to be cleaned occasionally. Wipe the surface of the connectors with a cotton swab slightly moistened with alcohol.

Bottom of the upper panel

Top of the lower panel

ENGLISH

SPECIFICATIONS

RADIO SECTION

(FM)

Frequency Range: 87.5 MHz – 108 MHz Usable Sensitivity: 12.7 dBf 50 dB Quieting Sensitivity: 17.2 dBf IF Rejection: 100 dB Frequency Response: 30 Hz – 15,000 Hz S/N Ratio: 70 dB Stereo Separation: 35 dB at 1 kHz Alternate Channel Selectivity: 98 dB Capture Ratio: 3 dB (AM) Frequency Range: 530 kHz – 1,710 kHz Usable Sensitivity: 30 µV (30 dB)

CD SECTION

Frequency Response: 17 Hz – 20 kHz +0/–3 dB Dynamic Range: More than 92 dB Channel Separation: More than 60 dB S/N Ratio: More than 90 dB Wow/Flutter: Unmeasurable

AUDIO SECTION

Max. Power Output: 45 W × 4 channels

AUX IN input

Input sensitivity (load impedance) AUX IN: 300 mV

(10 kΩ)

GENERAL

Power-Supply Voltage: 14.4 V (11 to 16 V

allowable), DC, negative ground

Load Impedance: 4 Ω Tone Control: Bass ± 10 dB at 100 Hz, Treble ±

10 dB at 10 kHz Preamp Output Voltage (load impedance): 2.2 V (10 kΩ) Installed size: 182 (W) × 53 (H) × 155 (D) mm

/4 (W) × 2 1/8 (H) × 6 1/8 (D) inches)

Supplied Accessory: Carrying case (1)

The word “BBE” and the “BBE symbol” are trademarks of BBE Sound,Inc. Under licence from BBE Sound,Inc.

CARD REMOTE CONTROL

Dimensions: Approx. 33 (W) × 85 (H) × 7.5 (D) mm

/16 (W) × 3 3/8 (H) × 5/16 (D) inches)

Weight: Approx. 20 g (0.7 oz.) (including battery)

• Specifications and external appearance are subject to change without notice due to product improvement.

ENGLISH

+ 22 hidden pages
