AIWA CDC482 Service Manual

SERVICE MANUAL

Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic" and the double-D symbol are trademarks
of Dolby Laboratories. Confidential Unpublished Works.
©1992-1997 Dolby Laboratories, Inc. All rights reserved.

CD-C482

No.S7861CDC482//

CD-C482

CD-C482 mini component system consisting of
CD-C482 mini component system,
CP-C482 and CP-SW482 speaker system.

• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

This Serivce Manual is for the CD-C482, which is a

minormodification model of the CD-C492, This manual,
therefore, describes only the changed points from the
service manual. Pleasa refer to the CD-C492, service
manual (No. S5829CDC492//) together with this manual.

CD-C492

Page

REMOVING AND REINSTALLING THE MAIN PARTS............ 15

QSOUND and the QLogo are registered trademarks of
QSound Labs, Inc.

QSound is protected under US Patent Nos. 5,105,462 and
5,208,860 and foreign counterparts.

ADJUSTMENT .......................................................................... 16

WAVEFORMS OF MD CIRCUIT .............................................. 20

TROUBLESHOOTING .............................................................. 55

FUNCTION TABLE OF IC ........................................................ 59

FL DISPLAY.............................................................................. 70

CONTENTS

Page

IMPORTANT SERVICE NOTES........................................................................................................................................ 2

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

OPERATION MANUAL ...................................................................................................................................................... 7

QUICK GUIDE ................................................................................................................................................................... 8

DISASSEMBLY................................................................................................................................................................ 11

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 14

BLOCK DIAGRAM ........................................................................................................................................................... 15

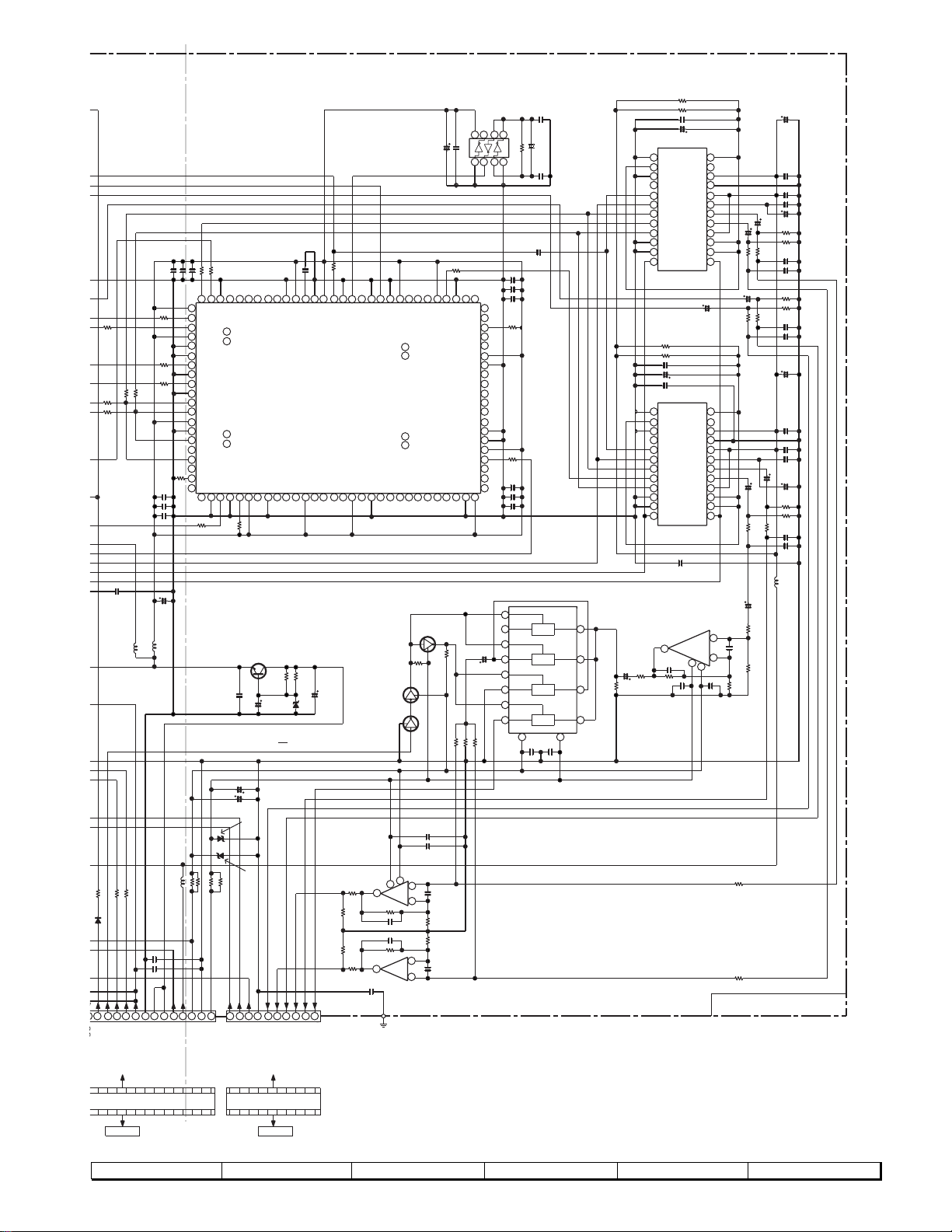

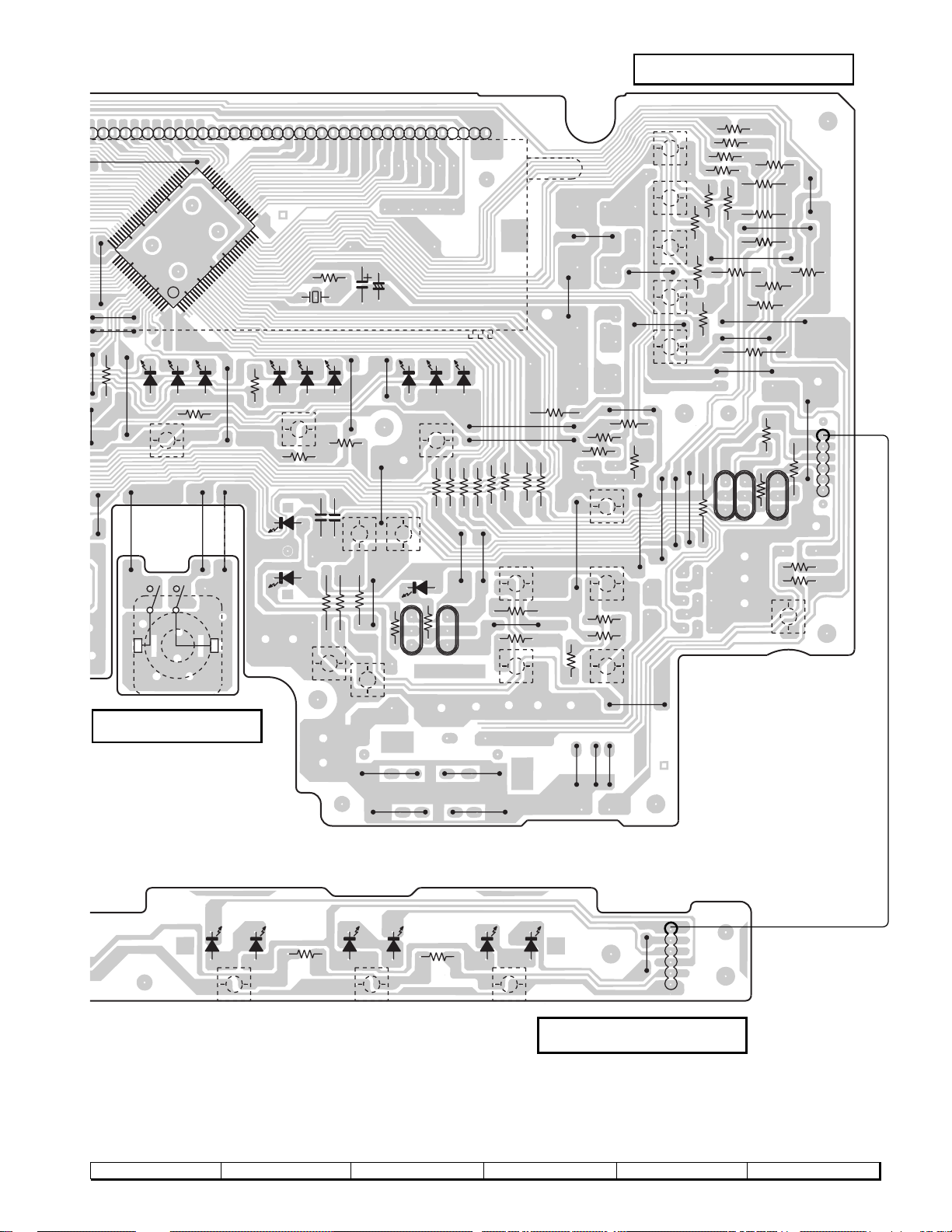

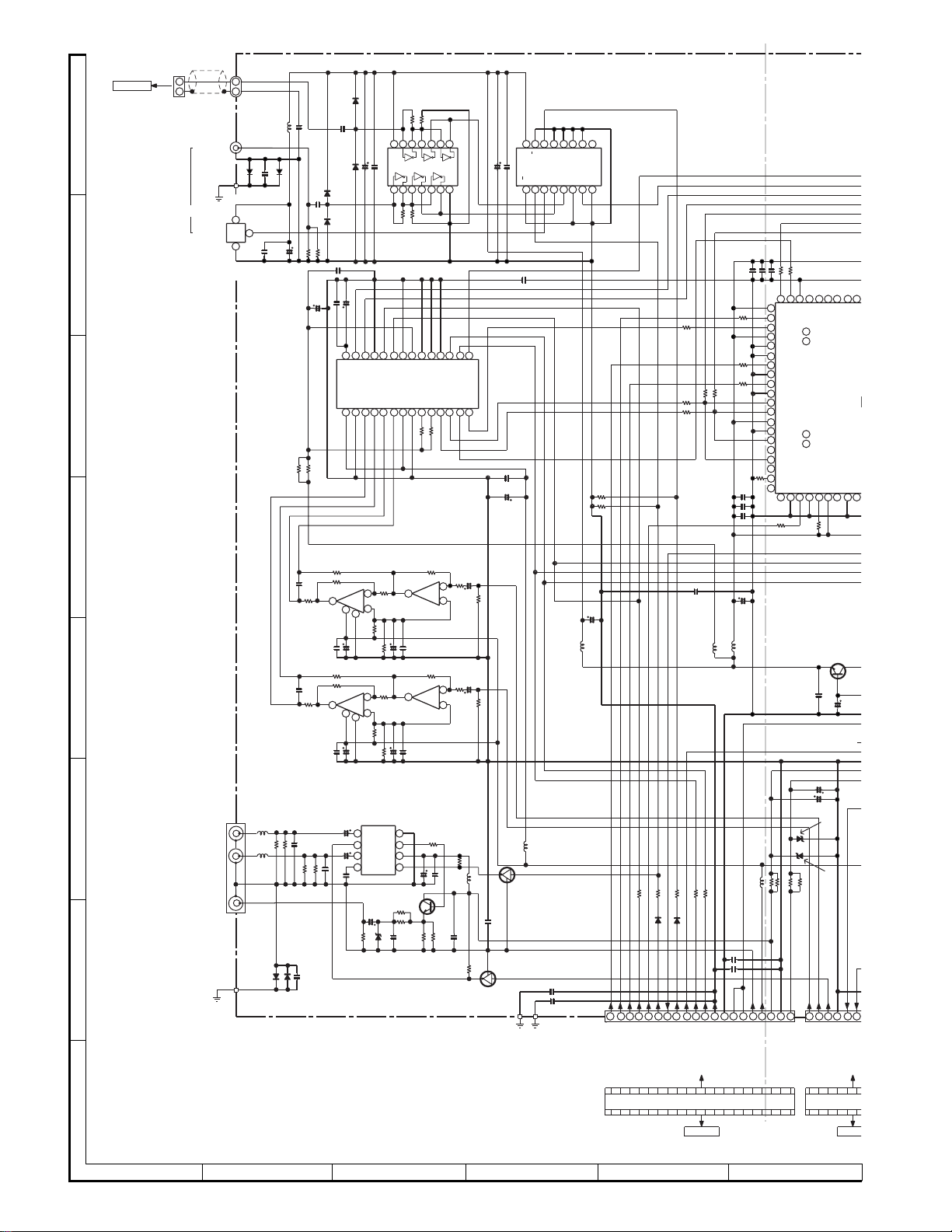

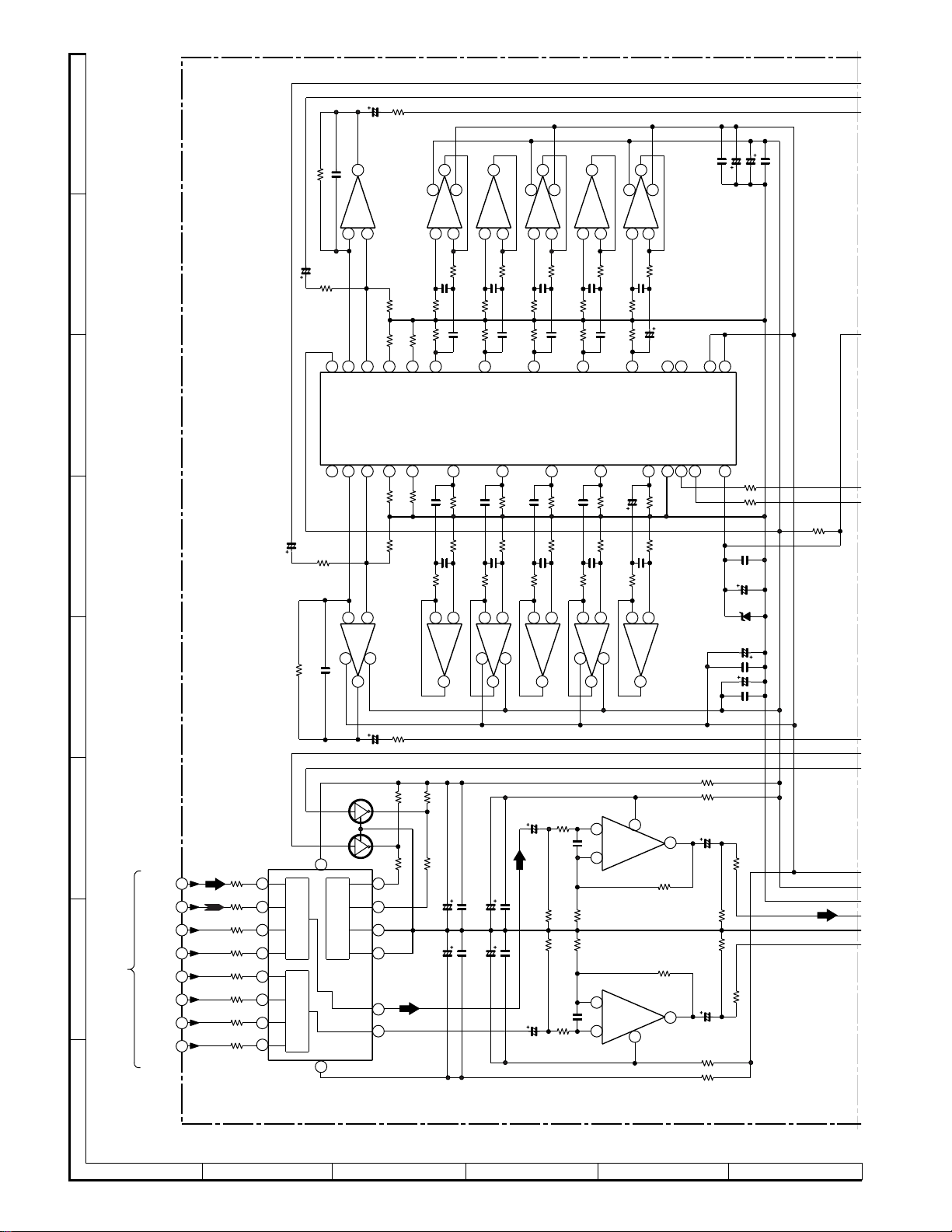

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD............................................................................................. 20

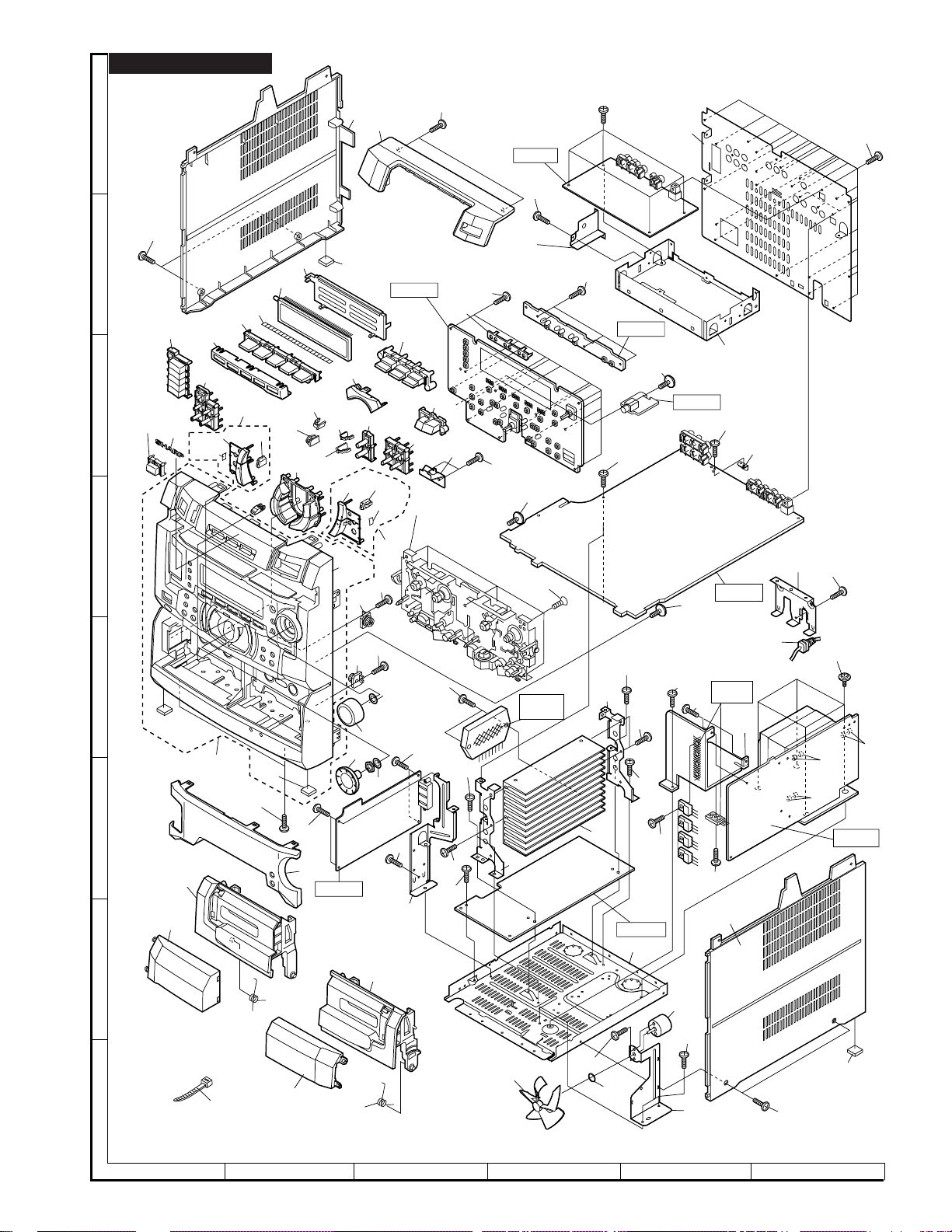

REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET

SHARP CORPORATION

– 1 –

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

CD-C482

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

IMPORTANT SERVICE NOTES

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched or that hardware is not lodged between the chassis
and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment
covers or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage
current in the following manner.

* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor

paralleled by a 0.15µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher,

sensitivity to measure the AC voltage drop across the
resistor (See diagram).

* Connect the resistor connection to all exposed metal parts

having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

VTVM

AC SCALE

1.5k ohms
10W

0.15 µ F

TO EXPOSED
METAL PARTS

All check must be repeated with the AC line cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

TEST PROBE

CONNECT TO
KNOWN EARTH
GROUND

ACCESSORIES

Remote control × 1

(RRMCG0141AWSA)

(92L3191SW49210)

FM antenna × 1

(92LFANT1746A)

Front speaker wire × 2

(92L3191SW49210)

AM loop antenna × 1

(QANTL0006AWZZ)

Sub woofer wire × 1

(92L3191SW49210)

– 2 –

CD-C482

CD-C482

SPECIFICATIONS

● General

Power source: AC 120 V, 60 Hz
Power consumption: 120 W
Dimensions: Width; 10-5/8" (270 mm)

Height; 12-1/2" (316 mm)
Depth; 13-1/2" (343 mm)

Weight: 22.3 lbs. (10.1 kg)

● Amplifier section

Output power: Front speakers; 50 W minimum

RMS per channel into 8 ohms,
from 60 Hz to 20 kHz with no
more than 10 % total harmonic
distortion.
Sub woofer; 50 W
(80 Hz, 10 % T.H.D.)

Output terminals: Front speakers; 8 ohms

Sub woofer; 8 ohms
Monitor; 1 Vp-p/75 ohms
PRE OUT; 500 mV/47 kohms

Front Left Speaker
Front Right Speaker
Surround Left Speaker
Surround Right Speaker
Center Speaker

Sub Woofer
Headphones; 16 - 50 ohms
(recommended; 32 ohms)

Input terminals: DVD 1 (Digital); Optical

DVD 2 (Digital); Coaxial
VCR 1/AUX 1; 500 mV/47 kohms
VCR 2/AUX 2; 500 mV/47 kohms
DVD 1/VCR 1; 1 Vp-p/75 ohms
DVD 2/VCR 2; 1 Vp-p/75 ohms

● Compact disc player section

Type: 3-disc multi-play compact disc

player

Signal readout: Non-contact, 3-beam semi-con-

ductor laser pickup

D/A converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 100 dB (1 kHz)

CP-C482

● Front speaker section

Type: 3-way, 5-1/8" (130 mm) woofer,

2" (50 mm) tweeter and super
tweeter

Maximum input power: 100 W
Impedance: 8 ohms
Dimensions: Width; 8-11/16" (220 mm)

Height; 12-1/2" (316 mm)
Depth; 11-3/16" (284 mm)

Weight: 7.5 lbs. (3.4 kg)/each

CP-SW482

● Sub woofer section

Type: 6-1/2" (160 mm) woofer
Maximum input power: 100 W
Impedance: 8 ohms
Dimensions: Width; 8-11/16" (220 mm)

Height; 12-1/2" (316 mm)
Depth; 11-5/8" (294 mm)

Weight: 8.4 lbs. (3.8 kg)

● Tuner section

Frequency range: FM; 87.5 - 108 MHz

AM; 530 - 1,720 kHz

● Cassette deck section

Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/

playback)

Wow and flutter: 0.15 % (WRMS)

Specifications for this model are subject to change without prior notice.

– 3 –

CD-C482

1

234

8

9

10

11

12 13 14 15 16

17 18 19 20

21

22 23 24 25 26 27 28 29

576

30 31

CD-C482

Front panel

NAMES OF PARTS

1. Disc Tray

2. Disc Number Selector Buttons

3. Disc Skip Button

4. Open/Close Button:

5. Function Selector Buttons

6. Extra Bass Button

7. Volume Control

8. Power Button

9. Headphone Socket

10. Surround Mode Selector Buttons

11. Equalizer Selector/Demo Mode Button

12. Clock Button

13. Sleep Button

14. Reverse Mode Button: ( )

15. CD Pause Button:

16. Jog Dial

17. (CD/TAPE) Stop Button:

18. Record Pause Button:

19. Menu Button

20. Item Button

21. Timer Button

22. Memory Button

23. Clear Button

24. (CD) Track Down/Review Button:
(TAPE 2) Fast Wind Button:
(TUNER) Tuning Down Button:

25. (TAPE 2) Reverse Play Button:

26. (CD) Play/Repeat Button:
(TAPE 1) Play button:
(TAPE 2) Forward Play Button:

27. (CD) Track Up/Cue Button:
(TAPE) Fast Wind Button:
(TUNER) Tuning Up Button:

28. (TAPE) Normal Edit Button

29. (TAPE) High Edit Button

30. (TAPE 1) Cassette Compartment

31. (TAPE 2) Cassette Compartment

– 4 –

CD-C482

Rear panel

1. DVD 1 Digital Input Socket (Optical)

2. DVD 2 Digital Input Socket (Coaxial)

3. DVD 1/VCR 1 Video Input Socket

4. DVD 2/VCR 2 Video Input Socket

5. Video Output Socket

6. CD Digital Output Socket (Optical)

7. VCR 1/AUX 1 Input Socket

8. VCR 2/AUX 2 Input Socket

9. FM 75 ohms Aerial Terminal

10. Aerial Earth Terminal

11. AM Aerial Terminal

12. AC Power Lead

13. Front Speaker Terminals

14. Sub WooferTerminals

15. Front Speaker Output Socket

16. Surround Speaker Output Socket

17. Center Speaker Output Socket

18. Sub Woofer Output Socket

1

2

67 8

12

4

3

5

9

10
11

15 16 17

CP-C482

Front speakers

1. Super Tweeter

2. Tweeter

3. Woofer

4. Bass Reflex Duct

5. Speaker Terminals

CP-SW482

Sub woofer

1. Woofer

2. Bass Reflex Duct

3. Speaker Terminals

2

1

1
2

4

3

RATED SPEAKER IMPEDANCE : 8 OHMS MIN.
IMPEDANCE NOMINALE DU
HAUT-PARLEUR : 8 OHMS MINIMUM

14

13

18

5

3

– 5 –

CD-C482

Remote control

1. Remote Control Transmiter LED

2. Surround Mode Selector Buttons

3. Sub Woofer Level Control Buttons: /

4. Setup Up/Down Buttons: /

5. Menu Button

6. Item Button
Tuner control section

7. Preset Up/Down Buttons: /
CD control section

8. Track Up/Cue Button: /

9. Track Down/Review Button: /

10. Memory Button

11. Disc Skip Button

12. Stop Button:

13. Play/Repeat Button:

14. Pause Button:

15. Clear Button

16. Random Button
Tape control section

17. (TAPE 2) Record Pause Button:

18. (TAPE 2) Reverse Play Button:

19. Stop Button:

20. (TAPE 1) Play Button:
(TAPE 2) Forward Play Button:

21. (TAPE 2) Fast Wind Buttons: /

2

3

8
9

10

22
23

24
25

17

1

45

15 16

18 19

7

6

11
12

13
14

20

21

26

Common section

22. Extra Bass Button

23. Equalizer Mode Button

24. Function Selector Buttons

25. Power Button

26. Volume Control Buttons

27. Dimmer Button

27

– 6 –

SETTING THE CLOCK

In this example, the clock is set for the
12-hour (AM 12:00) system.

CLOCK
POWER

MEMORY

2

3

– 7 –

4

0:00 AM 12:00 AM 0:00

5

6

7

8

9

Jog dial

TUNING
( )

1

Press the POWER button to enter the stand-by mode.

2

Press the CLOCK button.

3

Within 5 seconds, press the MEMORY button.

4

Turn the jog dial to select the time display mode.

"0:00" → The 24-hour display will appear.
"AM 12:00" → The 12-hour display will appear.
"AM 0:00" → The 12-hour display will appear.

● Note that this can only be set when the unit is first installed
or it has been reset (see page 36).

5

Press the MEMORY button.

6

Adjust the hour by turning the jog dial.

● When the jog dial is turned one click clockwise, the time will
increase by 1 hour. When it is turned one click counterclock­wise, the time will decrease by 1 hour.
Keep turning the jog dial to change the time continuously.

● When the 12-hour display is selected, "AM" will change auto­matically to "PM".

7

Press the MEMORY button.

8

Adjust the minutes by turning the jog dial.

● When the jog dial is turned one click clockwise, the time will
increase by 1 minute. When it is turned one click counterclock­wise, the time will decrease by 1 minute.
Keep turning the jog dial to change the time continuously.

● The hour setting will not advance even if minutes advance from
"59" to "00".

9

Press the MEMORY button.

● The clock starts operating from "0" seconds.
(Seconds are not displayed.)

Note:

● In the event of a power failure or when the AC power cord is
disconnected, the clock display will go out.
When the AC power supply is restored, the clock display will
flash on and off to indicate the time when the power failure
occurred or when the AC power cord was disconnected.
If this happens, follow the procedure below to change the clock
time.

To change the clock time:

When the unit is in the stand-by mode:

➀ Press the MEMORY button.
➁ Perform steps 6 - 9 above.

When the unit is on:

➀ Press the CLOCK button.
➁ Within 5 seconds, press the MEMORY button.
➂ Perform steps 6 - 9 above.

To see the time display:

Press the CLOCK button.

● The time display will appear for about 5 seconds.

To change the time display mode:

➀ Perform steps 1 and 2 in the section "RESETTING THE MI-

CROCOMPUTER", on page 36.

➁ Perform steps 1 - 9 above.

(0:00 - 23:59)
(AM or PM 12:00 - 11:59)
(AM or PM 0:00 - 11:59)

RESETTING THE MICROCOMPUTER

EQUALIZER

POWER

/DENO

Reset the microcomputer by performing the following
procedure for the cases shown below:

● To erase all of the stored memory contents, or

● If the display does not function properly, or

● The unit does not operate properly.

1

Press the POWER button to turn the power off.

2

Press the POWER button while holding down the
button and the EQUALIZER/DEMO button.

Caution:

● The operation explained above will erase all data stored
in memory including clock and timer settings, and tuner
and CD presets.

OPERATION MANUAL

CD-C482

MINI COMPONENT SYSTEM
Quick Guide/Guía rápida

CD-C482

4

Connecting the system /

CD-C482

Conexión del sistema

1

Check the supplied accessores /

● Remote control x 1

●

Controlador remoto x 1

– 8 –

2

How to use the remote control /

●Batteries are not included.

Las pilas no están incluidas.

●

● Front speaker wire x 2

Cable de altavoz frontal

●

x 2

Compruebe los accesorios suministrados

● FM antenna x 1

●

Antena de FM x 1

●2 “AA” batteries

Dos pilas “AA”

●

+

­+

● AM loop antenna x 1

Antena de cuadro de AM x 1

●

● Sub woofer wire x 1

Cable de altavoz de

●

subgraves x 1

Empleo del controlador remoto

Remote sensor

Sensor remoto

8” - 20’ (0.2m - 6m)

0,2m - 6m

-

15

Video

TV

TV

DVD

DVD

Video
Audio(Optical)
Audio(Coaxial)

Audio(Analog)

Audio

Video

15

VCR

VCR

R
L

R
L

AC 120 V, 60 Hz

120 V de CA, 60 Hz

3

Placing the speaker system /

Situación de los altavoces

●How to switch between an audio signal and a

video signal

Cómo cambiar entre una señal de audio y una

●

señal de vídeo

DISPLAY/

BUTTON/

BOTÓN

VISUALIZACIÓN

“DVD 1”

“VCR 1”

“DVD 2”

“VCR 2”

AUDIO OUTPUT/

SALIDA DE AUDIO

DVD 1

VCR 1/AUX 1

DVD 2

VCR 2/AUX 2

VIDEO OUTPUT/

DVD 1/VCR 1

DVD 1/VCR 1

DVD 2/VCR 2

DVD 2/VCR 2

SALIDA DE V?DEO

5

Listening to a CD /

Audición de discos CD

– 9 –

1

2

3

AM Loop Antenna

Antena de cuadro de AM

SUB WOOFER

ALTAVOZ DE
SUBGRAVES

Press the POWER button to

1

turn the power on.

Pulse el botón POWER para

Press the CD button.

2

Pulse el botón CD.

conectar la alimentación.

FM Antenna

Antena de FM

Press the OPEN/CLOSE button to

3

open the disc tray and place the CD (s)
on the disc tray, label side up.

Pulse el botón OPEN/CLOSE para abrir la

Black

Negro

FRONT SPEAKER

ALTAVOZ FRONTAL

RIGHT

DERECHO

Red

Rojo

LEFT

IZQUIERDO

bandeja del disco y coloque el disco(s) CD en la
bandeja del disco con el lado de la etiqueta arriba.

Press the OPEN/CLOSE button

4

to close the disc tray.

Pulse el botón OPEN/CLOSE
para cerrar la bandeja del disco.

Press the button.

5

Pulse el botón .

Red

Rojo

Black

Negro

Red

Rojo

Black

Negro

Red

Rojo

Black

Negro

Black

Negro

Red

Rojo

EXPANDED SPEAKER SYSTEM

SISTEMA DE ALTAVOCES AMPLIADO

Front speaker

Altavoz delantero

Sub woofer

Subgraves

Amplifier

Amplificador

Front speaker

Altavoz delantero

Amplifier

Amplificador

Surround speaker

Altavoz de sonido
perimétrico

Amplifier

Amplificador

Amplifier

Amplificador

Surround speaker

Altavoz de sonido
perimétrico

Center speaker

Altavoz central

To stop the playback

Para detener la reproducción

Press the button.

Pulse el botón .

6

VOLUME

Adjust the volume level.
Turn the VOLUME control clockwise
to increase the volume.
Turn the VOLUME control
counterclockwise to decrease the
volume.

Ajuste el nivel de volumen.
Girando el control VOLUME hacia
la derecha se incrementa el
volumen.
Girando el control VOLUME hacia
la izquierda se reduce el volumen.

CD-C482

6

Listening to a tape /

Audición de una cinta

8

Recording from CDs /

CD-C482

Grabaciones de discos CD

Press the POWER button to

1

turn the power on.

Pulse el botón POWER para
conectar la alimentación.

To stop the playback

– 10 –

Para detener la reproducción

Press the button.

Pulse el botón .

7

Listening to the radio /

Press the POWER button to

1

turn the power on.

Pulse el botón POWER para
conectar la alimentación.

Press the TAPE button to select

2

"TAPE 1" or "TAPE 2".

Pulse el botón TAPE para
seleccionar "TAPE 1" o "TAPE 2".

Load a cassette into the cassette

3

compartment.

Inserte un casete en el
compartimiento del casete.

Press the button.

4

Pulse el botón .

Audición de la radio

Press the TUNER (BAND) button

2

to select "FM ST" ,"FM"or "AM".

Pulse el botón TUNER (BAND) para
seleccionar "FM ST", "FM", o "AM".

TAPE 1

TAPE 2

Press the POWER button to

1

turn the power on.

Pulse el botón POWER para
conectar la alimentación.

Press the TAPE (1 2) button to

2

select the "TAPE 2".

Pulse el botón TAPE (1 2) para
seleccionar "TAPE 2".

Load a cassette into the

3

TAPE2 cassette compartment.

Inserte un casete en el
compartimiento del
casete de TAPE 2.

Press the REVERSE MODE button

4

to select the reverse mode.

Pulse el botón REVERSE MODE
para seleccionar el modo de
inversión.

•••••

One side /

•••••

Both side /

Press the CD button and load the

5

desired disc.

Pulse el botón CD y coloque el
disco deseado.

Una cara

Ambas caras

TAPE 2

Press the TUNING ( / ) button

3

to tune in to the desired station.

Pulse el botón TUNING ( / )
para sintonizar la emisora
deseada.

To stop the recording

Para detener la grabación

Press the button.

Pulse el botón .

Press the NORMAL EDIT button.

6

Pulse el botón NORMAL EDIT.

( B1 ) x2
ø3 x8mm

( B1 ) x4
ø3 x8mm

( B1 ) x2
ø3 x8mm

Top Cabinet

Side Panel
(Right)

Rear Panel

Side Panel
(Left)

( A1 ) x2
ø3 x12mm

( A1 ) x2
ø3 x12mm

CD Tray Cover

CD Player
Unit

( F1 ) x10
ø3 x8mm

( C3 ) x1
ø3 x8mm

Hook
( C1) x3

( C2 ) x1

( C4 ) x2

Rear Panel

Main PWB

Front Panel

1

1

2

Tuner PWB

Pull

(C2) x1

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.

4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.

CD-C482

STEP REMOVAL

1 Top Cabinet 1. Screw ..................... (A1) x4 11-1

2 Side Panel 1. Screw ..................... (B1) x8 11-1

(Left/right)

3 CD Player Unit/ 1. Turn on the power supply, 11-2

CD Tray Cover open the disc tray, take out 12-1

4 Dolby PWB 1. Flat cable ............... (D1) x2 12-1

5 Tuner PWB 1. Socket .................... (E1) x1 12-1

6 Rear Panel 1. Screw ..................... (F1) x10 11-2

7 Main PWB 1. Flat cable ............... (G1) x2 12-2

8 Front Panel 1. Flat wire ................. (H1) x1 12-2

10

Power Amp. PWB

11

Power Supply PWB

12 Display PWB 1. Knob....................... (M1) x2 12-4

13 CD Switch PWB 1. Screw..................... (N1) x3 12-4

14 Headphones 1. Screw..................... (P1) x1 12-4

15 Tape Mechanism 1. Screw ..................... (Q1) x6 12-4

16 Turntable 1. Screw ..................... (R1) x1 12-5

17 Disc Tlay 1. Screw ..................... (S1) x2 12-5

18 CD Player Unit/ 1. Screw ..................... (T1) x1 12-5

CD Servo PWB 2. Socket .................... (T2) x4

19 CD Changer 1. Screw ..................... (U1) x4 13-1

Mechanism

20 CD Mechanism 1. Screw ..................... (V1) x1 13-1

the CD cover, and close.
(Note 1)

2. Hook....................... (C1) x3

3. Hook....................... (C2) x2

4. Screw ..................... (C3) x1

5. Socket .................... (C4) x3

2. Socke ..................... (D2) x1

3. Screw ..................... (D3) x11

2. Screw ..................... (E2) x5

2. Flat wire .................

3. Socket...................... (G3) x4

4. Screw....................... (G4) x3

2. Screw...................... (H2) x2

1. Socket .................... (K1) x2 12-3

2. Screw ..................... (K2) x6

1. Screw ..................... (L1) x6 12-4

2. Nut.......................... (M2) x2

3. Screw ..................... (M3)x12

2. Cover ..................... (R2) x1

2. Guide ..................... (S2) x2

Note 1:

How to open the changer manually. (Fig. 11-3)

1. Then, turn fully the lock lever in the arrow direction through

PROCEDURE

(G2) x1

the hole on the loading chassis bottom in this state.
After that, push forward the CD player base.

CD-C482

DISASSEMBLY

CD-C482

FIGURE

Figure 11-1

Figure 11-2

LOCK
LEVER

Figure 11-3

– 11 –

CD-C482

(D1) x1

(F1) x1
ø3 x10mm

(C4) x1

(D2) x1

(D3) x8
ø3x10mm

(J2)x4
ø3x10mm

(D3) x4
ø3x10mm

(E2) x1
ø3x10mm

Front Panel

(K2)x5
ø3x10mm

Dolby PWB

(D1) x1

Rear Panel

(G2) x1

(G1) x1

(G3) x2

(G ) x2

(E1) x1

Tuner PWB

Figure 12-1

(G4) x2
ø3x10mm

Front Panel

(E2) x4
ø3 x10mm

( K1 ) x2

(G3) x2

Main PWB

(G4) x1
ø3x10mm

( H1 ) x1

Front Panel

(N1)x3
ø3x10mm

(M3)x12
ø3x10mm

Tape Mechanism

CD Switch PWB

( R2 ) x1

(M2)x1

(Q1)x6
ø3x10mm

Figure 12-4

( R1 ) x1
ø3 x10mm

Washer

Lug Wire

(M1)x2

(M2)x1

Display
PWB

Headphones
PWB

Open

(P1)x1
ø3x10mm

Cassette
Holder (Left/Right)

Turntable

Heat Shink Cover

Power Supply PWB

(L1)x1
ø3x10mm

Figure 12-2

(L1)x4
ø4x8mm

( K2 ) x1
ø3x10mm

Power Amp. PWB

(L1)x1
ø3x10mm

( H2 ) x1
ø3x10mm

( S1 ) x1
ø3 x10mm

( S2 ) x1

( T2 ) x2

CD Player Unit

Disc Tray

( S1 ) x1
ø3 x10mm

( S2 ) x1

Figure 12-5

( T1 ) x1
ø3 x10mm

CD Servo PWB

Figure 12-3

( T2 ) x2

CD Player Unit

Figure 12-6

– 12 –

CD-C482

( U1 ) x4
ø3 x12mm

( V1 ) x1
ø2.6 x10mm

Shift Lever

CD Changer
Mechanism

CD Player Base

CD Mechanism

Be careful when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.

Figure 13-1

CP-C482

STEP REMOVAL

1 Front Speaker 1. Net.......................... (A1) x1 13-2

2. Baffle Board ........... (A2) x1

3. Screw ..................... (A3) x2

4. Screw ..................... (A4) x4

5. Screw ..................... (A5) x2

PROCEDURE

FIGURE

CP-C482

Tweeter

Baffle Board

(A2)x1

Net

(A1)x1

Woofer

Screw driver

Super

Tweeter

(A5)x2

ø3x10mm

Tweeter

(A3)x2

ø3x10mm

CP-SW482

STEP REMOVAL PROCEDURE FIGURE

1 Sub woofer 1. Net.......................... (A1) x1 13-3

2. Duct Panel ............. (A2) x1

3. Screw ..................... (A3) x4

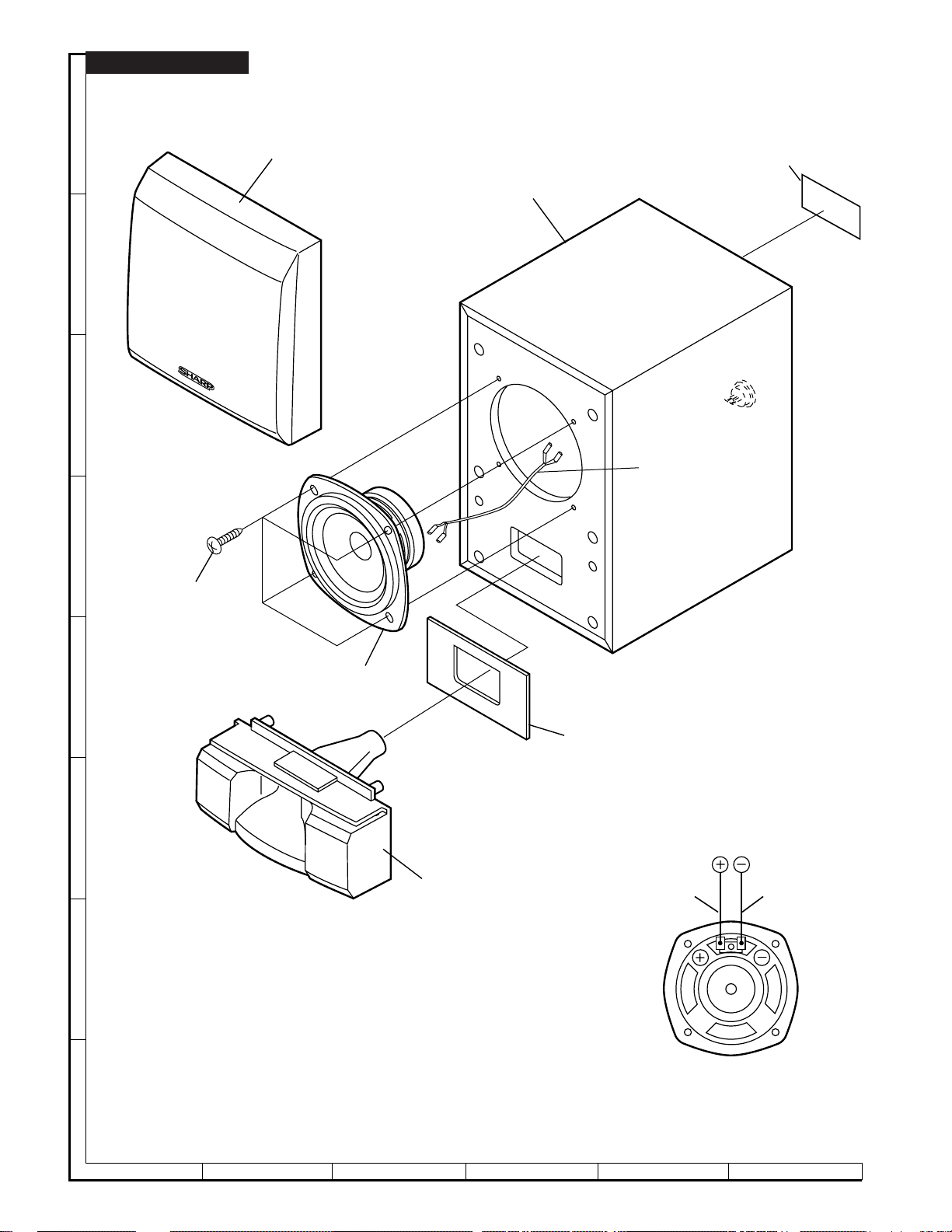

Note:

The center and rear speakers can be easily disassembled.
Therefore the disassembling method is not discribed.
For details refer to the disassembling drawing in the Parts
Guide.

(A4)x4

ø4x16mm

Woofer

Figure 13-2

CP-SW482

Net
( A1 ) x1

( A3 ) x4
ø4 x16mm

Woofer

– 13 –

( A2 ) x1

Figure 13-3

Screwdriver

CD-C482

NOTES ON SCHEMATIC DIAGRAM

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

SW1 OPEN/CLOSE ON—OFF
SW2 MECHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SWD1 VOLUME ON—OFF
SWD2 JOG ON—OFF
SWD3 X-BASS ON—OFF
SWD4 PRE EQ ON—OFF
SWD5 MENU ON—OFF
SWD6 ITEM ON—OFF
SWD12 TUNING UP/CUE ON—OFF
SWD13 STOP ON—OFF
SWD14 NORMAL EDIT ON—OFF
SWD15 REC. PAUSE ON—OFF
SWD16 REC/PAUSE ON—OFF
SWD17 F-PLAY ON—OFF
SWD23 QSOUND ON—OFF
SWD26 VIRTUAL ON—OFF
SWD27 PHANTOM ON—OFF
SWD28 NORMAL ON—OFF
SWD29 BYPASS ON—OFF
SWD30 TUNING DOWN/REWIND ON—OFF
SWD31 CD PAUSE ON—OFF

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

( ) indicates AM
< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

SWD32 REVERSE MODE ON—OFF
SWD33 R-PLAY ON— OFF
SWD34 CLOCK ON—OFF
SWD35 MEMORY ON—OFF
SWD36 TIMER ON—OFF
SWD37 SLEEP ON—OFF
SWD38 CLEAR ON—OFF
SWD39 DVD/VIDEO 1 ON—OFF
SWD40 DVD/VIDEO 2 ON—OFF
SWD41 TAPE 1/2 ON—OFF
SWD42 TUNER/BAND ON—OFF
SWD43 CD ON—OFF
SWD48 POWER ON—OFF
SWD50 DISC 1 ON—OFF
SWD51 DISC 2 ON—OFF
SWD52 DISC 3 ON—OFF
SWD53 DISC SKIP ON—OFF
SWD54 OPEN/CLOS ON—OFF
SWM3 REC FWD ON—OFF
SWM4 REC RVS ON—OFF
SWM5 F.A.S ON—OFF
SWM6 CAM ON—OFF

KTA1266 GR
KTA1270Y
KTA1271 Y
KTA1273 Y
KTC3199 GR
KTC3203 Y
KRA102 M
KRA107 M

FRONT

VIEW

E C B

(S)(G) (D)

(1) (2) (3)

KRA109 M
KRC102 M
KRC104 M
KRC107 M
2SC535 C
2SD468 C
2SC2878 A

FRONT

VIEW

B C E
(D)(G)(S)
(3) (2) (1)

2SD2012
2SB1375

SLR325 MG
SLR325 VR
KL052 UL
SLR505 MC
LMKD515 B

Figure 14 TYPES OF TRANSISTOR

– 14 –

FRONT

VIEW

FRONT VIEW

KV1236Z23

PICKUP UNIT

+5V

Q1 Q52

+B1

XL1

+5V

FOCUS COIL

Figure 15 BLOCK DIAGRAM (1/5)

TRACKING COIL

– 15 –

M2

SLIDE

MOTOR

M

PICKUP IN

SW4

M1

DISC

MOTOR

M

LD0

FIN2

1

FIN1

2

E

3

F

4

TOFDSPONCSLD

5

6
7

12
13

M56748FP

24

DRIVER

25
30

31

62

64 45 3623 43

VCC1

IC1

LA9241M

SERVO AMP.

SL–

SL+

DRFCLDAT

3222

20

IC3

26
27
28
29
34
35
36

10 11

98

JP–

32

~

40

CV+

43

SLC

44

SL1

CE

5352515431302923271615

CL, DAT, SELIAL CONTROL/CE

SL+. SL–. DRF

+B1

PU-IN SW

XIN

EFMO

9

10

EFMIN
CLV+

12

~

20

JP–

RES. CQCK. COIN
SQOUT. RWC. WRQ

XOUT

VVDD

IC2

6

LC78622K

CONTROL

SERVO/SIGNAL

265853

~

Q93

Q91

VDD

4144

LVDD

RVDD

DOUT

CONT4

CONT1
CONT2

XVDD

31

27

24
25

+12V(+B5)

Q91

8

1

TA7291S

LORDING MOTOR

9

DRIVER

3

IC81

6
5

7

10 10

9
8
7
6
5
4
3
2
1

CNP10

TO MAIN SECTION

+B1

GND (D)
MECHA UP
GND (D)
DISK NO.
OPEN/CLOSE
GND (D)
M–
M+
GND (M)

9
8
7
6
5
4
3
2
1

CNS10

M

TO MAIN
SECTION

SW2
MECHA UP

SW3
DISC No.

SW1
OPEN/CLOSE

M3
LOADING

SOLM1

+4.3V

REGULATOR

Q81 +7.3V (B1)

CD-C482

CD-C482

O

M

ANAROG RCH

IN

ANAROG LCH

IN

DVD2

DIGITAL

IN

DVD2

DIGITAL

IN

FROM CD UNIT

ICA12

NJM4580M

LOW PASS FILTER &

DIFFERENTIAL AMP

+B7

8

2

4

A-GND

+B7

8

2 1

4

A-GND

1

ICA11

IN

6

AINR–
AINL–

IN

6

OUT

NJM4580M

LOW PASS FILTER &

DIFFERENTIAL AMP

TOS

ICA14

GP1F38R

ICA15

TC74HCU04

INVERTER

IN

1 4

IN

13

14

7

+B13

D4-GND

OUT

7

7

6
8

10

AINL+
OUT

AINR+

3

AINR–

4

AINL+

5

AINL–

6
2

8

18
19

20
22
25

A-GND

ICA16

TC74HCU15

SWITCH

IN

3

IN

4

IN

5
6

1

6

D4-GND

1

~

11

ICA13

7

13

PWDA

PWAD

23

24

16
17
15
11
12
13

A/D,D/A

AK4520A

14

CONVERTER

27
26

21

10

9

+B13+B9

14

D-OUT

7
9
2

+B13

16

15

DEM0
DEM1
SCK
CLK
CLK2L/R
SL/SR IN
D-OUT

LS OUT
RS OUT

DGTL2

DGTL1

DGTL1

DGTL2

V1/V2

D-IN

D-IN

SL/SR OUT

83

79

61

36

4

D3-GND

CLK2L/R OUT

CLK2OUT

SCK2IN

95

66

97

92

91

94

85

62

86

60

SCK
CLK
CLK2

2

D

78

8

90

VIDEO1 IN

VIDEO2 IN

MONITOR

OUT

QH51

+B7

ICH51

NJM2246M

SWITCH

1

3

7

+B7

5

2

4

8

V-GND

SWITCHING

DGTL2

QH53

V1/V2

QH52

SWITCHING

Figure 16 BLOCK DIAGRAM (2/5)

– 16 –

DGTL2

V1/V2

LS/RS

OUT

6

4

SSSOSCK SIDEMO1

DEMO0

AC3 RESET

SUB

ON/OFF

WOOFER

CD-C482

AD RESET

+B9

PD

6

DEM0

12

DEM1

13

SCK
CLK
CLK2L/R

XT1
BICK
LRCK

FL/FR

IN

5
7
9

8

ICA19

1

3

10

D3-GND

D3-GND

PD

6

DEM0

SCK

87

89

FL/FR OUT

SI

80

SSSORESET

29

19

8

2

GND

65

37

68

44

53

34

71

82

3

ICA18

ZR38600

DOLBY AC-3 /5.1

MPEG2 AUDIO

DECORDER

VDD

48

78

90

12

6

5

45

55

30

35

17

81

70

59

67

CENTER

54

SUB

WOOFER

OUT

93

84

SUB

WOOFER

ON/OFF

QA01

DEM1

XT1
BICK
LRCK

CENTER

SUB

WOOFER

IN

12
13

5
7
9

8

1 3

D3-GND

ICA20

10

16
20
22

2

14

D/A

15

AK4321

24

CONVERTER

FL

18
17

FR

OUT

11

21

A-GND

+B9

16
20
22

2

14

D/A

15

AK4321

24

CONVERTER

CENTER

18
17

WOOFER

11

21

A-GND

SUB

QA02

6

SWITCHING

+B13

QA03

SUB

WOOFER

OUT

5

12

13

2
9

10

14

+B12

7

–B12

ICB01

NJM4580M

MIX AMP

OUT

L

1
7

R

+B7

8

4

3
5

MIX

IN

A-GND

SUB

WOOFER

FL/FR

ICA21

NJM4580M

–15dB AMP

4
1

8

11

7

ICA22

BU4066BCE

SWITCH

8

4

–B12

+B7

SUB

WOOFER

5

IN

–B12

SUB

WOOFER

OUT

FL/FR

OUT

CENTER

OUT

Figure 17 BLOCK DIAGRAM (3/5)

– 17 –

+B12

+B13

VOLTAGE

REGURATER

VOLTAGE

REGURATER

QB01

VOLTAGE

REGURATER

UN-SWITCHED

–B6–B12

+B7

+B9

CD-C482

7

4

Q

7

O

SL

IN

SL

OUT

FM
AM

PRE-OUT

C

SW

RS
LS

R
L

JR11

VCR/AUX1

L

L

JR12

VCR/AUX2

TAPE 1

TAPE 2

SO301

ANTENNA

TERMINAL

JR13

R

R

PHM1

QR15
QR16

MUTE

MOTOR

SWM3
SWM4

CAM SW

FAS SW

SOLM1

PB HEAD

QR19
QR20

MUTE

QR17
QR18

MUTE

M

L–CH

R–CH

REC/PB
HEAD

L–CH
R–CH

ERASE
HEAD

FM BPF

BF301

T302

A1064

MOTOR
DRIVER

AM RF

AM ANT

SW

OUT

P.B

1

OUT

C

7
1

L

7

R

1

OUT

R

7

L

1

+B2

QL14

T2 PH–IN

REC

AC BIAS

2

+B7

–B6
+B7

–B6
+B7

QK03 QK05
QK04 QK06

IC301

FM FRONT END

TA7358AP

5

3 4

L302

FM RF

AM OSC

T304

B1074

IN

8

C

5

SW

3

4

ICR14

NJM4565M

BUFFER AMP.

IN

8

RS

5

LS

3

4

ICR13

NJM4565M

BUFFER AMP.

IN

8

R

5

L

3

4

ICR12

NJM4565M

BUFFER AMP.

–B6

DRIVER

QL12

DRIVER

QL11

+B2

DRIVER

QL15

P.B

REC/PB

QK07

QK09

QK08

QK11QK10

7 8

FM

OSC

L303

Q302

OSC BUFF

QL18

QL13

QL17

QL19

POP REDUCE

L REC

R REC

QK28
LK04

FM OSC

L(T1)

R(T1)

L(T2)

R(T2)

L NF

R NF

REF

+B7

FM IF

T301

6

9

FM +B

TA MOT SW

HI SPEED

SWITCHING

TA MOT H/L

T2 A/B-FP

TA CUM SW

T1 RUN SW

T2 PH-OUT

TA PUL

AN7345K

PLAYBACKuRECORD AMP

1

24

2

23

3
4

T1/T2

6

REC

9

16
14
13

NOR/
HIGH

12

15

Q344

ICK01

FMOSC

+B7

P.B.

H/N

T1/T2

19

FM

FM IF

CF301

FM IF IN

7

P.B

4
21

20

18

17
10

20

5

7

8

Figure 18 BLOCK DIAGRAM (4/5)

AM IF

1 5 3

AM MIX

24

AM OSC IN

X352

4.5MHz

22

1

OSC

PLL CONTROLLER

L
R

L

REC

R

L NF

R NF

ALC

SWITCHING SWITCHING

+B7

T351

AM IF VCC

FM/AM IF+MPX

22

23

AM+B

AM RF IN

AM IN

FM IN

15

16

11

IC302

LC72131

3

HI SPEED

PB MUTE

QK17
QK18

MUTING

REC MUTE

QK21
QK22

MUTING

SWITCHING

QK15
QK16

QK19

SWITCHING

BAIS

QK24

– 18 –

IC303

LA1805

15

7

STEREO

10

5

4

DI

CLCEDO

REC/PB

+B7

21

6

GND

MONO/ST

FM/AM

SWITCHING

VOLTAGE

REGURATER

+B7

+5V

FM MONO/ST

17

21

6

FM +B

T1/T2

QK26

MPX VCO ADJ

T352

FM DET

20

FM DET

MPX IN

FM/AM DET OUT

11

17

Q343

BAIS

16

Q342

VR351

13

VCO

MO/ST

9

10

L

R

TUNER

TAPE

VCR 1

VCR 2

FUNC–A

10

12

L

1

R
L

14

R

5

L

15

R

2

11

L
R

4

–B10

ICZ09

NJM4565D

LINE AMP.

–B10

FUNC–B

9

ICZ08
TC4052BP
DUAL 4CH ANALOG
MULTIPLEXER

L

21
27

R

16

7

+B10

R L

4

1

R L

TO AC-3

3

7

5

IN

8

OUT

B.P.F

ICH11
NJM4558M
MOTOR DRIVER

7

+B10

SPE IN

2

L

20

40

L–OUT

19

41

L–IN

R–OUT

R

18

QS7

QS

42

R–IN

C–OUT

1

IC

4

C–IN

–

–

R–OUT

C–OUT

R

18

9

ICQ01

QS7777PF

QSOUND

1

42

44

R–IN

C–IN

SL–OUT

17

SL–IN

SR–OUT

16

45

SR–IN

L–IN

R–IN
C–IN

SL–IN

SR–IN

SW–IN

15

+B7

T1 RUN

T2 RUN
T2 A FP
T2 B FP
T1 CrO2
T2 CrO2
CAM-SW

TAPE SOL

TA MOT

HIGH SP

FR SP

BIAS

TA R/P

REC MUT

T1/T2

PB MUTE

PB EQ

REC EQ

REC MUTE

17
16

11

M62446FP

9

6–ch VOL

8
6

ICZ04,06,08

NJM4565D

LC7522

G.E. VOL

ICZ03,05,07

NJM4565D

12

31

+B7

VOLTAGE

REGURATER

TUNER MUTE

SPE1~5

29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

VR ST

VR DATA

40

39

ICZ10

IN/OUT
FILTER

AMP

ICZ01

IN/OUT
FILTER

AMP

BYP

13

11
10

19

68

FUNC B

VR CLK

41

~

23

67

71

FUNC A

31

32

33
34

35

36
30

5

42

16
17

1

14
15

AC-3 SECTION

TU-SD

TU-DO

AD RES

61

62

60

78

SYSTEM MICROCOMPUTER

70

69

58

56

DI

VR ST

TU CL

VR CLK

VR DATA

L–OUT
R–OUT

C–OUT

SL–OUT

SR–OUT
SW–OUT

–B10
+B10
+B11

+B10

–B10

DI

+B10

CLK

-B10

+B10

–B10
+B11

VOLTAGE

REGURATER

+B11

SW ON/OFF

DIGITAL1

79

87

53

CLK2

MO
AR
AC

AC32SS

AC32RES

DIGITAL2

91

92

88

IX0233AW

75

QS2AR

+B7

AC32SO

AC32SI

94

93

ICF01

74

73

QS2AC

QS2MO

–B6

–B10

+B2

+B9

+B6

+B7

+B10

+B8

TO CD UNIT

DEM 1

DEM 0

AC32SCK

V1/V2

96

98

97

95

2426

27

SP DET

H/P SW

POSISTOR

+B7

IN

8

5

L

3

R

4

–B6

–15V

QZ02

+4.6V

UN-SWITCHED

+5V(AC-3)

+12V(MOTOR)

+12V(ANALOG)

QZ01

VOLTAGE

REGULATOR

+7.3V(CD)

STB

RES

SCK

DAT

COM

10

6

8

9

7

63

49

51

54

52

50

FAN

PROT

ICP11
NJM4565D
LOW BOOST AMP.

REGULATOR

S-W RELAY

FRONT RELAY

CENTER RELAY

SURROUND RELAY

S-MUTE

QP03
QP04

OUT

L

7
1

R

VOLTAGE

REGULATOR

VOLTAGE

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

SWITCHING

VOLTAGE

REGULATOR

S-MUTE

QP15

Q903

Q902
Q901

Q906
Q905

Q904

Q909
Q908

STB

SCK

DAT

9

8

7

99

5
3
4

11

100

2

1
14
13
18
56

VDD

90
15
57

VSS

89
12

16

17
27
86
85
84

6682

65

64

76

POWER

S-W-MUTE

CENTER-MUTE

SURROUND-MUTE

POWER

SW-MUTE

Q907

RXD01
REMOTE
SENSOR

RES
CQCK

COIN

SQ OUT

WRQ
RWC
CD SL+
CD SL­CD-PUIN
CD-DRF

+B4

RESET IN

OSC

X201

4.19MHz

SYSTEM STOP
CD O/C
CD U/D

CD DNO

POWER ON/STB

SWITCHING

L–IN

10

ICV01

12

R–IN

STK407-250
POWER AMP.

18

C–IN

SL–IN

VOLTAGE

REGULATOR

29

RES

12

STB

1

DAT

95

COM

96

SCK

97

~

1

~

8

~

79

~

91

LEDD01~
LEDD28

+B3

+B4 (5V BACK UP)

RESET

QG01

P.FAIL DET

POSISTOR

7

+B

–B

5

3

–B

+B

D991

Q911
Q910

~

45

30

VSS

15

4
10
88
94

QG02
QG03
ZDF01

1

D996~D999

D992~D995

89

MEMORY
BACK UP

FD01

FL DIPLAY

~

5 53

~

52

~~

71

47

50

ICD01

IX0334AW

FL DRIVER

CONTROLLER

VDD

VEE

90

46

18

72

51

+B2

+B6

–VP

+5V
UNSWITCH
+B2

+B3

FAN

H/P SW
SP DET
RELAY

PROT

QV13
QV14
QY11

9

L–CH

8

R–OUT
SW–OUT

20

Q951

VF1

(AC) (AC)

73

13

SWD01

F995

10A 125V

F996

10A 125V

REGULATOR

VP VF2

75

14

27

SWD02

JOG SW

QV18

1.6A 250V

2.5A 250V

VOLTAGE

F998

F997

21
26

28

~

QV19

T991

POWER

TRANSFORMER

KEY IN

TO CD UNIT

QV22
QY12

RLYV11
RLYY11
RELAY

T.F

F1
F1

F2
F2

1
2

62
57

KEY MATRIX

+B6

QV20
QV21

CD-C482

VF1

(AC)

VF2

(AC)

SWD03~SWD06
SWD12~SWD17
SWD23~SWD48
SWD50~SWD54

M

FAN

MOTOR

JV91

HEADPHONES

TMV01
SPEAKER
TERMINAL

+

L–CH
GND

–

R–CH

+

GND

–

SW–CH

+

GND

–

F990
5A
125V

Figure 19 BLOCK DIAGRAM (5/5)

– 19 –

CD-C482

10K

P

5

A

CNS1B

K

5

E

MON

1M
2200P

4

A

3

B

2

F

1

B

C

D

LT0H30M1

TR+

FO+

FO–
TR–

ACTUATOR

LD

LD

K
E
B

A
F
C

GND

2200P

1M

CNS1A

1
2
3
4
5

K

1

A

2

B

3

E

4

F

5

CNP1

K

5

E

4

A

3

B

2

F

1

TR–

1

TR+

2

FO+

3

FO–

4

GND

5

PD

6

VR

7

LD

8

C15

0.01

R2

R13

1K

C2

1K

1.5V

0.01

C85

0.001

TE

R11

6.8K
R12

100

R14
27K

R16

3.3K

R21
22K

C12

0.1

C1

47/16

4.2V

KTA1266 GR

9

C4

0.1
R9

100K

R10

2.2K

C54

0.001

C9

0.047

R15
12K

8

R20

R22
22K

4.8V

Q1

R8

15K

0.033

C8

0.068

C10

180P

1K

2.5V

C5

C6

0.033
C7

0.1/50

1/50

2.4V

2.4V

2.5V

2.5V

2.4V

2.4V

2.5V
NC

2.5V

2.5V

2.5V

2.5V

R19

R1
10

C3

2.5V

2.5V

C11

0.1

2.5V

2.5V

1K

VCC1

FIN2

1

FIN1

2

E

3

F

4

TB

5

TE–

6

TE

7

TESI

8
9

SCI

TH

10
11

12

TD–
TD

13

JP

14

TO

15
16

FD

R17
33K

VREF

R18
15K

REF

REF

1

4.8V

C33

C34

0.33/50

0.47/50
C32

0.01

560

R46

1V

0V

4.2V

2.2V

–

LDS

LDO

+

RF

–

+

–

–

+

+

REF

–

+

REF

–

+

REF

+

–

REF

REF

–

+

REF

+

GEN

–

TO

REF

+

REF

GEN

–

REF

+

–

+

–

FA

FD–

19

18

17

2.5V

2.5V

2.5V

R23

10K

R24
47K

1V

PHI

BHI

FE1

REF

VCR

VCR

–

VCR

+

VCR

+

–

+

TGL1

–

THDL

JP

FSC

FOSTA

REF

GEN
+

–

REF

+

–

AGND

FE

FE–

FA–

20

22

21

0V

2.4V

2.5V

C13

330P

82K

R26

C14

0.01
R25

1.5K

C31

220/6.3

2.5V

2.5V

VR

LF2

REF1

+

–

REF

+

DEF

–
–

+

HFL

+

DRF

–

IC1

LA9241M

SERVO AMP.

VCC

+

–
+

–

REF

GL

FSTA

S.Q.R

THD

+

REF

FE1

+

–

REF

SP

SPI

SPG

2423

26

25

2.5V

2.5V

2.5V

10K

C16

R28

0.0047
R29 56K

R31

1.2K

R27
39K

C18

0.47/50

SP–

C30

–

0.1/50

4.8V

VCC2

REF

REF

JP

C17

R30

27

2.5V

0.001

6.8K

4.8V

10

SPO

FSS

EFBAL
FOSTA
TOSTA
2FREQ

LASER
FSTA

8/12CM
SLOF

+

–

+

–

REF

SLEO

28

2.5V

R33

1.2K

0V

DRF

C20

CE

DAT

CV–
CV+
JP–
JP+

JPCLO

SLOF

OR

REF

47/16

R34
22K

LATOH

SLOF

SLOF

SLD

C19

R32

10K

4V4V0V

CE
CL

CL

2

REF

+

–

29

2.5V

1/50

0V

2.4V

49505152535455565758596061626364

0V

NC

48

R45

TBC
FSC

SLC

SLI

JP–

32

0V

C21

47
46

45
44

2.5V

43

2.4V

42

1.5V

41

40
39
38
37
36
35
34
33

6

R36

0.0033

220K

2.4V

2.5V
0V

C27

HF

TP1

0V

4.8V
0V

0V

4.8V

4.8V
0V

2.5V

0.001

5.6K

R40

C24

2.2P

4.7K

0V

C29

4.7/50

C26

0.033

R41
47K

C25
27P

R43

56K

C28

0.1

R44
33K

R42
47K

R38

470

R39

1K

C23

0.0027

C22

220

CLK

DEF

DGND

REF

+

–

3

RFS–

+

–

RFSM

RF

CV+

4

CV–

SLOF

HFL

5

TES

TOFF
TGL

+

–

JP+

SL–

SL+

30

31

2.2V

2.2V

7

R35

220K

R37
82K

C35

1/50

GND

D1

1SS133

PICKUP UNIT

E

CNS2A

1
2
3
4
5
6
7
8

CNS3A

6

5
4
3
2
1

1
2
3
4
5
6
7
8

CNP2

CNP3

6
5
4
3
2
1

PD

LD

TR–
TR+
FO+
FO–

CD2GND

SP+
SP–
SL2+
SL2–
CD2PUIN

C36

100/16

CNS2B

TR–

1

TR+

2

FO+

3

FO–

4

GND

5
6

PD
VR

7

LD

8

F

+

M1

M

DISC

M2

SW4

IN

–

+

M

–

MOTOR

SLIDE

MOTOR

G

PICKUP

6
5
4
3
2
1

CNS3B

CNP3A

6
5
4
3
2
1

2.5V

1

2.5V

2

0V

3

2.5V

4

2.5V

5

2V

6

2V

7

0V

8

0V

9

0V

10

IC3

0V

11
12

0V

M56748FP

2V

13

2.5V

14

2.5V

15

0V

16

4.7V

17

0V

18

36

0V

35

0V

34

0V

33

2.5V
32

2.5V
31

1.8V
30

1.8V
29

0V

28

0V

27

0V

26

0V

25

2V

R48

24

2V

/SLIDE DRIVER

FOCUS/TRACKING/SPIN

0.7V

2.5V

2.5V

2.5V

4.7V

10K

23
22
21
20
19

+B

CD MOTOR PWB-K

12

+B

D3

RL104A

D2

RL104A

CNP12

D4

RL104A

RWC(DSP)

1

WRQ(DSP)

CO IN(DSP)

SQ OUT(DSP)

234

R47

CQ CK(DSP)

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 20 SCHEMATIC DIAGRAM (1/20)

– 20 –

23

()

027

220P

3

C22

R47

10K

C57

0.001

C37

0.022

R57 1K
R58 1K
R59 1K

R61 1K

C39

0.047

0.047
R52
27K

R53 1.2K

11

R62 1K
R63 1K

R51

3.3M
R50

680

C40

C38

0.01

1.9V

4.8V

2.5V

2.5V

4.8V

0V

0V

0V

0V

0V

0V
0V
0V

0V
0V

R60

1K

/CS

TEST5

TEST1

DEF1

1

TA1

2

0V

PDO

3

VVSS

4

ISET

5

VVDD

6

FR

7

VSS

8

EFMO

9

SLICE LEVEL

EFMIN

CONTROL

10

TEST2

11

CLV+

12

CLV

CLV2

DIGITAL SERVO

13

V/P

14

HLF

15

SERVO

TES

COMMAND

16

TOFF

TGL

17

18 19 20 21 22 23 24 25 26 27 28 29

4.8V

0V

4.8V

IC2

LC78622K

SERVO/SIGNAL

CONTROL

C56

0.022
CD2LD2M–

+B

IC81

TA7291S

LOADING MOTOR DRIVER

0V

6.4V1V0V

6.5V

6.5V

6.5V

4 3 2 1

6

5

7

NC

3.9

C82

47/16

R83

C81

R85

56

(1/2W)

47/16

C46

NC

NC

4M

16M

/RES

/CQCK

TEST11

INTERFACE

VCO CLOCK

OSC CONTROL

SYNC-DETECT

EFM DEMODULATE

JP+

JP2

PCK

FSEQ

0V

0V

2.5V

4.8V

NC

R81

2.9V

0V

3.9K

8

9

R82

6.8K

100P

FSX

COIN

RWC

SQOUT

WRQ

µ-COM

2Kx8
RAM

ERROR COERECT

FLAG CONTROL

EXTERNAL

OUTPUT

VDD

CONT1

CONT2

CONT3

CONT4

0V

0V0V0V

R88 1K

R90 1K

R89 1K

0V

CD2LD2M+

KRC102 M

C45

C44

100P

NC

NC

SFSY

SBCK

SUB-CODE

X-TAL

GENERATOR

CONT5

C2F

EMPH

30 31

NC

NC

0V

0V

Q51
KRC107 M
3

1

0V

Q93

3

0V

0V

1

C47

100P

NC

49505152535455565758596061626364

PW

4FS

DIGITAL

FILTER

DIGITAL

OUT

DOUT

NC

2.5V

4.8V

0V

2

R80

6.8K

+B

12V

2

R86

2.2K

C48

100P

100P

EFLG
SBSY

XVSS

XOUT

XVDD

MUTER

RVDD

RCHO
RVSS

LVSS

1BIT DAC

LCHO

LVDD
MUTEL

TEST4

TEST3

32

0V

NC

R54
330

Q91

KTA1271 Y

12V

10K

R87

XIN

0V

12V

D91

C49

100P

2.2V

48
47

0V

0V

46

2.1V

45

2.2V

44

4.8V

43

4.8V

42

4.5V

41

2.0V

40

0V

39

0V

38

0V

37

4.5V

36

4.8V
NC

35
34

0V

33

0V

R55
150

1SS133

SOL

M–
M+

CD2D2NO

CNP10

C53

0.022

0.022

+B

C41
12P

C42
15P

R93
220

C83

C43

330/6.3

L61

0.82µH

C50

0.022

+B

SOL

1
2

GND(M)
M–

3

M+

4

GND(D)

5

OPEN CLOSE

6

DISC NO.

7

GND(D)

8

MECHA UP

9

10

GND(D)

CD SERVO PWB-B

+B

XL1

D82

1SS133

D81

1SS133

Q52

KTC3203 Y

R66

R64

22

C52

100/16

330

C51

+5V

100/16

+7.3V

BI99

1

1

2

2
3

3

CNS99

CNS10

CNPR11

TO MAIN PWB

P23 10-B

BIM05

1

1

2

2

3

3

4

4

5

5

6

6
7
8
9

10

1 2 1

CNS5

+B

ZD61

MTZJ4.7B

+B

SOLENOID 2

SENSOR PWB-J

–

M

+

SW2
MECHA UP

2

CD-GND

+7.3V

+12V

CNP11

+B

LOCK

M3 T/T
UP/DOWN
LOADING

SW1
OPEN/
CLOSE

SW3
DISC
NOMBER

TO MAIN PWB

1

P24 1-C

2

CNSF11

3

CD-C482

OP/CLOS

UP/DOWN

SLD+

9

SLD–

PUIN SW

11

10

DISC NO.

12 13

14

D2GND

RES(DSP)

CQ CK(DSP)

SQ OUT(DSP)

DRF (ASP)

4

8

6

5

7

CNSF12

TO MAIN PWB

P24 1-D

• The numbers 1 to 12 are waveform numbers shown in page 20 (CD-C492).

7

8 9 10 11 12

Figure 21 SCHEMATIC DIAGRAM (2/20)

– 21 –

CD-C482

P
3

Q
C

A

B

PRE OUT

SUBWOOFER

PRE OUT

CENTER

C

PRE OUT

SURROUND

L-CH

PRE OUT

SURROUND

R-CH

D

PRE OUT

FRONT

E

F

G

L-CH

PRE OUT

FRONT

R-CH

INPUT

VIDEO/AUX-2

INPUT

VIDEO/AUX-1

L-CH

R-CH

L-CH

R-CH

JR13

JR11

JR12

CR10

RR55

CR43
330P

CR44
330P

RR56

RR39

CR31
330P

CR32

330P
RR40

RR23
1K

CR19
330P

CR20
330P

RR24

0.001

1K

1K

1K

1K

1K

DR11

RR12

27K

1SS133

RR15
27K

RR16

27K

RR11

27K

C3199GR

QR20

C3199GR

QR18

C3199GR

QR16

C3199GR

DR12
1SS133

CR13
390P

CR14
390P

CR11
390P

CR12
390P

QR19

RR60

4.7K

QR17
C3199GR

RR44

4.7K

QR15
C3199GR

RR28

4.7K

CR45

47/25

RR61

RR57

1K

100K
RR58

100K

CR46

2.2/50

RR59

4.7K

NJM4565M
BUFFER AMP.

CR33

2.2/50

RR41
100K

RR42
100K

CR34

2.2/50

RR43

4.7K

NJM4565M
BUFFER AMP.

CR21

2.2/50
RR29

RR25

1K

100K

RR26
100K

RR30

CR22

2.2/50

RR27

4.7K

NJM4565M
BUFFER AMP.

RR17

1.8K
RR18

1.8K

RR13

1.8K
RR14

1.8K

30

28

29

R-CH

GND(A)

TO MAIN SECTION

P25 7-G

RR62

RR45
1K

RR46

1K

1K

L-CH

RR87

220

8

+

3

ICR14

1

(1/2)

CR47

–

18K

RR64
18K

7

1
CR35
47P

RR47
18K

7

1

RR31
18K

RR32
18K

7

31

RR48

18K

L-CH

47P

2

RR65

1.8K

RR66

1.8K

6

–

ICR14

(2/2)

+

5

4

8

+

3

ICR13

(1/2)

–

2

RR49

1.8K

RR50

1.8K

–

6

ICR13

(2/2)

+

5

4

8

+

3

ICR12

(1/2)

–

2

RR33

1.8K

RR34

1.8K

–

6

ICR12

(2/2)

+

5

4

QR13

KRA107M

QR12

KRA107M

2

QR11

KRA107M

2

1

45

S.W.

MUTE

TO MAIN SECTION

P25 12-A

1

3

46

REAR

0.001

RR63

1K

CR48

47P

CR36
47P

CR23

CR24

47P

33

32

R-CH

GND(A)

VIDEO-2 VIDEO-1

47P

CR49

CR53

0.022

CR54

0.022

47P

CR50

RR88

220

CR37

47P

CR41

0.022

CR42

0.022

CR38

47P

CR25

47P

CR29

0.022

CR30

0.022

CR26

47P

RR84
220

2 3

CR17

1

4.7/50

RR21

47K

CR16

3

4.7/50

RR20

47K

47

MUTE

MUTE

CENTER

RR67
100K

RR68
100K

RR53
1K

RR51
100K

RR52
100K

RR54

RR86

220

RR37
1K

RR35
100K

RR36
100K

RR38

1K

1K

CR15

4.7/50

RR19
47K

RR69

RR85

220

RR83

220

1K

RR70

1K

CR39

2.2/50

CR40

2.2/50

CR27

2.2/50

CR28

2.2/50

CR51
47/25

+B

36

AC3-C IN

AC3-SW IN

CP41

2.2/50

S.W.MUTE

RP11

100

–B
+B

3739

AC3-LS IN

AC3-RS IN

TO MAIN SECTION

P25 10-G

CP13

0.001

813438

L-CH IN

RP51
1K

RP62

5.6K

L-CH

RP15
100K

RP16

100K

CP14

0.001

GND(A)

RP12

35

R-CH IN

QP15

RP53
100K

CP43

0.001

CP58

NJM4565M

+

5

ICP11

CP19

CP15

0.1

CP16

0.1

100

CP18

47P

RP18

8.2K

CP20

0.1

0.1

CP17

RP17

47P

8.2K

RP19

2.2K

RP20

2.2K

(1/2)

–

6

–

2

ICP11
(2/2)

+

3

0.068

C3199GR

CP47

0.001

CP23

8

10/16

7

RP25

1K

RP21
100

CP07
100P

CP09

47/25

CP27

RP26

0.022
CP25

0.001

CP10

47/25

CP26

0.001

CP28

0.022

Q

RP32

220

RP31

220

C

1K

RP27
47K

RP28

47K

CP08
100P

RP22

100

CP24
10/16

1

4

CR52

2.2/50

–B

+B

–B

CR65
47/25

+B

CR66
47/25

–B

+B

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 22 SCHEMATIC DIAGRAM (3/20)

– 22 –

2

CP09

CP10

MAIN PWB-A(1/5)

CD-C482

FM SIGNAL

QP11
C3199GR

47/25

CP27

RP29

0.022

5.6K

CP25

0.001

S-MUTE

48 40

S-MUTE

–15V

41

GND(A)

42

+12V(A)

–15V

+B

+12V(A)

RP73

47/25

CP26

0.001

CP28

0.022

RP30

5.6K

QP12
C3199GR

32

RP31

0

220

–B
+B

CP57
22/25

22K

43

GND(D)

+B

44

+4.6V(D)

–B

+4.6V(D)
GND(D)

+B

49

AMP

TO MAIN SECTION

P25 12-B

CNSA11

FROM DISPLAY PWB

P34 1-A

52

56

5453

55

PROT

RELAY2

VOL SW

POSISTOR

CNPR12

57

58

H/P SW

SP LEVEL

60

59

POWER

RELAY1

FAN CONT

GND

1

61

+12V(M)

2

DOUT

OUT3
RELAY2
OUT1(L-CH)
RELAY1
GND(A)
FAN CONT
OUT2(R-CH)
SP LEVEL

H/P SW

VOL SW
PROT
POSISTOR

65

6362

64

GND(M)

+7.3V(CD)

CD GND(D1)

66

CD GND(D2)

CNS99

FROM CD SERVO PWB

P21 11-E

DOUT

+4.3V

GND

CNPR11

3

2 1

+B

+B
+B

+B

+B

+B

+B

67

70

68

69

VGND

GND(D3)

GND(D4)

+5V(AC32A)

+5V(AC32B)

RR01

100

ZDR01

MTZJ3.3B

3

QP91
D468C

VF1

–VP

VF2

WTP02

2 3 1

FWD02

FROM DISPLAY PWB

P32 1-B

1

CP91

100/6.3

LR01

2.2µH
CR01

C107M
2

0.022

QP17

–B

RP91

DIGITAL-OUT

1

ICR11

2

GP1F38T
PHOT/LED

3

CR03

0.001

CR02

100/10

CFWP01

FWP01
1
2
3
4
5
6
7
8
9

10
11
12

NC

13

14

15

16

+12V(M)

+B

1
2

+B

3

+B

4
5

+B

6

+B

7
8
9

10
11

CNPP02

WTP01

1
2
3
4

1
2
3

+B

100

CNPP01

–15V(A)

GND(A)
+12V(A)
+12V(M)

GND(M)

+4.6V(D)

GND(D)
+7.3V(CD)

CD GND(D1)

CD GND(D2)

POWER

VGND

+5V(AC32A)

GND(D3)

GND(D4)

VF1

-VP

VF2

OUT3
RELAY2
OUT1(L-CH)
RELAY1
GND(A)
FAN CONT
OUT2(R-CH)
SP LEVEL
GND(M)
H/P SW
+12V(M)
FAN SW
VOL SW
PROT
POSISTOR
AMP

TO POWER PWB

TO POWER PWB

TO POWER PWB

CFWV11

TO SPEAKER AMP.PWB

P36 1-D

CNS901
P38 1-G

CNS902
P38 6-G

FW901
P39 8-G

7

8 9 10 11 12

Figure 23 SCHEMATIC DIAGRAM (4/20)

– 23 –

CD-C482

G
G
G

G

G

+

+
–

S

A

B

C

D

CNSD01

TO DISPLAY

PWB

P32 1-C

PWB

CNP11

P21 12-C

TO CD SERVO

CNSF12

RWC

1

WRQ

2

COIN

3

SQOUT

4

CQCK

5

RES

6

DRF

7

D_GND

8

SLD+

9

SLD–

10

PUIN

11

OP/CL

12

DISC_NO

13

UP/DOWN

14

CNP12

TO CD SERVO

PWB

P21 7-H

1
2
3

CNSF11

10

9

8

7
6
5

4

3
2

1

CNPF01

1

+7.3V(CD)

2
3

BIF11

BIF12

1
2
3
4
5
6
7
8
9

10

11

12

13
14

GND(D)
GND(D)
+4.6V(D)
+12V(M)
COM1
RESET
DATA1
STB
SCK

GND(CD)

+12V(M)

GND(CD2)
GND(CD1)
GND(D)

+B

+7.3V(CD)

+B

+12V(M)

+B

+B

+B

+4.6V(D)

RF78 1K

AD RES

7879

PF7

P07

COIN

1K
RF03

RG11

10K

RF77 22K

RF76 1K

RF75 1K

RF74 1K

RF73 1K

RF71 1K

RF70 1K

QS_AC

POWER

QS_SPRED

QS_MO

VOICE-C

77

PF6

PF5

VR ST

76

PF4

81
82
83

VR CLK

74

73

72

75

70

71

PF3

PF2

PF1

PF0

PE7

PL5
PL4
PL0

SYSTEM CONTROL

MICROCOMPUTER

P03

98
99

P04(PCCL)

100

P05

P17

P16

SCK

SO1

SCK1

SO0

Si0

SI1

11

10

8

9

6

5

7

STB

DAT

SCK

COM

1K
RF06

1K
RF07

1K
RF08

1K
RF09

WRQ

DS_RES

1K

1K

RF10

RF11

SQOUT

CQCK

1K

1K

RF04

RF05

RF66 1K

RF69 1K

RF68 1K

RF65 1K

RF67 1K

CENT_MUT

S.W.MUT

FUNC A

FUNC B

VR DATA

6869

65

66

67

PE6

PE5

PE4

PE3

PE2

PE1

ICF01

IX0236AW

CF1

VSS1

P74

P75

INT0

RES(MAIN)

14

15

16

12 13

CF1

VSS

DRF

RES

PUIN

1K

1K

1K

XF01

RF12

RF13

RF14

CG06

10K

RG04

15P(CH)

RF64 1K

RF63 1K

RF62 100

TUN_MUT

REAR_MUT

SYS_MUT

64

PE0

PD7

PD6

VDD1

CF2

19

18

17

CF2

VDD

SP4KHz

CG05

15P(CH)

RF19 1K

RG05

RF81

1K

QG92

RG95

MIC2DET

H/P SW

AUTO_SCAN

CD_DNO_SW

CD_U/D_SW
CD_O/C_SW

DGTL1
DGTL2

VSS

VDD

1K

AC3_RES

1K

AC3_SS

1K

AC3_SIN

1K

AC3_SO

1K

AC3_SCK

1K

V1/V2
DEM0

1K

DEM1

1K

RES

94

470K

RF99 1K

RG96
10K

10K

RF80

1K

RWC

RG56 1K

9K/10K

80

81

PL6

82
83

PL1

84

PL2

85
86

PL3

87

P30
P31

88

VSS3

89
90

VDD3
P32

91

P33

92

P34

93
94

P35
P00

95

P01

96

P02

97
98
99
100

P06

1234

SLD–

1K
RF01

RF79 1K

SP_CONF

SLD+

1K
RF02

RG23

10K

RG24

10K

RF82 1K

RF83 10K

RF84 1K

RG08 10K

RG07 10K

RG06 10K

RF85 1K

+B

+B

+B

RF86 1K
RF87 1K

RF88

RF91
RF92
RF93
RF94
RF95
RF96
RF97
RF98

1K

AC32SO IC

KTC3199 GR

2

CFWU02

SO

10K

RG94

GND(A)

RF61 1K

DO(TU)

616263

(DI)PD5

AN0

AN1

20

SP1KHz

RF20 1K

RG38

100K

RF60 1K

RF59 1K

DI(TU,VR,PR)

TUN_SD

60

PD4

(DO)PD3

AN2

AN3

22

21

SP63HZ

SP_50Hz

RF22 1K

RF21 1K

RG25

4.7K

RF58 1K

CL

VSS

PD2

VSS2

PC4

50
49

PC3

48

PC2

33

PA3

32

PA2
PA1

31

AN4

3 2 2425

SP16K

POSISTOR

RF24 1K

RF23 1K

+B

VDD

56575859

VDD2

AN5

AN6

TUN_SM

RF25 1K

+B

RF54 1K

RF55 1K

S.W.RLY

CE1

55

PD1

PD0

AN7

INT1

27

6 2

SP LEVEL

SP PROT

RF27 1K

RF26 1K

RF52 1K

REAR_RLY

51

52

5354

PC7

PC6

PC1
PC0
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
PA7

PA6
PA5
PA4

INT2

INT3

28

2

9

30

T1_RUN

T2_RUN

SYS_STOP

RF28 1K

RF29 1K

+4V(µ-CON)
GND(µ-CON)

FRNT_RLY

50

FAN CONT

PC5

49

VOLT_SW

48

AMP

47

PB_MUT

46

TA_T1/T2

45

REC_MUT

44

TA_PB-EQ

43

TA_R/P

42

BEAT_CUT

41

TA_BIAS

40

FR SPEED(M)

39

HIGH_SP

38

TA MOTOR

37

TAPE_SOL

36

CAM_SW

3

5

T2_CRO S

34

T1_CRO S

33

T2_B-FP S

32

T2_A-FP S

31

PA0

RF30
1K

RG16

47K

RG19
47K

RG26
10K

RF50 1K
RF49 1K
RF48 1K
RF47 1K
RF46 1K
RG55 1K
RF44 1K
RF43 1K
RF42 1K
RF41 1K
RF40 1K
RF39 1K
RF38 1K
RF37 1K
RF36 1K
RF35 1K
RF34 1K
RF33 1K
RF32 1K
RF31 1K

0.022

CG56

R
R
R
R

R

GND(A)

TUN L

TUN R

AUX 2

AUX 1

TAPE L

TAPE R

AUX 1

302928

GND(A)

L-CH OUT

VIDEO1 IN

TO PRE

P22

R-CH OUT

CNSF13

1

2

3

E

4

5

6

7

8

9

10

CNP303

TO TUNER PWB

P31 8-H

F

G

GND(D)
CL
DO
CE(CE1)
DI

+12V(A)

GND(A)
TUN MUTE
L-CH
R-CH

BIF13

1

2
3
4
5

+B

6
7
8
9

10

FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL

+B

+12V(A)
–15V

+B

CH28

CH29

0.022

RH17

1.5K

CH30

0.0056

RH20

1.5K

CH16

1/50

RH25

1.5K

CH19

0.47/50

RH30

1.5K
CH22

(ML)

RH35

1.5K
CH25

0.027
(ML)

0.022

0.1

RH11

150K

–

2

(1/2)

+

3

MOTOR DRIVER

CH13

330P

CH17

0.047
(ML)

CH20

0.015

CH23

0.0047

CH26

0.012

8

1

4

ICH11

NJM4558M

RH14
560K

RH15
33K

RH21
560K

RH22
33K

RH26
560K

RH27
33K

RH31
560K

RH32
33K

RH36
560K

RH37
33K

RH12

1K

DH11

1SS133

CH15

0.22/50

DH12

1SS133

CH18

0.22/50

DH13

1SS133

CH21

0.22/50

DH14

1SS133

CH24

0.22/50

DH15

1SS133

CH27

2.2/50

CH10

47P

RH13
150K

–

6

(2/2)

7

+

5

DH16

1SS133

16KHz

SPE-1

RH16
1M

DH17

1SS133

63Hz

SPE-2

RH24
470K

DH18

1SS133

250Hz
SPE-3

RH29
1M

DH19

1SS133

1KHz

SPE-4

RH34
1M

DH20

1SS133

4KHz

SPE-5

RH39
1M

MAIN PWB-A(2/5)

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 24 SCHEMATIC DIAGRAM (5/20)

– 24 –

CD-C482

U

CD GND(D2)
CD GND(D1)
GND(D)

+7.3V(CD)

+B

+12V(M)

+B

N)

N)

LY

NT

W

T

T2
UT
EQ

T
S

(M)
SP

OR
OL

W
S
S
S
S

9

6

RF50 1K
RF49 1K
RF48 1K
RF47 1K
RF46 1K
RG55 1K
RF44 1K
RF43 1K
RF42 1K
RF41 1K
RF40 1K

RF39 1K
RF38 1K
RF37 1K
RF36 1K
RF35 1K
RF34 1K
RF33 1K
RF32 1K
RF31 1K

CG56

0.022

+B

+4V

RG17 10K
RG20 10K
RG21 10K
RG22 10K

RG15 10K

+B
–B

47/25

CG57

+12V(A)

+B

–15V

+B

–B

QG01

KRC102 M

RG37

1K

DG05

CG04

1SS133

0.01

+B

TUN L

TAPE L

AUX 1
AUX 2

TUN R

TAPE R

AUX 1
AUX 2

LG01

2.2µH

VOL
SECTION

86
15

28
31
90
17
30
33

2

RG36

3.3K

CG03

3.3/50

3

1

DG04

RG35

1SS133

1K

CG02

0.01

QG02

KTC3199 GR

RG34

10K

RG39

KTC3199 GR

82

+4V

VR CLK

94

70

IC

VR DATA

IC

95

69

VR LA TCH

IC

71

96

IC

53

VR DI

IC

59

98

FUNC A

IC

99

67

FUNC B

IC

100

68

L OUT

34

R OUT

35

C IN(C OUT)

36

SL IN(LS OUT)

37

SR IN(RS OUT)

38

SW IN(SW OUT)

39

+4.6V

107

GND(D)

108

AC3-SWchOUT

39

AC3-RSchOUT

38

AC3-LSchOUT

7

3

AC3-Cch OUT

36

AC3-Rch OUT

35

AC3-Lch OUT

34

SPEC ANA

115

–15V

116

+B

+12V

117

AGND

118

LT IN

119

AGND

120

RT IN

121

RG33
10K

RG32

100

QG03

CONTROL

DG03

1SS133

ZDF01

RG31
1K

DG02

MTZJ3.3A

RG30

150

REC L-CH
REC R-CH

1SS133

RG29

+4.6V(D)

RESET

POINT

150

CG01

470/10

+B

–B

+B

16

15

PB_MUT

PRE L-CH

18

19

17

GND(A)

HIGH_2SP

PRE R-CH

+B

+B

20 23

+12V(A)

TA_BIAS

22

21

REC L-CH

REC R-CH

24

TA_R/P

REC2MUT

27

GND(D)

34 35

363738 39

AC3 L-CHOUT

AC3 R-CHOUT

AC3 C-CHOUT

AC3 LS-CHOUT

AC3 RS-CHOUT

TO PRE SECTION

P22 4-G

AC3 SW-CHOUT

AUX 1

L

AUX 2

AUX 1

AUX 2

31

32

302928

GND(A)

L-CH OUT

L-CH OUT

R-CH OUT

VIDEO2 IN VIDEO1 IN

TO PRE SECTION

P22 2-G

33

GND(A)

R-CH OUT

+B

1

4

3

2

M +12V

TA_SOL

TA_MOT_SW

TA_FR SPEED

6

5

7

T2_A_FP

TA_CAM_SW

M2GND

10

8

9

M_GND

T1_RUN

T2_RUN

T2_B2FP

TO MECHA SECTION

11

12

2

T2_CrO

T1_CRO2

13

TA_T1/T2

P27 12-D

14

–B

40

–15V

41

GND(A)

+B

+12V(A)

42

GND(D)

43

+B

44

+4.6V(D)

SWF-MUTE

45

REAR-MUTE

6

4

CENT-MUTE

47

S-MUTE

48

AMP CONT

49
50

SW RLY(4)

51

REAR RLY(3)

52

CENT RLY(2)

53

VOLT SW
SP PROT

54
55

POSISTOR

56

H/P SW
SP LEVEL

57
58

FAN CONT

59

FRNT RLY(1)
POWER

60

+B

61

+12V(M)

62

GND(M)

+B

63

+7.3V(CD)

64

CD GND(D1)
CD GND(D2)

65
66

VGND

+B

+5V(AC3_A)

67
68

GND(D3)

69

GND(D4)

+B

+5V(AC3_B)

70
71

OUT(L)

72

OUT(R)
RL OUT

73
74

RR OUT

75

C OUT
C IN

76

RL IN

77
78

RR IN

79

IN(L)
IN(R)

80
81

GND(A)

+B

+12V(A)

82
83

QS_SPRED
QS_AC

84
85

QS_MO

CFWU01

SW IN(SW OUT)

10

C IN(C OUT)

9

L OUT(LIN)

8

SL IN(LS OUT)

7

R OUT(RIN)

6

SR IN(RS OUT)

5

AGND

4

V-SW(V1/V2)

3

LT IN

2

RT IN

1

CFWU02

–B

A-15V

20
19

AGND

+B

18

A+12V

+B

17

+5V(AC3_B)

16

VGND

+B

15

+5V(AC3_A)

+B

+5V(AC3_A)

14

GND(D3)

13

GND(D4)

12

DEM1

11

DEM0

10

SP CONF

9

DGTL1

8

SO

7

DGTL2

6

SS

5

AD RES

4

SI

3

AC3_RES

2

SCK

1

FWA01

FWA02

20

1

P223 9-G

TO PRE SECTION

P30 5-A

TO QSOUND SECTION

10

P35 8-H

CFWA01

TO DOLBY PWB

1

P34 5-H

CFWA02

TO DOLBY PWB

7

8 9 10 11 12

Figure 25 SCHEMATIC DIAGRAM (6/20)

– 25 –

CD-C482

C
4

R

8

7

O

A

TAPE MECHANISM PWB-H

FWM2

L

VRM1

SWM5

F.A.S

H
+
2

3.3K(B)

PHM1

B

MOTOR

MM1

M

SWM3

REC FWD

SWM6

CAM SW

SOLM1

C

SOL

SWM4

REC RVS

RM1

2.7K

MOT+B

REC FWD

CAM SW

M_GND

F.A.S

RUN PULSE

SOL

REC RVS

FWM1

L

H

+B

MOT L

1

MOT H

2

MOT +B

3

T2 A-FP

4

CUM SW

5

M_GND

6

T1 RUN-SW

7

T2 PH-OUT

8
9

10
11

12
13

SOL

T2 B-FP

+B

D

PLAYBACK SIGNAL
RECORD SIGNAL

WTL11

1
2
3
4

5

6

7
8
9

10
11

12
13

KTA1266 GR

RL13

6.8K

QL11

QL12

KTA1266 GR

RL12

2.2K

RL11

33K

RL14

33K

CL12
47/16

KTA1271 Y

DL12

1SS133

QL14

KTA1273 Y

QL15

RL20

1.2K

RL15

10K

RL17

10(1/2W)

RL18

10K

KRC104 M

2

RL16

2.2K

RL19

2.2K

QL13

1

QL17

KRC104 M
2

1

3

KRC104 M

RK33

22K

3

QL18

2

3

1

TAPE1

PLAYBACK HEAD

L-CH

PLAYBACK

HEAD

R-CH

3
2
1

CNSK01

3
2
1

CNPK01

CK01

680P

CK02
680P

E

RK03

CK06
330P

1K

QK06

2SC1845 F

QK04

2SC1845 F

2.2K

RK05

3.3K

RK11

15K

RK12

15K

RK06

3.3K

RK04

2.2K

QK03

2SC1845 F

QK05

CK05

330P

2SC1845 F

RK891KRK90

TAPE2

RECORD/

PLAYBACK HEAD

L-CH

R-CH

F

ERASE HEAD

7
6
5
4
3
2
1

CNSK02

7
6
5
4
3
2
1

CNPK02

G

KTA1266 GR

REC

QK09

REC

RK01

1K

RK02

1K

RK13

10K

QK07

KTC3199 GR

RK09

4.7K

47K

RK08

RK10

4.7K
QK08

KTC3199 GR

CK09

0.022
2

RK14

10K

47K

RK07

REC

1

3

QK10

KRC104 M

CK07

CK08

0.001

0.001

1

RK17

RK18

1K

2 3
QK11

KRC104 M

1954321

6

RK37

CK28

3.3/25

RK35

6.8K

RK38

6.8K

RK36

18K

7

182021222324

18K

RK47

10K

470P

CK29

CK31
270P

CK33
22/25

HIGH=CHR

CK34
22/25

CK32
270P

470P

CK30

1

RK34

68K

RK19

56

RK23

RK21

3.9K

100K

CK17

0.033(Ra)

CK11

CK12

330P

CK60

100/16

330P

CK14
330P

HIGH=T1

RK69

220

CK13
330P

CK16
47/16

RK20

56

1K

RK15

4.7K

CK15
47/16

112K

112K

–
+

+
–

CK18

0.033(Ra)

100K

RK22

CK19
560P

CK22

1/50
CK20

560P

RK24

3.9K

RK25

5.6K

CK21

1/50

0.0082
RK26

5.6K

CK26

RK32

33K

RK31

33K

CK25

0.0082

RK29

10K

RK30

10K

CK27

0.022

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 26 SCHEMATIC DIAGRAM (7/20)

– 26 –

MAIN PWB-A (3/5)

CD-C482

M

3

QL18

RC104 M

3

1

RK47

CK10

10K

47/25

470P

CK29

CK35

0.022

RK39

CK31

270P

CK33
22/25

HIGH=CHROME

CK34
22/25

RK40

CK32
270P

CK36

0.022

470P

CK30

560

LK01

1.8mH

–

+

+
–

LK02

1.8mH

560

CK38

0.018

KRC104 M
2

CK37

0.018
2

KRC104 M

RK41

82

56K

56K

RK42

82

KRC104 M

2

QL19

1

QK15

QK16

1

1

CK39

0.0033

CK40

0.0033

3

HI.SP

3

3

HI.SP

RL24

3.3K
CL13

3.3/50

QK17

98

DL11

1SS133

PB.MUTE

2SC2878 A

RK49 10K

RK45 10K

CK41
47/25

NOR/CrO2

CK42
47/25

RK46

10K

RK50

10K

CK45
22/25

ALC

3

RK43

10K

CK43

0.022

2

1

11101617

RIPPLE

ALC

RK52

1K

1

2

QL16

KRC107 M

RK48

10K

CK44

0.022
QK19

KRC104 M

3

HI.SP

CK46

220/10

131415

VCC GND

12

TA_F/R SPEED

TA_MOT_SW

M_12V
TA_SOL
T2_A_FP

TA_CAM_SW
M_GND
T1_RUN
T2_RUN

T2_B_FP
T1_CRO2

QK18

2SC2878 A

RK57

4.7K

CK47

RK58

0.022

470

+B

KTA1266 GR

RK60

ICK01 AN7345K

/PLAYBACK AMP.

PLAYBACK AND RECORD

CK62

0.047(ML)

CK50

CK51

0.027(ML)

0.0082

RK66

27K

QK28

KTC3203 Y

QK24

270

RK67

47K

RK68

LK04

330µH

1

TA_F/R SPEED

2

TA_MOT_SW

M_12V

3

TA_SOL

4
5

T2_A_FP

6

TA_CAM_SW

7

M_GND

8

T1_RUN

9

T2_RUN

T2_B_FP

10
11
12

TA/T2/T2H:T1 L:T2

13
14

PB.MUTE H:ON L:OFF
PRE L-CH

15

16

HI. SP H:LOW L:HIGH

17

PRE R-CH

P25 8-G

GND(A)

18

CK55

0.022

+B

19

RK62

47K

BIAS

RK61

270

CK52
47/16

4.7

RK64

4.7K

RK63

10K

QK22

KTC3199 GR

RK54

10K

QK26

KRC104 M

2

1

RK53

3

KTC3199 GR

10K

RK55

33K

RK56

33K

QK21

RK73

56K

RK72

56K

12V(A)

BIAS H:ON L:OFF

20

21

REC L-CH

22

REC R-CH

23

TA R/P H:PB L:REC

24

REC MUTE

MAIN SECTION

27

GND(D)

7

8 9 10 11 12

Figure 27 SCHEMATIC DIAGRAM (8/20)

– 27 –

CD-C482

7
K

A

B

C

D

E

F

G

H

86

TUN L

15

TAPE L

AUX1 L

AUX2 L

TUN R

P25 8-C

TAPE R

TO MAIN SECTION

17

AUX1 R

AUX2 R

ICZ02
ICZ04
ICZ06

BUFFER AMP.

NJM4565M

CZ01

ICZ03
ICZ05
ICZ07

BUFFER AMP.

NJM4565M

ICZ08

TC4052BF

Dual 4CH Analog

Multiplexer

RZ45

1K

12

RZ47

1K

14

RZ49

1K

28

31

90

30

33

RZ51

1K

RZ46

1K

RZ48

1K

RZ50

1K

RZ52

1K

15

11

1

5

2

4

1/50

0X

1X

2X

3X

0Y

1Y

2Y

3Y

RZ03

6.8K

CZ02

1/50

+B

CZ69

100P

+7V

RZ04

+7V

RZ10

CZ04

100

10/16

6.8K

RZ02

6.8K

CZ70

100P

VDD

1

2 3

IN1F5IN2

(1/2)

ICZ02

3 2 1

RZ08

RZ06

100K

1M

4

7

+7V

8

ICZ02

5

270P

CZ08

120K

RZ16

1M

RZ14

1M

RZ12

0.0047

6

5

F6

F7

F5

(2/2)

6

CZ06

1

–7V

4

ICZ04

680

CZ12

RZ18

0.0015

120K

RZ22

1M

RZ20

7

F4

7

+7V

8 8

RZ24

680

RZ28

RZ26

5

CZ16

270K

1M

8

F3

ICZ04

0.012

CZ14

0.27

(2/2)

6

CZ10

0.027

(1/2)

2 3

–7V

4 4

680

RZ30

CZ20

330K

RZ34

1M

RZ32

9

F2

ICZ01

LC7522

GRAPHIC EQUALIZER ELECTRIC VOLUME

F7

NC

28

RZ01

6.8K

QZ04

KRC107 M

16

7

–7V

IN1

2627

2 3

–

(1/2)

ICZ03

4

–7V

1

CZ03
10/16

QZ03

KRC107 M

3

A

B

INH

Vss

X COM

Y COM

IN2

RZ05

+

8

2 3

1
1

2
RZ53

10

9

6

8

13

3

+7V

1K

F6

24

25

CZ05

RZ07
100K

RZ11

RZ09

100

–B

0.0047

1M

RZ15

CZ07
270P

RZ17

680

5 5 5

(2/2)

1CZ03

22K

22K

RZ90

RZ91

RZ54

1K

CZ34
10/16

CZ38
10/16

1M

F4

CZ09

0.027

1M

RZ13

120K

0.0015
RZ23

RZ21
120K

CZ11

680

2 3 2 3

(1/2)

ICZ05

4 4

8 8

–7V

CZ36

47/16

CZ37

CZ35

0.022
CZ39

0.022

CZ40
47/16

RZ19

CZ15

0.012

RZ29

680

+7V

0.022

CZ41

1M

CZ43
10/16

0.022

CZ13

RZ55
100K

RZ56
100K

CZ42
10/16

0.27

212223

(2/2)

1CZ05

RZ57

CZ45

CZ44

F3

RZ27

270K

RZ35

1K

47P

47P

RZ58

1K

RZ25

CZ19

0.033

680

0.18

CZ17

1M

–7V

RZ59

2.7K

RZ60

2.7K

1

(1/2)

ICZ06

2 3

680

RZ36

0.033

RZ40

RZ38

CZ18

0.18

F2

20

CZ21

1M

RZ31

RZ33
330K

RZ41

680

(1/2)

ICZ07

1 1

+7V

+B

+

5

ICZ09

(1/2)

6

–

NJM4565M

BUFFER AMP.

2

–

ICZ09

(2/2)

3

+

–7V

+7V

+ –+ –+ –+ –+ –– +

5

330K

1M

10

F1

0.33/50

6 6 6

+7V

8

4

7

ICZ06

19

ICZ07

7 7 7

(2/2)

6

(2/2)

CZ24

CZ22

0.33/50

F1

RZ37

RZ39
330K

CZ23

0.039

+ –+ –+ –+ –+ –

+B

RZ61

10K

RZ62

10K

–7V

680

RZ42

0.039

11 12

18

1M

7

1

TEST2 VSS

17

TEST1

CLK

16

CZ32

100/10

CZ33

0.022

DI

RZ66

100

CZ47
10/16

RZ63

100K

RZ64

100K

CZ46
10/16

RZ67

100

RZ68

100

CZ25

13

+B

0.022

14

S

15

CZ30

100/10

CZ31

0.022

RZ65

100

CZ26

100/10

GND

–7V

VEE

VCC +5V

RZ43

1K

RZ44

1K

CZ29

0.022

CZ71

1/50

ZDZ03

MTZJ5.1A

–B

RZ93

1K

RZ94

1K

CZ27

–B

100/10

LT IN
GND
RT IN

–B

+B

CZ28

0.022

–B

+4.6V

–B

+B

RZ95

220

+B

RZ8
470

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 28 SCHEMATIC DIAGRAM (9/20)

– 28 –

MAIN PWB-A (4/5)

CD-C482

+B

RZ87

470K

RZ88

470K

RZ89
470K

R IN

L IN

RZ74

10K

RZ71

10K

RZ69

10K

RZ72

10K

RZ73

10K

RZ70

10K

CZ48

10/50

CZ50

1/50

CZ49

1/50

CZ51

1/50

CZ52

1/50

CZ53

1/50

1

OUT4 (NC)

OUT3 (NC)

2

3

OUT2 (NC)

OUT1 (NC)

4

+7V

AVDD

5

SWIN

6

7

GNDS

SRIN

8

9

SLIN

GNDC

10

11

C IN

GNDR

12

13

R IN

GND

14

15

L IN

16

BYPASSR

BYPASSL

17

LTRE

18

LBASS3

19

LBASS2

20

LBASS1 RBASS1

21

ICZ10

M62446FP

6CH Electronic

Volume

CZ62

22/16

+B

DVDD

DATA

LA TCH

D GND

A GND

SW OUT

SR OUT

SL OUT

C OUT

R OUT

L OUT

AVSS

RTRE

RBASS3

RBASS2

CLK

CL1

CL2

CR1

CR2

42

41

40

39

38

37

36

35

34

33

32

30

29

28

27

25

24

23

31

6 2

22

+4.6V
RZ76

1K

RZ77

RZ78

DZ01

1SS133

CZ58

1/50
CZ57

1/50

CZ59

1/50
CZ60

1/50

CZ61

1/50

–7V

1K

1K

CZ56
47/25

–B

CZ54

0.022

DZ02

1SS133

RZ83

10K

CZ63
10/50

KTC3203 Y

QZ02

CZ55

0.001
RZ80

10K

RZ82

10K

RZ81

10K

RZ79

10K
RZ84

10K

CZ67
22/16

CZ65
10/50

D GND

ZDZ01

MTZJ7.5C

KTA1271 Y

ZDZ02

MTZJ7.5C

QZ01

RZ86

RZ75

10

VR CLK

VR DATA

VR LA TCH

+B

CLK

L OUT
R OUT

C IN

SLIN

SRIN
SWIN
+4.6V

GND(D)

94

VR CLK
VR DATA

95
96

VR LA TCH

CLK2

97

DI

DI

98

A

99

FUNC A

B

100

FUNC B

71

L OUT

72

R OUT

75

C IN

104

SLIN

105

SRIN
SWIN

106
107

+4V

108

GND(D)

P25 9-C

CZ64

1/50

RZ85

1K

SW OUT

SR OUT
SL OUT

C OUT
R OUT
L OUT

39
38
37

36
35
34

SW OUT
SR OUT
SL OUT
C OUT
R OUT
L OUT

TO MAIN SECTION

1K

CZ66

1/50

SPE-ANA

–B

–15V

+B

+12V

GND(A)

LT IN

GND(A)

RT IN

115

116
117
118

119
120
121

SPE-ANA
–15V
+12V
GND(A)
LT IN
GND(A)
RT IN

FM SIGNAL
PLAYBACK SIGNAL

7

8 9 10 11 12

Figure 29 SCHEMATIC DIAGRAM (10/20)

– 29 –

CD-C482

A

RR IN

RL IN

TO MAIN SECTION

P25 12-C

GND(AU)

R-CH IN

L-CH IN

+12V(A)

C IN

R-CH OUT

L-CH OUT

RL OUT

C OUT

RR OUT

QS2MO

QS2AC

QS2SPRED

78

77

76

82

75

72

79

81

80

71

104

105

84

83

85

MAIN PWB-A(5/5)

B

+B

RQ13 1K

RQ15 1K

RQ11 1K

C

RQ12 1K

RQ18 100K
RQ17 100K
RQ16 100K

D

CQ34

CQ35

0.022
(ML)

0.022(ML)

2.2/50

2.2/50

2.2/50

2.2/50

2.2/50

0.001(ML)

0.012(ML)

0.082(ML)

0.47/50

RQ05 1K

RQ02 1K

RQ01 1K

RQ03 1K

E

RQ04 1K

CQ36

CQ01

F

CQ02
CQ05

CQ03
CQ04
CQ06
CQ07
CQ08

G

(ML)

2 3 4

37
38
39

FLIN

40

FRIN

41

CIN

42

SUBIN

43

RLIN

44
45

RRIN
MSC4

46

MSC5

47

MSC6

48

0.022(ML)

35

36

1

4

QXDC

VREFOUT

VREFIN

CQ09 10/50(ML)

CQ30
47/25

+B

0.47/50 (ML)

0.022(ML)
CQ32

CQ33

31

32

33

34

1

2

3

ICQ01
QS7777PF
Q-SOUND

DECORDER

MSC3

MSC2

MSC1

4321

5

CQ10 10/50(ML)

CQ12 0.22/50(ML)

CQ13 0.0027(ML)

CQ11 0.022(ML)

CQ29

100/10

CQ27

0.022
(ML)

CQ31

0.022(ML)

0.0047(ML)
CQ26

CQ28

29

30

28

27

5

VCC 4 3 2 1

QXBCQXCC

SPRED

PSAVE

MUTE

GND

6

AC

10

8

9

7

26

AR

11

CQ24

0.0047

CQ25

0.47/50
(ML)

25

5

QXAC

FLOUT

FROUT

COUT

RLOUT

RROUT

VDD

P/S

BYP

MO

12

(ML)

RQ19 100K

RQ10

RQ20 100K

220

4 3 2

24
23
22

1

CQ21 0.47/50

21

CQ17 2.2/50

20

CQ18 2.2/50

19

CQ16 2.2/50

18

CQ19 2.2/50

17

CQ20 2.2/50

16
15

14
13

1SS133

DQ02

CQ23

0.022
(ML)

CQ22

0.022(ML)

CQ14

0.022

1SS133

DQ01

MTZJ5.1B

ZDQ01

CQ15

47/25

+B

330

RQ09

RQ14 1K

RQ07 1K

RQ08 1K

RQ06 1K

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 30 SCHEMATIC DIAGRAM (11/20)

– 30 –

RQ21

330

FM SIGNAL AM SIGNAL

SO301

AM LOOP

ANT

AM

FM

CD-C482

C302
(CH)

0.01

18P

R306
10

BF301

1
2
3

1
2

3

4

5

FM FRONT END

TA7358AP

6

IC301

7

8

9

C319

0.022

C328

C329

0.001

0.001

D362

AM ANT

T302

KV1236Z23F

VD301-1

R319

100K

R320

4.7K

1SS133

D302

1SS133

D303

1SS133

C337
10/16

C333

0.022

T304

AM OSC

R323

68K

C330

8.2P

(UJ)

KV1236Z

C334

18P

(UJ)

+B

470P

C336

VD301-2

0.022

C332

R324

100K

TP301

C331

0.047

D361

1SS133

2SC535 C

Q302

C316

100P

C312

0.001
C313

0.022

0.0047

C311

0.022

R311

47K

R312
680

R316

4.7K

C307

0.0047

C308

C309

6.8P

R302

22

C317

3.9P
(UJ)

C318

22P

(CH)

R317

820

(UJ)

R303
100K

R301
33K

2

D301

1SS133

L302

L303

R314

CF301

VD303
KDV147B

VD304

KDV147B

10K

1
3

C310

C305
15P
(CH)

C306
33P

R309

47

0.001
C304

4.7P

FM IF

T301

C314
10/16

C303

C392

0.001

C381

22

12P

X OUT

(CH)

X352

4.5MHz

X IN

1

PLL CONTROLLER

C382
15P
(CH)

C384

0.001

TU D GND

CNP303

R380

1.5K

20

21

VSS

A OUT

NC

CE

2

3

IC302

LC72131

R374 1K

DO

CE

CL

4321

1/50

18

19

PD

A IN

CL

DI

4

5

R373 1K

DI

6

5

C393

R379

2.2K

17

16

VDD

DO

FM

6

R371 1K

R372 1K

47/16

C385

KTA1266 GR

+B

TU A GND

+12V

7

15

AM IN

FM IN

BO2

8

7

Q344

R363

3.3K

1SS133

D341

TU MUTE

TU L-CH

8

9

C338
100P

C383

0.022

14

NC

BO3

9

R382

5.6K

R384

5.6K

R369

4.7K

TU R-CH

10

13

NC
MO/ST

10

R350 47K

R383

5.6K

1SS133

D342

R381
10K

C369
47/16

12

IF IN

STEREO

11

R376

1K

150(1/2W)

10K

R365

MTZJ5.1B

ZD351

100µH

L343

R356

+B

+B

R362

470

0.022

0.022

+B

C349

C348

C350

220/10

C351

0.0022

R340

47K

C370

1/50

R364

47K

R352
15K

C354
470P

10K

VR351

6.8K

C358

0.0015

FM DET

R348

33K

R349

1.5K

R351

Q342
KTC3199 GR

1.2K

R347

3.9K

R375

C353

0.018

C355

3.3/50
C356

3.3/50

TP302

C357

3.3/50

T352

24
23
22
21

20
19

18
17

16

15
14

13

AM
OSC
AM +B

AM RF
FM +B

FM
DET

DET
OUT

MPX-IN

FM-M/ST

VCO

FM IF IN

1

AM

2

MIX

FM/AM IF MPX.

3

LA1805

IC303

4

AM IF

5

GND

6

ST IND

7

TUN IND

8

L-CH

9

R-CH

10

AM/FM

11

12

NC

Q343

KRA109 M

TP303

C363

0.027

C365

C366
1/50

2

1/50

3

R361
10K

C360

0.022

AM IF

T351

CF352

1

2

3

+B

R359

2.7K
R357

3.3K

R360

2.7K

R358

3.3K
C367

1

1/50

+B

C364

0.027

C359

0.022

C361
22/16

TUNER PWB-E

CNSF13

TO MAIN PWB

P24 1-F

7

8 9 10 11 12

Figure 31 SCHEMATIC DIAGRAM (12/20)

– 31 –

CD-C482

P

10K

U

V

A

P37 12-E

TO SPEAKER

AMP.2 PWB

B

C

D

E

P23 10-G

TO MAIN PWB

P24 1-A

FROM MAIN PWB

HP-LCH
GND(A)

HP-RCH

GND(M)

WTV11

H/P SW

WTP02

+4.6V(D)

+12V(M)

CNPF1

FWV91

VF2
–38
(VP)
VF1

FWD02

GND(D)

COM1

RESET
DATA1

STB

SCK1

FM SIGNAL

RV91

220

RV92

5

220

CV91
100P

LV91

2.2µH

1

HEADPHONE PWB-C3

3

1

10

9
8

+B

7

+B

6
5
4
3
2
1

CNSD01

LEDD20

KL052UL

+B

LEDD21

SLR505MC-1

RD54

RD55

CV92
100P

KRC107 M

2 3

1.2K

2

820

KRC107 M

QD07

1

1

QD08

3

JV91

HEADPHONES

R-PLAY

REW

CD29 1/50

CD28 1/50

+B

F-PLAY
STOP
FF

PAUSE

SLR325MG

CD30 1/50

+B

LEDD05

KL052UL
KL052UL

LEDD03

SLR505MC-1

KL052UL

LEDD06

SLR325MG

LEDD07

SLR325VR

LEDD08

SLR325MG

LEDD10

SLR325VR

LEDD11

SLR325MG

LEDD13

SLR325VR

LEDD14

SLR325MG

LEDD16

SLR325VR

LEDD17

SLR325VR

LEDD18

SLR325MG

LEDD01
LEDD02

LEDD04

RD53

1K

LEDD12

SLR325MG

CD19 150P

CD18 150P

CD10

RD48

1.2K

RD49

1.2K

RD50

820

RD51

1.2K
QD05

KRC107 M

RD52

560

LEDD09

SLR325MG

KRC107 M

CD21 150P

CD20 150P

LEDD15

SLR325MG

LEDD19

SLR325MG

CD11

0.022

220/6.3

KRC107 M

QD04

KRC107 M

2

2

1

QD06

2

RXD01

REMOTE

CONTROL

SENSOR

KRC107 M

QD03

3

+B

RD57

39

QD02

2

3

1

1 3

QD01

KRC107 M

2

1

3

1

CD09
150P

2

3

2

3

1

RD04 1K

RD05 1K
RD06 1K

RD07 560

RD08 1K

RD09 560

RD10 1K

RD11 560

RD12 1K

RD13 560

RD14 1K
RD15 1K
RD16 1K
RD17 1K

S3

S2

S1

F1F1NC

NC

7654321

–B

3

1

1K

1K

RD01

RD02

F-PLAY

RD03

1K

PAUSE

PG2
PG3

P00
P01
P02
P03

VSS

VDD

P04
P05
P06
P07

DATA1

COM1

SCK1

RD19

FF

1K

RD22

1K

81
82

PG1
SRS-G

83

SRS-R

84
85

PHANT-G
PHANT-R

86

VIRTUAL-G

87
88

VIRTUAL-R
VSS2

89
90

VDD2
NORMAL-G

91

NORMAL-R

92

STEREO-G

93
94

STEREO-R

SO0

95

SI0

96

SCK0

97

SO1

98
99

SI1

100

RD21

1K

DD01

1N4004S

DD02

1SS133

RD58

STOP

S46

S47

P17

P16

STROBE

100K

NC

NC

S45

P30

REW

R-PLAY

RD59

100K

S44

P31

VDD

S3

S2S1NC

727374757677787980

S43

S42

S41

S40

VDD4

81

PG0

DIS

100

SCK1

P32

P33

P34

P35

P36

987654321

DISK 1

DISK 2

RD27 1K

RD26 1K

RD60

0.001

CD05

F

SWD28

NORMAL

SWD37
SLEEP

RE28

12K

RE38

12K

SWD27

PHANTOM

SWD36
TIMER

RE29

G

SWD29

BY-PASS

SWD38

CLEAR

27K

RE39

27K

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 32 SCHEMATIC DIAGRAM (13/20)

RE27

5.6K

RE37

5.6K

+B

SWD17
F-PLAY

SWD26

VIRTUAL

SWD35

MEMORY

– 32 –

RE16

3.9K

RE26

3.9K

RE36

3.9K

SWD16

REC

PAUSE

SWD34
CLOCK

RE15

2.2K

RE25

3.9K

RE35

2.2K

SWD15

HIGH

EDIT

SWD06

ITEM

SWD33

R-PLAY

RE04

1.8K

RE14

1.8K
SWD14

NORMAL

EDIT

RE34

1.8K

SWD32

REVERSE

MODE

SWD05

MENU

SWD23

Q-SOUND

RE03

1.2K

RE13

1.2K

RE23

1.2K

RE33

1.2K
SWD31

CD

PAUSE

SWD04

PRE EQ.

SWD13

STOP

RE02

1K

SWD03

X-BASS

RE12

1K

SWD12

TUNING

CUE

RE22

1K

RE32

1K

SWD30

TUNING DOWN

REWIND

CD-C482

0

FLD01 FL DISPLAY

S19

S18

S17

S16

S15

S14

S13

S12

S11

S10

S9

S8

S7

S6S5S4

S3

S2

76

S20

S21

S22

S23

S25

S24

2827262524232221201918171615141312111098

28 28 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57

S26

S27

NC

NC

NC

1G

2G

3G

NC

NC

NC

NC

8G

7G

6G5G4G

9G

10G

11G

12G

–B

+B

13G

14G

15G

NCNCF2

F2

VDD

S6

S5

S4

S3

S2

S41

S40

S39

S38

S37

S36

VDD4

1

PG0

S35

S13

S12

S11

S10

S9S8S7

S34

S33

S32

S31

S30

S14

S18

S17

S16

S15

S29

S28

S27

S26

S25

50

ICD01

IX0234AW

DISPLY MICROCOMPUTER

0

SCK1

31

FL-SET

P34

P35

P36

P37

INT0

/RES

P74

P75

VSS1

CF1

CF2

VDD1

AN0

AN1

AN2

AN3

AN4

KEY1

KEY2

RD37 1K

RD38 1K

8.2K

RD66

1K

RD67

AN5

KEY4

KEY3

RD40 1K

RD39 1K

987

VSS

VDD

CD05

DISK 1

RD26 1K

0.001

DISK 2

DISK 3

RD27 1K

RD28 1K

10K

RD60

SWD01

VOL JOG

RD29 10K

RESET

VOL JOG UP

VOL JOG DOWN

RD31 1K

RD32 1K

RD33 1K

10K

RD61

XCIN

RD34

CD01

0.022

CD02

100/10

0.001

CD06

XCOUT

820

XD01

0031

TUN-SET

AUD-SET

RD36 1K

RD35 1K

S20

S19

S24

S23

S19

S1

AN6

AN7

KEY5

KEY6

RD41 1K

RD42 1K

S22

S21

S22

S21

INT1

INT2

JOG UP

JOG DOWN

RD43 1K

RD44 1K

S23

–29(VP)

515253545556575859606162636465666768697071727374

VP

50

S20

49

S18
S17

48

S16

47
46

VDD3

S15

45

S14

44
43

S13
S12

42

S11

41

S10

40

S9

39

S8

38

S7

37

S6

36
35

S5
S4

34

S3

33
32

S2

31

INT3

S0

302928272625242322212019181716151413121110

G15

REMOCON

RD45 1K

S24
S25
S26
S27

G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
G12
G12
G13
G14

CD07

0.001

VDD

+B

+B

RD64

10K

SWD02

2.2µH

JOG

LD01

10K

RD65

CD08

0.001

DISC 3

DISC 2

QD11

KRC107 M
DISC 1

QD12

KRC107 M

QD10

KRC107 M

3

1

3

1

3

1

2

2

2

RD70

820

RD71

820

RD72

820

DISC 3

DISC 2

DISC 1

JOG PWB-C4

SWD03

X-BASS

SWD12

UNING UP

CUE

30

DOWN

ND

RE42

KEY1

RE01

8.2K

KEY2
RE11

8.2K

RE21

8.2K

KEY5

KEY6

RE51

8.2K

RE41

8.2K

DVD/VIDEO 1

SWD39

SWD48

POWER

RE52

1K

1K

SWD40

DVD/VIDEO 2

KEY3

RE31

8.2K

KEY4

SWD54

OPEN/CLOSE

DISPLAY PWB-C1 SWITCH PWB-C2

7

8 9 10 11 12

Figure 33 SCHEMATIC DIAGRAM (14/20)

RE43

1.2K

RE53

1.2K

RE57

5.6K

SWD41

TAPE 1/2

SWD53

DISC
SKIP

RE44

1.8K

RE56

3.9K

– 33 –

SWD42

TUNER/BAND

SWD52

DISC3

RE55

2.2K

RE45

2.2K
SWD43

SWD51

DISC2

CD

RE54

1.8K

+B

SWD50
DISC1

+B

6

1

FWD01

6

LEDD26

LEDD28

LEDD27

LEDD25

DISC3

1

LEDD23 LEDD24

LEDD23~LEDD28

DISC2

DISC1

LMKD515B

CD-C482

O

M

3

2

0

M

O

-

U

0V

DB01

3

CB21

0.001

LH51

1µH

LH52

1µH

CA28

LA14

DB02

CA27

0.1

RH61 150

CD D-IN

CB14

10µH

10/16

CA25
10/16

ICA13

22

RA01

RA09

330

CA22

0.0015

RA10

330

RH62 150

CH52 220P

DH52

1SS133

CH61

0.001

0.001

RA27

AK4520A

CA21

RH63 150

DA15

1SS133

CA32

0.1

DA16

1SS13

DA11

1SS133

CA30

0.1

DA12

1SS133

150

150

RA28

CA26

0.1

0.1

CA24

CA23

R-CH

2.3V

2.3V
28

VCOM

VREFH

1 2 3 4

20 BIT 2 CH A/D

D/A CONVERTER

0V

4.6V

22

RA02

RA23

330

RA25

10K

2.3V

0.0015

7

8

4.7V

4

CA17

10/16

0.1

CA19

RA24

330

RA26

10K

2.3V

7

8

4

4.7V

0V

0.1

CA20

CA18

10/16

CH53
22/25

1

CH55

2

22/25

RH64 150

CH54 220P

3
5

CH62

RH56

ZDH51

MTZJ9.1B

RA33

47K

2.2K

RA32

1.7V

11

10

1213

14

Vcc

CA33

10/16

0.1

CA34

1 2 3 4

1.7V

47K

RA30

RA29

2.2K

10/16

L-CH

3.9V

3.3V

2.3V

0V

0V

0V

3.9V

23

24

252627

VD

TST1

DGND

PWAD

PWDA

AOUTL

AOUTR

CMODE

VREFL

AINR+

AINR–

AINL+

AINL–VAAGND

DIF0

6

10

5

8

9

7

0V

3.3V

4.6V

2.3V

2.3V

2.3V

2.3V

RA07

10K

RA15

RA17

–

6

2.3V

+

5

2.3V

0V

10K

RA21

RA19

10K

RA18

2.3V

6

–

2.3V

+

5

10K

RA22

ICH51
NJM2246M
OPE AMP.

+SW

5.1V

4.3V

5.0V

5.0V

0.022

CH60

1000/10

2.2K

10K

2.3V

10K

1

ICA11
NJM4580M
OPE AMP.

CA13

0.1

CA15

RA16

10/16

10K

2.3V

10K

1

ICA12
OPE AMP.
NJM4580M

CA14

0.1

10K

RA20

CA16

10/16

RH53

8

0V

100

7

4.5V

6

11.9V

4.2V

4

47/25

CH56

RH65

120

RH66

150

CH59

47P(CH)

390

RH67

A

B

C

D

E

F

G

CNPR12

TO MAIN PWB

P23 9-B

CNSA11

2
1

DVD2 IN

DIGITAL-IN

DVD1 IN

TERMINAL

MONITOR OUT

JA11

COAXIAL

OPTICAL

ICA14

GP1F38R

JH51

VIDE01 IN

VIDEO2 IN

BIA11

1
2

3.3V

1

2

0V

DH51

1SS133

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

0V

3.4V

1.6V

9

8

CA35

ICA15

GND

6

5

7

74HCU04F

INVERTER

0V

1.7V

0V

0V0V0V

1.6V

16

1819202122

15

17

TST2

TST3

DEM1

DEM0

MCLK

DIF1

LRCK

SCLK

SDTI

SDTO

14

12 13

11

0V

3.3V

1.6V

1.6V

1.0V

10K

RA08

CA97

0.1
CA98

10/16

CA11

2.3V

22/16

–

2

RA13

+

10K

3

2.3V

47K

RA11

CA12

2.3V

22/16

2

–

RA14

+

10K

3

2.3V

47K

RA12

47K

RH58

2

4.2V

0.022

CH57

LH53

100µH

0.047

CH58

QH51

KTC3199 GR

0V

V1/V2

1

470

RH68

47K

RH57

2

4.3V

QH52

KRC102 S

3.4V

16

15

14

A

2G

10/16

Vcc

1GB 1C3

0.1

CA36

1 2 3 4

0V

0V 0V

2.8V

2.7V

CB19

0.001

LA17

0.82µF

3

0V

QH53

1

0V

KRC102 S

0.022

CH51

+B

GND(V)

3

0V

CB15

0.001

2C3

1C2

CB16

0.001

0V

0V

0V

11

10

1213

9

ICA16

2Y

2C0

2C1

2C2

1C1

5

1.7V

1C0

1Y

6

7

0V

1.7V

RA91

LA13

0.82µH

CFWA02

8

0V

47K

CA51

GND

RA92

100/10

74HC153F
INVERTER

47K

SI

PWAD

SCK

RESET(ZR)

1K

RA39

2 3 4

1

SI

SCK

AC32RES

DGTL2

SS

1K

RA34

DA13

1SS133

6

5

SS

AD RES

SO

RA35

7

SO

DGTL2

RA51

270

RA54

270

RA55

270

CB20

0.001

DGTL1

1K

RA36

DA14

8

9

DGTL1

1 20

FWA02

CFWU02

TO MAIN PWB

P25 12-F

CA47

0.001

0.1

CA49

0.1

CA48

3.3V
81

4.0V

82

1.0V
83

3.3V
84

0V

85

0V

RA52

86

1K

0V

87

0V

RA53

88

1K

0V

89

0V

90

270

1.6V

RA56

91

1.6V

92

3.3V
93

0V

94

1.6V
95

96

1.6V
97

RA60

98

10K

99

0V

100

CA38

0.1

RA40

1K

RA57

RA50

270

CA37

0.001
CA39

0.1

1K

+3.3V

CA50

100/10

LA12

LA16

0.82µ

0.82µH

+B

+3.3V

DEM1

DEM0

DGND

LA11

0.82µ

1K

1K

RA37

RA93 680

DEM0

DEM1

CB22

0.001

CB23

0.001

GND(D3)

GND(D4)

+B

A+12V

VGND

+5V(AC32B)

+5V(AC32A)

+5V(AC32A)

+B

+B

A+12V

1SS133

10 11 12 13 14 15 16 17 18 19 20

SP CONF

270

RA49

RA48

0V

0V

SDB

SDC

SDA
VDD
SDE
TCK
SCK
TDI
SI
GND
SCKA
WSA
VDD
SDF
WSB
D17
SCKB
D16

GND SSTMS

A0

1 2 3 4

0V

+B

CA95
47/25

RA95 680

RA94 680

AGND

A-12V

A-12V

AGND

270

0V

3.8V

RA96

GND

81
82

81
82

680

1

727374757677787980

A17

A18

A19

D19

D18

VDD

CLKOUT

RESET

D

SPFTX/SDG
D15

INT

VDD

D14/RDY

GND

A1

8

9

6

5

7

0V

0V

3.3V

10K

RA41

QB01

R

2SD468 C

5.4V

3.4V

4.0V

CB13

0.022

CB1

100/1

SW_

–B
CA96

47/25

ZDA02

MTZJ8.2A

ZDA01

MTZJ8.2A

1 2 3 4

RTIN

LTIN

V1/V2

TO MAIN

P25 12

6

5

AGND

R OUT

RS IN(RS OUT)

CFW

1

23456

Figure 34 SCHEMATIC DIAGRAM (15/20)

– 34 –

CD-C482

1K

SO

ICA17

TC7WU04U

DUAL 2-INPUT

NAND GATE

3.3V

8

7

CA53

0.001

Vcc

CA52

10/16

1 2 3 4

0V

1.8V

CA46

270

CA47

0.001

RA49

RA48

CA48

3.3V

4.0V

1.0V

3.3V
0V
0V
0V
0V
0V

0V

1.6V

1.6V

3.3V
0V

1.6V

1.6V

0V

CA38

0.1

RA40

0.1

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100

1K

270

0V

0V

SDB

SDC

SDA
VDD
SDE
TCK
SCK
TDI
SI
GND
SCKA
WSA
VDD
SDF
WSB
D17
SCKB
D16

GND SSTMS

A0

1 2 3 4

0V

0V

GND

81
82

81
82

3.8V

A18

A19

VDD
RESET

SPFTX/SDG
D15

INT

5

0V

10K

RA41

2SD468 C

3.4V

CB13

0.022

6

3.3V

QB01

4.0V

RA51

270

RA54

270

RA55

270

CB20

0.001

RA57

LA16

270

CA37

0.001
CA39

0.82µH

RA50

1K

0.1

RA56

+3.3V

RA52

RA53

270

RA60

10K

CA49

1K

1K

CA50

LA12

0.1

100/10

0.82µ

+B

+B

CA95

+3.3V

47/25

ZDA02

DGTL1

DEM1

DEM0

DGND

LA11

0.82µ

1K

1K

RA37

RA36

DA14

1SS133

10 11 12 13 14 15 16 17 18 19 20

8

9

DGTL1

SP CONF

DEM0

DEM1

GND(D4)

CB22

0.001

CB23

0.001

GND(D3)

+5V(AC32A)

+B

A+12V

VGND

+5V(AC32A)

RA93 680

RA95 680

RA94 680

+B

AGND

A-12V

+B

AGND

A+12V

+5V(AC32B)

20

RA96

A-12V

680

1 2 3 4

LTIN

RTIN

1 10

CFWU02

TO MAIN PWB

P25 12-F

7

0.047

GPIO1

QA03

7.8V

1

7.8V

CB04

0.022

CB03

0.022

0V

0V

3.3V

VDD

GPIO2

D10/PP6 A9A10

2

7.7V

1

QA01

KRC107 S

CB01
100P

RB01

22K

RB02

22K

CB02

100P

0V

0V

SDD

GND

D4/PP0
D5/PP1

D6/PP2
D7/PP3

SELEX7

D8/PP4

100K

RA82

RA87 22K

RA44

270

5253545556575859606162636465666768697071727374757677787980

CS

A15

VDD

GND

A14

A13

TOO

A12

GND

VDD

SO

GND

0V

CA93

2.2/50

51

50

WR

49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

VDD

3029282726252423222120

3.3V

RA88 22K

RA85 3.3K

RB09

560

0V

0V

3.3V

0V

3.3V

A17

D19

D18

GND

VCCA

CLKOUT

GNDA

FLTCAP

VDD

1.7V

SCKIN

1.8V

GND

ICA18

ZR38600

DOLBY AC-3/5.1CH

MPEG2 AUDIO

DECORDER

VDD

D14/RDY

GND A1A2A3VDD

8

7

0V

5.4V

CB12

100/10

SW_ON/OFF

–B

CA96
47/25

MTZJ8.2A

ZDA01

MTZJ8.2A

5

V1/V2

AGND

RS IN(RS OUT)

9

3.3V

RB12

RB11

390

390

ZDB11

MTZJ3.9B

8

9

6

7

L OUT

R OUT

LS IN(LS OUT)

D13/C/D

D12/ERR A4VDD

GPIO5

151413121110

+B

CB11
47/25

SW-CH
C-CH
RS-CH
LS-CH

NJM4580M

OPE AMP.

L-CH

RB05

RB07

100K

RB08

100K

R-CH

RB06

10

CFWA01

C IN(C OUT)

SW IN(SW OUT)

3.3V

ICB01

100

CB05 220P

100

0V

0V

3.3V

1.7V

XTI

P/M

XTO

VDD

GPIO0

SPFRX

BYPASS

50

RD

49

A16

32

D9/PP5

31

A11

GPIO4

GND A5A6

D11/PP7

GPIO3 A7A8

19181716

0V

KRC107 S

-7.8V

3

RA83

-7.8V

100K

-7.8V

2

QA02

KRA107 S

3
2

1

0V

3

0V

7.8V

-7.8V

8

4

3

+

1

0V

–

2

RB03

27K

CB06
220P

RB04

27K

6

–

0V

7

0V

+

5

0V

CB17

0.001

FWA01

CFWU01

TO MAIN PWB

P25 12-E

8 9 10 11 12

1.7V

1.7V

6

5

GND

0V

1.7V

3.3V

RA43

10K

3.3V
0V

0V
0V

0V

-7.8V

5
3

-7.8V

6

0V

9

7.7V
12

0V

10

7.7V
13

0V

2

CA92

0.022

CA54

18P(CH)

1M

RA59

XA11

12.288MHz

CB27

0.1

CA45

0.1

CA44

0.1

CA43

0.001

RA42

1K

CA42

0.001

CA41

0.1

CA40

0.1

ICA22
BU4066BCF
SELECTOR

14

7.8V -7.8V

CA55

22P(CH)

7

CA91

0.022

+5V

0V

4.6V
0V

2.2V

3.9V

1.6V

1.6V
0V
0V

2.2V

3.9V

1.6V
0V

1.6V
0V
0V

0V

0V

RA80

100K

0V

0V

NJM4580M(1/2)

OPE AMP.

CA88

2.2/50
RA79

1K

C-CH
RS-CH
LS-CH

4

8

11

1

Figure 35 SCHEMATIC DIAGRAM (16/20)

– 35 –

1
2
3
4
5
6
7

0V

8
9

10
11
12

1
2

3
4
5
6
7
8
9

10
11
12

0V

ICA21

0.1V

RA78

RA03 22

RA04 22
CA56 0.01
CA57 10/16

CKS
DVDD

VREF

DVSS

AVSS

XT0

AVDD

XT1

VCOM

PD
BICK

AOUTL

SDATA

AOUTR

BVDD

LRCK

DIF1

SMUTE

DIF0

DFS
DEM0 DEM1

RA05 22
RA06 22
CA71 0.01
CA72 10/16
CB26 0.001

CKS
DVDD
DVSS

VREF

XT0

AVSS

XT1

AVDD

PD

VCOM

AOUTL

BICK

AOUTR

SDATA
LRCK

BVDD

SMUTE

DIF1

DFS

DIF0

DEM0 DEM1

CB18

0.001

7

CA87

4

0.001

-7.8V

18K

CA86

0.022

+B

ICA19

AK4321

4.6V

TTL

24

DZF

23

4.6V

22

0V

21
20

2.3V

19

2.3V

L-CH

18

2.3V

R-CH

17
16

CA64

10/16

4.6V

15

4.6V

14

0V0V

13

220

RA64

CA67
10/16

TTL
DZF

CA68
10/16

+
–

8

7.8V

CA85

0.022

220

RA68

ICA20

4.6V

24
23
22

21

CA75 0.1

20

CA76 0.1

2.3V

19

C-CH

2.3V

18

SW-CH

2.3V

17
16
15
14

CA80

13

10/16

0V

220

RA74

CA83

2.2/50

1K

0V

RA75

5

6

CA84

0V

47P(CH)

2.7K

RA77

RA89

22K

RA90

22K

DOLBY PWB-G

CA58

220/6.3

20 BIT 2 CH

D/A CONVERTER

CA59

0.001

CA60 0.1
CA61 0.1
CA62 100/16

CA63
10/16

RA61 27K
RA62 27K

220

RA63

RA65

220

CA69

RA67

0.015
CA70

0.015

AK4321

20 BIT 2 CH

CA74

0.001

D/A CONVERTER

CA79

10/16

RA71

27K

CA81

0.015

220

RA73

CA82

0.1

LA18

0.82µH

100K

RA76

CA65 0.015
CA66 0.015

27K

RA66

27K

CA73

220/6.3

CA77

100/16

27K

RA72

L-CH

R-CH

CD-C482

R

3

A

B

C

D

E

F

FWP01

CFWP01

TO MAIN PWB

P23 12-D

OUT3

RELAY2

OUT1(L-CH)

RELAY1

GND(A)

FAN CONT

OUT2(R-CH)

SP LEVEL

GND(M)

H/P SW

+12V(M)

FAN SW
VOL2SW

PROT

POSISTOR

AMP

SPEAKER AMP. PWB-F

CV13

CV11

2.2/50

2.2/50

CFWV11

16
15
14
13
12
11
10

9
8

7
6
5
4
3
2
1

CENTER

FR

CV15

470P

CV16
470P

CV12

2.2/50

CY11

2.2/50

CY13
470P

CV14

2.2/50

CY12

2.2/50

RV13

RV14

RV18

1K

RY11

56K

RV17

1K

56K

56K

RY12

1K

RV21

56K

RV19

270

CV20

100/50

RY15

270

16

CV17

47P

15

CV21

RV23

15P

1K

QV16

KTC3199 GR
CV19

100/50

RV20

270

RV22

56K

RV24

CV22

1K

15P

13

CV18

47P

12

18

CY14

47P

17

CY15

RY13

15P

1K

RY14

56K
CY16

100/50

ICV01 –B

STK407-2

POWER AMP

RV35

2.2K
RV36

22K

RV34

15K

RV37

DV21

47K

1SS133

RV38

CV27

10K

1000/6.3

RV33

10K

1

2

14

ICV01 –A

POWER AMP

6

ICV01 –C

POWER AMP

11

QV17

KTA1268 GR

CV24
47/50

RV71

820

RV63
120K

10

7

RV25

(1/2W)

CV23
47/50

100(1/2W)

19

100

RV26

QV13

KTC3199 GR

RV27

10K

CV25

0.022

RV29

0.2(1W)

Fusible

Fusible

9

RV69

0.2(1W)

RV70

0.2(1W)

8

RV30

0.2(1W)

CV26

0.022
RV28

10K

KTC3199 GR

QY11

KTC3199 GR

RY18

10K

CY17

0.022

RY16

0.2(1W)

20

RY26

0.2(1W)

5

4

3

QV14

1K

RV31

1K

RV32

DY11

1SS133

1K

RY17

DV13

1SS133

DV14

1SS133

+B

DV15

1SS133

CV30

3300/50

KTC3199 G

1 2 3 4

–VCC

–VCC

GND

QV18

GND

5

GND

6

+VCC

7

+VCC

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 36 SCHEMATIC DIAGRAM (17/20)

– 36 –

GND

FM SIGNAL

CD-C482

V18

199 GR

QV19

KTC3199 GR

CV28
47/50

CV29

3300/50

RV40

56K

RV41

56K

RV42

56K

RY19

56K

RY20

4.7(1/2W)

CV33

0.047(ML)
RV43

4.7(1/2W)

RV44

4.7(1/2W)
CV34

0.047(ML)

CY19

0.047(ML)

CV47
47/25

TMV01

+

–

+

–

+

–

CNS901

212

1

CNPV11

QV20

KTA1270 Y

WTV11

5
4
3
2
1

M

M901

HP-L-CH
GND(A)
HP-R-CH
GND(M)
H/P SW

FRONT

SPEAKER

L-CH

FRONT

SPEAKER

R-CH

SUB

WOOFER

SPEAKER

FW91

TO

HEADPHONE PWB

P32 1-A

8 OHMS

RLYV11

22K

RV61

47K

22K

RV54

RY22

47K

1SS133

RV53

27K

RV60

MTZJ5.1B

DV24

22K

DV19

DV20

ZDV11

+B

1SS133

1SS133

DV25

CV48
10/50

RV59

RV55

RV57

1SS133

4.7K

DV22

100K

100/50

RV58

47

MTZJ6.2B

22K

RV72

KTC3199 GR

1SS133

CV49

10K

330(1/2W)

RV52

330(1/2W)

ZDV12

RV56

3.9K

QV21

RV51

+B

DV17

1SS133

RLYY11

DY12

1SS133

+B

RELAY1

RELAY2

FAN SW

FAN CONT

+B

DV23

1SS133

QV22

KTC3199 GR

RV62

3.3K

QY12

KTC3199 GR

RY21

3.3K

SP LEVEL

H/P SW

RY23

CNPV12

6

7

CNS903

+VCC

+VCC

TO POWER PWB

P38 5-A

7

8 9 10 11 12

Figure 37 SCHEMATIC DIAGRAM (18/20)

– 37 –

CD-C482

1

2

TO SPEAKER

AMP.2 PWB

P37 7-F
CNPV12

A

23

1

1

23

–VCC

GND

–VCC

4

4

GND

5

5

GND

6

6

+VCC

7

7

+VCC

CNS903

BI903

B

R901

Q913

150

2SB1375

C901

0.022

Q906

12.6V

16.2V12.0V

R910

150

-12.3V

C902

47/25

Q901

KTC3199 GR

12.8V

13.3V

C903

47/25

16.9V

Q905

KTC3199 GR

12.8V

13.3V

C908
47/25

R902

1K

R909

1K

C920

16.9V

13.4V

33K

R908

47/25

2

KRA107 M

–B

C

+12V(A)

1

1.2V

Q907

+7.3V(CD)

CD GND(D)

+12V(M)

2SD468 C

4.8V

C906

0.022

C911

0.022

Q903

C905
47/25

12.0V

5.4V

R906

100

D901

1SS133

D905

1SS133

R904

1.5K

ZD902

MTZJ5.6A

Q909

2SD2012

7.1V

7.7V

R912

47

16.9V

Q908

KTC3199 GR

7.8V

8.3V

C910
47/25

+B

+4.6V(D)

+B

GND(D)

D

+B

+B

2

-2.1V

E

+B

3

KRA102 M

0V

+B

+B

C904

47/25

C909

0.022

ZD904
MTZJ8.2C

Q902

2SD2012

R903

12.0V

16.9V

R911

560

47

2SD2012

@@@@@

(3W)

-22.7V

R918
100

R919

3.9(1/2W)

R920

3.9(1/2W)

13.4V

1

1.2V

3

Q904

R917

4.7K

1

-12.8V

2

ZD901
MTZJ13A

GND

C907

-13.0V

Q914

KRC107 M

-2.1V

3

R907

560

220/25

ZD903

+B

C919

4700/25

–B

MTZJ13C

D991

KBU1003

35.7V

-35.5V

+5V(AC3)

+B

C915

0.022

–B

5.4V

D906

1SS133

2SD

6.1V

Q9

R91

47

+7.3V(CD)

CD GND(D1)

CD GND(D2)

11

10

9

8

11

10

9

8

GND(M)

POWER

BI901

CNS901

–B

1

1

–12V(A)

GND(A)

234

23

GND(M)

+12V(M)

+12V(A)

5

4

5

+4.6V(D)

GND(D)

6

7

6

7

F

G

CNPP01

TO MAIN PWB

P23 12-E

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 14.

1

23456

Figure 38 SCHEMATIC DIAGRAM (19/20)

– 38 –

BI902

CNS902

4

GND(D3)

GND(D4)

34

CNPP02

TO MAIN PWB

P23 12-F

CD GND(D)

11223

VGND

+5V(AC32A)

C954

0.22(ML)
C956

0.22(ML)

D992–D995:2A02

D995

D992

16.9V

D994

D993

C957

0.047
(ML)

C958

0.047
(ML)

C961

220/50

D951

1N4004S

C960

220/50

T991

POWER TRANSFORMER

F997

2.5A

CD-C482

Q911

2SD2012

5.4V

6.1V

R914

47

06
133

GND(D)

10.7V

Q910

KTC3199 GR

6.2V

6.8V

C914
100/25

10.7V

R913

560

ZD905
MTZJ6.8C

C913

3300/25

–38V

R954

220

+B

10.7V

VF2

–VP

23

WTP01

TO MAIN PWB

P23 12-F

R955

12K

R953
220

D996–D999:
1N4004S

D996

D997

VF1

1

FW901

C964

47/50

C965
100/35

ZD952

MTZJ6.8C

-31.1V

D999

D998

C963

100

-31.7V

R956

-32.8V

Q951

KTA1266 GR

47/50

R957

2.2K

1N4004S

R951

1

R952

1

ZD951

MTZJ33C

C962

D954

C966

0.047
(ML)

C967

0.047
(ML)

47/63

D952

1N4004S

C959 220/50

D953

1N4004S

F998

1.6A

T.F.

POWER PWB-D

R991

4.7M
(1/4W)

F990

5A

AC POWER CORD
AC 120V

60Hz

7

8 9 10 11 12

Figure 39 SCHEMATIC DIAGRAM (20/20)

– 39 –

CD-C482

0

RZ40

RZ34

5

TO TUNER PWB

P47 8-C

CNP303

A

B

C

D

E

F

G

PRE OUT

CENTER

PRE OUT

SUB WOOFER

PRE OUT

SURROUND

L-CH

PRE OUT

R-CH

PRE OUT

FRONT L-CH

PRE OUT

FRONT R-CH

COLOR TABLE

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

VIDEO/AUX2

VIDEO/AUX-1

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

L-CH

INPUT

R-CH

L-CH

INPUT

R-CH

DIGITAL

OUT

JR12

JR11

MAIN PWB-A

QR20

B

C

RR56

E

RR55

CR43

QR19

E

RR39

C
B

RR43

B
C

QR17

E

1

16

RZ47

ICZ08

DR11

DR12

RR23

RZ45

RR15

RR11

LR01

CNPR12

2

QR15

CQ09

CR01

RR24

RZ48

CZ42

CQ05

B
C
E

CZ43

CR02

RR40

RR27

QR16

RZ53

9

8

RZ55

CQ08

CR13

RR17

RR18

CR11

RR13

CR10

ICR11

CR14

CR12

RR14

JR13

RZ51

RZ52

RR16

RR12

RZ46

RZ49

RZ50

JR12

JR11

3
2
1

RR58

RR57

CR45

RR44

RR28

B
C
E

RR26

CR20

RR25

CR19

QZ04

3
2
1

CZ41

RZ57

CQ02

CQ03

CQ06
CQ07

ZDR01

CNPR11
3

2

RR66

RR61

CR47

B
C
E

RR41

CZ40

RR62

QR18

RR34

CR21

CZ35

RZ56

4

CZ45

RR01

11

CR46

CR44

CR31

RR30

RZ90

RZ58

ICZ09

5

RZ59

CQ01

CQ04

CQ10

RR63

RR50

RR29

RZ91

CZ38

RR64

ICR14

8

CR53

1

RR65

RR46

CR32

RR42

CR33

CR22

8

CR29

1

CR23

QZ03

3
2
1

CZ39

CZ44

1

8

RZ61

CQ36

CQ11

ZDQ01

CQ12

CR03

CR48

CR49

CR34

RR45

ICR12

RZ62

48

RR32

RR31

CZ36

CQ35

1

CQ14

CQ15

8

CR35

CR24

RZ54

CZ34

RZ60

CZ37

CQ13

CR50

5

4

RR67

RR48

ICR13

RR33

RR69

CR36

RR47

CR26

5

4

CQ34

37

ICQ01

12 13

RR68

RR49

CR25

CZ47

RR70

CR54

CR38

5

41

RR36

CR30

RR35

36

RQ16

RR87
RR88

CR51

3 2 1

CR37

RR38

RZ65

RZ68
RZ64

CZ46

RZ63

RZ93

CQ33

20

QR12

RR54

RR37

19

CR52

RR59

RR52

CR41

RR51

CR28

RZ94

25
24

18

RR53

RR84

CQ32

CQ16

CQ19

16

17

QR13

QR11

RZ67

RZ66

CQ26

3
2
1

CR27

10

CQ22

15

3
2
1

CQ31

CR40

CR42

RR83

CR66

8

9

7

CQ29

CFWU02

1214

13

RR60

RR86

CR39

RQ03

RQ04

CFWU01

4

6

5

RQ02

CQ30

CQ25

CQ24

CQ21

CQ18

CQ20

RP70

RP62

RR85

RQ05

2

3

CQ28
CQ27

CQ23

7891011

CP53

1

RQ01

CQ17

456

1 2 3 4 5 6 7 8 9 10

BKBKBKBKBKBKBKBKBK

RD

CP18

RP20

RP18

CP10

41

ICP11

5

CP19

CP17

RP15

CZ11

RZ21

RZ23

RZ29

RZ27

CZ15

CZ13

QZ01

E C B

RP91

CP08

8

RP17

CZ63

CZ09

RZ19

1

4

8

55

RZ25

CNPP02

1234

QP15

RP22

RP19

RZ07

ICZ03 ICZ05

RZ15

E
C
B

RP30

CP09

CZ07

CP24

CP27

CP07

CZ64

CP26

RP21

CZ04

RZ03

1

8

RZ17

WTP01

CP23

CZ69

CP47

QP12

B
C
E

RP26

CZ05

RZ13

RQ11

RQ12

1

BIF13

CP25

RP29

B
C

QP11

E

RP28

RP25

RP27

CZ03

RZ14

CZ02

CZ01

RZ01

QZ02

E C B

RQ08
RQ07
RQ06

CZ66

ZDZ01

RZ85

WTP02

23

1

1234567891011

12

3

CZ06

CZ70

RZ02

RZ18

8

1

RZ04

1

28

ZDZ02

RZ80

RZ82

CZ08

CZ58

CZ56

CZ57

CZ14

RZ16

5

4

RZ06

CZ10

RZ05

25

RZ86

CNPP01

8

RZ08

5

RZ26

1

10

CZ59

RZ81

42

35

40

ICZ1

510

1

CZ62

CZ48 CZ50 CZ49 CZ

RZ70

RZ72

RZ89

RQ15

RQ13

RQ14

RZ10

CZ22

RZ38

RZ42

CZ24

CZ16

RZ28

RZ30

5

8

ICZ04 ICZ02

RZ20

RZ12

RZ11

RZ24

4

ICZ01

ICZ06

CZ26

1

RZ22

RZ36

RZ32

CZ12

CZ20

CZ18

10

14

20

15

RZ79

30

1

RZ71

RZ88

RZ09

5

4

CP58

RP53

RP51

CP41

RP16

CP20

RP31

CR65

RQ19
RQ20

CZ30

CZ31

RZ39

CZ32

CZ33

RP12

RP11

RZ33

5

CZ23

CP16

CP28

CP13

CZ19

ICZ07

CZ17

RZ35

144

8

RZ41

CZ65

E C B
QP91

CP14

RZ37

CZ21

RQ09

CP15

RZ31

DQ02
DQ01

CP91

RP32

RQ10

RQ21

2

1

3

CNSA11 CNS99

FROM DOLBY

PWB

H

1

P42 2-E

23456

FROM CD

SERVO PWB

P43 10-H

CFWA02

TO DOLBY PWB

P42 2-A

FWA02

CFWA01

TO DOLBY PWB

P42 5-A

CNS902 FW901 CNS901FWD02

FROM

POWER PWB

P46 3-H

FROM

POWER PWB

P46 1-H

FROM

DISPLAY PWB

P44 1-F

FROM POWER

PWB

P46 2-F

Figure 40 WIRING SIDE OF P.W.BOARD (1/9)

– 40 –

RZ06

BK

ER PWB

8-C

P303

5 6 7 8 9 10

BKBKBKBKBK

10

CZ59

40

RQ13

CZ12

20

PWB

RQ15

CZ22

RZ28

10

35

ICZ10

510

RZ72

RZ89

RZ10

RZ38

RZ42
8

ICZ06

CZ26

1

RZ22

RZ36

RZ32

CZ18

11

30

CZ24

CZ20

14

15

RZ79

15

RZ71

RZ88

RZ09

5

4

RZ81

CZ57

42

Z58
82

Z56

80

1

CZ62

CZ48 CZ50 CZ49 CZ51 CZ52 CZ53

RZ70

RQ14

CZ14

RZ26

CZ16

RZ30

RZ16

8

5

5

ICZ04

2

4

1

4

RZ08

RZ24

RZ20

CZ10

RZ12

5

ICZ01

RZ11

RZ05

25

RZ86

CNPP01

5678910

CNS901

02

OM

FROM POWER

Y PWB

1-F

P46 2-F

FROM SPEAKER

AMP PWB

P48 3-A

CNWV11

CZ60

RZ83

RZ84

22

DZ02

25

20

21

RZ69

RZ74

RZ75

RZ87

RZ40

CZ28

CZ27

CZ25

RZ34

CZ29

CZ71

BIF11

1

1

23

CNP11

TO CD PWB
P43 9-G

CZ61

DZ01

RZ76

RK73

RZ43

RZ44

RZ95

3

CNSA11

FWP1

CZ54

CZ55

CZ67

RZ73

RZ77

RZ78

RK72

1

3 5 7 9 11 13 15

2

4 6 8 10121416

CFWP01

RR21

CR17

CR16

RR20

DG04

CG04

RG37

RG36

QG01

DG05

QG92

1

E C B

2

QP17

3

RG95

RK54

1 2 3

CK55

CK35

RK56

QK21

ZDF01

CG03

CG02

QG02

QG03

RG31

RG35

B

B

C

3
2

RG39

1

RG94

C

E

E

RG32

RG34

RG29

RG30

CG01

RG96

RG06

RG08

RG07

14

BKBKBKBKBKBKBKBKBKBKBKBKBK

14 13 12 11 10 9 8 7 6 5 4 3 2 1

CNP12

TO CD SERVO PWB

P43 11-G

B
C
E

RG23

RG05

RG33

BIF12

CK37

RK55

RK41

CP57

RF67
RF68

RF69

DG02

RK48

RK53

RG24

QK15

DG03

RK69

CK10

RP73

LG01

QK22

CK44

CR15

RF81

E
C
B

QK18

RK43

RF82
RF83

E
C
B

RR19

RF70

RF77

RF80

RF84

RG11

RF73
RF76

RF79

CG56

RK57

RK58

RK47

RH11

RF85

CK36

3 2 1
3 2 1

CK43

B
C
E

LK01

CH28

RF66

RF65

RF71

RF74
RF75

RF78

RF87

RF88

RF86

1

RD

CNSF12

CK38

QK16

RK49

CK46

ICH11

8

RH12

1

RF63

RF64

80

81

CG57

RF91

WTL11

CK60

QK17

RK39

CK29

CH30

RH17

QK19

RK34

RK33

RF62

RF92

RK42

CK42

RK31

4

RF61

RF93

CK45
RK50

RK52

CK31

CH13

5

RF60

RG04

RK35

RF59

75

85

RF94

LK02

RK37

CH29

RF95

QK26

3
2
1

RK46

RK40

RH14

RF58

70

90

RF96

12

CK33

CH10

95

100

RF98

13

CK47

RH15

RF55

65

ICF01

RF97

CK34

CK39

RH13

RF54

RF99

RG22

RL20

CK41

51

60

RK62

QK24

B C E

RK63

RK60

RK61

RK64

RK13

RK24

RK36

CK26

RK32

RK38

RK26

CK30

RK30

CK40

CK32

ICK01

10 5 1

RK29

CK27

CK21

CK28

RK45

RK23

RK25

CK25

DH11

CH15

CH26

RH36

RH16

CH25

RH35

RH24

RF53

5

RG56

RG19

MECHANISM PWB

RH22

DH12

RF49

RF52

RF50

50

55

45

40

20

15

10

1

RF01

RF02

RL24

FWM1

FROM TAPE

P47 9-D

RF48

25

RH21

RF47

35

CH17

CH18

RG26

RG55

RF46

RF11

RG15

CK09

CK22

RH37

31

30

RF12

12345678910111213

RF44

RG16

CK14
242015

CK19

DH15

RH39

CH16

RF43

RF03

QK09

CK20

LK06

RH20

RF31

RF30

RF29

XF01

RF13

CK52

E
C
B

CK15

RF32

DL12

RK22

CK16

CK13

RF42

RF14

RF04

CL13

CL12

RK21

CH21

CK12

CK11

DH17

RF40

DL11

QL15

CK18

RK02

RK19

RF41

RF05

RK05

CK17

CH27

RF39

CG05

CG06

B
C
E

RK07

RK17

RH29

DH18

RG25

RF38

QL16

RK67

QK05

B
C
E

CK05

RK20

QK07

CH22

RH30

RF37

3
2
1

E
C
B

E
C
B

RF28

QK28

RK03

DH13

RF36

RF27
RF26
RF25

RK09

CK02

CH23

RH27

RG17

RF24

RL17

RL18

B

C

E

RH31

DH16

RF35

3
2
1

CK51

QK03

RH26

RG20

QL19

QL14

RK66

RK04

RK11

CK07

1

RH32

DH20

RF34

RK68

CK62

B
C
E

RK12

RK18

CNPK01

23

RK01

DH14

CH20

DH19

RG21

RF33

RL19

RL16

B
C
E

QK04

CK08

CH19

QL18

LK04

CK50

QK08

E C B

CH24

RG38

3
2
1

RL15

RK06

RF23
RF22
RF21
RF20

RF19

RF10
RF09
RF08
RF07
RF06

B
C
E

RK89

RH25

3
2
1

RL14

QK06

CK01

RH34

QL13

CK06

1234567

RK08

QK10

RL13

CNPK02

3
2
1

QL17

3
2
1

RK90

3
2
1

B

C

E

RK10

RL11

QL12

RK15

1
3
5
7
9

RL12

QK11

CNPF01

2
4
6
8

10

B
C
E

RK14

QL11

CD-C482

CNSK02

FROM TAPE
MECHANISM
TAPE2 HEAD

P47 11-H

CNSK01

FROM TAPE

MECHANISM

TAPE1 HEAD

P47 9-H

CNSD01

TO DISPLAY PWB

P42 2-F

7

8 9 10 11 12

Figure 41 WIRING SIDE OF P.W.BOARD (2/9)

– 41 –

CD-C482

DOLBY PWB-G (TOP VIEW)

A

B

C

D

FWA02

CB23

DA13
DA14

CB15

20
18
16
14
12
10

8
6

4

2

CB20

CFWU02

TO MAIN PWB

P40 4-H

ZDA01

CA95

CA73

LA18

CA77

CA58

CA62

DB02

CB16

E
C

QB01

CA27

CB12

B

CA52

123

ICA14

19
17

LA12

15
13
11

CA50

9
7
5

CFWA02

3
1

CA35

CA51

LA13

LA14

LA16

CA33

CB11

WH

CB25

CB14

ZDB11

RB09

XA11

BIA11

P0008AW

1
2

BK

DA16

LA11

CA57

CA72

DA12
DA11

DA15

CNSB03

CNSB03

CA98

CA23

CA67

LA17

CA68

CB21

ZDA02

CA25

DB01

JA11

BK

DVD

DIGITAL IN

WH

12

CNSA11

DVD IN

CA96

CA79

CA80

CA63

CA64

CA16

CH55CH53

LH51 LH52

JH51

VIDEO 1

IN

CA18

CFWU01

TO MAIN PWB

CA83

CH56

VIDEO 2

IN

P40 4-H

CA15

CH62

CA88

CA93

CA17

LH53

CH60

VIDEO

OUT

CA11

23

JH51

1

CA12

E

C

B

10

8
6
4
2

CFWA01

QH51

ZDH51

FWA01

CB17

1B

9
7
5
3
1

F0471AW

94V-0

H F4

DH52

DH51

E

F

G

1B

RB08

F0471AW

QH52

RH57

CH58

CH51

94V-0

RH67

RH68

H F4

RH65

RH66

CH59

CH61

RA82

1

ICA22

14

RA85
RA87

RA89
CB01
RB03

RB07

RA12

CB05

RB05

RA11

RH53
CH57

RH58

1

4

7

8

ICB01

RH56

QA03

CA91CA92

CB03CB04

RB01

ICH51

6

5

RA83

1

RA80

ICA21

RA79

RB02

RA19
CA13

CH62

8

CA87

5

8

RB06

CA19

CH54

4

RA77

5

RA78

RA88

RA90
CB02
RB04

5

ICA11

4

RH64

QA02

CA86

CA84

RA17

CB06

RA25

1

4

RH63

CNPR12

TO MAIN PWB

P40 2-H

QA01

CA85

RA71

CA81

RA76

RA72

CA82

RA61

RA75

CA65

RA62

CA66

RA23

RA09

8

RA21

1

RA15

RA13

RH62

RA73

RA64

RH61

RA74

RA63

CA21

CH52

RA18
RA26

RA20
CA14

CA20

QH53

5

ICA12

4

CA70

RA24

RA14

CA69

RA10

8

1

CA74

CA76

CA59
CA60
CA61

RA16

RA22

RA68

RA67

CA75

CA22

RA66
RA65

24

13

24

13

ICA13

CA24

CB26

5

20

10

15

ICA20

CB18

5

20

10

15

ICA19

RA05
RA06

1

CA97

1

12
RA03

RA04
CA56

CB27

12

1

28

RA07

25

5

20

RA02

CA71

RA08

RA51
RA50

10

CA26

RA28

15

CA39

CA38

RA57
RA56

14

RA01

14

RA55
RA54
RA53

RA52

RA49

RA48

CA49

CA30

RA27

1

ICA15

RA93
RA94
RA95
RA96

CA37

RA60

81

CA48

RA29

RA41

100

CA47

CA32

CB19

RA32

RA40

1

80

95
90
85

RA30

7

RA33

5

75

CA46

8

10

CA54

RB11

15

ICA18

70

65

ICA17

8

CA53

RA59

1

CA34

14

RB12

25

20

60

1
45

CA55

ICA16

CB13

CB22

CB23

CA41

CA40

CA42

30

RA42

31

35

40
45

55

51

RA44

7

CA28

RA43

50

CA43

CA44

CA45

RA34

RA35

RA39

RA36

RA37

RA91

RA92

CA36

8

H

DOLBY PWB-G (BOTTOM VIEW)

1

23456

Figure 42 WIRING SIDE OF P.W.BOARD (3/9)

– 42 –

SENSOR PWB-J

SW3

DISC NUMBER

21

SW1

OPEN/CLOSE

CNS5

21

SW2

MECHA UP

M3

T/T UP/

DOWN LOADING

OR

10

987654321

CNS10

CD-C482

SOLENOID

SOLM2

CD MOTOR PWB-K

1
2
3
4
5
6

RD

WH

GY
WH
GY

WH

1
2
3
4
5
6

-

1
2
3
4

CNP3A

5
6

CNS3BCNS3A

+

-

BIM5

1

GY

WHBRWH

WH

6

CNS1A

1

BK

2

WH

3

PK

4

YL

5

BL

1
2
3
4
5
6
7

RD

GY

GY

WH

8

PICKUP UNIT(306)

CNS1B

BL

1

PK

2

WH

WH
GY
WH
GY
WH

WH

GY

RD

GY

3

YL

4

BK

5
1

2
3
4
5
6
7
8

CNS2BCNS2A

10

7

+

SW4

PICK UP IN

DISC MOTOR

6421

5398

M2
SLIDE MOTOR

+

M1

-

CD SERVO PWB-B

COLOR TABLE

BR

BROWN

RD(R)

WH(W)

OR

YL

GR

BL
VL

GY

BK
PK

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

M901

FAN MOTOR

CNS804

RD

2

BR

1

CNPV11

TO SPEAKER

AMP.2 PWB

P48 4 - A

C54

C8

R12

C4

C35

1
2
3
4
5
6

R48

C36

C7

R11

R37

8
7

C6

6

R14

5

CNP3

CNP2

20

25

30

35

36

R82

1
2
3
4
5
6
7
8
9

10

CNP10

R85

4
3
2
1

R19

IC3

C9

R13
R16

R20

1819

15

10

5

1

1

8

3

6
5
4

7

R83

2

9

IC81

1

R8

2
3

R9

4

C5

5

CNP1

R10

R15
C10

R17

R18

R21

R22

R25
C14

C12

R27
C16

R30

R28

R31

Q91

E
C

C81

B

D91

3
2
1

Q93

CNP11

1

32

C82

CNSF11

TO MAIN PWB

P41 7 - H

C11

R23

R24

C18

R87

R86

R80

R2

C3

C15

C1

16

15

17

20

C13
R26

R29

C17

R33

D3

D2

R81

Q51

321

TO MAIN PWB

Q1

BCE

R1
C2

1

5

10

IC1

12

25

30

32

C21

R34

D4

R66

R64

C52

BI99

1

WH

RD

RD

WH

1

CNPR11

P40 3 - H

35

33

C20

C19

C85

64

60

R32

Q52

32

C31

R46

55

45

40

R88
R89

R90

BCE

ZD61

3

BK

BK

CNS99

C34

C33

49

50

48

R36
R35

C51

C32

R45

L61

11

D1

C30

C57

C28

C25

R40

C29

R44

C22

16
17

C50

R54

14 13 12 11 10 9 8

TO MAIN PWB

R41

C27

R42

R39

R38

R43

R50

C24

C56

10

15

20

25

CNSF12

P41 9 - H

C26

R51

C40

C23

R52

R53

C46

R60

1

64

5

60

55

50

IC2

45

40

30

35

R93

32

33

R55

C43

D81

C83

D82

7654321

CNP12

C39

C47

C38

C48

R47
C37

R63

R61

R62
R57

49
48

C53

R59

R58

C44
C49

C45

XL1

C42

C41

• The numbers 1 to 12 are waveform numbers shown in page 20(CD-492).

7

8 9 10 11 12

Figure 43 WIRING SIDE OF P.W.BOARD (4/9)

– 43 –

CD-C482

SWD06
ITEM

SWD23

Q SOUND

LEDD01

SWD16

REC/PAUSE

FWD02

CV92

RE02

RD13

RE56

LV91

RV91

RV92

1

5

RE12

RE27

RD59

RE04

RE22

RE15

RD08

RD06

RD05

RD04

CD11

CD09

RE57

RE16

CV91

CNSD01

2

3456 7 8 9

10

1112

1314 1516 17 18 19 20 2122 23 24 2526 27 28 2930

1

RD11

R

JV91

HEADPHONES

FWV91

LE

1

5

1

55

60

65

70

75

85

90

95

51

80

81

100

LEDD09

LEDD06

LEDD05

LEDD10

F

SWD05

MENU

RE13

RE14

CD30

CD28

CD29

QD01

QD02

RD50

QD03

QD04

QD05

RD52

RD15

RD16

RD17

RD19

RD31

RD48

CD20

CD19

CD18
CD21

RE23

RD49

RE25

RE26

RD58

LEDD07

LEDD02

SWD26
VIRTUAL

SWD13

STOP

LEDD03

SWD27
PHANTOM

ICD01

LEDD13

LEDD12

LEDD11

RD07

RD10

RD09

RD03

RD02

RD01

RE03

RD53

QD06

RD60

RD61

RE21

LD01

SWD03
X-BASS

RXD01
REMOTE
CONTROL

RD51

RD33

RD32

DD02

DD01

CD05

CD06

RD57

RD39

CD10

1
2
3

3 2 1

3 2 1

3 2 1

3 2 1

3 2 1

3 2 1

1

1

23456

789

10

3

SWD01

VOLUME JOG

SWD04
PRE EQ.

SWD15
HIGH EDIT

SWD14
NORMAL EDIT

SWD12
TUNING UP/CUE

SWD53
DISC SKIP

SWD54
OPEN/
CLOSE

SWD17
F-PLAY

SWD02
JOG

JOG PWB

HEADPHONE
PWB-C3

CNPF1

FROM MAIN PWB

P41 12 - H

WTV11

TO SPEAKER

AMP. PWB

P48 2 - A

WTP02

TO POWER PWB

P40 6 - H

A

B

C

D

E

F

G

H

1

23456

Figure 44 WIRING SIDE OF P.W.BOARD (5/9)

– 44 –

CD-C482

DISPLAY PWB-C1

FLD01

12223242526 27282930313233343536373839404142434445464748495051

50

51

55

45

60

65

70

80

81

RD13

ICD01

75

85

90

95

100

LEDD09 LEDD15

LEDD10

SWD27
PHANTOM

SWD02
JOG

JOG PWB-C4

10

5

1

LEDD08

RD14

40

31

35

25

30

20

15

RD12

SWD28
NORMAL

LEDD04

LEDD20

RD34

XD01

LEDD14 LEDD19 LEDD18

LEDD16

RE28

CD07

SWD33
R-PLAY

RE29

CD08

RE34

SWD31
CD PAUSE

RE32

CD01

CD02

SWD29
BYPASS

SWD32
REVERSE
MODE

LEDD21

RE33

RD54

QD07

SWD30
TUNING DOWN
REWIND

3
2
1

52535455

LEDD17

RD21

RD55

RD22

3
2
1

RD23

QD08

5657

RD24

RD25

RD29

RD26

SWD37
SLEEP

SWD38
CLEAR

RD27

RE35

RE39

RD28

RD67

RE38

SWD34
CLOCK

SWD36
TIMER

RE37
RE36

SWD35
MEMORY

RD66

RD36

RD35

SWD43

SWD42

SWD41

SWD39

SWD40

RD43
RD42
RD41

RE43

RE44

RD45

RD44

RE45

RE42

1
2
3

QD11

SWD48
POWER

RD40

RD38

1
2
3

QD10

RD37

RD71

RD70

RE41

RE31

1
2
3

QD12

RE51

RD64

RE11

RD65

RD72

RE01

WHD01

1

6

RE53
RE52

1

FWD01

6

LEDD28

SWD52
DISC3

RE55

LEDD27

LEDD25

SWD51
DISC22

RE54

LEDD26

LEDD23

LEDD24

SWD50
DISC1

SWITCH PWB-C2

7

8 9 10 11 12

Figure 45 WIRING SIDE OF P.W.BOARD (6/9)

– 45 –

CD-C482

A

(285)

F990

5A

B

C

D

E

F

CNP901

P40 6 - H

TO MAIN PWB

AC POWER SUPPLY

CORD AC 120V 60Hz(242)

WTP01

P40 5 - H

TO MAIN PWB

CNS901

WH
WH
WH
WH
WH
WH
WH
WH
WH
WH

RD

1 2 3 4 5 6 7 8 9 10 11

F998

R954

1

1.6A

R953

11

BI901

R991

R952

3
2
1

Q951

1

C966

R951

FW901

E C B

ZD952

D999

C965

D998

D953
D954

C964

R955

(285)

D952

R957
R956

C962

C963

D951

C959

ZD951

C961

D994

C958

C960

D995

D992

F997

D993

C919

2.5A

C957

C954

C956

–

KBU1003

~

~

+

D991

1

7

BI903

POWER PWB-D

T991

POWER TRANSFORMER

CNS903

P48 1 - B

CNPV12

7 6 5 4 3 2 1

TO SPEAKER AMP.PWB

C913

C967

D996

D997

Q911Q909

C915

1

RDWHWH

123

D906

BI902

4

WH

4

ECB

ECB

ZD905

R914

Q910

C914

C911

CNPP02

R913

D905

C910

P40 5 - H

TO MAIN PWB

G

H

1

R906

R904

ZD902

C905

Q903

BCE

C906

CNS902

23456

Q908

ZD904

ECB

ECB

C907

R919

R912

R911

R920

R907

ZD903

C904

ECB

ECB

C903

Q902

Q901

R902

R903

1 2 3

Q904

C909

D901

321

ECB

ECB

R909

R908

Q907

Q906

Q905

C908

R910

Q913

ZD901

B C E

C920

R918

C901

R901

C902

R917

Q914

3 2 1

COLOR TABLE

BR

BROWN

RD(R)

WH(W)

OR

YL

GR

BL
VL

GY

BK
PK

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

Figure 46 WIRING SIDE OF P.W.BOARD (7/9)

– 46 –

CD-C482

R364

R363

VCO

VR351

R375

ECB

Q342

R351

3

C370

2

Q343

R360

1

R362

R359

D342

D341

10987654321

R361

R358
R357

R356

R365

TP303

R352

C358

C367

CNP303

TP302

R340

C356

C357

13 15

IC303

C350

C364

C366

C365

E

R369

C
B

R384 ZD351

R376

R350

R374

C355

R349

C353

C363

Q344

R383

L343

C385

R373

R371

R372

TO MAIN PWB

C354

C351

R348

R347

20 24

C348

51012

C361
3
2

CF352

1

T351

C369

12

R382

11

P40 6 - A

CNSF13

T352

1

R381

C338

R380

15

IC302

C337

C359

321

CF301

R379

C383

510

C393

20

C349

C333

C360

C392

D362

T304

VD304

C318

C334

C336

R323

R314

C317

VD301-2

R324

R316

C331

C306

T301

R320

C313

R319

VD301-1

C332

R309

R303

T302

C330

R301

VD303

C310

D302

C312

C308

C311

D361

D303

C307

C328

AM

D301

C305

C304

IC301

C309

23456789

1

C302

L302

321
BF301

C303

C329

FM

75 OHMS

SO301
ANTENNA
TERMINAL

E

C

B

Q302

R302

R312

R306

C314

C319

C316

L303

R311

R317

C381

TP301

22

X352

1

C382

C384

TUNER PWB-E

TAPE MECHANISM PWB-H

SWM4
REC RVS

SOLENOID

SOLM1

PHM1

1

2

4

3

PLAYBACK HEAD

TAPE 1

PK

WH

13

GY

TO MAIN PWB

P41 10-H

WTL11

BK

HEAD PWB-G

FWM1

SWM3
REC FWD

1

SWM6

CAM

4

FWM2

TAPE 2

RECORD/PLAYBACK/ERACE HEAD

FLAXIBLE PWB

MM1

TAPE MOTOR

L
H

VRM1

TAPE

1

SPEED

CNPM2

SWM5
F. A. S

TAPE MECHANISM ASSEMBLY

7

8 9 10 11 12

BK

PK

WH

213

TO MAIN PWB

P41 12-C

CNPK01

CNSK01

BI 102

6

WH

GY

1

YL

BL

PKWHBK

GY

WH

BK
PK
BL
BK
YL
WH

CNSK02

1
2
3
4
5
6
7

Figure 47 WIRING SIDE OF P.W.BOARD (8/9)

– 47 –

TO MAIN PWB

P41 12-B

CNPK02

CD-C482

A

B

C

D

E

F

FROM POWER PWB

CNS903

P46 6 - E

FROM HEADPHONES PWB

P44 2 - F

FWV91

WTV11

1

234

CNPV12

CV28

RV40

RV43

CV33

RV44

RV41

RV52

RV51
RV42

RY19

RY20

CY19

RY23

RLYY11

QV19

7

DV17

B C E

RV53

5

RV61

E C B

QV18

CV34

QY12

23456

B C E

1

CV30

CV29

LV11

BCE

RY22

DV19

RLYV11

DV24

QV22

DY12

RV38

DV23

RV60

DV15

RV54

FWP1

CFWV11

2
4
6

810

12 14

16

TO MAIN PWB

P41 8 - A

CFWP1

1
3

ZDV11

5
79

11
13 15

CY11

CV12

CV21

RV23

RV21

RV33

DV21

RV63

CV27

RV70

RV30

RV31

DV13

RV37

RV34

B C E

RV59

CV11

CY15

CV14

RV71

RV32

RV27

CV16

RV29
RV69

CV25

QV16

CV19

CV20

RV14

RV24

CV24

RY17

RY16

RY13

RY14

RV36

RY26

RV22

ECB

CV13

RV35

CV15

RV13

QV13

TO FAN MOTOR

P43 8 - G

CV48

RY21
RV62

RV58

DV20

DV22

B C E

QY11

CY12

RY11

CY16

RV19

CY14
RV17

CV17

RV20

CV18

CV22

CV23

RV25

QV14

BCE

QV17

CNS901

1

2

QV20

CV49

RV57

DV25

RY18

RY12

RY15

RV18

RV26

ECB

RV28

CV26

DV14

CNPV11

E C B

RV72

QV21

CY17

CY13

CV47

RV56

B C E

DY11

ICV01

20

1516171819

2 3 4 5 6 7 8 9 1011121314
1

ZDV12

RV55

G

H

1

23456

TMV01

SUB

WOOFER

FRONT

SPEAKER

L-CH

FRONT

SPEAKER

R-CH

SPEAKER AMP. PWB-F

Figure 48 WIRING SIDE OF P.W.BOARD (9/9)

– 48 –

PARTS GUIDE

CD-C482

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

MODEL

CD-C482 mini component system consisting of
CD-C482 mini component system,
CP-C482 and CP-SW482 speaker system.

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

CD-C482

For U.S.A. only

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

– 49 –

CD-C482

PART CODE NO. PARTS CODE

PRICE
RANK

DESCRIPTIONNO.

CD-C482

INTEGRATED CIRCUITS

IC1 VHILA9241M/-1 J AS Servo Amp.,LA9241M
IC2 VHILC78622K-1 J AY Servo/Signal Control,LC78622K
IC3 VHIM56748FP-1 J AR Focus/Tracking/Spin/Slide

IC81 VHITA7291S/-1 J AH Loading Motor Driver,TA7291S
IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner) LC72131
IC303 VHILA1805//-1 J AM FM/AF IF MPX.,LA1805
ICA11,12 VHINJM4580M-1 J AE Ope Amp.,NJM4580M
ICA13 VHIAK4520A/-1 J AU 20bit 2ch A/D D/A Converter,

ICA14 VHPGP1F38R/-1 J AM Terminal,Digital Input,GP1F38R
ICA15 VHI74HCU04F-1 J AE Inverter,74HCU04F
ICA16 VHI74HC153F-1 J AH Inverter,74HC153F
ICA17 VHITC7WU04U-1 J AG Dual2-Input Nand Gate,

ICA18 VHIZR38600/-1 J BK Dolby AC-3/5.1ch MPEG2 Audio
ICA19,20 VHIAK4321//-1 J AQ 20bit 2ch D/A Converter,AK4321

ICA21 VHINJM4580M-1 J AE Ope Amp.,NJM4580M
ICA22 VHIBU4066BCF1 J AD Mic/AUX Input Selector,

ICB01 VHINJM4580M-1 J AE Ope Amp.,NJM4580M
ICD01 RH-IX0234AWZZ J AT System Microcomputer,

ICF01 RH-IX0236AWZZ J AZ System Control Microcomputer,
ICH11 VHINJM4558M-1 J AC Motor Driver,NJM4558M

ICH51 VHINJM2246M-1 J AF OPE Amp.+ SW,NJM2246M
ICK01 VHIAN7345K/-1 J AM Playback and Record/Playback

ICP11 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
ICQ01 VHIQS7777PF-1 J BC Q-Sound Decorder,QS7777PF
ICR11 VHPGP1F38T/-1 J AL Photo Digital Output /LED,

ICR12 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
ICR13 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
ICR14 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
ICV01 VHISTK40725-1 J BD 3ch AF Power Amp.,STK40725
ICZ01 VHILC7522//-1 J AR Graphic Equalizer Electric

ICZ02~07 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
ICZ08 VHITC4052BF-1 J AK Dual 4ch Analog Multiplexer,

ICZ09 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M
ICZ10 VHIM62446FP-1 J AY 6ch Electronic Volume,

Driver,M56748FP

AK4580M

TC7WU04U
Decorder,RZ38600

BU4066BCF

IX0234AW
IX0236AW

Amp.,AN7345K

GP1F38T

Volume,LC7522

TC4052BF

M62446FP

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q51 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q52 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q91 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q93 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q302 VS2SC535-C/-1 J AC Silicon,NPN,2SC535 C
Q342 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q343 VSKRA109M//-1 J AC Digital,PNP,KRA109 M
Q344 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q901 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q902 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q903 VS2SD468-C/-1 J AD Silicon,NPN,2SD468 C
Q904 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
Q905 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q906 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q907 VSKRA102M//-1 J AC Digital,PNP,KRA102 M
Q908 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q909 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q910 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q911 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q913 VS2SB1375//-1 J AF Silicon,PNP,2SB1375
Q914 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q951 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
QA01 VSKRC107S//-1 J AB Digital,NPN,KRC107 S
QA02 VSKRA107S//-1 J AB Digital,NPN,KRA107 S
QA03 VSKRC107S//-1 J AB Digital,NPN,KRC107 S
QB01 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

PRICE
RANK

QD01~08 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
QD10~12 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
QG01 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
QG02,03 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QG92 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QH51 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QH52,53 VSKRC102S//-1 J AB Digital,NPN,KRC102 S
QK03~06 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
QK07,08 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QK09 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
QK10,11 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QK15,16 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QK17,18 VS2SC2878A/-1 J AE Silicon,NPN,2SC2878 A
QK19 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QK21,22 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QK24 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
QK26 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QK28 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QL11,12 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
QL13 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QL14 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
QL15 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
QL16 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
QL17~19 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QP11,12 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QP15 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QP17 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
QP91 VS2SD468-C/-1 J AD Silicon,NPN,2SD468 C
QR11~13 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
QR15~20 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QV13,14 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QV16 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QV17 VSKTA1268GR-1 J AC Silicon,PNP,KTA1268 GR
QV18,19 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QV20 VSKTA1270Y/-1 J AD Silicon,PNP,KTA1270 Y
QV21,22 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QY11,12 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QZ01 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
QZ02 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QZ03,04 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

DESCRIPTION

DIODES

D1 VHD1SS133//-1 J AA Silicon,1SS133
D2~4 VHDRL104A//-1 J AB Silicon,RL104A
D81,82 VHD1SS133//-1 J AA Silicon,1SS133
D91 VHD1SS133//-1 J AA Silicon,1SS133
D301~303 VHD1SS133//-1 J AA Silicon,1SS133
D341,342 VHD1SS133//-1 J AA Silicon,1SS133
D361,362 VHD1SS133//-1 J AA Silicon,1SS133
D901 VHD1SS133//-1 J AA Silicon,1SS133
D905,906 VHD1SS133//-1 J AA Silicon,1SS133

! D951~954 VHD1N4004S/-1 J A B Silicon,1N4004S
! D991 VHDKBU1003X-1 J AN Silicon,KBU1003X
! D992~995 VHD2A02////-1 J AD Silicon,2A02

D996~999 VHD1N4004S/-1 J AB Silicon,1N4004S
DA11~16 VHD1SS133//-V J AC Silicon,1SS133
DB01,02 VHD1SS133//-V J AC Silicon,1SS133
DD01 VHD1N4004S/-1 J AB Silicon,1N4004S
DD02 VHD1SS133//-1 J AA Silicon,1SS133
DG02~05 VHD1SS133//-1 J AA Silicon,1SS133
DH11~20 VHD1SS133//-1 J AA Silicon,1SS133
DH51,52 VHD1SS133//-V J AC Silicon,1SS133
DL11,12 VHD1SS133//-1 J AA Silicon,1SS133
DQ01,02 VHD1SS133//-1 J AA Silicon,1SS133
DR11,12 VHD1SS133//-1 J AA Silicon,1SS133
DV13~15 VHD1SS133//-1 J AA Silicon,1SS133
DV17 VHD1SS133//-1 J AA Silicon,1SS133
DV19 VHD1SS133//-1 J AA Silicon,1SS133
DV21~25 VHD1SS133//-1 J AA Silicon,1SS133
DY11,12 VHD1SS133//-1 J AA Silicon,1SS133
DZ01,02 VHD1SS133//-1 J AA Silicon,1SS133
LEDD01,02 VHPKL052UL/-1 J AF LED,Yellow,KL052UL
LEDD03 VHPSLR505MC-1 J AE LED,Green,SLR505MC-1
LEDD04 VHPKL052UL/-1 J AF LED,Yellow,KL052UL
LEDD05,06 VHPSLR325MG-1 J AE LED,Green,SLR325MG
LEDD07 VHPSLR325VR-1 J AE LED,Red,SLR325VR
LEDD08,09 VHPSLR325MG-1 J AE LED,Green,SLR325MG
LEDD10 VHPSLR325VR-1 J AE LED,Red,SLR325VR
LEDD11,12 VHPSLR325MG-1 J AE LED,Green,SLR325MG
LEDD13 VHPSLR325VR-1 J AE LED,Red,SLR325VR
LEDD14,15 VHPSLR325MG-1 J AE LED,Green,SLR325MG

– 1 –

CD-C482

NO. PART CODE

LEDD16,17 VHPSLR325VR-1 J AE LED,Red,SLR325VR
LEDD18,19 VHPSLR325MG-1 J AE LED,Green,SLR325MG
LEDD20 VHPKL052UL/-1 J AF LED,Yellow,KL052UL
LEDD21 VHPSLR505MC-1 J AE LED,Green,SLR505MC-1
LEDD23~28 VHPLMKD515B-1 J AE LED,Green,LMKD515B
VD301 VHCKV1236Z23F J AS Variable Capacitance,

VD303,304 VHCKDV147B/-1 J AH Variable Capacitance,KDV147B
ZD61 VHEMTZJ4R7B-1 J AB Zener,4.7V,MTZJ4.7B
ZD351 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
ZD901 VHEMTZJ130A-1 J AC Zener,13V,MTZJ13A
ZD902 VHEMTZJ5R6A-1 J AC Zener,5.6V,MTZJ5.6A
ZD903 VHEMTZJ130C-1 J AB Zener,13V,MTZJ13C
ZD904 VHEMTZJ8R2C-1 J AB Zener,8.2V,MTZJ8.2C
ZD905 VHEMTZJ6R8C-1 J AA Zener,6.8V,MTZJ6.8C
ZD951 VHEMTZJ330C-1 J AB Zener,33V,MTZJ33C
ZD952 VHEMTZJ6R8C-1 J AA Zener,6.8V,MTZJ6.8C
ZDA01,02 VHEMTZJ8R2A-V J AB Zener,8.2V,MTZJ8.2A
ZDB11 VHEMTZJ3R9B-V J AC Zener,3.9V,MTZJ3.9B
ZDF01 VHEMTZJ3R3A-1 J AB Zener,3.3V,MTZJ3.3A
ZDH51 VHEMTZJ9R1B-V J AB Zener,9.1V,MTZJ9.1B
ZDQ01 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
ZDR01 VHEMTZJ3R3B-1 J AA Zener,3.3V,MTZJ3.3B
ZDV11 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
ZDV12 VHEMTZJ6R2B-1 J AC Zener,6.2V,MTZJ6.2B
ZDZ01,02 VHEMTZJ7R5C-1 J AC Zener,7.5V,MTZJ7.5C
ZDZ03 VHEMTZJ5R1A-1 J AB Zener,5.1V,MTZJ5.1A

PRICE
RANK

DESCRIPTION

KV1236Z23F

FILTERS

BF301 92LFILTF1759AT J AD FM Band Pass Filter
CF301 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF352 RFILA0008AWZZ J AE AM IF

TRANSFORMERS

T301 RCILI0007AWZZ J AD FM IF
T302 RCILA1064AFZZ J AD AM Antenna
T304 RCILB1074AFZZ J AC OSC,AM
T351 RCILI0011AWZZ J AD AM IF
T352 RCILI0312AFZZ J AC FM Detector

! T991 RTRNP0204AWZZ J BP Power

COILS

L61 VP-XHR82K0000 J AC 0.82 µH,Choke
L302 RCILR0029AWZZ J AA FM RF
L303 RCILB0045AWZZ J AD FM Oscillation
L343 VP-DH101K0000 J AB 100 µH,Choke
LA11~13 VP-XFR82K0000 J AD 0.82 µH
LA14 VP-XF100K0000 J AB 10 µH,Choke
LA16~18 VP-XFR82K0000 J AD 0.82 µH
LD01 VP-DH2R2M0000 J AB 2.2 µH,Choke
LG01 VP-DH2R2K0000 J AB 2.2 µH,Peaking
LH51,52 VP-XF1R0K0000 J AB 1 µH,Choke
LH53 VP-XF101K0000 J AB 100 µH,Choke
LK01,02 VP-MK182K0000 J AC 1.8 mmH,Choke
LK04 VP-MK331K0000 J AB 330 µH,Choke
LR01 VP-DH2R2K0000 J AB 2.2 µH,Peaking
LV91 VP-XH2R2K0000 J AB 2.2 µH,Choke

VARIABLE RESISTOR

VR351 RVR-M0025AWZZ J AC 6.8 kohms (B),Semi-VR [VCO]

VIBRATORS

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz
XA11 RCRSP0008AWZZ J AH Crystal 12.288 MHz
XD1 RCRM-0031AWZZ J AE Ceramic
XF1 RCRSP0003AWZZ J AH Crystal
XL1 RCRSP0005AWZZ J AF Crystal,16.934 MHz

CAPACITORS

C1 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C2 VCTYMN1CY103N J AA 0.01 µF,16V
C3 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C4 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C5,6 VCTYPA1CX333K J AA 0.033 µF,16V
C7 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C8 VCTYPA1CX683K J AA 0.068 µF,16V

NO.

C9 VCTYPA1CX473K J AA 0.047 µF,16V
C10 VCKYMN1HB181K J AA 180 pF,50V
C11,12 VCTYPA1CX104K J AB 0.1 µF,16V
C13 VCKYMN1HB331K J AA 330 pF,50V
C14,15 VCTYMN1CY103N J AA 0.01 µF,16V
C16 VCTYMN1CX472K J AA 0.0047 µF,16V
C17 VCKYMN1HB102K J AA 0.001 µF,50V
C18 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
C19 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C20 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C21 VCTYMN1CX332K J AA 0.0033 µF,16V
C22 VCCSPA1HL221J J AA 220 pF,50V
C23 VCTYMN1CX272K J AA 0.0027 µF,16V
C24 VCCSMN1HL2R2C J AB 2.2 pF,50V
C25 VCCSMN1HL270J J AA 27 pF,50V
C26 VCTYPA1CX333K J AA 0.033 µF,16V
C27 VCKYMN1HB102K J AA 0.001 µF,50V
C28 VCTYPA1CX104K J AB 0.1 µF,16V
C29 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C30 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C31 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic
C32 VCTYMN1CY103N J AA 0.01 µF,16V
C33 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
C34 VCEAZA1HW334M J AB 0.33 µF,50V,Electrolytic
C35 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C36 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C37 VCTYMN1EF223Z J AA 0.022 µF,25V
C38 VCTYMN1CY103N J AA 0.01 µF,16V
C39,40 VCKYPA1HF473Z J AB 0.047 µF,50V
C41 VCCCPA1HH120J J AA 12 pF (CH),50V
C42 VCCCPA1HH150J J AA 15 pF (CH),50V
C43 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic
C44~49 VCKYMN1HB101K J AA 100 pF,50V
C50 VCTYMN1EF223Z J AA 0.022 µF,25V
C51,52 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C53 VCTYMN1EF223Z J AA 0.022 µF,25V
C54 VCKYBT1HB102K J AA 0.001 µF,50V
C56 VCTYMN1EF223Z J AA 0.022 µF,25V
C57 VCKYBT1HB102K J AA 0.001 µF,50V
C81,82 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C83 VCTYMN1EF223Z J AA 0.022 µF,25V
C85 VCKYBT1HB102K J AA 0.001 µF,50V
C302 VCCCMN1HH180J J AA 18 pF (CH),50V
C303 VCTYMN1CY103K J AA 0.01 µF,16V
C304 VCCSMN1HL4R7C J AA 4.7 pF,50V
C305 VCCCMN1HH150J J AA 15 pF (CH),50V
C306 VCCSMN1HL330J J AA 33 pF,50V
C307,308 VCTYMN1CX472K J AA 0.0047 µF,16V
C309 VCCUMN1HJ6R8D J AB 6.8 pF (UJ),50V
C310 VCKYMN1HB102K J AA 0.001 µF,50V
C311 VCTYMN1EF223Z J AA 0.022 µF,25V
C312 VCKYMN1HB102K J AA 0.001 µF,50V
C313 VCTYMN1EF223Z J AA 0.022 µF,25V
C314 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C316 VCKYMN1HB101K J AA 100 pF,50V
C317 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V
C318 VCCCMN1HH220J J AA 22 pF (CH),50V
C319 VCTYMN1EF223Z J AA 0.022 µF,25V
C328,329 VCKYMN1HB102K J AA 0.001 µF,50V
C330 VCCUMN1HJ8R2D J AA 8.2 pF (UJ),50V
C331 VCKYPA1HF473Z J AB 0.047 µF,50V
C332,333 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ180J J AA 18 pF (UJ),50V
C336 VCKYMN1HB471K J AA 470 pF,50V
C337 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C338 VCKYMN1HB101K J AA 100 pF,50V
C348,349 VCTYMN1EF223Z J AA 0.022 µF,25V
C350 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C351 VCTYMN1CX222K J AA 0.0022 µF,16V
C353 VCTYMN0JY183M J AA 0.018 µF,6.3V
C354 VCKYMN1HB471K J AA 470 pF,50V
C355~357 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C358 92LCPU100V1500 J AC 0.0015 µF,100V
C359,360 VCTYMN1EF223Z J AA 0.022 µF,25V
C361 VCEAZA1CW226M J AC 22 µF,16V,Electrolytic
C363,364 VCTYPA1CX273K J AA 0.027 µF,16V
C365~367 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C370 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C383 VCTYMN1EF223Z J AA 0.022 µF,25V

PRICE
RANK

DESCRIPTIONPARTS CODE

– 2 –

CD-C482

PART CODE NO. PARTS CODE

C384 VCKYMN1HB102K J AA 0.001 µF,50V
C385 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C901 VCKYPA1HF223Z J AB 0.022 µF,50V
C902~905 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C906 VCKYPA1HF223Z J AB 0.022 µF,50V
C907 VCEAZA1EW227M J AC 220 µF,25V,Electrolytic
C908 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C909 VCTYBT1EF223Z J AA 0.022 µF,25V
C910 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C911 VCKYPA1HF223Z J AB 0.022 µF,50V
C913 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic
C914 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C915 VCKYPA1HF223Z J AB 0.022 µF,50V
C919 VCEAZW1EW478M J AK 4700 µF,25V,Electrolytic
C920 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C954 VCQYKA1HM224K J AB 0.22 µF,50V,Mylar
C956 VCQYKA1HM224K J AB 0.22 µF,50V,Mylar
C957,958 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C959~961 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic
C962 VCEAZA1JW476M J AC 47 µF,63V,Electrolytic
C963,964 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C965 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C966,967 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
CA11,12 VCEAZA1CW226M J AC 22 µF,16V,Electrolytic
CA13,14 VCKYTV1EF104Z J AA 0.1 µF,25V
CA15~18 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA19,20 VCKYTV1EF104Z J AA 0.1 µF,25V
CA21,22 VCKYTV1HB152K J AA 0.0015 µF,50V
CA23 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA24 VCKYTV1EF104Z J AA 0.1 µF,25V
CA25 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA26 VCKYTV1EF104Z J AA 0.1 µF,25V
CA27 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA28 VCKYTV1EF104Z J AA 0.1 µF,25V
CA30 VCKYTV1EF104Z J AA 0.1 µF,25V
CA32 VCKYTV1EF104Z J AA 0.1 µF,25V
CA33 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA34 VCKYTV1EF104Z J AA 0.1 µF,25V
CA35 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA36 VCKYTV1EF104Z J AA 0.1 µF,25V
CA37 VCKYTV1HB102K J AA 0.001 µF,50V
CA38~41 VCKYTV1EF104Z J AA 0.1 µF,25V
CA42,43 VCKYTV1HB102K J AA 0.001 µF,50V
CA44,45 VCKYTV1EF104Z J AA 0.1 µF,25V
CA46 VCKYTV1CB473K J AC 0.047 µF,16V
CA47 VCKYTV1HB102K J AA 0.001 µF,50V
CA48,49 VCKYTV1EF104Z J AA 0.1 µF,25V
CA50,51 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CA52 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA53 VCKYTV1HB102K J AA 0.001 µF,50V
CA54 VCCCTV1HH180J J AA 18 pF (CH),50V
CA55 VCCCTV1HH220J J AA 22 pF (CH),50V
CA56 VCKYTV1HF103Z J AA 0.01 µF,50V
CA57 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA58 VCEAZA0JW227M J AC 220 µF,6.3V
CA59 VCKYTV1HB102K J AA 0.001 µF,50V
CA60,61 VCKYTV1EF104Z J AA 0.1 µF,25V
CA62 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CA63,64 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA65,66 VCKYTV1HB153K J AA 0.015 µF,50V
CA67,68 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA69,70 VCKYTV1HB153K J AA 0.015 µF,50V
CA71 VCKYTV1HF103Z J AA 0.01 µF,50V
CA72 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA73 VCEAZA0JW227M J AC 220 µF,6.3V
CA74 VCKYTV1HB102K J AA 0.001 µF,50V
CA75,76 VCKYTV1EF104Z J AA 0.1 µF,25V
CA77 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CA79,80 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CA81 VCKYTV1HB153K J AA 0.015 µF,50V
CA82 VCKYTV1EF104Z J AA 0.1 µF,25V
CA83 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CA84 VCCCTV1HH470J J AA 47 pF (CH),50V
CA85,86 VCKYTV1HF223Z J AA 0.022 µF,50V
CA87 VCKYTV1HB102K J AA 0.001 µF,50V
CA88 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CA91,92 VCKYTV1HF223Z J AA 0.022 µF,50V
CA93 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CA95,96 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CA97 VCKYTV1EF104Z J AA 0.1 µF,25V

PRICE
RANK

DESCRIPTIONNO.

PRICE
RANK

CA98 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CB01,02 VCKYTV1HB101K J AA 100 pF,50V
CB03,04 VCKYTV1HF223Z J AA 0.022 µF,50V
CB05,06 VCKYTV1HB221K J AA 220 pF,50V
CB11 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CB12 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CB13 VCKYTV1HF223Z J AA 0.022 µF,50V
CB14~17 VCKYPA1HB102K J AA 0.001 µF,50V
CB18,19 VCKYTV1HB102K J AA 0.001 µF,50V
CB20,21 VCKYPA1HB102K J AA 0.001 µF,50V
CB22,23 VCKYTV1HB102K J AA 0.001 µF,50V
CB26 VCKYTV1HB102K J AA 0.001 µF,50V
CB27 VCKYTV1HF104Z J AA 0.1 µF,50V
CD01 VCTYBT1EF223Z J AA 0.022 µF,25V
CD02 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CD05~08 VCKYBT1HB102K J AA 0.001 µF,50V
CD09 VCKYBT1HB151K J AA 150 pF,50V
CD10 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic
CD11 VCTYBT1EF223Z J AA 0.022 µF,25V
CD18~21 VCKYBT1HB151K J AA 150 pF,50V
CD28~30 RC-EZY105AF1H J AB 1 µF,50V,Electrolytic
CG01 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic
CG02 VCTYMN1CY103K J AA 0.01 µF,16V
CG03 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
CG04 VCTYMN1CY103K J AA 0.01 µF,16V
CG05,06 VCCCMN1HH150J J AA 15 pF (CH),50V
CG56 VCTYMN1EF223Z J AA 0.022 µF,25V
CG57 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CH10 VCCSMN1HL470J J AA 47 pF,50V
CH13 VCKYMN1HB331K J AA 330 pF,50V
CH15 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CH16 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CH17 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
CH18 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CH19 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CH20 VCTYMN0JY153M J AA 0.015 µF,6.3V
CH21 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CH22 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
CH23 VCTYMN1CX472K J AA 0.0047 µF,16V
CH24 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CH25 VCQYKA1HM273K J AB 0.027 µF,50V,Mylar
CH26 VCTYMN1CX122K J AA 0.0012 µF,16V
CH27 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CH28,29 VCTYMN1EF223Z J AA 0.022 µF,25V
CH30 VCQYKA1HM562K J AA 0.0056 µF,50V,Mylar
CH51 VCKYTV1HF223Z J AA 0.022 µF,50V
CH52 VCKYTV1HB221K J AA 220 pF,50V
CH53 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CH54 VCKYTV1HB221K J AA 220 pF,50V
CH55 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CH56 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CH57 VCKYTV1HF223Z J AA 0.022 µF,50V
CH58 VCKYTV1CB473K J AC 0.047 µF,16V
CH59 VCCCTV1HH470J J AA 47 pF (CH),50V
CH60 VCEAZA1AW108M J AC 1000 µF,10V,Electrolytic
CH61 VCKYTV1HB102K J AA 0.001 µF,50V
CH62 VCKYTV1HF223Z J AA 0.022 µF,50V
CK01,02 VCKYMN1HB681K J AA 680 pF,50V
CK05,06 VCKYMN1HB331K J AA 330 pF,50V
CK07,08 VCKYMN1HB102K J AA 0.001 µF,50V
CK09 VCKYPA1HF223Z J AB 0.022 µF,50V
CK10 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK11~14 VCKYMN1HB331K J AA 330 pF,50V
CK15,16 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
CK17,18 VCTYPA1CX333K J AA 0.033 µF,16V
CK19,20 VCKYMN1HB561K J AA 560 pF,50V
CK21,22 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CK25,26 VCTYPA1EX822K J AA 0.0082 µF,25V
CK27 VCTYMN1EF223Z J AA 0.022 µF,25V
CK28 VCEAZA1EW335M J AB 3.3 µF,25V,Electrolytic
CK29,30 VCKYMN1HB471K J AA 470 pF,50V
CK31,32 VCKYMN1HB271K J AA 270 pF,50V
CK33,34 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CK35,36 VCTYPA1CX223K J AA 0.022 µF,16V
CK37,38 VCTYPA1CX183K J AA 0.018 µF,16V
CK39,40 VCTYMN1CX332K J AA 0.0033 µF,16V
CK41,42 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK43,44 VCTYMN1EF223Z J AA 0.022 µF,25V
CK45 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CK46 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
CK47 VCTYMN1EF223Z J AA 0.022 µF,25V
CK50 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

DESCRIPTION

– 3 –

CD-C482

NO. PART CODE

CK51 VCQYKA1HM273K J AB 0.027 µF,50V,Mylar
CK52 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
CK55 VCTYMN1EF223Z J AA 0.022 µF,25V
CK60 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CK62 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
CL12 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
CL13 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
CP07,08 VCKYMN1HB101K J AA 100 pF,50V
CP09,10 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CP13,14 VCKYMN1HB102K J AA 0.001 µF,50V
CP15,16 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
CP17,18 VCCSMN1HL470J J AA 47 pF,50V
CP19,20 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
CP23,24 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CP25,26 VCKYMN1HB102K J AA 0.001 µF,50V
CP27,28 VCTYMN1EF223Z J AA 0.022 µF,25V
CP41 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CP47 VCKYMN1HB102K J AA 0.001 µF,50V
CP53 VCKYMN1HB102K J AA 0.001 µF,50V
CP57 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CP58 VCTYPA1CX683K J AA 0.068 µF,16V
CP91 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
CQ01~05 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CQ06 VCQYKA1HM102J J AB 0.001 µF,50V,Mylar
CQ07 VCQYKA1HM123J J AB 0.012 µF,50V,Mylar
CQ08 VCQYKA1HM823J J AC 0.082 µF,50V,Mylar
CQ09,10 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CQ11 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
CQ12 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
CQ13 VCQYKA1HM272J J AB 0.0027 µF,50V,Mylar
CQ14 VCKYPA1HF223Z J AB 0.022 µF,50V
CQ15 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CQ16~20 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CQ21 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CQ22,23 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
CQ24 VCQYKA1HM472K J AB 0.0047 µF,50V,Mylar
CQ25 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CQ26,27 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
CQ28 VCQYKA1HM472K J AB 0.0047 µF,50V,Mylar
CQ29 RC-EZ0004AWZZ J AD 100 µF,10V,Electrolytic
CQ30 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CQ31 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CQ32,33 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
CQ34 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic
CQ35,36 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
CR01 VCTYMN1EF223Z J AA 0.022 µF,25V
CR02 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CR03 VCKYPA1HB102K J AA 0.001 µF,50V
CR10 VCKYMN1HB102K J AA 0.001 µF,50V
CR11~14 VCKYMN1HB391K J AA 390 pF,50V
CR15~17 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
CR19,20 VCKYMN1HB331K J AA 330 pF,50V
CR21,22 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CR23,24 VCKYMN1HB101K J AA 100 pF,50V
CR25,26 VCCSMN1HL470J J AA 47 pF,50V
CR27,28 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CR29,30 VCTYMN1EF223Z J AA 0.022 µF,25V
CR31,32 VCKYMN1HB331K J AA 330 pF,50V
CR33,34 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CR35,36 VCKYMN1HB101K J AA 100 pF,50V
CR37,38 VCCSMN1HL470J J AA 47 pF,50V
CR39,40 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CR41,42 VCTYMN1EF223Z J AA 0.022 µF,25V
CR43,44 VCKYMN1HB331K J AA 330 pF,50V
CR45 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CR46 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CR47 VCKYMN1HB102K J AA 0.001 µF,50V
CR48 VCKYMN1HB101K J AA 100 pF,50V
CR49,50 VCCSMN1HL470J J AA 47 pF,50V
CR51 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
CR52 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CR53,54 VCTYMN1EF223Z J AA 0.022 µF,25V
CR65,66 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CV11~14 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CV15,16 VCKYPA1HB471K J AA 470 pF,50V
CV17,18 VCCSPA1HL470J J AA 47 pF,50V
CV19,20 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
CV21,22 VCCSPA1HL150J J AA 15 pF,50V
CV23,24 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
CV25,26 VCKYPA1HF223Z J AB 0.022 µF,50V
CV27 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
CV28 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

PRICE
RANK

DESCRIPTION

NO.

CV29,30 VCEAZW1HW338M J AH 3300 µF,50V,Electrolytic
CV33,34 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
CV47 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CV48 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CV49 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
CV91,92 VCCSPA1HL101J J AA 100 pF,50V
CY11,12 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CY13 VCKYPA1HB471K J AA 470 pF,50V
CY14 VCCSPA1HL470J J AA 47 pF,50V
CY15 VCCSPA1HL150J J AA 15 pF,50V
CY16 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
CY17 VCKYPA1HF223Z J AB 0.022 µF,50V
CY19 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
CZ01,02 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CZ03,04 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CZ05,06 VCQYKA1HM472K J AB 0.0047 µF,50V,Mylar
CZ07,08 VCCSPA1HL271J J A A 270 pF,50V
CZ09,10 VCQYKA1HM273K J AB 0.027 µF,50V,Mylar
CZ11,12 VCQYKA1HM152K J AB 0.0015 µF,50V,Mylar
CZ13,14 VCQYKA1HM274K J AB 0.27 µF,50V,Mylar
CZ15,16 VCQYKA1HM123J J AB 0.012 µF,50V,Mylar
CZ17,18 VCQYKA1HM184K J AC 0.18 µF,50V,Mylar
CZ19,20 VCQYKA1HM333K J AB 0.033 µF,50V,Mylar
CZ21,22 VCEAZA1HW334M J AB 0.33 µF,50V,Electrolytic
CZ23,24 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
CZ25 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ26,27 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CZ28,29 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ30 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CZ31 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ32 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
CZ33 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ34 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CZ35 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ36 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
CZ37 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ38 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CZ39 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ40 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
CZ41 VCTYMN1EF223Z J AA 0.022 µF,25V
CZ42,43 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CZ44,45 VCCSMN1HL470J J AA 47 pF,50V
CZ46,47 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CZ48 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CZ49~53 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CZ54 VCTYBT1EF223Z J AA 0.022 µF,25V
CZ55 VCKYBT1HB102K J AA 0.001 µF,50V
CZ56 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CZ57~61 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CZ62 VCEAZA1CW226M J AC 22 µF,16V,Electrolytic
CZ63 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CZ64 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CZ65 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CZ66 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CZ67 VCEAZA1CW226M J AC 22 µF,16V,Electrolytic
CZ69,70 VCKYMN1HB101K J AA 100 pF,50V
CZ71 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

PRICE
RANK

DESCRIPTIONPARTS CODE

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
VRS-TQ2BB000J J AA 0 ohm,Jumper,1.55×3.1mm,

VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green
R1 VRD-MN2BD100J J AA 10 ohm,1/8W
R2 VRD-MN2BD102J J AA 1 kohm,1/8W
R8 VRD-MN2BD153J J AA 15 kohms,1/8W
R9 VRD-MN2BD104J J AA 100 kohm,1/8W
R10 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R11 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R12 VRD-MN2BD101J J AA 100 ohm,1/8W
R13 VRD-MN2BD102J J AA 1 kohm,1/8W
R14 VRD-MN2BD273J J AA 27 kohms,1/8W
R15 VRD-MN2BD123J J AA 12 kohms,1/8W
R16 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R17 VRD-MN2BD333J J AA 33 kohms,1/8W
R18 VRD-MN2BD153J J AA 15 kohms,1/8W
R19,20 VRD-ST2CD102J J AA 1 kohm,1/6W
R21,22 VRD-MN2BD223J J AA 22 kohms,1/8W
R23 VRD-MN2BD103J J AA 10 kohm,1/8W
R24 VRD-MN2BD473J J AA 47 kohms,1/8W
R25 VRD-MN2BD152J J AA 1.5 kohms,1/8W

Green

– 4 –

CD-C482

PART CODE NO. PARTS CODE

R26 VRD-MN2BD823J J AA 82 kohms,1/8W
R27 VRD-MN2BD393J J AA 39 kohms,1/8W
R28 VRD-MN2BD103J J AA 10 kohm,1/8W
R29 VRD-MN2BD563J J AA 56 kohms,1/8W
R30 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R31 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R32 VRD-MN2BD103J J AA 10 kohm,1/8W
R33 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R34 VRD-MN2BD223J J AA 22 kohms,1/8W
R35,36 VRD-MN2BD224J J AA 220 kohms,1/8W
R37 VRD-ST2CD823J J AA 82 kohms,1/6W
R38 VRD-MN2BD471J J AA 470 ohms,1/8W
R39 VRD-MN2BD102J J AA 1 kohm,1/8W
R40 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R41,42 VRD-MN2BD473J J AA 47 kohms,1/8W
R43 VRD-MN2BD563J J AA 56 kohms,1/8W
R44 VRD-MN2BD333J J AA 33 kohms,1/8W
R45 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R46 VRD-MN2BD561J J AA 560 ohms,1/8W
R47,48 VRD-MN2BD103J J AA 10 kohm,1/8W
R50 VRD-MN2BD681J J AA 680 ohms,1/8W
R51 VRD-ST2CD335J J AA 3.3 Mohms,1/6W
R52 VRD-MN2BD273J J AA 27 kohms,1/8W
R53 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R54 VRD-ST2CD331J J AA 330 ohms,1/6W
R55 VRD-MN2BD151J J AA 150 ohms,1/8W
R57 VRD-MN2BD102J J AA 1 kohm,1/8W
R58,59 VRD-ST2CD102J J AA 1 kohm,1/6W
R60~62 VRD-MN2BD102J J AA 1 kohm,1/8W
R63 VRD-ST2CD102J J AA 1 kohm,1/6W
R64 VRD-MN2BD220J J AA 22 ohms,1/8W
R66 VRD-MN2BD331J J AA 330 ohms,1/8W
R80 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R81 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R82 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R83 VRD-ST2EE3R9J J AA 3.9 ohms,1/4W
R85 VRD-RT2HD560J J AA 56 ohms,1/2W
R86 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R87 VRD-MN2BD103J J AA 10 kohm,1/8W
R88~90 VRD-ST2CD102J J AA 1 kohm,1/6W
R93 VRD-MN2BD221J J AA 220 ohms,1/8W
R301 VRD-MN2BD333J J AA 33 kohms,1/8W
R302 VRD-ST2CD220J J AA 22 ohms,1/6W
R303 VRD-MN2BD104J J AA 100 kohm,1/8W
R306 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD470J J AA 47 ohms,1/6W
R311 VRD-MN2BD473J J AA 47 kohms,1/8W
R312 VRD-MN2BD681J J AA 680 ohms,1/8W
R314 VRD-MN2BD103J J AA 10 kohm,1/8W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R317 VRD-ST2EE821J J AA 820 ohms,1/4W
R319 VRD-MN2BD104J J AA 100 kohm,1/8W
R320 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R324 VRD-MN2BD104J J AA 100 kohm,1/8W
R340 VRD-ST2CD473J J AA 47 kohms,1/6W
R347 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R348 VRD-MN2BD333J J AA 33 kohms,1/8W
R349 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R350 VRD-ST2CD473J J AA 47 kohms,1/6W
R351 VRD-MN2BD103J J AA 10 kohm,1/8W
R352 VRD-MN2BD153J J AA 15 kohms,1/8W
R356 VRD-MN2BD103J J AA 10 kohm,1/8W
R357,358 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R359,360 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R361 VRD-MN2BD103J J AA 10 kohm,1/8W
R362 VRD-ST2EE471J J AA 470 ohms,1/4W
R363 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R364 VRD-MN2BD473J J AA 47 kohms,1/8W
R365 VRD-RT2HD151J J AA 150 ohms,1/2W
R369 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R371~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD122J J AA 1.2 kohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R381 VRD-ST2CD103J J AA 10 kohm,1/6W
R382~384 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R901 VRS-VV3LA151J J AC 150 ohms,3W
R902 VRD-ST2CD102J J AA 1 kohm,1/6W
R903 VRD-ST2CD470J J AA 47 ohms,1/6W
R904 VRD-ST2EE152J J AA 1.5 kohms,1/4W

PRICE
RANK

DESCRIPTIONNO.

PRICE
RANK

R906 VRD-ST2EE101J J AA 100 ohm,1/4W
R907 VRD-ST2EE561J J AA 560 ohms,1/4W
R908 VRD-ST2CD333J J AA 33 kohms,1/6W
R909 VRD-ST2CD102J J AA 1 kohm,1/6W
R910 VRD-ST2CD151J J AA 150 ohms,1/6W
R911 VRD-ST2EE561J J AA 560 ohms,1/4W
R912 VRD-ST2CD470J J AA 47 ohms,1/6W
R913 VRD-ST2EE561J J AA 560 ohms,1/4W
R914 VRD-ST2CD470J J AA 47 ohms,1/6W
R917 VRD-ST2EE472J J AA 4.7 kohms,1/4W
R918 VRD-ST2CD101J J AA 100 ohm,1/6W
R919,920 VRD-RT2HD3R9J J AA 3.9 ohms,1/2W
R951,952 VRD-ST2EE1R0J J AA 1 ohm,1/4W
R953,954 VRD-ST2EE221J J AA 220 ohms,1/4W
R955 VRD-ST2CD123J J AA 12 kohms,1/6W
R956 VRD-ST2CD101J J AA 100 ohm,1/6W
R957 VRD-ST2CD222J J AA 2.2 kohms,1/6W

! R991 RR-HZ0001AWZZ J AE 4.7 Mohms,1/2W

RA01~06 VRS-TQ2BB220J J AA 22 ohms,1/8W
RA07,08 VRS-TV2AB103J J AA 10 kohm,1/10W
RA09,10 VRS-TV2AB331J J AA 330 ohms,1/10W
RA11,12 VRS-TV2AB473J J AA 47 kohms,1/10W
RA13~22 VRS-TV2AB103J J AA 10 kohm,1/10W
RA23,24 VRS-TV2AB331J J AA 330 ohms,1/10W
RA25,26 VRS-TV2AB103J J AA 10 kohm,1/10W
RA27,28 VRS-TQ2BB151J J AA 150 ohms,1/8W
RA29 VRS-TV2AB473J J AA 47 kohms,1/10W
RA30 VRS-TV2AB222J J AA 2.2 kohms,1/10W
RA32 VRS-TV2AB473J J AA 47 kohms,1/10W
RA33 VRS-TV2AB222J J AA 2.2 kohms,1/10W
RA34~37 VRS-TV2AB102J J AA 1 kohm,1/10W
RA39,40 VRS-TV2AB102J J AA 1 kohm,1/10W
RA41 VRS-TV2AB103J J AA 10 kohm,1/10W
RA42 VRS-TV2AB102J J AA 1 kohm,1/10W
RA43 VRS-TV2AB103J J AA 10 kohm,1/10W
RA44 VRS-TV2AB271J J AA 270 ohms,1/10W
RA48,49 VRS-TV2AB271J J AA 270 ohms,1/10W
RA50 VRS-TV2AB102J J AA 1 kohm,1/10W
RA51 VRS-TV2AB271J J AA 270 ohms,1/10W
RA52,53 VRS-TV2AB102J J AA 1 kohm,1/10W
RA54~57 VRS-TV2AB271J J AA 270 ohms,1/10W
RA59 VRS-TV2AB105J J AA 1 Mohm,1/10W
RA60 VRS-TV2AB103J J AA 10 kohm,1/10W
RA61,62 VRS-TV2AB273J J AA 27 kohms,1/10W
RA63,64 VRS-TV2AB221J J AA 220 ohms,1/10W
RA65,66 VRS-TV2AB273J J AA 27 kohms,1/10W
RA67,68 VRS-TV2AB221J J AA 220 ohms,1/10W
RA71,72 VRS-TV2AB273J J AA 27 kohms,1/10W
RA73,74 VRS-TV2AB221J J AA 220 ohms,1/10W
RA75 VRS-TV2AB102J J AA 1 kohm,1/10W
RA76 VRS-TV2AB104J J AA 100 kohm,1/10W
RA77 VRS-TV2AB272J J AA 2.7 kohms,1/10W
RA78 VRS-TV2AB183J J AA 18 kohms,1/10W
RA79 VRS-TV2AB102J J AA 1 kohm,1/10W
RA80 VRS-TV2AB104J J AA 100 kohm,1/10W
RA82,83 VRS-TV2AB104J J AA 100 kohm,1/10W
RA85 VRS-TV2AB332J J AA 3.3 kohms,1/10W
RA87~90 VRS-TV2AB223J J AA 22 kohms,1/10W
RA91,92 VRS-TV2AB473J J AA 47 kohms,1/10W
RA93~96 VRS-TQ2BB681J J AA 680 ohms,1/8W
RB01,02 VRS-TV2AB223J J AA 22 kohms,1/10W
RB03,04 VRS-TV2AB273J J AA 27 kohms,1/10W
RB05,06 VRS-TV2AB101J J AA 100 ohm,1/10W
RB07,08 VRS-TV2AB104J J AA 100 kohm,1/10W
RB09 VRD-ST2CD561J J AA 560 ohms,1/6W
RB11,12 VRS-TQ2BB391J J AA 390 ohms,1/8W
RD01~06 VRD-ST2CD102J J AA 1 kohm,1/6W
RD07 VRD-ST2CD561J J AA 560 ohms,1/6W
RD08 VRD-ST2CD102J J AA 1 kohm,1/6W
RD09 VRD-ST2CD561J J AA 560 ohms,1/6W
RD10 VRD-ST2CD102J J AA 1 kohm,1/6W
RD11 VRD-ST2CD561J J AA 560 ohms,1/6W
RD12 VRD-ST2CD102J J AA 1 kohm,1/6W
RD13 VRD-ST2CD561J J AA 560 ohms,1/6W
RD14~17 VRD-ST2CD102J J AA 1 kohm,1/6W
RD19 VRD-ST2CD102J J AA 1 kohm,1/6W
RD21,22 VRD-ST2CD102J J AA 1 kohm,1/6W
RD26~28 VRD-ST2CD102J J AA 1 kohm,1/6W
RD29 VRD-ST2CD103J J AA 10 kohm,1/6W
RD31~33 VRD-ST2CD102J J AA 1 kohm,1/6W
RD34 VRD-ST2CD821J J AA 820 ohms,1/6W
RD35~45 VRD-ST2CD102J J AA 1 kohm,1/6W

DESCRIPTION

– 5 –

CD-C482

NO. PART CODE

RD48,49 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD50 VRD-ST2CD821J J AA 820 ohms,1/6W
RD51 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD52 VRD-ST2CD561J J AA 560 ohms,1/6W
RD53 VRD-ST2CD102J J AA 1 kohm,1/6W
RD54 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD55 VRD-ST2CD821J J AA 820 ohms,1/6W
RD57 VRD-ST2EE390J J AA 39 ohms,1/4W
RD58,59 VRD-ST2CD104J J AA 100 kohm,1/6W
RD60,61 VRD-ST2CD103J J AA 10 kohm,1/6W
RD64,65 VRD-ST2CD103J J AA 10 kohm,1/6W
RD66 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RD67 VRD-ST2CD102J J AA 1 kohm,1/6W
RD70~72 VRD-ST2CD821J J AA 820 ohms,1/6W
RE01 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RE02 VRD-ST2CD102J J AA 1 kohm,1/6W
RE03 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RE04 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RE11 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RE12 VRD-ST2CD102J J AA 1 kohm,1/6W
RE13 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RE14 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RE15 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RE16 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RE21 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RE22 VRD-ST2CD102J J AA 1 kohm,1/6W
RE23 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RE25,26 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RE27 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RE28 VRD-ST2CD123J J AA 12 kohms,1/6W
RE29 VRD-ST2CD273J J AA 27 kohms,1/6W
RE31 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RE32 VRD-ST2CD102J J AA 1 kohm,1/6W
RE33 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RE34 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RE35 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RE36 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RE37 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RE38 VRD-ST2CD123J J AA 12 kohms,1/6W
RE39 VRD-ST2CD273J J AA 27 kohms,1/6W
RE41 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RE42 VRD-ST2CD102J J AA 1 kohm,1/6W
RE43 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RE44 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RE45 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RE51 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RE52 VRD-ST2CD102J J AA 1 kohm,1/6W
RE53 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RE54 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RE55 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RE56 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RE57 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RF01,02 VRD-ST2CD102J J AA 1 kohm,1/6W
RF03~05 VRD-MN2BD102J J AA 1 kohm,1/8W
RF06~14 VRD-ST2CD102J J AA 1 kohm,1/6W
RF19~23 VRD-ST2CD102J J AA 1 kohm,1/6W
RF24~28 VRD-MN2BD102J J AA 1 kohm,1/8W
RF29~32 VRD-ST2CD102J J AA 1 kohm,1/6W
RF33~35 VRD-MN2BD102J J AA 1 kohm,1/8W
RF36 VRD-ST2CD102J J AA 1 kohm,1/6W
RF37,38 VRD-MN2BD102J J AA 1 kohm,1/8W
RF39,40 VRD-ST2CD102J J AA 1 kohm,1/6W
RF41,42 VRD-MN2BD102J J AA 1 kohm,1/8W
RF43 VRD-ST2CD102J J AA 1 kohm,1/6W
RF44 VRD-MN2BD102J J AA 1 kohm,1/8W
RF46,47 VRD-ST2CD102J J AA 1 kohm,1/6W
RF48,49 VRD-MN2BD102J J AA 1 kohm,1/8W
RF50,51 VRD-ST2CD102J J AA 1 kohm,1/6W
RF52,53 VRD-MN2BD102J J AA 1 kohm,1/8W
RF54 VRD-ST2CD102J J AA 1 kohm,1/6W
RF55 VRD-MN2BD102J J AA 1 kohm,1/8W
RF58 VRD-ST2CD102J J AA 1 kohm,1/6W
RF59,60 VRD-MN2BD102J J AA 1 kohm,1/8W
RF61 VRD-ST2CD102J J AA 1 kohm,1/6W
RF62 VRD-MN2BD101J J AA 100 ohm,1/8W
RF63 VRD-MN2BD102J J AA 1 kohm,1/8W
RF64,65 VRD-ST2CD102J J AA 1 kohm,1/6W
RF66~70 VRD-MN2BD102J J AA 1 kohm,1/8W
RF71 VRD-ST2CD102J J AA 1 kohm,1/6W
RF73 VRD-MN2BD102J J AA 1 kohm,1/8W
RF74,75 VRD-ST2CD102J J AA 1 kohm,1/6W
RF76 VRD-MN2BD102J J AA 1 kohm,1/8W

PRICE
RANK

DESCRIPTION

NO.

RF77 VRD-MN2BD223J J AA 22 kohms,1/8W
RF78 VRD-ST2CD102J J AA 1 kohm,1/6W
RF79,80 VRD-MN2BD102J J A A 1 kohm,1/8W
RF81 VRD-ST2CD102J J AA 1 kohm,1/6W
RF82 VRD-MN2BD102J J AA 1 kohm,1/8W
RF83 VRD-MN2BD103J J AA 10 kohm,1/8W
RF84~86 VRD-ST2CD102J J AA 1 kohm,1/6W
RF87,88 VRD-MN2BD102J J A A 1 kohm,1/8W
RF91 VRD-MN2BD102J J AA 1 kohm,1/8W
RF92 VRD-ST2CD102J J AA 1 kohm,1/6W
RF93,94 VRD-MN2BD102J J A A 1 kohm,1/8W
RF95 VRD-ST2CD102J J AA 1 kohm,1/6W
RF96,97 VRD-MN2BD102J J A A 1 kohm,1/8W
RF98,99 VRD-ST2CD102J J AA 1 kohm,1/6W
RG04~08 VRD-MN2BD103J J AA 10 kohm,1/8W
RG11 VRD-ST2CD103J J AA 10 kohm,1/6W
RG15 VRD-ST2CD103J J AA 10 kohm,1/6W
RG16 VRD-ST2CD473J J AA 47 kohms,1/6W
RG17 VRD-ST2CD103J J AA 10 kohm,1/6W
RG19 VRD-ST2CD473J J AA 47 kohms,1/6W
RG20~22 VRD-ST2CD103J J AA 10 kohm,1/6W
RG23,24 VRD-MN2BD103J J AA 10 kohm,1/8W
RG25 VRD-ST2CD472J J AA 4.7 kohms,1/6W
RG26 VRD-MN2BD103J J AA 10 kohm,1/8W
RG29,30 VRD-MN2BD151J J AA 150 ohms,1/8W
RG31 VRD-MN2BD102J J AA 1 kohm,1/8W
RG32 VRD-MN2BD101J J AA 100 ohm,1/8W
RG33,34 VRD-MN2BD103J J AA 10 kohm,1/8W
RG35 VRD-MN2BD102J J AA 1 kohm,1/8W
RG36 VRD-MN2BD332J J AA 3.3 kohms,1/8W
RG37 VRD-MN2BD102J J AA 1 kohm,1/8W
RG38 VRD-ST2CD104J J AA 100 kohm,1/6W
RG39 VRD-MN2BD820J J AA 82 ohms,1/8W
RG55,56 VRD-MN2BD102J J AA 1 kohm,1/8W
RG94 VRD-ST2CD103J J AA 10 kohm,1/6W
RG95 VRD-MN2BD474J J AA 470 kohms,1/8W
RG96 VRD-ST2CD103J J AA 10 kohm,1/6W
RH11 VRD-MN2BD154J J AA 150 kohms,1/8W
RH12 VRD-MN2BD102J J AA 1 kohm,1/8W
RH13 VRD-MN2BD154J J AA 150 kohms,1/8W
RH14 VRD-MN2BD564J J AA 560 kohms,1/8W
RH15 VRD-MN2BD333J J AA 33 kohms,1/8W
RH16 VRD-MN2BD105J J AA 1 Mohm,1/8W
RH17 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RH20 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RH21 VRD-MN2BD564J J AA 560 kohms,1/8W
RH22 VRD-MN2BD333J J AA 33 kohms,1/8W
RH24 VRD-MN2BD474J J AA 470 kohms,1/8W
RH25 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RH26 VRD-MN2BD564J J AA 560 kohms,1/8W
RH27 VRD-MN2BD333J J AA 33 kohms,1/8W
RH29 VRD-MN2BD105J J AA 1 Mohm,1/8W
RH30 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RH31 VRD-MN2BD564J J AA 560 kohms,1/8W
RH32 VRD-MN2BD333J J AA 33 kohms,1/8W
RH34 VRD-MN2BD105J J AA 1 Mohm,1/8W
RH35 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RH36 VRD-MN2BD564J J AA 560 kohms,1/8W
RH37 VRD-MN2BD333J J AA 33 kohms,1/8W
RH39 VRD-MN2BD105J J AA 1 Mohm,1/8W
RH53 VRS-TV2AB101J J AA 100 ohm,1/10W
RH56 VRS-TV2AB222J J AA 2.2 kohms,1/10W
RH57,58 VRS-TV2AB473J J AA 47 kohms,1/10W
RH61~64 VRS-TQ2BB151J J AA 150 ohms,1/8W
RH65 VRS-TQ2BB121J J AA 120 ohms,1/8W
RH66 VRS-TQ2BB151J J AA 150 ohms,1/8W
RH67 VRS-TQ2BB391J J AA 390 ohms,1/8W
RH68 VRS-TQ2BB471J J AA 470 ohms,1/8W
RK01,02 VRD-ST2CD102J J AA 1 kohm,1/6W
RK03,04 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RK05,06 VRD-MN2BD332J J AA 3.3 kohms,1/8W
RK07,08 VRD-MN2BD473J J AA 47 kohms,1/8W
RK09 VRD-ST2CD472J J AA 4.7 kohms,1/6W
RK10 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RK11,12 VRD-ST2CD153J J AA 15 kohms,1/6W
RK13,14 VRD-MN2BD103J J AA 10 kohm,1/8W
RK15 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RK17,18 VRD-ST2CD102J J AA 1 kohm,1/6W
RK19,20 VRD-ST2CD560J J AA 56 ohms,1/6W
RK21,22 VRD-MN2BD104J J AA 100 kohm,1/8W
RK23,24 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RK25,26 VRD-MN2BD562J J AA 5.6 kohms,1/8W

PRICE
RANK

DESCRIPTIONPARTS CODE

– 6 –

CD-C482

PART CODE NO. PARTS CODE

RK29,30 VRD-MN2BD103J J AA 10 kohm,1/8W
RK31,32 VRD-MN2BD333J J AA 33 kohms,1/8W
RK33 VRD-ST2CD223J J AA 22 kohms,1/6W
RK34 VRD-MN2BD683J J AA 68 kohms,1/8W
RK35,36 VRD-MN2BD183J J AA 18 kohms,1/8W
RK37,38 VRD-ST2CD682J J AA 6.8 kohms,1/6W
RK39,40 VRD-MN2BD561J J AA 560 ohms,1/8W
RK41,42 VRD-MN2BD820J J AA 82 ohms,1/8W
RK43 VRD-MN2BD103J J AA 10 kohm,1/8W
RK45~50 VRD-MN2BD103J J AA 10 kohm,1/8W
RK52 VRD-MN2BD102J J AA 1 kohm,1/8W
RK53 VRD-MN2BD103J J AA 10 kohm,1/8W
RK54 VRD-ST2CD103J J AA 10 kohm,1/6W
RK55,56 VRD-MN2BD333J J AA 33 kohms,1/8W
RK57 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RK58 VRD-ST2EE471J J AA 470 ohms,1/4W
RK60,61 VRD-ST2EE271J J AA 270 ohms,1/4W
RK62 VRD-MN2BD473J J AA 47 kohms,1/8W
RK63 VRD-MN2BD103J J AA 10 kohm,1/8W
RK64 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RK66 VRD-MN2BD273J J AA 27 kohms,1/8W
RK67 VRD-MN2BD473J J AA 47 kohms,1/8W
RK68 VRD-MN2BD4R7J J AA 4.7 ohms,1/8W
RK69 VRD-ST2EE221J J AA 220 ohms,1/4W
RK72,73 VRD-ST2CD563J J AA 56 kohms,1/6W
RK89 VRD-ST2CD102J J AA 1 kohm,1/6W
RK90 VRD-MN2BD102J J AA 1 kohm,1/8W
RL11 VRD-MN2BD333J J AA 33 kohms,1/8W
RL12 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RL13 VRD-MN2BD682J J AA 6.8 kohms,1/8W
RL14 VRD-MN2BD333J J AA 33 kohms,1/8W
RL15 VRD-MN2BD103J J AA 10 kohm,1/8W
RL16 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RL17 VRD-RT2HD100J J AA 10 ohm,1/2W
RL18 VRD-MN2BD103J J AA 10 kohm,1/8W
RL19 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RL20 VRD-MN2BD122J J AA 1.2 kohms,1/8W
RL24 VRD-MN2BD332J J AA 3.3 kohms,1/8W
RP11,12 VRD-MN2BD101J J AA 100 ohm,1/8W
RP15,16 VRD-MN2BD104J J AA 100 kohm,1/8W
RP17,18 VRD-MN2BD822J J AA 8.2 kohms,1/8W
RP19,20 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RP21,22 VRD-MN2BD101J J AA 100 ohm,1/8W
RP25,26 VRD-MN2BD102J J AA 1 kohm,1/8W
RP27,28 VRD-MN2BD473J J AA 47 kohms,1/8W
RP29,30 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RP31,32 VRD-ST2EE221J J AA 220 ohms,1/4W
RP51 VRD-MN2BD102J J AA 1 kohm,1/8W
RP53 VRD-MN2BD104J J AA 100 kohm,1/8W
RP62 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RP70 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RP73 VRD-ST2CD223J J AA 22 kohms,1/6W
RP91 VRD-ST2CD101J J AA 100 ohm,1/6W
RQ01~08 VRD-MN2BD102J J AA 1 kohm,1/8W
RQ09 VRD-ST2EE331J J AA 330 ohms,1/4W
RQ10 VRD-ST2EE221J J AA 220 ohms,1/4W
RQ11,12 VRD-MN2BD102J J AA 1 kohm,1/8W
RQ13~15 VRD-ST2CD102J J AA 1 kohm,1/6W
RQ16~20 VRD-MN2BD104J J AA 100 kohm,1/8W
RQ21 VRD-ST2CD334J J AA 330 kohms,1/6W
RR01 VRD-ST2CD101J J AA 100 ohm,1/6W
RR11,12 VRD-MN2BD273J J AA 27 kohms,1/8W
RR13,14 VRD-MN2BD182J J AA 1.8 kohms,1/8W
RR15,16 VRD-MN2BD273J J AA 27 kohms,1/8W
RR17,18 VRD-MN2BD182J J AA 1.8 kohms,1/8W
RR19~21 VRD-ST2CD473J J AA 47 kohms,1/6W
RR23 VRD-MN2BD102J J AA 1 kohm,1/8W
RR24 VRD-ST2CD102J J AA 1 kohm,1/6W
RR25,26 VRD-MN2BD104J J AA 100 kohm,1/8W
RR27,28 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RR29,30 VRD-MN2BD102J J AA 1 kohm,1/8W
RR31,32 VRD-MN2BD183J J AA 18 kohms,1/8W
RR33,34 VRD-MN2BD182J J AA 1.8 kohms,1/8W
RR35,36 VRD-MN2BD104J J AA 100 kohm,1/8W
RR37 VRD-MN2BD102J J AA 1 kohm,1/8W
RR38 VRD-ST2CD102J J AA 1 kohm,1/6W
RR39 VRD-MN2BD102J J AA 1 kohm,1/8W
RR40 VRD-ST2CD102J J AA 1 kohm,1/6W
RR41,42 VRD-MN2BD104J J AA 100 kohm,1/8W
RR43,44 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RR45,46 VRD-MN2BD102J J AA 1 kohm,1/8W
RR47,48 VRD-MN2BD183J J AA 18 kohms,1/8W

PRICE
RANK

DESCRIPTIONNO.

PRICE
RANK

RR49,50 VRD-MN2BD182J J AA 1.8 kohms,1/8W
RR51,52 VRD-MN2BD104J J AA 100 kohm,1/8W
RR53~56 VRD-MN2BD102J J AA 1 kohm,1/8W
RR57,58 VRD-MN2BD104J J AA 100 kohm,1/8W
RR59,60 VRD-MN2BD472J J AA 4.7 kohms,1/8W
RR61,62 VRD-MN2BD102J J AA 1 kohm,1/8W
RR63,64 VRD-MN2BD183J J AA 18 kohms,1/8W
RR65,66 VRD-MN2BD182J J AA 1.8 kohms,1/8W
RR67,68 VRD-MN2BD104J J AA 100 kohm,1/8W
RR69 VRD-MN2BD102J J AA 1 kohm,1/8W
RR70 VRD-ST2CD102J J AA 1 kohm,1/6W
RR83,84 VRD-ST2EE221J J AA 220 ohms,1/4W
RR85~88 VRD-ST2EE221J J AA 220 ohms,1/4W
RV13,14 VRD-ST2CD563J J AA 56 kohms,1/6W
RV17,18 VRD-ST2CD102J J AA 1 kohm,1/6W
RV19,20 VRD-ST2CD271J J AA 270 ohms,1/6W
RV21,22 VRD-ST2CD563J J AA 56 kohms,1/6W
RV23,24 VRD-ST2CD102J J AA 1 kohm,1/6W

! RV25,26 VRG-ST2HC101J J AB 100 ohm,1/2W,Fusible

RV27,28 VRD-ST2CD103J J AA 10 kohm,1/6W
RV29,30 VRS-VV3AAR20J J AB 0.2 ohms,1W
RV31,32 VRD-ST2CD102J J AA 1 kohm,1/6W
RV33 VRD-ST2CD103J J AA 10 kohm,1/6W
RV34 VRD-RT2HD153J J 15 kohms,1/2W
RV35 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RV36 VRD-ST2CD223J J AA 22 kohms,1/6W
RV37 VRD-ST2CD473J J AA 47 kohms,1/6W
RV38 VRD-ST2CD103J J AA 10 kohm,1/6W
RV40~42 VRD-ST2CD563J J AA 56 kohms,1/6W
RV43,44 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
RV51,52 VRD-RT2HD331J J AA 330 ohms,1/2W
RV53,54 VRD-ST2CD223J J AA 22 kohms,1/6W
RV55 VRD-ST2EE470J J AA 47 ohms,1/4W
RV56 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RV57 VRD-ST2CD472J J AA 4.7 kohms,1/6W
RV58 VRD-ST2CD103J J AA 10 kohm,1/6W
RV59 VRD-ST2CD104J J AA 100 kohm,1/6W
RV60 VRD-ST2CD273J J AA 27 kohms,1/6W
RV61 VRD-ST2CD473J J AA 47 kohms,1/6W
RV62 VRD-ST2CD332J J AA 3.3 kohms,1/6W
RV63 VRD-ST2CD124J J AA 120 kohms,1/6W
RV69,70 VRS-VV3AAR20J J AB 0.2 ohms,1W
RV71 VRD-ST2CD821J J AA 820 ohms,1/6W
RV72 VRD-ST2CD223J J AA 22 kohms,1/6W
RV91,92 VRD-ST2EE221J J AA 220 ohms,1/4W
RY11 VRD-ST2CD563J J AA 56 kohms,1/6W
RY12,13 VRD-ST2CD102J J AA 1 kohm,1/6W
RY14 VRD-ST2CD563J J AA 56 kohms,1/6W
RY15 VRD-ST2CD271J J AA 270 ohms,1/6W
RY16 VRS-VV3AAR20J J AB 0.2 ohms,1W
RY17 VRD-ST2CD102J J AA 1 kohm,1/6W
RY18 VRD-ST2CD103J J AA 10 kohm,1/6W
RY19 VRD-ST2CD563J J AA 56 kohms,1/6W
RY20 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
RY21 VRD-ST2CD332J J AA 3.3 kohms,1/6W
RY22 VRD-ST2CD473J J AA 47 kohms,1/6W
RY23 VRD-ST2CD223J J AA 22 kohms,1/6W
RY26 VRS-VV3AAR20J J AB 0.2 ohms,1W
RZ01,02 VRD-ST2CD682J J AA 6.8 kohms,1/6W
RZ03,04 VRD-MN2BD682J J AA 6.8 kohms,1/8W
RZ05,06 VRD-MN2BD105J J AA 1 Mohm,1/8W
RZ07,08 VRD-MN2BD104J J AA 100 kohm,1/8W
RZ09,10 VRD-ST2CD101J J AA 100 ohm,1/6W
RZ11~14 VRD-MN2BD105J J AA 1 Mohm,1/8W
RZ15,16 VRD-MN2BD124J J AA 120 kohms,1/8W
RZ17,18 VRD-MN2BD681J J AA 680 ohms,1/8W
RZ19,20 VRD-MN2BD105J J AA 1 Mohm,1/8W
RZ21,22 VRD-MN2BD124J J AA 120 kohms,1/8W
RZ23,24 VRD-MN2BD681J J AA 680 ohms,1/8W
RZ25,26 VRD-MN2BD105J J AA 1 Mohm,1/8W
RZ27,28 VRD-MN2BD274J J AA 270 kohms,1/8W
RZ29,30 VRD-MN2BD681J J AA 680 ohms,1/8W
RZ31,32 VRD-MN2BD105J J AA 1 Mohm,1/8W
RZ33,34 VRD-MN2BD334J J AA 330 kohms,1/8W
RZ35,36 VRD-MN2BD681J J AA 680 ohms,1/8W
RZ37,38 VRD-MN2BD105J J AA 1 Mohm,1/8W
RZ39,40 VRD-MN2BD334J J AA 330 kohms,1/8W
RZ41,42 VRD-MN2BD681J J AA 680 ohms,1/8W
RZ43~46 VRD-ST2CD102J J AA 1 kohm,1/6W
RZ47 VRD-MN2BD102J J AA 1 kohm,1/8W
RZ48,49 VRD-ST2CD102J J AA 1 kohm,1/6W
RZ50 VRD-MN2BD102J J AA 1 kohm,1/8W

DESCRIPTION

– 7 –

CD-C482

NO. PART CODE

RZ51 VRD-ST2CD102J J AA 1 kohm,1/6W
RZ52~54 VRD-MN2BD102J J AA 1 kohm,1/8W
RZ55,56 VRD-MN2BD104J J AA 100 kohm,1/8W
RZ57,58 VRD-MN2BD102J J AA 1 kohm,1/8W
RZ59,60 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RZ61,62 VRD-MN2BD103J J AA 10 kohm,1/8W
RZ63,64 VRD-MN2BD104J J AA 100 kohm,1/8W
RZ65~68 VRD-ST2EE101J J AA 100 ohm,1/4W
RZ69~74 VRD-MN2BD103J J AA 10 kohm,1/8W
RZ75 VRD-ST2CD100J J AA 10 ohm,1/6W
RZ76~78 VRD-ST2CD102J J AA 1 kohm,1/6W
RZ79~84 VRD-MN2BD103J J AA 10 kohm,1/8W
RZ85,86 VRD-ST2EE102J J AA 1 kohm,1/4W
RZ87~89 VRD-MN2BD474J J AA 470 kohms,1/8W
RZ90,91 VRD-MN2BD223J J AA 22 kohms,1/8W
RZ93,94 VRD-ST2CD102J J AA 1 kohm,1/6W
RZ95 VRD-ST2CD221J J AA 220 ohms,1/6W

PRICE
RANK

DESCRIPTION

OTHER CIRCUITRY PARTS

BI99/CNS99 QCNWN1238AWZZ J AH Connector Ass’y,3/3Pin
BI901/CNS901 QCNWN1225AWZZ J AL Connector Ass’y,11/11Pin
BI902/CNS902 QCNWN1226AWZZ J AF Connector Ass’y,4/4Pin
BI903/CNS903 QCNWN1227AWZZ J AK Connector Ass’y,7/7Pin
BI904/CNS904 QCNWN1229AWZZ J AK Connector Ass’y,7/7Pin
BIA11/CNSA11 QCNWN1237AWZZ J AG Connector Ass’y,2/2Pin
BIF11/CNSF11 QCNWN1233AWZZ J AF Connector Ass’y,3/6Pin
BIF12/CNSF12 QCNWN1234AWZZ J AL Connector Ass’y,14/14Pin
BIF13/CNSF13 QCNWN1235AWZZ J AK Connector Ass’y,11/10Pin
BIM5/CNS10/CNS5
CFWA1 QCNCWZG10AWZZJ AC Socket,10Pin
CFWA2 QCNCWZG20AWZZJ AC Socket,20Pin
CFWP1 QCNCWZG16AWZZJ AD Socket,16Pin
CFWU1 QCNCWZG10AWZZ J AC Socket,10Pin
CFWU2 QCNCWZG20AWZZ J AC Socket,20Pin
CFWV11 QCNCWZG16AWZZ J AD Socket,16Pin
CNP1 92LCONE5P53253 J AB Plug,5Pin
CNP2 QCNCM705HAFZZ J AB Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP10 QCNCM705KAFZZ J AC Plug,11Pin
CNP11 QCNCM704CAFZZ J AB Plug,3Pin
CNP12 QCNCM704PAFZZ J AC Plug,14Pin
CNP303 QCNCM705KAFZZ J AC Plug,10Pin
CNPF1 QCNCWZS10AWZZ J AK Socket,10Pin
CNPK1 QCNCM705CAFZZ J AA Plug,3Pin
CNPK2 QCNCM705GAFZZ J AB Plug,7Pin
CNPP1 QCNCM698LAFZZ J AB Plug,11Pin
CNPP2 QCNCM705DAFZZ J AB Plug,4Pin
CNPR11 QCNCM704CAFZZ J AB Plug,3Pin
CNPR12 QCNCM704BAFZZ J AA Plug,2Pin
CNPV11 92LCONPB2BPHK J AB Plug,2Pin
CNPV12 QCNCM698GAFZZ J AB Plug,7Pin
CNS1A/B QCNWN1181AWZZ J AK Connector Ass’y,5/5Pin
CNS2A/B QCNWN1182AWZZ J AH Connector Ass’y,8/8Pin
CNS3A/B QCNWN1183AWZZ J AG Connector Ass’y,6/6Pin
CNS901 QCNWN1228AWZZ J AD Connector Ass’y,2Pin
CNSD1 QCNCMZS10AWZZ J AK Plug,10Pin
CNSK1 ———— — Connector Ass’y,3Pin

CNSK2 ———— — Connector Ass’y,7Pin

! F990 92LFUSET502H J AC Fuse,5A
! F997 92LFUSE-T252-D J AD Fuse,2.5A
! F998 92LFUSE-T162-D J AD Fuse,1.6A

FLD1 VVKBJ613GK/-1 J BD FL Display
FW901 QCNWN1301AWZZ J AC Plug,3Pin
FWA1 QCNWN1222AWZZ J AE Flat Cable,10Pin
FWA2 QCNWN1223AWZZ J AF Flat Cable,20Pin
FWD1 QCNWN0711AWZZ J AG Flat Wire,6Pin
FWD2 QCNWN1282AWZZ J AF Flat Wire,3Pin
FWM1 ———— — Flat Wire,13Pin

FWM2 ———— — Flat Wire,4Pin

FWP1 QCNWN1218AWZZ J AF Flat Cable,16Pin
FWP2 QCNWN1220AWZZ J AF Flat Cable,13Pin
FWV91 QCNWN1281AWZZ J AG Flat Wire,5Pin

QCNWN1184AWZZ J AL Connector Ass’y,6/10/2Pin

(Supplies at Tape Mechanism
REF.No.250)

(Supplies at Tape Mechanism
REF.No.250)

(Supplies at Tape Mechanism
REF.No.250)

(Supplies at Tape Mechanism
REF.No.250)

NO.

JA11 QJAKZ0011AWZZ J AE Jack,Digital 2 Coaxial
JH51 QSOCJ0302AWZZ J AE Jack,Video In/Out
JR11,12 QSOCJ0205AWZZ J AG Jack,VIDEO/AUX
JR13 QSOCJ0602AWZZ J AK
JV91 92LJACKH1759A J AF Jack,Headphones
M1 92LMTR1858CASY J AS Motor with Chassis [Disc]
M2 92LMTR1854BASY J AP Motor with Gear [Slide]
M3 RMOTV0373AFZZ J AL Motor with Worm Pulley

M901 92LMTR1810A J AK Motor,Air Cooling Fan
PHM1 ———— — Photo Interrupter

RLYV11 RRLYD0008AWZZ J AN Relay
RLYY11 RRLYD0008AWZZ J AN Relay
RM1 VRD-ST2CD272J J AA 2.7 kohms,1/6W
RXD1 VHLN64H380A-1 J AK Remote Sensor,N64H380A
SO301 QTANC0301AWZZ J AH Terminal,Antenna
SOLM1 ———— — Solenoid

SOLM2 ———— — Solenoid Ass’y
SW1 QSW-P0004AWZZ J AE Switch,Push Type [Open/Close]
SW2 QSW-F0001AWZZ J AD Switch,Leaf/Skeleton Type

SW3 QSW-P0005AWZZ J AD Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SWD1 QSW-Z0003AWZZ J AH Switch,Rotary Type

SWD2 QSW-Z0003AWZZ J AH Switch,Rotary Type [Jog]
SWD3 92LSWICHT1663T J AC Switch,Key Type [X-BASS]
SWD4 92LSWICHT1663T J AC Switch,Key Type [PRE EQ.]
SWD5 92LSWICHT1663T J AC Switch,Key Type [MENU]
SWD6 92LSWICHT1663T J AC Switch,Key Type [ITEM]
SWD12 92LSWICHT1663T J AC Switch,Key Type

SWD13 92LSWICHT1663T J AC Switch,Key Type [STOP]
SWD14 92LSWICHT1663T J AC Switch,Key Type

SWD15 92LSWICHT1663T J AC Switch,Key Type [HIGH EDIT]
SWD16 92LSWICHT1663T J AC Switch,Key Type [REC/PAUSE]
SWD17 92LSWICHT1663T J AC Switch,Key Type [F-PLAY]
SWD23 92LSWICHT1663T J AC Switch,Key Type [QSOUND]
SWD26 92LSWICHT1663T J AC Switch,Key Type [VIRTUAL]
SWD27 92LSWICHT1663T J AC Switch,Key Type [PHANTOM]
SWD28 92LSWICHT1663T J AC Switch,Key Type [NORMAL]
SWD29 92LSWICHT1663T J AC Switch,Key Type [BYPASS]
SWD30 92LSWICHT1663T J AC Switch,Key Type

SWD31 92LSWICHT1663T J AC Switch,Key Type [CD PAUSE]
SWD32 92LSWICHT1663T J AC Switch,Key Type

SWD33 92LSWICHT1663T J AC Switch,Key Type [R-PLAY]
SWD34 92LSWICHT1663T J AC Switch,Key Type [CLOCK]
SWD35 92LSWICHT1663T J AC Switch,Key Type [MEMORY]
SWD36 92LSWICHT1663T J AC Switch,Key Type [TIMER]
SWD37 92LSWICHT1663T J AC Switch,Key Type [SLEEP]
SWD38 92LSWICHT1663T J AC Switch,Key Type [CLEAR]
SWD39 92LSWICHT1663T J AC Switch,Key Type [DVD/VIDEO 1]
SWD40 92LSWICHT1663T J AC Switch,Key Type [DVD/VIDEO 2]
SWD41 92LSWICHT1663T J AC Switch,Key Type [TAPE 1/2]
SWD42 92LSWICHT1663T J AC Switch,Key Type

SWD43 92LSWICHT1663T J AC Switch,Key Type [CD]
SWD48 92LSWICHT1663T J AC Switch,Key Type [POWER]
SWD50 92LSWICHT1663T J AC Switch,Key Type [DISC 1]
SWD51 92LSWICHT1663T J AC Switch,Key Type [DISC 2]
SWD52 92LSWICHT1663T J AC Switch,Key Type [DISC 3]
SWD53 92LSWICHT1663T J AC Switch,Key Type [DISC SKIP]
SWD54 92LSWICHT1663T J AC Switch,Key Type

SWM3 ———— — Switch,Leaf Type [REC FWD]

SWM4 ———— — Switch,Leaf Type [REC RVS]

SWM5 ———— — Switch,Leaf Type [F.A.S]

PRICE
RANK

DESCRIPTIONPARTS CODE

[T/T Up/Down Loading]

(Supplies at Tape Mechanism
REF.No.250)

(Supplies at Tape Mechanism
REF.No.250)

[Mecha Up]

[Volume Jog]

[TUNING UP/CUE]

[NORMAL EDIT]

[TUNING DOWN/REWIND]

[REVERSE MODE]

[TUNER/BAND]

[OPEN/CLOSE]
(Supplies at Tape Mechanism

REF.No.250)
(Supplies at Tape Mechanism

REF.No.250)
(Supplies at Tape Mechanism

REF.No.250)

– 8 –

CD-C482

PART CODE NO. PARTS CODE

SWM6 ———— — Switch,Leaf Type [CAM]

TMV1 QTANA0601AWZZ J AH Speaker Terminal,Front/Center
VRM1 ———— — 3.3 kohms (B),Semi-VR

WTL11 QCNCW012NAWZZ J AE Plug,13Pin
WTP1,2 QCNCW623CAFZZ J AB Plug,3Pin
WTV11 92LCONE5P52287 J AC Socket,5Pin

PRICE
RANK

DESCRIPTIONNO.

(Supplies at Tape Mechanism
REF.No.250)

(Supplies at Tape Mechanism
REF.No.250)

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0010AWZZ J AC Rail,Guide
304 NSFTM0002AWFW J AE Shaft,Guide
305 92LM-CUSN1524A J AC Cushion

! 306 92LHPC1MASY J BG Pickup Unit Ass’y

306- 1 ———— — Pickup Unit
306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR1858CASY J AS Motor with Chassis [Disc]
M2 92LMTR1854BASY J AP Motor with Gear [Side]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

(Not Replacement Item)

CABINET PARTS

201 GCAB-1044AWSA J AM CD Player Base
202 GCAB-1050AWSB J AS Top Cabinet
203 GCOVA1186AWSB J AF Tray Cover Panel,Left
204 GCOVA1187AWSB J AF Tray Cover Panel,Right
205 GCOVA1202AWSA J AG CD Tray Cover
206 GDORF0058AWSA J AR Cassette Holder,Tape 1
207 GDORF0059AWSA J AR Cassette Holder,Tape 2
208 HDECQ0346AWSA J AH Panel,Cassette,Tape 1
209 HDECQ0347AWSA J AH Panel,Cassette,Tape 2
210 HDECQ0312AWSA J AK Panel,Surround
211 HDECQ0375AWSA J AK Panel,FL
212 HDECQ0314AWSA J AK Panel,Operation (A)
213 HDECQ0315AWSA J AG Panel,Operation (B)
214 HDECQ0299AWSA J AG CD Top Panel
215 JKNBZ0492AWSA J AH Knob,Timer/Clock/Sleep/

216 JKNBZ0493AWSA J AH Knob,Edit/Set Up
217 JKNBZ0494AWSA J AH Knob,Surround
218 JKNBZ0495AWSA J AK Knob,Power
219 JKNBZ0496AWSA J AK Knob,Function
220 JKNBZ0472AWSB J AG Knob,Disc No.
221 JKNBZ0473AWSA J AD Knob,Open/Close
222 JKNBZ0523AWSA J AH Knob,X-BASS/Demo
223 92LKNOB2831AS1 J AP Operation Knob Ass’y (A)
223- 1 ———— — Knob,Operation (A)

223- 2 HDECQ0337AWSA J AC Indicator (A)
223- 3 PFLT-0040AWZZ J Felt (A)
224 92LKNOB2831BS1 J AQ Operation Knob Ass’y (B)
224- 1 ———— — Knob,Operation (B)

224- 2 HDECQ0338AWSA J AC Indicator (B)
224- 3 PFLT-0040AWZZ J Felt (B)
225A JKNBZ0499AWSA J AL Knob,Operation (C)

225B HDECQ0339AWSA J AC Indicator (C)
225C HDECQ0340AWSA J AC Indicator (D)
225D HDECQ0341AWSA J AC Indicator (E)
225E HDECQ0342AWSA J AC Indicator (F)
226 MLIFP0003AWZZ J AE Damper
227 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1
228 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2
229 92LBADGE1671A J AC Badge,SHARP
230 JKNBK0058AWSA J AM Knob,Volume
231 KNOB2831AASY1 J AN Jog Knob Ass’y
231- 1 ———— — Knob,JOG

231- 2 HDECQ0336AWSA J AG Panel,JOG

Memory/Clear

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

PRICE
RANK

232 92LCSPR1431C J AA Ring Spring,Volume
233 LANGK0132AWFW J AE Bracket,PWB/Knob
234 LCHSM0071AWFW J AW Main Chassis
235 GITAR0375AWSA J AQ Rear Panel
236 LANGK0125AWFW J AK Bracket,PWB (A)
237 LANGK0126AWFW J AF Bracket,Shield Support
238 LANGK0130AWFW J AF Bracket,AC Power Supply Cord
240 PSLDM3044AWFW J AM Shield (Dolby) [A]
241 PCUSG0022AWZZ J AB Cushion,Leg

! 242 QACCD0022AWZZ J AM AC Power Supply Cord

243 LANGT0042AWFW J AC Bracket,PWB Support
244 92LCAB2935ASY1 J Front Panel Ass’y
244- 1 ———— — Front Panel

244- 2 PCUSG0022AWZZ J AB Cushion,Leg
245 92LN-BAND1318A J AA Nylon Band,80mm
246 LANGK0129AWFW J AF Bracket,Fan Support
247 NFANP0001AWZZ J AD Rotary Fan
248 92LCSPR1431C J AA Ring Spring,Fan
249 PRDAR0110AWFW J AY Heat Sink,Main
250 92LMECHA2831A J BK Tape Mechanism Ass’y
250- 1(MM1) 92LMTR2512AASY J AT Motor with Pulley [Tape]
250- 2 NBLTH0003AWZZ J AC Belt,Main,Tape 1
250- 3 NBLTH0004AWZZ J AC Belt,Main,Tape 2
250- 4 NBLTK0021AWZZ J AB Belt,Sub
250- 5 NROLY0003AWM1 J AF Pinch Roller Foward Ass’y
250- 6 NROLY0004AWM1 J AF Pinch Roller Reverse Ass’y
250- 7 92LMRPH1746A J AM Head,Record/Playback
250- 8 RHEDK0002AWM1 J AQ Head,Erase [Tape 2]
251 LANGK0127AWFW J AG Bracket,Heat Sink (A)
252 LANGK0128AWFW J AG Bracket,Heat Sink (B)
253 PRDAR0111AWFW J AR Sub Heat Sink
254 GITAS0048AWSA J AQ Side Panel,Left
255 GITAS0049AWSA J AQ Side Panel,Right
256 LHLDK9001AW00 J AB Poly Core Tie
257 LANGF0032AWZZ J AC Support,T/T Lock Lever
258 LCHSZ0010AWZZ J AM Chassis,Loading
259 LCHSZ0011AWZZ J AG Chassis,CD Mechanism
260 92LHOLD2037AS1 J AK Stabilizer Ass’y
260- 1 ———— — Stabilizer

260- 2 PMAGF0001AWZZ J AF Magnet
260- 3 92LSUPT1749D J AA Support,Magnet
261 LHLDZ1139AWSA J AD Support,Stabilizer
262 LHLDZ1140AWZZ J AB Guide
263 LHLDZ1141AWZZ J AB Support,Pitch
264 LHLDZ1189AWZZ J AG Holder,FL
265 LHLDZ1188AWZZ J AC Holder,LED
266 MLEVP0066AWZZ J AE Lever,Shift
267 MLEVP0067AWZZ J AC Lever,Lock
268 MLEVP0068AWZZ J AB Lever,Change
269 MLEVP0070AWZZ J AB Lever,T/T Lock
270 MSPRC0020AWFJ J AB Spring,T/T Lock Lever
271 MSPRC0024AWFW J AB Spring,Solenoid
272 MSPRD0044AWFJ J AB Spring,Lock Lever
273 NBLTK0029AWZZ J AB Belt,Drive
274 NGERH0064AWZZ J AD Gear,Cam
275 NGERH0065AWZZ J AB Gear,Turntable
276 NGERK0003AWZZ J AC Gear,Drive
277 NGERK0004AWZZ J AB Gear,Bevel
278 NGERK0005AWZZ J AB Gear,Loading
279 NGERW0006AWZZ J AC Gear,Worm Wheel
280 NPLYD0001AWZZ J AB Pulley
281 NROLP0009AWZZ J AB Roller
282 NTNT-0018AWSA J AK Turntable
283 PCUSG0022AWZZ J AB Cushion
284 QFSHD0001AWZZ J AB Holder,Fuse
285 92LLUG1746A J AA Lug Terminal
286 PFLT-0038AWZZ J AC Felt
601 XBBSD20P04000 J A A Screw,ø2×4mm
602 XBPSD26P05JS0 J AA Screw,ø2.6×5mm
603 XEBSD26P12000 J A A Screw,ø2.6×12mm
604 XEBSD30P10000 J A A Screw,ø3×10mm
605 XESSD30P10000 J A A Screw,ø3×10mm
606 XJBSD30P10000 J AA Screw,ø3×10mm
607 XJBSD30P14000 J AA Screw,ø3×14mm
608 XJBSF30P08000 J AA Screw,ø3×8mm
609 XJBSF30P12000 J AA Screw,ø3×12mm
610 XJSSD30P10000 J AA Screw,ø3×10mm
611 XHBSD30P06000 J AA Screw,ø3×6mm
612 XJBSD30P08000 J AA Screw,ø3×8mm

DESCRIPTION

(Not Replacement Item)

(Not Replacement Item)

– 9 –

CD-C482

NO. PART CODE

613 LX-JZ0022AFFD J AA Screw,ø3×8mm
614 LX-HZ0082AFZZ J AA Screw,ø4×8mm
615 LX-JZ0010AFFD J AA Screw,ø3×10mm
616 XJSSF30P10000 J AA Screw,ø3×10mm
617 LX-TZ0019AFZZ J AB Screw,Special
618 LX-EZ0005AWFD J AA Screw,Special
619 LX-JZ0002AWFD J AA Screw,ø3×10mm
620 XEBSD30P12000 J AA Screw,ø3×12mm
621 XJBSF30P10000 J AA Screw,ø3×10mm
622 LX-EZ0010AWFD J AA Screw,Special
623 XWHJZ62-09510 J AB Washer

PRICE
RANK

DESCRIPTION

ACCESSORIES

QANTL0006AWZZ J AG AM Loop Antenna
TINSE0225AWZZ J AG Operation Manual
TINSZ0333AWZZ J AC Quick Guide
92LFANT1746A J AD FM Antenna
92LLABL372C J AB Label,Specifications
92L3191SW49210 J AH Speaker Cord,Front Speaker,

RRMCG0141AWSA J AX Remote Control
92LLID1782A J AQ Battery Lid,Remote Control

Sub Woofer

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB2935MANS J — Main
PWB-B 92LPWB2935CDUS J — CD Servo
PWB-C1~4 92LPWB2935DPLS J — Display/Switch/Headphones/Jog

PWB-D 92LPWB2935PWRS J — Power
PWB-E 92LPWB2935TUNS J — Tuner
PWB-F 92LPWB2935AMPS J — Speaker AMP.
PWB-G 92LPWB2935ACTS J — Dolby
PWB-H ———— — Tape Mechanism

PWB-J QPWBF0341AWZZ J AB Sensor (PWB Only)
PWB-K QPWBF0027AWZZ J AD CD Motor (PWB Only)

(Combined Ass’y)

(Supplies at Tape Mechanism
REF.No.250)

NO.

PRICE
RANK

DESCRIPTIONPARTS CODE

SPEAKER BOX PARTS SUB WOOFER CP-SW482

900 92L10002W49210 J BB Cabinet Ass’y
901 92L20100W49210 J AW Net Frame Ass’y
902 92L20300W49210 J AS Port Panel
903 92L3141SW49210 J AL Speaker Cord Ass’y
905 92L411S84016AB J AD Screw
906 92L44010320200 J AD Port Cushion
907 92L6000SW48200 J Label,Specifications
SP1 VSP0016WBE68A J BE Speaker Woofer

SPEAKER BOX PARTS FRONT SPEAKER CP-C482

900 92L10002C49210 J BE Cabinet Ass’y
901 92L200L0C49210 J BE Front Panel,Left
901 92L200R0C49210 J BE Front Panel,Right
903 92L201L0C49210 J AY Net Frame Ass’y,Left
903 92L201R0C49210 J AY Net Frame Ass’y,Right
905 92L23036099010 J AC Catching Holder
906 92L3141PC49210 J AM Speaker Cord Ass’y
908 92L411B840160P J AD Screw
909 92L411B930100P J AC Screw
910 92L44010213500 J AH Port Cushion
911 92L44210310100 J AD Cushion Wire
912 92L6000PC48200 J AC Label,Specifications
SP1,2 VSP0013WB228A J BE Speaker,Woofer
SP3,4 VSP0050TBK28A J AT Speaker,Tweeter
SP5,6 92L303R0300610 J AQ Super Tweeter Ass’y

– 10 –

CD-C482

A

CD-C482

306-2

306

306-1

B

306-3

701

304

701

C

302

704

702

702

D

301

303

703

E

M1

F

305

M2

G

305x2

SW4

H

PWB-K

1

23456

Figure 11 CD MECHANISM EXPLODED VIEW

– 11 –

– 82 –

CD-C482

CD-C482

254

225D

E

241

212

224-1

214

222

224-2

224-3

A

608x2

286

FLD1

225C

225A

264

225B

225

B

217

219

210

215

C

218

229

223-1

223-3

223

223-2

213

D

244-1

604

226

605x2

PWB-C1

220

221

216

250 (250-1, 250-2,
250-3, 250-4,
250-5,250-6,

224

250-7,250-8)

PWB-G

612

237

604x12
265

233

604

622

605x6

615x4

604x3

PWB-C2

613

613

235

PWB-C3

622

240

615

PWB-A

243

238

608

608
x25

Silicon

Grease

255

253

242

608x2

284
x2

614x4

284
x2

241

284
x2

PWB-D

604

226

E

244-2

244

244-2

612

F

206

208

615
x2

211

G

227

H

245

209

230

231

232

PWB-E

207

228

232

612

236

607x2

615
x2

606x2

615

611

247

252

Silicon

Grease

601x2

251

249

611

248

606

x2

611

606
x4

PWB-F2

234

615

M901

611

x2

246

621

x2

606

Note: Only the unit and consumale parts are supplied as aprts supply for the Tape mechanism.

1

23456

Figure 12 CABINET EXPLODED VIEW (1/2)

– 83 –

– 12 –

CD-C482

CD-C482

616

261

260

A

609x2

623

260-3

260-2

260-1

202

282

B

269

281

C

281

SW3

281

270

203

609x2

D

205

204

201

257

281x2

272

619

CD
MECHANISM

617

277

274

612

273

617

280

279

E

604

262

275

267

281

277

603

263

276

618

F

266

268

SW2

262

283

G

278

602x2

258

281

604

259

M3

271

H

PWB-B

604

1

23456

Figure 13 CABINET EXPLODED VIEW (2/2)

– 13 –

– 84 –

620x4

281

PWB-K

SOLM2

CD-C482

CP-C482

A

Capacitor

(SP5,6)

TWEETER
SP3(L-CH)

SP4(R-CH)

RED

901

RED

B

903

905x2

909x2

BK

SUPER
TWEETER
SP5(L-CH)

SP6(R-CH)

BK

YE

BK

WOOFER

SP3(L-CH)

SP4(R-CH)

906

C

912

Capacitor

D

905x2

SP3,4

E

909x2

911

SP1,2

F

908x4

900

G

SUPER
TWEETER
SP5(L-CH)

SP6(R-CH)

910

TWEETER
SP3(L-CH)

SP4(R-CH)

Capacitor

2.2µF

H

WOOFER

SP1(L-CH)

SP2(R-CH)

1

23456

Figure 14 SPEAKER EXPLODED VIEW (1/2)

– 85 –

– 14 –

CD-C482

CP-SW482

A

B

C

901

907

900

903

D

905x4

E

SP1

906

F

902

G

RED BLACK

SP1

H

1

23456

Figure 13 PSEAKER EXPLODED VIEW (2/2)

– 15 –

– 86 –

PACKING OFF THE SET

Setting position of switches and knobs

Tape Mechanism STOP

CD-C482

Unit

SPAKP0032AWZZ

Polyethylene Bag

Sub Woofer

FRONT

SPAKA0191AWZZ

Packing Add.,(Left/Right)

BUTTON SIDE

TOP

FRONT

BOTTOM

Remote
Control

CP-SW482

92L3191SW49210

Polyethylene Bag,

92L71025002100

Sheet

Speaker
Cord x 1

Front Speaker(L/R)

FRONT

92L74231001900

Shield pad

A

FM/AM Loop Antenna
Quik Guide
Operation Manual
AC Power Supply Cord

PROTECTION PAD
SPAKZ0393AWZZ

FRONT

92L3191PC49210

Polyethylene Bag

92L71025002100

Sheet

Speaker Cord x 2

92L720TPC49200

Packing Add.,(Top)

92L720BPC49200

Packing Add.,(Bottom)

92LBAG1460C1
Polyethylene Bag,

Accessories

CP-C482

B

Not Replacement Item

92L720TSW49200
Packing Add.,
(Top)

92L720BSW49200
Packing Add.,
(Bottom)

SPAKC0681AWZZ

Packing Case

TLABR0980AWZZ

Label,Bar Code

C

B

A

FRONT

FRONT

FRONT

PROTECTION PAD(A)
SPAKZ0391AWZZ

PROTECTION PAD(B)
SPAKZ0392AWZZ

BOTTOM PAD
SPAKZ0448AWZZ

FRONT

C

– 16 –

– 87 –

CD-C482

–– MEMO ––

– 17 –

– 88 –

–– MEMO ––

CD-C482

– 18 –

– 89 –

CD-C482

COPYRIGHT 1998 BY SHARP COPORATION

©

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

– 90 –

SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A9807-2273 NS • HA • M

SC • LAG
