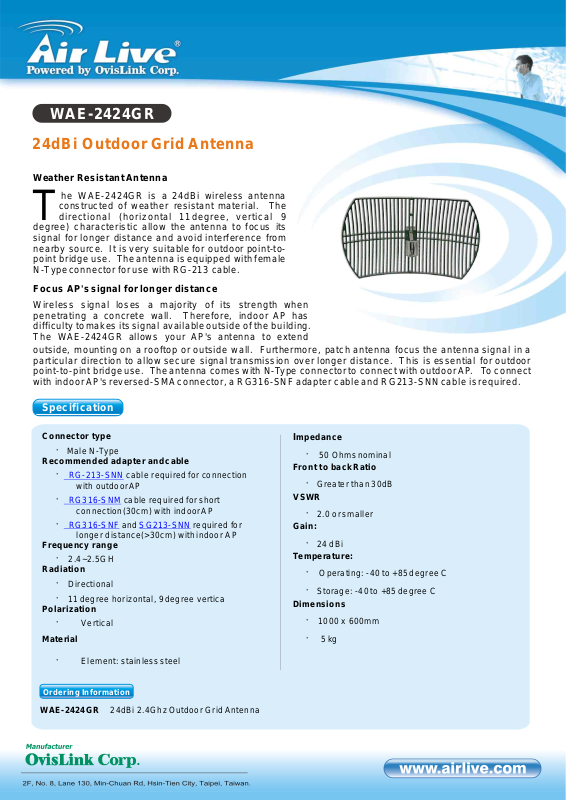

Airlive WAE-2424GR DATASHEET
WAE-2424GR
24dBi Outdoor Grid Antenna
Weather Resistant Antenna
he WAE-2424GR is a 24dBi wireless antenna
constructed of weather resistant material. The
directional (horizontal 11degree, vertical 9
T
degree) characteristic allow the antenna to focus its
signal for longer distance and avoid interference from
nearby source. It is very suitable for outdoor point-topoint bridge use. The antenna is equipped with female
N-Type connector for use with RG-213 cable.
Focus AP's signal for longer distance
Wireless signal loses a majority of its strength when
penetrating a concrete wall. Therefore, indoor AP has
difficulty to makes its signal available outside of the building.
The WAE-2424GR allows your AP's antenna to extend
outside, mounting on a rooftop or outside wall. Furthermore, patch antenna focus the antenna signal in a
particular direction to allow secure signal transmission over longer distance. This is essential for outdoor
point-to-pint bridge use. The antenna comes with N-Type connector to connect with outdoor AP. To connect
with indoor AP's reversed-SMA connector, a RG316-SNF adapter cable and RG213-SNN cable is required.
Specification
Connector type
· Male N-Type
Recommended adapter and cable
RG-213-SNN
· cable required for connection
with outdoor AP
RG316-SNM
· cable required for short
connection(30cm) with indoor AP
RG316-SNF SG213-SNN
· and required for
longer distance(>30cm) with indoor AP
Frequency range
· 2.4~2.5GH
Radiation
· Directional
· 11 degree horizontal, 9 degree vertica
Polarization
· Vertical
Material
· Element: stainless steel
Impedance
· 50 Ohms nominal
Front to back Ratio
· Greater than 30dB
VSWR
· 2.0 or smaller
Gain:
· 24 dBi
Temperature:
· Operating: -40 to +85 degree C
· Storage: -40 to +85 degree C
Dimensions
· 1000 x 600mm
· 5 kg
Ordering Information
WAE-2424GR 24dBi 2.4Ghz Outdoor Grid Antenna
