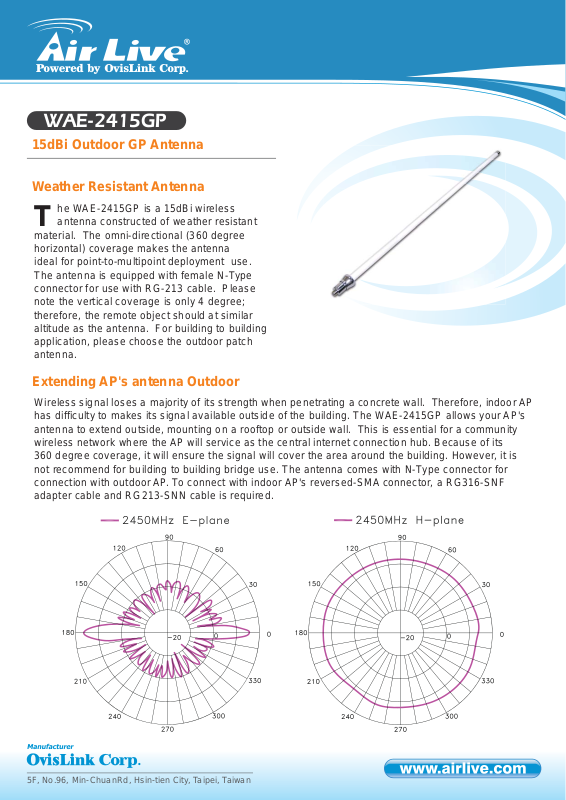

Airlive WAE-2415GP DATASHEET

WAE-2415GP

15dBi Outdoor GP Antenna

Weather Resistant Antenna

he WAE-2415GP is a 15dBi wireless
antenna constructed of weather resistant

T

material. The omni-directional (360 degree
horizontal) coverage makes the antenna
ideal for point-to-multipoint deployment use.
The antenna is equipped with female N-Type
connector for use with RG-213 cable. Please
note the vertical coverage is only 4 degree;
therefore, the remote object should at similar
altitude as the antenna. For building to building
application, please choose the outdoor patch
antenna.

Extending AP's antenna Outdoor

Wireless signal loses a majority of its strength when penetrating a concrete wall. Therefore, indoor AP
has difficulty to makes its signal available outside of the building. The WAE-2415GP allows your AP's
antenna to extend outside, mounting on a rooftop or outside wall. This is essential for a community
wireless network where the AP will service as the central internet connection hub. Because of its
360 degree coverage, it will ensure the signal will cover the area around the building. However, it is
not recommend for building to building bridge use. The antenna comes with N-Type connector for
connection with outdoor AP. To connect with indoor AP's reversed-SMA connector, a RG316-SNF
adapter cable and RG213-SNN cable is required.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

Specifi cations

- Connector type

- Female N-Type

- Recommended adapter and cable

- RG-213-SNN cable required for connection
with outdoor AP

- RG316-SNM cable required for short
connection(30cm) with indoor AP

- RG316-SNF and SG213-SNN required for
longer distance(>30cm) with indoor AP

- Frequency range

- 2.4~2.4835GHz

- Impedance

- 50 Ohms nominal

- VSWR

- 2.0 or smaller

- Gain:

- 15dBi

- Polarization

- Vertical

- Material

- Radiator: Copper and Brass

- Radome: Fiberglass

- Mounting Base: Zinc Alloy with Chrome
Plated

- Guide Pipe: Aluminum Alloy

- Bracket: Aluminum Alloy

- Temperature:

- Operating: -20 to +65 degree C

- Storage: -30 to +75 degree C

- Dimensions

- Height: 1600 mm

- Pole Size: 28~46 mm

- Weight: 1000g

- Radiation

- Horizontal: 360 degree

- Vertical: 4 degree

Ordering Information:

WAE-2415GP 15dBi GP Antenna
