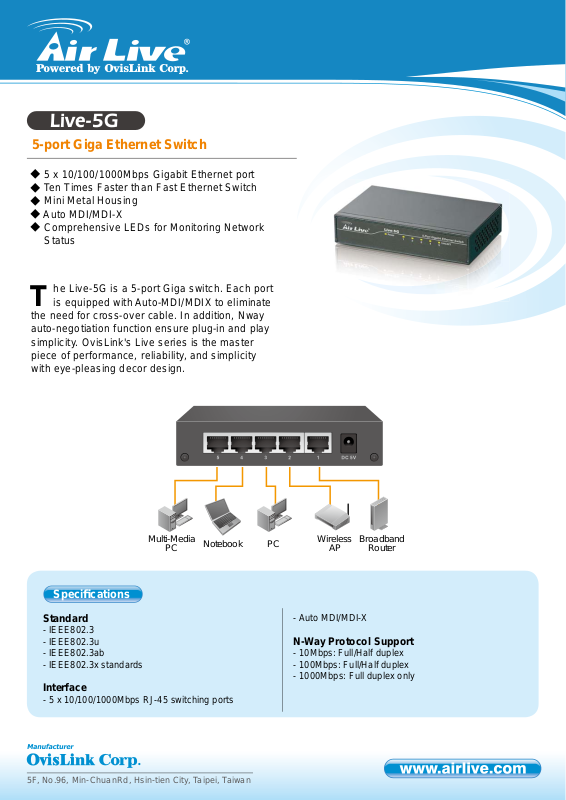

Airlive LIVE-5G Datasheet

Live-5G

5-port Giga Ethernet Switch

◆

5 x 10/100/1000Mbps Gigabit Ethernet port

◆

Ten Times Faster than Fast Ethernet Switch

◆

Mini Metal Housing

◆

Auto MDI/MDI-X

◆

Comprehensive LEDs for Monitoring Network

Status

he Live-5G is a 5-port Giga switch. Each port
is equipped with Auto-MDI/MDIX to eliminate

T

the need for cross-over cable. In addition, Nway
auto-negotiation function ensure plug-in and play
simplicity. OvisLink's Live series is the master
piece of performance, reliability, and simplicity
with eye-pleasing decor design.

Multi-Media

PC

Notebook PC

Specifi cations

Standard

- IEEE802.3

- IEEE802.3u

- IEEE802.3ab

- IEEE802.3x standards

Interface

- 5 x 10/100/1000Mbps RJ-45 switching ports

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

Wireless

AP

- Auto MDI/MDI-X

N-Way Protocol Support

- 10Mbps: Full/Half duplex

- 100Mbps: Full/Half duplex

- 1000Mbps: Full duplex only

Broadband

Router

Feature

- Supports full and half duplex operation on all ports

- Supports back-pressure (half duplex) and flow
control (IEEE 802.3x)

- Store-and-forward architecture

Operating Temperature

- 0 °C- 40 °C (32°F- 104°F)

Operating Humidity

- 10% ~ 90% (non-condensing)

MAC Address

- 1K

Buffer Memory

- 832K bits

Jumbo Frame

- 9K Byte

Emission

- FCC Class A, CE, VCCI

LED indicators

- Power: Green

- Link/Act: Green

Ordering Information:

Live-5G 5-port Giga Ethernet Switch

Power Supply

- External power adapter, 5V/1A

Produce Weight (g)

- 270 g

Dimensions

- 121 x 75 x 26 mm
