AirLive ARM-104 v3 User Manual

ARM-104_v3

Wired ADSL 2/2+ Modem Router

User’s Guide

AirLive ARM-104_v3 ADSL2/2+ Router

The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an

information retrieval system, translated into any language, or transmitted in any form or by any means,

mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written

permission.

AirLive ARM-104_v3 ADSL2/2+ Router

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio

interference in a residential environment. AirLive ARM-104_v3 can generate, use and radiate radio

frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause

harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If AirLive

ARM-104_v3 does cause harmful interference to radio or television reception, which is found by turning the

equipment ON and OFF, the user is encouraged to try to reduce the interference by one or more of the

following measures:

y Adjust or relocate the receiving antenna

y Increase the separation between the equipment or device

y Consult a dealer or an experienced technician for assistance

CE Declaration of Conformity

This is to certify that this device complies the essential protection requirements of the European Council

Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22).

Compliance with the applicable regulations is dependent upon the use of shielded cables. It is the

responsibility of the user to procure the appropriate cables.

AirLive ARM-104_v3 ADSL2/2+ Router

iii

Contents

CHAPTER 1 INTRODUCTION........................................................................................... 1

1.1 Features..........................................................................................................................................2

1.2 Scope..............................................................................................................................................5

1.3 Audience ........................................................................................................................................6

1.4 Document Structure .......................................................................................................................7

1.5 System Requirement......................................................................................................................8

1.6 Packet Contents .............................................................................................................................9

CHAPTER 2 KNOWING THE AIRLIVE ARM-104_V3 ADSL2/2+ ROUTER ................... 10

2.1 Front Panel:..................................................................................................................................10

2.2 Back Panel: ..................................................................................................................................11

2.3 Connection Mechanism: ..............................................................................................................12

CHAPTER 3 SETTING UP THE TCP/IP IN WINDOWS................................................... 14

3.1 Windows ME / 98 ........................................................................................................................15

3.2 Windows 2000 .............................................................................................................................16

3.3 Windows XP ................................................................................................................................17

3.4 Checking TCP/IP Configuration..................................................................................................18

CHAPTER 4 DEVICE ADMINISTRATION ....................................................................... 21

4.1 Login............................................................................................................................................21

4.2 EZ SETUP ...................................................................................................................................24

4.3 CONFIG ......................................................................................................................................34

4.3.1 CONFIG - WAN Setup.............................................................................................................35

4.3.1.1 CONFIG - WAN Setup – New Connection ...........................................................................36

4.3.1.1.1 New Connection - PPPoE Connection Setup .....................................................................37

4.3.1.1.1.1 PPPoE Configuration Procedures ....................................................................................40

4.3.1.1.2 New Connection - PPPoA Connection Setup .....................................................................41

4.3.1.1.2.1 PPPoA Configuration Procedures....................................................................................44

4.3.1.1.3 New Connection - Static Connection Setup .......................................................................45

4.3.1.1.3.1 Static Configuration Procedures ......................................................................................48

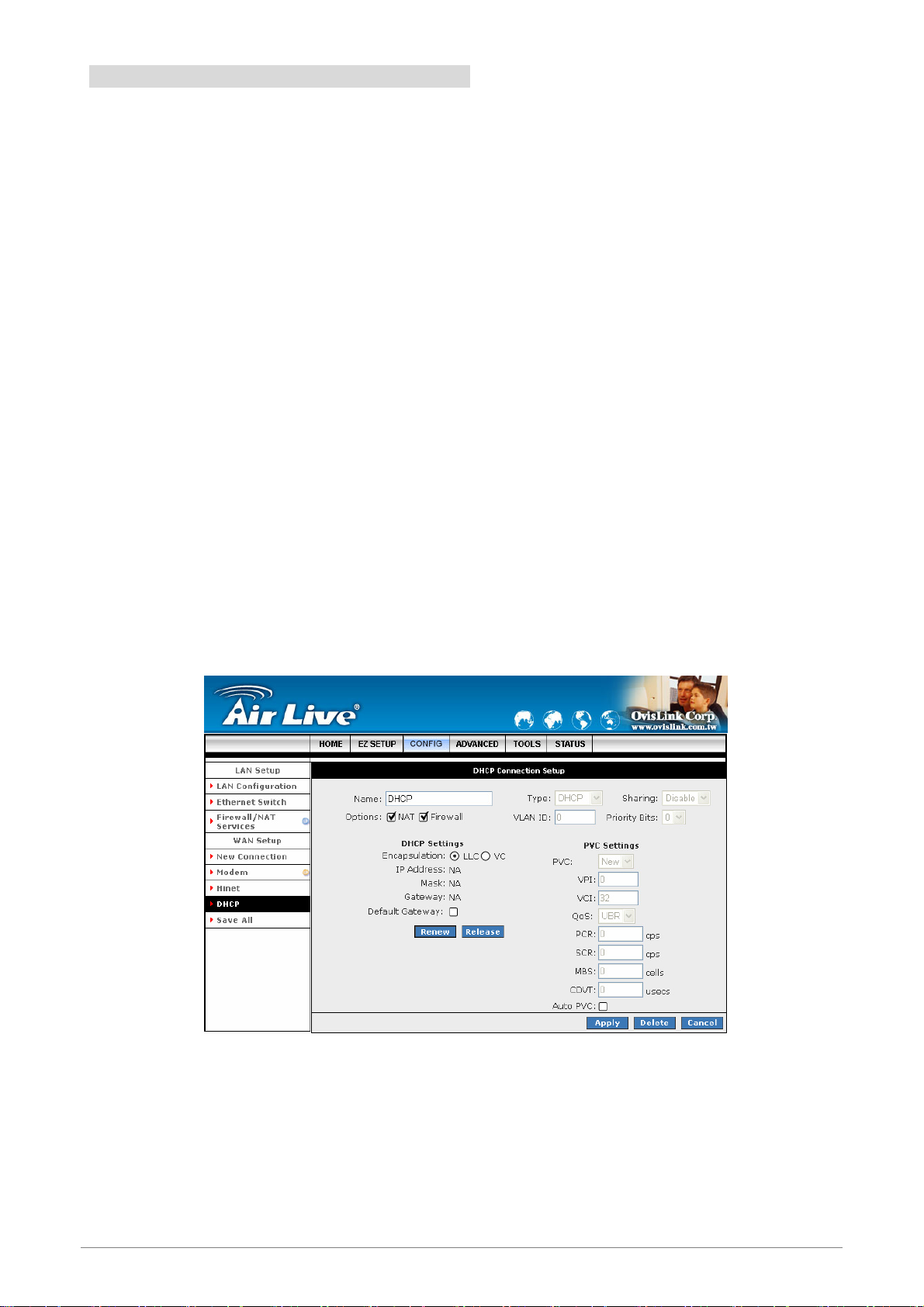

4.3.1.1.4 New Connection - DHCP Connection Setup......................................................................49

4.3.1.1.4.1 DHCP Configuration Procedures.....................................................................................51

4.3.1.1.5 New Connection - Bridge Connection Setup......................................................................52

4.3.1.1.5.1 Bridge Configuration Procedures ....................................................................................54

4.3.1.1.6 New Connection - CLIP Connection Setup........................................................................55

4.3.1.1.6.1 CLIP Configuration Procedures.......................................................................................57

4.3.1.2 CONFIG - WAN Setup - Modem ..........................................................................................58

AirLive ARM-104_v3 ADSL2/2+ Router

4.3.2 CONFIG - LAN Setup..............................................................................................................59

4.3.2.1 LAN Setup - LAN Configuration ..........................................................................................60

4.3.2.1.1 LAN Configuration Procedures..........................................................................................61

4.3.2.1.2 LAN Configuration - Unmanaged ......................................................................................62

4.3.2.1.3 LAN Configuration – Obtain an IP Address Automatically ...............................................63

4.3.2.1.4 LAN Configuration – PPP IP Address................................................................................64

4.3.2.1.5 LAN Configuration – Use The Following Static IP Address..............................................65

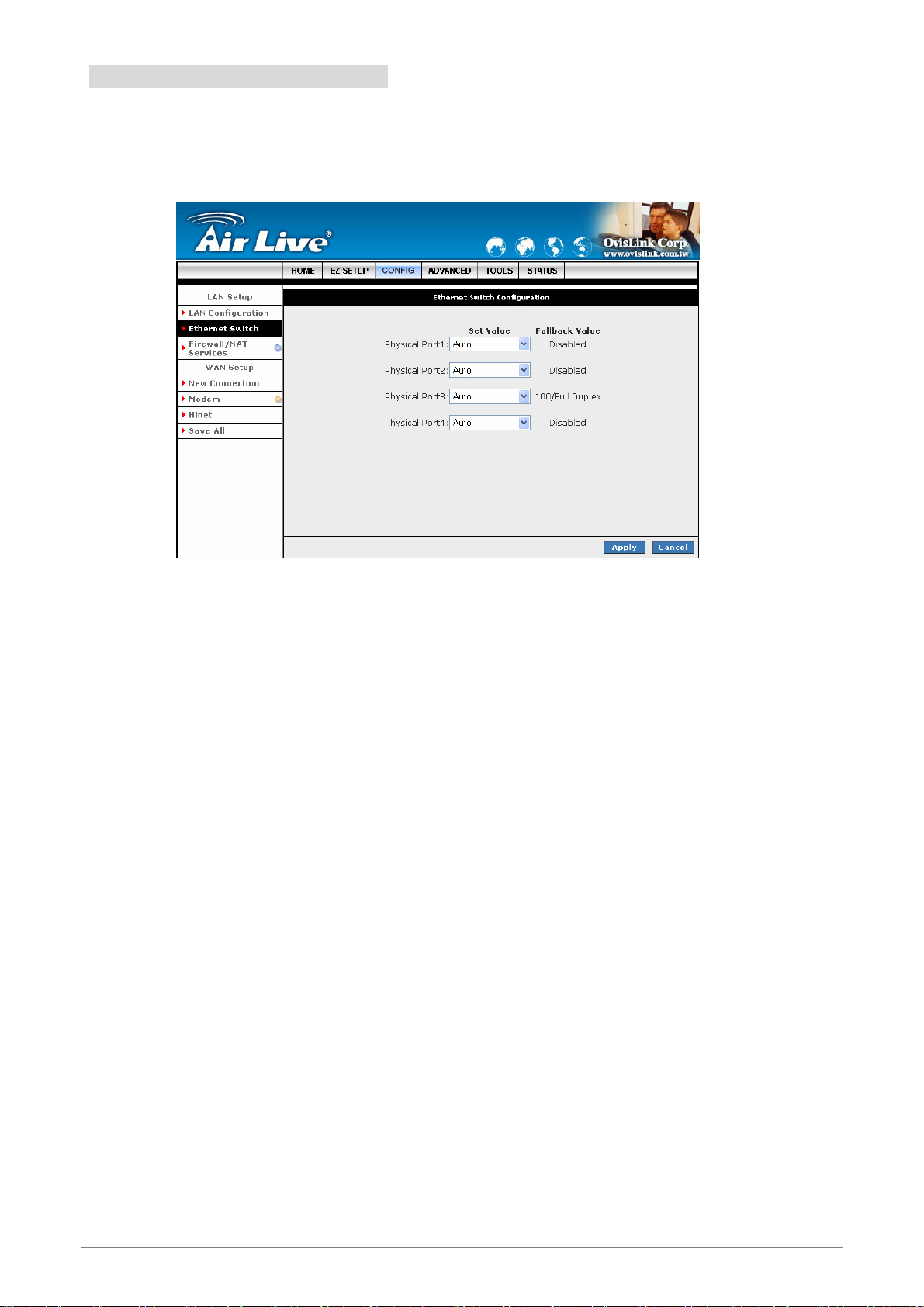

4.3.3 LAN Setup - Ethernet Switch ...................................................................................................67

4.3.4 LAN Setup - Firewall/NAT Services........................................................................................68

4.4 ADVANCED................................................................................................................................69

4.4.1 ADVANCED - SNTP................................................................................................................70

4.4.1.1 SNTP Configuration Procedure.............................................................................................72

4.4.2 ADVANCED - SNMP ..............................................................................................................73

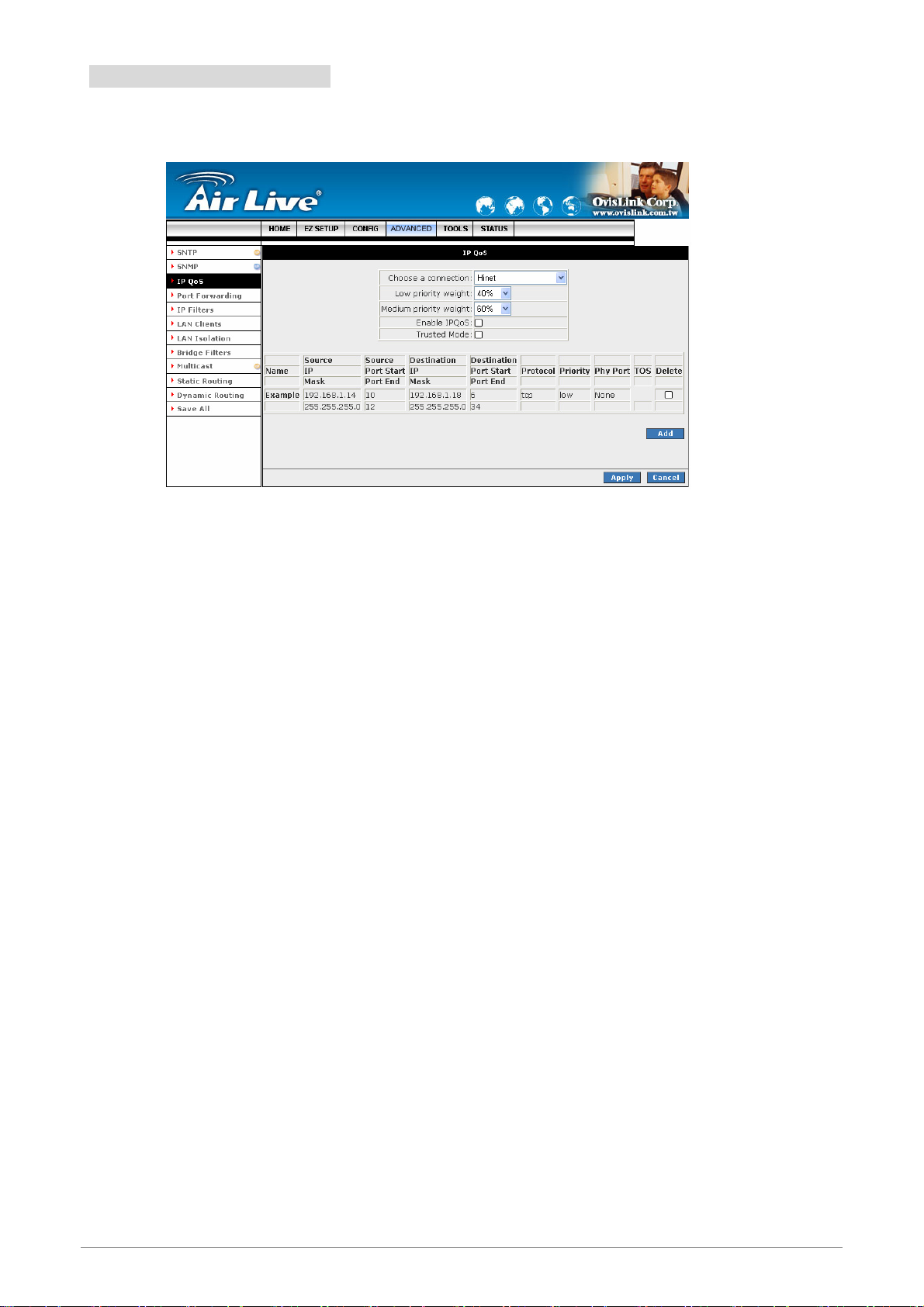

4.4.3 ADVANCED - IP QoS ..............................................................................................................75

4.4.3.1 IP QoS Rule Setup .................................................................................................................77

4.4.3.2 Create IP QoS Traffic Rule....................................................................................................79

4.4.3.3 Delete a Traffic Rule..............................................................................................................81

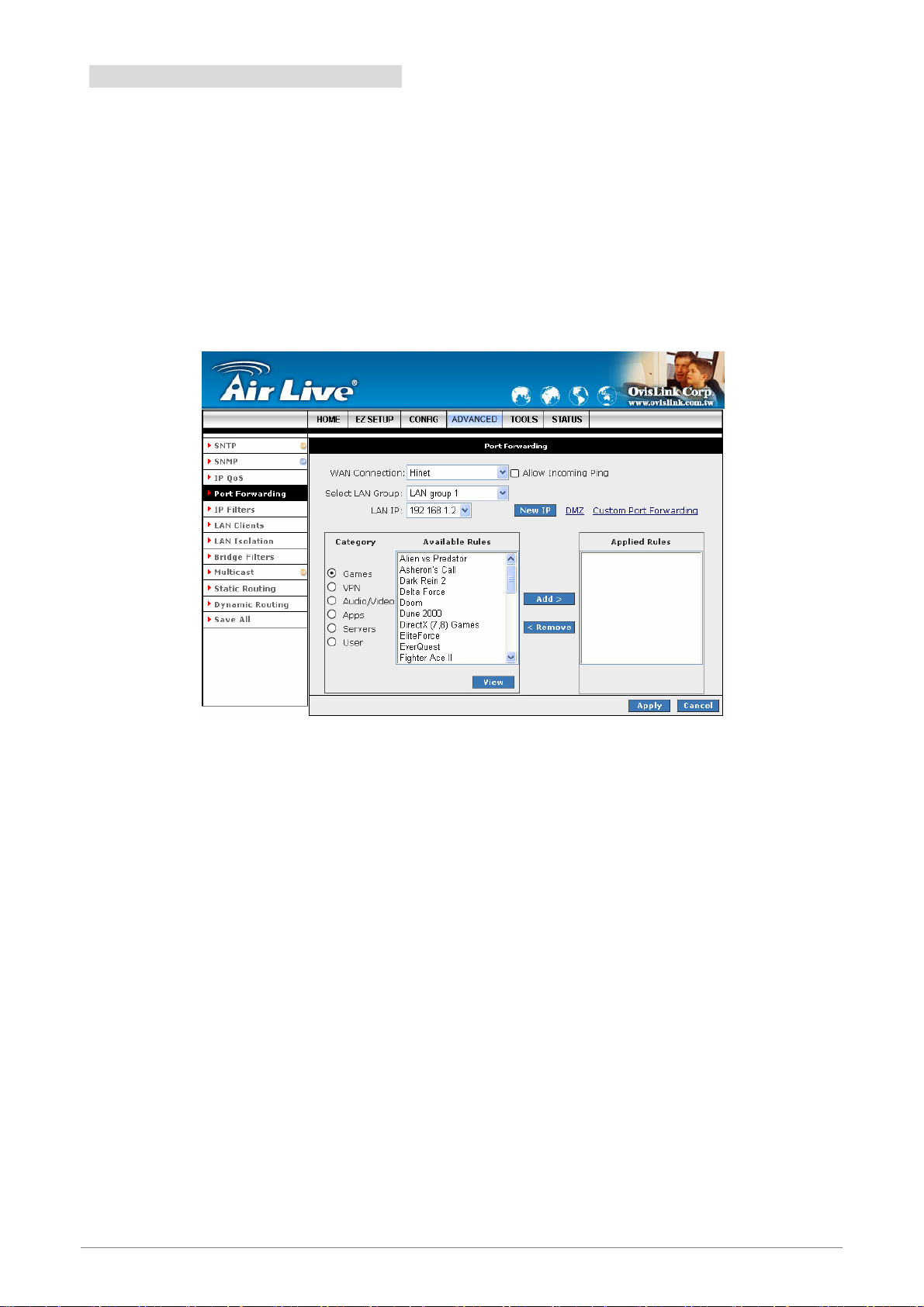

4.4.4 ADVANCED - Port Forwarding...............................................................................................82

4.4.4.1 Port Forwarding Configuration Procedure ............................................................................83

4.4.4.2 Port Forwarding – New IP.....................................................................................................85

4.4.4.3 Port Forwarding – DMZ ........................................................................................................86

4.4.4.3.1 DMZ Configuration Procedure...........................................................................................87

4.4.4.4 Port Forwarding – Custom Port Forwarding .........................................................................88

4.4.5 ADVANCED - IP Filters...........................................................................................................90

4.4.5.1 IP Filters Configuration Procedure........................................................................................91

4.4.5.2 IP Filters – Custom IP Filters.................................................................................................92

4.4.6 ADVANCED - LAN Clients.....................................................................................................94

4.4.6.1 LAN Clients Configuration Procedure ..................................................................................95

4.4.7 ADVANCED - LAN Isolation..................................................................................................96

4.4.7.1 LAN Isolation Configuration Procedure ...............................................................................97

4.4.8 ADVANCED - Bridge Filters ...................................................................................................98

4.4.8.1 Bridge Filters Configuration Procedure...............................................................................100

4.4.9 ADVANCED - Multicast ........................................................................................................101

4.4.9.1 Multicast Configuration Procedure......................................................................................102

4.4.10 ADVANCED – Static Routing..............................................................................................103

4.4.10.1 Static Routing Configuration Procedure............................................................................104

4.4.11 ADVANCED – Dynamic Routing ........................................................................................105

4.4.11.1 Dynamic Routing Configuration Procedure ......................................................................107

4.4.12 ADVANCED – Save All .......................................................................................................108

4.5 TOOLS.......................................................................................................................................109

4.5.1 TOOLS - System Commands .................................................................................................110

4.5.2 TOOLS - Remote Log ............................................................................................................111

AirLive ARM-104_v3 ADSL2/2+ Router

4.5.3 TOOLS - User Management...................................................................................................113

4.5.4 TOOLS - Update Gateway .....................................................................................................114

4.5.4.1 Update Gateway Procedure .................................................................................................115

4.5.5 TOOLS - Ping Test .................................................................................................................116

4.5.5.1 Ping Test Procedure .............................................................................................................117

4.5.6 TOOLS - Modem Test ............................................................................................................118

4.5.7 TOOLS – Save All ..................................................................................................................119

4.6 STATUS .....................................................................................................................................120

4.6.1 STATUS - Network Statistics .................................................................................................121

4.6.1.1 STATUS - Network Statistics - Ethernet .............................................................................122

4.6.1.2 STATUS - Network Statistics - DSL ...................................................................................123

4.6.2 STATUS – Connection Status.................................................................................................124

4.6.3 STATUS - DHCP Clients........................................................................................................125

4.6.4 STATUS - Modem Status .......................................................................................................126

4.6.5 STATUS - Product Information ..............................................................................................127

4.7.6 STATUS - System Log ...........................................................................................................128

APPENDIX A: ROUTER TERMS ....................................................................................129

APPENDIX B: FREQUENTLY ASKED QUESTIONS .....................................................131

APPENDIX C: TROUBLESHOOTING GUIDE................................................................133

APPENDIX D: GLOSSARY ............................................................................................136

AirLive ARM-104_v3 ADSL2/2+ Router

Chapter 1 Introduction

Congratulations on your purchase of this outstanding AirLive ARM-104_v3 ADSL2/2+ Router. This device is

a Four Ports Ethernet ADSL2/2+ Router combines an “Always-On” high speed Asymmetric Digital Subscriber

Line (ADSL/ADSL2/ADSL2+) connection to the Telephone Line, and four 10/100BASE-T Ethernet Switch

connection to a host PC or other Ethernet device to enable the widest array of host connectivity. This

ARM-104_v3 ADSL2/2+ Router is specially designed for residential, industries and SOHO users.

ADSL2/2+ is a transmission technology used to carry user data over a single twisted-pair line between the

Central Office and the Customer Premises. The downstream data rates can go up to 24 Mbps and the

upstream data rates can go up to 1Mbps with length reach up to 22Kft. This asymmetric nature lends itself to

applications such as Internet access and video delivery.

With minimum setup, you can install and use the router within minutes.

AirLive ARM-104_v3 ADSL2/2+ Router

1.1 Features

 The AirLive ARM-104_v3 ADSL2/2+ Router provides the following features:

y Compliant to ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-G.992.3, ITU G.992.5

and READSL2 standards. Support all Digital Loop ITU G.992.3 annex I and J specifications.

y Fully compliant with Annex A/B/B (U-R2) ADSL specifications.

y Downstream and Upstream data rates up to 24Mbps and 1Mbps.

y Support RFC 1483 Bridge/Routing over ATM over ADSL.

y Support PPPoE, PPPoA and IPoA Routing ATM over ADSL.

y ATM Layer with Traffic Shaping QoS support ( UBR, CBR, VBR-rt, VBR-nt ).

y Support UPnP functionality (Optional).

y Web-based setup for installation and management.

y Built-in 4*10/100 Mbps Fast Ethernet Switch port for LAN connection.

y Compliant with IEEE 802.3/802.3u and auto-negotiation.

y Support full-duplex 802.3 flow control.

y Support IP Filtering, MAC Filtering, Web Filtering and IPSec Pass-Through security

functionality.

y Support Dying Gasp functionality (Optional).

y Flash memory for firmware upgrade.

y Hardware Reset button for fast default setting recovery.

y HTTP Web-Based Management/Configuration.

y LEDs indicator indicates connection status.

 ADSL Standards

y Full rate ANSI T1.413 Issue2, ITU-T G.992.1 and ITU-T G.992.2 standards compliant.

y ITU G.992.3, ITU G.992.5 and READSL2 ADSL2/2+ standards compliant.

y Downstream and Upstream data rates up to 24Mbps and 1Mbps.

y Reach length up to 22Kft.

y Support Dying Gasp functionality (Optional).

AirLive ARM-104_v3 ADSL2/2+ Router

 ATM Protocols

y Support ATM ALL0, ALL2 & ALL5.

y Support up to 16PVCs.

y Support ATM UBR, CBR, VBR-rt and VBR-nt Traffic Shaping QoS.

y Support OAM F4/F5 Loop Back.

y Support PPPoA (RFC2364).

y Support PPPoE (RFC2516).

y Router/Bridged Ethernet over ATM (RFC2864 / RFC1483).

y Classical IP over ATM (RFC2225 / RFC1577).

 Router Mode

y IP Routing – RIPv1 and RIPv2.

y Static Routing.

y DHCP Server, Relay and Client.

y Support DNS Relay/Server.

y Support DMZ functionality.

y Support NAT and NAPT (PAT) functionality with extensive ALG supported.

y Support IPSec, L2TP, PPTP Pass-Through.

y Support VPN Pass-Through.

y Support SNMP functionality.

y Support ICMP and IGMP.

y Support PAP and CHAP PPP Authentication.

 Bridge Mode

y Support Transparent Bridging ( IEEE 802.1D ).Support RFC 2684/1483 Bridged.

 Firewall Built in Firewall functionality.

y Support IP Filtering.

y Support MAC Filtering.

y Support Web Filtering.

y IPSec Pass-Through.

y Protection against IP and MAC address spoofing.

 UpnP (Optional)

y Support UPnP functionality.

AirLive ARM-104_v3 ADSL2/2+ Router

 Ethernet Standards

y Built-in 4 Ports 10/100Mbps Ethernet Switch which compliant with IEEE 802.3x standards

y Automatic MDI/MDI-X crossover for 100BASE-TX and 10BASE-T ports.

y Auto-negotiation and speed-auto-sensing support.

y Port based VLAN supported in any combination.

 Web-Based Management

y Web-based Configuration / Management.

y Remote / Local Management / Configuration.

y Firmware upgrade and Reset to default via Web management.

y Telnet, TFTP and FTP Management / Configuration.

y SNMP MIB-II.

y Restore factory default setting via Web or hardware reset button.

y WAN and LAN connection statistics.

y Configuration of static routes and routing table, NAT/NAPT and VCs. y Support Password Authentication.

AirLive ARM-104_v3 ADSL2/2+ Router

1.2 Scope

This document provides the descriptions and usages for the ARM-104_v3 ADSL2/2+ Router’s Web pages

that are used in the configuration and setting process. Both basic and advanced descriptions and concepts

are discussed. To help the reader understand more about these Web pages, some questions and answers

(Q&A) are appended after the definition of each Web page along with the appendices at the end of the guide.

AirLive ARM-104_v3 ADSL2/2+ Router

1.3 Audience

This document is prepared for use by those customers who purchase the AirLive ARM-104_v3 ADSL2/2+

Router and using the provided or embedded firmware. It assumes the reader has a basic knowledge of

ADSL/ADSL2/ADSL2+ and networking.

AirLive ARM-104_v3 ADSL2/2+ Router

1.4 Document Structure

Chapter 1: Introduction, provides a brief introduction to the product and user guide.

Chapter 2: Knowing The AirLive ARM-104_v3 ADSL2/2+ Router, provides device specifications and

hardware connection mechanism.

Chapter 3: Setting Up TCP/IP In Windows, provides Windows system Network’s configurations.

Chapter 4: Device Administration, describes the pages found under the Admin menu. These pages

allow the user to view, change, edit, update, and save the AirLive ARM-104_v3 ADSL2/2+

Router’s configurations or settings.

Appendix A: Router Terms, provides an introduction to basic Router Terms.

Appendix B: Frequently Asked Questions, is a compilation of useful questions regarding the AirLive

ARM-104_v3 ADSL2/2+ Router.

Appendix C: Troubleshooting Guide, is a compilation of questions and answers relating to common

problems dealing with Windows networking and the AirLive ARM-104_v3 ADSL2/2+ Router

configurations.

Appendix D: Glossary, provides definitions of terms and acronyms of this AirLive ARM-104_v3 ADSL2/2+

Router.

AirLive ARM-104_v3 ADSL2/2+ Router

1.5 System Requirement

Check and confirm that your system confirm the following minimum requirements:

 Personal computer ( PC/Notebook ).

 Pentium II compatible processor and above.

 Ethernet LAN card installed with TCP/IP protocol.

 USB Port ( Optional )

 64 MB RAM or more.

 50 MB of free disk space ( Minimum ).

 Internet Browser.

 CD-ROM Drive.

AirLive ARM-104_v3 ADSL2/2+ Router

1.6 Packet Contents

The AirLive ARM-104_v3 ADSL2/2+ Router package contains the following items :

 One ARM-104_v3 ADSL2/2+ Router

 One Power Adapter

 One RJ-11 ADSL Cable

 One CAT-5 Ethernet Cable

 One CD-ROM (Manual / Quick Setup Guide )

If any of the above items are damaged or missing, please contact your dealer immediately.

AirLive ARM-104_v3 ADSL2/2+ Router

Chapter 2 Knowing the AirLive ARM-104_v3 ADSL2/2+ Router

2.1 Front Panel:

The AirLive ARM-104_v3 ADSL2/2+ Router’s LEDs indicators display information about the device’s status.

PWR

ADSL

PPP Lights up when a PPP connection is established.

Lights up when ARM-104_v3 ADSL2/2+ Router is powered on.

Blinking when ARM-104_v3 ADSL2/2+ Router is Sending/Receiving data.

Blinking when ARM-104_v3 ADSL2/2+ Router is ready.

Lights up when a successful ADSL connection is established.

AirLive ARM-104_v3 ADSL2/2+ Router

2.2 Back Panel:

The back panel of the ARM-104_v3 ADSL2/2+ Router contains ADSL, Ethernet Switches, Reset and Power

Adapter connection.

ADSL Port for connecting to the ADSL2/2+ Service Provider.

Ports 1~4 Four 10/100Mbps Ethernet Ports for connecting to the network devices

RESET

POWER 12V DC/1A or 9V AC/1A Power adapter connector.

Restore the ARM-104_v3 ADSL2/2+ Router to factory default setting.

All the Ethernet port of the ARM-104_v3 ADSL2/2+ Router supports

auto-crossover capability.

RESET Button:

Reboot & Restore the ARM-104_v3 ADSL2/2+ Router to factory defaults.

Resetting Factory Defaults:

The reboot and restore to factory defaults feature will set the device to its factory default configuration by

resetting the ARM-104_v3 ADSL2/2+ Router.

To Reset the ARM-104_v3 ADSL2/2+ Router:

 Ensure that the device is powered on.

 Press the Reset button for 10~15 seconds and release. Wait for 30 seconds after release the Reset

button. Do not power off the device during the reset process.

 The default settings are now restored after 30 seconds.

AirLive ARM-104_v3 ADSL2/2+ Router

2.3 Connection Mechanism:

This section describes the hardware connection mechanism of ARM-104_v3 ADSL2/2+ Router on your Local

Area Network (LAN) connected to the Internet, how to configure your ARM-104_v3 ADSL2/2+ Router for

Internet access or how to manually configure your Internet connection.

You need to prepare the following items before you can establish an Internet connection through your

ARM-104_v3 ADSL2/2+ Router:

1. A computer/notebook which must have an installed Ethernet Adaptor and an Ethernet Cable,

2. ADSL/ADSL2/ADSL2+ service account and configuration information provided by your Internet Service

Provider (ISP). You will need one or more of the following configuration parameters to connect your

ARM-104_v3 ADSL2/2+ Router to the Internet:

a. VPI/VCI parameters

b. Multiplexing Method or Protocol Type or Encapsulation Type

c. Host and Domain Names

d. ISP Login Name and Password

e. ISP Domain Name Server (DNS) Address

f. Fixed or Static IP Address.

Figure below shows the overall hardware connection mechanism of your ARM-104_v3 ADSL2/2+ Router.

AirLive ARM-104_v3 ADSL2/2+ Router

Following are the steps to properly connect your ARM-104_v3 ADSL2/2+ Router:

1. Turn off your computer/notebook.

2. Connect the ADSL port of your ARM-104_v3 ADSL2/2+ Router to the wall jack of the

ADSL/ADSL2/ADSL2+ Line with a RJ-11 cable.

3. Connect the Ethernet cable (RJ-45) from your ARM-104_v3 ADSL2/2+ Router (Switch) to the Ethernet

Adaptor in your computer.

4. Connect the Power adaptor to the ARM-104_v3 ADSL2/2+ Router and plug it into a Power outlet.

The Power light will lit after turning on the ARM-104_v3 ADSL2/2+

Router.

Auto and self-diagnostic process might turn the LED indicators ON and

OFF during the process.

Use the Power Adaptor exclusively in combination with the equipment

5. Turn on your computer.

6. Refer to the next section to setup or configure your system’s Network Adaptor.

supplied and do not use any other kind of power adaptor for the

equipment.

AirLive ARM-104_v3 ADSL2/2+ Router

Chapter 3 Setting up the TCP/IP in Windows

The instruction in this chapter will help you configure your computers to be able to communicate with this

ARM-104_v3 ADSL2/2+ Router.

Computers access the Internet using a protocol called TCP/IP (Transmission Control Protocol/ Internet

Protocol). Each computer/notebook on your network must have TCP/IP installed and selected as its

networking protocol. If a Network Interface Card (NIC) is already installed in your PC, then TCP/IP is probably

already installed as well.

The following description assumes ARM-104_v3 ADSL2/2+ Router been set to factory default. (If not, please

hold the reset button down for 5~10 seconds). The default of the ARM-104_v3 ADSL2/2+ Router’s LAN IP is

192.168.1.1.

Follow the procedures below to set your computer/notebook function as a DHCP Client.

Restart and Reboot your Windows system might be necessary after setting your

computer function as a DHCP Client. In order to properly activate your choice, click

“OK” to restart your Windows system.

AirLive ARM-104_v3 ADSL2/2+ Router

3.1 Windows ME / 98

Step 1: Click Start→Settings→Control Panel.

Step 2: Double-click the Network icon.

Step 4: Go to IP Address icon and select

Obtain an IP address.

Step 5: Go to Gateway icon and erase all

previous setting.

Step 3: Go to Configuration icon, select network

adapter installed and click Properties.

1 2

Step 6: Go to DNS Configuration icon, select

Disable DNS and click OK.

AirLive ARM-104_v3 ADSL2/2+ Router

3.2 Windows 2000

Step 1: Click Start→Settings→Control Panel.

Step 4: Select Internet Protocol (TCP/IP) and click

Properties.

Step 2: Double-click the Network and Dial-up

Connections.

Step 3: Right Click the Local Area Connection and

select Properties.

Step 5: Select Obtain an IP address automatically

and DNS server address automatically.

Then, click OK.

AirLive ARM-104_v3 ADSL2/2+ Router

3.3 Windows XP

Step 1: Click Start→Control Panel→Classic View.

Step 2: Double-click the Network Connections.

Step 4: Go to General icon, select Internet Protocol

(TCP/IP) and click Properties.

1 2

Step 3: Right Click on the Local Area Connection and

select Properties.

Step 5: Go to General icon, select Obtain an IP

address automatically and DNS server

address automatically.

Then, click OK.

AirLive ARM-104_v3 ADSL2/2+ Router

3.4 Checking TCP/IP Configuration

After your PC is configured and the system has rebooted, you can check the TCP/IP configuration using the

following utility provided by your Windows system:

A. Windows 98/ME:

1. Click on “Start” and “Run”.

2. In the open field, enter “Command”, then press “OK”.

3. All the Ethernet adapter information will be shown in the appears Windows. Check if you can

get the following setting:

 The IP Address as 192.168.1.x

 The Subnet Mask as 255.255.255.0

 The Default Gateway as 192.168.1.1

4. Type “Exit” to end up the MS-DOS Prompt.

AirLive ARM-104_v3 ADSL2/2+ Router

B. Windows 2000:

1. Click “Start” and “Run”.

2. In the open field, enter “cmd” then click “OK”.

3. In the command prompt, type “ipconfig /all”, then press “Enter”.

All the Ethernet adapter information will be shown in the appear Windows. Check if you can

get the following setting:

 The IP Address as 192.168.1.x

 The Subnet Mask as 255.255.255.0

 The Default Gateway as 192.168.1.1

4. Type “Exit” to end up the process.

AirLive ARM-104_v3 ADSL2/2+ Router

C. Windows XP:

1. Click “Start” and “Run”.

2. In the open field, enter “cmd” then click “OK”.

3. In the command prompt, type “ipconfig /all”, then press “Enter”

All the Ethernet adapter information will be shown in the appear Windows. Check if you can

get the following setting:

 IP address as 192.168.1.x

 The Subnet Mask as 255.255.255.0

 the default gateway as 192.168.1.1

4. Type “Exit” to end up the process.

AirLive ARM-104_v3 ADSL2/2+ Router

Chapter 4 Device Administration

For your convenience, an Administrative Utility has been programmed into ARM-104_v3 ADSL2/2+ Router.

This chapter will explain all the functions in this utility. All the ARM-104_v3 ADSL2/2+ Router based

administrative tasks are performed through this web utility.

4.1 Login

To access the ARM-104_v3 ADSL2/2+ Router Configuration screens, follow the following steps will enable

you to log into the ARM-104_v3 ADSL2/2+ Router:

1. Launch the Web browser (Internet Explorer, Netscape, etc).

2. Enter the ARM-104_v3 ADSL2/2+ Router default IP address (Default Gateway) http://192.168.1.1

in the address bar then press Enter to Log in.

3. Entry of the username and password will be prompted. Enter the default login “Username” and

“Password”: The default login Username of the administrator is “Admin”, and the default login

Password is “airlive”.

; Note that the Username and Password are case sensitive.

“Username” and “Password” can be changed after login. Refer to the Tools configuration

section for further instruction.

AirLive ARM-104_v3 ADSL2/2+ Router

Upon entering the address into the web browser, the configurable HOME page with all the device

configuration information will pop up as shown in Figure below.

 HOME: The Home section show the current ARM-104_v3 ADSL2/2+ Router’s function

information under different links.

 EZ SETUP: The EZ Setup is a presetting wizard which meant to help you install the ARM-104_v3

ADSL2/2+ Router quickly and easily.

 CONFIG: The Config section allows you to create new connections, edit existing connections,

and configure other basic settings.

 ADVANCED: The Advanced section lets you configure advanced features like RIP, SNTP, SNMP,

IP QoS, Access control, etc...

 TOOLS:

The

Tools section lets you carry out system commands and perform simple system tests.

 STATUS: The Status section displays status, log and statistical information for all connections and

interfaces.

AirLive ARM-104_v3 ADSL2/2+ Router

 Status Information: Shows the current device connection status.

; System Uptime: This field displays the time of the ARM-104_v3 ADSL2/2+ Router has

been in operation.

; DSL Status: Shows the ARM-104_v3 ADSL2/2+ Router connection status.

; DSL Speed: This field displays the ARM-104_v3 ADSL2/2+ Router Downstream/Upstream

data rate in Kbps

; Ethernet: This field displays the link up or down for the Ethernet connection.

; USB: This field displays the link up or down for the USB connection (Optional).

; Software Version: This field displays the ARM-104_v3 ADSL2/2+ Router’s data pump

code version.

; Firmware Version: This field displays the ARM-104_v3 ADSL2/2+ Router’s firmware

version.

 Log Out: Click to Log Out the Administration configuration page.

 Refresh: Click to Refresh current page.

AirLive ARM-104_v3 ADSL2/2+ Router

4.2 EZ SETUP

The EZ SETUP is a presetting wizard which meant to help you install the ARM-104_v3 ADSL2/2+ Router

quickly and easily.

Click on “Wizard” and the following screen will pop-up. Follow the Steps describe below to complete your

installation.

AirLive ARM-104_v3 ADSL2/2+ Router

+ 118 hidden pages
