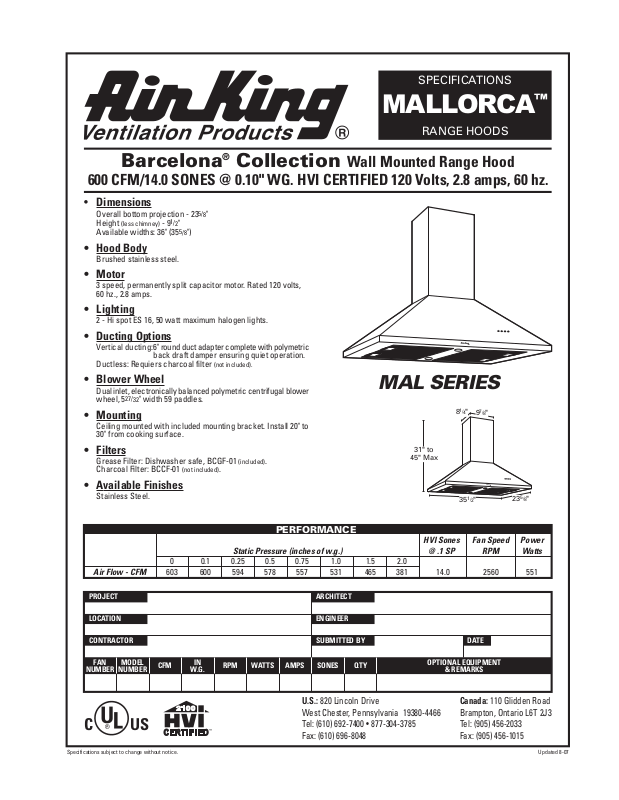

Air King RANGE HOODS MALLORCA User Manual
SPECIFICATIONS
Barcelona® Collection Wall Mounted Range Hood
600 CFM/14.0 SONES @ 0.10" WG.
• Dimensions
Overall bottom projection - 23
(less chimney) - 9
Height
Available widths: 36" (35
• Hood Body
Brushed stainless steel.
• Motor
3 speed, permanently split capacitor motor. Rated 120 volts,
60 hz., 2.8 amps.
• Lighting
2 - Hi spot ES 16, 50 watt maximum halogen lights.
• Ducting Options
Vertical ducting:6" round duct adapter complete with polymetric
Ductless: Requiers charcoal filter
back draft damper ensuring quiet operation.
• Blower Wheel
Dual inlet, electronically balanced polymetric centrifugal blower
27
wheel, 5
/
" width 59 paddles.
32
• Mounting
Ceiling mounted with included mounting bracket. Install 20" to
30" from cooking surface.
• Filters
Grease Filter: Dishwasher safe, BCGF-01 (included).
Charcoal Filter: BCCF-01
• Available Finishes
Stainless Steel.
1
/
"
2
5
/
")
8
(not included).
5
/
"
8
(not included).
MALLOR CA
™
RANGE HOODS
HVI CERTIFIED 120 Volts, 2.8 amps, 60 hz.
MAL SERIES
1
7
/
/
8
"
4
8
9
"
31" to
45
" Max
35
1
/
"
2
23
5
/
"
8
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.1 0.25 0.5 0.75 1.0 1.5 2.0
Air Flow - CFM
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
NUMBER NUMBER W.G. & REMARKS
CUS
603 600 594 578 557 531 465 381 14.0 2560 551
ARCHITECT
ENGINEER
SUBMITTED BY DATE
CFM
IN
RPM WATTS AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
OPTIONAL EQUIPMENT
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
Updated 8-07Specifications subject to change without notice.
