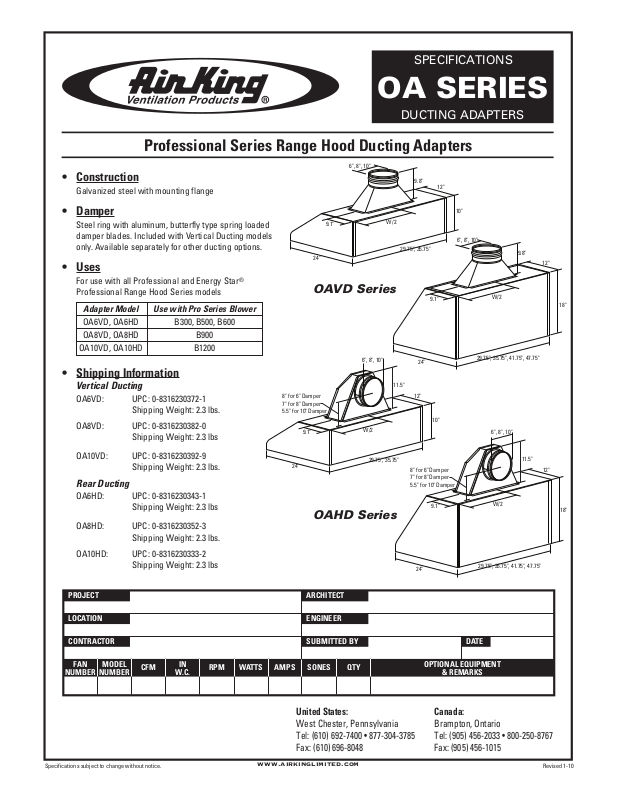

Air-King OA User Manual
Professional Series Range Hood Ducting Adapters
• Construction
Galvanized steel with mounting flange
SPECIFICATIONS
OA SERIES
DUCTING ADAPTERS
6", 8", 10"
9.8"
12"
• Damper
Steel ring with aluminum, butterfly type spring loaded
damper blades. Included with Vertical Ducting models
only. Available separately for other ducting options.
• Uses
For use with all Professional and Energy Star®
Professional Range Hood Series models
Adapter Model Use with Pro Series Blower
OA6VD, OA6HD B300, B500, B600
OA8VD, OA8HD B900
OA10VD, OA10HD B1200
• Shipping Information
Vertical Ducting
OA6VD: UPC: 0-8316230372-1
Shipping Weight: 2.3 lbs.
OA8VD: UPC: 0-8316230382-0
Shipping Weight: 2.3 lbs
OA10VD: UPC: 0-8316230392-9
Shipping Weight: 2.3 lbs.
Rear Ducting
OA6HD: UPC: 0-8316230343-1
Shipping Weight: 2.3 lbs
OA8HD: UPC: 0-8316230352-3
Shipping Weight: 2.3 lbs.
OA10HD: UPC: 0-8316230333-2
Shipping Weight: 2.3 lbs
24"
OAVD Series
8" for 6" Damper
7" for 8" Damper
5.5" for 10" Damper
9.1"
24"
OAHD Series
9.1"
6", 8", 10"
W/2
29.75", 35.75"
W/2
11.5"
29.75", 35.75"
24"
12"
8" for 6" Damper
7" for 8" Damper
5.5" for 10" Damper
24"
9.1"
9.1"
10"
6", 8", 10"
9.8"
12"
W/2
29.75", 35.75", 41.75", 47.75"
10"
6", 8", 10"
11.5"
W/2
29.75", 35.75", 41.75", 47.75"
18"
12"
18"
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
NUMBER NUMBER W.C. & REMARKS
CFM
IN
RPM WATTS AMPS SONES QTY
