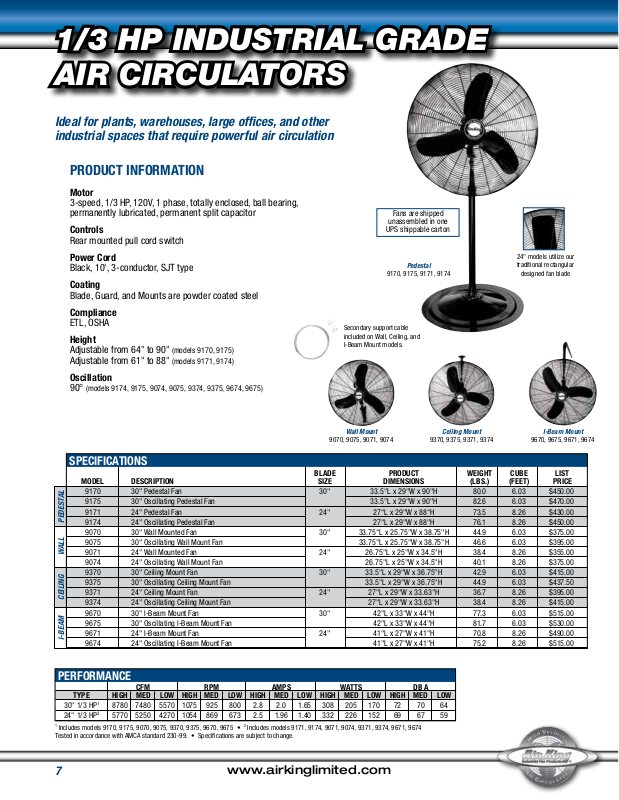

1/3 HP INDUSTRIAL GRADE

1/3 HP INDUSTRIAL GRADE

AIR CIRCULATORS

AIR CIRCULATORS

Ideal for plants, warehouses, large offices, and other
industrial spaces that require powerful air circulation

PRODUCT INFORMATION

Motor

3-speed, 1/3 HP, 120V, 1 phase, totally enclosed, ball bearing,
permanently lubricated, permanent split capacitor

Controls

Rear mounted pull cord switch

Power Cord

Black, 10', 3-conductor, SJT type

Coating

Blade, Guard, and Mounts are powder coated steel

Compliance

ETL, OSHA

Height

Adjustable from 64" to 90"

(models 9170, 9175)

Adjustable from 61" to 88" (models 9171, 9174)

Secondary support cable
included on Wall, Ceiling, and
I-Beam Mount models.

Fans are shipped

unassembled in one

UPS shippable carton

Pedestal

9170, 9175, 9171, 9174

24" models utilize our
traditional rectangular

designed fan blade

Oscillation

90° (models 9174, 9175, 9074, 9075, 9374, 9375, 9674, 9675)

Wall Mount

9070, 9075, 9071, 9074

Ceiling Mount

9370, 9375, 9371, 9374

I-Beam Mount

9670, 9675, 9671, 9674

SPECIFICATIONS

BLADE PRODUCT WEIGHT CUBE LIST
MODEL DESCRIPTION SIZE DIMENSIONS (LBS.) (FEET) PRICE

9170 30" Pedestal Fan 30" 33.5"L x 29"W x 90"H 80.0 6.03 $450.00
9175 30" Oscillating Pedestal Fan 33.5"L x 29"W x 90"H 82.6 6.03 $470.00
9171 24" Pedestal Fan 24" 27"L x 29"W x 88"H 73.5 8.26 $430.00

PEDESTALWALLI-BEAM

9174 24" Oscillating Pedestal Fan 27"L x 29"W x 88"H 76.1 8.26 $450.00
9070 30" Wall Mounted Fan 30" 33.75"L x 25.75"W x 38.75"H 44.9 6.03 $375.00
9075 30" Oscillating Wall Mount Fan 33.75"L x 25.75"W x 38.75"H 46.6 6.03 $395.00
9071 24" Wall Mounted Fan 24" 26.75"L x 25"W x 34.5"H 38.4 8.26 $355.00
9074 24" Oscillating Wall Mount Fan 26.75"L x 25"W x 34.5"H 40.1 8.26 $375.00
9370 30" Ceiling Mount Fan 30" 33.5"L x 29"W x 36.75"H 42.9 6.03 $415.00
9375 30" Oscillating Ceiling Mount Fan 33.5"L x 29"W x 36.75"H 44.9 6.03 $437.50
9371 24" Ceiling Mount Fan 24" 27"L x 29"W x 33.63"H 36.7 8.26 $395.00

CEILING

9374 24" Oscillating Ceiling Mount Fan 27"L x 29"W x 33.63"H 38.4 8.26 $415.00
9670 30" I-Beam Mount Fan 30" 42"L x 33"W x 44"H 77.3 6.03 $515.00
9675 30" Oscillating I-Beam Mount Fan 42"L x 33"W x 44"H 81.7 6.03 $530.00
9671 24" I-Beam Mount Fan 24" 41"L x 27"W x 41"H 70.8 8.26 $490.00
9674 24" Oscillating I-Beam Mount Fan 41"L x 27"W x 41"H 75.2 8.26 $515.00

PERFORMANCE

CFM RPM AMPS WATTS DB A
TYPE HIGH MED LOW HIGH MED LOW HIGH MED LOW HIGH MED LOW HIGH MED LOW

30" 1/3 HP1 8780 7480 5570 1075 925 800 2.8 2.0 1.65 308 205 170 72 70 64
24" 1/3 HP2 5770 5250 4270 1054 869 673 2.5 1.96 1.40 332 226 152 69 67 59

1

Includes models 9170, 9175, 9070, 9075, 9370, 9375, 9670, 9675 • 2 Includes models 9171, 9174, 9071, 9074, 9371, 9374, 9671, 9674

Tested in accordance with AMCA standard 230-99. • Specications are subject to change.

7
