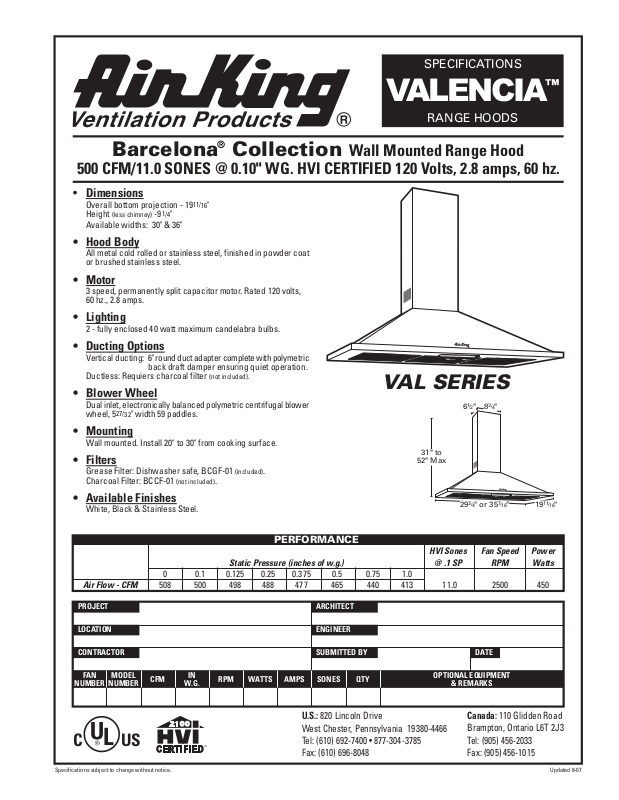

SPECIFICATIONS
V ALENCIA
RANGE HOODS
Barcelona® Collection Wall Mounted Range Hood
500 CFM/11.0 SONES @ 0.10" WG. HVI CERTIFIED 120 Volts, 2.8 amps, 60 hz.
• Dimensions
11
Overall bottom projection - 19
Height
(less chimney) -9
1
/
4
Available widths: 30" & 36"
• Hood Body
All metal cold rolled or stainless steel, finished in powder coat
or brushed stainless steel.
• Motor
3 speed, permanently split capacitor motor. Rated 120 volts,
60 hz., 2.8 amps.
• Lighting
2 - fully enclosed 40 watt maximum candelabra bulbs.
• Ducting Options
Vertical ducting: 6" round duct adapter complete with polymetric
Ductless: Requiers charcoal filter
back draft damper ensuring quiet operation.
• Blower Wheel
Dual inlet, electronically balanced polymetric centrifugal blower
27
wheel, 5
/
" width 59 paddles.
32
/
"
16
"
(not included).
VAL SERIES
1
3
/
/
6
"
2
8
"
4
™
• Mounting
Wall mounted. Install 20" to 30" from cooking surface.
• Filters
Grease Filter: Dishwasher safe, BCGF-01 (included).
Charcoal Filter: BCCF-01
(not included).
• Available Finishes
White, Black & Stainless Steel.
PERFORMANCE
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.1 0.125 0.25 0.375 0.5 0.75 1.0
Air Flow - CFM
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
NUMBER NUMBER W.G. & REMARKS
CUS
508 500 498 488 477 465 440 413 11.0 2500 450
ARCHITECT
ENGINEER
SUBMITTED BY DATE
CFM
IN
RPM WATTS AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
31" to
52
" Max
3
/
29
" or 35
4
HVI Sones Fan Speed Power
OPTIONAL EQUIPMENT
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
7
/
"
16
19
11
/
"
16
Updated 8-07Specifications subject to change without notice.
