Air King 4CH64F/9018F Operating Manual

MODELO 4CH64F/9018F

GARANTÍA LIMITADA

QUÉ CUBRE ESTA GARANTÍAS: Este producto está garantizado contra defectos de mano de obra y/o materiales.
CUÁNTO DURA ESTA GARANTÍA: Esta garantía se extiende únicamente al comprador original del producto y dura un (1) año a partir de la fecha original

de compra o hasta que el comprador original del producto venda o transfiera el producto, cualesquiera de ambas que ocurriera en primer lugar.

QUÉ HARÁ AIR KING

defectuosas o reemplazará el producto completo por el mismo modelo u otro comparable.
QUÉ NO CUBRE ESTA GARANTÍA: Esta garantía no tiene validez si el producto fue dañado o falló debido a un accidente, manipulación u operación

inadecuadas, daño en el envío, abuso, mal uso, reparaciones no autorizadas hechas o el intento de hacerlas. Esta garantía no cubre los costos de
envío para la devolución de productos a Air King para su reparación o reemplazo. Air King abonará los cargos de envío de devolución a Air King con
posterioridad a las reparaciones o el reemplazo bajo garantía.

CUALESQUIERA Y TODAS LAS GARANTÍAS, EXPLÍCITAS O IMPLÍCITAS (INCLUYENDO, SIN LIMITACIÓN, CUALESQUIERA GARANTÍA IMPLÍCITA
DE COMERCIABILIDAD), DURAN UN AÑO A PARTIR DE LA FECHA ORIGINAL DE COMPRA O HASTA QUE EL COMPRADOR ORIGINAL DEL
PRODUCTO VENDA O TRANSFIERA EL PRODUCTO, CUALESQUIERA DE AMBAS QUE OCURRIERA EN PRIMER LUGAR Y EN NINGÚN CASO
LA RESPONSABILIDAD DE AIR KING BAJO CUALQUIER GARANTÍA EXPLÍCITA O IMPLÍCITA INCLUIRÁ (I) DAÑOS INCIDENTALES O POR
CONSECUENCIA POR CUALQUIER CAUSA QUE FUERE, O (II) REEMPLAZO O REPARACIÓN DE CUALESQUIERA FUSIBLES HOGAREÑOS,
CORTA-CIRCUITOS O TOMACORRIENTES. INDEPENDIENTEMENTE DE CUALQUIER DECLARACIÓN CONTRARIA, EN NINGÚN CASO LA
RESPONSABILIDAD DE AIR KING BAJO CUALQUIER GARANTÍA EXPLÍCITA O IMPLÍCITA PODRÁ EXCEDER EL PRECIO DE COMPRA DEL
PRODUCTO Y DICHA RESPONSABILIDAD TERMINARÁ AL VENCIMIENTO DEL PERÍODO DE GARANTÍA.

Algunos estados y provincias no permiten limitaciones sobre la duración de una garantía implícita, o sobre la exclusión o limitación de los
daños incidentales o por consecuencia, por lo tanto dichas exclusiones o limitaciones podrían no aplicarse en su caso. Esta garantía le
otorga a usted derechos legales específicos. Usted también podría tener otros derechos que varían de estado en estado y de provincia
en provincia.
Se requiere prueba de compra antes que se acepte un reclamo bajo garantía.

: Durante el período de garantía, Air King, a opción propia, reparará o reemplazará cualquier parte o partes que demuestren ser

OPERATING INSTRUCTIONS & PARTS MANUAL

18" 3-SPEED WALL-MOUNTED
OSCILLATING FAN

18" (45,7 cm) MODEL 4CH64F/9018F

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DE-

SCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY

WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

DESCRIPTION

Air King® 18" (45,7 cm) wall-mounted oscillating fan offers rotary
knob/pull cord speed control, variable oscillation, a permanent
split capacitor motor and OSHA-complying grills.

SPECIFICATIONS

Motor .............................. 120V, 60 Hz

Blade diameter
Speeds
Control
Air Flow Distribution
Approvals

meets OSHA r

...........................3

...........................Rotary Knob/Pull Cord

..............18" (45,7 cm)

......90°

.......................ETL listed. Close mesh fan guard

equirements.

MODEL 4CH64F/9018F

SPEED HIGH MED LOW
CFM 1950 1680 1380

M3/s 0.92 0.79 0.65
RPM 1080 900 750
Amps 0.80 0.65 0.55
Watts 90 80 65
dB A 51 48 43

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions
should always be followed to reduce the risk of
fire, electric shock and injury to person, including
the following:

1. Read all instructions before using Fan.

2. Make certain that the power source conforms to the electrical
requirements of the Fan.

3. Use this Fan only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electrical
shock, or injury to persons.

4. Unplug power cord before installing, servicing, or moving the
Fan.

WARNING: DO NOT DEPEND UPON THE ON-OFF

SWITCH AS THE SOLE MEANS OF DISCONNECTING
POWER WHEN INSTALLING OR SERVICING THE FAN.
ALWAYS UNPLUG THE POWER CORD.

5. This Fan must NOT be used in potentially dangerous lo-

cations such as flammable, explosive, chemical-laden or
wet atmospheres.

6. DO NOT use Fan in or near a window. Rain may create an

electrical hazard.

7. The power cord is equipped with a three-prong grounded plug

that must be inserted into a matching receptacle. Under no
circumstances should the grounding prong be cut off the plug.
Where a two-prong wall receptacle is encountered, it must be
replaced with a properly grounded three-prong receptacle in­stalled in accordance with the National Electrical Code (NEC) and
all applicable local codes and ordinances. This work must be
done only by a qualified electrician, using copper wire only.

WARNING: DO NOT USE A THREE-PRONG ADAPTER.

IMPROPER CONNECTION MAY CREATE THE RISK OF
ELECTRIC SHOCK. USE OF SUCH ADAPTERS IS NOT
PERMITTED IN CANADA.

WARNING: THIS PLUG IS A SAFETY FEATURE. TO

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
PERSONAL INJURY, DO NOT REMOVE, REPLACE, REPAIR
OR TAMPER WITH THE ORIGINALLY SUPPLIED PLUG. IF
THE FAN DOES NOT FUNCTION PROPERLY, IT MAY BE
DUE TO THE SAFETY DEVICE INCORPORATED IN THIS
PLUG.

8. Where possible, avoid the use of extension cords. If they must
be used, minimize the risk of overheating by ensuring that they
are UL listed. Never use a single extension cord to operate
more than one Fan.

9. Do not operate any Fan with a damaged cord or plug after the
Fan malfunctions, has been dropped or damaged in any manner.
Return Fan to authorized service facility for examination,
electrical or mechanical adjustment or repair.

10.Do not insert or allow fingers or foreign objects to enter any
ventilation or exhaust opening as it may cause an electric shock,
fire, or damage the Fan. Do not block or tamper with the Fan
in any manner while it is in operation.

11.Always place the Fan on a stable, flat surface when operating,
to avoid the chance of the Fan overturning. Locate the Power
Cord so the Fan or other objects are not resting on it. Do not
run Power Cord under carpeting. Do not cover Power Cord with
throw rugs, runners, or the like. Arrange Power Cord away from
room traffic and where it will not be tripped over.

12.This Fan is not intended for use in wet or damp locations.
Never locate a Fan where it may fall into a bathtub or other
water container.

13. Do not use Fan outdoors.

14.This Fan is not suitable for use in agricultural facilities including
areas where livestock, poultry or other animals are confined.
Please refer to National Electric Code (NEC) Article 547-7
(2008), or applicable state or local codes or standards relating
to electrical requirements for Agricultural Buildings. THIS FAN

DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE
547-7 (2008).

15.This Fan is not suitable for use in hazardous locations. Please
refer to National Electric Code (NEC) Article 500 or applicable
state or local codes or standards relating to electrical
requirements for Hazardous locations. THIS FAN DOES NOT

MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK – DO NOT USE THIS FAN WITH ANY SOLID STATE
SPEED CONTROL DEVICES.

SAVE THESE INSTRUCTIONS

Rev. M 10/09

8

2084046

Rev. M 10/09

1

2084046

MODEL 4CH64F/9018F

MODELO 4CH64F/9018F

Motor

Rear

Grill

Detail 1

Plastic

Nut

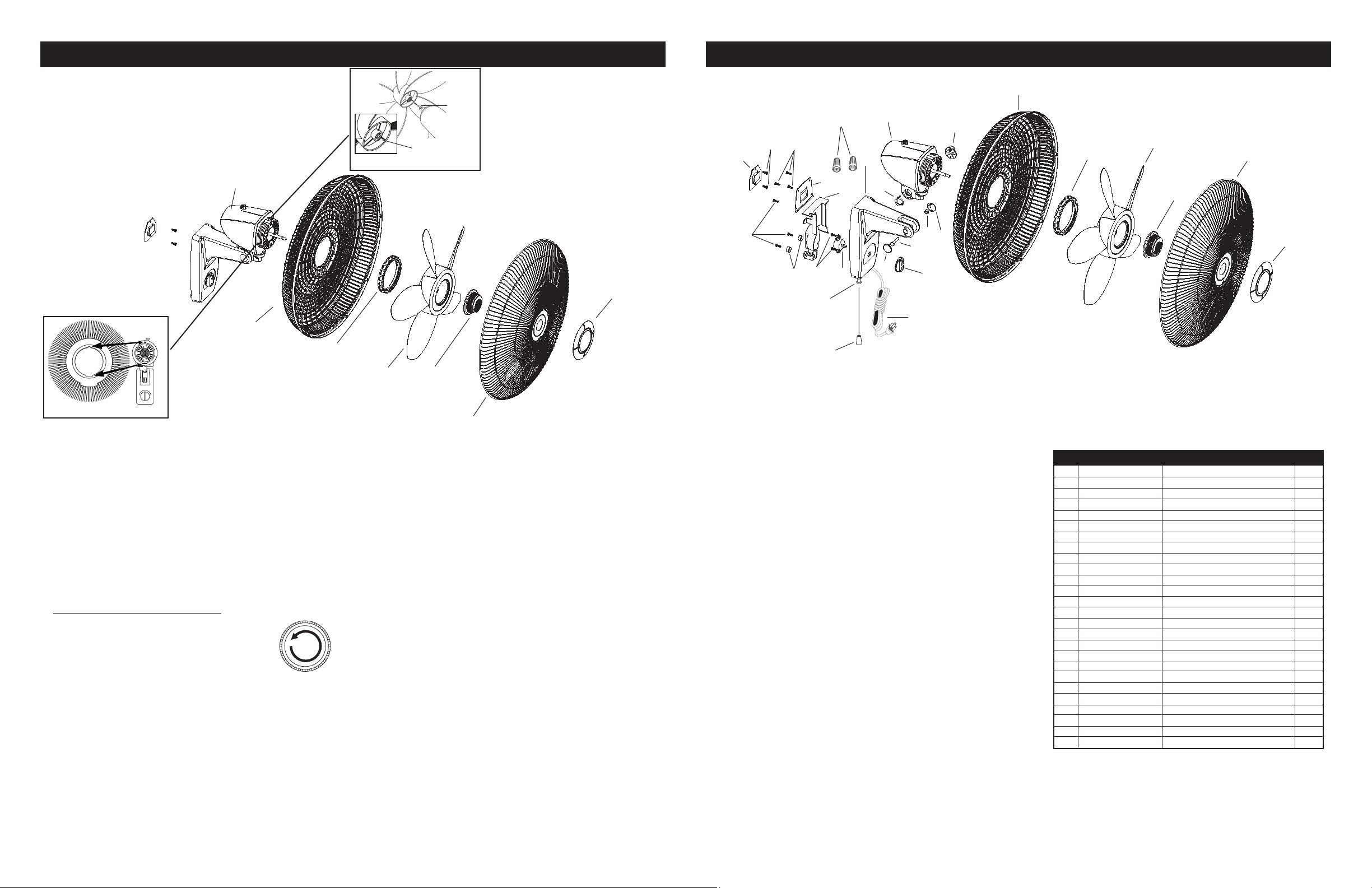

ASSEMBLY (Figure 1)

1. Put Rear Grill on Motor by aligning the tab on the Rear Grill
with the groove on the Motor. (Detail 1)

2. Fully seat Rear Grill on Motor and secure with Plastic Nut
turning Clockwise.

3. Slide

4. To secure

5. Snap Front Grill into place.

Blade onto Motor Shaft. (Align groove on blade hub with

pin on motor shaft.) (Detail 2)

Counter Clockwise until tight on

Blade, screw Spinner onto Shaft

Blade hub.

INSTALLATION

1. Locate a stud behind wall. If stud cannot be found, special types
of mounting anchors are available at your hardware store.

2. Secure Mounting Plate to wall with Screws supplied (#8 X 1 1/4"
Wood Screws). Make sure flange is pointing up as shown in
exploded view above.

3. Fan is now ready to hang on Mounting Plate.

OPERATION

VARIABLE OSCILLATION: Pull oscillation knob on the rear of the
motor up. Turn fan head to left, right, or straight ahead. Push
oscillation knob down and fan will oscillate about the set angle.

Rev. M 10/09

Pin

Groove

Detail 2

Ornament

Blade

Spinner

Front

Grill

VERTICAL ANGLE: To adjust vertical angle, tilt fan head up or

down, as desired.
SPEED: Speed is controlled by a pull-cord switch. The speed setting
is shown by switch knob on front cover. (Off-High-Med-Low-Off)
POWER SUPPLY CORD: Plug power supply cord into a wall outlet
(AC 120Volts, 60 Hz).

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD FROM OUTLET

BEFORE MOVING OR SERVICING THIS FAN.

WARNING: DO NOT IMMERSE FAN IN WATER!

CLEANING: Use a soft cloth moistened with a mild soap solu-

tion, such as liquid dish washing detergent. Dry ALL PARTS COM­PLETELY before reassembling. After any maintenance or servicing,
completely reassemble unit as described in this instruction manual
before reconnecting to the power supply.

CAUTION: Do not use gasoline, benzine, thinner, harsh

cleaners, etc. as they will damage the Fan. NEVER USE
ALCOHOL OR SOLVENTS.

LUBRICATION: Precision bearings are sealed at the factory for

life and will not require any further lubrication.

STORAGE: Store the Fan, with these instructions, in a cool, dry

place.

2

2084046

1

3

Rev. M 10/09

21

10

15

18

13

20

16

17

19

18

14

22

KEY PARTE NO. DESCRIPCIÓN CANT.

1 2060316B Placa de Montaje 1
2 2090003 Tornillo para Madera #8 X 11/4" 2
3 02090045A Tornillo #8 X 3/4" PPH Tipo 25 6
4 02090272 Pie de Hule 2
5 2060202 Placa Posterior para Colgar 1
6 2010554 Cubierta del Cable del Interruptor 1
7 2090008 Tornilla #8 X 1/2" 2
8 02055047 Interruptor con Cadenilla de Tiro 1
9 7091854 Plastico Protector 2
10 2010512P Cuerpo 1
11 2090539 Buje de la Cadenilla de Tiro 1
12 02090744 Pendiente 1
13 02035054 Conjunto del Motor 1
14 02010162B Placa de Trinquete 1
15 02090518 Resorte de Elevación 1
16 02090521A Eje de Elevación 1
17 02090033 Tuerca Hexagonal 1
18 02010548A Botones H.C. 2
19 2010131 Perilla del Interruptor 1
20 02050009FPB Conjunto del Cable 1
21 2096112 Parrilla Posterior 1
22 2010359 Tuerca de Protección 1
23 2010033 Aspa 1
24 2010093 Rotador 1
25 02096103 Parrilla Anterior 1
26 02010381A Ornamento 1

7

23

25

24

26

2084046

9

2

3

5

6

7

4

8

11

12
