INSTALLATION & OPERATING INSTRUCTIONS

100mm & 150mm Axial Fans

Aura-eco

Introduction

This Service Instructions are combined with technical specification, operating guide
and specification for the “Aura-eco ” fan; it contains information on installation, that

are important for ensuring correct and safe operation of the fan.

Designation

Fans are designed for ventilation of domestic and similar premises
(apartments,offices,stores,garages,kitchens, bathrooms, toilets and other

rooms, heated in wintertime).

Fans are exhaust fans and are designed for wall or ceiling mounting
(Fig.6,7). They are designed for a long-duration operation, without

disconnection from the power network.

The fan design is being constantly improved therefore some models may

slightly vary from those described in the present specification.

Set of supply

The following article is included:

- Fan 1pc;

- User's manual;

- Screws 4 pcs.

- Packing box

The fan arrangement with the timer or with a timer and a humidity sensor is

shown at the Fig. 1

1

5

2

3

4

Fig.1

1-cover, 2-casing, 3-electric

motor 4-blade impeller, 5-timer.

The options arrangement of the fans is given in the table 1.

Table 1

B

T

HT

PRT

Adjustable



timer (2-30) minutes

Timer with



humidity sensor

Timer with



motion sensor

Table 2

Max. Max.

Nominal

Noise

air intake,

pressure,

power,

level,

m

3

/h

Pa

W

dBA 60

35

6

26

235

86

20

35

Key features

The fans' designation, their characteristics, appearance, overall and

connection dimensions are listed in the tables 2,3 and at the Fig. 1,2.

The fans are designed for the connection to the AC network with the

voltage of 220-240 V and current frequency of 50 Hz.

The fans are designed for use in the premises with

temperature from 0°C to 45°C.

The fans do not interfere with radio, television and video

equipment.

Table 3

Type

Dimensions,

Weight,

a b c d

e

kg

Aura eco-air 100

150

122

102

100

17

0,56

Aura eco-air 150

205

174

124

150

19

0,9

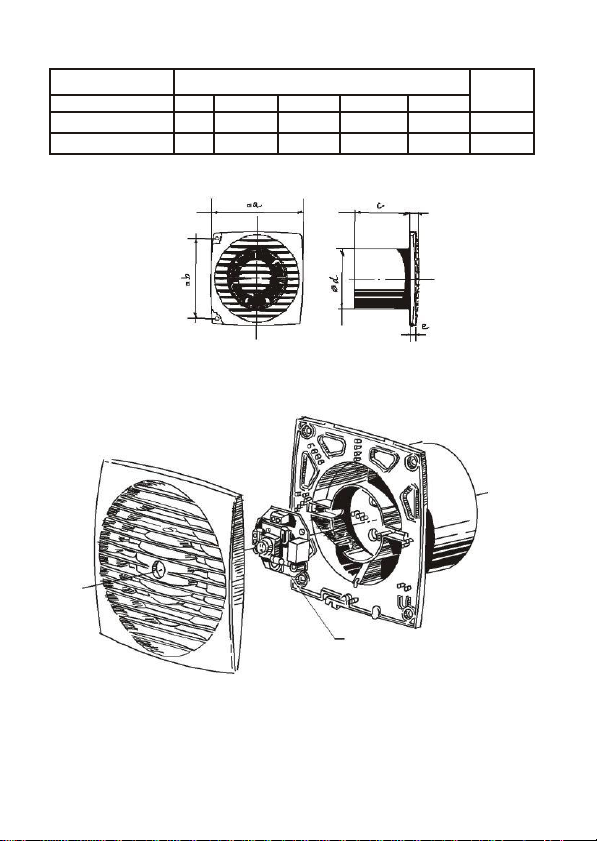

Overall and connection dimensions

Fig.

2

1

1- Timer with motion sensor

Fig.

3
