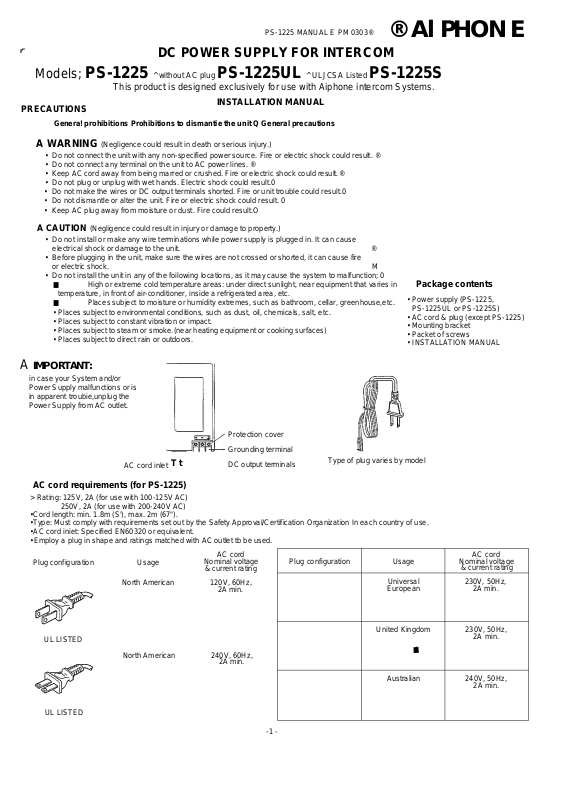

PS-1225 MANUAL E PM 0303®
® Al PHON E
r"
DC POWER SUPPLY FOR INTERCOM
Models; PS-1225 ^ without AC plug PS-1225UL ^ ULJCSA Listed PS-1225S
This product is designed exclusively for use with Aiphone intercom Systems.
PRECAUTIONS
Genera! prohibitions Prohibitions to dismantie the unit Q General precautions
A WARNING (Negligence could result in death or serious injury.)
• Do not connect the unit with any non-specified power source. Fire or electric shock could result. ®
• Do not connect any terminal on the unit to AC power lines. ®
• Keep AC cord away from being marred or crushed. Fire or electric shock could result.®
• Do not plug or unplug with wet hands. Electric shock could result.0
• Do not make the wires or DC output terminals shorted. Fire or unit trouble could result.0
• Do not dismantle or alter the unit. Fire or electric shock could result. 0
• Keep AC plug away from moisture or dust. Fire could result.O
A CAUTION (Negligence could result in injury or damage to property.)
• Do not install or make any wire terminations while power supply is plugged in. It can cause
electrical shock or damage to the unit. ®
• Before plugging in the unit, make sure the wires are not crossed or shorted, it can cause fire
or electric shock. M
• Do not install the unit in any of the foilowing locations, as it may cause the system to malfunction; 0
■ High or extreme cold temperature areas: under direct sunlight, near equipment that varies in
temperature, in front of air-conditioner, inside a refrigerated area, etc.
■ Places subject to moisture or humidity extremes, such as bathroom, cellar, greenhouse,etc.
• Places subject to environmental conditions, such as dust, oil, chemicals, salt, etc.
• Places subject to constant vibration or impact.
• Places subject to steam or smoke.(near heating equipment or cooking surfaces)
• Places subject to direct rain or outdoors.
INSTALLATION MANUAL
Package contents
• Power supply (PS-1225,
PS-1225UL or PS-1225S)
• AC cord & plug (except PS-1225)
• Mounting bracket
• Packet of screws
• INSTALLATION MANUAL
A IMPORTANT:
in case your System and/or
Power Supply malfunctions or is
in apparent troubie,unplug the
Power Supply from AC outlet.
Protection cover
Grounding terminal
AC cord inlet
T t
DC output terminals
AC cord requirements (for PS-1225)
> Rating: 125V, 2A (for use with 100-125V AC)
• Cord length: min. 1.8m (S'), max. 2m (67").
•Type: Must comply with requirements set out by the Safety Approval/Certification Organization In each country of use.
• AC cord iniet: Specified EN60320 or equivalent.
• Employ a plug in shape and ratings matched with AC outlet tb be used.
250V, 2A (for use with 200-240V AC)
Plug configuration
North American
UL LISTED
Usage
North American
AC cord
Nominal voltage
& current rating
120V, 60Hz,
2A min.
240V, 60Hz,
2A min.
Plug configuration
Type of plug varies by model
Usage
Universal
European
United Kingdom
AC cord
Nominal voltage
& current rating
230V, 50Hz,
2A min.
230V, 50Hz,
2A min.
■i..
UL LISTED
-1 -
Australian
240V, 50Hz,
2A min.
Page 2
MOUNTING
3) Mount the power supply
on mounting bracket.
D Plug AC cord into
socket securely.
-i*"*!* 4* *t* 4» »!■ >1» 4* -4* »t» 4* -Ì* *1* 4* *t* 4* -t"i**t*-*t* -t* -t* *> •!* *t* *t* -i* -f* *1* *t* 4* -i* *1* 4* 4* ’■t* •i- -t*
CD Attach mounting bracket to box or wall.
_ J.5mm
(3-5/16")
Single-gang box or wail
\
CD Connect DC -1-, - wires,
observing polarity.
Connect grounding wire.
Screw or Wood screw (x 2)
2 BEFORE ASKING FOR REPAIRS ™
if your intercom system does not work properly or malfunctions,
do not attempt to change or rectify wiring. Ask qualified
personnel. If the system is not being used, PS-1225 can be
unplugged.
3 SPECIFICATIONS
’ Power source; AC 100V - 240V, 50/60Hz.
' Power cxjnsumption: 37W/65-82VA
' Secondary output voltage: DC 12V
! Secondary output current: 2.5A
' Dimensions & weight: 167H x 90W x 52D (mm).
Approx. 430g (0.95 lbs.) (except AC cord)
' Ambient temperature: 0'C-+40‘C(32'F-104'F)
---------------------------------------
6-9/16"Hx 3-9/16'‘Wx2'D,
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one year after
delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall
disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision whether there is a defect in
materials and/or workmanship; and whether or not the product is within the warranty.
This warranty shaii not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in violation of instructions
furnished, nor extended to units which have been repaired or altered outside of the factory. This warranty does not cover batteries or damage
caused by batteries used in connection with the product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone.
Aiphone will not be responsible for any costs incurred involving on site service calls.
4*-4—4* '1* 4* 4* 4* 4' 4* *t* -4*-4* ■4*4* 4* 4* 4*-4* 4* 4* *t* 4*'4‘ 4* 4* 4* 4* 4* 4* 4* *i* ■4*4*'4*-*t* -i* 4*-4*'4*-4*-4* 4* 4* *t*-4*4* 4* 4* *t* 4* 4**1* 4* ■4*-4*-4*
IPHONE CO., LTD., NAGOYA, JAPAN
■IPHONE CORPORATION, BELLEVUE, WA, USA
■IPHONE EUROPE N.V., ANTWERP, BELGIUM
®AIPHONE
Providing Peace of Mind
http://www.aiphone.com/
Printed in Japan(E)
