Aiphone JKW-BA User Manual

JKW-BA

Long Distance Adaptor for JK Series

Adaptateur longue distance pour la série JK

Adaptador de larga distancia para la Série JK

Langeafstandsadapter voor reeks JK

Adattatore per grandi distanze per la serie JK

FK1471ⒶP0109YI

JKW-BA

Long Distance Adaptor for JK Series Adaptateur longue distance pour systèmes d'entrée vidéo couleur JK Adaptador de larga distancia para sistemas de entrada de video a color JK Langeafstandsadapter voor kleurenvideofoniesystemen JK Adattatore per grandi distanze per la serie JK

INSTALLATION MANUAL

MANUEL D’INSTALLATION

MANUAL DE INSTALACIÓN

INSTALLATIEHANDLEIDING

MANUALE D'INSTALLAZIONE

PRECAUTIONS

[1] [2]

[3]

[5]

[4]

General Prohibitions

Prohibition to Dismantle the Unit

WARNING

(Negligence could result in death or serious injury.)

EnglishFrançaisEspañolNederlandsItaliano

1. Do not dismantle or alter the unit. Fire or electric shock could result.

2. Do not connect any power source other than speciﬁed to terminals +, - nor install two power supplies in parallel to single input. Fire or damage to the unit could result.

3. Keep the unit away from water or any other liquid. Fire or electric shock could result.

4. Do not connect any terminal on the unit to an AC power line. Fire or electric shock could result.

5. Do not put any metal or ﬂammable material into the unit through the openings. Fire or electric shock could result.

6. Do not use power supply with a voltage other than speciﬁed. Fire or electric shock could result.

CAUTION

(Negligence could result in injury to people or damage to property.)

1. Do not install or make any wire terminations while power supply is plugged in. It can cause electrical shock or damage to the unit.

2. Before turning on power, make sure wires are not crossed or shorted. If not, ﬁre or electric shock could result.

3. When mounting the unit on a wall, install the unit in a convenient location, but not where it could be jarred or bumped. Injury could result.

4. Do not put anything on the unit or cover the unit with cloth, etc. Fire or unit trouble could result.

5. For DC power supply, use Aiphone power supply model or model speciﬁed for use with system. If non-speciﬁed product is used, ﬁre or malfunction could result.

6. Do not install the unit in any of the following locations. Fire, electric shock, or unit trouble could result.

* Places under direct sunlight, or near heating equipment that varies in temperature. * Places subject to dust, oil, chemicals, etc. * Plac es subject to moisture and humi dity extre mes, such as bathroom, cellar,

greenhouse, etc.

* Places where the temperature is quite low, such as inside a

front of air-conditioner.

* Places subject to steam or smoke (near heating or cooking surfaces). * Where noise generating devices such as dimmer switches or inverter electrical

appliances are close by.

* Do not install the unit in locations subject to frequent vibration or impact.

refrigerated area or in

Prohibition on Subjecting the Unit to Water

General Precautions

1. This unit is for indoor use only. Do not use outdoors.

2. If the unit is do the unit power switch.

3. The unit is for wall-mount use only. For desktop applications, use desk stand.

4. When wal l-mount ed, the top of the unit may darken. This does not indicat e a malfunction.

wn or does not operate properly, unplug the power supply or turn off

PACKAGE CONTENTS

JKW-BA Mounting screws x 2 Wood mounting screws x 2 Installation & Operation manual

NAMES

DIN rail

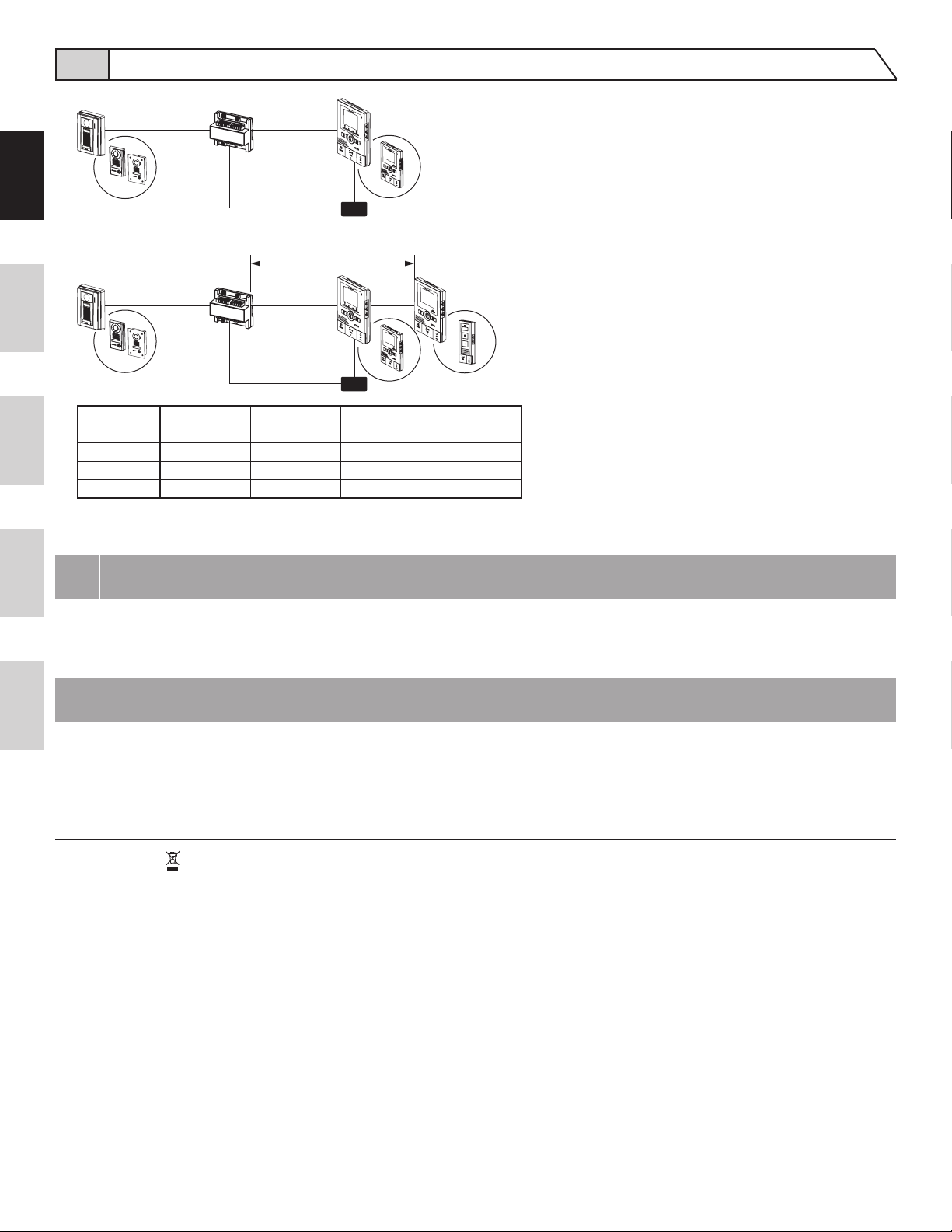

[1] Master station connection terminals (B1, B2) [2] Video door station connection terminals (A1, A2) [3] Power terminals (+, -) [4] POWER switch [5] Pilot lamp (Green)

- 2 -
