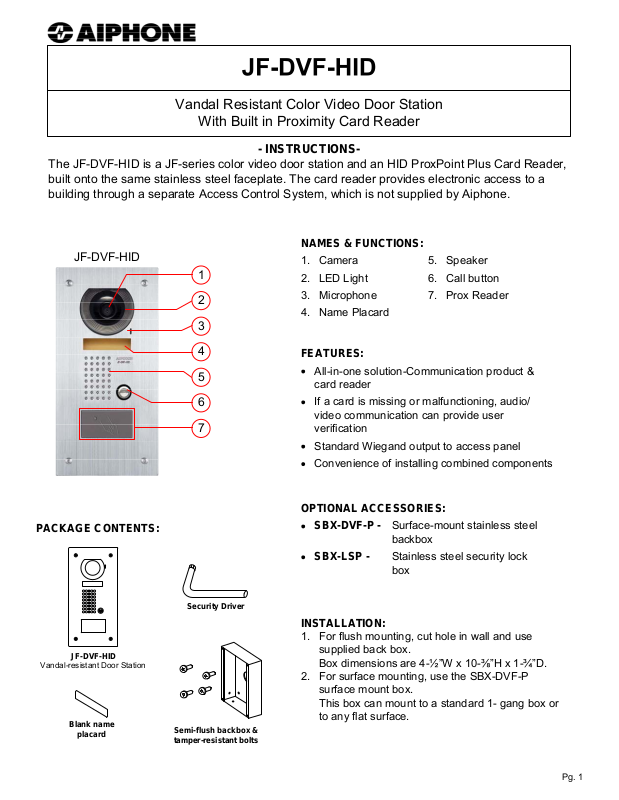

Vandal Resistant Color Video Door Station

With Built in Proximity Card Reader

- INSTRUCTIONS-

The JF-DVF-HID is a JF-series color video door station and an HID ProxPoint Plus Card Reader, built onto the same stainless steel faceplate. The card reader provides electronic access to a building through a separate Access Control System, which is not supplied by Aiphone.

JF-DVF-HID

1

2

3

4

5 6

7

PACKAGE CONTENTS:

Security Driver

JF-DVF-HID

Vandal-resistant Door Station

Blank name

placard Semi-flush backbox & tamper-resistant bolts

NAMES & FUNCTIONS:





1.

Camera

5.

Speaker

2.

LED Light

6.

Call button

3.

Microphone

7.

Prox Reader

4.

Name Placard





FEATURES:

All-in-one solution-Communication product & card reader

If a card is missing or malfunctioning, audio/ video communication can provide user verification

Standard Wiegand output to access panel Convenience of installing combined components

OPTIONAL ACCESSORIES:

SBX-DVF-P - Surface-mount stainless steel backbox

SBX-LSP - Stainless steel security lock box

INSTALLATION:

1.For flush mounting, cut hole in wall and use supplied back box.

Box dimensions are 4-½”W x 10-⅜”H x 1-¾”D.

2.For surface mounting, use the SBX-DVF-P surface mount box.

This box can mount to a standard 1- gang box or to any flat surface.

Pg. 1

WIRING DIAGRAM:

JF-DVF-HID

A1

A2

Connect the reader to the host according to the wiring table below and the host installation guide.

Wiegand Wire

Color

+ DC (5-16V)

Red

Ground

Black

Data0

Green

Data1

White

Shield Ground

Drain

Green LED

Orange

Red LED

Brown

Beeper

Yellow

Hold

Blue

Card Present

Violet

JF-2MED

1A1

B1

1A2

B2

2A1

+

-



2A2



S

S

+

-

PS-1820UL

TESTING AND OPERATION:

When power is applied to the card reader, the LED will flash green three (3) times while the beeper beeps simultaneously. The LED will then turn red. This indicates that the microcontroller is operating properly.

Present an ID card to the reader. (Hold card directly in front of reader.) The LED will momentarily turn green while the beeper beeps once, indicating that the card was read successfully.

SPECIFICATIONS:

CARD READER:



CAMERA:



Power Source:

5 ~ 16V DC

Camera unit:

CCD Camera

Absolute Max. Voltage:

18V DC

Scanning line:

525 lines

Current Requirements:

30mA (Avg); 75mA (peak)

Min. illumination:

5 Lux at 1' or less

Terminations:

Color-coded pre-wired pigtail

Terminations:

Screw terminals

Wiring Distance:

500'

Operating Temperature: -10°~60°C / 14°~140°F

Operating Temperature: -10°~60°C / 14°~140°F

Wiring Distance:

330' w/871802 wire

Operating Humidity:

0-95% relative humidity



980' w/JBW-BA & 851602 wire



non-condensing

Dimensions(camera):

5-¾” W x 11-⅝” H x 1-5/16" D





With SBX-DVF-P:

5-15/16" W x 11-¾” H x 2-13/16" D (Top)







1-15/16" D (Bottom)

FCC WARNING:

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference.

(2)This device must accept any interference that may cause undesired operation. For proper regulatory compliance, the drain wire should be disconnected at the power supply end of the cable.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The Reader is intended to be powered from a limited power source output of a previously certified power supply.

Aiphone Communication Systems

1700 130th Ave. N.E.

Bellevue, WA 98005

TOLL FREE TECHNICAL SUPPORT:

Pg. 2

(425) 455-0510

(800) 692-0200

JF-DVF-HID Instr.

FAX (425) 455-0071

E-MAIL: tech@aiphone.com

0810JD
