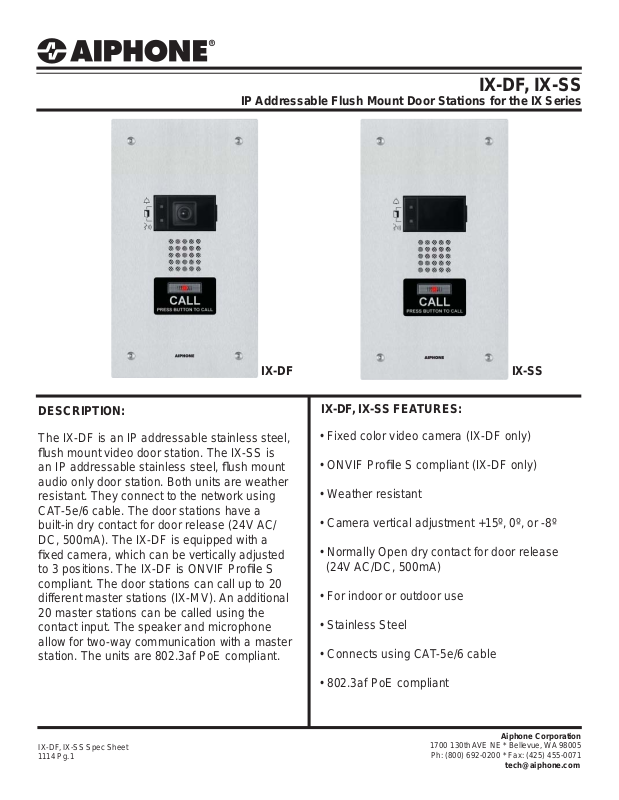

Aiphone IX-SS, IX-DF Specsheet

IX-DF, IX-SS

IP Addressable Flush Mount Door Stations for the IX Series

IX-DF IX-SS

DESCRIPTION:

The IX-DF is an IP addressable stainless steel,
fl ush mount video door station. The IX-SS is
an IP addressable stainless steel, fl ush mount
audio only door station. Both units are weather
resistant. They connect to the network using
CAT-5e/6 cable. The door stations have a
built-in dry contact for door release (24V AC/
DC, 500mA). The IX-DF is equipped with a
fi xed camera, which can be vertically adjusted
to 3 positions. The IX-DF is ONVIF Profi le S
compliant. The door stations can call up to 20
different master stations (IX-MV). An additional
20 master stations can be called using the
contact input. The speaker and microphone
allow for two-way communication with a master
station. The units are 802.3af PoE compliant.

IX-DF, IX-SS FEATURES:

• Fixed color video camera (IX-DF only)

• ONVIF Profi le S compliant (IX-DF only)

• Weather resistant

• Camera vertical adjustment +15º, 0º, or -8º

• Normally Open dry contact for door release
(24V AC/DC, 500mA)

• For indoor or outdoor use

• Stainless Steel

• Connects using CAT-5e/6 cable

• 802.3af PoE compliant

IX-DF, IX-SS Spec Sheet
1114 Pg.1

1700 130th AVE NE * Bellevue, WA 98005

Aiphone Corporation

Ph: [phone] * Fax: [phone]

[e-mail]

IX-DF, IX-SS

IP Addressable Flush Mount Door Stations for the IX Series
FEATURE CALL-OUT:

[1]

[3]

[6]

FEATURE CALL-OUT DEFINITIONS:

[1] Camera
[2] Microphone

[2]

[4]

[5]

[3]

SPECIFICATIONS:

Power Source: 802.3af PoE compliant
Communication: Open voice, hands-free

[2]

[4]

[5]

[3] Status LED’s
[4] Speaker
[5] Call button
[6] White LED (for night viewing)

IX-DF, IX-SS Spec Sheet
1114 Pg.2

Camera: 1/4” color CMOS
Min. illumination: 5 Lux
Wiring: CAT-5e or CAT-6
Wiring distance: 330’
Door release: 24V AC/DC, 500mA

(N/O, COM, N/C)
Operating Temp: 14° - 140°F (-10° - 60°C)
Dimensions: 5-7/8’’W x 10-7/16’’H x 2’’D

Aiphone Corporation

1700 130th AVE NE * Bellevue, WA 98005

Ph: [phone] * Fax: [phone]

[e-mail]
