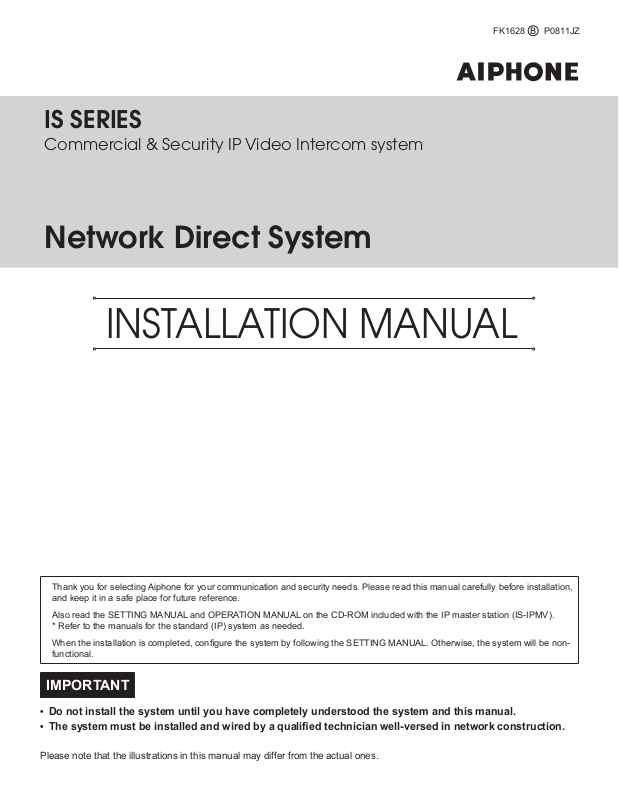

Aiphone Is-ipdv User Manual

FK1628 B P0811JZ

IS SERIES

Commercial & Security IP Video Intercom system

Network Direct System

INSTALLATION MANUAL

Thank you for selecting Aiphone for your communication and security needs. Please read this manual carefully before installation, and keep it in a safe place for future reference.

Also read the SETTING MANUAL and OPERATION MANUAL on the CD-ROM included with the IP master station (IS-IPMV). * Refer to the manuals for the standard (IP) system as needed.

When the installation is completed, configure the system by following the SETTING MANUAL. Otherwise, the system will be nonfunctional.

IMPORTANT

•Do not install the system until you have completely understood the system and this manual.

•The system must be installed and wired by a qualified technician well-versed in network construction.

Please note that the illustrations in this manual may differ from the actual ones.

CONTENTS
PRECAUTIONS................................	3
WARNING .......................................	3
CAUTION ........................................	3
GENERAL PRECAUTIONS ............	3
Notes on using this system..........	4
Notices............................................	4
SYSTEM CONFIGURATIONS
AND CONNECTIONS ......................	4
Entire system ................................	4
Network direct system
connection diagram.......................	5
Cables.............................................	6
UNIT DETAILS ................................	7
Color monitor IP master station
(IS-IPMV) .........................................	7
■ Accessories ..........................................	7

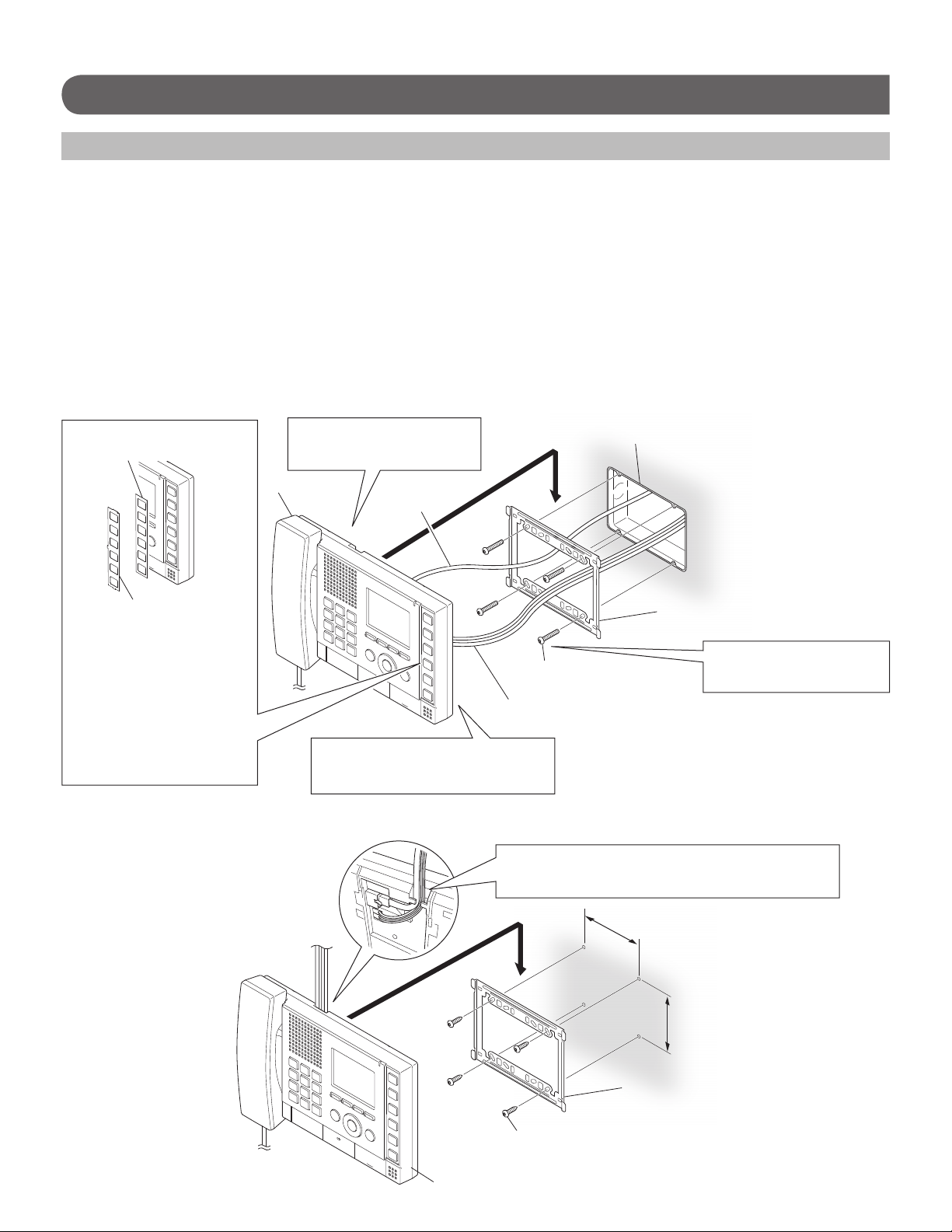

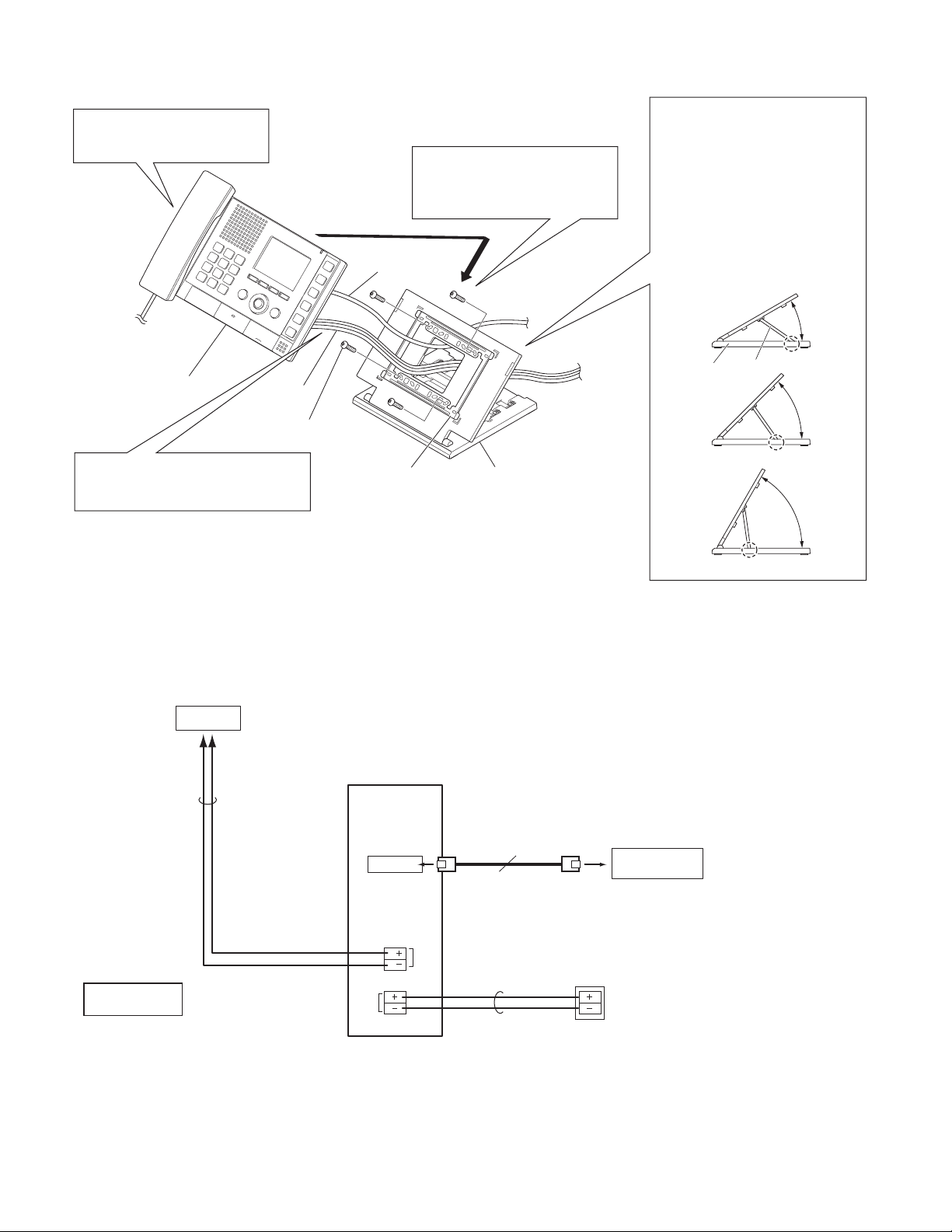

■ Mounting...............................................	7
■ Connections .........................................	8

IP vandal-resistant video door
station (IS-IPDV, IS-IPDVF)............	9
■ Accessories ..........................................	9
■ Mounting locations ...................................	9
■ Mounting positions and image view
area of IP video door station ................	9
■ Mounting.............................................	10

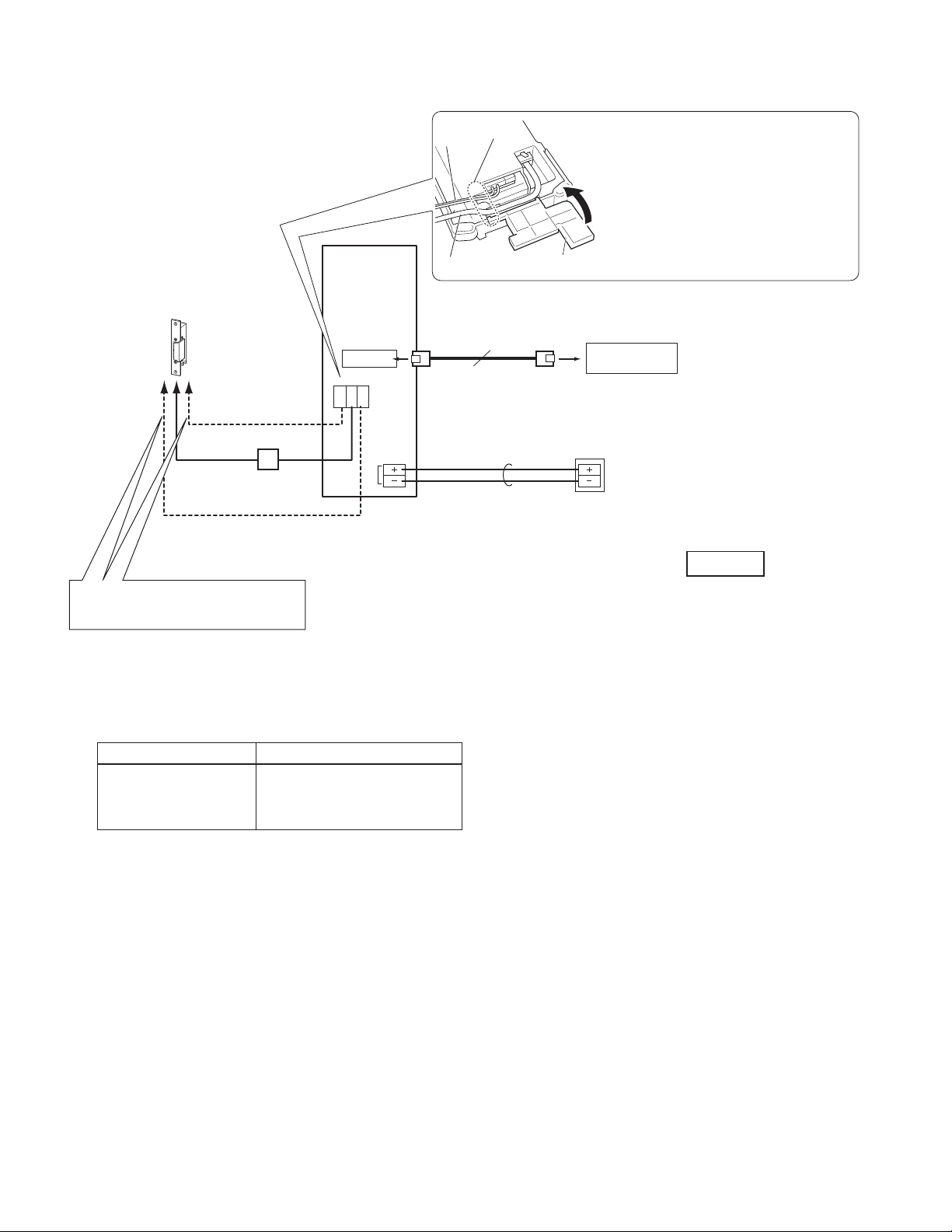

■ Connections
(IS-IPDV and IS-IPDVF) .....................	11
TECHNICAL DATA AND
PRECAUTIONS..............................	12
WARRANTY ...................................	13

After unpacking, check the included parts for each product referring to the corresponding pages.

ABOUT THIS MANUAL

The IS system provides various manuals to meet various system planning and work processes. Use the manuals necessary for your system.

Manual configurations

The following manuals are provided for a network direct system. Read all the manuals for installing, setting up, and using a network direct system, or provide the manuals to the persons working with the system.

* These manuals may also be needed when installing an IP master station or IP video door station in a standard (IP) system.

INSTALLATION MANUAL (This manual included with the IP master station (IS-IPMV))

Used for installing and connecting stations. (For an installer or serviceman)

SETTING MANUAL (An electronic manual on the CD-ROM included with the IP master station (IS-IPMV))

Used for making the system settings and system maintenance. (For an installer or serviceman)

OPERATION MANUAL (An electronic manual on the CD-ROM included with the IP master station (IS-IPMV))

This manual describes how to use this system for calling, communicating, paging, monitoring, etc. (For users of the system)

*If you will use these products in a standard (IP) system, also refer to the INSTALLATION MANUAL, SETTING MANUAL and OPERATION MANUAL on the CD-ROM included with an IP control unit (IS-IPC).

2

PRECAUTIONS

			General Prohibitions	Prohibition to Dismantle the Unit			Prohibition on Subjecting the Unit to Water
			General Precautions
										8. If LCD is punctured, do not allow contact with the liquid crystal
				WARNING
										inside. Inflammation could result. If necessary, gargle your
Negligence could result in death or serious injury.										mouth and clean your eyes or skin with clear water for at least
										15 minutes, and consult your doctor.
1.			Do not dismantle or alter the unit. Fire or electric shock could
										9. Do not put anything on the unit or cover the unit with cloth, etc.
			result.
										Fire or unit trouble could result.
		2.	Keep the unit away from water or any other liquid.
										10. Do not install the unit in any of the following locations. Fire,
			Fire or electric shock could result.
										electric shock, or unit trouble could result.
3.			High voltage is present internally. Do not open the case.
										* Places under direct sunlight or places near heating
			Electric shock could result.
										equipment that varies in temperature.
4.			The unit is not of explosion-proof. Do not install or use near
										* Places subject to dust, oil, chemicals, hydrogen sulfide (hot
			gases or flammable materials. Fire or explosion could result.							spring).
5.			Do not connect any non-specified power source to the +, -							* Places subject to moisture and humidity extremes, such as
			terminals. Also, do not install two power supplies in parallel to a							bathrooms, cellars, greenhouses, etc.
			single input. Fire or damage to the unit could result. Be sure to							* Places where the temperature is quite low, such as inside a
			connect a single power supply unit to the unit.							refrigerated area or in front of an air conditioner.
6.			Do not connect any terminal on the unit to an AC power line.							* Places subject to steam or smoke (near heating or cooking
			Fire or electric shock could result.							surfaces).
7.			Do not use power supply with a voltage other than specified.							* Where noise generating devices such as dimmer switches or
										inverter electrical appliances are closeby.
			Fire or electric shock could result.
										* Locations subject to frequent vibration or impact.
8.			Keep AC cord from being marred or crushed. If the AC cord is
										11. Do not use the handset when you perform a call test or check
			fractured, fire or electric shock could result.
		9.	Do not plug or unplug with wet hands. Electric shock could							the volume, otherwise it may cause damage to your ear. Be
			result.							sure to use the built-in speaker.
										12. Be sure to perform a call test or check the volume with the
10.			Insert AC plug completely and securely into AC outlet.
										handset on the hook. If you operate the hook switch with the
			Otherwise, fire or electric shock could result.
										handset on your ear, a sudden call etc. may arrive causing
11.			Do not put any metal or flammable material into the unit
										damage to your ear.
			through the openings. Fire, electric shock, or unit trouble could
			result.
										GENERAL PRECAUTIONS
12.			The unit must be installed and wired by a qualified technician.
13.			Existing wiring such as chime wiring, etc. may contain high							1. Keep the unit more than 1 m (3.3') away from radio or TV.
			voltage AC electricity. Damage to the unit or electric shock							2. Keep the intercom wires more than 30cm (12'') away from AC
			could result. Wiring and installation should be done by a
										100-240V wiring. AC induced noise and/or unit malfunction could
			qualified technician.
										result.
										3. Install the unit in an area that will be accessible for future
				CAUTION						inspections, repairs, and maintenance.
Negligence could result in injury to people or damage to property.										4. As to other manufacturer’s devices (such as door releases) used
										with this system, comply with the Specifications and Warranty
1.			Do not install or make any wire terminations while power supply							conditions that the manufacturers or venders present.
			is plugged in. It can cause electrical shock or damage to the unit.							5. If the unit is down or does not operate properly, unplug the power
2.			When mounting the unit on a wall, install the unit in a							supply.
			convenient location, but not where it could be jarred or							6. If it is used close to a cellular phone, the unit may malfunction.
			bumped. Injury could result.							7. The unit can be damaged if dropped. Handle with care.
3.			Before turning on power, make sure wires are correctly							8. The unit turns inoperative during power failure.
			connected, not crossed or not shorted. If not, fire or electric							9. In areas where broadcasting station antennas are close by, the
			shock could result.
										intercom system may be affected by radio frequency interference.
4.			Do not install the unit in locations subject to frequent vibration or
										10. All the units, except for door station, is designed for indoor use
			impact. It may fall or tip over, resulting in damage to the unit or
										only. Do not use outdoor.
			personal injury.
										11. This product, being a control unit of door release, should not be
5.			For power supply, use Aiphone power supply model or model
										used as a crime prevention device.
			specified for use with system. If non-specified product is used,
										12. It must be noted in advance that the LCD panel, though
			fire or malfunction could result.
6.			On products with ground terminals, connect to an earth ground.							manufactured with very high precision techniques, inevitably will
										have a very small portion of its picture elements always lit or not lit
			Fire or malfunction could result.
										at all. This is not considered a unit malfunction.
7.			Do not put high pressure on the monitor. If fractured, injury
										13. Door station is weather-resistant, but do not spray with high-
			could result.
										pressure water. Unit trouble could result.

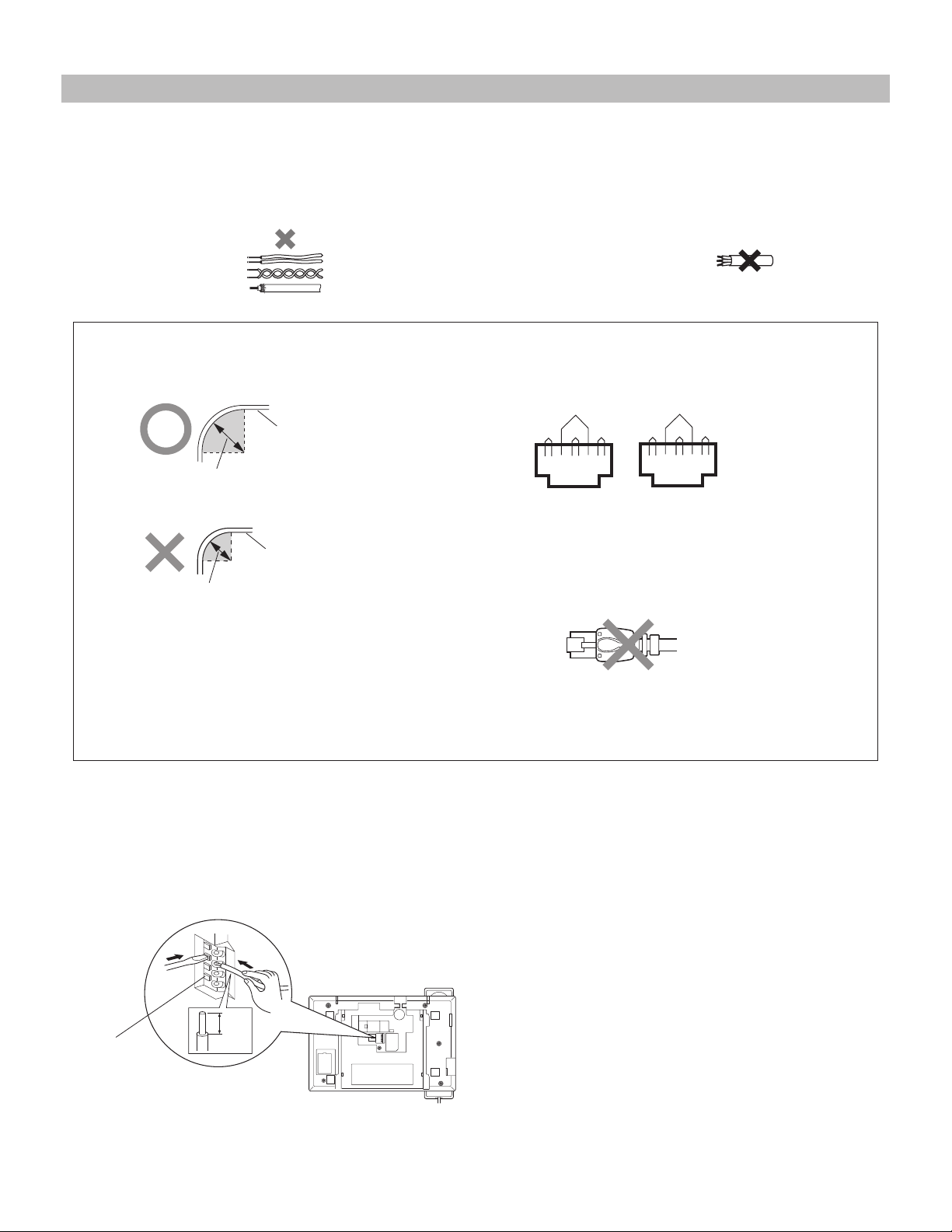

										14. For wiring, specify CAT5e/6 straight cable.

3

15.Due to the environmental sound around the unit, it may hinder smooth communication, but this is not a malfunction.

16.When outside temperature lowers sharply after rainfall, etc., the inside of camera may fog up slightly, causing a blurry picture, but this is not a malfunction. Normal operation will be restored when moisture evaporates.

17.Do not locate the units in a location with restricted access. It impedes maintenance inspection or repairs. Also, unit trouble could result.

Notes on using this system

•The ID/Password to access the web server for setting the system is the customer's responsibility. Make sure you set a password that cannot be easily guessed by a third party. We recommend that you change the ID/Password on a regular basis.

Notices

•We will under no conditions be liable for damage that occurs due to failures in network equipment; failures due to internet providers and cell phone companies; failures such as disconnected lines and

other losses in communication, which render it impossible to provide this service or in any way delay this service due to causes outside of our responsibility; or if an error or missing data occurs during transmission.

•We will under no conditions be liable for damage that occurs due to the inability to communicate due to malfunctions, problems, or operational errors in this product.

•We will under no conditions be liable for damage caused if a customer's password or transmitted information are leaked through bugging or unlawful computer access over Internet communication.

•We will under no conditions be liable for any damages or losses resulting from this product's contents or specifications.

•This manual was created by Aiphone Co., Ltd., all rights reserved.

Copying a part of or this entire manual without prior permission from Aiphone Co., Ltd. is strictly forbidden.

•Please note that images depicted in this manual may differ from the actual images.

•Please note that this manual may be revised or changed without prior notice.

•Please note that product specifications may be changed for the sake of improvement without prior notice.

•Please be aware that it is the customer's responsibility to ensure that their computer is secure. We will under no conditions be liable for security failures.

•This system is not intended for life support or crime prevention. It is just a supplementary means of conveying information. Aiphone will under no conditions be liable for loss of life or property which occurs while the system is being operated.

SYSTEM CONFIGURATIONS AND CONNECTIONS

The IS system is a commercial and security video intercom system especially designed for applications in facilities such as office buildings, factories, schools, hospitals, and prisons. Installed separately from conventional general-purpose internal communications systems, the IS system can be used as a video door entry system, emergency announcement system, rescue assistance system, urgent call system, public announcement system, and access control system.

The IS system can be constructed on an IP network so multiple sites of IS system can be connected and controlled as a global system. You can design the system to any scale depending on your needs.

Entire system

You can construct a large-scale IS system by connecting up to 32 sites (a site can consist of up to 32 IP units) on an IP network. In this system, calling, communication, etc. are possible among sites.

Site 1

Site 2

Site 32

Site 3

Site 4

4

Network direct system connection diagram

The following is an example of network direct system for controlling security and communication for facilities.

•A site must be configured with an IP-based system.

•A network direct system can consist of IP units.

•An IP unit (PC master station, IP door station or IP master station) can be connected directly to a LAN.

•In a site, up to 32 IP units can be connected.

Site 1

: Control office, etc.

Internet / WAN

Site 3

Site 32

Network direct system	Site 2

LAN (IP network)

Switch (Hub)					Switch (Hub)

IS-IPMV

PC master station
(IS-SOFT)	PS-2420/D/UL/S*1

or

PoE

Audio recorder

*1: Do not use PS-2420S in Europe.

: IS system product

Switch (Hub)					Switch (Hub)

	IS-IPDV	IS-IPDV
	/IS-IPDVF	/IS-IPDVF
	PS-2420/D/UL/S*1	PS-2420/D/UL/S*1
	or	or
	PoE	PoE
PT	AC	PT AC
	transformer	transformer
EL-12S		EL-12S
Electric door strike		Electric door strike

Maximum number of units connectable to a site of "network direct system"

		Category	Model name	Type	Max. number
		Master station	IS-IPMV	Color monitor IP master station
	IP		IS-SOFT (PC master station)	PC master station	32*2
		Sub station	IS-IPDV	IP vandal-resistant video door station (surface-mount)
			IS-IPDVF	IP vandal-resistant video door station (flush-mount)

*2: Up to 31 PC master stations (IS-SOFT) can be connected within an IP network per site. If you do so, at least one color monitor IP master station (IS-IPMV) or IP vandal-resistant video door station (IS-IPDV or IS-IPDVF) must be also connected. (A site of network direct system cannot consist of PC master stations (IS-SOFT) only.)

5
