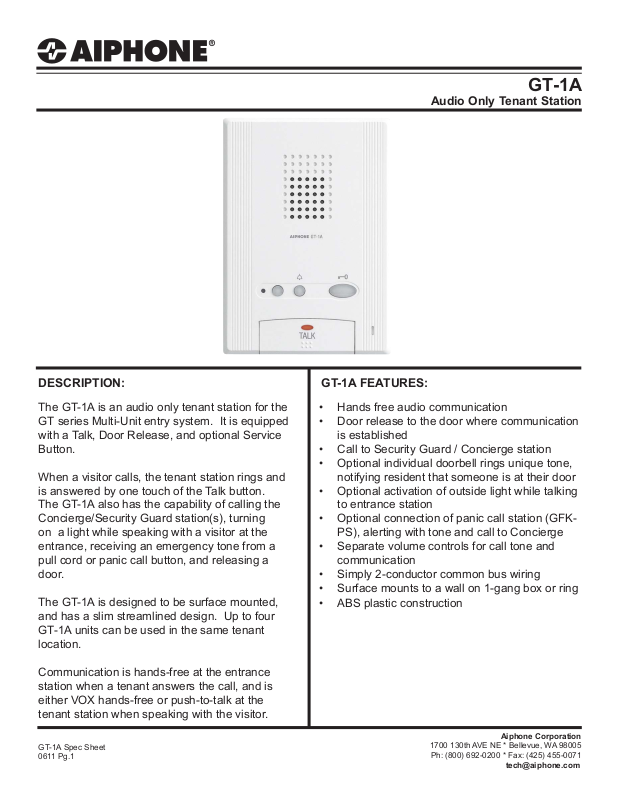

Aiphone GT-1A Specsheet

GT-1A

Audio Only Tenant Station

DESCRIPTION: GT-1A FEATURES:

The GT-1A is an audio only tenant station for the
GT series Multi-Unit entry system. It is equipped
with a Talk, Door Release, and optional Service
Button.

• Hands free audio communication

• Door release to the door where communication

is established

• Call to Security Guard / Concierge station

• Optional individual doorbell rings unique tone,

When a visitor calls, the tenant station rings and
is answered by one touch of the Talk button.
The GT-1A also has the capability of calling the
Concierge/Security Guard station(s), turning
on a light while speaking with a visitor at the
entrance, receiving an emergency tone from a
pull cord or panic call button, and releasing a
door.

notifying resident that someone is at their door

• Optional activation of outside light while talking
to entrance station

• Optional connection of panic call station (GFK­PS), alerting with tone and call to Concierge

• Separate volume controls for call tone and
communication

• Simply 2-conductor common bus wiring

• Surface mounts to a wall on 1-gang box or ring

The GT-1A is designed to be surface mounted,

• ABS plastic construction

and has a slim streamlined design. Up to four
GT-1A units can be used in the same tenant
location.

Communication is hands-free at the entrance
station when a tenant answers the call, and is
either VOX hands-free or push-to-talk at the
tenant station when speaking with the visitor.

GT-1A Spec Sheet
0611 Pg.1

1700 130th AVE NE * Bellevue, WA 98005

Aiphone Corporation

Ph: [phone] * Fax: [phone]

[e-mail]

GT-1A

Audio Only Tenant Station

FEATURE CALL-OUT:

[8]

[1]

[3]

[2]

FEATURE CALL-OUT DEFINITIONS:

[1] Speaker

[2] Microphone

[3] Door release button

[4] Talk button

[5] Light button / Security guard station call button

[6] Service button (option)

[7] Talk LED

[8] Call tone off LED

[9] Receive volume control

[10] Call tone volume control

[10]

[9]

[4][5][6] [7]

SPECIFICATIONS:

Power Source: 24V DC, supplied from GT-BC
Call: Varying ring tones from entrance
panel, concierge, or doorbell
Communication: Hands-free or Press-to-talk
Capacity: Max. 4 tenant stations per
resident location
Wiring: 2-conductor, PE insulated,
common bus

Mounting: Wall mount

Temperature: 32-104°F (0-40°C)

Dimensions: 6-7/8” H x 4-15/16” W x 1-¼” D

Weight: Approx. 0.70 lbs (330g)

GT-1A Spec Sheet
0611 Pg.2
