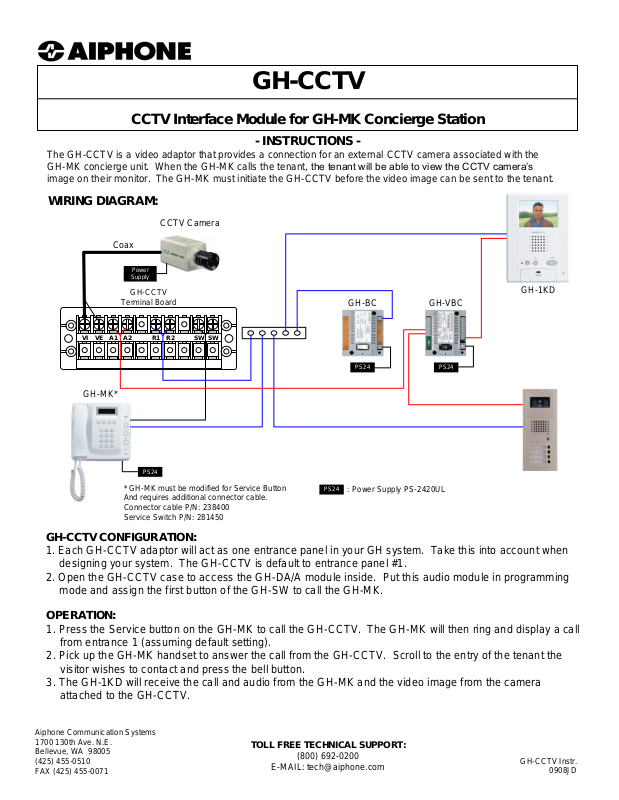

Aiphone GH-CCTV User Manual

GH-CCTV

CCTV Interface Module for GH-MK Concierge Station

- INSTRUCTIONS -

The GH-CCTV is a video adaptor that provides a connection for an external CCTV camera associated with the
GH-MK concierge unit. When the GH-MK calls the tenant, the tenant will be able to view the CCTV camera’s
image on their monitor. The GH-MK must initiate the GH-CCTV before the video image can be sent to the tenant.

WIRING DIAGRAM:

CCTV Camera

Coax

Power

Supply

GH-CCTV

Terminal Board

VI VE A1 A2 R1 R2 SW SW

GH-BC GH-VBC

PS24 PS24

GH-1KD

GH-MK*

PS24

* GH-MK must be modified for Service Button
And requires additional connector cable.
Connector cable P/N: 238400
Service Switch P/N: 281450

PS24

: Power Supply PS-2420UL

GH-CCTV CONFIGURATION:

1. Each GH-CCTV adaptor will act as one entrance panel in your GH system. Take this into account when
designing your system. The GH-CCTV is default to entrance panel #1.

2. Open the GH-CCTV case to access the GH-DA/A module inside. Put this audio module in programming
mode and assign the first button of the GH-SW to call the GH-MK.

OPERATION:

1. Press the Service button on the GH-MK to call the GH-CCTV. The GH-MK will then ring and display a call
from entrance 1 (assuming default setting).

2. Pick up the GH-MK handset to answer the call from the GH-CCTV. Scroll to the entry of the tenant the
visitor wishes to contact and press the bell button.

3. The GH-1KD will receive the call and audio from the GH-MK and the video image from the camera
attached to the GH-CCTV.
