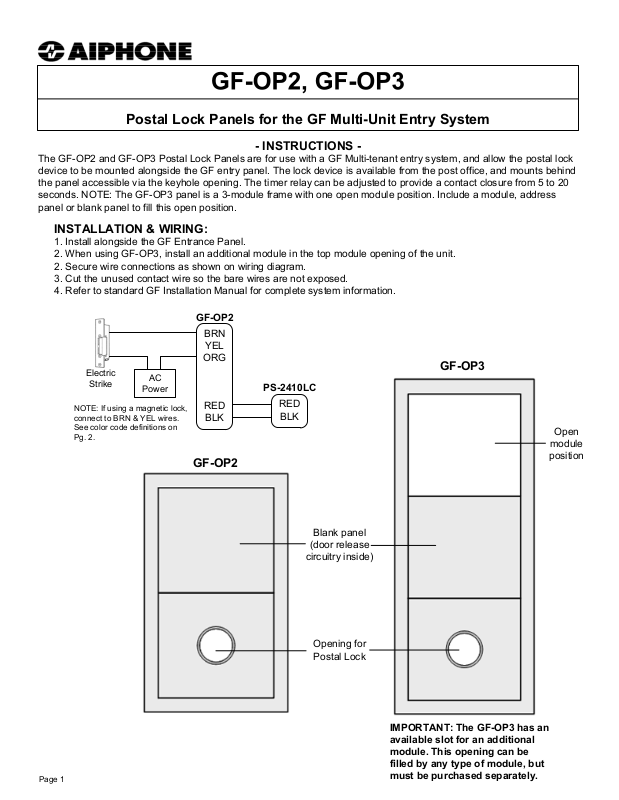

Postal Lock Panels for the GF Multi-Unit Entry System
- INSTRUCTIONS -
The GF-OP2 and GF-OP3 Postal Lock Panels are for use with a GF Multi-tenant entry system, and allow the postal lock
device to be mounted alongside the GF entry panel. The lock device is available from the post office, and mounts behind
the panel accessible via the keyhole opening. The timer relay can be adjusted to provide a contact closure from 5 to 20
seconds. NOTE: The GF-OP3 panel is a 3-module frame with one open module position. Include a module, address
panel or blank panel to fill this open position.
INSTALLATION & WIRING:
1. Install alongside the GF Entrance Panel.
2. When using GF-OP3, install an additional module in the top module opening of the unit.
2. Secure wire connections as shown on wiring diagram.
3. Cut the unused contact wire so the bare wires are not exposed.
4. Refer to standard GF Installation Manual for complete system information.
GF-OP2
BRN
YEL
Electric
Strike
NOTE: If using a magnetic lock,
connect to BRN & YEL wires.
See color code definitions on
Pg. 2.
AC
Power
ORG
RED
BLK
GF-OP2
PS-2410LC
RED
BLK
GF-OP3
Open
module
position
Page 1
Blank panel
(door release
circuitry inside)
Opening for
Postal Lock
IMPORTANT: The GF-OP3 has an
available slot for an additional
module. This opening can be
filled by any type of module, but
must be purchased separately.
WIRING DIAGRAM:
Brown
Yellow
Orange
Red
Black
GF-OP2 Rear View
UP
Timer control for
door release
Switch, activated by
postal lock device.
Lock device from Post
Office is installed here.
Opening for postal
lock keyhole
Lock device
mounting studs (x4)
To 24VDC (+) =
To 24VDC (-) =
Common contact =
Normally Closed contact =
SPECIFICATIONS:
Power Source: 24V DC
Mounting: Flush mounted, or surface mounted with GF-102HB for GF-OP2, GF-103HB for GF-OP3.
Terminations: Color-coded prewired pigtails
Relay Input: 24V DC, Red, Black wires, 22AWG
Relay Output: Brown (COM), Orange (N/O), Yellow (N/C) wires
N/O Output rating: 5A at 30V DC
N/C Ouptut rating: 3A at 30V DC or 125V AC
Wiring: 2 conductors from 24V DC power supply to GF-OP panel
Dimensions (HxWxD): GF-OP2: 8-7/8" x 5-5/16" x 2"
Normally Open contact =
10A at 125V AC
3A at 250V AC
2 conductors from GF-OP panel to strike, with power for strike wired in series.
GF-0P3: 12-5/8" x 5-5/16" x 2"
