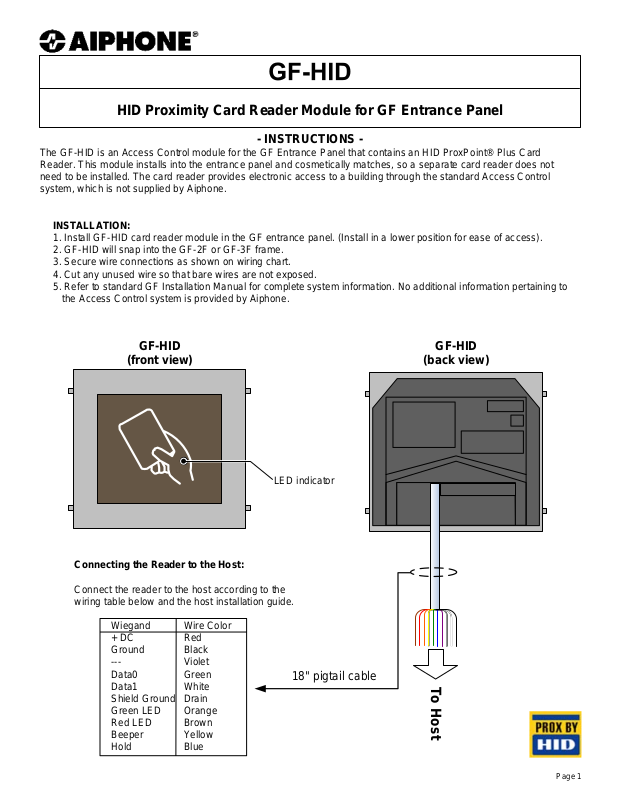

Aiphone GF-HID Instruction Manual
HID Proximity Card Reader Module for GF Entrance Panel
- INSTRUCTIONS -
The GF-HID is an Access Control module for the GF Entrance Panel that contains an HID ProxPoint® Plus Card
Reader. This module installs into the entrance panel and cosmetically matches, so a separate card reader does not
need to be installed. The card reader provides electronic access to a building through the standard Access Control
system, which is not supplied by Aiphone.
INSTALLATION:
1. Install GF-HID card reader module in the GF entrance panel. (Install in a lower position for ease of access).
2. GF-HID will snap into the GF-2F or GF-3F frame.
3. Secure wire connections as shown on wiring chart.
4. Cut any unused wire so that bare wires are not exposed.
5. Refer to standard GF Installation Manual for complete system information. No additional information pertaining to
the Access Control system is provided by Aiphone.
GF-HID
(front view)
LED indicator
Connecting the Reader to the Host:
Connect the reader to the host according to the
wiring table below and the host installation guide.
Wiegand Wire Color
+ DC Red
Ground Black
--- Violet
Data0 Green
Data1 White
Shield Ground Drain
Green LED Orange
Red LED Brown
Beeper Yellow
Hold Blue
18" pigtail cable
GF-HID
(back view)
To Host
Page 1
TYPICAL LAYOUTS:
123
456
789
0
#
*
Video with 4 buttons and
Digital audio with card reader
card reader
Audio with 4 buttons
and card reader
TESTING AND OPERATION:
When power is applied to the reader, the LED will flash green three (3) times while the
beeper beeps simultaneously. The LED will then turn red. This indicates that the
microcontroller is operating properly.
Present an ID card to the reader. (Hold card directly in front of reader module.) The LED
will momentarily turn green while the beeper beeps once, indicating that the card was
read successfully.
SPECIFICATIONS:
Power Source: 5.0 – 16.0 VDC
Absolute Max. Voltage: 18 VDC
Peak Current: 80 mA
Avg. Current 5V or 12V: 20 mA
Terminations: Color-coded pre-wired pigtails
Wiring Distance: 500'
Dimensions (H x W x D): 3 ¾” x 4 3/16" x 1 7/8"
Operating Temperature: -10° ~ 60° C / 14° ~ 140° F
123
456
789
0
#
*
Digital video with card
reader
FCC WARNING:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
For proper regulatory compliance, the drain wire should be disconnected at the
power supply end of the cable.
Changes or modifications not expressly approved by the party responsibl e for
compliance could void the user’s authority to operate the equipment.
The Reader is intended to be powered from a limited power source output of a
previously certified power supply.
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
TOLL FREE TECHNICAL SUPPORT: (800) 692-0200
TOLL FREE FAX LINE: (800) 832-3765
E-MAIL: tech-serv@aiphone.com
GF-HID Instr.
0605PHJS
