for Multiport and
Balanced Devices
Agilent
Test Solutions
2
1 Available up to 3 GHz for two ports, up to 2.2 GHz used with 87050E test set.
2 Integrated 4-port is available for frequency coverage up to 8.5 GHz (ENA) and 20 GHz (PNA-L).
3 Available up to 110 GHz for two ports.
ENA-L:
ENA:
PNA-L:
PNA:
2 4 8 12 16 >16
300 kHz to 2.2 GHz
1
300 kHz to 8.5 GHz
2
As your Multiport Devices Expand, Agilent Expands with You
300 kHz to 67 GHz
3
300 kHz to 50 GHz
2
Many of today’s wireless communications and broadband components have four
or more ports. These components require multiple connections for complete
characterization with a network analyzer. However, time-to-market pressures
require that today’s components be tested quickly while maintaining high
levels of accuracy and high repeatability to achieve production volumes.
Network analyzer sweep speed is only one factor that contributes to the overall
throughput that can be achieved in measuring multiport components. The
overall throughput depends on how quickly the component can be connected
and the system can transition from one measurement path to the next and
process that data. Multiport test sets dramatically reduce overall tune and
test times because the DUT only needs to be connected once to test multiple
signal paths. Minimizing the number of connections also reduces operator
fatigue and lowers the chance of connecting to the wrong port. In addition,
fewer connections mean less wear on cables, connectors, fixtures, and DUTs.
A multiport test set is especially valuable in manufacturing applications
where the time required for device connection, handling, and/or configuration
is significantly greater than the test time. In these situations, a test set provides
a solution that supports operators or part handlers in increasing throughput.
Agilent provides the highest performing multiport test solutions to meet the
demands of the never-ending trend to decrease size through integration in
modules and at the same time address the pressure to increase throughput
and lower test cost. A range of solutions are available for many devices from
simple duplexers, for both front-end passive and active and wireless infrastructure components, to more complex integrated modules. These solutions
optimize key hardware, firmware, and software features, which provide the
best accuracy with the convenience of multiport connections and electronic
calibration to achieve exceptionally fast measurement speeds.
www.agilent.com/find/multiport
Number of Ports
3
ENA Series RF Network Analyzers
ENA
• Integrated, one-box solution for 3-, 4-port,
and balanced devices
• Best price performance up to 8.5 GHz
• High measurement speed
• Optional dedicated multiport test sets
for up to 16-port devices
ENA-L
• Lowest cost solution for 50 and 75 ohm
devices up to 2.2 GHz
• Test set cal and self cal for simplified
calibration
PNA Series Microwave
Network Analyzers
• Efficient and flexible for both
manufacturing and R&D
• 4-port frequency coverage up to 67 GHz
• Integrated 4-port with balanced
capabilities (PNA-L)
• Flexible solutions with configurable test,
open Windows
®
architecture, custom
multiport test sets available
• Identical user interface and
programming across PNA Series
RF and Microwave
Electronic Calibration (ECal)
• Fast 2- and 4-port calibrations up to 67 GHz:
2-port up to 67 GHz and 4-port up to 20 GHz
• NIST traceable, accurate calibration
• Direct control via single USB interface
• Reliable solid-state switching
• Mixed connectors available
Measurement Wizard Assistant
(MWA)
• Increase productivity with MWA software
• Simplify measurement setup and operation
• Go/no-go test management function
www.agilent.com/find/multiport
Agilent Test Solutions for Multiport and Balanced Devices
PNA Series (300 kHz up to 67 GHz)
ENA Series (300 kHz up to 8.5 GHz)
ECal (300 kHz up to 67 GHz)
MWA for ENA Series
4
New-generation wireless equipment depends on advanced RF components,
from duplexers and couplers to differential SAW filters and amplifiers.
These components need to be measured efficiently in R&D and the production
process. Fast and accurate testing is crucial, and Agilent's ENA Series network
analyzers offer comprehensive measurement capabilities for advanced
multiport devices.
Built-in two, three, or four test ports provide simultaneous measurement
of all signal paths in components with up to four ports. This advanced
architecture minimizes the number of sweeps required for multiport
S-parameter measurements and helps increase test throughput.
Built-in balanced measurements, matching-circuit simulation, and port
characteristic impedance conversion all enable accurate characterization
of the most advanced RF components. These test capabilities contribute to
shortened time to market and reduced cost of test.
The ENA network analyzer holds up to sixteen measurement channels
in a single instrument state. Independent frequency list, calibration data,
measurement parameters, trace layout, triggering, and limit test are applied
in each measurement channel; which acts as if it is an independent network
analyzer. This multi-channel capability eliminates recall time for sequencing
multiple instrument setup states that are often required for multiport
devices used in multi-frequency applications.
E5070B/71B
Features
• Full specified performance from 300 kHz
to 3 GHz (E5070B) and 300 kHz to 8.5 GHz
(E5071B)
• Built-in 2, 3, and 4 test ports
• Up to full 4-port calibration
• 122 dB wide dynamic range
• 0.001 dBrms low trace noise
• Fast measurement speed: 9.6 us/point
• Up to 16 measurement channels
• Up to 16 traces per channel
• Up to 20,001 measurement points
• Real-time balanced measurements
• Flexible matching circuit simulation
• Complex port characteristic impedance
conversion for non-50 ohm device
measurements
• Advanced calibration: TRL/LRL cal and
mixed-connector cal
• Simulation linkage with Touch Stone files
(s2p, s3p, and s4p)
The ENA also accelerates test system
development and expands customization
capabilities. Built-in Visual Basicfor
Applications (VBA) allow you to develop
and customize test programs in the ENA
series, or import Visual Basic programs
from an external PC. A custom user interface using a touch screen (optional) can
be created on the 10.4" LCD display.
ENA 2-, 3-, and 4-port Measurements up to 8.5 GHz
with ENA RF Network Analyzers
8.5 GHz ENA with four built-in test ports
www.agilent.com/find/multiport
5
Whether for wireless LAN front-end modules or satellite filters, the Agilent
4-port PNA-L network analyzer offers the industry’s best combination of
speed and accuracy to meet modern measurement challenges. Ideal for
in-fixture measurements, the 4-port PNA-L allows a variety of easy and
accurate methods to correct for fixtures. Making fast and accurate multiport
measurements has never been easier.
Differential technologies and component integration continue to push higher
in frequency. Now the PNA series, when combined with an external test set
and Option 550, can perform 4-port measurements up to 67 GHz.
4-port Measurements up to 67 GHz
with the PNA Series
67 GHz 2-port PNA expanded to 4-ports with N44xxB test set
20 GHz PNA-L with four built-in test ports
4-port measurements up to 20 GHz
N5230A Opt 240 or Opt 245
Features
• Integrated 4-port from 300 kHz to 20 GHz
• Built-in single-ended and balanced
measurements
• Configurable test set for added flexibility
• Fast measurement speed: less than
4 us/point
• Excellent dynamic range, 120 dB
• Low trace noise, 0.006 dB rms
• Automatic Port Extension feature for
easy and accurate test fixture calibration
• Time-domain analysis and frequency-
offset measurements
Expand your PNA Series to 4 ports
PNA: E8362/3/4B, E8361A
PNA-L: N5230A option 225/425/525
Features
• External test set controlled directly
by PNA/PNA-L
N4419B (10 MHz to 20 GHz)
N4420B (10 MHz to 40 GHz)
N4421B (10 MHz to 50 GHz)
N4421BH67 (10 MHz to 67 GHz)
• Option 550 4-port measurement
application adds 4-port error correction
and differential measurements
www.agilent.com/find/multiport
6
ENA Series with External Multiport Test Sets
The Agilent E5091A multiport test set, combined with the 4-port ENA
network analyzer, is a complete solution for multiport device measurements.
The E5091A also offers measurement setup software, Measurement Wizard
Assistant (MWA), which enables you to easily setup multiport measurement
systems and simplify your operation. The E5091A, tailored for testing antenna
switch modules, can be used in a wide range of multiport measurement
applications.
An Agilent 87050E or 87075C multiport test set, combined with an ENA-L
network analyer, offers a complete and economical solution for mulitport
device measurements. The 87075C provides 75 ohm system impedance,
optimally suited for multiport CATV device measurements. A test set calibration
technique eliminates redundant connection of the calibration standard,
while self cal (an internally automated calibration) reduces the effects of
test system drift without connecting an external standard.

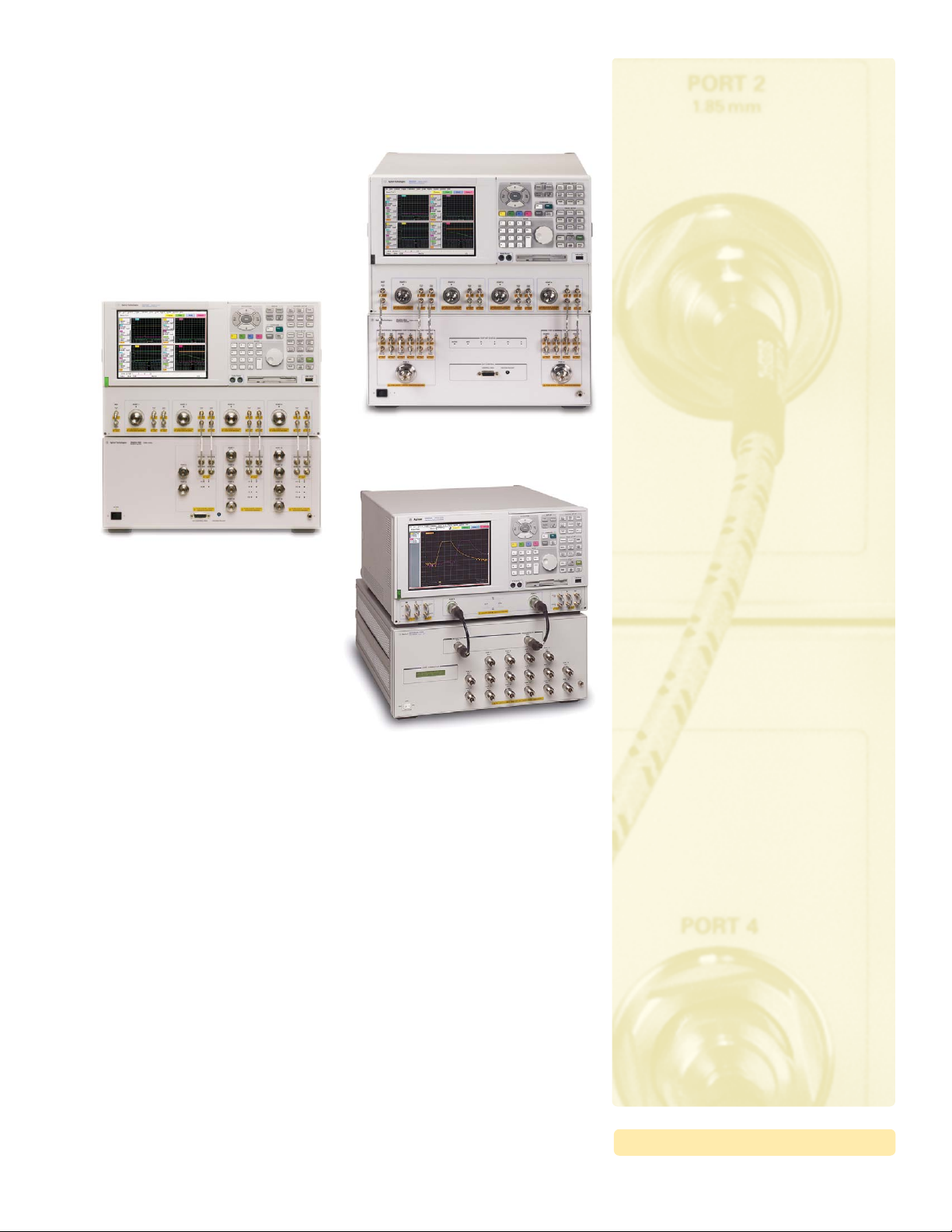

8.5 GHz ENA with E5091A multiport test set
1.3 GHz ENA-L with 87075C 75 ohm multiport test set
Expand up to 16 ports
ENA with E5091A test set
Features
• Single connection measurement of up
to 16-port devices
• Exceptionally fast measurement speed
• Solid-state switches for fast and
reliable measurement
• Built-in balanced measurement to
interpret mixed-mode S-parameters
• Easy-to-use operation with full test
set control from ENA
• 2 x 7 full crossbar capability
• Increase productivity with
Measurement Wizard Assistant
(MWA) software
1
• Available in 9-, 13-, 16-port configurations
with specified performance up to 8.5 GHz
Expand up to 12 ports
ENA-L with 87050E or 87075C test set
Features
• 50 or 75 ohm single connection
measurement of up to 12-port devices
• Test set cal and self cal drastically
reduces calibration time
• Solid-state switching for fast and
reliable measurements
• Easy-to-use full test set operation
from ENA-L
• Available in 4,6,12-port configurations
with specified performance up to
2.2 GHz (87050E)
• Available in 6 or 12-port configurations
with specified performance up to
1.3 GHz (87075C)
1 Measurement Wizard Assistant software is offered as an ENA option.
www.agilent.com/find/multiport
7
Simplify Your Multiport Setup and Measurements
with the Measurement Wizard Assistant (MWA)
Measurement Wizard Assistant
software for ENA and E5091A
test set
Features
• Simplify complex multiport
measurement setups
• Easily define limit line test
parameters
• Calibration Wizard function for
multiport calibration
• External instrument control via GPIB
and 24 bit I/O interface
• Monitoring function for go/no-go testing
MWA evaluation software is
available at:
http://www.agilent.com/find/mwa
Agilent offers Measurement Wizard Assistant (MWA) software that can
dramatically improve your productivity in multiport device testing when
using the ENA RF network analyzers and the E5091A multiport test set.
The MWA consists of two applications, a front-end application and a back-end
application. The front-end application is setup assistant software that enables
you to easily set measurement parameters, multiport test set configuration,
and external instrument control with a user-friendly Microsoft ® Excel interface. The back-end application is a Visual Basic for Applications (VBA) macro
that runs on the ENA. This application provides the functions of calibration
wizard, external instrument control, and limit test monitoring. By using the
MWA, you can easily perform multiport device testing in the laboratory and
on the production line.
www.agilent.com/find/multiport
Setup file
Front-End Application:
• Complex parameter setting with PC
• Easy operation with Microsoft Excel based GUI
• Perform actual measurement
• Manage limit test
• Save measurement data
Back-End Application:
• Upload the ENA setup file and set
measurement parameters automatically
• Perform multiport calibration with Cal Wizard
• External instrument control via the GPIB
and 24 bit I/O
Handler system24 bit I/O
8 bit control line
GPIB
Power supply
8
4-port PNA-L with Z5623A K64 test set
PNA with 87050A H16 test set
Agilent offers customized test sets to work with the PNA Series of network
analyzers. Customizing a test set for a specific DUT allows complete testing of
all transmission paths and reflection characteristics. This can greatly reduce
setup and testing time, as well as operator fatigue. Minimizing the number of
connections also lowers the chance of connecting to the wrong port. Fewer
connections result in less wear on cables, connectors, fixtures, and DUTs.
Agilent offers the Z5623A K44, K64 and K66 test sets for engineers who are
interested in measuring high-power components and/or the harmonics of
their active wireless components.
PNA and PNA-L Customized Multiport Solutions
PNA Series with Z5623A and
87050A custom multiport test sets
Features
• Multiport configurations optimized for
measuring your specific device
• Simple measurement setup and
instrument calibration for increased
productivity
• Solid-state or mechanical switches
available for fast, reliable measurement,
and best RF microwave performance
• External control lines on test set for
DUT control during testing
• Automation interface provides
programmers with a choice of
development environments to design
custom test executives
• Built-in LAN interface makes it easy to
connect to company network
PNA-L 4-port (N5230A Option 245)
Z5623A K44
• 10 MHz to 20 GHz
• Adds 4 ports for total of 8 ports
• Full crossbar
• Single connection, mulitple
measurement capability
Z5623A K64
* 10 MHz to 20 GHz
* Adds 2 ports for total of 6 ports
* 4-port error correction on any of the
6 ports
* High power capability on test set ports,
+38 dBm
Z5623A K66
* 10 MHz to 20 GHz
* Adds 10 ports for a total of 14 ports
* 4-port error correction on any of the
unblocked paths
* Measure the TOI of your active
components
For more information:
Contact your local Agilent Field Engineer
for customized multiport test solutions or
http://www.agilent.com/find/multiport
www.agilent.com/find/multiport
4-port PNA-L with Z5623A K66 test set
9
Agilent offers both 2- and 4-port ECal modules from 300 kHz to 67 GHz
Multiport applications can quickly increase calibration complexity. Connecting
mechanical standards to multiple ports requires intensive operator interaction,
which is prone to error. With ECal, a full one- to four-port calibration can be
accomplished with a single connection to the ECal module and minimal
operator interaction. The operator simply connects the ECal module via a
single USB cable to the network analyzer. The network analyzer controls
the calibration process. Easy-to-use operation of the multiport system
minimizes measurement setup time and results in faster and more
repeatable calibrations.
Agilent ECal modules are state-of-the-art, solid state devices with programmable
and highly repeatable impedance states. ECal modules use fully traceable and
verifiable electronic impedance standards. They can be ordered with connectors
that match your device under test. Agilent’s unique user characterization
capability allows you to change the ECal characterization based on your
adapter or fixture.
Reduce Calibration Time with Electronic Calibration (ECal)
ECal module coverage up to 67 GHz
Features
• Fast full 2-, 3-, or 4-port calibration
with a single connection
• Ideal calibration technique for
manufacturing
• NIST traceable, accurate calibration
• Reliable solid-state switching
• Reduced connector wear and less error
prone (as compared to mechanical
calibration)
• USB interface for direct control with
PNA and ENA Series network analyzers
• 2-port electronic calibration available
from 300 kHz to 67 GHz
• 4-port electronic calibration available
from 300 kHz to 20 GHz
• Nine connector types available
• Mixed connector options available
• 75 ohm modules available
For more information:
http://www.agilent.com/find/ecal
Product Number Frequency Range # of Ports Connector Type 1
85096C 300 kHz to 3 GHz 2 Type-N, 75 ohm
85099C 300 kHz to 3 GHz 2 Type-F
85098C 300 kHz to 7.5 GHz 2 7-16
85091C 300 kHz to 9 GHz 2 APC-7
85092C 300 kHz to 9 GHz 2 Type-N, 50 ohm
85093C 300 kHz to 9 GHz 2 3.5 mm
N4431B 300 kHz to 13.5 GHz 4 3.5 mm, 7-16, Type-N, 50 ohm
N4690B 300 kHz to 18 GHz 2 Type-N, 50 ohm
N4696B 300 kHz to 18 GHz 2 APC-7
N4432A 300 kHz to 18 GHz 4 Type-N, 50 ohm
N4433A 300 kHz to 20 GHz 4 3.5 mm
N4691B 300 kHz to 26.5 GHz 2 3.5 mm
N4692A 10 MHz to 40 GHz 2 2.92 mm
N4693A 10 MHz to 50 GHz 2 2.4 mm
N4694A 10 MHz to 67 GHz 2 1.85 mm
www.agilent.com/find/multiport
10
ENA Test Sets (typical performance)
1 ENA-L does not support the E5091A multiport test set.
2 Return loss of test set port not used in measurement path.
E5091A multiport test set
1
Frequency range: 50 MHz to 8.5 GHz Switch type: Solid state
Connectors: Type-N (f) Switching speed: 3 ms
Impedance: 50 ohm I/O control: USB
Option Designed for: Ports
Raw (uncorrected) Raw (uncorrected)
Test set type
return loss
2
insertion loss
Port A, R1+ ,R1- , R3+, R3–: Port A, R1+, R1-:
23 dB, 50 to 300 MHz 3 dB, 50 to 300 MHz
25 dB, 300 MHz to 1.3 GHz 3 dB, 300 MHz to 1.3 GHz
19 dB, 1.3 to 3 GHz 4 dB, 1.3 to 3 GHz
12 dB, 3 to 6 GHz 5 dB, 3 to 6 GHz All paths except between
009 ENA 9 11 dB, 6 to 8.5 GHz 6 dB, 6 to 8.5 GHz R1+, R2+, and R3+,
Port T1, R2+, R2–: Port T1, R2+, R2-, R3+, R3–: and
18 dB, 50 to 300 MHz 5 dB, 50 to 300 MHz R1–,R2– and R3–
20 dB, 300 MHz to 1.3 GHz 5 dB, 300 MHz to 1.3 GHz
16 dB, 1.3 to 3 GHz 7 dB, 1.3 to 3 GHz
12 dB, 3 to 6 GHz 8 dB, 3 to 6 GHz
Port A, T4, R1+, R1-, R2+, R2–, Port A, T4, R1+,R1-, R2+, R2-,
R3+, R3-, R4+, R4–: R3+, R3–, R4+, R4–:
18 dB, 50 to 300 MHz 6 dB, 50 to 1.3 GHz
20 dB, 300 MHz to 1.3 GHz 7 dB, 1.3 GHz to 3 GHz
16 dB, 1.3 to 3 GHz 8 dB, 3 to 6 GHz All paths except between
016 ENA 4-port 13/16 12 dB, 3 to 6 GHz 9.7 dB, 6 to 8.5 GHz R1+, R2+, R3+, and R4+
9 dB, 6 to 8.5 GHz Port T1, T2, T3: and
Port T1, T2, T3: 6 dB, 50 to 300 MHz R1–, R2–, R3–, and R4–
13 dB, 50 to 300 MHz 9 dB, 300 MHz to 1.3 GHz
15 dB, 300 MHz to 3 GHz 10 dB, 1.3 to 3 GHz
10 dB, 3 to 6 GHz 12 dB, 3 to 6 GHz
8 dB, 6 to 8.5 GHz 14.5 dB, 6 to 8.5 GHz
www.agilent.com/find/multiport
11
ENA-L Test Sets (typical performance)
1 Typical data.
2 Test set cal and self cal are not supported.
87075C test sets
Special calibration features include test set cal to reduce redundant connections during calibration and self cal to reduce the effects of test-system drift.
Frequency range: 3 MHz to 1.3 GHz Switch type: Solid state
Connectors: Type-N (f) Switching speed: 60 ms
Impedance: 75 ohm I/O control: GPIB and Parallel
Option Designed for: Ports
Raw (uncorrected) Raw (uncorrected)
Test set type
return loss
1
insertion loss
2
006 ENA-L 6 ~15 dB, 3 MHz to 1.3 GHz Refl. to Port N Port N to Trans.
Full crossbar
012 12 ~6 dB ~10 dB
87050E test sets
Special calibration features include test set cal to reduce redundant connections during calibration and self cal to reduce the effects of test-system drift.
Frequency range: 3 MHz to 2.2 GHz Switch type: Solid state
Connectors: Type-N (f) Switching speed: 70 ms
Impedance: 50 ohm I/O control: GPIB and Parallel
Option Designed for: Ports
Raw (uncorrected) Raw (uncorrected)
Test set type
return loss
1
insertion loss
2
004 4 ~17 dB, 3 MHz to 1.3 GHz ~6 dB, 3 MHz to 1.3 GHz
008 ENA-L 8 ~14 dB, 1.3 MHz to 2.2 GHz ~8 dB, 1.3 MHz to 2.2 GHz Full crossbar
012 12 ~11 dB, 2.2 MHz to 3 GHz ~12 dB, 2.2 MHz to 3 GHz
www.agilent.com/find/multiport
12
1. Test sets connect to network analyzer through front panel jumpers. System uses the
two ports of the network analyzer and the two test set ports for four system test ports.
2. Full crossbar = Measurements between all ports are possible.
3. Lifetime of mechanical switches are specified at 5 million cycles.
4. Single connection multiple measurements test set.
N44xx series 4-port test sets
1
Requires PNA Series Option 550 to control the system, apply 4-port error correction, and perform differential measurements.
Switch type: Solid state Impedance: 50 ohms
Model
Designed for: Total Ports Frequency range Test port connectors Test set type
Number
N4419B E8362B Option 014/550 4 10 MHz to 20 GHz 3.5 mm (m) Full crossbar
2
E5230A Option 225/550
N4420B E8363B Option 014/550 4 10 MHz to 40 GHz 2.4 mm (m) Full crossbar
2
E5230A Option 425/550
N4421B E8364B Option 014/550 4 10 MHz to 50 GHz 2.4 mm (m) Full crossbar
2
E5230A Option 525/550
N4421BH67 E8361A Option 014/550 4 10 MHz to 67 GHz 1.85 mm (m) Full crossbar
2
Z5623A test sets
Designed to work with PNA network analyzers. Custom test sets available, examples given work with 4-port PNA-L.
Switch type: Mechanical
3
I/O control: GPIB and parallel
Model
Designed for:
Total
Frequency range Test port connectors Test set type
Number Ports
Z5623AK44 N5230A Option 245 8 300 kHz to 20 GHz 3.5 mm (m) Full crossbar
2
Z5623AK64 N5230A Option 245 6 10 MHz to 20 GHz 3.5 mm (m) High-power
full crossbar
2
Z5623AK66 N5230A Option 245 14 10 MHz to 20 GHz 3.5 mm (m) Dual 9-port
crossbar
87050A Option K test sets
Designed to work with PNA/PNA-L network analyzers.
Frequency range: 10 MHz to 20 GHz Switch type: Solid state
Connectors: 3.5 mm (f) Switching speed: 60 ms
Impedance: 50 ohm I/O control: GPIB and Parallel
Option Designed for: Ports
Raw (uncorrected)
1
Raw (uncorrected)
Test set type
return loss insertion loss
K06 6 ~26 dB, 10 to 1.3 GHz ~2.5 dB, 10 MHz to 6.0 GHz
K12 12 ~20 dB, 1.3 to 3.0 GHz ~3.5 dB, 6.0 to 12.4 GHz Full crossbar
2
K16
PNA/PNA-L
16 ~14 dB, 3.0 to 6.0 GHz ~4.5 dB, 12.4 to 20.0 GHz
K22 22 ~12 dB, 6.0 to 12.4 GHz SCMM
4
K24 24 ~8 dB, 12.4 to 20 GHz Full crossbar
2
K28 28 SCMM
4
PNA Series Related Test Sets
www.agilent.com/find/multiport
13
Find The Right Solution—In Minutes, Not Days
www.agilent.com/find/multiport
• Get immediate pricing
information with Quick Quote
• Easy access to measurement
specialists for in-depth
technical assistance
From measurement expertise and product
recommendations to instant price quotes,
get the detailed information you need from
Agilent.com. Explore the possibilities and
identify a solution that balances your technical and financial requirements.
• Quick Quotes available for
over 500 Agilent Products
• Available in local languages
and currency
When you see “Get a Quick Quote” next to
a product description onlne, simply click
that link, enter some basic information, and
we’ll email you a firm, legal quote within
two minutes.
To request a Quick Quote for an ENA or
PNA Series network analyzer visit:
www.agilent.com/find/na
Then simply select the network analyzer
that meets your needs, click on the
“Quick Quote” link at the top of the page,
and receive your quote in minutes!
Get a Quick Quote
in
2
minutes!
www.agilent.com/find/QQ
14
Key Web Resources
Visit our Web sites for additional product information and literature:
Multiport measurements:
www.agilent.com/find/multiport
ENA network analyzer series:
www.agilent.com/find/ena
PNA network analyzer series:
www.agilent.com/find/pna
Physical layer test systems:
www.agilent.com/find/plts
Pulsed RF measurements:
www.agilent.com/find/pulsedrf
RF & MW network analysis
and impedance probings:
www.agilent.com/find/probingrf
Antenna measurements:
www.agilent.com/find/antenna
Materials measurements:
www.agilent.com/find/materials
Electronic calibration (ECal) modules:
www.agilent.com/find/ecal
Test and measurement accessories:
www.agilent.com/find/accessories
Balanced measurements:
www.agilent.com/find/balanced
Agilent Direct Online Store:
www.agilent.com/onlinestore
Free CD-Rom Offer:
ENA & PNA Series
RF & MW Network Analyzers
Application notes, eSeminars,
and video demos…
ENA and PNA RF and microwave
network analyzers provide the right
balance of performance, efficiency
and value to lower your cost of test
in both R&D and manufacturing.
Free CD-Rom contains
ENA and PNA Series:
• Application notes and white papers
• Product demonstration videos
• Product brochures and data sheets
• Links to eSeminars on the Web
Topics include:
• Amplifier measurements
• Differential amplifiers measurements
• CATV applications
• Multiport and balanced measurements
• Mixers/converter applications
• Pulsed-RF measurements
• Millimeter/submillimeter-wave
applications
• Materials measurements
• Antenna measurements
• Electronic calibration
and more…
See how Agilent's ENA and PNA Series'
accuracy, modern technology and powerful
productivity features can improve your
efficiency!
Order your FREE CD-Rom at:
www.agilent.com/find/nacd
Meeting your component test
challenges today and well into
the future...
www.agilent.com/find/multiport
The Right Solutions Come More Quickly with the Right Information
15
www.agilent.com/find/multiport
Have questions? We've got answers…
Do you have questions about network analyzer calibration, programming,
amplifier, mixer, antenna test or other related topics?
Visit Agilent's new network analyzer web-based discussion forum
to discuss challenges with your peers, or with one of the 100+ Agilent engineers
worldwide who are already using the forum. This free open forum allows
anyone to ask questions, receive validation for solutions, share perspectives,
or read about prior network analyzer discussion topics and solutions.
Easily discuss technical challenges and ask questions about network analyzer
operation, calibration, applications, programming, remote communications
or other related topics. Registration is not required to view content, but it is
required to post a topic or to receive an automatic notification when new
replies are posted to the forum.
To start using the forum today, go to: www.agilent.com/find/agilent_forum
Looking for the right test accessories to meet
your design?
Order your RF & Microwave Test Accessories Catalog today
Quickly and conveniently find the high-quality test accessories you need with
Agilent's RF and Microwave Test Accessories Catalog. This comprehensive
catalog features product highlights and easy-to-read product selection and
comparison tables to help you find the right accessories to meet your
specific needs.
Switches, attenuators, calibration kits, adapters and more...
To order your FREE copy visit: www.agilent.com/find/mtacatalog
www.agilent.com/find/emailupdates
Get the latest information on the products and applications you select.
Agilent Email Updates
www.agilent.com
Agilent Technologies’ Test and Measurement Support,
Services, and Assistance
Agilent Technologies aims to maximize the value you
receive, while minimizing your risk and problems. We
strive to ensure that you get the test and measurement
capabilities you paid for and obtain the support you need.
Our extensive support resources and services can help
you choose the right Agilent products for your applications
and apply them successfully. Every instrument and system
we sell has a global warranty. Two concepts underlie
Agilent’s overall support policy: “Our Promise” and “Your
Advantage.”
Our Promise
Our Promise means your Agilent test and measurement
equipment will meet its advertised performance and
functionality. When you are choosing new equipment, we
will help you with product information, including realistic
performance specifications and practical recommendations
from experienced test engineers. When you receive your
new Agilent equipment, we can help verify that it works
properly and help with initial product operation.
Your Advantage
Your Advantage means that Agilent offers a wide range of
additional expert test and measurement services, which
you can purchase according to your unique technical and
business needs. Solve problems efficiently and gain a
competitive edge by contracting with us for calibration,
extra-cost upgrades, out-of-warranty repairs, and onsite
education and training, as well as design, system integration, project management, and other professional engineering services. Experienced Agilent engineers and technicians worldwide can help you maximize your productivity,
optimize the return on investment of your Agilent instruments and systems, and obtain dependable measurement
accuracy for the life of those products.
For more information on Agilent Technologies’ products,
applications or services, please contact your local
Agilent office.
Phone or Fax
United States: Korea:
(tel) 800 829 4444 (tel) (080) 769 0800
(fax) 800 829 4433 (fax) (080)769 0900
Canada: Latin America:
(tel) 877 894 4414 (tel) (305) 269 7500
(fax) 800 746 4866 Taiwan:
China: (tel) 0800 047 866
(tel) 800 810 0189 (fax) 0800 286 331
(fax) 800 820 2816 Other Asia Pacific
Europe: Countries:
(tel) 31 20 547 2111 (tel) (65) 6375 8100
Japan: (fax) (65) 6755 0042
(tel) (81) 426 56 7832 Email: tm_ap@agilent.com
(fax) (81) 426 56 7840
Contacts revised: 05/27/05
The complete list is available at:
www.agilent.com/find/contactus
Product specifications and descriptions in this document
subject to change without notice.
© Agilent Technologies, Inc. 2003-2006
Printed in USA, March 14, 2006
5988-2461EN
www.agilent.com/find/agilentdirect
Quickly choose and use your test equipment solutions with confidence.
www.agilent.com/find/open
Agilent Open simplifies the process of connecting and programming test systems to help engineers
design, validate and manufacture electronic products. Agilent offers open connectivity for a broad
range of system-ready instruments, open industry software, PC-standard I/O and global support,
which are combined to more easily integrate test system development.
Agilent Direct
Loading...
