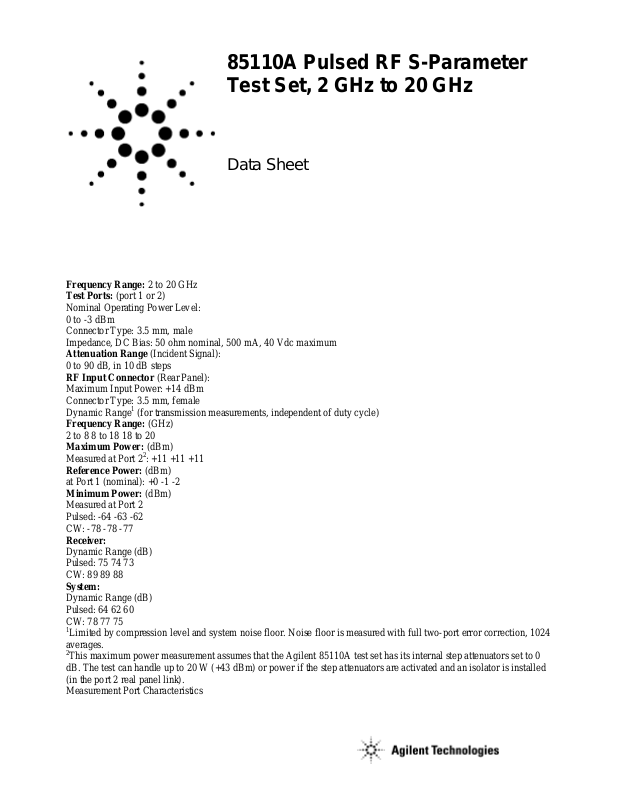

85110A Pulsed RF S-Parameter
Test Set, 2 GHz to 20 GHz
Data Sheet
Frequency Range: 2 to 20 GHz
Test Ports: (port 1 or 2)
Nominal Operating Power Level:
0 to -3 dBm
Connector Type: 3.5 mm, male
Impedance, DC Bias: 50 ohm nominal, 500 mA, 40 Vdc maximum
Attenuation Range (Incident Signal):
0 to 90 dB, in 10 dB steps
RF Input Connector (Rear Panel):
Maximum Input Power: +14 dBm
Connector Type: 3.5 mm, female
Dynamic Range
Frequency Range: (GHz)
2 to 8 8 to 18 18 to 20
Maximum Power: (dBm)
Measured at Port 2
Reference Power: (dBm)
at Port 1 (nominal): +0 -1 -2
Minimum Power: (dBm)
Measured at Port 2
Pulsed: -64 -63 -62
CW: -78 -78 -77
Receiver:
Dynamic Range (d B )
Pulsed: 75 74 73
CW: 89 89 88
System:
Dynamic Range (d B )
Pulsed: 64 62 60
CW: 78 77 75
1
Limited by compression level and system noise floor. Noise floor is measured with full two-port error correction, 1024
averages.
2
This maximum power measurement assumes that the Agilent 85110A test set has its internal step attenuators set to 0
dB. The test can handle up to 20 W (+43 dBm) or power if the step attenuators are activated and an isolator is installed
(in the port 2 real panel link).
Measurement Port Characteristics
1
(for transmission measurements, independent of duty cycle)
2
: +11 +11 +11
Frequency Range: (GHz)
2 to 8 8 to 18 18 to 20
Residual (dB)
Directivity: 44 44 44
Source Match: 33 31 31
Load Match: 44 44 44
Reflection Tracking: ±0.003 ±0.006 ±0.006
Transmission Tracking: ±0.044 ±0.084 ±0.094
Crosstalk: 64 62 61
Pulsed-RF Detectors
Equivalent Measurement Bandwidth (-3 dB): 1.5 MHz
Aperature Uncertainty: <1 nanosecond, typical
Transition Time (10% to 90%): 300 nanoseconds
Trigger Le vel: TTL (falling edge), external
Trigger Width: 100 nanoseconds, minimum
Minimum Time Display: 5 microseconds
Maximum Time Display: 40 milliseconds
