Agilent 4284A Data Sheet

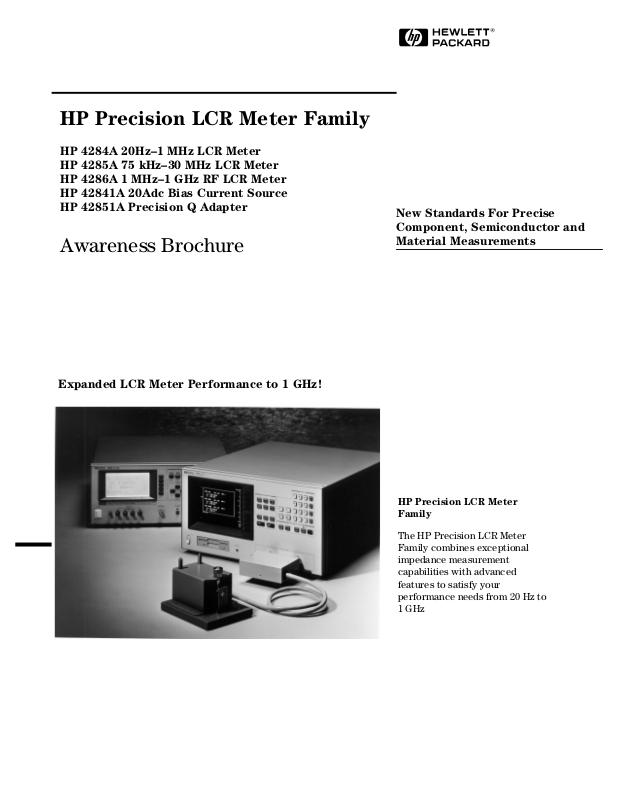

HP Precision LCR Meter Family
HP 4284A 20Hz–1 MHz LCR Meter HP 4285A 75 kHz–30 MHz LCR Meter HP 4286A 1 MHz–1 GHz RF LCR Meter HP 42841A 20Adc Bias Current Source HP 42851A Precision Q Adapter
Awareness Brochure
Expanded LCR Meter Performance to 1 GHz!
New Standards For Precise Component, Semiconductor and Material Measurements
HP Precision LCR Meter Family
The HP Precision LCR Meter Family combines exceptional impedance measurement capabilities with advanced features to satisfy your performance needs from 20 Hz to 1 GHz
HP Precision LCR Meter Family Frequency Range
HP 4284A/85A Features
Utilize State-of-the-Art Measurement Technologies
Basic Accuracy: – 0.05% HP 4284A – 0.1% HP 4285A Constant V or I Test Signal Level 20 Vrms Level Option (HP 4284A Opt. 001) 40 Vdc DC Bias (Option. 001) 40 Adc with HP 42841A
Move Your Process Toward Error-Free Operation
Instrument Setup State Storage Instrument Memory Cards Comparator Functions Powerful Compensation
Simplify Your System Development
HP-IB, Handler I/F (Option. 201/202), Scanner I/F (Option. 301) Test Port Extension
Wide Application of HP 4284/85A
Power Inductor Characterization Precise Ceramic Capacitor Measurements Semiconductor C-V Evaluation Dielectric Material Properties
Key Specifications
1
HP 4284A Precision LCR Meter
Test Frequency
Impedance Range
Basic Accuracy
Test Signal Level
Standard V: 5m-2Vrms
Opt. 001 V: 5m-20Vrms
DC Bias
Standard 1.5V, 2V Opt. 001 ±40V with 0.1%
Meas. Time 40m sec/ 190m sec/
1 Refer to HP 4284A specification
sheet (PN5963-5390E) for more detailed information.
2 Frequency Point distribution based
on geometric progression series
3 Constant Test Signal Level Range
20Hz-1MHz, over 8600 selectable points
0.01m-99.9M
Z: 0.05% D: 0.0005
(V: 10m-1Vrms) I: 50µ-20mArms (I: 100µ-10mArms)
(V: 10m-10Vrms) I: 50µ-200mArms (I: 100µ-100mArms)
accuracy
830m sec @ 1kHz
2
3
3
3
3
Key Specifications
1
HP 4285A Precision LCR Meter
Test Frequency 75kHz-30MHz with
100Hz resolution
Impedance Range
Basic Accuracy
Test Signal Level
Standard V: 5m-2Vrms
DC Bias (Opt.001)
Meas. Time 30m sec/ 65m sec/
1 Refer to HP 4285A Specification
Sheet (P/N 5963-5395E) for more detailed information.
2 Constant Test Signal Level Range
0.01m-99.9M
Z: 0.1% D: 0.001
(V: 10m-1Vrms) I: 50µ-20mArms (I: 100µ-10mArms):
±40V with 0.1% accuracy
200m sec
HP 4285A with Opt. 002 and HP 42851A
Meas. Function
Q range 5.00-999.99 Basic
Accuracy Test Signal
Level Auto Tuning
Time
Q-L/C
5%
1.0Vrms
200m sec-1 sec
2
2
Impedance Range (10% Accuracy)
2
Satisfying Your Performance Needs HP 4286A RF LCR Meter
Introducing the HP 4286A
15 msec Measurement Time
Built-in DOS/LIF Disk Drive
Internal Computer Capability
with HP IBASIC (Opt. 1C2)
Improved Accuracy
– RF I–V Technique – Advanced Calibration Technique – Fixture Compensation
1 m/3 m cable extension with APC-3.5 test head
HP 4286A Features New Precise Impedance Measurement Technique
Basic Accuracy of 1% and wide impedance range with RF I-V technique Improved Q accuracy Advanced Compensation function APC-7 Fixtures
Easy System Integration
HP-IB, Handler I/F HP-IBASIC Option (1C2) 1 m/3 m Selectable extension
cable
High Throughput with Reliable Test
Fast Measurement (15m sec) Binning/Limit Test Functions Contact Check For Inductor Testing 10 point List Sweep Function
Wide Application of HP 4286A
RF inductors SMD Components RF Amplifiers Hybrid ICs Impedance Matching of RF
Circuits
1
Key Specifications
HP 4286A RF LCR Meter
Test Frequency 1 MHz-1GHz with
10 kHz resolution
Impedance Range
Basic Accuracy Z: 1 %
Test Signal Level 1 m Cable: V: 10m-1Vrms
3m Cable: 1M–500MHz V: 10m-1Vrms
500 M–1 GHz V: 10m–0.5Vrms
Meas. Time 15msec 1 Refer to HP 4286A Specification
Sheet (P/N 5963-5394E) for more detailed information.
200m-3k
D: 0.01
I: 0.2m-20m Arms
I: 0.2m-20mArms
I: 0.2m–10mArms
3
Best Choice For LF/HF Testing
Precise Ceramic Capacitor Measurements
1 kHz and 1 MHz are the primary testing frequencies for ceramic materials and capacitors. The HP 4284A can test at these frequencies while maintaining an excellent accuracy and 6 digits of resolution.
Make Production Test Easier
The HP 4284A and HP 4285A reduce testing costs by providing accurate high throughput test platform. The built-in comparator, cable compensation and I/O interfaces permit system integration. Operation setup errors can be reduced by storing and recalling instrument states from memory cards or internal memory.
Power Supply's Components Performance Evaluation
Production Testing
Direct Q measurements with the HP 42851A Precision Q Adapter
Ceramic Capacitor Evaluation
Semiconductor Testing
The HP 4284A and HP 4285A allow you to evaluate the C-V characteristics of semiconductors at multiple frequencies. Small ac test signal levels and an accurate DC Bias can be applied so that you can evaluate the C-V characteristics.
Dielectric Evaluation
The HP 4284A and HP 4285A provides the accuracy, resolution, high test signal and bias levels required for material measurements. Using the HP 16451B Dielectric Test Fixture provides you with accurate dielectric and dissipation factor (loss tangent) measurements.
Designing advanced switching power supplies require the use of inductors and transformers that operate in high frequencies. For low frequencies, the HP 4284A, the HP 42841A and the HP 42842A/B all combine to form a 40 Adc bias test system. For high frequencies, use the HP 4285A, the HP 42841A, and the HP 42842C to achieve up to 10 Adc biasing measurements at 30 MHz.
The HP 4285A and HP 42851A provide you with excellent Q accuracy at the resonant frequency. Tuning Operation, calculation of the measured values, and compensation are fully automated, thus improving measurement efficiency and reliability.
HP 4285A with HP 42851A
High Current Bias For Inductor Testing Under Load
4
High Accuracy with wide Impedance Range
The HP 4286A RF LCR Meter offers accurate and reliable measurements. This will allow you to evaluate your components and improve circuit design. The HP 4286A employs a RF I-V measurement technique, as opposed to the reflection measurement technique, yielding an accurate impedance measurement that extends way beyond 50.
Precise RF Inductor Measurements
The expanding wireless communication market is rapidly increasing the use of RF inductors. The HP 4286A provides you with an accurate impedance measurement capability for RF inductors, especially for nH values. Q measurement accuracy has been improved due to HP's advanced calibration technique ; typical Q accuracy is 6% @ 100 MHz (Q=100). You can reduce the design uncertainty by measuring your devices true impedance values at operating conditions.
Ease-of-Use
The HP 4286A can be easily used by pressing the front panel keys. By adding to the HP-IBASIC
Impedan ce (Ω)
100K
10K
1K
100
10
1
0.1
0.01 1M 10M 100M 1G
Impedance range (10% accuracy) comparison between HP 4286A versus reflections coefficient method
1pF
HP 4286A
Reflection Coefficient Method
1nH
100K
10K
1K
100
10
1
0.1
0.01
Frequency
Option (1C2), the HP 4286A allows you to customize measurement, test sequences, process control, and perform data analysis. A number of new APC-7 SMD test fixtures can be connected with the HP 4286A; you don't need to build your own fixture.
HP 4286A Applicable Fixtures
RF Inductor for Testing
Simplified Handler Integration
The HP 4286A is designed to test RF components in a production line. The 1m/3m selectable test head cable can be easily connected closely to the handler DUT (device under test) contacts without additional error. The built-in comparator function, a HP-IB interface and a Handler interface are available for integration with a component handler.
Reliable and High Throughput Testing in Production Line
The HP 4286A allows you to reduce test time and improve testing efficiency and reliability. The measurement time is 15 milliseconds. Using the working standard set option (004) with the calibration/compensation functions minimizes the fixture parasitic residuals, allowing you to test the actual component characteristics.
5
The HP 42841A is used with either the HP 4284A or HP 4285A for high DC current bias measurements.
HP 42842C
Up to 10 Adc maximum, used only with the HP 4285A. Option 001 adds the SMD Test Fixture.
HP 42841A Bias Current Source
HP 42842A/B/C Bias Current Test Fixture
Bias Current Output
Up to 20 Adc maximum, 0.01 Adc steps
Current Accuracy
±1% to 1A, ±2% to 5A, ±3% to 20A
Output Voltage
38 Vdc maximum
Frequency Range
HP 4284A: 20 Hz to 1 MHz HP 4285A: Up to 30 Hz to when combined with the HP 42842C Bias Current Fixture.
Test Signal Voltage
0.5 Vrms to 2 Vrms
Basic Impedance Accuracy
HP 4284A: 2% for <1 kHz, 1% for 1 kHz to 1 MHz
HP 4285A: + HP 4285A
fm%
accuracy (fm=test frequency in MHz)
Interface
Custom, directly controllable by the HP 4284A/4285A with Option 002.
Component Dimensions (Maximum)
60 mm (W) x 50 mm (H) x 60 mm (D)
The HP 42851A is used with the HP 4285A/Option 002 to perform automatic resonant Q factor measurements.
Measurement Function
Q (Quality factor), L (Inductance), C (Capacitance)
Q Measurement Range
5.00 to 999.99
Basic Q Accuracy
5%
Test Signal Level
1.0 Vrms
Automatic Tuning Time
200 ms to 1s
Interface
Custom, directly controllable by the HP 4285A with Option 002.
Weight
4.1 kg
HP 42851A Precision Q Adapter
The HP 42842A/B/C are fixtures designed to interface from the HP 42841A Bias Current Source to inductive DUTs.
Basic Impedance Accuracy
Refer to HP 42841A specifications HP 42842A: Up to 20 Adc maximum, used only with the HP 4284A HP 42842B: Up to 40 Adc maximum, used only with the HP 4284A
Component Dimensions (Maximum)
80 mm (W) x 80 mm (H) x 80 mm (D)
6
Dimensions
180 mm (W) x 166 mm (H) x 290 mm (D)
Option 001
SMD Test Fixture
HP 42843A Bias Current Cable
This cable is used with the HP 4284A for configurations greater than 20 Adc. Refer to the configuration table in the Ordering Information section.
Ordering Information
HP 4284A 20 Hz–1 MHz Precision LCR Meter
Furnished Accessories: Operation Manual, Memory Card, and Power Cable. (No test fixture is supplied with the HP 4284A.)
Options
001 Power Amplifier/40V DC
002 Bias Current Interface 006 2m/4m Cable Length
008 Add Japanese Operation
009 Delete Operation Manual 109 Delete HP-IB Interface 201 General Purpose Handler
202 Specific Handler Interface 301 Scanner Compensation 910 Extra Operation Manual UK6 Commercial Cal. Certificate
1 Option 001 and 002 do not operate
simultaneously.
2 A maximum of 2 (3 with Opt. 109) of the
following may be installed at one time: Options 002, 201, 202, 301
3 Select either Option 201 or 202
HP 4285A 75 kHz–30 MHz Precision LCR Meter
Furnished Accessories: Operation Manual, Memory Card, and Power Cable. (No test fixture is supplied with the HP 4285A.)
Options
001 40V DC Bias 002 Accessory Control
008 Add Japanese Operation
009 Delete Operation Manual 109 Delete HP-IB Interface 201 General Purpose Handler
202 Specific Handler Interface 301 Scanner Compensation
1
Bias
Operation
Manual
Interface
2,3
with Test Data
1
Interface
1,2
Manual
Interface
2, 3
1,2
2,3
2
2,3
2
910 Extra Operation Manual 915 Add Service Manual UK6 Commercial Cal. Certificate
with Test Data
1 Option 001 and 002 do not operate
simultaneously.
2 A maximum of 2 (3 with Opt. 109) of the
following may be installed at one time Options 002, 201, 202, 301
3 Select either Option 201 or 202
Cabinet Options (HP 4284A/ HP 4285A)
Options
907 Handle kit 908 Rack Mount kit 909 Rack Flange and Handle kit
HP 42851A Precision Q Adapter
Options
001 SMD Test Fixture 008 Add Japanese Operation
Manual
009 Delete Operation Manual 910 Extra Operation Manual 915 Add Service Manual
Bias Current Accessories
HP 42841A Bias current Source HP 42842A 20 Adc Bias Current Test Fixture HP 42842B 40 Adc Bias current Test Fixture HP 42842C (10 Adc @30 MHz) Bias Current Test Fixture
Option
001 SMD Test Fixture HP 42843A
Bias Current Cable
Test fixtures for HP 4284A/ HP 4285A
HP 16034E Test Fixture (SMD component) HP 16047A Test Fixture (Axial/Radial) HP 16047C Test Fixture (Axial/Radial) HP 16047D Test Fixture (Axial/Radial)
HP 16048A Test Leads (0.94 m/BNC) HP 16048B Test Leads (0.94 m/SMC) HP 16048C Test Leads (1m/Alligator Clip) HP 16048D Test Leads (1.89 m/BNC) HP 16048E Test Leads (3.8m/BNC) HP 16065A External Voltage Bias Fixture HP 16334A Test Fixture (Tweezer contacts) HP 16451B Dielectric Test Fixture
Other Accessories for HP 4284A/HP 4285A
HP 10503A 50 cable, BNC(m)-BNC(m), 122 cm, UG-88C/U HP 16270A Memory Card Set (10 ea.) HP 16380A Standard Capacitor Set (1, 10, 100, 1000 pF) HP 16380C Standard Capacitor Set (10, 100, 1000 nF) HP 41200A Four-Terminal Pair
Resistor Set (Open, Short, 100)
The resistor set is needed for HP 4285A Cable length compensation of 1 and 2 m.
Note: HP printers capable of the following are usable with HP 4284A/4285A.
1. HP-IB Interface
2. Listen Only mode
Instrument Configurations
0–10 Adc Bias configuration (HP 4285A only)
HP 4285A with Opt. 002, 1 ea. HP 42841A Bias Current Source, 1 ea. HP 42842C Bias Test Fixture, 1 ea. Opt. 001 adds SMD test fixture HP 16048A Test Leads, 1 ea.
7
0–20 Adc Bias configuration (HP 4284A only)
HP 4284A with Opt. 002, 1 ea. HP 42841A Bias current Source, 1 ea. HP 42842A or HP 42842B Bias Test Fixture, 1 ea.
0–40 Adc Bias7 Configuration (HP 4284A only)
HP 4284A with Opt. 002, 1 ea. HP 42841A Bias Current Source, 2 ea. HP 42842B Bias Test Fixture, 1 ea. HP 42843A Bias Test Fixture, 1 ea. HP 16048A Test Leads, 1 ea.
Direct Q Measurement configuration (HP 4285A Only)
HP 4285A with Opt. 002, 1 ea. HP 42851A Q Adapter, 1 ea. Opt. 001 adds SMD test fixture HP 10503A BNC-BNC Cable, 2 ea. HP 16048A Test Leads, 1 ea.
HP 4286A 1 MHz–1GHz RF LCR Meter
Furnished Accessories: Right angle test head (1m)
1
, APC3. 5-to-APC7 adapter, Test Fixture Stand, HP 16195A APC-7 Calibration Kit
2
, Operation Manual, Floppy Disk, and Power Cable. (No test fixture is supplied with the HP 4286A.)
Options
021 Add straight angle test head
022 Add straight angle test head
031 Delete right angle test head
032 Add right angle test head
(1 m)
(3 m)
(1 m)
(3 m)
1
1
1
1
001 Delete HP 16195A
Calibration Kit
002 Delete Test Fixture Stand 004 Add Working Standard Set
3
1C2 Add HP-IBASIC, Keyboard,
Cable
1CMRack Flange Kit
(P/N 5062-3979)
1CN Front Handle Kit
(P/N 5062-3991)
1CP Handle/Rack Kit
(P/N 5062-3985)
0B0 Delete Operation Manual 0B1 Add Operation Manual 0BW Add Service Manual ABAEnglish Localization UK6 Commercial Cal. Certificate
with Test Data
Note
1. Refer to the following figure when test head options is selected
2. The HP 16195A is used to calibrate the HP 4286A at the APC-7 calibration plane by using the APC3.5-APC7 adapter. It consists of OPEN, SHORT, LOAD, and LOW-LOSS CAPACITOR.
3. This is used to calibration the HP 4286A at the handler DUT contacts. It consists of Shorting bars, and 51.0Ω Clip Resistors. (SMD size: 1.0 x 0.5 mm, 1.6 x
0.8 mm, 2.0x1.2 mm, 3.2 x 1.6 mm)
Accessories for HP 4286A
HP 16190A Performance Test Kit HP 16191A Side Electrode SMD Fixture HP 16192A Parallel Electrode SMD Fixture HP 16193A Small Side Electrode SMD Fixture HP 16194A High Temperature Test Fixture HP 16195A APC-7 Calibration Kit HP 16092A Test Fixture ( 500 MHz) HP 16093A Binding Post Fixture ( 250 MHz) HP 16093B Binding Post Fixture ( 125 MHz) HP 16094A Probe Test Fixture
( 125 MHz)
For more information on Hewlett-Packard Test and Measurement products, applications, or services please call your local Hewlett-Packard sales office. A current listing is available via the Web through AccessHP at http://www.hp.com. If you do not have access to the internet, please contact one of the HP centers listed below and they will direct you to your nearest HP representative.
United States:
Hewlett-Packard Company Test and Measurement Organization 5301 Stevens Creek Blvd. Bldg. 51L-SC Santa Clara, CA 95052-8059 1 800 452 4844
Canada:
Hewlett-Packard Canada Ltd. 5150 Spectrum Way Mississauga, Ontario L4W 5G1 (905) 206 4725
Europe:
Hewlett-Packard European Marketing Centre P.O. Box 999 1180 AZ Amstelveen The Netherlands
Japan:
Hewlett-Packard Japan Ltd. Measurement Assistance Center 9-1, Takakura-cho, Hachioji-shi, Tokyo 192, Japan (81) 426 48 3860
Latin America:
Hewlett-Packard Latin American Region Headquarters 5200 Blue Lagoon Drive 9th Floor Miami, Florida 33126 U.S.A. (305) 267 4245/4220
Australia/New Zealand:
Hewlett-Packard Australia Ltd. 31-41 Joseph Street Blackburn, Victoria 3130 Australia 131 347 ext. 2902
Asia Pacific:
Hewlett-Packard Asia Pacific Ltd 17-21/F Shell Tower, Times Square, 1 Matheson Street, Causeway Bay, Hong Kong (852) 2599 7070
© Copyright 1996 Hewlett-Packard Company Data subject to change Printed in U.S.A. 4/96
5963-5391E
8
Loading...
