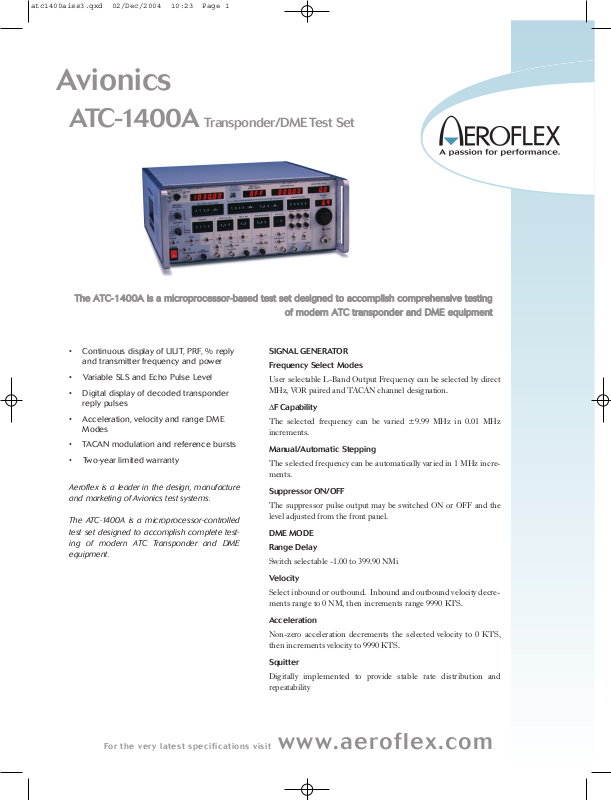

Aeroflex ATC-1400A Data Sheet

Avionics

ATC-1400A Transponder/DME Test Set

TThhee AATTCC--11440000AA iiss aa mmiiccrroopprroocceessssoorr--bbaasseedd tteesstt sseett ddeessiiggnneedd ttoo aaccccoommpplliisshh ccoommpprreehheennssiivvee tteessttiinngg

ooff mmooddeerrnn AATTCC ttrraannssppoonnddeerr aanndd DDMMEE eeqquuiippmmeenntt

• Continuous display of UUT, PRF, % reply
and transmitter frequency and power

• Variable SLS and Echo Pulse Level

• Digital display of decoded transponder
reply pulses

• Acceleration, velocity and range DME
Modes

• TACAN modulation and reference bursts

• Two-year limited warranty

Aeroflex is a leader in the design, manufacture
and marketing of Avionics test systems.

The ATC-1400A is a microprocessor-controlled
test set designed to accomplish complete test­ing of modern ATC Transponder and DME
equipment.

SIGNAL GENERATOR

Frequency Select Modes

User selectable L-Band Output Frequency can be selected by direct
MHz, VOR paired and TACAN channel designation.

∆F Capability

The selected frequency can be varied ±9.99 MHz in 0.01 MHz
increments.

Manual/Automatic Stepping

The selected frequency can be automatically varied in 1 MHz incre­ments.

Suppressor ON/OFF

The suppressor pulse output may be switched ON or OFF and the
level adjusted from the front panel.

DME MODE

Range Delay

Switch selectable -1.00 to 399.90 NMi

Velocity

Select inbound or outbound. Inbound and outbound velocity decre­ments range to 0 NM, then increments range 9990 KTS.

Acceleration

Non-zero acceleration decrements the selected velocity to 0 KTS,
then increments velocity to 9990 KTS.

Squitter

Digitally implemented to provide stable rate distribution and
repeatability

For the very latest specifications visit www.aeroflex.com

TACAN Simulation

When TACAN/On is selected, output pulses are AM modulated with
15 and 135 Hz signals.

Echo Pulses

Front panel selectable

Transmitter Frequency Discriminator

View frequency variation within the measured pulse

Transmitter Power Meter

Transmitter power of P

or P2in DME Mode and/or F1or F2in XPDR

1

Mode may be selected and displayed on the front panel.

Ident Pulses

Select continuous pulse or Morse code from front panel

Pulse Characteristics

DME Pulses are formed by filtering, which provides superior repre­sentation of Gaussian shaped pulses.

DME Serial Data Interface

The serial BCD distance word is generated to correspond to the
range distance programmed in the test set. This serial BCD word is
available at the back panel through a 25 pin D type connector.

Frequency Channelling

The 2-out-of-5 VOR Paired Channel Frequency is available for con­trol of the DME UUT when the test set is in the automatic frequen­cy stepping mode.

ARINC 568 compatible

Transponder Mode

Modes 1, 2, T, A, B, C, D, AC

and AC2 are available.

1

Variable Pulse Spacing

and P3pulse spacing may be varied in the “+” or “-” direction or

P

2

may be selected to the calibrated spacing from individual switches on
the front panel.

Pulse Width

The generated pulse width may be varied or selected for a calibrated
width by a front panel switch.

Side Lobe Suppression

On/Off selectable P

pulse

2

Interference/DBL Interrogation

The Interference pulse and double interrogation functions are com­bined in a single switch and are exclusively selectable.

UUT Pulse Spacing Detector

Transponder reply pulses are verified for proper position by selection
of a narrow window. A wide window is provided when pulse position
accuracy verification is not desired.

Suppression Recovery

Selection of double interrogation and suppressor pulse provides a sin­gle interrogation after suppressor pulse spacing may be varied by
interference/DBL interrogation switch.

UUT MEASUREMENTS

Transmitter Frequency Counter

The average frequency of one pulse in a reply (XPDR Mode) or an
interrogation (DME Mode) is counted and continuously displayed.
In the DME Mode either P
XPDR Mode the F

or F2may be counted.

1

or P2may be selected to be counted. In

1

Added Features

• IEEE-488-1978 GPIB

• Automatic frequency stepping

• TACAN Channel: VOR pairing, or direct UHF frequency
selection

• Variable interference and double interrogation pulse posi­tion

• DME serial data output

• DME serial data input

• 2-out-of-5 code frequency channeling outputs

ATC -1400A

Accessory Units

When interfaced with the T-1401, I-1402, S-1403DL/MLD or
SI-1404 accessory units, the ATC-1400A becomes a comprehensive
test system for TACAN, Mode 4 XPDR/RADAR and Mode S XPDR
avionics equipment. For more information see separate data sheets.

Non-Coherent SLS Option

provided on separate 200 MHz carrier, phase unsynchronized.

P

2

(Factory or factory service center installed option.)

SSPPEECCIIFFIICCAATTIIOONNSS

SSIIGGNNAALL GGEENNEERRAATTOORR CCHHAARRAACCTTEERRIISSTTIICCSS

Range

952.01 to 1222.99 MHz, selectable in 0.01 MHz increments

Accuracy

±0.001%

∆∆

F

±9.99 MHz in 0.01 MHz increments from the selected frequency

OOUUTTPPUUTT CCHHAARRAACCTTEERRIISSTTIICCSS

Range

0 to -127 dBm (into 50 Ω) in 1 dB increments

Overall Accuacy

±2.0 dB 0 to -90 dBm

±2.5 dB -90 to -110 dBm

Frequency Flatness

±0.6 dB Maximum

ON/OFF Ratio

80 dB minimum

Output Impedance

50 Ω

,

VSWR < 1.2:1

Residual FM

5 kHz peak to peak maximum

Phase Noise

> 90 dBc/Hz measured at 150 kHz from the carrier

Spurious

>60 dBc from 350 to 1800 MHz

SSUUPPPPRREESSSSOORR PPUULLSSEE OOUUTTPPUUTT CCHHAARRAACCTTEERRIISSTTIICCSS

Pulse Width

33 µs (±3 µs)

Amplitude

Adjustable from 3 to 27 V

Timing

DME function nominally 3.5

µ

s prior to P1of range reply

XPDR Function

0.8

µ

s prior to P

3

DDMMEE MMOODDEE CCHHAARRAACCTTEERRIISSTTIICCSS

RANGE DELAY

Range

0 to 399.99 NM selectable in 0.01 NM increments. -1 NM selected
by individual switch

Accuracy

±0.02 NM plus ±0.005% of selected range

VELOCITY

Range

0 to 9990 KT selectable in 10 KT increments

Accuracy

±0.05%

ACCELERATION

Range

0 to 399 ft/sec

Accuracy

±0.5 ft/sec

SQUITTER

Range

Selectable from 10 to 5999 Hz in 1 Hz increments (Ave. squitter)

Accuracy

±2%

Distribution

At 2700 Hz the distribution is in compliance with the requirements pre­sented in ARINC characteristics 568

2

selectable in 1 ft/sec2increments

2

TTAACCAANN SSIIMMUUAALLAATTIIOONN CCHHAARRAACCTTEERRIISSTTIICCSS
((IINNTTEERRNNAATTIIOONNAALL))

AM Modulation Frequencies

15 and 135 Hz ±0.02%

AM Modulation %

21% (±3%) each component

Bearing Output

180° (approx)

EECCHHOO PPUULLSSEE CCHHAARRAACCTTEERRIISSTTIICCSS

Position

30 NM (±1 NM) after the interrogation is received in X channel

Amplitude

-19 to +6 dB, referring to the desired reply, selectable in 1 dB incre­ments

Accuracy

±0.2 dB (0 to -10 dB)
±0.5 dB (-11 to -19 dB)

REPLY EFFICIENCY CHARACTERISTICS

Range

0% to 100% selectable in 10% increments (1% under GPIB control)

Accuracy

±1.0% of interrogations 0% and 100%
±5.0% of interrogations 10% and 90% Typical

PPUULLSSEE CCHHAARRAACCTTEERRIISSTTIICCSS

Spacing

12 µs ±0.1 µs (X channel), P

30 µs ±0.1 µs (X channel), P

Deviation

P

2

to P2, 50% pk

1

to P2, 50% pk

1

±7.9 µs in 0.1 µs increments (X and Y Channel)

Note: in X channel, P

and P2merge when P2 is deviated greater than

1

-5.0 µs

Rise Time

2.0 µs (±0.25 µs) (10% to 90%)

Fall Time

2.5 µs (±0.25 µs) (90% to 10%)

Width

3.5 µs (±0.5 µs) (50% to 50%)

Spectrum

>55 dB down from center frequency measured at ±800 kHz

RR--NNAAVV CCHHAARRAACCTTEERRIISSTTIICCSS

Spacing

50 µs (±0.25 µs) at 0 NM (X Channel) 56 µs (±0.25 µs) at 0 NM (Y
Channel)

P

at time of interrogation

1

P2at time of reply

For the very latest specifications visit www.aeroflex.com

Width

7 µs (±1 µs)

IDENT PULSE CHARACTERISTICS

Rate

1350 Hz (±0.02%)

EQUALIZER PULSED CHARACTERISTICS

100 µs after ident pulse

TTRRAANNSSPPOONNDDEERR MMOODDEE CCHHAARRAACCTTEERRIISSTTIICCSS

INTERROGATION RANGE

Range

10 to 7999 Hz selectable in 1 Hz increments

Accuracy

±0.005%

PULSE CHARACTERISTICS

Mode Spacing

3.0 µs (±5 ns) (Mode 1)

5.0 µs (±5 ns) (Mode 2)

6.5 µs (±5 ns) (Mode T)

8.0 µs (±5 ns) (Mode 3/A)

17.0 µs (±5 ns) (Mode B)

21.0 µs (±5 ns) (Mode 1)

25.0 µs (±5 ns) (Mode 1)

Variable Pulse Spacing

±1.85 µs selectable in 0.05 µs increments for P
pendently variable in direction relative to P

Width

0.8 µs (±5 ns) (CAL switch position)

0.20 to 1.85 µs selectable in 0.05 µs increments (VAR Switch
Position)

Rise Time

70 ns (+10 ns, -20 ns) (10% to 90%)

Fall Time

70 ns (+10 ns, -20 ns) (90% to 10%)

SIDE LOBE SUPPRESSION (SLS)

Amplitude

-19 to +6 dB, relative to P

selectable in 1 dB increments

1,

Accuracy

±0.2 dB for -10 to +3 dB

INTERFERENCE PULSE CHARACTERISTICS

Position Range

-17.5 to +399.0 µs referenced to P

, selectable in 0.1 µs increments

1

Accuracy

±0.05 µs

Width

Continuously adjustable from 0.2 to 5 µs by front panel control

to P2, P1to P2inde-

1

1

DOUBLE INTERROGATION CHARACTERISTICS

Range

Measured from P

first interrogation to P1second interrogation, selec-

1

table to 0.1 µs increments

Accuracy

±5 ns plus 0.05%

UUT PULSE SPACING DETECTOR

Window Width

Narrow: 220 ns nominal, referenced to P
Wide: 750 ns nominal, referenced to P

1

1

UUUUTT MMEEAASSUURREEMMEENNTT CCHHAARRAACCTTEERRIISSTTIICCSS

TRANSMITTER FREQUENCY COUNTER CHARACTERISTICS

Range

1020 to 1155 MHz

Accuracy

±20 kHz (DME Mode)

±50 kHz (XPDR Mode)

TRANSMITTER FREQUENCY DISCRIMINATOR OUTPUT

Response

1 MHz/V ±10% into open load

2 MHz/V ±10% into a 50 Ω load

Bandwidth

10 MHz minimum

TRANSMITTER POWER METER CHARACTERISTICS

Frequency Range

1020 to 1155 MHz

Amplitude Range

0 to 3999 W pk

Accuracy

±0.5 dB (from 50 Ω source) 100 to 3999 W

±0.7 dB (from 50 Ω source) 1 to 99 W

GGEENNEERRAALL

Power

Source Voltage and Frequency

100 to 120 VAC, 60 Hz
220 to 240 VAC, 50 Hz.

Power Consumption

120 W maximum
94 W nominal at 115 VAC
86 W nominal at 230 VAC

Nominal Input Current

1.49 A at 115 VAC

0.88 A at 230 VAC

Electromagnetic Compatibility

Complies with the limits specified in the following standards:

EN 55011:1991 Class B

EN 50082-1

Safety

Conforms with EN 61010-1 for class 1 portable equipment.

Temperature

5° to 40°C

Relative Humidity

≤

80% for temperatures upto 31°C, decreasing linearly to 50% at 40°C

Altitude

≤4000 m (13,124 ft)

Mains Supply Fluctuations

≤±10% of the nominal voltage

Transient Overvoltages

According to installation category II

Pollution Degree

2

Dimensions

426 mm wide, 185 mm high, 467 mm deep

16.8 in. wide, 7.3 in. high, 18.4 in. deep

Weight

20 kg (44 lbs.) approximately

VVEERRSSIIOONNSS AANNDD AACCCCEESSSSOORRIIEESS

When ordering please quote the full ordering number information.

Ordering Numbers

Versions

1400-110 ATC-1400A Transponder/DME Bench Test

Equipment, 110 VAC operation

1400-220 ATC-1400A Transponder/DME Bench Test

Equipment, 220 VAC operation

Accessories

1401-110 T-1401 TACAN Bearing and DME Simulation,

110 VAC operation

1401-220 T-1401 TACAN Bearing and DME Simulation,

220 VAC operation

1402-110 I-1402 Mode 4 Transponder/Interrogator, 110 VAC

operation

1402-220 I-1402 Mode 4 Transponder/Interrogator, 220 VAC

operation

1403-110 S-1403DL Mode S Transponder, 110 VAC operation

1403-220 S-1403DL Mode S Transponder, 220 VAC operation

1403MLD-110 S-1403DL/MLD Mode S with Level Diversity,

110 VAC operation

1403MLD-220 S-1403DL/MLD Mode S with Level Diversity,

220 VAC operation

1404-110 SI-1404 Modes S & 4 Transponder with MLD,

110 VAC

1404-220 SI-1404 Modes S & 4 Transponder with MLD,

220 VAC

Options

AC1000 Non-coherent SLS option

All Aeroflex Avionics products delivered with Factory Certificate Of Calibration

For the very latest specifications visit www.aeroflex.com

For the very latest specifications visit www.aeroflex.com

.

CHINA Beijing

Tel: [+86] (10) 6467 2761 2716
Fax: [+86] (10) 6467 2821

CHINA Shanghai

Tel: [+86] (21) 6282 8001
Fax: [+86] (21) 62828 8002

FINLAND

Tel: [+358] (9) 2709 5541
Fax: [+358] (9) 804 2441

FRANCE

Tel: [+33] 1 60 79 96 00
Fax: [+33] 1 60 77 69 22

GERMANY

Tel: [+49] 8131 2926-0
Fax: [+49] 8131 2926-130

HONG KONG

Tel: [+852] 2832 7988
Fax: [+852] 2834 5364

INDIA

Tel: [+91] 80 5115 4501
Fax: [+91] 80 5115 4502

KOREA

Tel: [+82] (2) 3424 2719
Fax: [+82] (2) 3424 8620

SCANDINAVIA

Tel: [+45] 9614 0045
Fax: [+45] 9614 0047

SPAIN

Tel: [+34] (91) 640 11 34
Fax: [+34] (91) 640 06 40

UK Burnham

Tel: [+44] (0) 1682 604455
Fax: [+44] (0) 1682 662017

UK Stevenage

Tel: [+44] (0) 1438 742200
Fax: [+44] (0) 1438 727601
Freephone: 0800 282388

USA

Tel: [+1] [phone]
Fax: [+1] [phone]
Toll Free: 800 835 2352

www.aeroflex.com

[e-mail]

As we are always seeking to improve our products,
the information in this document gives only a general
indication of the product capacity, performance and
suitability, none of which shall form part of any con­tract. We reserve the right to make design changes
without notice. All trademarks are acknowledged.
Parent company Aeroflex, Inc. ©Aeroflex 2004.

Part No. 46891/033, Issue 3, 08/03
