AA rraannggee ooff 1177 ppoowweerr sseennssoorrss aavvaaiillaabbllee ffoorr uussee wwiitthh 66220000BB sseerriieess MMTTSS,, CCPPMM,, 66996600BB aanndd 66997700
ppoowweerr mmeetteerrss

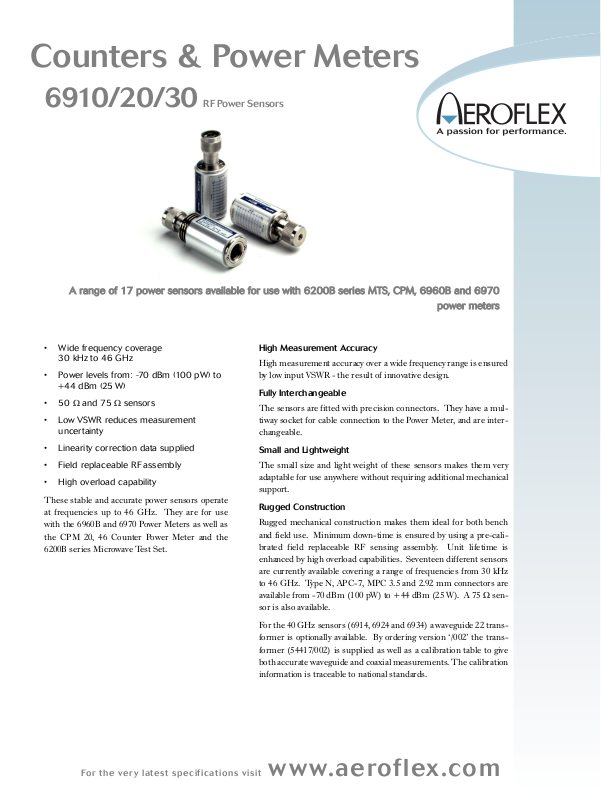

Counters & Power Meters
6910/20/30 RF Power Sensors
• Wide frequency coverage
30 kHz to 46 GHz
• Power levels from: -70 dBm (100 pW) to
+44 dBm (25 W)
•50 W and 75 W sensors
• Low VSWR reduces measurement
uncertainty
• Linearity correction data supplied
• Field replaceable RF assembly
• High overload capability
These stable and accurate power sensors operate
at frequencies up to 46 GHz. They are for use
with the 6960B and 6970 Power Meters as well as
the CPM 20, 46 Counter Power Meter and the
6200B series Microwave Test Set.
High Measurement Accuracy
High measurement accuracy over a wide frequency range is ensured
by low input VSWR - the result of innovative design.
Fully Interchangeable
The sensors are fitted with precision connectors. They have a multiway socket for cable connection to the Power Meter, and are interchangeable.
Small and Lightweight
The small size and light weight of these sensors makes them very
adaptable for use anywhere without requiring additional mechanical
support.
Rugged Construction
Rugged mechanical construction makes them ideal for both bench
and field use. Minimum down-time is ensured by using a pre-calibrated field replaceable RF sensing assembly. Unit lifetime is
enhanced by high overload capabilities. Seventeen different sensors
are currently available covering a range of frequencies from 30 kHz
to 46 GHz. Type N, APC-7, MPC 3.5 and 2.92 mm connectors are
available from -70 dBm (100 pW) to +44 dBm (25 W). A 75 W sensor is also available.
For the 40 GHz sensors (6914, 6924 and 6934) a waveguide 22 transformer is optionally available. By ordering version ‘/002’ the transformer (54417/002) is supplied as well as a calibration table to give
both accurate waveguide and coaxial measurements. The calibration
information is traceable to national standards.
6910 series: Medium Power Thermocouple Power Sensors
6 6910 6911 6912
FREQUENCY RANGE 10 MHz - 20 GHz 10 MHz - 20 GHz 30 kHz - 4.2 GHz
POWER RANGE -30 dBm to +20 dBm -30 dBm to +20 dBm -30 dBm to +20 dBm
(1 µW to 100 mW) (1 µW to 100 mW) (1 µW to 100 mW)
MAX RF INPUT +25 dBm (300 mW) CW +25 dBm (300 mW) CW +25 dBm (300 mW) CW
+42 dBm (15 W) peak for 2 µs +42 dBm (15 W) peak for 2 µs +42 dBm (15 W) peak for 2 µs
SENSING ELEMENT Semiconductor thermocouple Semiconductor thermocouple Semiconductor thermocouple
VSWR <1.25 10 MHz - 30 MHz <1.25 10 MHz - 30 MHz <1.6 30 kHz - 100 kHz
<1.1 30 MHz - 2GHz <1.15 30 MHz - 2 GHz <1.2 100 kHz - 300 kHz
<1.18 2 GHz - 16 GHz <1.18 2 GHz - 16 GHz <1.1 300 kHz - 4.2 GHz
<1.28 16 GHz - 18 GHz <1.28 16 GHz - 18 GHz
<1.4 typical 18 GHz - 20 GHz <1.4 typical 18 GHz - 20 GHz
LINEARITY FACTOR Provided with sensor Provided with sensor Provided with sensor
Accuracy ±0.5% at 25°C between +10 and +20 dBm ±0.5% at 25°C between +10 and +20 dBm ±0.5% at 25°C between +10 and 20 dBm
Improves by a factor of 10 for each lower range Improves by a factor of 10 for each lower range Improves by a factor of 10 for each lower range
CALIBRATION FACTOR Provided with sensor Provided with sensor Provided with sensor
Accuracy Uncertainty provided with sensor Uncertainty provided with sensor Uncertainty provided with sensor
Resolution 0.01% 0.01% 0.01%
RF CONNECTOR Precision N-type, male 50 W APC-7, 50 W Precision N-type, male 50 W
SIZE & WEIGHT 87 mm long, 33.5 mm dia. 140g 87 mm long, 33.5 mm dia. 140 g 87 mm long, 33.5 mm dia. 140 g
ORDER CODES 56910/900 56911/900 56912/900
6910 Series: Medium Power Thermocouple Power Sensors (continued)
6913 6914 6914S 6919
FREQUENCY RANGE 10 MHz - 26.5 GHz 10 MHz - 40 GHz 10 MHz - 46 GHz 30 kHz - 3 GHz
POWER RANGE -30 dBm to +20 dBm -30 dBm to +20 dBm -30 dBm to +20 dBm -30 dBm to +20 dBm
(1 mW to 100 mW) (1 mW to 100 mW) (1 mW to 100 mW) (1 mW to 100 mW)
MAX RF INPUT +25 dBm (300 mW) CW +25 dBm (300 mW) CW +25 dBm (300 mW) CW +25 dBm (300 mW) CW
+42 dBm (15 W) peak for 2 ms +42 dBm (15 W) peak for 2 ms +42 dBm (15 W) peak for 2 ms +42 dBm (15 W) peak for 2 ms
SENSING ELEMENT Semiconductor thermocouple Semiconductor thermocouple Semiconductor thermocouple Semiconductor thermocouple
VSWR <1.4 10 MHz - 40 MHz <1.58 10 MHz - 40 MHz <1.58 10 MHz - 40 MHz <1.4 30 kHz - 100 kHz
<1.15 40 MHz - 100 MHz <1.15 40 MHz - 100 MHz <1.15 40 MHz - 100 MHz <1.15 100 kHz - 300 kHz
<1.1 100 MHz - 2 GHz <1.1 100 MHz - 2 GHz <1.1 100 MHz - 2 GHz <1.1 300 kHz - 2 GHz
<1.15 2 GHz - 12.4 GHz <1.15 2 GHz - 12.4 GHz <1.15 2 GHz - 12.4 GHz <1.2 typical 2 GHz - 3 GHz
<1.2 12.4 GHz - 18 GHz <1.21 12.4 GHz - 18 GHz <1.43 12.4 GHz - 33 GHz
<1.25 18 GHz - 26.5 GHz <1.25 18 GHz - 26.5 GHz <2.32 33 GHz - 40 GHz
<1.43 26.5 - 40 GHz (vers. /001) <3.6 40 GHz - 46 GHz
<1.55 26.5 - 40 GHz (vers. /002)
LINEARITY FACTOR Provided with sensor Provided with sensor Provided with sensor Provided with sensor
Accuracy ±0.5% at 25°C between +10 ±0.5% at 25°C at 100 mW, ±0.5% at 25°C at 100 mW, ±0.5% at 25°C between +10
and +20 dBm. Improves by a decreasing by 0.005% per mW decreasing by 0.005% per mW and +20 dBm. Improves by a
factor of 10 for each lower range factor of 10 for each lower
range
CALIBRATION FACTOR Provided with sensor Provided with sensor Provided with sensor Provided with sensor
Accuracy Uncertainty provided with sensor Uncertainty provided with sensor Uncertainty provided with sensor Uncertainty provided with sensor
Resolution 0.01% 0.01% 0.01% 0.01%
RF CONNECTOR MPC 3.5 mm, male 50 W MPC 2.92 mm, male 50 W MPC 2.92 mm, male 50 W Precision N-type, male, 75 W
SIZE & WEIGHT 80 mm long, 33.5 mm dia. 140g 88.5 mm long, 33.5 mm dia. 140g 88.5 mm long, 33.5 mm dia. 89 mm long, 33.5 mm dia.
140g 140g
ORDER CODES 56913/900 56914/001 56914/003 56919/900
56914/002 includes waveguide 22
coax transition and cal table
Supplied with Adapter part no. 23443/822 for Adapter part no. 23443/822 Adapter part no. 23443/822 Adapter part no. 23443/842 for
connection between 6913 and for connection between 6914 for connection between 6914 connection between 6919 and
0 dBm Power Reference. and 0 dBm Power Reference. and 0 dBm Power Reference. 0 dBm Power Reference.
For the very latest specifications visit www.aeroflex.com
6920 Series: High Sensitivity Diode Sensors
6920 6923 6924 6924S
FREQUENCY RANGE 10 MHz - 20 GHz 10 MHz - 26.5 GHz 30 kHz - 40 GHz 10 MHz - 46 GHz
POWER RANGE -70 dBm to -20 dBm† -70 dBm to -20 dBm* -70 dBm to -20 dBm* -70 dBm to -20 dBm*
(0.1 nW to 10 µW) (0.1 nW to 10 µW) (0.1 nW to 10 µW) (0.1 nW to 10 µW)
MAX RF INPUT +26 dBm (300 mW) CW +26 dBm (300 mW) CW +26 dBm (400 mW) CW +26 dBm (300 mW) CW
+30 dBm (1 W) peak for 2 µs +30 dBm (1 W) peak for 2 ms +30 dBm (1 W) peak for 2 ms +30 dBm (1 W) peak for 2 µs
SENSING ELEMENT Shottky barrier diode Shottky barrier diode Shottky barrier diode Shottky barrier diode
VSWR <1.4-1.2 10 MHz - 40 MHz <1.4 10 MHz - 40 MHz <1.58 10 MHz - 40 MHz <1.58 10 MHz - 40 MHz
<1.2 40 MHz - 10 GHz <1.15 40 MHz - 100 MHz <1.15 40 MHz - 100 MHz <1.15 40 MHz - 100 MHz
<1.35 10 GHz - 18 GHz <1.12 100 MHz - 2 GHz <1.12 100 MHz - 2 GHz <1.12 100 MHz - 2 GHz
<1.4 typ 18 GHz - 20 GHz <1.17 2 GHz - 8 GHz <1.33 2 GHz - 18 GHz <1.33 2 GHz - 18 GHz
<1.3 8 GHz - 18 GHz <1.50 18 GHz - 33 GHz <1.5 18 GHz - 33 GHz
<1.5 18 GHz - 26.5 GHz <1.95 33 GHz - 40 GHz
(vers./001) <1.95 33 GHz - 40 GHz
<1.97 26.5 - 40 GHz(vers./002) <3.6 40 GHz - 46 GHz
LINEARITY FACTOR Provided with sensor Provided with sensor Provided with sensor Provided with sensor
Accuracy ±1% at 25°C between -30 ±1% at 25°C between -30 and ±1% at 25°C between -30 and ±1% at 25°C between -30
and -20 dBm. Improves by a -20 dBm. Improves by a factor of 20 dBm at 23°C and -20 dBm at 23°C
factor of 10 for each lower range 10 for each lower range
CALIBRATION FACTOR Provided with sensor Provided with sensor Provided with sensor Provided with sensor
Accuracy Uncertainty provided with sensor Uncertainty provided with sensor Uncertainty provided with sensor Uncertainty provided with sensor
Resolution 0.01% 0.01% 0.01% 0.01%
RF CONNECTOR Precision N-type, male 50 W MPC 3.5 mm, male 50 W MPC 2.92 mm, male 50 W† MPC 2.92 mm, male 50 W†
SIZE & WEIGHT 104 mm long, 33.5 mm dia. 87 mm long, 33.5 mm dia. 88.5 mm long, 33.5 mm dia. 88.5 mm long, 33.5 mm dia.
180 g 180 g 150 g 150 g
ORDER CODES 56920/900 56923/900 56924/001 56924/003
56924/002 includes waveguide
22 coax transition and calibration
table
Supplied with Precision Attenuator part no. Precision Attenuator part no. Precision Attenuator part no. Precision Attenuator part no.
23448/873. 23448/873 23448/873. 23448/873.
30 dB ±0.05 dB at 30 dB ±0.05 dB at 30 dB ±0.05 dB at 30 dB ±0.05 dB at
50 MHz at 25°C 50 MHz at 25°C 50 MHz at 25°C 50 MHz at 5°C
Adapter part no. 23443/822 for Adapter part no. 23443/822 for Adapter part no. 23443/822
connection between 6923 and connection between 6924 and for connection between 6924
0 dBm Power Reference. 0 dBm Power Reference. and 0 dBm Power Reference.
* Lower limit is -65 dBm (0.3 nW) when used with 6970 & -60 dBm when used the Counter Power Meter
† Lower limit is -65 dBm (0.3 nW) when used with Counter Power Meter
6930 Series: High Power Thermocouple Sensors
6930 6932 6934 6934S
FREQUENCY RANGE 10 MHz - 18 GHz 30 kHz - 4.2 GHz 10 MHz - 40 GHz 10 MHz - 46 GHz
POWER RANGE -15 dBm to +35 dBm -15 dBm to +35 dBm -15 dBm to +30 dBm -15 dBm to +30 dBm
(30 µW to 3 W) (30 µW to 3W) (30 µW to 1W) (30 µW to 1 W)
MAX RF INPUT +37 dBm (5 W) CW +37 dBm (5 W) CW +33 dBm (2 W) CW +33 dBm (2W) CW
+50 dBm (100 W) peak for 2 µs +50 dBm (100 W) peak for 2 µs +45 dBm (32 W) peak for 2 µs +45 dBm (32 W) peak for 2 µs
SENSING ELEMENT Semiconductor thermocouple Semiconductor thermocouple Semiconductor thermocouple Semiconductor thermocouple
VSWR <1.1 10 MHz - 2 GHz <1.1 30 kHz - 4.2 GHz <1.12 10 MHz - 100 MHz <1.12 10 MHz - 100 MHz
<1.18 2 GHz - 16 GHz <1.1 100 MHz - 2 GHz <1.1 100 MHz - 2 GHz
<1.28 16 GHz - 18 GHz <1.15 2 GHz - 12.4 GHz <1.15 2 GHz - 12.4 GHz
<1.2 12.4 GHz - 18 GHz <1.2 12.4 GHz - 18 GHz
<1.25 18 GHz - 26.5 GHz <1.25 18 GHz - 26.5 GHz
<1.43 26.5 - 40 GHz (vers./001) <1.43 26.5 GHz - 40 GHz
<1.55 26.5 - 40 GHz (vers./002) <2.3 40 GHz - 46 GHz
LINEARITY FACTOR Provided with sensor Provided with sensor Provided with sensor Provided with sensor
Accuracy -1% to +5% between +25 and -1% to +5% between +25 and -1% to +5% between +25 and -1% to +5% between +25 and
+35 dBm. Improves by a factor +35 dBm. Improves by a factor +30 dBm, less on other ranges. +30 dBm, less on other ranges.
of 10 for each lower range. of 10 for each lower range.
CALIBRATION FACTOR Provided with sensor Provided with sensor Provided with sensor Provided with sensor
Accuracy Uncertainty provided with Uncertainty provided with Uncertainty provided with Uncertainty provided with
sensor sensor sensor sensor
Resolution 0.01% 0.01% 0.01% 0.01%
RF CONNECTOR Precision N-type, male 50 W Precision N-type, male 50 W MPC 2.92 mm, male 50 W MPC 2.92 mm, male 50 W
SIZE & WEIGHT 93 mm long, 33.5 mm dia. 190g 93 mm long, 33.5 mm dia. 190g 87 mm long, 33.5 mm dia. 150g 87 mm long, 33.5 mm dia. 150g
ORDER CODES 56930/900 56932/900 56934/001 56934/003
56934/002 includes waveguide
22 coax transition and calibration
table.
Supplied with Adapter part no. 23443/822 Adapter part no. 23443/822 for
for connection between 6934 connection between 6934 and
and 0 dBm Power Reference. 0 dBm Power Reference.
Part No. 46891/128, Issue 3, 02/04
CHINA
Tel: [+86] (21) 6282 8001
Fax: [+86] (21) 6282 8002
EUROPE
Tel: [+44] (0) 1438 742200
Fax: [+44] (0) 1438 727601
FRANCE
Tel: [+33] 1 60 79 96 00
Fax: [+33] 1 60 77 69 22
HONG KONG
Tel: [+852] 2832 7988
Fax: [+852] 2834 5364
SCANDINAVIA
Tel: [+45] 9614 0045
Fax: [+45] 9614 0047
SPAIN
Tel: [+34] (91) 640 11 34
Fax: [+34] (91) 640 06 40
UNITED KINGDOM
Tel: [+44] (0) 1438 742200
Toll Free: [+44] (0800) 282 388 (UK only)
Fax: [+44] (0) 1438 727601
USA
Tel: [+1] (316) 522 4981
Toll Free: [+1] (800) 835 2352 (US only)
Fax: [+1] (316) 522 1360
www.aeroflex.com
info-test@aeroflex.com
As we are always seeking to improve our products,
the information in this document gives only a general
indication of the product capacit y, performance and
suitability, none of which shall form part of any contract. We reserve the right to make design changes
without notice. All trademarks are acknowledged.
Parent company Aeroflex, Inc. ©Aeroflex 2004.
Our passion for performance is defined by three
attributes represented by these three icons:
solution-minded, performance-driven and customer-focused.
6930 (Option 002) 6932 (Option 002)
FREQUENCY RANGE 10 MHz - 18 GHz 30 kHz - 4.2 GHz
POWER RANGE -5 dBm to +44 dBm -5 dBm to +44 dBm
(0.3 mW to 25W) (0.3 mW to 25W)
MAX RF INPUT +45 dBm (30 W) CW +45 dBm (30 W) CW
+60 dBm (1 kW) peak for 2 µs +60 dBm (1 kW) peak for 2 µs
Sensing element Semiconductor thermocouple Semiconductor thermocouple
VSWR <1.2 10 MHz - 8 GHz <1.2 30 kHz - 4.2 GHz
<1.25 8 GHz - 12.4 GHz
<1.35 12.4 GHz - 18 GHz
LINEARITY FACTOR Provided with sensor Provided with sensor
Accuracy -2% to +6% between +35 and -2% to +6% between +35 and
+44 dBm. Improves by a factor of +44 dBm. Improves by a factor of
10 for each lower range 10 for each lower range
CALIBRATION FACTOR Provided with sensor Provided with sensor
Accuracy Uncertainty provided with sensor Uncertainty provided with sensor
Resolution 0.01% 0.01%
RF CONNECTOR Precision N-type, male 50 W Precision N-type, male 50 W
SIZE & WEIGHT 228 mm long, 64 mm dia. 228 mm long, 64 mm dia.
533 g 533 g
ORDER CODES 56930/002 56932/002
Notes: Specifications involving APC-7 and type N connectors above 18 GHz and 2.92 mm connectors above
40 GHz are not traceable to National Standards as these do not exist at present
2.92 mm connectors mate non-destructively with 3.5 mm and SMA connectors
(Comprises standard 6930 plus calibrated
precision 10 dB attenuator)
(Comprises standard 6932 plus calibrated
precision 10 dB attenuator)
Loading...
