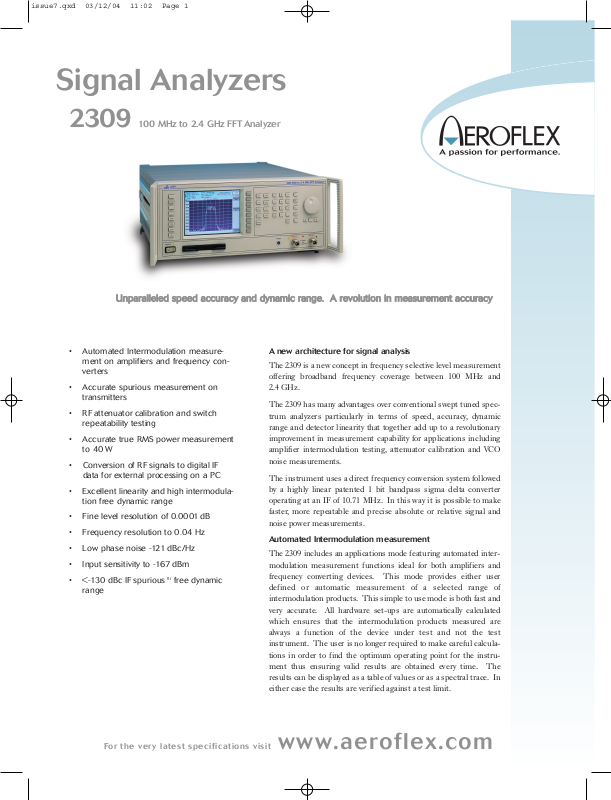

Aeroflex 2309 Data Sheet

Signal Analyzers

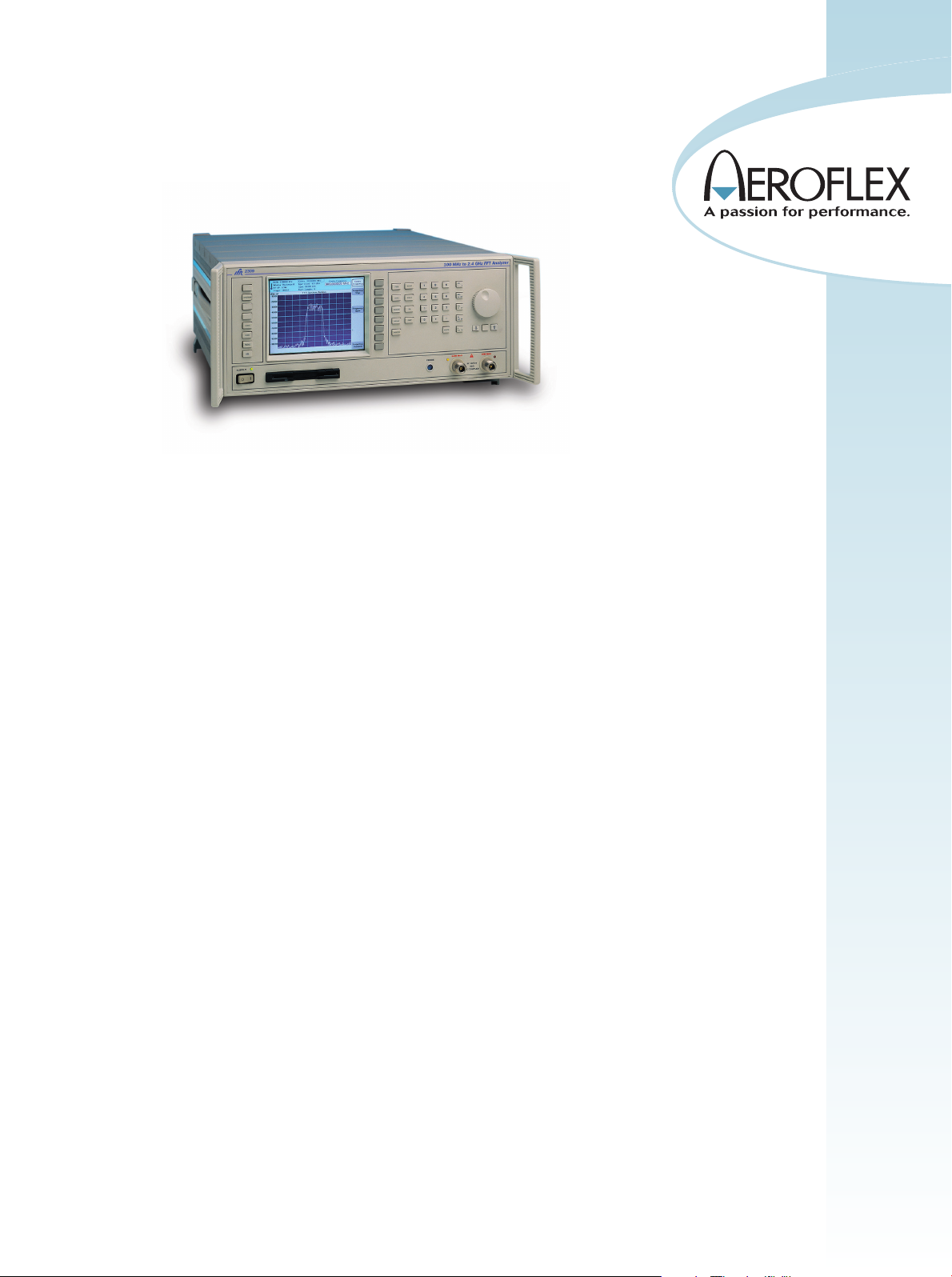

2309 100 MHz to 2.4 GHz FFT Analyzer

UUnnppaarraalllleelleedd ssppeeeedd aaccccuurraaccyy aanndd ddyynnaammiicc rraannggee.. AA rreevvoolluuttiioonn iinn mmeeaassuurreemmeenntt aaccccuurraaccyy

• Automated Intermodulation measure­ment on amplifiers and frequency con­verters

• Accurate spurious measurement on
transmitters

• RF attenuator calibration and switch
repeatability testing

• Accurate true RMS power measurement
to 40 W

• Conversion of RF signals to digital IF
data for external processing on a PC

• Excellent linearity and high intermodula­tion free dynamic range

• Fine level resolution of 0.0001 dB

• Frequency resolution to 0.04 Hz

• Low phase noise -121 dBc/Hz

• Input sensitivity to -167 dBm

(1)

• <-130 dBc IF spurious
range

free dynamic

A new architecture for signal analysis

The 2309 is a new concept in frequency selective level measurement
offering broadband frequency coverage between 100 MHz and

2.4 GHz.

The 2309 has many advantages over conventional swept tuned spec­trum analyzers particularly in terms of speed, accuracy, dynamic
range and detector linearity that together add up to a revolutionary
improvement in measurement capability for applications including
amplifier intermodulation testing, attenuator calibration and VCO
noise measurements.

The instrument uses a direct frequency conversion system followed
by a highly linear patented 1 bit bandpass sigma delta converter
operating at an IF of 10.71 MHz. In this way it is possible to make
faster, more repeatable and precise absolute or relative signal and
noise power measurements.

Automated Intermodulation measurement

The 2309 includes an applications mode featuring automated inter­modulation measurement functions ideal for both amplifiers and
frequency converting devices. This mode provides either user
defined or automatic measurement of a selected range of
intermodulation products. This simple to use mode is both fast and
very accurate. All hardware set-ups are automatically calculated
which ensures that the intermodulation products measured are
always a function of the device under test and not the test
instrument. The user is no longer required to make careful calcula­tions in order to find the optimum operating point for the instru­ment thus ensuring valid results are obtained every time. The
results can be displayed as a table of values or as a spectral trace. In
either case the results are verified against a test limit.

For the very latest specifications visit www.aeroflex.com

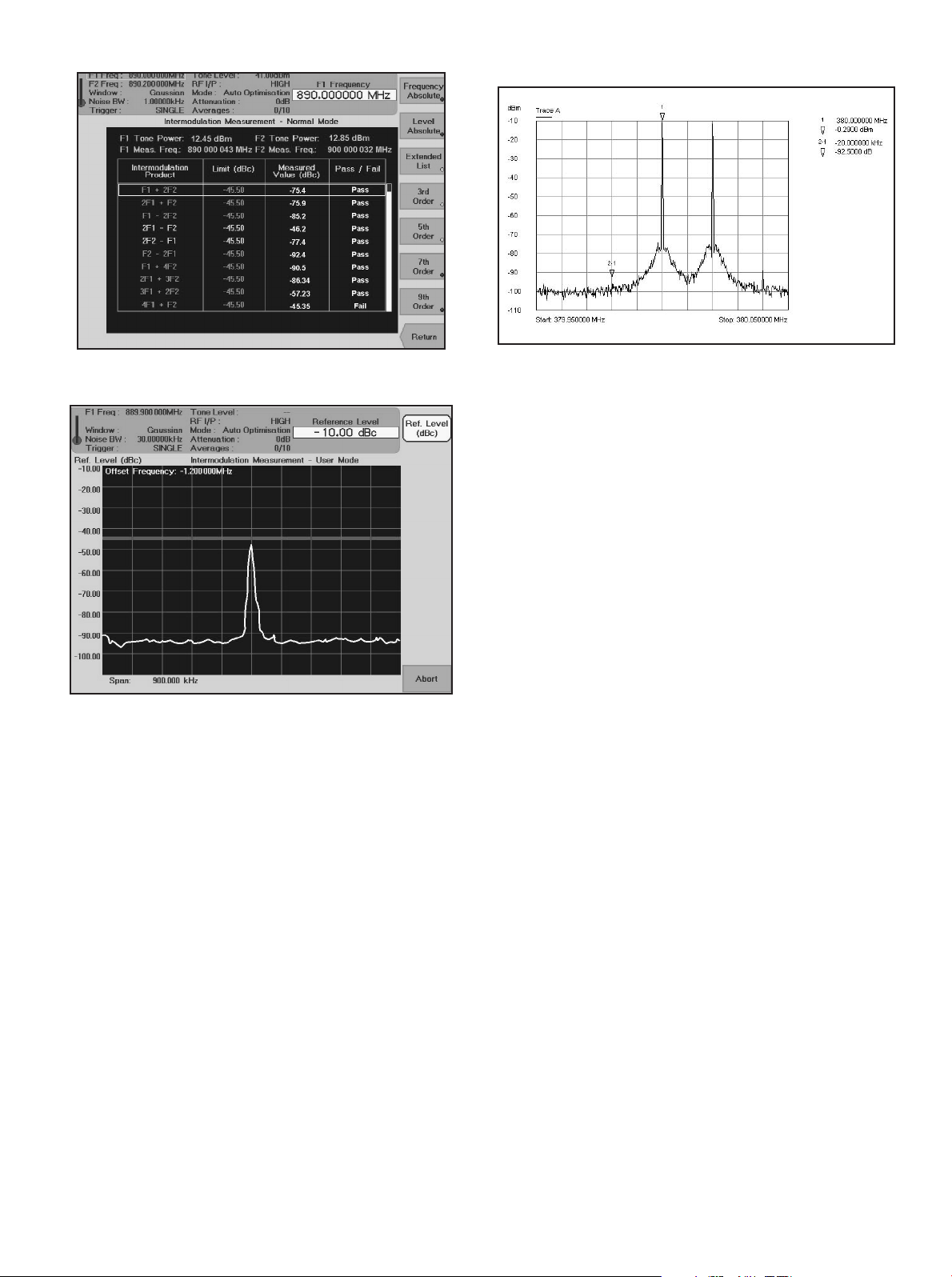

Intermod application mode results table

Intermod application mode spectral display

Speed

The 2309 is able to make narrow band measurements over 100 times
faster than even the best examples of swept tuned spectrum analyz­ers.

The speed advantage may be used directly to improve test through­put or used to convert into improved sensitivity level by using nar­rower frequency resolution for the same measurement speed.

Noise

A low noise local oscillator is used offering excellent close to carrier
spurious and SSB phase noise characteristics. This makes the 2309
ideal for making SSB phase noise and spurious measurements on
VCOs and synthesisers.

By avoiding the usual 'Up Down' mix techniques used in convention­al spectrum analyzers, the noise contribution from the local oscillator
is minimized thereby reducing measurement uncertainty.

High Sensitivity

The noise of the LO is closely matched to the performance of the A
to D converter giving a maximum sensitivity of typically

-153 dBm/Hz or -167 dBm when using the narrowest measurement
bandwidth available (0.04 Hz).

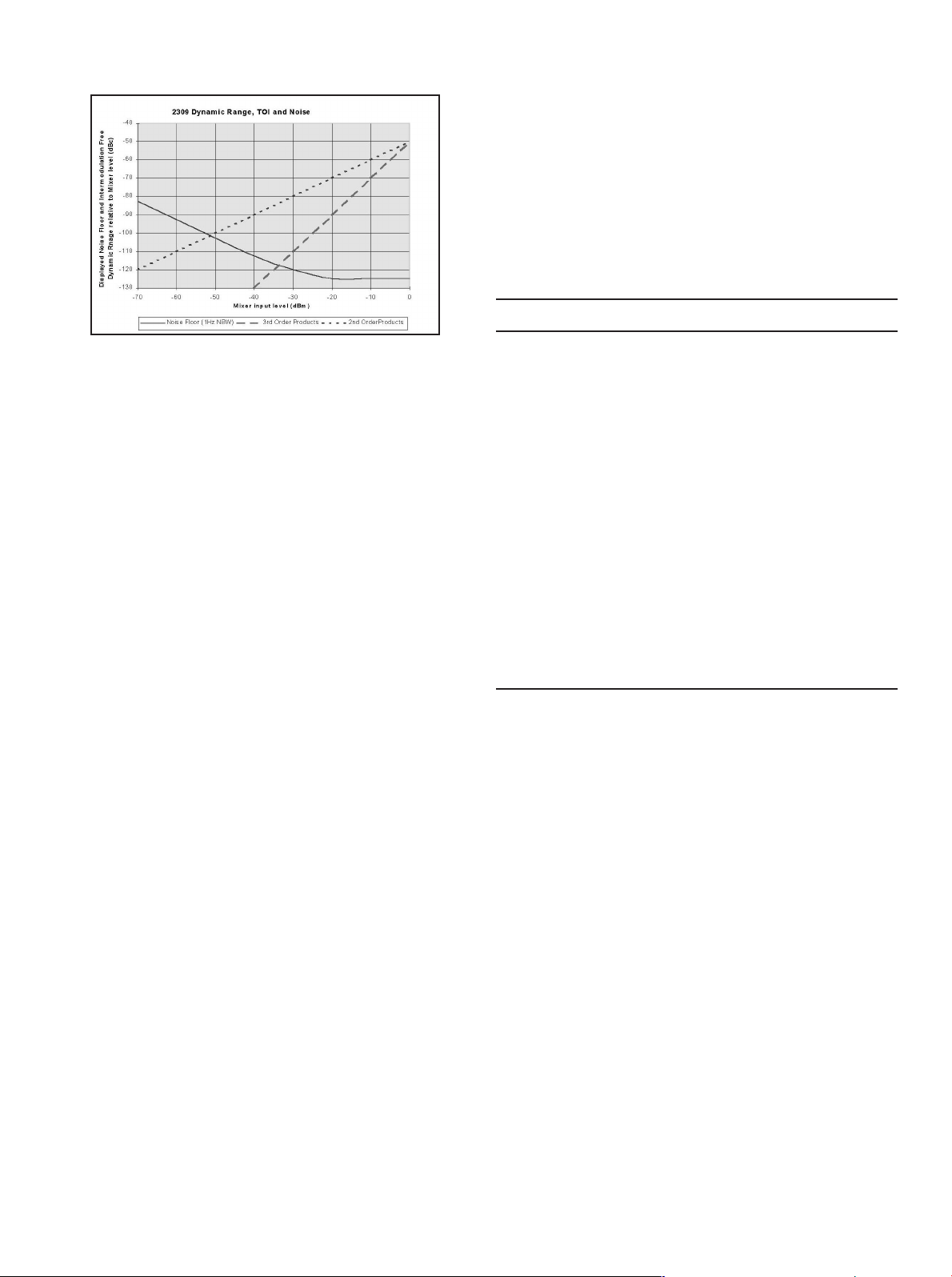

Dynamic Range

The third order intermodulation specification of typically <-90 dBc
for 2 tones of -26 dBm at the mixer input allows high performance
intermodulation measurements to be made.

The accuracy of the converter in making ratiometric measurements
ensures that the intermodulation product levels are accurately record­ed without the usual scale errors experienced with some spectrum
analyzers.

Unparalleled Figure of Merit (FOM)

With a mixer TOI (third order intercept) of typically +28 dBm and a
NF (noise figure) of typically 21 dB, the 2309 has a FOM of
+7 (TOI - NF). Unlike other A to D techniques, this instrument
obeys the normal 3:1 improvement in 3rd order intermodulation
products with decreased input level.

High Power

The high power input on the 2309 allows direct measurement on sig­nals up to 50 W (40 W continuous). This eliminates the need for
external high power attenuators and their uncertainties such as fre­quency and thermal responses.

Attenuators and Switches

Combining superb linearity, high marker resolution and low noise,
the 2309 is capable of making excellent attenuation measurements.
With a scale linearity of 0.01 dB per 10 dB and 0.0001 dB resolution,
the 2309 can be used as an attenuator transfer standard. The low
residual floor noise of typically -153 dBm/Hz and narrow FFT based
filters allows the 2309 to make measurements over large dynamic
ranges. These properties are equally relevant for attenuator and RF
switch repeatability testing.

tool to enable insertion of measurement traces into standard office
PC packages. The software enables the capture of trace data from the
2309 using a PC with a standard GPIB card. The traces can be
inserted into word processed documents or graphics packages using
.OLE formatting. Once inserted into the document the traces can be
rescaled, text and markers added and colors changed.

MIPlot is supplied as an optional accessory and is an excellent tool for
report generation or for presentation of results to large groups of peo­ple.

SSPPEECCIIFFIICCAATTIIOONN

FFRREEQQUUEENNCCYY

Level Accuracy

With a total measurement error of <0.5 dB to 1 GHz, the 2309 is ideal
for direct power measurement of transmitters. The excellent scale
linearity allows accurate measurement to be made over a wide power
range.

External Processing of Digitized IF Data

With the data cable, Aeroflex part number 43139/401, connected to
the Auxiliary I/O port on the rear panel of the 2309, digitized IF data
is extracted from the instrument using the National Instruments PCI

- 6534 digital I/O card and appropriate PC-based software. The cable
and digital I/O card can be supplied as accessories. With this config­uration, up to 10 seconds of data can be acquired, at a rate of up to 5
MByte/s for processing on a PC.

GPIB Control

Measurement speed in production environments is vital. The 2309
can be configured with the minimum of GPIB control commands.
The instrument is rapidly set up to pre-determined values or sensi­ble presets. All GPIB programming uses SCPI-like commands and
is based on the MEASURE, READ, FETCH structure. This means
that programs can be written quickly using high level commands
without needing an in-depth knowledge of the instrument.

Cost of Ownership

To minimize cost of ownership, careful consideration has been given
to the design and assembly of the 2309. The recommended calibra­tion interval is 2 years. An accurate internal 400 MHz calibrator pro­vides day to day alignment. A module exchange policy is used for the
repair of major assemblies. These assemblies are fully calibrated. As
a result, repairs can be carried out in the shortest time possible.

The use of FLASH memory and software download via the RS-232
interface means the 2309 can be upgraded without having to remove
its covers.

Printing Made Easy

By connecting directly to the parallel printer port interface, measure­ment results and trace data may be sent to any parallel printer which
is compatible with the HP PCL printer language PCL3 or higher (eg
HP DeskJet/LaserJet)

MIPlot Measurement Presentation Software

The MIPlot measurement presentation software provides a powerful

Frequency range

100 MHz to 2.4 GHz

Span

10 Hz to 300 kHz in a 1, 2, 5 sequence or continuously variable

Equivalent noise bandwidth (digital)

Window:-

5 term Blackman Harris ENBW 0.22% to 0.44% of set span

Gaussian ENBW 0.5% to 17.5% of set span

Phase noise (at 470 MHz)

10 kHz offset <-115 dBc/Hz

20 kHz offset <-121 dBc/Hz

25 kHz offset <-122 dBc/Hz

50 kHz offset <-124 dBc/Hz

AAMMPPLLIITTUUDDEE

Level Accuracy (for input attenuation >10 dB and S/N ratio
>25 dB)

≤

±0.5 dB (following self calibration, 100 MHz to 1 GHz, 25°C ±5°C).

±1.0 dB all other conditions.

Maximum input

(See Inputs)

Maximum Sensitivity

-164 dBm (0.04 Hz BW)

Dynamic range

Harmonic distortion <-70 dBc

(for a single CW signal of -20 dBm at input mixer)

Third order intermodulation products

≤

100 kHz at -26 dBm at the mixer input)

Spurious responses @ offsets

Residual response <-110 dBm, (0 dB RF attenuation, 0 dBm input
level, input terminated)

Linearity ±0.01 dB per 10 dB plus Thermal Linearity Factor (TLF)
Where TLF = 0.00 dB up to +30 dBm and 0.04 dB from
+30 dBm to +47 dBm per 10 dB

Reference level setting

High power input +50 dBm to -200 dBm in 0.001 dB steps

Low power input +30 dBm to -200 dBm in 0.001 dB steps

≤

-85 dBc (for two tones, spaced

≤

± 1 MHz <-80 dBc

For the very latest specifications visit www.aeroflex.com

Input attenuator

0 to 65 dB in 5 dB steps

Display resolution

0.01 dB to 20 dB/division in a 1, 2, 5, 10 sequence

Display units

dBm, dB

µ

V, dBmV, dBV

DDIISSPPLLAAYY FFEEAATTUURREESS

6.5” VGA TFT active matrix color LCD. External VGA monitor supported
via rear panel connector.

Display

10 x 10 graticule, 501 points per trace

Display update rate

9/sec

Traces

Max/Min hold, Max hold, Outline, Infill

Marker Resolution

0.001 dB

Averaging

User settable 1 to 200 traces (repeat)

User settable 1 to 20000 traces (single)

Markers

Frequency and level readout, 2 markers, Delta marker, Peak find,
Delta marker sets span, Marker sets reference level, Marker sets refer­ence frequency, Marker to center frequency

RRFF IINNPPUUTTSS

HIGH POWER INPUT

Maximum Input

40 W (+46 dBm) continuous

50 W (+47 dBm) 50% duty cycle

50 W continuous for 30 s after a minimum interval of 30 s with
<5 W applied

Connector

Type N (f), 50

Input VSWR

<1.1:1, 100 MHz to 500 MHz

<1.22:1, 500 MHz to 1 GHz

<1.43:1, >1 GHz

LOW POWER INPUT

Maximum Input

0.5 W (+27 dBm)

(overload protection to 10 W)

Connector

Type N (f), 50

Input VSWR (>10 dB input attenuation)

<1.22:1, <1 GHz

<1.43:1, >1 GHz

Ω

DC coupled

Ω

DC coupled

Input VSWR (no attenuation)

<1.92:1 all frequencies

FFRREEQQUUEENNCCYY SSTTAANNDDAARRDD

INTERNAL OCXO 10 MHz

Ageing

±0.8 x 10
±2.5 x 10
±2.0 x 10
±1.5 x 10
±1.0 x 10

-7

per year after 30 days

-8

per month after 30 days

-8

per month after 60 days

-9

per day after 30 days

-9

per day after 60 days

Temperature stability

-8

±5 x 10

over the temperature range +5 to +40°C

Warm up time

Output frequency within 2 x 10

-7

of final frequency within 20 minutes

after switch-on at a temperature of 20°C

DDAATTAA CCAAPPTTUURREE && TTRRAANNSSFFEERR OOFF DDIIGGIITTIIZZEEDD IIFF DDAATTAA

Data transfer is to a PC for storage and analysis. Transfer is via the
rear panel Auxiliary I/O port to a data acquisition card.

Up to 50 MBytes or 10 s of IF sample data.

DDAATTAA AACCQQUUIISSIITTIIOONN CCAARRDD

For use in an external PC for data transfer via the 2309 Auxiliary I/O
port

National Instruments PCI-6534 High Speed Digital I/O PCI Module NI
part number 778287-01, Aeroflex part number 87509

Data Transfer Protocol

The data is clocked to the NI card by a CLOCK signal from the 2309.

Data Transfer Port

Auxiliary I/O port

Data Transfer Rate

5 MByte/s

RREEAARR PPAANNEELL CCOONNNNEECCTTOORRSS

IF input

10.71 MHz, BNC (f), 50

Input range -14 to -60 dBm (nominal)

Frequency standard

Output: BNC(f), 10 MHz, 2 V pk-pk into 50
Input: BNC(f), 1 MHz or 10 MHz of 350 mV to 1.8 V RMS into

Ω

1 k

Printer interface

Parallel (Centronics compatible) 25 way D-type female

Auxiliary data I/O

25 way D-type female

External VGA monitor

15 way compact D-type female

LO In and LO Out

SMA (F)

Ω

Ω

RS-232

Connector is 9-way D-type (male), baud rate 300 to 9600 bits per
second.

RREEMMOOTTEE CCOONNTTRROOLL

VVEERRSSIIOONNSS AANNDD AACCCCEESSSSOORRIIEESS

When ordering please quote the full ordering number information.

GPIB

All major functions except power supply switch control are remotely
programmable.

Capabilities

Designed in accordance with IEEE488.2
Complies with the following subsets as defined in IEEE std 488.1.
SH1, AH1, T6, L4, SR1, RL1, PPO, DC1, DT1, CO, E2

IINNSSTTRRUUMMEENNTT SSTTOORRAAGGEE

Internal memory

10 non-volatile instrument setting stores

GGEENNEERRAALL

Electromagnetic Compatibility

Conforms with the protection requirements of EEC council directive
89/336/EEC
Conforms with the limits specified in IEC/EN61326-1: 1997, RF
Emission Class B, Immunity Table 1, Performance Criteria B

Safety

Conforms with the requirements of EEC Council Directive 73/23/EEC
(as amended) and the product safety standard IEC/EN61010-1 : 2001
+ C1 : 2002 + C2 : 2003 for Class 1 portable equipment, for use in
a Pollution Degree 2 environment. The instrument is designed to be
operated from an Installation Category 2 supply.

RATED RANGE OF USE

Full specification is met over the temperature range +5°C to +40°C
(unless otherwise stated).

Humidity up to 93% over specified operating range and elevation up
to 3,050 m (10,000 ft. (excluding 3.5” disk drive)

3.5” disk drive - Humidity up to 80% @ 30°C

CONDITIONS OF STORAGE

Temperature -40 to +70°C
Humidity 90% at +40°C
Altitude <4,570 m

Power requirements

Voltage range 100 V - 240 V~ (Limit 90 - 264 V)~)
Mains frequency 50 - 60 Hz (Limit 45 - 66 Hz)
Power consumption 120 VA maximum

CALIBRATION INTERVAL

Recommended 2 years

Re-alignment can be accomplished from the front panel or by GPIB
control. There are no mechanical adjustments required for re-align­ment

Dimensions

Width: 419 mm, Height: 177 mm, Depth: 488 mm

Weight

Ordering Numbers

Versions

2309 100 MHz to 2.4 GHz FFT Analyzer

Supplied with

AC Supply lead

46882/415 Operating Manual

Optional Accessories

46880/091 Service Manual (including operating manual)

2388 1 GHz Active Probe (see separate datasheet)

59000/327 MIPlot Measurement Presentation Software

87509 National Instruments 778287-01, PCI - 6534, High

Speed Digital I/O PCI Module

43126/012 RF connector cable, TM 4969/3, 50 Ω, 1.5 m, BNC

54311/092 Coaxial adapter N-type male to BNC female

54311/095 RF connector cable, 1 m, N-type connectors

43129/189 GPIB lead assembly, 1.5 m

43139/401 25 way D-type (m) to 68 way SCSI (f) cable

assembly 2.5 m

46884/649 RS-232 cable, 9 way D-type female to 25 way D-type

female, 1.5 m

46884/650 RS-232 cable, 9 way D-type female to 9 way D-type

female, 1.5 m

46884/648 Cable assembly, serial port to printer 9 way D-type

female to 25 way D-type male, 1.5 m

46884/560 Cable assembly, parallel port to printer Centronics

socket, 2 m

46884/293 Rack mounting kit (with slides) for rack cabinets with

depths from 480 mm to 680 mm

46884/294 Rack mounting kit (with slides) for rack cabinets with

depths from 680 mm to 840 mm

46884/931 Rack mounting kit containing front brackets only

46662/614 Soft carrying case

(1) -Applies to spurious not occuring at center frequency

<17 kg

For the very latest specifications visit www.aeroflex.com

For the very latest specifications visit www.aeroflex.com

CHINA Beijing

Tel: [+86] (10) 6467 2761 2716
Fax: [+86] (10) 6467 2821

CHINA Shanghai

Tel: [+86] (21) 6282 8001
Fax: [+86] (21) 62828 8002

FINLAND

Tel: [+358] (9) 2709 5541
Fax: [+358] (9) 804 2441

FRANCE

Tel: [+33] 1 60 79 96 00
Fax: [+33] 1 60 77 69 22

GERMANY

Tel: [+49] 8131 2926-0
Fax: [+49] 8131 2926-130

HONG KONG

Tel: [+852] 2832 7988
Fax: [+852] 2834 5364

INDIA

Tel: [+91] 80 5115 4501
Fax: [+91] 80 5115 4502

KOREA

Tel: [+82] (2) 3424 2719
Fax: [+82] (2) 3424 8620

SCANDINAVIA

Tel: [+45] 9614 0045
Fax: [+45] 9614 0047

SPAIN

Tel: [+34] (91) 640 11 34
Fax: [+34] (91) 640 06 40

UK Burnham

Tel: [+44] (0) 1682 604455
Fax: [+44] (0) 1682 662017

UK Stevenage

Tel: [+44] (0) 1438 742200
Fax: [+44] (0) 1438 727601
Freephone: 0800 282388

USA

Tel: [+1] [phone]
Fax: [+1] [phone]
Toll Free: 800 835 2352

www.aeroflex.com

[e-mail]

As we are always seeking to improve our products,
the information in this document gives only a general
indication of the product capacity, performance and
suitability, none of which shall form part of any con­tract. We reserve the right to make design changes
without notice. All trademarks are acknowledged.
Parent company Aeroflex, Inc. ©Aeroflex 2004.

Our passion for performance is defined by three

attributes represented by these three icons:

solution-minded, performance-driven and customer-focused.

Part No. 46891/104, Issue 7, 03/04
