LAVATHERM 58840R

User manual Condenser Dryer with

Rack

Dear Customer

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.

In addition to this you find environmental and energy saving aspects as an integral part of our products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips

Environmental information

Contents

Operating Instructions 5

Important safety information 5

Product description 8

Control panel 9

What is shown in the display 10

Before first use 10

Sorting and preparing laundry 10

Programme overview 12

Daily use 16

Switching machine on / switching light on 16 Opening loading door / loading laundry 16 Selecting the programme 16 Setting dryness level 17 Setting the pre-drainage spin speed 17 Selecting additional options 17

DELICATE 18 LONG ANTI-CREASE 19 SENSITIVE 19

BUZZER 19 Time 20 Setting delay timer 20 Setting child lock 20 Starting the programme 21 Changing programme 21 Putting in extra items or taking items out before end of programme 22 Drying cycle complete / removing laundry 22

Drying rack 23

Care and cleaning 25

Cleaning fluff filter 25 Cleaning the door seal 27 Emptying the condensate tank 27 Cleaning heat exchanger 28

136900490-00-24092007

Contents

Cleaning the drum 29 Clean operating screen and housing 30

What to do if ... 31

Troubleshooting by yourself 31 Changing the bulb for interior lighting 33

Machine settings 34

Technical data 35

Consumption values 35

Hints for test institutes 36

Installation 36

Appliance positioning 36 Removing transport safety packaging 37 Drying rack unpacking 37 Electrical connection 38 Changing door stop 38 Special accessories 40

Environment 41

Packaging material 41 Old appliance 41 Environmental tips 42

Service 43

Important safety information

Operating Instructions

Important safety information

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry the following items: Cushions, quilts and the like (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Always unplug the appliance after use, clean and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

Important safety information

• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

•

Danger of explosion: Never tumble dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these substance are volatile, they could cause an explosion. Only tumble dry items washed with water.

•

Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.

• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments to be loaded into appliance

WARNING!

Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Installation

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

• All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

• The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to ensure that the items are left at a temperature that ensures that items will not be damaged.

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.

• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable.

Important safety information

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the stacking kit (optional accessory).

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant section in the user manual.

• Clothes which are dripping wet should not be placed in the dryer.

• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.

• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.

•

Caution - hot surface : Do not touch the door light cover surface when the light is switched on.

Child safety

• This machine is not intended for use by young children or infirm persons without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

1) Only dryers equipped with internal drum light.

Product description

1 Control panel 2 Drawer with condensed water container 3 Fine strainer (lint filter) 4 Lamp for inside light 5 Large mesh filter (lint filter) 6 Drying rack 7 Loading door (reversible) 8 Micro-fine filter (lint filter)

9 Rating plate 10 Button for opening door in plinth 11 Heat exchanger covered by base door 12 Air slots 13 Screwed feet (with height adjustment)

Control panel

Programme knob and OFF UIT switch

2 Function buttons 3

START PAUSE START PAUZE button

DELAY START STARTUITSTEL button

5 Status led 6 Display

Control panel

564

321

Before first use

What is shown in the display

4 2

1 time to end / error message 2 cycle phase status 3 options 4 warnings 5 spin speed selection 6 dryness selection

1356

Before first use

In order to remove any residues which may have been produced during production, wipe the dryer drum with a damp cloth or carry out a brief drying cycle (30 MIN) with damp cloths in the machine.

Sorting and preparing laundry

Sorting laundry

• Sort by fabric type: –

Cotton/linen for programmes in COTTONS KATOEN pogramme group.

–

Mixtures and synthetics for programmes in SYNTHETICS SYNTHETISCH programme group.

Sorting and preparing laundry

• Sorting by care label. The care labels mean:

Drying in the tumble

dryer possible in prin-

ciple

Drying at normal

temperature

Drying at reduced

temperature (set

DELICATE DELICAAT

option)

Drying in the tumble

dryer not possible

Do not place in the appliance any wet laundry which is not specified on the care label as being suitable for tumble-drying.

This appliance can be used for all wet laundry items which are labelled as suitable for tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile colours may bleed.

• Do not dry cotton jersey and knitwear with the EXTRA programme. Items may shrink!

•

Wool and wool-like textiles can be dried using the WOOL RACK DROOGREK WOL programme. Before the drying cycle spin the woollen textiles as well as possible (max. 1200 rpm). Only dry woollen textiles together which are similar or the same with repect to material, colour and weight. Please dry heavy laundry items made of wool separately.

Preparing laundry

• To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties or ribbons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).

• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the cotton layer should be outermost). These fabrics will then dry better.

Programme overview

Additional functions/options

EXTRA EXTRA DROOG

STRONG

INTENSIEF

COTTONS KATOEN

DROOG

CUPBOARD

KASTDROOG

IRON

STRIJKDROOG

Programmes

max. load (weight when dry)

7 kg • • • • • • - •

RPM T/MIN

DRYNESS DROOGTEGRAAD

Application/properties

Care mark

DELICATE

LONG ANTI-CREASE

BUZZER

SENSITIVE

TIME TIJD PROGR.

DELAY START STARTUITSTEL

Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes.

Thorough drying of thick fabrics, e.g. terry towelling items, towels.

Thorough drying of fabrics of even thicknesses, e.g. terry towelling items, knitwear, towels.

For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.

EXTRA EX-

TRA DROOG

CUPBOARD

KASTDROOG

SYNTHETICS SYNTHETISCH

IRON

STRIJKDROOG

TIME TIJD

TIME

PROGR.

3 kg • • • • • • - •

7 kg - - • • - • • •

Thorough drying of thick or multi-layered fabrics, e.g. pullovers, bedding, table linen.

For thin fabrics which are not ironed, e.g. easy care shirts, table linen, baby clothes, socks, lingerie with bones or wires.

For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.

For further drying of individual items of laundry or for volumes of less than 7 kg.

Programmes

Additional functions/options

RPM T/MIN

DELICATE

max. load (weight when dry)

DRYNESS DROOGTEGRAAD

LONG ANTI-CREASE

BUZZER

SENSITIVE

TIME TIJD PROGR.

Programme overview

Application/properties

DELAY START STARTUITSTEL

Care mark

FRESHEN UP OPFRIS-

1 kg - - • • - • - •

SEN

MICRO-FIBER MI-

CROFIBRE

SPECIAL

MIXED MIX

BED LINEN

BEDLINNEN

1 kg • •

3 kg • •

3 kg • • • • - • - •

VISCOSE 1 kg • •

•

• - • - •

•

• - • - •

•

• - • - •

JEANS 7 kg • • • • • • - •

SPORTS LIGHT

LICHTE SPORT-

2 kg • •

•

• - • - •

KLEDING

For refreshing or gently cleaning textiles with commercially available dry cleaning products.

For thin fabrics, polyester and polyamide, which are not ironed.

For drying cotton and synthetic fabrics, uses low temperature.

Bed linen (single and double sheet, pillowcase, bedspread, duvet cover).

For thin fabrics, viscose, and polyester, which are not ironed.

For leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the neck, cuffs and seams).

For sportswear, thin fabrics, polyester, which are not ironed.

Programme overview

Programmes

SHIRTS

HEMDEN

EASY IRON PLUS GE-

MAKKELIJK STRIJKEN PLUS

SHOES RACK

SPORTSCHOENEN

Additional functions/options

RPM T/MIN

DELICATE

max. load (weight when dry)

DRYNESS DROOGTEGRAAD

1.5 kg

(or 7 shirt

• •

•

1 kg

• •

•

(or 5 shirt

1 kg - -

•

BUZZER

SENSITIVE

LONG ANTI-CREASE

TIME TIJD PROGR.

• - • - •

- - • • •

Application/properties

DELAY START STARTUITSTEL

Special program with anticrease mechanism for easy care fabrics such shirts and blouses; for minimum ironing effort. The results depends on the type of fabric and its finish. Place fabrics in the dryer straight after spinning; once dried, immediately remove fabrics and place on a clothes hanger.

For gentle drying of one pair of sport shoes, washed and spindried at 1000 rpm. Programme run times: between 30 and 180 minutes.

Care mark

Additional functions/options

Programmes

max. load (weight when dry)

RPM T/MIN

DELICATE

LONG ANTI-CREASE

DRYNESS DROOGTEGRAAD

SENSITIVE

WOOL RACK

DROOGREK

1 kg - -

•

- - • • •

WOL

1) DELICATE and SENSITIVE cannot be selected together

2) select DELICATE

3) set by default

Programme overview

Application/properties

BUZZER

Care mark

TIME TIJD PROGR.

DELAY START STARTUITSTEL

For drying woollen fabrics after they have been washed, using warm air at minimum mechanical load (Follow section “Sorting and preparing washing”). Recommendation: Remove fabrics immediately after drying, as no anti-crease programme follows. Programme run times: between 30 and 180 minutes.

Daily use

Switching machine on / switching light on

Turn the programme selector to any programme or turn it to LIGHT LICHT AAN. The machine has been switched on. When the loading door is opened, the drum is illuminated.

Opening loading door / loading laundry

1. Open loading door: Use force to push against the loading

door (push point)

2. Load your laundry (do not force it in).

CAUTION!

Do not jam laundry in between the loading door and rubber seal.

3. Close loading door securely. Lock must audibly lock.

Selecting the programme

Use the programme selector to set the programme you require. The estimated time to end of the programme appears in the LCD in h:mm format (hours:minutes).

During the cycle time elapses by steps of one minute; less than 1 hour the leading zeros are not shown (ex. “59”, “5”, “0”).

DROOGREK WOL LAINE AVEC PANIER

SPORTSCHOENEN CHAUSSURES DE SPORT

GEMAKKELIJK STRIJKEN PLUS FACILE A REPASSER

HEMDEN CHEMISES

LICHTE SPORTKLEDING SPORT

JEANS

VISCOSE

BEDLINNEN DRAPS

MIX TEXTILES MELANGES

MICROFIBRE

RAFRAICHIR

OPFRISSEN/

UIT

ARRET

LICHT AAN/

KATOEN/

EXTRA DROOG/

INTENSIEF DROOG

PRET A REPASSER

TIJD PROGR./

ECLAIRAGE

COTON

TRES SEC

KASTDROOG

PRET A RANGER

STRIJKDROOG

SYNTHETISCH

SYNTHETIQUES

EXTRA DROOG

TRES SEC

KASTDROOG

PRET A RANGER

STRIJKDROOG

MINUTERIE

SEC

Setting dryness level

If laundry comes out of the machine too damp after a standard drying programme, you can increase the drying result by using the DRYNESS DROOGTEGRAAD function. Laundry becomes drier as you move from MIN to MAX.

Press the DRYNESS DROOGTEGRAAD button repeatedly until the desired dryness level (MIN, MED or MAX) is shown in the display. When humidity adjustment is not foreseen on the related program, bar frame with AUTO text is shown.

Setting the pre-drainage spin speed

If the washing in the washing machine was initially drained prior to the drying cycle, the dryer can be set according to the spin speed of the initial drainage procedure. The higher the spin speed was, the shorter the programme length for the drying cycle.

Press the RPM T/MIN button a number of times until the desired spin speed of the initial drainage is displayed. No value is shown if no spin speed is selected.

In certain programmes the spin speed has not effect (time controlled cycles), its selection can be not selectable and only three dashes are visualized. Available selections:

Daily use

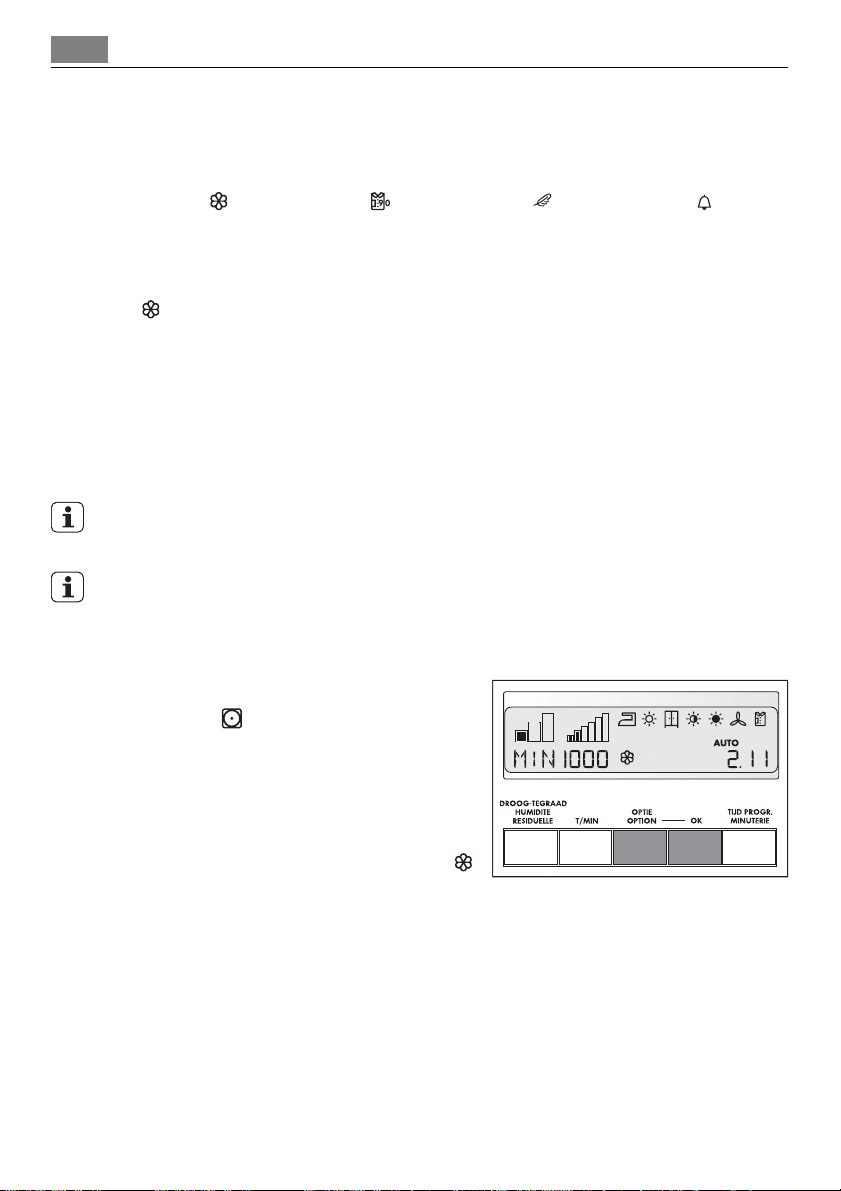

Selecting additional options

The additional options available for the drying programmes are DELICATE, LONG ANTI-CREASE, SENSITIVE and BUZZER

1. By turning the knob choose a drying programme.

Daily use

To set the option press OPTION OPTIE button. You will see available options shown as icons on the screen:

DELICATE LONG ANTI-

CREASE

DELICATE icon flashes. Flashing icon means: selected but not active. To activate selected OPTION OPTIE press OK button. Activated option is visible as flashing icon with dash beneath.

Press alternately OPTION OPTIEbutton to select appropriate options an OK button to activate it. Active options are always on as icons with dash beneath.

4. Option selection mode is finished when you go trough all of them or you stop selecting. Only activated option icons are on.

Some options cannot be selected together as DELICATE and SENSITIVE. Some of them are not selectable with certain programmes.

To deselect an option follow the same steps. Option icon should disappear.

SENSITIVE BUZZER

DELICATE

For especially gentle drying of sensitive fabrics with the ture-sensitive textiles (e.g. acrylic, viscose). Programme is executed with reduced heat.

DELICATE is only suitable for use with loads of up to 3kg.

When the option is active, the DELICATE icon is on.

care label and for tempera-

LONG ANTI-CREASE

A long anti-crease phase lengthen the anticrease phase (30 min.) at the end of the drying additionally by 60 minutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. Phase lasts in total 90 minutes. The laundry can be removed at any time during the anti-crease phase.

When the option is active, the LONG ANTI-CREASE

SENSITIVE

For gentle drying of fabrics that are frequently worn. Programme starts on full heat setting, which is then reduced as the programme progresses to be kind to the washing.

When the option is active, the SENSITIVE icon is on.

icon is on.

Daily use

BUZZER

The appliance is supplied with the BUZZER function deactivated.

To activate buzzer choose BUZZER option. When the option is active, the BUZZER

icon is on. The buzzer sounds or plays a tune during:

–cycle end – anti-crease phase and when phase starts

or ends – cycle interruption by a warning –alarm

Daily use

Time

To select the programme duration after setting the TIME TIJD PROGR. programme. You can select a programme duration from 10 mins to 3 hrs in 10-minute steps.

1. Turn the programme knob to the TIME

TIJD PROGR. programme. The blinking 10' above TIME TIJD PROGR. button is on.

Press the TIME TIJD PROGR. button repeatedly until the desired programme duration is shown in the display, e.g. 20 for a programme of 20 minutes.

If the programme duration is not selected, the duration is automatically set to 10 mins.

Setting delay timer

With the DELAY you can delay the start of a programme by between 30 minutes (30') and a maximum of 20 hours (20h).

1. Select the programme and additional

functions.

Press the DELAY STARTUITSTEL button as many times as necessary until the required start delay appears on the display, e.g. 12h if the programme is to be started in 12 hours.

If the display is showing 20h and you press the button again, the time delay will be cancelled. The display will show 0'and then the duration of the selected programme.

To activate the delay timer, press the START PAUSE START PAUZE button. The amount of time remaining until the programme is set to start is continuously displayed (e.g. 15h, 14h, 13h, … 30' etc).

STARTUITSTEL

button,

Setting child lock

The child lock can be set to prevent a programme being accidentally started or a programme in operation being accidentally changed. The child lock function locks

Daily use

all buttons and the programme knob. The child lock can be activated or deactivated by holding down the OPTION OPTIE and OK buttons simultaneously for 5 seconds.

– Before programme is started: Appliance cannot be used – After programme is started: Programme in operation cannot be changed

The

icon appears in the display to indicate that the child safety device is

activated. The child safety device is not deactivated once the programme comes to an end. If you want to set a new programme, you must first deactivate the child safety

device.

Starting the programme

Press the START PAUSE START PAUZE button. The programme is started.

The programme progress is shown in LCD by appropriate set of icons. From left to the right, from IRON DRY depends on the drying cycle chosen. E. g. in case of CUPBOARD programme the following status icons are visible: Current cycle progress is marked by flashing dash under status icon. When appropriate part of drying cycle is accomplished dash becomes steady and appears flashing under next status icon.

to ANTI-CREASE icon

Changing programme

To change a programme which has been selected by mistake once the programme has started, first turn the programme selector to OFF UIT and then reset the programme.

The programme can no longer be changed directly once the programme has started. If nevertheless there is an attempt to change the programme on the programme knob, the programme progress display and the maintenance indicators flash. If an option button (excluding the BUZZER option) is pressed, Err appears in the multi- display. The drying programme is not however affected by this (laundry protection).

Daily use

Putting in extra items or taking items out before end of programme

1. Open loading door.

WARNING!

Laundry and drum can become hot. Risk of burns!

2. Load or remove laundry items.

3. Close loading securely. Lock must audibly lock.

Press the START PAUSE START PAUZE button to continue the drying cycle.

Drying cycle complete / removing laundry

Once the drying cycle is complete, display shows a blinking "0", under anticrease acoustic signal sounds intermittently for about one minute.

The drying cycles (except for the SHOES RACK and WOOL RACK programmes) are automatically followed by an anti-crease phase which lasts around 30 minutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. The laundry can be removed at any time during the anti-crease phase. (The laundry should be taken out towards the end of the anti-crease phase at the latest to prevent creases from forming.) If LONG ANTI-CREASE has been selected, the anti-crease phase is lengthened by 60 minutes.

icon appear dash. If the BUZZER ZOEMER option has been chosen, an

function

1. Open door.

2. Before removing the laundry, remove fluff from the micro-fine filter. It is best

to use a damp hand for this purpose. (See “Care and cleaning” chapter.)

3. Remove laundry.

Turn the programme selector to OFF UIT.

After each drying cycle:

- Clean the micro-fine filter and fine filter

- Drain the condensed water container (See chapter “Care and cleaning”.)

5. Close the door.

Drying rack

The drying rack offers the possibility of drying washable woollen fabrics and sports shoes. The drying rack does not turn with the clothes-dryer drum. This allows the drying of woollen garments or sports shoes.

When wet, the wool must be moved as little as possible because it tends to become matted, so drying rack is a solution.

Sports shoes cannot be dry without rack otherwise can damage the drum due to their weight.

For first unpacking of the rack please refer to the installation chapter.

WARNING! Before installing the rack check the dryer drum. It must be empty!

1. Open the loading door.

2. Insert the rack.

Lift the rack horizontally in the drum. Guide the rack down until the support bracket at the front rests on the opening.

3. Place the washing on the rack:

– Spread the garment out in the rack

and roll it up, without squashing or folding it.

– Place sport shoes on the rack with

the handle turned up as a support.

Drying rack

Take out the insoles and place them beside the shoes on the rack. Tie the shoelaces.

4. Select the required programme run

time, selectable with an interval of 10 min, from 30 min. up to 180 minutes.

Press the TIME TIJD PROGR. button as many times as necessary until the required programme running time is shown in the display.

Press the START PAUSE START PAUZE button. The programme is started.

6. At the end of the drying programme open the loading door and remove the

garments or shoes.

Turn the programme selector to OFF UIT.

8. Remove the rack from the drum at the end of drying.

Care and cleaning

Cleaning fluff filter

The filters collect all the fluff which accumulates during drying. To ensure that the dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be cleaned after every drying cycle.

The warning icon

CAUTION!

Never operate the dryer without fluff filters or with damaged or blocked fluff filters.

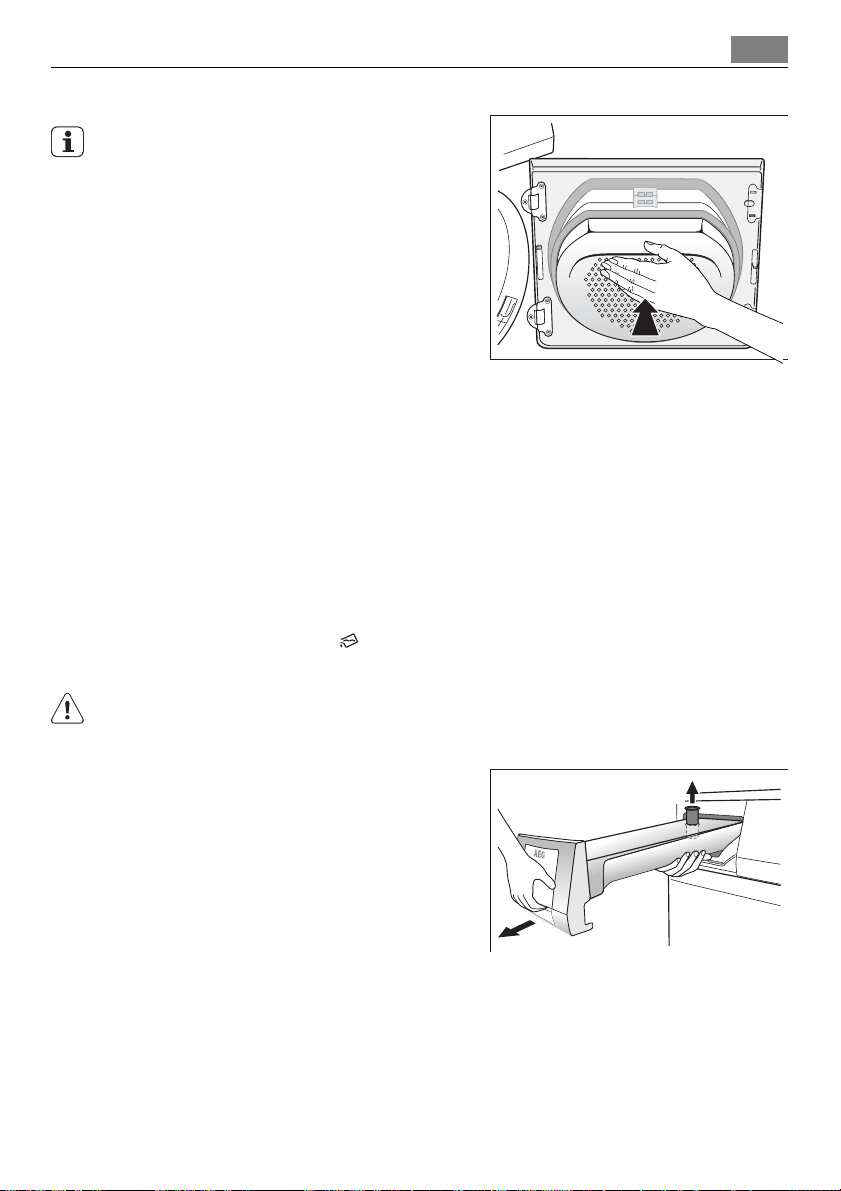

1. Open loading door

2. Use a damp hand to clean the mi-

cro- fine filter, which is built into the lower part of the loading aperture.

is on to remind you this operation.

3. After a period of time, a patina due

to detergent residue on laundry forms on the filters. When this occurs, clean the filters with warm water using a brush. Remove the filter from the door pulling it out. It can be positioned with the tooth facing to the left or to the right).

After cleaning do not forget to put it back.

Care and cleaning

4. Push down unlock button on large

mesh filter. Large mesh filter jumps up.

5. Take out fine strainer.

6. Remove fluff from fine strainer. It

is best to use a damp hand for this purpose.

Clean the entire filter area

The strainer area does not have to be cleaned after every drying cycle, but should be checked regularly and cleaned of fluff if necessary.

7. To do this, grip the top of the large mesh filter and pull it forwards until it

comes loose from the two brackets.

8. Remove fluff from the entire filter

area. It is best to use a vacuum cleaner for this purpose.

9. Press both journals of the large

mesh filter into the brackets on the loading door until they snap into place.

10. Re-insert fine strainer.

11. Press against the large mesh filter

until it locks into the interlock.

Care and cleaning

If the fine strainer is not fitted, the large mesh filter will not snap into place and the loading door cannot be closed.

Cleaning the door seal

Wipe the door seal with a damp cloth immediately after the drying cycle has finished.

Emptying the condensate tank

Empty condensate tank after every drying cycle. If the condensate tank is full, an active programme will break off automatically

and the EMPTY CONTAINER the programme, the condensate tank must first be emptied.

icon on the display will light up. In order to continue

WARNING!

The condensate is not suitable for drinking or for preparing foodstuffs.

1. Take out drawer containing con-

densed water container completely 1 and pull up the condensed water container’s drainage pipe as far as it will go 2.

Care and cleaning

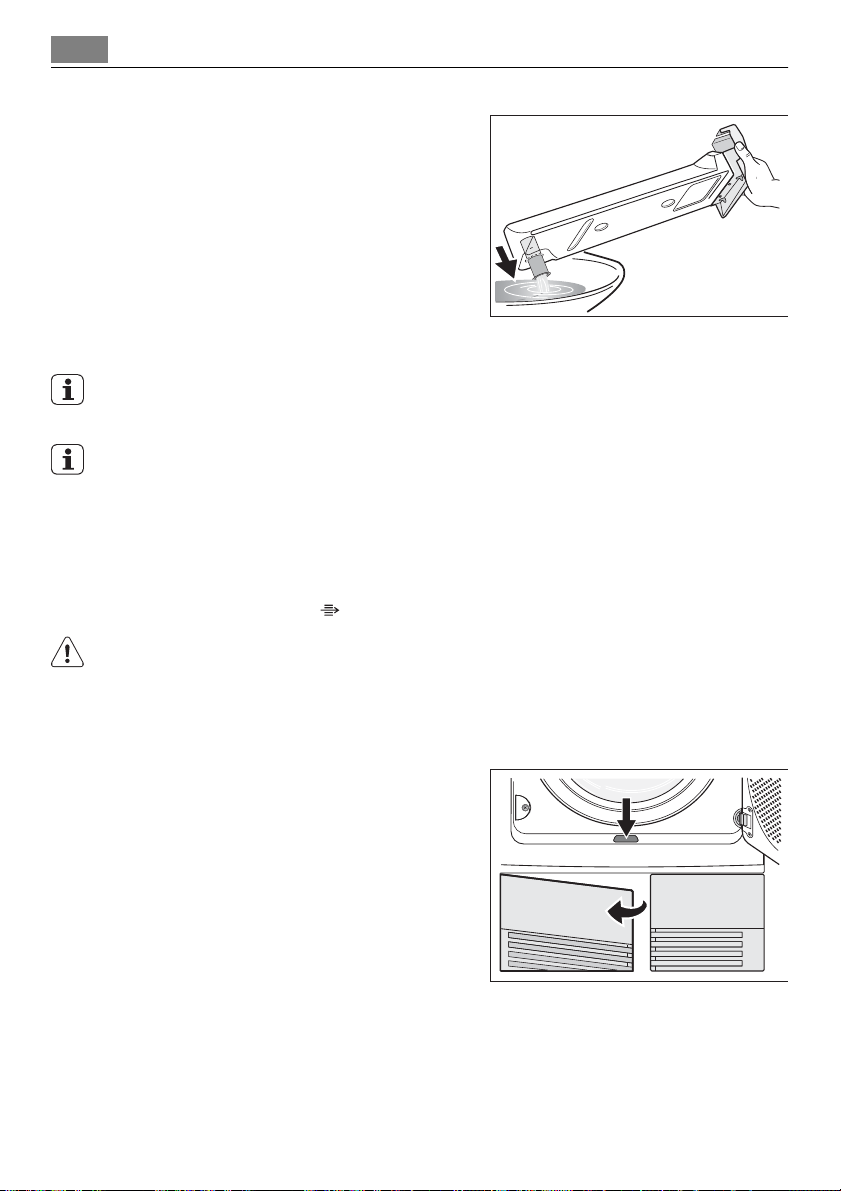

2. Pour condensed water out into a ba-

sin or similar receptacle.

3. Slide outlet connections in and refit

condensate tank. If the programme has been interrup-

ted as a result of the condensate tank being full: Press the START PAUSE START PAUZE button to continue the drying cycle.

The condensate tank has a volume of approx. 4 litres. This is sufficient for around 7 kg of laundry which has previously been spun at 1000 revolutions/ minute.

The condensate can be used as distilled water, e.g. for steam ironing. However first filter the condensate (e.g. with a coffee filter) to remove any residue and small pieces of fluff.

Cleaning heat exchanger

If the HEAT EXCHANGER is displayed, the heat exchanger needs to be cleaned.

CAUTION!

Operating when the heat exchanger is blocked with fluff can damage the dryer. This also increases energy consumption.

1. Open door.

2. Open door in plinth. To do this, press

the release button on the bottom of the door aperture and open the door in the plinth to the left.

3. Clean fluff from the inside of the

door and the heat exchanger front chamber. Wipe the door seal with a damp cloth.

Care and cleaning

4. Turn both lock washers inwards.

5. Use the handle to pull the heat

exchanger out of the base and carry it horizontally to prevent any remaining water from spilling.

6. To empty the heat exchanger, hold

vertically over a washing-up bowl.

CAUTION!

Do not use sharp objects to clean. The heat exchanger could develop leaks.

7. Clean heat exchanger.

It is best to use a brush or to rinse thoroughly with a hand-held shower.

8. Replace heat exchanger and lock into place (turn both lock washers outwards

until they snap into place).

9. Close door in plinth.

CAUTION!

Never operate the dryer without the heat exchanger.

Cleaning the drum

CAUTION!

Do not use abrasives or steel wool to clean the drum.

Lime in the water or cleaning agents may form a barely visible lining on the inside of the drum. The degree to which the laundry has been dried is then no longer detected reliably. The laundry is damper than expected when removed from the dryer.

Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the inside of the drum and drum ribs.

Care and cleaning

Clean operating screen and housing

CAUTION!

Do not use furniture cleaners or aggressive cleaning agents to clean the machine. Use a damp cloth to wipe down the operating screen and housing.

What to do if ...

Troubleshooting by yourself

What to do if ...

If, during operation, the error code

E...

plus number or letter) appears on the LCD:

Switch the machine off and on again. Reset programme. Press the START PAUSE START PAUZE button If the error is still displayed, please inform your local Service Force Centre and quote the error code.

Problem Possible cause Remedy

Dryer does not work.

Drying results unsatisfactory.

Loading door does not close.

When a button is pressed,

Err

appears on

the LCD.

Mains plug is not plugged in or fuse is not working correctly.

Loading door is open. Close loading door.

Have you pressed the START PAUSE START PAUZE button?

Wrong programme selected.

Lint filters clogged. Clean lint filters.

Fluff filter clogged. Clean fluff filter.

Heat exchanger clogged with lint. Clean heat exchanger.

Overloading of laundry.

Ventilation slots in base area covered up.

Residue on inside surface of drum or drum ribs.

Conductance of water at installation site differs from standard setting of machine.

Fine strainer not in place and/or mesh filter not locked in place.

Washing protection. After the start of the programme, the option can no longer be set.

Plug in at mains socket. Check fuse in fuse box (domestic installation).

Press the START PAUSE START PAUZE button again.

Select a different programme the next time you dry (see “Programme chart” chapter).

Observe recommended loading volumes.

Uncover ventilation slots in base area.

Clean inside surface of drum and drum ribs.

Make an adjustment using the DRYNESS DROOGTEGRAAD function (see chapter ”Daily use”)

Re-programme standard setting for degree of drying (see ‘Programming options’ chapter).

Install fine strainer and/or snap large mesh filter into place.

Turn the programme knob to OFF UIT. Set the programme again.

What to do if ...

Drum light does not work.

Displayed programme time changes erratically or stays unchanged for a long time.

Programme inactive, empty water tank

icon is on.

Drying cycle ends shortly after programme starts.

Drying cycle lasts an unusually long time. Note: After around 5 hours the drying cycle ends automatically (see „Drying cycle complete ”).

Programme selector in OFF UIT position.

Defective light bulb.

Programme time is corrected automatically depending on type and volume of laundry and level of dampness.

Condensate tank is full.

Not enough washing loaded or washing loaded is too dry for selected programme.

Lint filter clogged. Clean lint filter.

Fluff filter clogged. Clean fluff filter.

Load volume too big. Reduce load volume.

Laundry insufficiently spun. Laundry must be adequately spun.

Particularly high room temperature. Temporary switching off of the compressor to avoid overload.

Turn programme selector to LIGHT LICHT AAN or to any programme.

Replace light bulb (see next section).

Automatic process; this is not a machine fault.

Empty condensate tank, then start programme with START PAUSE START PAUZE button.

Select time programme or higher drying level (e.g. INTENSIVE DRY INTENSIEF DROOG instead of STORAGE DRY KASTDROOG).

Automatic process, there is no fault with the appliance. If possible, lower the room temperature.

What to do if ...

Changing the bulb for interior lighting

Only use a special bulb which is designed specially for dryers. The special bulb can be obtained from the Customer Care Department, ET no. 112 552 000-5.

When the appliance is switched on, the interior lighting switches itself off after 4 minutes when the door is open.

WARNING!

Do not use standard bulbs! These develop too much heat and may damage the machine!

WARNING!

Before replacing the bulb, disconnect the mains plug.

1. Unscrew cover above the bulb (this can be found directly behind the loading

aperture, at the top; refer to “Description of machine” section.)

2. Replace defective bulb.

3. Screw cover back down. Check the correct positioning of o-ring gasket before screwing back the door light cover. Do not operate the dryer when missing o-ring gasket on door light cover.

WARNING!

For safety reasons, the cover must be screwed down tightly. If this is not done, the dryer must not be operated.

Machine settings

Setting Implementation

BUZZER permanent off

Water hardness

Water contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values.

Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle. Your dryer allows you to regulate the sensitivity of the drying sensor based on conductivity values of the water.

Emptying water tank - warning message permanent off

When using an external drain for the condensed water.

1. Turn the programme selector to any programme.

Press simultaneously the DRYNESS DROOGTEGRAAD and RPM T/MIN buttons and hold down for approx. 5 seconds.

3. The buzzer is by default always off. You can use BUZZER option to activate or deactivate sound but machine does not memorize your selection.

1. Turn the programme selector to any programme.

Press simultaneously the DRYNESS DROOGTEGRAAD and TIME TIJD PROGR. buttons and hold down for approx. 5 seconds. The current setting is on the display:

– – –

Press the START PAUSE START PAUZE button sequentially until you set desired level.

4. To memorize setting press simultaneously the DRYNESS DROOGTEGRAAD and TIME TIJD PROGR. buttons or turn knob to OFF UIT position

1. Turn the programme selector to any programme.

Press simultaneously the RPM T/MIN and TIME TIJD PROGR. buttons and hold down for approx. 5 seconds.

The current setting is on the display: –

warning off

–

warning switched on

By default the warning message is switched on and displayed always at the end of the drying cycle or during the cycle if the water container is full.

low conductivity <300 micro S/cm medium conductivity 300-600 micro S/cm high conductivity >600 micro S/cm

icon and - warning message is

Technical data

This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive

92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

Height x width x depth 85 x 60 x 58 cm

Depth with loading door open 109 cm

Height can be adjusted by 1.5 cm

Weight when empty approx. 40 kg

Loading volume (depends on programme)

Energy consumption in accordance with IEC 61121 s. e. (7kg of

cotton, pre-drained at 1000 rpm, COTTON CUPBOARD DRY KATOEN KASTDROOG programme)

Use Domestic

Permissible ambient temperature + 5°C to + 35°C

1) Different loading volume data may be needed in some countries as a result of different measuring methods.

max. 7kg

3,92 kWh

Consumption values

The consumption values have been established under standard conditions. They may deviate when the machine is operated in domestic circumstances.

Programme Loading volume in kg

COTTON CUPBOARD DRY1) KATOEN KASTDROOG

COTTON IRON DRY1) KATOEN STRIJKDROOG

SYNTHETICS CUPBOARD DRY

SYNTHETISCH KASTDROOG

1) pre-drained at 1000 rpm

2) pre-drained at 1200 rpm

7 3.92

7 3.34

3 1.33

Energy consumption in

kWh

Hints for test institutes

Parameters possible to checked by the Test Institutes:

• Energy consumption (corrected with final humidity) during the cupboard dry cotton cycle with nominal load.

• Energy consumption (corrected with final humidity) during the cupboard dry cotton cycle with half load.

• Final humidity (during Cupboard dry cotton, Iron dry cotton and Cupboard dry Easy care)

• Condensation efficiency (corrected with final humidity) during cupboard dry cotton cycle with nominal and half load

All the cycles have to be checked in accordance with IEC 61121 (Tumble dryers for household use – Methods for measuring the performance).

Installation

Appliance positioning

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.

• The tumble dryer must be installed in a clean place, where dirt does not build up.

• Air must be able to circulate freely all round the appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of the machine.

• To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

• Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, raise or lower the feet until it is.

• The feet must never be removed. Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The appliance must therefore not be installed on floors which are not resistant to high temperatures.

When operating the tumble dryer, the room temperature must not be lower than +5°C and higher than +35°C, as it may affect the performance of the appliance.

Installation

WARNING!

Should the appliance be moved, it must be transported vertically.

WARNING!

The appliance must not be installed behind the lockable door, a sliding door a door with a hinge on the opposite side to that of the appliance.

Removing transport safety packaging

CAUTION!

Before use all parts of the transport packaging must be removed.

1. Open loading door

2. Pull off adhesive strips from inside ma-

chine on top of drum.

3. Remove foil hose and polystyrene

padding from the machine.

Drying rack unpacking

CAUTION!

Before use all packaging parts and rack must be removed from the drum

To unpack the rack:

Installation

1. Remove upper protection polystyr-

ene parts by pulling them.

2. Remove the elastic band fixing the

rack handle to container.

3. Pull slightly rack handle (not to the

end). Grasp at it harder and lift it up.

For easiest unpacking turn the rack upside down

4. Take it carefully out of the drum.

5. Remove from the drum rest of pack-

ing elements.

Electrical connection

Details on mains voltage, type of current and the fuses required should be taken from the type plate. The type plate is fitted near the loading aperture (see “Product description” chapter).

WARNING! The manufacturer declines any responsibility for damage or injury through

failure to comply with the above safety precautions. Should the appliance power supply cable need to be replaced, this must be

carried out by our Service Center.

The power supply cable must be accessible after installing the machine. Connect the machine to an earthed socket, in accordance with current wiring

regulations.

Changing door stop

WARNING!

Installation

The door stop may only be changed by a specialist. If necessary, please contact our after-sales service or your specialist dealer.

WARNING!

Before changing the door stop, disconnect the mains plug.

1. Open loading door.

Unscrew hinge A from the front of the machine and take off the loading door.

Remove cover plates B and C. To do this, insert a thin screwdriver into the slots as shown in the illustration, press downwards slightly and pry out the cover plates.

4. Use an appropriate tool and exert pres-

sure to unfasten locking block D from the snap-on fixture, take out and re-insert on the other side having rotated the block through 180°.

Unscrew hinge A from the loading door, rotate through 180°, re-insert on the opposite side and screw down.

Re-insert cover plates B and C on the opposite site having first rotated them through 180°.

Installation

Unscrew cover plates E from the front of the machine, rotate through 180°, screw on the opposite side.

Unscrew door lock F, push down slightly and remove from the front of the machine.

9. Disconnect cable connector from

door lock F.

10.

Press snap-in button G in and down, press cover down slightly and remove from front of the machine.

11. Disconnect cable connector from

cover G.

12.

Change door lock F over to the opposite side, insert the cable connector and screw down the door interlock.

13. On the other side, insert the cable connector in cover G, insert cover and allow

snap-in button to lock into place.

14. Insert loading door and hinges into recesses on the front of the machine and

screw down. Note regarding contact protection:The machine is only secure for operations again once all plastic parts have been inserted.

Special accessories

Intermediate installation kit for stacked washer and dryer:

Available from your Service Force Centre or your specialist dealer

These intermediate installation kits can be used to arrange the dryer and an automatic AEG-Electrolux washing machine (60cm wide, front loading) as a spacesaving washer/dryer stack. The automatic washing machine is at the bottom and the dryer is at the top.

Version to be supplied: – with extractable stacker plate 916.018 903

Read carefully the instructions supplied with the kit.

Environment

Installation kit for external condensate drain

Attached to your product

Installation kit 125 122 510 for direct draining of condensate into a basin, siphon, gully, etc. The condensate tank then no longer has to be drained, it must however remain in its intended position in the machine. Refer to the “Programme options” section for how to deactivate the EMPTY WATER TANK

Max. displacement height: 1m from the base of the dryer; max. displacement length: 3m Read carefully the instructions supplied with the kit.

alert.

Environment

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

WARNING!

Remove mains plug from socket when you have no further use for the machine. Cut off mains cable and dispose of together with plug. Destroy loading door hook. Children cannot then lock themselves in the machine and put their lives at risk.

Environment

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore

needed when washing.

• Your dryer will function most economically if you:

– always keep the ventilation slots on the base of the dryer unobstructed; – use the loading volumes specified in the programme overview; – ensure you have good ventilation in the installation room; – clean the micro-fine filter and fine strainer after each drying cycle; – spin the laundry well before drying. Example: Consumption data – depending

on spinning speed – for 7kg of laundry, dried using the COTTONS CUPBOARD DRY programme.

Pre-draining Drying cycle

Revolutions per

minute

1000 4.20 60 3,92 0,58

1200 3.92 56 3,75 0,56

1400 3.64 52 3,60 0,54

1800 3.15 45 3,20 0,48

1) Tariff: 0.15 Euro/kWh

Residual dampness

in litres as a %

Energy in kWh

Costs in euros

Service

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (Chapter “What to do if…”).

If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

In order to be able to assist you quickly, we require the following information:

– Model description – Product number (PNC) – Serial number (S No.) (for numbers, see rat-

ing plate) – Type of fault – Any error messages displayed by the appliance So that you have the necessary reference numbers from your appliance at hand,

we recommend that you write them in here:

Model description: ................................................................................

PNC: .....................................................................................................

S No.: ...................................................................................................

www.electrolux.com

www.aeg-electrolux.co.uk www.aeg-electrolux.be

136900490-00-24092007 Subject to change without notice

AEG-Electrolux T58840R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
