AEG-Electrolux T58800 User Manual
LAVATHERM 58800
Condensation dryer
User information
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Environmental tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
What is shown in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on the appliance for the first time - setting the language. . . . . 12
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before the first drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sorting and preparing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching machine on / switching light on . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Opening loading door / filling laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the pre-drainage spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Half Power, Buzzer, Sensitive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dry Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delay Start Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Long Anticrease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Putting in extra items or taking items out before end of programme . . . . 19
Drying cycle complete / removing washing . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Memory 1, 2, 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Water hardness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contrast and Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Condensate tank indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the door seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

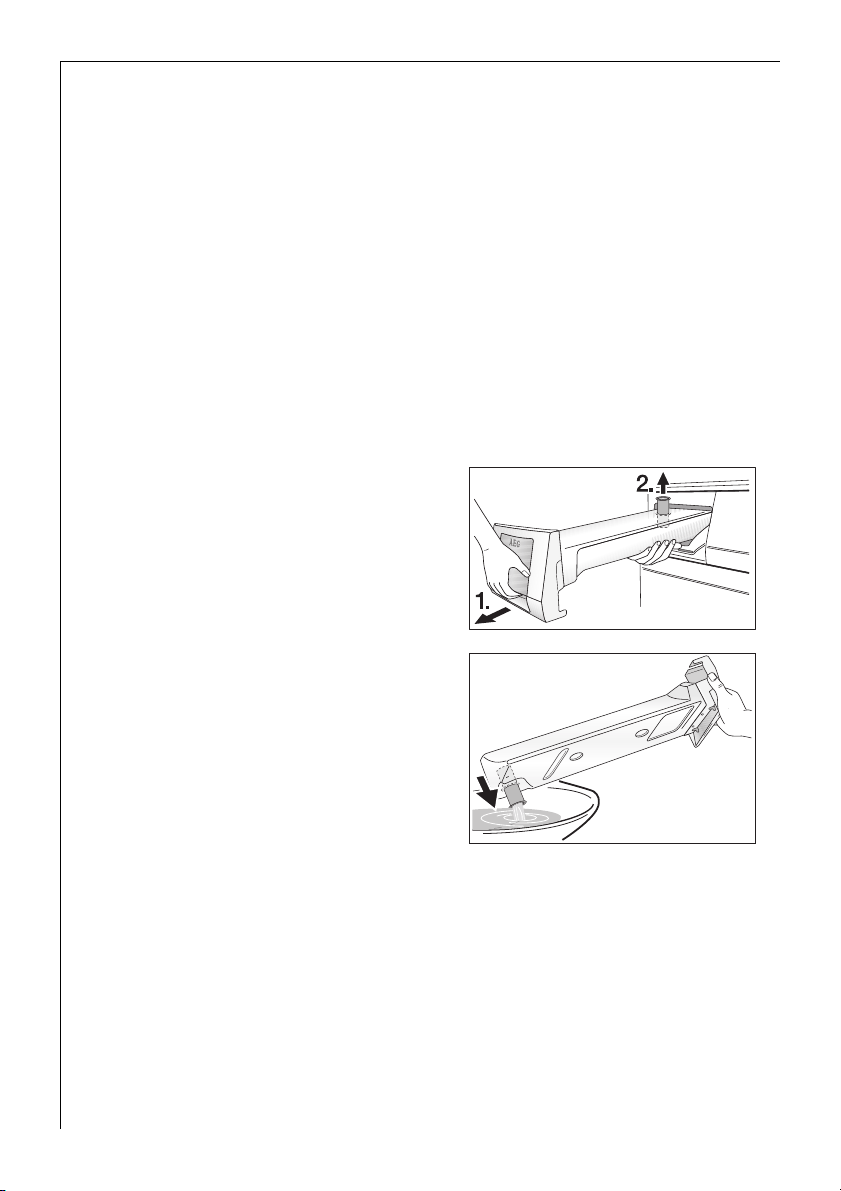

Emptying the condensed water container . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the drum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Clean operating screen and housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
What to do if…. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Changing bulb for inside light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installation and connection instructions. . . . . . . . . . . . . . . . . 32
Installation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

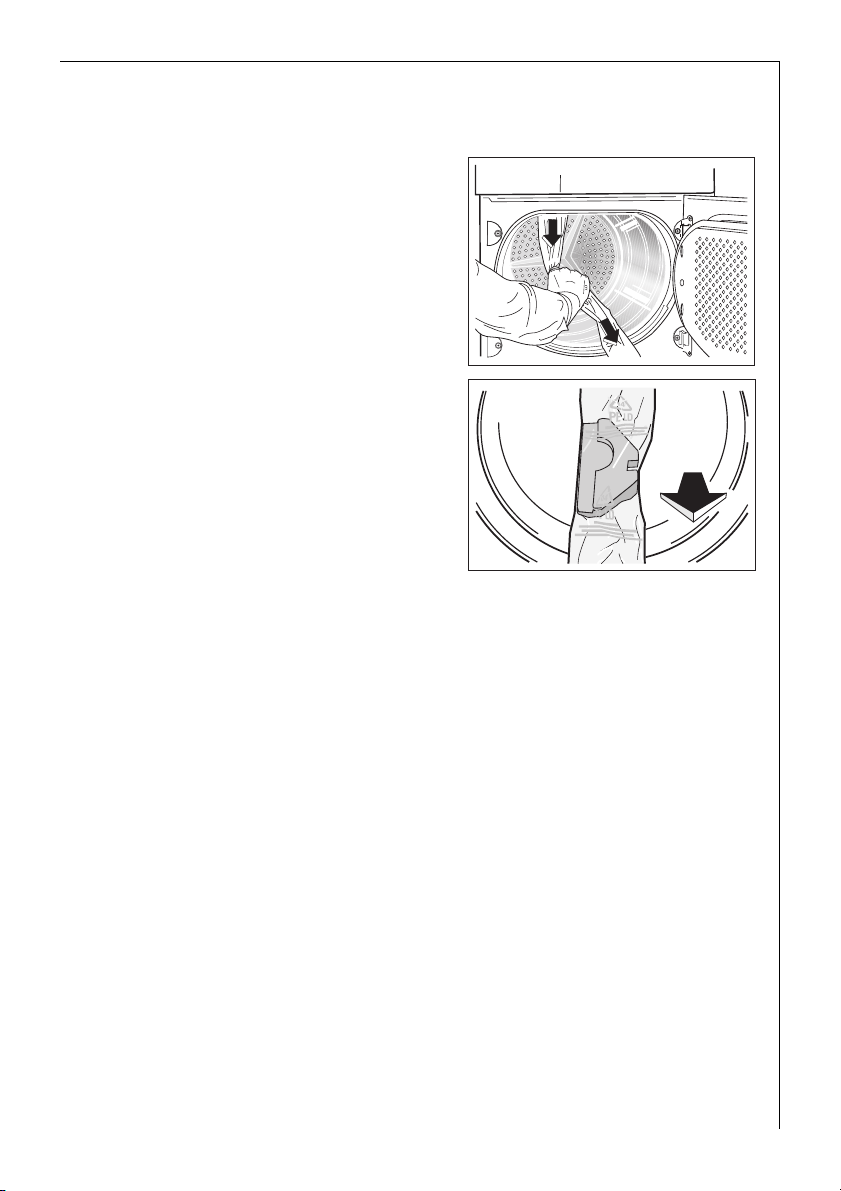

Removing transport safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

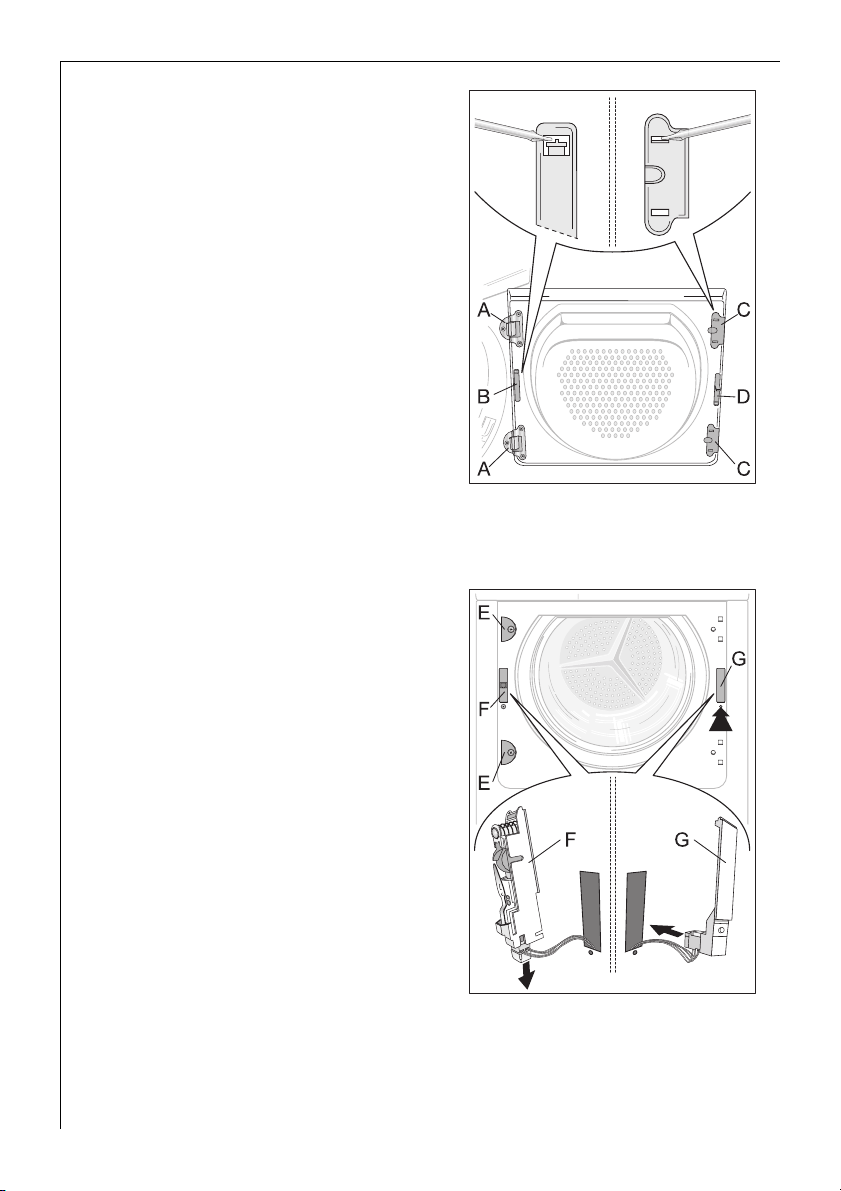

Changing door stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Special accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
Operating Instructions
1 Safety
Before first starting up
• Note the ”Installation and connection instructions”
• Before first starting up, check the machine for any damage incurred
during transport. Never connect up a damaged machine. If parts are
damaged, contact your supplier.
Intended use
• The dryer is intended for drying standard laundry in domestic applications.
• Conversions or modifications to the dryer are not permitted.
• This dryer is intended only for drying textile material
• To minimize the risk of fire in a tumble dryer, the following should be
observed:
– Items that have been spotted or soaked with vegetable or cooking
oil constitute a fire hazard and should not be placed in a tumble
dryer.
– Oil-affected items can ignite sponteanously, especially when ex-
posed to heat sources such as a tumble dryer. The items become
warm, causing an oxidation reaction in the oil. Oxidation creates
heat. If the heat cannot escape, the items can become hot enough
to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
– If it is unavoidable that fabrics that contain vegetable or cooking
oil or have been contamined by hair care products be placed in a
tumble dryer they should first be washed in hot water with extra
detergent - this will reduce, but not eliminate, the hazard. The „cool
down“ cycle of tumble dryers should be used to reduce the temperature of the items. They should not be removed from the tumble
dryer or piled or stacked while hot.
– Items that have been previously cleaned in, washed in, soaked or
spotted with petrol/gasoline, dry-cleaning solvents or other flammable or explosive substances should not be placed in a tumble
dryer.
– Highly flammable substances commonly used in domestic environ-
ments include acetone, denatured alcohol, petrol / gasoline, kerosene, spot removers (some brands), turpentine, waxes and wax
removers should not be placed in a tumble dryer.
washed in water.
5
– Items containing foam rubber (also known as latex foam) or simi-
larly textured rubber-like materials should not be dried in a tumble
dryer on a heat setting. Foam rubber materials can, when heated,
produce fire by spontaneous combustion.
– Fabric softeners or similar products should not be used in a tumble
dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric
softener or product.
– Undergarments that contain metal reinforcements should not be
placed in a tumble dryer. Damage to the tumble dryer can result if
metal reinforcements come loose during drying. When available a
drying rack could be used for such items.
– Plastic articles such as shower caps or babies´waterproof napkin
covers should not be placed in a tumble dryer.
– rubber-backed articles, clothes fitted with foam rubber pads, pil-
lows, galoshes and rubber-coated tennis shoes should not be placed
in a tumble dryer.
• When using dry-cleaning sets: Only use those products which are declared as suitable for the dryer by the manufacturer.
• Do not place heavily worn laundry items in the dryer. Risk of fire!
• Do not place laundry items with loose fillings (e.g. cushions) in the
dryer. Risk of fire!
• Parts with rigid components (e.g. door mats) may cover the air slots.
Risk of fire! Do not place such items in the dryer.
• Do not overfill the dryer. Risk of fire! Observe max. loading volume of
6 kg.
• Clean the micro-fine filter and fine strainer after each drying cycle.
• Never operate the dryer without fluff filters or with damaged or
blocked fluff filters. Risk of fire!
• Clean the heat exchanger regularly.
• With stacked washer and dryer: Do not place objects on the dryer.
These may fall off during operation.
• The covering bonnet of the bulb for the drum light must be screwed
down tightly.
Safety of children and infirm persons
• The appliance is not intended for use by young children or infirm persons without supervision.
6
• Children are often not aware of the dangers involved when handling
electrical equipment. Therefore provide the necessary supervision of
children when operating the appliance and do not let children play
with the dryer – there is a danger that children could become trapped
inside the appliance.
• Packaging parts (e.g. films, styropore) can be dangerous for children.
Danger of suffocation! Keep packaging parts out of reach of children.
• Make sure that children or small animals do not climb into the drum
of the dryer. For this purpose keep the door of the dryer closed when
the appliance is not in use.
General safety
• Only specialists may undertake repairs on the dryer.
• Never start up the dryer if the mains cable is damaged or if the oper-
ating screen, operating plate or base area are damaged so that the inside of the machine is open and accessible.
• Switch off the dryer before all cleaning, care or maintenance work.
Also disconnect the mains plug from the socket or – with permanent
connections – switch off the LS switch in the fuse box and/or fully
unscrew the screwed-in fuse.
• Disconnect the machine from the power supply during long pauses in
operations.
• When removing from the socket, never pull the mains plug by the cable, instead take a hold of the plug.
• Manifold plugs, couplings and extension cables must not be used.
Risk of fire from overheating!
• Do not spray down the dryer with jets of water. Risk of electric shock!
• Do not lean on the open door. The machine may tip over.
• Once the drying cycle has been interrupted, the laundry and drum
may be hot. Risk of burns! Take care when removing the laundry.
Disposal
Packaging material
2
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
7
2 Old appliance
The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
W on the product or on its packaging indicates that this
1 Warning! Remove mains plug from socket when you have no further
use for the machine. Cut off mains cable and dispose of together with
plug.
Destroy loading door lock. Children cannot then lock themselves in the
machine and put their lives at risk.
2 Environmental tips
• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not
therefore needed when washing.
• Your dryer will function most economically if you:
– always keep the ventilation slots on the base of the dryer unob-
structed;
– use the loading volumes specified in the programme overview;
– ensure you have good ventilation in the installation room;
– clean the micro-fine filter and fine strainer after each drying cycle;
– spin the laundry well before drying. Example: Consumption data –
depending on spinning speed – for 6kg of laundry, dried using the
COTTONS STORAGE DRY programme.
Pre-draining Drying cycle
Revolutions per
minute
800 4.2 70 3,84
1000 3.6 60 3,36
1200 3.2 53 3,10
1400 3.0 50 3,00
1800 2.5 42 2,60
8
Residual dampness Energy
in litres as a %
in kWh
Description of machine
Drawer containing
condensate tank
Lamp for inside
light
Micro-fine filter
lint filter)
Type plate
Base door
upstream of
heat exchanger
Control panel
Display
Operating screen
Fine strainer
(lint filter)
Large mesh filter
(lint filter)
Loading door
(interchangeable
stop)
Screwed feet
(with height
Air slots
adjustment)
Programme knob and
On/Off switch
Function buttons START/PAUSE button
What is shown in the display
Information field, shows the current settings
EXTRA DRY
Cycle end at
Door indicator
f 1200 эээээmэWэgэSэBэaэaэTэk
Spin speed Times
Options
12.45
15.01
Current time
End of cycle
9
Programme overview
Additional
functions
1)
Programmes
max. load
(weight when dry)
EXTRA DRY 6kg • • • •
INTENSIVE DRY 6kg • • • •
STORAGE DRY 6kg • • • •
DAMP 6kg • • • •
COTTONS
HAND IRON 6kg • • • •
MACHINE IRON 6kg • • • •
EXTRA DRY 3kg • • • •
STORAGE DRY 3kg • • • •
EASY CARES
DAMP 3kg • • • •
1) & HALF POWER and SENSITIVE cannot be selected together.
2) Select & HALF POWER.
& HALF POWER
G BUZZER
1)
SENSITIVE
Application/properties
¤ DRY LEVEL
Thorough drying of thick or multi-layered fabrics, e.g. terry towelling items, bathrobes.
Thorough drying of thick fabrics,
e.g. terry towelling items, towels.
Thorough drying of fabrics of
even thicknesses, e.g. terry towelling items, knitted items, towels.
For thin fabrics which are also to
be ironed, e.g. knitted items, cotton shirts.
For normal thickness cotton or
linen laundry, e.g. bedding, table
linen.
For cotton or linen laundry which
is also to be machine pressed, e.g.
bedding, table linen.
Thorough drying of thick or multi-layered fabrics, e.g. pullovers,
bedding, table linen.
For thin fabrics which are not
ironed, e.g. easy care shirts, table
linen, baby clothes, socks, lingerie with bones or wires.
For thin fabrics which are also to
be ironed, e.g. knitted items, cotton shirts.
Care
symbols
m n
m n
m n
m n
m n
m n
m l2)
n
2)
m l
n
2)
m l
n
10
Additional
functions
1)
Programmes
max. load
(weight when dry)
LEISURE 6kg • • • •
WOOL CARE 1kg • • - -
EASY IRON 1kg • • - -
REFRESH 1kg • • - -
40 MIN
20 MIN
1kg • • - -
& HALF POWER
1)
SENSITIVE
G BUZZER
Application/properties
¤ DRY LEVEL
Special programme for leisure clothing,
such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the
neck, cuffs and seams).
Special programme for briefly treating
woollens with warm air, after they have
been dried naturally, worn or stored for
long periods. Wool fibres stand up and
the wool becomes soft and cosy.
Recommendation: Remove fabrics immediately after drying.
Special programme with anti-crease
mechanism for easy care fabrics such
shirts and blouses; for minimum ironing
effort. The result depends on the type of
fabric and its finish. (The load corresponds to approx. 5 to 7 shirts.)
Recommendation: Place fabrics in the
dryer straight after spinning. Once dried,
immediately remove fabrics and place on
a clothes hanger.
Special programme, lasting around 35
minutes, for refreshing or gently cleaning textiles with commercially available
dry cleaning products.
(Only use those products which are declared as suitable for the dryer by the
manufacturer; please observe the manufacturer’s instructions for use.)
For drying individual items of laundry or
for small volumes of less than 1kg.
Care
symbols
m n
m l2)
n
2)
m l
n
1) & HALF POWER and SENSITIVE cannot be selected together.
2) Select & HALF POWER.
11
Prior to using for the first time
Switching on the appliance for the first time - setting
the language
The display is set to English as standard in the factory.
3 Important! If the display does not show the menu for setting the lan-
guage when the appliance is switched on, the appliance has been
switched on before. If this happens, please see the section “Setup/Language”.
To switch on the appliance, turn the programme knob to any programme, e. g. COTTONS EXTRA DRY.

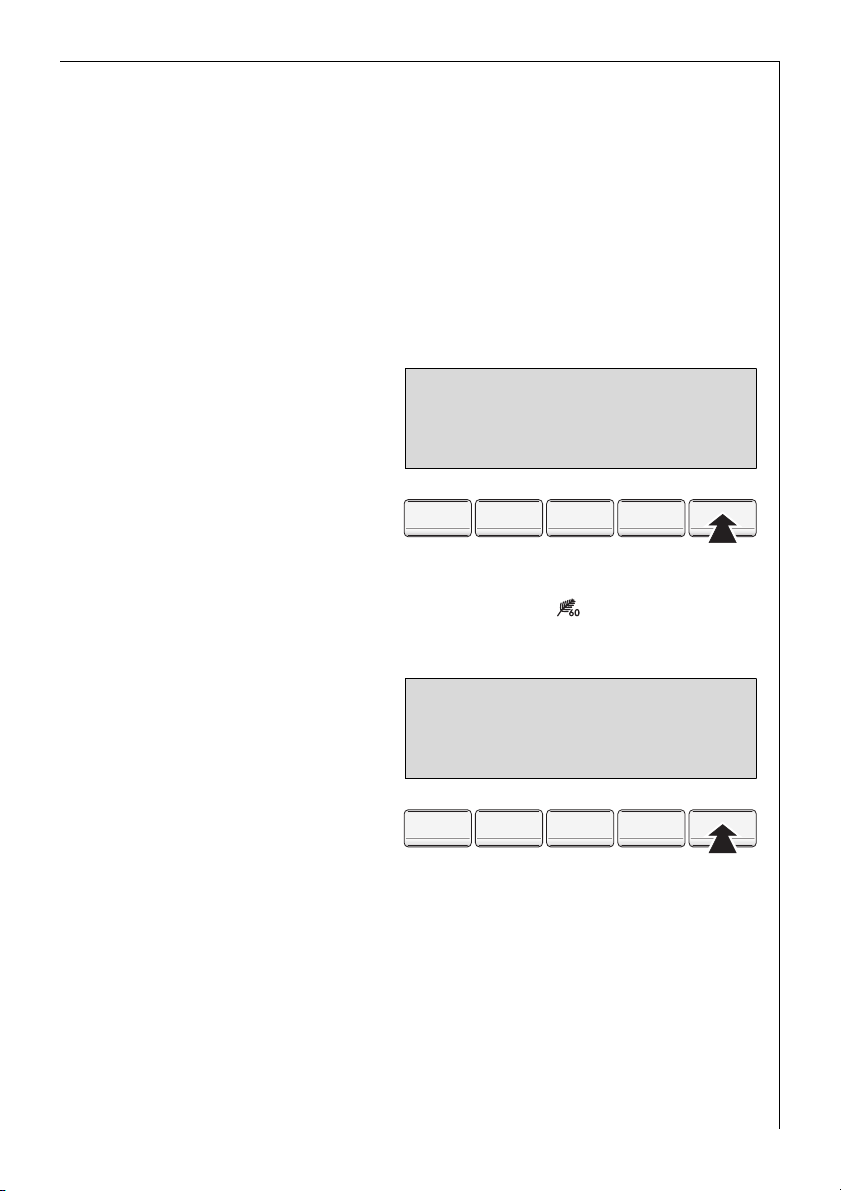

The display lights up and
should look like the illustration opposite.
In addition the display
shows:
– “To change push OPTION
key”
– “To confirm push OK key”
If you want to keep the language:
Press the OK button.
If you want to change the
language:
1. Press the OPTIONS button
repeatedly, until the desired
language appears in the display, e. g. DEUTSCH.
2. Press the OK button.
In the display DEUTSCH
flashes several times and the
display should then look like
e. g. the illustration opposite.
3. To switch the appliance off,
turn the programme knob
to OFF.
Language:
ENGLISH
aýaýa aýaýaýaýaýaýaýaýa
DOOR RPM OPTIONS OK TIME
Sprache
DEUTSCH
aýaýa aýaýaýaýaýaýaýaýa
DOOR RPM OPTIONS OK TIME
EXTRATROCKEN
Programmende um
dýaýa aýaýaýaýaýaýaýaýa
DOOR RPM OPTIONS OK TIME
12.45
15.01
3 If the wrong language is set by mistake, please look at the “Setup/Lan-
guage” section.
12
Loading...
