AEG-Electrolux T57560 User Manual
LAVATHERM 57560 electronic
Condenser Dryer
Operating Instructions
Dear customer,
Pri
Please read these operating instructions through carefully, before using
the appliance.
Please ensure you fully understand the safety instructions on the first
pages of these operating instructions! Retain this instruction book for
future reference, and pass on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!,
1
Important!), emphasize information which is important for your safety
or the correct functioning of the appliance. It is essential that this
information is observed.
0 This symbol guides you step by step when operating the appliance.
This symbol gives additional information and practical tips on using the
3
appliance.
Tips and information about the economical and environmentally
2
friendly use of the machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact
our Customer Care Department by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire SL 1 1DZ
Tel: 08705 350350
nted on environmentally friendly paper ...
Whoever thinks ecologically also acts ecologically.
2
Content
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tumble Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
The programme selector positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using the appliance for the first time . . . . . . . . . . . . . . . . . . . . . . 12
Brief operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Prepare the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Select the drying programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Start DELAY TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start the drying programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Removing laundry or loading laundry when necessary . . . . . . . . . . . . . . . . . 16
End of the drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Removing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Empty the water reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clean the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Switch-off the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programme tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
A small glossary of textile information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3
Content
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the filter area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the panel and operating parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Replacing the interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Service & Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
For the installer - Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Door Reversal Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Drainage kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Stacking kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
1 Important Safety Information
Your safety is of paramount importance, please ensure you read these
warnings before installing or using the appliance. If you are unsure
about any of the meanings of these warnings, contact the Customer
Care Department.
General Safety
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Please follow the safety information in the installation section of this
instruction book.
• This appliance is designed to dry normal domestic laundry. If the
appliance is used for any other purpose or is incorrectly used, the
manufacturer accepts no liability for any damages which may result.
• Switch off the appliance and isolate from the mains supply before
carrying out any maintenance or cleaning work.
• Never operate the appliance if the mains cable is damaged or if the
control panel, work top or base area are damaged allowing internal
components to be accessible.
• Do not spray the tumble dryer with water.
• Do not dry textiles which have been treated with flammable cleaning
agents and solvents.
• Clothes or articles of laundry which are dripping wet should not be
placed in the dryer. Only load well-spun laundry.
• Laundry items containing sponge rubber or rubber-like materials
must be not be dried in the tumble dryer.
• If the drying cycle is interrupted, the laundry or drum may be hot.
• Do not use the tumble dryer without the bulb cover in position.
• Do not operate the appliance with a damaged filter or with no filter
at all.
• Do not overload the appliance.
• When closing the door, please check that the washing is not caught
in it.
• It is dangerous to alter the specifications or attempt to modify this
product in any way.
• Adaptors and extension cables must not be used. There is risk of fire
because of overheating!
• Do not use the mains cable to pull the plug out of the socket.
5
Important Safety Information
• If the appliance will be out of operation for an extended period of
time, unplug it from the mains.
• Repairs to the appliance should only be carried out by qualified
personnel. Repairs carried out by inexperienced persons may cause
injury or serious malfunction. Contact your local AEG Service Force
Centre for repair.
• Washing that is in poor condition (heavily worn) and items with loose
fillings (cushions) that could break open must not be dried or aired.
There is a risk of fire!
• Washing with rigid components (foot mats) will cover the air slots;
the slots will also be covered if the drum is overfilled. Observe the
maximum load of 6 kg. There is a risk of overheating which could
cause a fire!
• Only dry washing that does not contain any explosive objects (fire
lighters, spray cans). There is a risk of fire or an explosion!
• Clean the fluff filter after each drying procedure.
• Clean the heat exchanger regularly.
• In the case of washer / dryer tower combinations, do not place any
objects on the dryer during use as they could drop down.
Child Safety
• The appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the appliance.
• Pets and children have been known to climb into tumble dryers.
Please check the drum before use.
• Keep all packaging away from children.
• When disposing of the appliance, cut off the mains cable and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
Installation
• Check the appliance for transportation damage before installation.
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Do not install the appliance on deep pile carpet.
• Ensure the appliance is level.
• If the tumble dryer is installed next to a fuel burning stove, a heat
insulation non-flammable pad must be inserted between the fuel
burning stove and the tumble dryer; (dimensions 85 x 57.5 cm).
6
3 General Information
• To prevent creasing do not exceed the maximum load stated in the
programme table.
• When using fabric conditioning sheets, we recommend the
conditioning sheet is pinned (using a safety pin) to an article of
laundry and placed in the tumble dryer.
• Please ensure the appliance is easily accessible to an engineer after
installation.
2 Disposal
Packaging
• Dispose of the packaging material correctly. All packaging materials
are environmentally friendly and can be disposed of without any
danger to the environment.
• The external plastic covering and bags inside are made of
Polyethylene (marking >PE<).
• The padding is made of CFC free expanded polystyrene
(marking >PS<).
Tumble Dryer
When disposing of the tumble dryer.
• Cut off the mains cable and destroy the plug.
• Disable the door catch to prevent young children becoming trapped
inside.
• Use an authorised disposal site.
7
2 Environmental protection tips
• Your laundry will become light and soft in the laundry dryer even
without a soft rinsing agent.
• Loosen your laundry before loading it into the dryer. This helps to
prevent lengthy running times and creasing.
• Ensure your laundry is well spun.
In the following table we give an overview of specific electric consumption data depending on the spinning speed. This information is
valid for 6kg laundry dried with the programme COTTONS STORAGE
DRY:
Pre-drying: Drying process:
Revolutions per
minute
800 4,2 70 11 5 4,2
1000 3,5 59 100 3,5
1200 3,2 53 92 3,2
1400 3,0 50 88 3,0
1600 2,6 44 79 2,6
1800 2,5 42 77 2,5
Residual moisture
in Litres in %
Required time in
minutes
Power consumption
in kWh
• Never obstruct the ventilation slits at the base of the dryer!
• Ensure that the room is well ventilated!
• Observe the maximum load instructions. Whenever possible, dry full
loads.
8
Environmental protection tips
• Choose the right drying programme for the type and quantity of
laundry. The dryer will then operate as economically as possible. Some
typical consumption values:
Drying programme
COTTONS STORAGE DRY
COTTONS HAND IRON
EASY CARES STORAGE DRY
1) spun at 800 revolutions per minute
2) spun at 1000 revolutions per minute
1
1
2
Fill weight
in kg
6 11 5 4,2
6 85 3,3
3 48 1,6
Duration in
Minutes
consumption
If the amount of laundry is not enough for a particular degree of drying (e.g. HAND IRON), you should dry it in stages for best economy: Fill
the dryer and select the programme HAND IRON; after the end of this
programme take out your laundry for ironing. Finally dry the remaining
laundry with the programme STORAGE DRY.
• Only use the SPECIAL CARE button for loads up to 3kg!
• Clean the fluff filter after every drying programme!
• Empty the water reservoir after every drying programme!
Caution! The condensed water is not suitable for drinking or for use
1
with foodstuffs.
You can use the collected condensed water as distilled water in the
household, but first pour it through a paper filter bag.
• Clean the heat exchanger regularly. The dryer will operate more
economically if you clean the heat exchanger regularly.
Power
in kWh
9
Description of the appliance
Front view
Interior Light

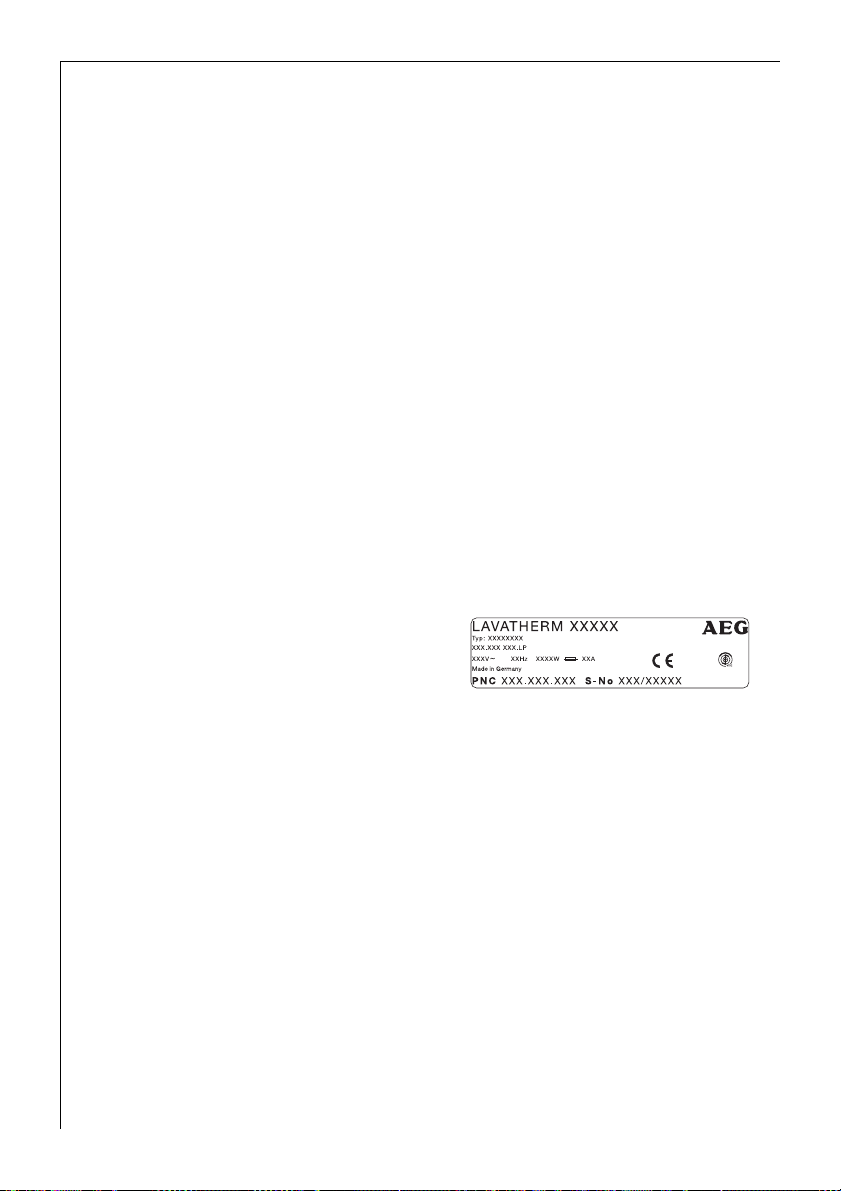

Rating plate
Vent
Control panel
Water Reservoir
with handle flap
Fluff filter
10
Feet
(all height-adjustable)
Heat exchanger
Unit behind
Removable Plinth
Reversible door
Description of the appliance
Control panel
A
B
D
A Programme selector: To select the drying programme
B Programme run display: In each case the display for the current phase
of the drying process is lit.
C Buttons and display block
– SPECIAL CARE button: For sensitive fabrics. This button has no effect
if the QUICK button has already been pressed.
– AUDIBLE SIGNAL button: When switched-on, an audible signal is
sounded at the end of the drying programme; then take-out the
laundry
– QUICK button: reduces the drying time. Does not work with the pro-
grammes COTTONS DAMP, HAND IRON and MACHINE IRON or with
the EASY CARES DAMP programme.
If the SPECIAL CARE button has already been pressed, pressing the
QUICK button has no effect.
– START/PAUSE button: To start or interrupt the programme.
– DELAY TIMER button: to pre-set the delay start time within a range of
0, 3, 6 and 9 hours; delay is shown in display panel
– Display: displays the hours until the drying programme begins.
D Instructions for the user:
– HEAT EXCHANGER: Clean the heat exchanger
– EMPTY WATER: Empty the water container
– CLEAN FILTER display: Clean the fluff filter
C
11

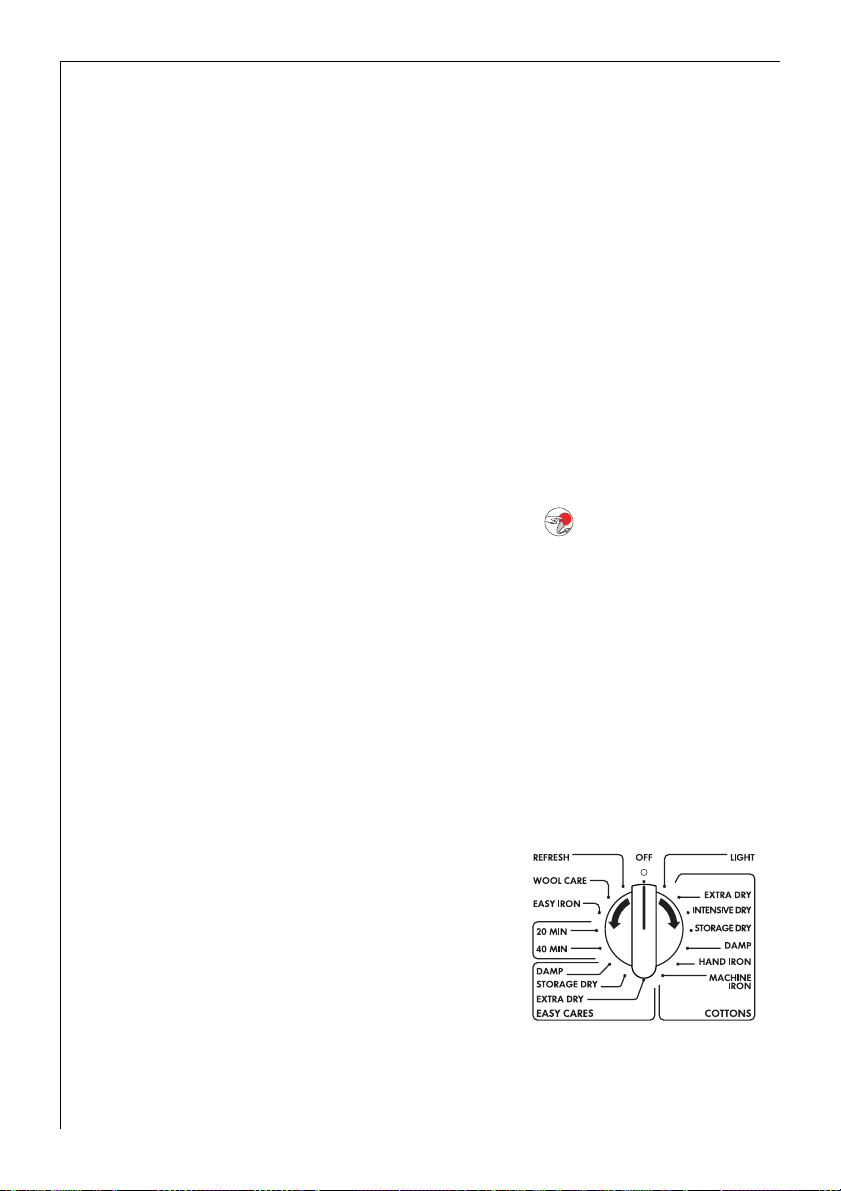

The programme selector positions
• OFF:
The tumble dryer is switched off.
•LIGHT:
The drum light switches on when
the door is opened.
• Programme group COTTONS:
Programmes for drying cotton
and linen fabrics;
maximum load 6 kg.
• Programme group EASY CARES:
Programmes for drying mixed
fabrics and synthetics;
maximum load 3 kg.
• Time Programmes:
For additional drying or for drying loads of less than 1 kg.
• EASY IRON programme:
Special drying programme with
anti-crease mechanism for easycare fabrics;
maximum load 1kg.
• WOOL CARE programme:
To freshen up woollen fabrics
after they have been line dried;
maximum load 1 kg.
• REFRESH programme
For optimum results when
refreshing items of clothing and gently cleaning textiles with the aid of
commercially available dry-cleaning products (please follow the manufacturer’s instructions for use);
Programme duration: 35 minutes;
maximum load 1 kg.
Before using the appliance for the first time
0 Wipe out the drum using a damp cloth or else insert damp cloths and
carry out a short drying procedure (20 mins.).
12
Loading...
