AEG-Electrolux S75328DT2 User Manual

SANTO 75328-2 DT
User Manual Manual de instrucciones
Fridge freezer
Frigorífico-congelador
2
Dear Customer
gn and cutting edge technology. Convince yourself that our appliances are engineered to deliver the best perfor-
mance and control - indeed we are setting the highest standards of excellence. In addition to this you find environmental and energy saving aspects as an integral
part of our products. To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this manual
Important information concerning your personal safety and information on
how to avoid damaging the appliance
General information and tips
Environmental information
3
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Rear spacers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Fitting the door Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Temperature regulation and Adjusting the temperature . . . . . . . .12
Action Freeze Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Freezing Calender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Installation of the charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Changing the charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . .23
4
Safety
The safety aspects of our appliance comply with accepted technical stan­dards and the German Appliance Safety Law. Nevertheless, we consider it our obligation to make you aware of the following safety information:
Intended use
• The appliance is intended for use in the home. It is suitable for the coo­ling, freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incor­rectly, no liability can be accepted by the manufacturer for any damage that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of safety.
• If you use the appliance in a commercial application or forpurposes other than the cooling, freezing or frozen storage of foods,please observe all valid legal regulations for your application.
Prior to initial start–up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact the vendor.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compa­tibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition; – thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable, break or remove spring or boltcatches, if fit­ted. By doing this you ensure that children cannot lock themselves in the appliance when playing (there is risk of suffocation!)or get themselves into other dangerous situations.
• Often children cannot recognise the hazards present in household appliances. It is therefore important that you ensure adequate supervision and never let children play with the appliance!
5
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flamma­ble materials such as, for example, spray cans, fire extinguisher refill car­tridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer compartment. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment. Exception: high alcohol content spirits can be stored in the freezer compartment.
• Do not put ice creams or ice cubes in the mouth immediately after remo­val from the freezer compartment. Very cold ice can freeze to the lips or tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze to the food.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.
In case of malfunction
• If the a malfunction occurs on the appliance, please look first in the "What to do if ..." section of these instructions. If the information given there does not help, please do not perform any further repairs yourself.
• Applianeces may only be repaired by qualified service engineers. Improper repairs can give rise to significant hazards. If your appliance needs repai­ring, please contact your specialist dealer or our Customer Service.
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or burned at an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified as fol­lows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior. >PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluo-
rocarbon. The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
6
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of its service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remo­ve plug from mains, sever the power cable, remove or destroy any snap or latch closures. This eliminates the danger that playing children lock them­selves into the appliance (danger of suffocation!) or place themselves into other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the appliance, may not be damaged.
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative con­sequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this pro­duct. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the appliance.
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room. Energy use is affected by the ambient temperature. The appliance should
therefore – not be exposed to direct sunlight; – not be installed next to radiators, cookers or other sources of heat; – only be installed at a location whose ambient temperature corresponds to
the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance.
7
Climate classification for an ambient temperature of
SN +10 bis +32 °C
N +16 bis +32 °C
ST +18 bis +38 °C
T +18 bis +43 °C
The following table shows which ambient temperature is correct for each climate classification: each climate classification:
If installation next to a source of heat is unavoidable, the following minimum clearances must be maintained at the sides of the appliance:
– for electric cookers 3 cm; – for oil and coal fired ranges 30 cm.
If these clearances cannot be main­tained a heat insulating pad is requi­red between the cooker and the refrigeration appliance.
If the refrigeration appliance is installed next to another refrigerator or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.
Your appliance needs air

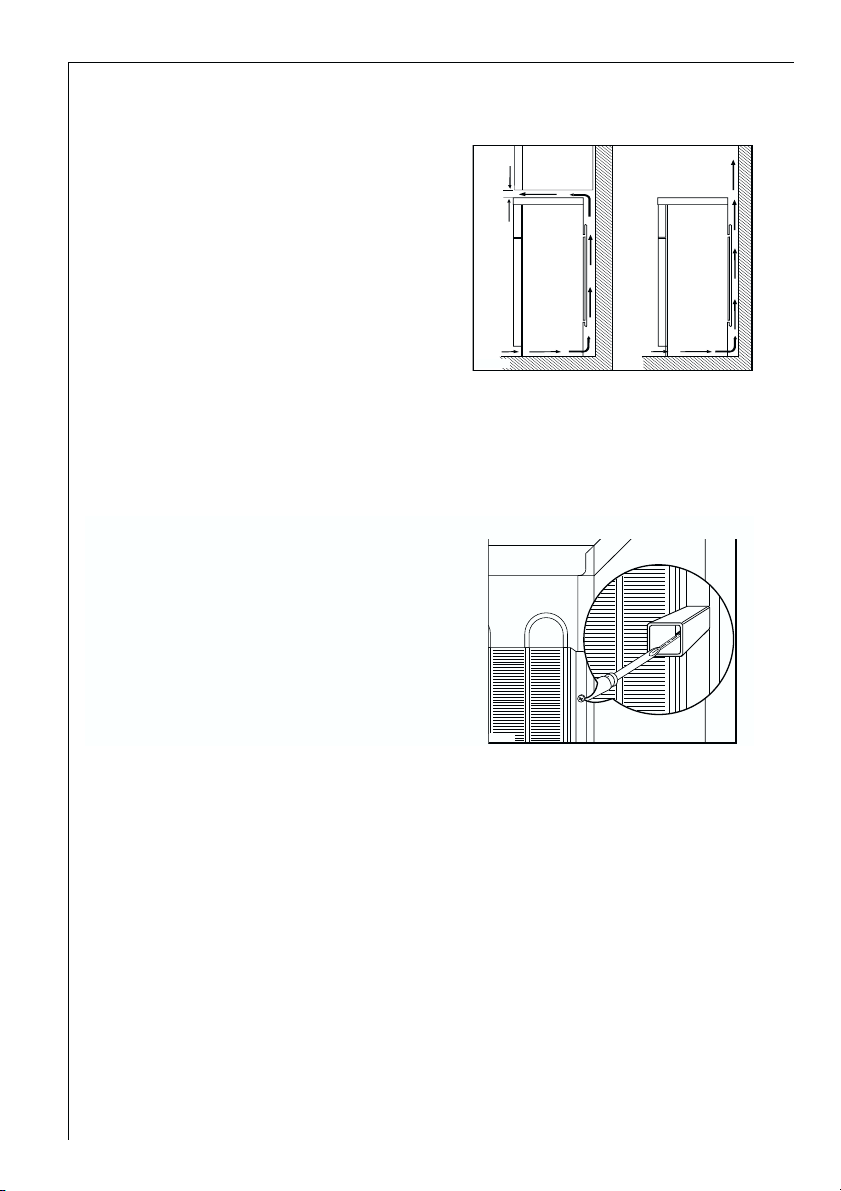

For safety reasons, minimum ventila­tion must be as shown Fig.
Attention: keep ventilation ope­nings clear of obstruction;
Rear spacers
In the bag with the documentation, there are two spacers which must be fitted.
Slacken the screws and insert the spacer under the screw head, then re-tighten the screws.
NP005
100 mm10 mm
10 mm
PR153
8

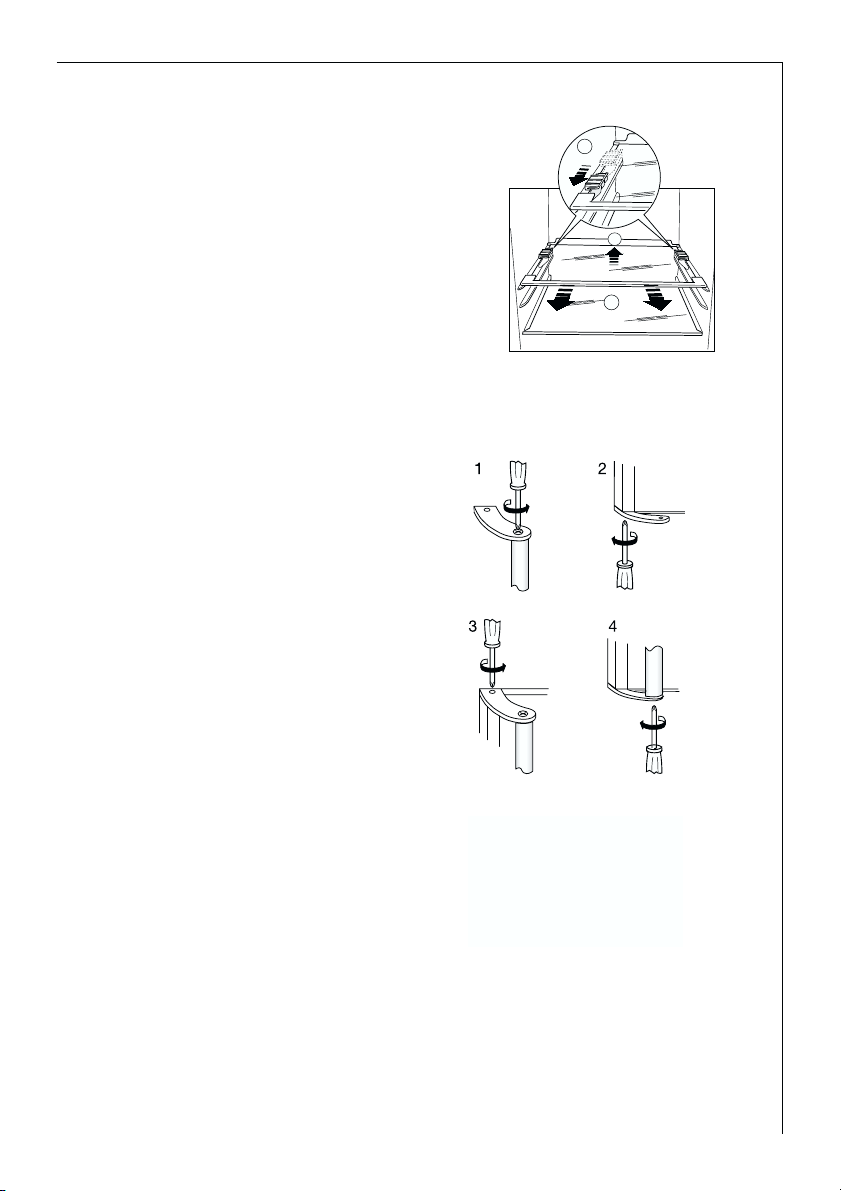

1. Screw the top handle bracket to the handle rod (1). Fit the bottom handle bracket on the lower left­hand side of the door (2).
2. Fit the top handle bracket on the top left-hand side of the door (3) and screw the handle rod to the bot­tom handle bracket (4).
Attention!
Do not over tighten the screws (max. 2 Nm) as you may damage the door handles.
Fitting the Door Handles
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Your appliance is equipped with shelf retainers that make it possible to secure the shelves during transporta­tion.
To remove them proceed as follows: Move the shelf retainers in the direc-
tion of the arrow, raise the shelf from the rear and push it forward until it is freed and remove the retainers.
A
C
B
9
G
Rehingeing the door
The side at which the door opens can be changed from the right side (fac­tory adjustment) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains befo­rehand.
Procced as follows:
To carry out the following opera­tions, we suggest that this be made with another person that will keep a firm hold on the doors of the appli­ance during the operations.

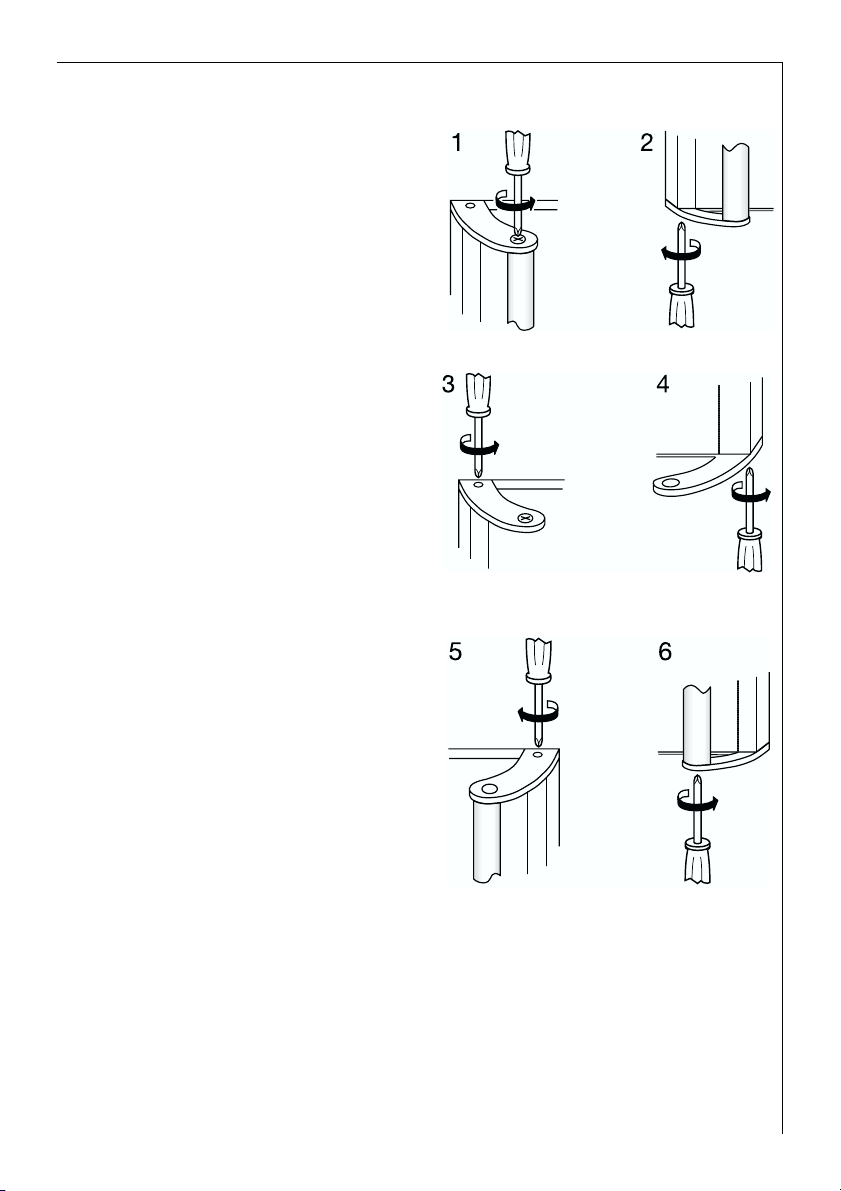

- Open the doors, unscrew and remove the middle hinge (H) pulling away gradually from the refrigerator cabinet, tilting slightly the two doors. pay attention to remove the plastic spacer inserted under the hinge.
- Take off the freezer door pulling slightly downwards.
- Take off the refrigerator door pulling slightly upwards the top.
- Remove the upper plastic plug of the freezer door and reinsert on the opposite side.
- Remove the upper plastic plug of the refrigerator door and reinsert on the opposite side.
- Unscrew the upper hinge pivot (G) of the refrigerator and rescrew it on the opposite side.

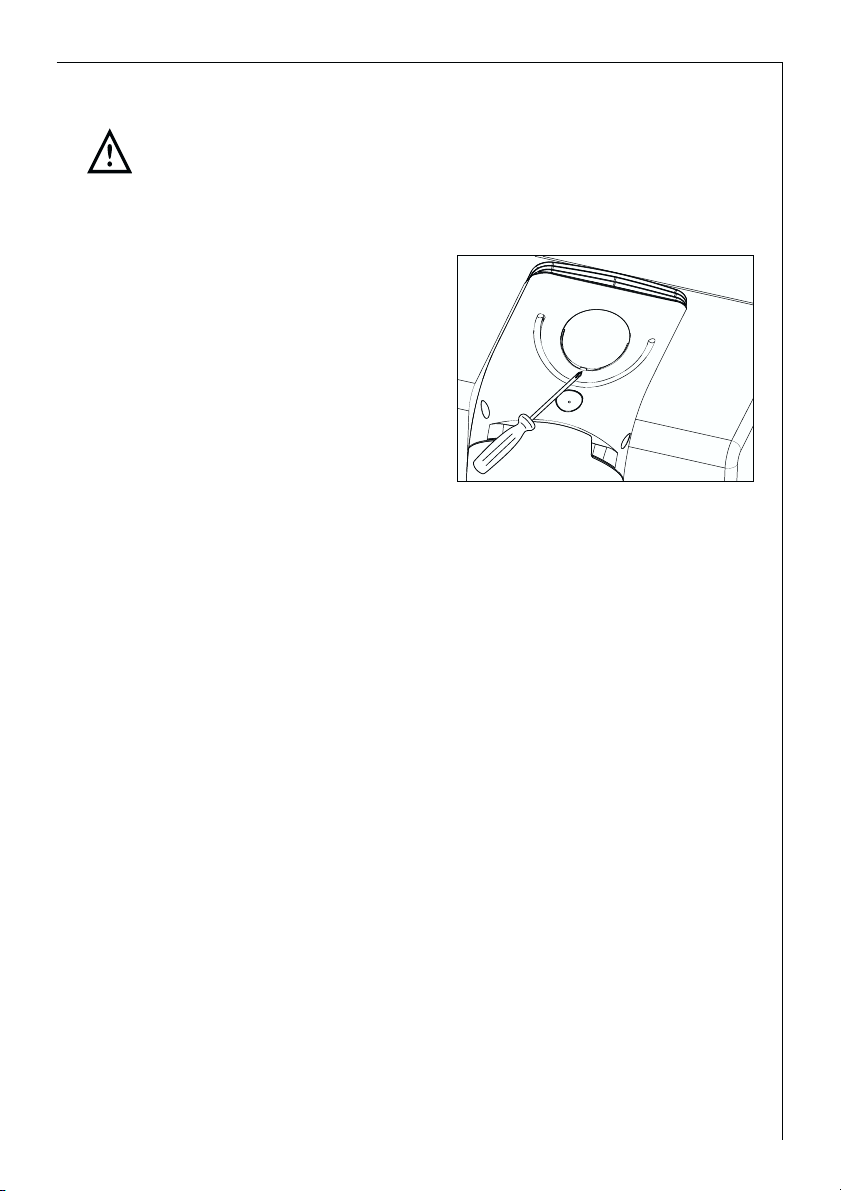

- Remove with a tool the cover (e) unscrew the lower hinge pivot (F) and rescrew on the opposite side
- Refit the cover (e) on the opposite side.
- Insert the middle hinge pivot into hole on the left of the refrigerator door.
- Insert the refrigerator door on the lower hinge pivot (f) .
- Insert the freezer door on the upper hinge pivot and tilt slightly the doors and insert the middle hinge pivot into the hole on the left side of the freezer door.
H
10
- Opening the doors, fix the middle hinge on the left side with two screws. Do not forget the plastic spacer that must be placed under the middle hinge (H).
Pay attention that the border of the doors are parallel to the top border.
Reposition, level the appliance and connect it to the mains socket.
Unscrew the top handle bracket from the handle rod (1). Unscrew the bot­tom handle bracket from the door (2).
Unscrew the top handle bracket from the door (3) and screw onto the bot­tom right-hand side of the door (4).
Turn the handle bracket with the handle rod 180° and screw them to the door (5) and the fitted handle bracket (6).
Move the small plug from right to left. In any case you do not want to carry
out the above mentioned operations, contact the nearest After Sales Ser­vice Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost.
Attention:
After having reversed the opening direction of the doors check that all the screws are properly tightened and that the magnetic seal adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. in that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.
11
Electrical connection
Before initial start-up, refer to the appliance rating plate to ascertain if sup­ply voltage and current values correspond with those of the mains at the installation location.
e.g.: AC 230 ... 240 V 50 Hz or
230 ... 240 V~ 50 Hz (i.e. 230 to 240 volts alternating current, 50 Hertz) The rating plate is inside the appliance on the left. A correctly installed, earthed socket is required for the electrical supply. The
supply must have a fuse rating of at least 10 Amps. If the socket is not accessible once the appliance is built in, the electrical
installation must include suitable means of isolating the appliance from the mains (e.g. fuse, cut-out, current trip or similar with a minimum contact separation of 3 mm).
Attention: The mains connection cable may only be replaced by a skilled electrician. Please contact your dealer or our customer service department for repairs.
Prior to Initial Start–Up
• Please clean the appliance interior and all accessories prior to initial start-
up (see section: “Cleaning and Care”).
12
Control panel
A. Button for temperature regulation
OOppeerraattiioonn
Remove, if present, the “Remove” label stuck on the inside of the freezer compartment.
Insert the plug into the wall socket.
SSwwiittcchhiinngg ooffff
To switch off the appliance remove the mains plug.
Temperatur regulation
The temperature indicated by the LED is selected each time the button is pressed. The Selection is progressive,varying from +2 °C to +8 °C.
Keep the button pressed until the LED corresponding to the required temperature lights up.
Adjusting the temperature
The temperature inside may be influenced by these factors.
•room temperature
•how often the doors are opened
•amount of food stored
•appliance position
Action Freeze Function
To quickly lower the freezer compartment temperature activate the Action Freeze function (*). Keep pressing the button A until the LED corresponding to the symbol (*)lights up. To deselect the Action Freeze function (*) keep pressing the button until the required temperature is selected.
+2 +4 +5 +6 +8
13
Interior Accessories
Storage Shelves
The glass shelf above the fruit and vegetable compartment should always remain in position, to ensure fruit and vegetables stay fresh lon­ger.
The remaining storage shelves can be adjusted to various heights:
Pull the storage shelf forward until it can be tipped up or down and remo­ved. To insert at a different height use the same procedure in reverse.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at other positions as needed.
D338
CCoolldd SSttoorree ccoommppaarrttmmeenntt
The models equippied with this feature in the fridge part, it is indi­cated for a best conservation of fresh foods as fish, meat, seafood, etc. It is placed in the lower part, directly above of the vegatable conservation drawer.
14
Bottle holder
Place the bottles (with the opening facing front) in the pre-positioned shelf.
If the shelf is positioned horizontally, place only closed bottles.
This bottle holder shelf can be tilted in order to store previously opened bottles.
To obtain this result, pull the shelf up so it can rotate upwards and be pla­ced on the next higher level.
Air recycling
The refrigerator compartment is equipped with a special D.A.C.(Dynamic Air Cooling) fan which can be turned on with the switch B. The green light, when on, means that the fan is working. As a suggestion the fan (D.A.C.) should be used with ambient temperature exceeding 25°C . This device allows for rapid cool­ing of foods and a more uniform temperature in the compartment.
15
Fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquide in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circuiate freely round it. Useful hints: Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)For safety, store in this way only one or two days
at the most. Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or
wapped in aluminium foil or polythene bags to exclude as much air as pos­sible.
Milk bootles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
16
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder before freezing food.
• Please observe the freezing capacity given on the rating plate. The free­zing capacity is the maximum quantity of fresh food that can be frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to 3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flamma­ble materials such as, for example, spray cans, fire extinguisher refill car­tridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the free­zer. Exception: high alcohol content spirits can be stored in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.
• Not open the door frequently or leave it open longer than absolutely necessary.
• Unfrozen food must not touch items already frozen, otherwise the fro­zen food could begin to defrost.
Caution! Do not touch frozen food with wet hands. Your hands could free­ze to the food.
1. To freeze fresh food activate the Action Freeze function (*) at least 24 hours before placing the food to be frozen in the freezer compart­ment.
2. Move the shelf to the upper seat, keeping it horizontal. Place the fresh food to freeze on the shelf.
17
After 24 hours,when the freezing process is completed,return to the required temperature by pressing the button “A”. When switching on or after an idle period, it is advisable to operate the appliance to the coldest setting for at least 2 hours before intro­ducing deep-frozen food. To do this, select the Action Freeze function (*). To obtain best results it is advisable to keep the freezer shelf on the middle seats.
Preparation of Ice Cubes
1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer com­partment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it under running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer com­partment using pointed or sharp edged objects. Use the ice scraper supplied.
Freezing Calendar
• The symbols show different types of frozen goods.
• The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated stora­ge time is valid depends on the quality of the foods and pre-treating befo­re freezing. The lower value applies to foods with high fat content.
18
Installation of the charcoal filter
On delivery the charcoal fil­ter is placed in a plastic bag to secure the length of life of the charcoal filter. The filter should be placed behind the flap before the appliance is turned on.
Pull the cover outward
• The charcoal filter is then mounted in the slot found in the back of the cover.
• Close the flap.
Important!
During operation, always keep the air ventilation flap closed.
The filter should be handled carefully so fragments do not loosen from the surface.
Changing the charcoal filter
To maintain the best perfor­mance the carbon filter should be changed every year. New charcoal filters can be purchased from your local dealer.
• The filter is placed behind the cover and can be reached by pulling the cov­er outward .
• The charcoal filter is then pulled out of its slot.
• The new charcoal filter is placed in the existing slot. Close the flap.
Important
The filter should be handled carefully so fragments do not loosen from the surface.
19
Defrosting
Refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.
Freezer
Your appliance is frost free, which means there is no need to manually defrost your appliance as this will be carried out automatically.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
• The appliance may not be connected to the mains during cleaning. Dan­ger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could accumu­late in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Attention!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peals; – butyric acid; – cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
1. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.
2. Defrost the freezer compartment prior to cleaning (see "Defrosting" sec­tion).
3. Switch the appliance off and remove the plug from the mains,
4. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
20
5. After cleaning wipe with fresh water and rub dry. Accumulation of dust at the condenser increases energy consumption. For
this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
6. Check the water drain hole on the rear wall of the fridge. Clear a blocked drain hole with the aid of the green peg in the pack of accessories included with the appliance.
7. After everything is dry place appliance back into service.
Switching off the appliance
To switch off the appliance,unplug the mains plug.
If the appliance is not going to be used for an extended period:
1. Remove all refrigerated and deep-frozen packages as well as Twist&Serve ice maker
2. Switch off the appliance .
D037
21
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent opera­tion of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge.
• Keep the heat emitting condenser, the metall grille on the rear wall of your appliance, always clean.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case.
Warning! Repairs to refrigerators/freezers may only be performed by quali­fied service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your speciali­st dealer or our Customer Service.
Malfunction Possible Cause Remedy
Appliance does not work.
Appliance is not switched on Switch on the appliance. Mains plug is not plugged in
or is loose.
Insert mains plug.
Fuse has blown or is defective.
Check fuse, replace if neces­sary.
Socket is defective.
Mains malfunctions are to be corrected by an electrician.
Appliance cools too much. Temperature is set too cold.
Turn the temperature regula­tor to a warmer setting tem­porarily.
22
Interior lighting does not work.
Light bulb is defective. Please look in the "Changing
the Light Bulb" section. Heavy build up of frost, possi­bly also on the door seal.
Door seal is not air tight (pos­sibly after changing over the hinges).
Carefully warm the leaking
sections of the door seal with
a hair dryer (not hotter than
approx. 50 °C). At the same
time shape the warmed door
seal by hand such that it sits
correctly. Unusual noises.
The appliance is touching the wall or other objects.
Appliance is not level.
A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.
The compressor starts after a
period of time.
This is normal, no error has occurred.
The compressor does not start immediately after changing the temperature setting.
If necessary, carefully bend
the component out of the
way.
Move the appliance slightly.
Readjust the feet.
See the "Cleaning and Care"
section.
Water on the floor or on sto­rage shelves.
Water drain hole is blocked.
Malfunction Possible Cause Remedy
The food is too warm.
The appliance is near a heat source.
Temperature is not properly adjusted.
Please look in the "Initial Start
Up" section.
Turn the temperature regula-
tor to a colder setting tempo-
rarily.
Door was open for an exten­ded period.
Please look in the "Installation
location" section.
A large quantity of warm food was placed in the appliance within the last 24 hours.
Open the door only as long as
necessary.
23
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary measures in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and the regu­lations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks. This appliance is in accordance with the following EU guidelines: – 73/23/EWG dated 19 February 1973 - low voltage guidelines. – 89/336/EWG dated 3 May 1989 (including guideline change notice 92/31/EWG) - EMV guideline
Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
Light bulb data: 220-240 V
1. To switch off the appliance, unplug the mains plug.
2. If it becomes necessary to replace the lamp, prize out the lamp cover as shown in the figure.
3. Change the defective light bulb with one of the some power (the maxi­mum power is shown on the light diffuser).
4. Refit the light bulb cover.
5. Put the appliance back into opera­tion.
24
Gracias por elegir uno de nuestros productos de alta calidad.
Con este aparato podrá experimentar la perfecta combinación entre el diseño funcional y la tecnología más avanzada.
Convénzase de que nuestros electrodomésticos están diseñados para ofre­cer el mejor rendimiento y control - En efecto, hemos estableciendo los más altos niveles de excelencia (calidad)
Además de esto podrá comprobar que el respeto medioambiental y el ahor­ro de energía son aspecto integrales de nuestros productos.
Para asegurar un funcionamiento optimo y regular de su aparato, por favor, lea detenidamente este manual de instrucciones. Éste le ayudará a navegar
por todos los procesos de funcionamiento de modo más eficaz. Le recomendamos que guarde este manual en un lugar seguro, para que, si
es necesario, pueda consultarlo en cualquier momento. Le deseamos que disfrute al máximo de su nuevo aparato
En este manual se utilizan los símbolos siguientes
Información importante para su seguridad personal y para evitar daños al electrodoméstico
Información general y consejos
Información medioambiental
25
Indice
Seguridad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Eliminación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Información sobre el embalaje del aparato . . . . . . . . . . . . . . . . . . . . . .28
Desguace de los aparatos viejos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Quitar el seguro para el transporte . . . . . . . . . . . . . . . . . . . . . . . . .29
Instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Lugar de instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Colocación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Distanciadores posteriores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Fixadores para prateleiras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Montaje de las manillas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Reversibilidade das portas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Conexión eléctrica . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Antes de la puesta en servicio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Panel de mando . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Puesta en marcha . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Temperatur regula
ción
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Fun
ción Action Freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Accesorios internos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Refrigeración de los alimentos y de las bebidas . . . . . . . . . . . . . . .38
Congelación y sobrecongelación . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Calendario de congelación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Instalación del filtro de proteción del sabor . . . . . . . . . . . . . . . . . . . . . . . .40
Cambio del filtro de proteción del sabor . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Descongelación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Apagado del aparato . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Limpieza y cuidados . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Consejos para ahorrar energía . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Qué hacer si... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Canmbio de la bombilla . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Servicio Técnico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Disposiciones, Normas, Directivas . . . . . . . . . . . . . . . . . . . . . . . . . .46
26
Seguridad
La seguridad de nuestros aparatos cumple los reglamentos técnicos aproba­dos y la ley de seguridad de los aparatos. No obstante esto, consideramos oportuno facilitar vuestra familiaridad con las siguientes advertencias:
Utilización conforme a la finalidad prevista
• El aparato frigorífico es apto para una utilización doméstica. Es apto para enfriar, congelar y sobrecongelar productos alimentarios y para preparar helados. Es apto para congelar y conservar productos alimentarios y hela­dos.
• Por motivos de seguridad no se permite en ningún caso aportar modifi­caciones o transformaciones al aparato.
• Si se desea utilizar el aparato frigorífico en ámbito empresarial o para fina­lidades que no sean la refrigeración o congelación de productos alimen­tarios, se ruega ajustarse a las disposiciones de ley vigentes para vuestro sector.
Antes de la primera puesta en servicio
• Verificar que el aparato no presente eventuales daños debidos al trans­porte. ¡No conectar a la red, en ningún caso, un aparato estropeado! Si presenta daños dirigirse al proveedor.
Sustancia refrigerante
El aparato contiene, en el circuito refrigerante, un gas natural denominado Isobutano (R600a), altamente tolerado por el medio ambiente, pero que de todas maneras es inflamable.
• Durante el transporte y la instalación del aparato se debe prestar atención en no estropear ningún elemento del circuito refrigerante.
• En caso de daños al circuito refrigerante:
– evitar terminantemente las llamas libres y las fuentes de ignición; – proporcionar a una buena ventilación en el sitio donde se encuentra el
aparato.
Seguridad de los niños
• Los elementos del embalaje (por ej. hojas de plástico, poliestireno) pueden ser peligrosos para los niños. ¡Peligro de sofocación! ¡Mantener el mate­rial de embalaje fuera del alcance de los niños!
• Los aparatos que no se van a utilizar más, antes de desguazarlos, se deben poner inutilizables. Desenchufar la clavija, cortar el cable de red, sacar o destruir los eventuales cierres de bloqueo. De esta manera se evita que
27
niños puedan quedar encerrados en el aparato mientras juegan (¡Peligro de sofocación!) y se evita que puedan encontrarse en otras situaciones peligrosas para su vida.
• Muy a menudo los niños no se dan cuenta de los peligros a que se expo­nen mientras manejan aparatos domésticos. Por tanto es necesario tomar todas las medidas adecuadas de salvaguardia, y también ¡es necesario impedir que los niños jueguen con dichos aparatos!
En el servicio diario
• Los contenedores de gases inflamables o de líquidos, por efecto del frío pueden perder su estanqueidad. ¡Peligro de explosiones! No guardar nun­ca contenedores con sustancias inflamables, como por ejemplo aerosoles, encendedores y cartuchos de abastecimiento, etc. en el frigorífico.
• Las botellas y las latas no se deben poner nunca en el congelador. Podrí­an explotar tan pronto se congela su contenido, mientras que los líquidos que contienen anhídrido carbónico (bebidas con gas) ¡pueden llegar a estallar! No poner nunca en el congelador limonada, zumos de fruta, cer­veza, vino, cava, etc. Hacen excepción: las bebidas superalcohólicas que se pueden poner en el congelador.
• No tragarse los helados ni los cubitos de hielo recién sacados del conge­lador. El helado o el hielo muy fríos se pueden congelar en contacto con la lengua o los labios provocando heridas.
• No tocar los productos congelados con las manos mojadas. Las manos se podrían congelar sobre el producto.
• No utilizar nunca pequeños electrodomésticos (por ej. máquinas eléctricas para hacer helados, batidoras, etc.) dentro del frigorífico.
• Antes de efectuar las operaciones de limpieza es necesario apagar el apara­to, desenchufar la clavija de la toma de red, o quitar el fusible.
• Desenchufar la clavija de la toma de red agarrándola siempre por el cuer­po de la clavija y nunca tirando del cable.
En caso de inconvenientes
• Si en el aparato se produjera un inconveniente se ruega leer las instruc­ciones bajo el epígrafe “Qué hacer si...”. Si dichas instrucciones no basta­ran hay que abstenerse de efectuar ulteriores operaciones de reparación.
• Los aparatos frigoríficos deben ser reparados exclusivamente por personal especializado. Las reparaciones incorrectas pueden acarrear notables ries­gos. En caso de necesitar una reparación, se ruega dirigirse al propio pro­veedor o a un centro de asistencia autorizado.
28
Eliminación
Información sobre el embalaje del aparato
Todos los materiales de producción utilizados ¡son tolerados por el ambien­te! Se pueden tirar tranquilamente a la basura o pueden ser incinerados en las plantas para basuras urbanas. En cuanto a los materiales de producción: Los materiales sintéticos también se pueden reciclar y vienen marcados como sigue: >PE< para el polietileno, por ej. en el envoltorio exterior y en las bolsas internas. >PS< para el poliestireno expandido, por ej. en los elementos embutidos, en general exento de propulsores. Las piezas de cartón están realizadas con papel reciclado y es preciso echar­las a los contenedores destinados a la recogida del papel.
Desguace de aparatos viejos
Para proteger el medio ambiente es necesario desguazar los aparatos viejos de una manera adecuada. Esto vale también para vuestro aparato que haya terminado de prestar su servicio.
Atención! Los aparatos que ya no sirven más, antes de desguazarlos se deben poner inutilizables. Desenchufar la clavija, cortar el cable de red, sacar o destruir los eventuales cierres de bloqueo. De est manera se evita que niños puedan quedar encerrados en el aparato mientras juegan (¡Peligro de sofocación!) y se evita que puedan encontrarse en otras situaciones peligro­sas para su vida.
Advertencias acerca del desguace :
• El aparato no debe ser tirado a la basura sino que debe ser entregado a organizaciones autorizadas para su eliminación.
• El circuito refrigerante, en particular el intercambiador de calor situado en la parte inferior del aparato, no se debe estropear.
• El símbolo en el producto o en su embalaje indica que este produc­to no se puede tratar como desperdicios normales del hogar. Este produc­to se debe entregar al punto de recolección de equipos eléctricos y elec­trónicos para reciclaje. Al asegurarse de que este producto se deseche correctamente, usted ayudará a evitar posibles consecuencias negativas para el ambiente y la salud pública, lo cual podría ocurrir si este produc­to no se manipula de forma adecuada. Para obtener información más detallada sobre el reciclaje de este producto, póngase en contacto con la administración de su ciudad, con su servicio de desechos del hogar o con la tienda donde compró el producto.
29
Quitar el seguro para el transporte
El aparato y los accesorios internos están protegidos para el transporte.
• Quitar las cintas adhesivas situadas en los lados de la puerta
• Quitar todas las cintas adhesivas y los elementos de bloqueo de dentro del aparato.
Instalación
Lugar de instalación
Es preciso colocar el aparato en un sitio bien ventilado y seco. La temperatura ambiente influye mucho sobre el consumo de corriente. Por
tanto el aparato no debería: – quedar expuesto directamente a los rayos del sol; – ser puesto al lado de elementos caloríficos, de un horno o de otras fuen-
tes de calor similares;
– mientras que debería ser colocado en un sitio en que la temperatura
ambiente se corresponda con la clase climática para la cual ha sido cons­truido.
La clase climática viene indicada en la placa de características, situada den­tro de la cámara frigorífica a mano izquierda.
La siguiente tabla indica qué temperaturas ambiente están asociadas con las clases climáticas:
Clase climática para temperaturas ambiente
SN desde +10 hasta +32 °C
N desde +16 hasta +32 °C
ST desde +18 hasta +38 °C
T desde +18 hasta +43 °C
Si fuese inevitable instalar el aparato al lado de una fuente de calor, es nece­sario mantener las siguientes distancias mínimas:
– de los hornos eléctricos 3 cm; – de las estufas de queroseno y leña 30 cm. Si no fuese posible mantener dichas distancias mínimas, es necesario poner
una plancha protectora contra el calor entre el horno y el frigorífico.
30
Distanciadores posteriores
En la bolsa de la documentación hay dos distanciadores que deberán ser montados como se muestra en la figura. Aflojar los tornillos, introducir el distanciador debajo de la cabeza del tornillo y volver a atornillar.
Colocación
Situar el aparato lejos de fuentes de calor, como: radiadores, estufas, exposición directa a los rayos del sol, etc. Por motivos de seguridad la ven­tilación debe ser efectuada como se indica en la respectiva figura
Para aparato con mueble pénsil de encima, debería ser por lo menos de 100 mm. La solución preferible seria la ilustrada (sin mueble).
Atención: mantener las aperturas para la ventilación libres de cualquier obstàculo. Dos patas graduables, situadas en la base del
mueble, consienten rivelarlo a la perfección.
100 mm10 mm
A
NP005
PR153
B
10 mm
31

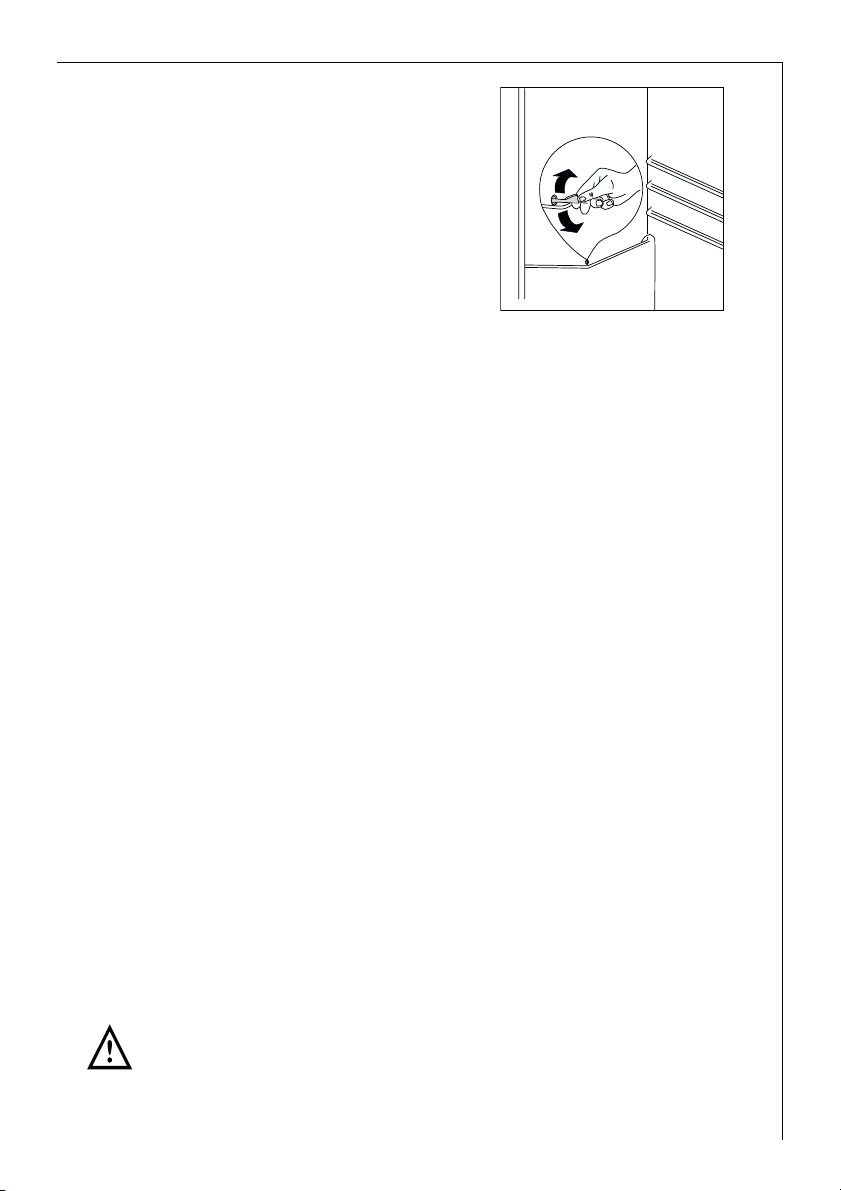

Montaje de las Manillas
Atornillar el Soporte superior de la manilla a la Barra de la mísma (1). Colocar el Soporte inferior de la manilla sobre el lado inferior izquierdo de la Puerta (2).
Colocar el Soporte superior de la manilla sobre el lado supe­rior izquierdo de la Puerta (3) y atornillar la Barra de la manilla al Soporte inferior de la mísma (4).
¡Atención! No apretar excesi­vamente los tornillos (máx. 2Nm) ya que podrían dañarse las manillas.
Fixadores para prateleiras
O seu aparelho é equipado com fixadores para prateleiras que per­mitem de bloquear as prateleiras durante o transporte. Para removê-los executar quanto segue: mexer os fixadores de prateleiras no sentido da seta, lev­antar o vidro na parte traseira e empurrá-lo para a frente até liberá-lo e remover os fixadores.
A
C
B
32
G
Reversibilidade das portas
Antes de qualquer operação tire a ficha da tomada de corrente. Para a inversão aja da seguinte maneira:
Para realizar la siguiente operación le sugerimos que otra persona sostenga firmemente las puertas mientras se lleva a cabo dicha
- - Abrir las puertas, desatornillar y quitar la bisagra intermedia (H) tirando de ella gradualmente y deslizando las dos puertas. Ponga atención de quitar el distanciador colocado detrás de la bisagra.
- - Quite la puerta congelador deslizán­dola suavemente hacia abajo.
- - Empuje el techo un poco hacia arriba y al mismo tiempo quite la puerta frigo deslizándola suave­mente hacia arriba.
- - Quite los tapones de plástico de la puerta congelador y colóquelos en el lado opuesto.
- - Quite los tapones de plástico de la puerta frigo y colóquelos en el lado opuesto
- - Desatornille el pivote superior (G) y vuélvala a enroscar en el lado opuesto.
- - Quite con una herramienta la tapa (e) y desatornille el pivote de la bisagra inferior (F), vuélvalo a enroscar en el lado opuesto.
- - Coloque la tapa (e) en el lado opuesto.
- - Introduzca el pivote de la bisagra intermedia en el agujero izquierdo de la puerta frigo.
- - Introduzca la puerta frigo en el piv­ote inferior de la bisagra (f).
- - Introduzca la puerta conge­lador en el pivote de la bis­agra superior y deslice suave­mente ambas puertas, al mis-
H
33
mo tiempo introduzca el piv­ote de la bisagra intermedia en la puerta congelador.
- - Abra las dos puertas y fije la bisagra intermedia con sus dos tornillos. No olvide el pequeño distanciador de plástico que se debe colocar debajo de la bis­agra intermedia. (H). Preste atención a que los extremos de las puertas estén paralelos con los extremos del techo.
7. Desatornillar la Barra de la manilla del Soporte superior de la mísma (1). Desatornillar el Soporte inferior manilla de la Puerta (2). Desatornillar el Soporte superior manilla de la Puerta (3) y atornillarlo sobre el lado inferior izquierdo de la Puerta (4). Girar 180 º el Soporte y la Barra de la manilla y atornillarlo sobre la Puerta (5) y el ya colocado Soporte manilla (6). Cambiar el pequeño Tapón de la derecha.
- En cualquier caso, si no quiere realizar el proceso arriba men­cionado, puede contactar con el servicio de asistencia mas cer­cano. Un especialista de nuestro servicio técnico llevara a cabo dicha reversibilidad a su costo.
Atención
Terminada la operación de reversibilidad de la puerta, controlar que la empaquetadura magnética esté adherida al mueble. Si la tempera­ture ambiente es fria (por ejemplo en invierno), puede suceder que la empaquetadura no adhiera perfectamente al mueble. En este cave esperar que la empaquetadura se recobre en forma natural o bien acelerar dicho proceso calentando la parse interesada con un normal secador de cabellos.
34
Conexión eléctrica
Para efectuar la conexión eléctrica es necesario utilizar una toma de cor­riente con contacto de protección, instalada conforme a las prescripciones vigentes. El fusible eléctrico debe ser por lo menos de 10 Amperios. Si una vez instalado el aparato no fuese posible acceder a la toma (para eventual­mente desenchufar el aparato), es necesario tomar las medidas adecuadas para garantizar la desconexión del aparato de la red eléctrica (por ej. fusi­ble, interruptor LS, interruptor de protección contra sobrecorrientes o dispo­sitivos parecidos, que tengan una apertura entre los contactos de por lo menos 3mm).
• Antes de poner en servicio el aparato hay que comprobar que la tensión
y la frecuencia del aparato, indicados en su placa de características, se cor-
respondan con los de la red eléctrica general de alimentación: por. ejemplo. AC 230 ... 240 V 50 Hz o bien 230 ... 240 V~ 50 Hz (por tanto de 230 a 240 Voltios en corriente alterna, 50 Hertz).
La placa de características se encuentra dentro de la cámara frigorífica, a mano izquierda.
Antes de la primera puesta en servicio
• Limpiar el interior del aparato y todos los accesorios antes de poner en ser­vicio el frigorífico (ver capítulo “Limpieza y cuidados”).
35
Panel de mando
A. Teclas para el ajuste de temperatura
PPuueessttaa eenn mmaarrcchhaa
Quite, si exíste la etiqueta “quitar” pegada sobre el interior del compartimento de congelador. Introducir el enchufe en la toma de
corriente.
Apagar el aparato
Desenchufar la clavija de la toma de red.
Temperatur Regulación
Cada vez que se presiona el botón,se selecciona la temperatura indi­cada por el led. La selección es progresiva y varía de +2 ° C a +8 °C. Seguir presionando el botón hasta que se encienda el led correspondi­ente a la temperatura deseada.
Regulación de la temperatura
Los siguientes factores pueden influir en la temperatura interna:
• temperatura ambiente
• frecuencia de apertura de las puertas
• cantidad de alimentos conservados
• ubicación del aparato
Función Action Freeze
Para enfriar rápidamente la temperatura del compartimiento congelador, activar la función Action Freeze . Seguir presionando el botón indicado por la flecha hasta que se encienda el led correspondiente al símbolo (*). Para desactivar la función Action Freeze presionar el botón y mantenerlo pul­sado hasta alcanzar la temperatura deseada.
+2 +4 +5 +6 +8
36
Acessorios internos
Posicionamento das prateleiras
• A prateleira inteira em cima das gavetas de verdura/fruta deve per­manecer sempre nesta posição para manter mais frescas a verdura e a fruta no tempo.
As outras prateleiras são regulá­veis na altura:
• Para tal, puxar a prateleira para a frente até que seja possível deslocá­la para cima ou para baixo e retirála.
• A introdução em outra altura é efe­tuada em sentido contrário.
Posicionamento das prateleiras na porta
• Conforme as necessidades, os compartimento de prateleira na porta podem ser extraidos para cima e portanto inseridos em outros apoios.
Compartimento Cool-Fresh
Los modelos dotados en la zona frigorífica con este compartimiento espe­cial,están indicados para una mejor conservación de los alimentos frescos,altamente perecederos,como por ejemplo:mariscos,pescados,car­nes,etc.
Está situado en la parte inferior, directamente encima de la zona destinada a la conservación de verduras.
D338
37
Circulación de aire
El compartimiento frigorífico está provisto de un ventilador especial D.A.C. (Dynamic Air Cooling) que se activa actuando sobre el inter­ruptor B; el piloto verde encendi­do indica que el ventilador está en marcha.
Se aconseja el uso del ventilador (D.A.C.) cuando la temperatura ambiente exceda de los 25°C.
La activación de este dispositivo determina la refrigeración rápida de los alimentos y la máxima uni­formidad de temperatura en el compartimiento.
Compartimiento para botellas
Almacene las botellas con el cuel­lo hacia adelante.
Atención: Coloque echadas sólo las botellas sin abrir.
Para guardar botellas ya abiertas puede usted alzar el compar­timiento hasta dejarlo inclinado.
Para ello tire del compartimiento hacia adelante hasta que sea posible virarlo hacia arriba e introduzca entonces la superficie delantera en el nivel inmediato superior.
38
Refrigeración de los alimentos y de las bebidas
Para utilizar de la mejor manera la sección frigorífico es necesario:
• no poner en la cámara alimentos calientes ni líquidos en evaporación;
• tapar o envolver los alimentos, en particular si tienen aromas;
• colocar los alimentos de manera que el aire pueda circular libremente alre-
dedor de ellos. Carne (de todas las clases): hay que envolverla en bolsas de plástico y
ponerla sobre el vidrio, encima del cajón de la verdura.
En esta posición se podrá conservar por uno o dos días a lo sumo. Alimentos cocidos, platos fríos, etc. se deben tapar bien y se pueden poner
en cualquier sitio del frigorífico. Fruta y verdura: se deben poner, después de lavarlas, en el/los cajón/cajo-
nes previstos. Mantequilla y queso se deben poner en los contenedores previstos o se
deben envolver en hojas de plástico o aluminio para evitar el contacto con el aire.
Leche en botella: bien cerradas, se ponen en el portabotellas.
Plátanos, patatas, cebolla y ajo, si no están empaquetados no se deben poner en el frigorífico.
Congelación y sobrecongelación
Vuestro congelador es apto tanto para conservar sobrecongelados como para congelar alimentos frescos.
Atención
• La temperatura en la sección congelador debe ser de -18°C o inferior,
antes de poner dentro los alimentos a congelar.
• Para la congelación hay que ajustarse a las cantidades indicadas en la pla-
ca de características. La cantidad para la congelación es la cantidad máxi-
ma de alimentos frescos que es posible congelar en 24 horas. Queriendo
congelar alimentos frescos por más días consecutivos, reducir la cantidad
indicada en la placa a 2/3 ó 3/4.
• Dejar enfriar eventuales alimentos calientes antes de congelarlos. El calor
lleva a una fuerte formación de escarcha y conlleva un alto consumo de
energía.
• Respetar las fechas de caducidad indicadas en los paquetes por el pro-
ductor de los sobrecongelados.
• Los alimentos, una vez descongelados, no se pueden congelar de nuevo
previa cocción.
39
• Los contenedores de gases inflamables o de líquidos, por efecto del frío
pueden perder su estanqueidad. ¡Peligro de explosión! No guardar nunca
contenedores con sustancias inflamables, como por ejemplo aerosoles,
encendedores y cartuchos de abastecimiento, etc. en el frigorífico.
• Las botellas y las latas no se deben poner nunca en el congelador. Pueden
explotar tan pronto se congela su contenido, mientras que los líquidos
que tienen anhídrido carbónico (bebidas con gas) ¡pueden llegar a estal-
lar! No poner nunca en el congelador limonada, zumos de fruta, cerveza,
vino, cava, etc. Hacen excepción: las bebidas superalcohólicas que se pue-
den poner en el congelador.
• Envolver herméticamente los alimentos antes de congelarlos, para evitar
que se sequen, pierdan el aroma o que los sabores se mezclen con los de
los otros alimentos congelados. ¡Atención! No tocar nunca los productos congelados con las manos moja-
das. La piel podría pegarse al producto.
1. Para congelar alimentos frescos, activar la función Action Freeze (*) al menos 24 h antes de colocar los alimentos por congelar en el compartimiento congelador. Desplazar el estante del compartimiento congelador hasta la posición superior, manteniéndolo bien plano. Colocar los alimentos frescos por congelar en dicho estante. Los ali­mentos no congelados no deben entrar en contacto con los ya congela­dos, de los contrario los productos congelados podrían descongelarse en algunos puntos.
2. Poner los productos congelados a ser posible separados en los cajones. Tras 24 horas, cuando el proceso de congelación ha terminado, restablecer la temperatura deseada presionando el botón A. Al poner en marcha el aparato o tras un período de inactividad,se aconseja hacerlo funcionar a pleno régimen por al menos dos horas antes de colocar alimentos congelados. Para esto, activar la función Action Freeze (*).
Después de 2 horas seleccionar la temperatura deseada presionando el botón A.
Cubitos de hielo
1. Llenar hasta los 3/4 la bandeja del hielo con agua fría y ponerla en el cajón congelador.
2. Para sacar los cubitos listos basta torcer la bandeja o ponerla por poco tiem­po debajo de un chorro de agua corriente
¡Atención! Se recomienda no utilizar utensilios puntiagudos ni con cantos para desprender la bandeja que eventualmente se haya quedado pegada. Utilizar la paleta para rascar la escarcha incluida en el suministro.
40
Instalación del filtro de protección del sabor
El filtro de protección del sabor es un filtro de carbón activo que absorbe los malos olores y permite mantener el sabor y el aroma de todos los alimentos en condiciones óptimas; además,evita que se produzca una contaminación cruzada de olores. El filtro de carbón acti­vo se suministra en una bolsa de plástico para garantizar su duración. Antes de encender el electrodoméstico, saque el filtro de la bolsa y colóquelo dentro de la compuerta.
• Tire de la compuerta.
• Introduzca el filtro de carbón activo en la ranura que hay en el rever­so de compuerta.
• Cierre la compuerta. Mantenga cerrada la compuerta de ventilación durante el fun-
cionamiento. El filtro debe manipularse con cuidado para evitar que su superficie se raye.
Calendario de congelación
• Los símbolos en los cajones indican diversos tipos de productos a conge-
lar.
• Las cifras indican el periodo de almacenamiento, en meses, para cada tipo
de producto a congelar.
• Si vale el valor superior o el valor inferior del periodo de almacenamien-
to indicado, depende de la calidad de los productos alimentarios y del tra­tamiento a que han sido sometidos antes de la congelación. Para los ali­mentos notablemente grasos, vale siempre el valor inferior.
41
Descongelación
Frigorífico
En la pared trasera de la sección frigorífico, se forma un capa de escarcha durante el funcionamiento del compresor, que es eliminada automática­mente durante las pausas de funcionamiento del compresor. El agua gene­rada por la descongelación, a través de un encauzador situado en la parte trasera de la sección frigorífico, por un agujero de desagüe es recogida en una bandeja situada encima del compresor, donde evapora por efecto del calor generador por el propio compresor.
Congelador
El compartimento del congelador es de tipo "no frost"; esto significa que éste se caracteriza por la completa ausencia de escarcha durante el fun­cionamiento, tanto en las paredes internas del compartimento como en los alimentos. La ausencia de escarcha es consecuencia de la circulación continua de aire frío en el interior del compartimento, provocada por un ventilador contro­lado automáticamente.
Cambio del filtro de protección del sabor
Para garantizar un rendimiento óptimo, es preciso cambiar el filtro de carbón activo una vez al año.
En su distribuidor local puede adquirir filtros de carbón activo nuevos.
• Como el filtro está detrás de la compuerta,es preciso tirar de la compuerta para acceder al fil­tro.
• Tire de la ranura del filtro de carbón vegetal usado.
• Introduzca un filtro nuevo en la ranura.
• Cierre la compuerta. Mantenga cerrada la compuer-
ta de ventilación durante el funcionamiento.El filtro debe manipularse con cuidado para evitar que su superficie se raye.
42
Apagado del aparato
Si fuese necesario apagar el aparato por un largo plazo:
1. Vaciar las secciones del frigorífico y del congelador y también las bandejas del hielo.
2. Desenchufar la clavija de la toma de corriente
3. Descongelar la sección congelador y limpiarla (ver párrafo “Limpieza y cui­dados”).
4. Dejar abiertas las puertas para evitar que se formen olores desagradables.
Limpieza y cuidados
Por motivos de higiene se debería limpiar siempre y con regularidad el inte­rior del aparato, incluidos los accesorios.
¡Advertencia!
• Durante la limpieza, el aparato debe estar desenchufado de la red eléctri-
ca. ¡Peligro de electrocución! Antes de efectuar las operaciones de limpie­za es necesario apagar el aparato, desenchufar la clavija de la toma de red, o quitar el fusible.
• No limpiar nunca el aparato utilizando hidrolimpiadoras a vapor. La hume-
dad podría penetrar en los elementos eléctricos, ¡Peligro de electrocución! El vapor hirviente puede dañar las partes en material sintético.
• El aparato debe estar completamente seco antes de ponerlo de nuevo en
servicio.
¡Atención!
• Aceites esenciales y sustancias solventes orgánicas pueden atacar los ele­mentos en material sintético, por ej.
– zumo de limón o cortezas de naranja; – mantequilla ácida; – sustancias detergentes que contengan ácido acético. Evitar el contacto entre los elementos del aparato y dichas sustancias.
• No utilizar nunca sustancias detergentes abrasivas.
1. Quitar los alimentos. Envolver los sobrecongelados con varias hojas de dia­rio. Guardar dichos alimentos en un sitio fresco.
2. Apagar el aparato y desenchufar la clavija de la toma de red o bien desco­nectar o desenroscar el fusible.
3. Descongelar el congelador.
4. Limpiar el aparato y los accesorios internos con un paño suave empapado de agua caliente. Eventualmente añadir un poco de detergente para lavar platos.
43
5. Aclarar y secar frotando. Los depósitos de polvo en el conden-
sador, situado en la parte trasera del aparato, reducen notablemente la potencia de enfriamiento por lo que aumentan el consumo energético. Es necesario pues limpiarlo esmerada­mente, una vez al año, con un cepil­lo o una aspiradora.
6. Examinar el agujero de desagüe del agua de descongelación, situado en la parte trasera de la sección frigorífico. Si el agujero está atascado, es posible destaparlo con el limpiador verde.
7. Una vez que todo está bien seco se puede poner de nuevo en servicio el apa­rato.
Consejos para ahorrar energía
• No instalar el aparato cerca de hornos, elementos calentadores ni otras
fuentes de calor. Con temperaturas ambiente elevadas, el compresor se pone en marcha más a menudo y por más tiempo.
• Garantizar una ventilación suficiente en entrada y en salida. No tapar
nunca las ranuras de ventilación.
• No poner nunca alimentos calientes dentro del aparato; primero dejar que
se enfríen.
• Abrir la puerta sólo por el tiempo necesario.
• No seleccionar una temperatura más fría que lo necesario.
• Poner los alimentos a descongelar en la sección frigorífico. El frío genera-
do por la descongelación contribuye en enfriar la sección frigorífico.
• Mantener constantemente limpio el condensador situado en la parte tra-
sera del aparato.
Qué hacer si...
Remedios en caso de inconvenientes
Probablemente se trata de un avería leve que podéis eliminar por cuenta vuestra, siguiendo estas instrucciones, sin tener que dirigiros al servicio téc­nico. No tenéis que efectuar ninguna otra operación si las aquí presentadas no bastan para solucionar el caso indicado.
¡Advertencia! Las reparaciones del frigorífico han de ser efectuadas exclu­sivamente por personal especialista. Las reparaciones no adecuadas pueden entrañar graves riesgos para el usuario. Si fuese necesario efectuar una reparación, dirigiros exclusivamente a vuestro revendedor autorizado o a nuestro servicio de asistencia al cliente.
D037
44
El aparato genera demasiado frío
La temperatura está regulada en un valor demasiado frío
Poner el mando sobre una posición más caliente
Inconveniente Causas posibles Remedio
El aparato no funciona
El aparato no está encendido Encender el aparato La clavija no está enchufada o
está floja
Enchufar la clavija en la toma
de corriente El interruptor general está disparado o está estropeado
Comprobar el interruptor
eventualmente cambiarlo
La toma de corriente está estropeada
Defectos de la red eléctrica
deben ser reparados por un
electricista autorizado
Alimentos demasiado calien­tes
La iluminación interna no funciona
El aparato está instalador al lado de una fuente de calor
La temperatura no está regu­lada correctamente
Ver párrafo “Puesta en servi-
cio”
La bombilla está estropeada
Ver párrafo “Cambio de la
bombilla”
Poner el termostato sobre una
posición más fría
La puerta ha quedado abierta por demasiado tiempo
Ver párrafo “Instalación”
En el arco de las 24 horas se han puesto grandes cantida­des de alimentos
Abrir la puerta sólo lo estric-
tamente necesario
Gran formación de escarcha en el aparato o en la junta de la contrapuerta
La junta de la contrapuerta no es más hermética (even­tualmente después de haber efectuado la reversibilidad de la puerta)
Calentar con cautela los puntos no
herméticos de la junta utilizando
un secador para el cabello ( no
superar los 50°C) poniendo de nue-
vo en forma la junta, tirando de
ella, de manera que se apoye per-
fectamente
Al cabo de un cierto tiempo el
compresor se pone automáti-
camente en marcha
Ver párrafo “Limpieza y cuida-
dos
Esto es normal, no se trata de un inconveniente
Después de haber modificado la regulación de la tempera­tura el compresor no se pone en marcha enseguida
Rastros de agua en el fondo de la sección frigorífico
El agujero de desagüe del agua de descongelación está atascado
Ruido insólito
El aparato está en contacto con la pared o con otros objetos
El aparato no está a nivel
Un componente instalado en la parte trasera del aparato, por ej. un tubo, toca otro componente o la pared
Eventualmente doblarlo con
cuidado
Alejar ligeramente el aparato
Actuar sobre las patas regula-
bles
45
Cambio de la bombilla
¡Advertencia! ¡Peligro de electrocución! Antes de cambiar la bombilla es necesario apagar el aparato, desenchufar la clavija de la toma de red, o qui­tar el fusible.
Características de la bombilla: 220­240 V, máx. 25 W, empalme: E 14
1. Apagar el aparato
2. Desenchufar la clavija de la toma. 3 Sacar la parte móvil como mostrado
en la figura.
4. Cambiar la bombilla por una nueva.
5. Poner el plafón y fijarlo con el torni­llo.
6. Encender el aparato.
46
Servicio técnico
Si el inconveniente no se logra solucionar con estar instrucciones, dirigiros a vuestro revendedor autorizado o a nuestro servicio técnico. Las direccio­nes y números de teléfono los encontráis en el folleto adjunto de “Condi­ciones de garantía / Direcciones de los centros de asistencia”. Disponer de las piezas de repuesto adecuadas permite ahorrar tiempo. Por tanto os roga­mos que indiquéis los datos siguientes de vuestro aparato:
• Descripción del modelo
• Número de producción (N. P)
• Número de ultimación (N.U)
Estas indicaciones las encontráis en la placa de características situada den­tro del aparato. Para tenerlos siempre al alcance de la mano os aconsejamos apuntarlos aquí.
Advertencia: Una llamada al servicio técnico no justificada está sujeta a la obligación de pagar los gastos, también durante la garantía.
Disposiciones, Normas, Directivas
El aparato ha sido proyectado para la utilización doméstica y ha sido fabri­cado según las normas vigentes para esta clase de aparato. Para su pro­ducción han sido así mismo tomadas medidas especiales conforme a la ley de seguridad de los aparatos (GSG), las prescripciones de prevención de accidentes para equipos de refrigeración (VBG 20) y las disposiciones de la cooperativa eléctrica alemana (VDE). Se ha comprobado la estanqueidad del circuito refrigerante.
Este aparato cumple las siguientes Directivas CEE: – 73/23/CEE del 19.2.1973 - Directiva de baja tensión – 89/336/CEE del 3.5.1989
(incluidas las sucesivas enmiendas de 92/31/CEE) – Directiva EMW.
www.electrolux.com
www.aeg-electrolux.com.es
2223 462-11-00-14052007 Subject to change without notice
Con reserva de modificaciones
Loading...
