User manualRefrigerator
Manual de instruccionesFrigorífico
Istruzioni per l’usoFrigorifero
Contents
2
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe plac e. An d p le as e pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Safety information 2
Children and vulnerable people safety
3
General safety 3
Daily use 4
Care and cleaning 4
Installation 4
Service 4
Control panel 5
Switching on 5
Switching off 5
Temperature indicator 5
Temperature regulation 6
COOLMATIC function 6
Quick Chill function 6
Holiday function 7
High temperature alarm 7
Door open alarm 7
First use 7
Cleaning the interior 7
Daily use 8
Movable shelves 8
Vegetable Drawer 8
Bottle rack 9
Clean Air Control Filter 9
Positioning the door shelves 9
Helpful hints and tips 10
Hints for energy saving 10
Hints for fresh food refrigeration 10
Hints for refrigeration 10
Hints for temperature inside the fridge
Care and cleaning 11
Periodic cleaning 11
Replacing the Clean Air Control filter 12
Cleaning the ventilation grille 12
Defrosting the refrigerator 12
Periods of non-operation 12
What to do if… 13
Replacing the lamp 14
Closing the door 15
Technical data 15
Installation 15
Positioning 15
Location 16
Electrical connection 16
Removing the transport support 16
Removing the shelf holders 17
Rear spacers 17
Levelling 18
Installation of the Clean Air Control filter
Door reversibility 18
Environmental concerns 19
Subject to change without notice
10
18
Safety information
In the interest of your safety and to ensure the correct use, before installing and first using
the appliance, read this user manual carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to ensure that all people using the
Safety information
appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection
cable (as close to the appliance as you can) and remove the door to prevent playing
children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a
spring lock (latch) on the door or lid, be sure to make that spring lock unusable before
you discard the old appliance. This will prevent it from becoming a death trap for a child.
General safety
CAUTION!
Keep ventilation openings clear of obstruction.
3
• The appliance is intended for keeping foodstuff and/or beverages in a normal household
as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the ap-
pliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage
to the cord may cause a short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power cord, plug, compressor) must be replaced by a certified
service agent or qualified service personnel.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
Safety information
4
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6.
You must not operate the appliance without the lamp cover
1)
of interior lighting.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/
wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer
to relevant instructions.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
• Do not clean the appliance with metal objects.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean
the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
For electrical connection carefully follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
•
Connect to potable water supply only.
2)
Service
• Any electrical work required to do the servicing of the appliance should be carried out
by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare
parts must be used.
1) If the lamp cover is foreseen
2) If a water connection is foreseen
Control panel
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains flammable gases: the
appliance shall be disposed according to the applicable regulations to obtain from your
local authorities. Avoid damaging the cooling unit, especially at the rear near the heat
exchanger. The materials used on this appliance marked by the symbol

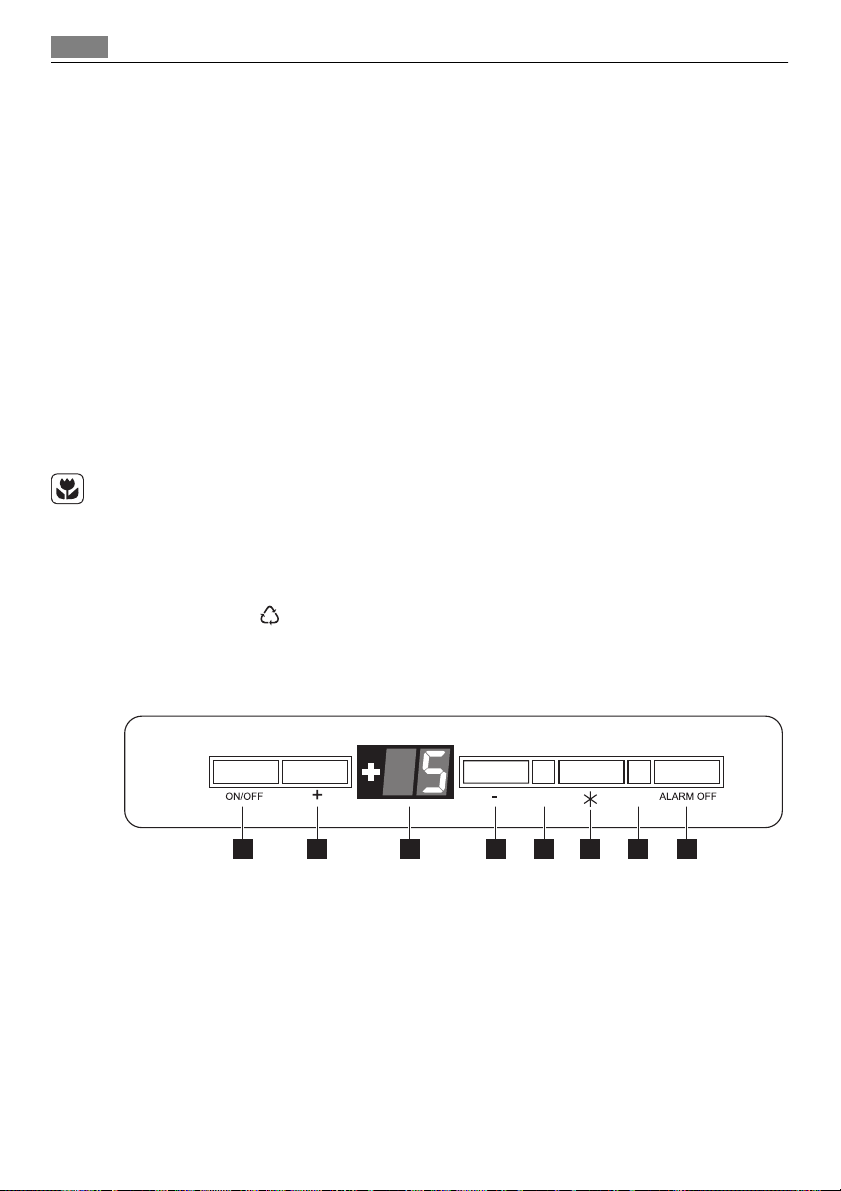

Control panel
12345678
1. ON/OFF button
2. Temperature regulator (for warmer temperatures)
3. Temperature indicator
4. Temperature regulator (for colder temperatures)
5. COOLMATIC light
6. COOLMATIC button
7. Alarm light
8. Alarm reset button
5
are recyclable.
Switching on
Insert the plug into the wall socket.
If the pilot light and the display is not illuminated, press ON/OFF button.
Select a temperature according to "Temperature regulation".
If the door remains open for some minutes, the light will turn off automatically. The light
is reset by closing and opening the door.
Switching off
Press the ON/OFF button until a countdown is completed from -3 -2 -1.
The temperature indicator and the Pilot light switches off.
Temperature indicator
The temperature indicator shows several information:
• During normal operation, the temperature indicator shows the current temperature inside the fridge (ACTUAL temperature). The ACTUAL temperature is indicated with illuminated numbers.
• During temperature adjusting operation, the temperature indicator shows the fridge
temperature currently set (DESIRED temperature). The DESIRED temperature is indicated
by flashing numbers.
Control panel
6
Temperature regulation
To operate the appliance, proceed as follows:
1. Set the required temperature by pressing the corresponding temperature regulator. The
temperature indicator will immediately show the changed setting (DESIRED temperature) and the temperature indicator flashes.
2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted
by 1 °C. The DESIRED temperature must be reached within 24 hours.
3. Once the required temperature has been set, after a short period (approx. 5 sec.) the
temperature indicator will show again the current ACTUAL temperature inside the corresponding compartment. The temperature indicator will change from flashing to continuous illumination.
For a correct storage of the food the following temperature should be set:
• +5 °C in the fridge
When the setting is changed, the compressor does not start immediately if automatic
defrosting is currently taking place. As the storage temperature within the fridge is reached
quickly you can store food immediately after switching on.
COOLMATIC function
The maximum performance is obtained by setting the COOLMATIC function. It’s recommended when loading large quantities of food.
1. Press the COOLMATIC button.
2. The COOLMATIC light will light up.
The internal temperature goes down to +2°C.
After about 6 hours the COOLMATIC function switches off automatically.
It is possible to deactivate the function at any time by pressing the COOLMATIC button.
Quick Chill function
The Quick Chill function provide rapid cooling of
cans and bottles through cold airstream.
1. Put the cans/bottles on the Quick Chill bottle
holder.
2. Open the air lever (1) towards maximum.
3. Activate COOLMATIC function.
4. The Quick Chill function stops automatically
after approximately 6 hours.
5. When the cooling is finished return the air
lever (1) towards minimum.
To cancel the function at any time, press COOLMATIC button.
The Quick Chill bottle holder can be removed if not
used.
1
First use
Holiday function
This function allows you to keep the refrigerator shut and empty during a long holiday
period (e.g. the summer holidays) without the formation of a bad smell.
The fridge compartment must be empty when the holiday function is on.
To activate the function:
1. press continuously the temperature regulator (+ button) until the letter "H" (Holiday)
appears on the temperature indicator. The Holiday function sets the temperature approx +15°C. The refrigerator is in the energy-saving mode.
To deactivate the function:
1. set the required temperature by pressing the fridge temperature regulator.
High temperature alarm
Temperature increase in the appliance (for example due to an earlier power failure or door
is open) is indicated by:
•Alarm light flashing.
• sounding of buzzer.
When normal conditions are restored the Alarm light will stop flashing.
The buzzer can be switched off by pressing the Alarm button.
Door open alarm
An acoustic alarm will sound if the door is left open for a few minutes. The door open alarm
conditions are indicated by:
• flashing Alarm light
• acoustic buzzer
When normal conditions are restored (door closed), the alarm will stop.
During the alarm phase, the buzzer can be switched off by pressing alarm button.
7
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories
with lukewarm water and some neutral soap so as to remove the typical smell of a brandnew product, then dry thoroughly.
Do not use detergents or abrasive powders, as these will damage the finish.
Daily use
8
Check that the drain hose at the rear of the cabinet
discharges into the drip tray.
Daily use
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be positioned as desired.
Some shelves must be lifted up by the rear edge
to enable them to be removed.
Do not move the glass shelf above the vegetable
drawer to ensure correct air circulation.
Vegetable Drawer
The drawer is suitable for storing fruit and vegetables.
Some models have a separator inside the drawer that can be placed in different positions
to allow for the subdivision best suited to personal needs.
All parts inside the drawer can be removed for cleaning purposes.
Daily use
Bottle rack
Place the bottles (with the opening facing front)
in the pre-positioned shelf.
If the shelf is positioned horizontally, place only
closed bottles.
This bottle holder shelf can be tilted in order to
store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and
be placed on the next higher level.

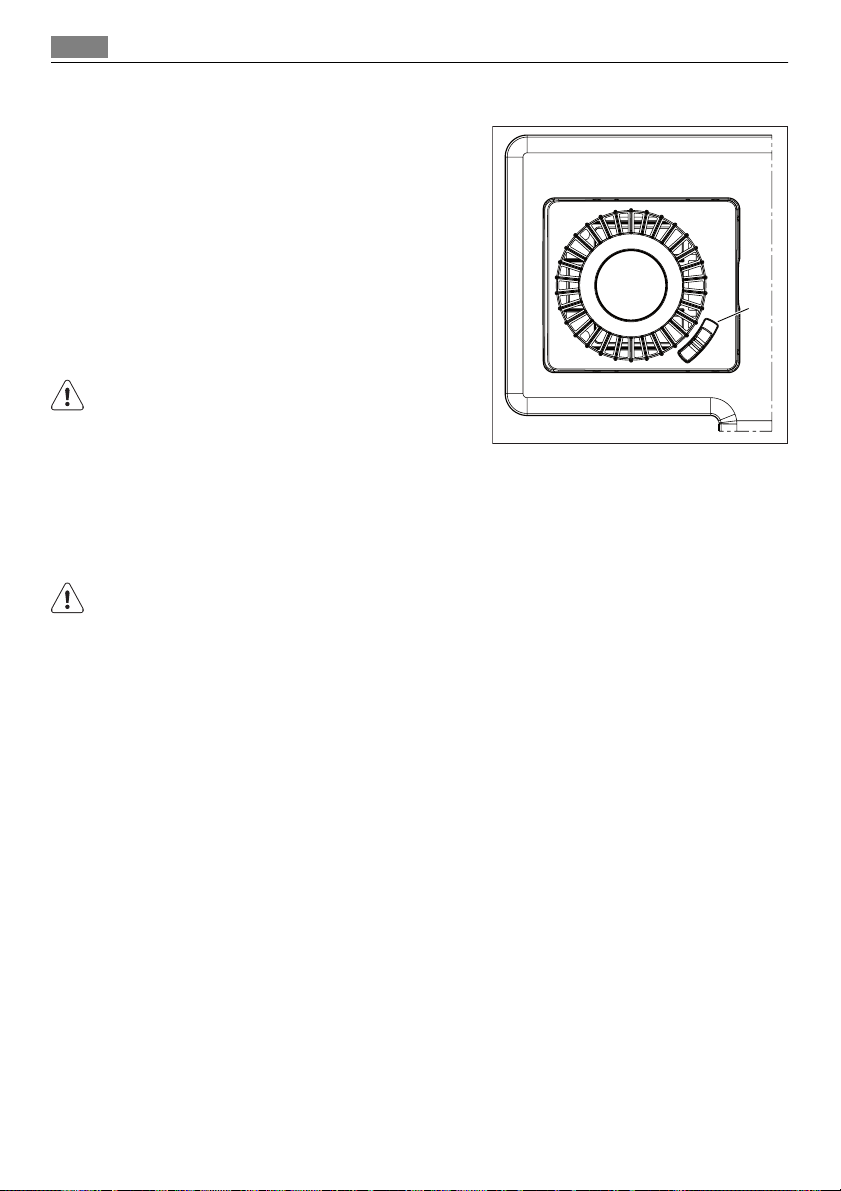

Clean Air Control Filter
Your appliance is equipped with a carbon filter behind the air lever flap.
The filter purifies the air from unwanted odours in the fridge compartment preserving food
quality.
On delivery the filter is in a plastic bag. Refer to "Installation of the Clean Air Control filter"
for instructions.
Make sure that the air lever flap is closed to obtain proper function.
9
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed at
different heights.
Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.
Do not move the lower door shelf to ensure correct air circulation.
Helpful hints and tips
10
Helpful hints and tips
Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing
frost or ice on the evaporator. If this happens, set the Temperature Regulator toward
warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable
drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s)
provided.
Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
Hints for temperature inside the fridge
A suitable temperature inside the fridge is approx. +5° C. When the temperature regulator
is set to +5°C this represents the mean temperature in the fridge. It is normal with higher
temperature in the top of the fridge.
If the temperature regulator is set to a cold temperature, the ambient temperature is high
or if the fridge is fully loaded the compressor will run for a longer time. It too cold, change
to a higher temperature setting.
Do not place food against or close to the temperature sensor. This can result in too cold temperatures.
Care and cleaning

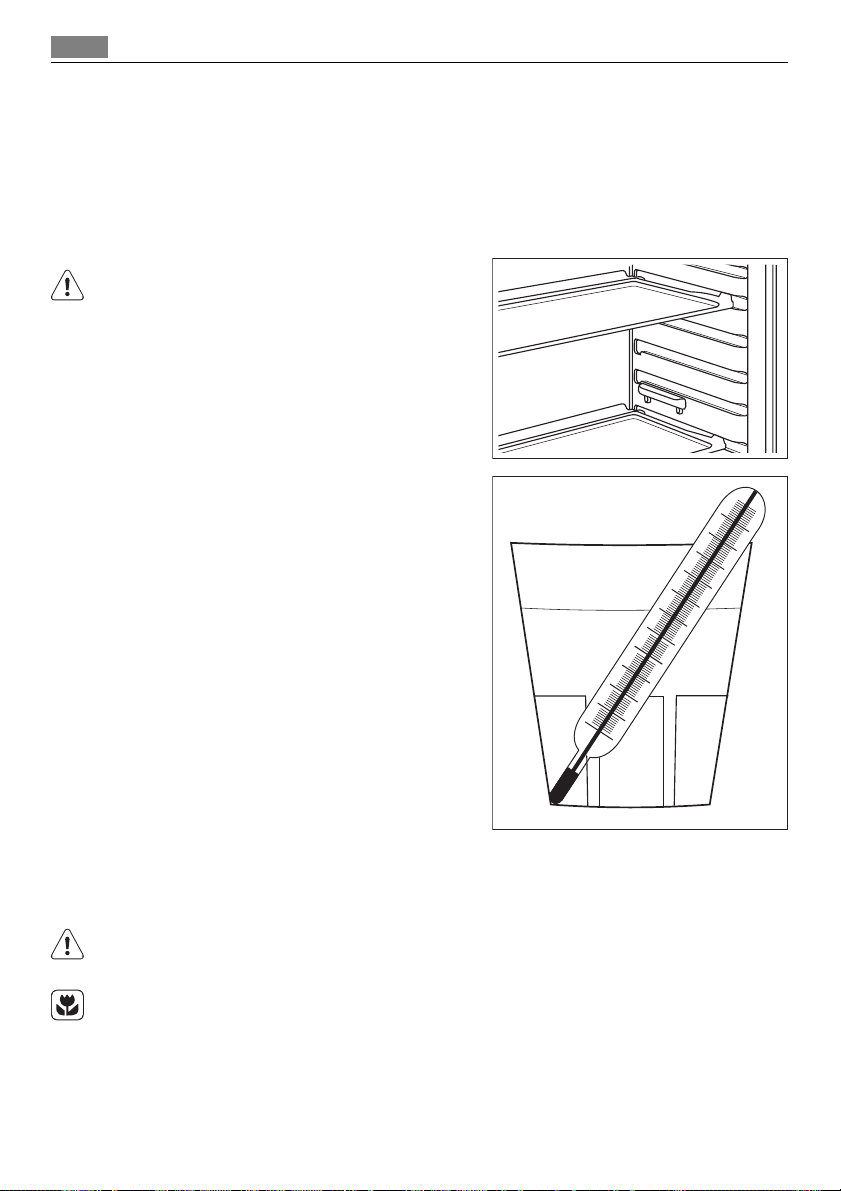

If you want to check the temperature of food
stored in the refrigerator, place a glass of water
centrally in the cabinet, and put a proper thermometer with an accuracy of +/– 1 °C into it. After
6 hours the temperature can be monitored. The
measuring shall be performed under steady-stated conditions (without changing the load).
Care and cleaning
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must
therefore only be carried out by authorized technicians.
11
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from
debris.
• rinse and dry thoroughly.
Do not pull, move or damage any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes
to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the compressor at the back of the appliance with a
brush or a vacuum cleaner. This operation will improve the performance of the appliance
and save energy consumption.
Take care of not to damage the cooling system.
When moving the cabinet, lift it by the front edge to avoid scratching the floor.
Care and cleaning
12
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the
plastics used in this appliance. For this reason use a soft cloth rinsed in warm water and
neutral soap emulsion for cleaning external surfaces.
Do not use detergents or abrasive paste as these will damage the paint, or stainless steel
anti finger print coating.
After cleaning, reconnect the equipment to the mains supply.

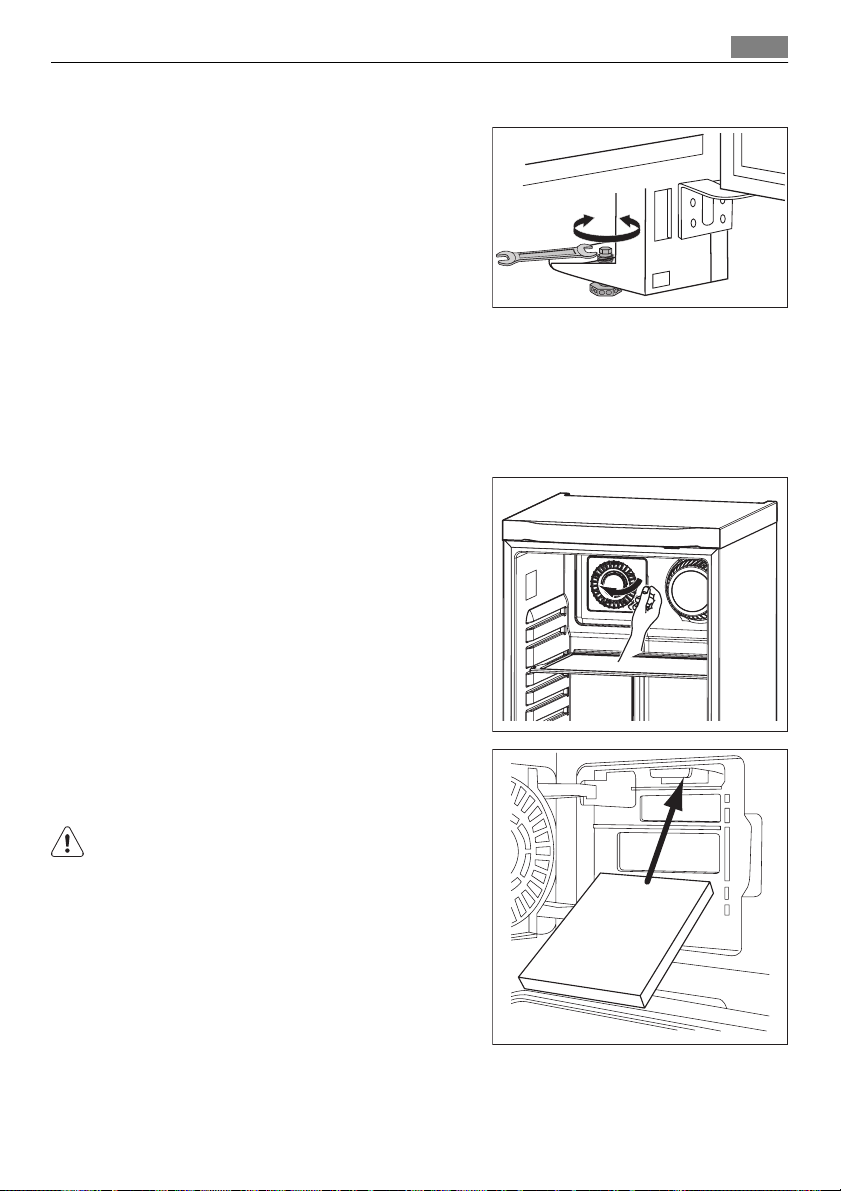

Replacing the Clean Air Control filter
To get the best performance replace the Clean Air Control filter once every year.
New active filters can be purchased from your local dealer.
Refer to "Installation of the Clean Air Control filter" for instructions.
Cleaning the ventilation grille
The ventilation grille can be removed for washing.
Make sure the door is open and then:
1. Loosen the upper edge of the grille by pulling outward/downward.
2. Pull the grille straight out to completely remove it.
3. Vacuum clean under the cabinet.

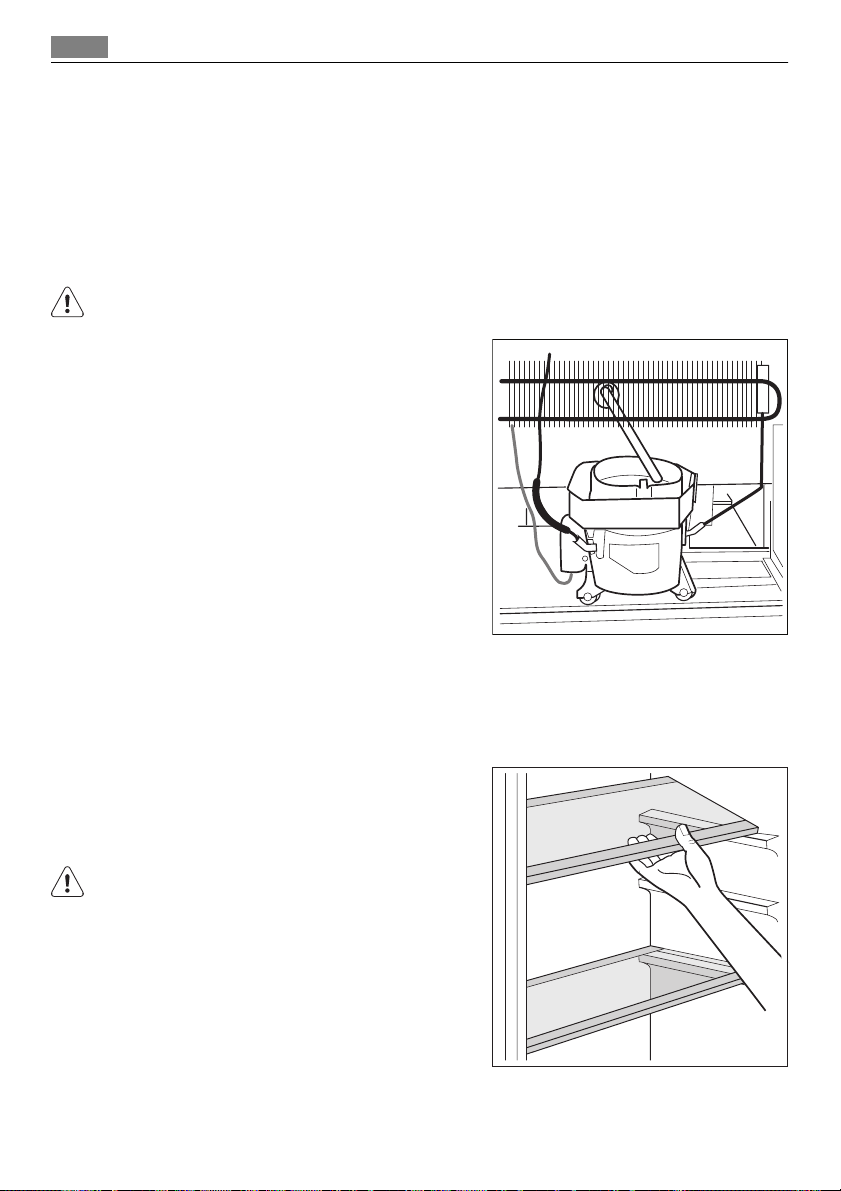

Defrosting the refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment every time
the motor compressor stops, during normal use.
The defrost water drains out through a drain hole
into a special container at the back of the appliance, over the motor compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water overflowing and dripping onto the food inside.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
1. disconnect the appliance from electricity supply
2. remove all food
3. defrost and clean the appliance and all accessories
4. leave the door/doors open to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food
inside from spoiling in case of a power failure.
What to do if…
What to do if…
During operation of the appliance some smaller but annoying trouble can often occur,
which does not require calling a technician out. In the following chart information is given
about them to avoid unnecessary charges on service.
The operation of the appliance goes with certain sounds (compressor and circulating
sound). This not means a trouble, but a normal operation.
The appliance operates discontinuously, so the stopping of compressor does not mean being
no current. That is why you must not touch the electrical parts of the appliance before
breaking the circuit.
ProblemPossible causeSolution
The appliance is noisy.
The cushion spacers located be-
The buzzer sounds. The
Alarm light flashing.
The temperature in the appli-
upper or lower square
is shown in the temperature display.
The compressor runs continuously.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
The food temperature is too
The room temperature is too
Water flows inside the
refrigerator.
Food prevent that water flows
The appliance is not supported
properly.
tween the back of the cabinet
and the pipes come loose.
The door is not closed correctly. Refer to "Door open alarm".
ance is too high.
An error has occurred in meas-
uring the temperature
The Temperature regulator may
be set incorrectly.
frequently.
high.
high.
The water outlet is clogged.Clean the water outlet.
into the water collector.
Check if the appliance stands stable (all feet and wheels should be
on the floor). Refer to "Levelling".
Put them back in place again.
Refer to "High Temperature
Alarm".
Call your service representative
(the cooling system will continue
to keep food products cold, but
temperature adjustment will not
be possible)
Set a warmer temperature.
Do not keep the door open longer
than necessary.
Let the food temperature decrease to room temperature before storage.
Decrease the room temperature.
Make sure that food do not touch
the rear plate.
13
What to do if…
14
ProblemPossible causeSolution
Water flows on the
ground.
The temperature in the
appliance is too cold.
The temperature in the
appliance is too warm.
The door is not closed correctly. Refer to "Closing the door".
The food temperature is too
The temperature in the
refrigerator is too warm.
Large quantities of food to be
The appliance does not
operate.
The mains plug is not connected
The appliance has no power.
The lamp does not work.
The door has been open to long. Close the door.
Door interferes with ventilation grill.
Misaligned door.
The melting water outlet does
not flow in the evaporative tray
above the compressor.
The Temperature regulator may
be set incorrectly.
The Temperature regulator may
be set incorrectly.
high.
There is no cold air circulation in
the appliance.
cooled were put in at the same
time.
The appliance is switched off.Switch on the appliance.
to the mains socket correctly.
There is no voltage in the mains
socket.
The lamp is defective.Refer to "Replacing the lamp".
The appliance is not levelled.Refer to "Levelling".
The appliance is not levelled.Refer to "Levelling".
Attach the melting water outlet
to the evaporative tray.
Set a warmer temperature.
Set a lower temperature.
Let the food temperature decrease to room temperature before storage.
Make sure that there is cold air
circulation in the appliance.
Insert smaller quantities of food
to be cooled at the same time.
Connect the mains plug to the
mains socket correctly.
Connect a another electrical appliance to the mains socket. Check
fuse. Contact a qualified electrician.
As much as the advice does not lead to result, call the nearest brand-mark service.
Replacing the lamp
1. Disconnect the appliance from the power socket.
Technical data
2. Press the spring and at the same time pull
the cover downwards.
3. Replace the bulb (E14 socket) with one of
the same power (the maximum power is
shown on the light diffuser).
4. Reconnect the appliance.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.
Technical data
DimensionHeight1800 mm
Width595 mm
Depth600 mm
The technical information are situated in the rating plate on the internal left side of the
appliance and in the energy label.
15
Installation
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
The final assembly of the appliances must be carried out by Service Center.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Installation
16
Climate classAmbient temperature
SN+10°C to + 32°C
N+16°C to + 32°C
ST+16°C to + 38°C
T+16°C to + 43°C
Location
To ensure best performance, if the appliance is positioned below an overhanging wall unit,
the minimum distance between the top of the cabinet and the wall unit must be at least
40 mm . Ideally, however, the appliance should not be positioned below overhanging wall
units.
If the cabinet is placed in a corner and the side with the hinges facing the wall, the distance
between the wall and the cabinet must be at least 230 mm to allow the door to open
enough so that the equipment can be removed.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top cupboard
must be at least 50 mm deep.
50mm
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
The appliance must be earthed. The power supply cable plug is provided with a contact for
this purpose. If the domestic power supply socket is not earthed, connect the appliance to
a separate earth in compliance with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.
Removing the transport support
Your appliance is equipped with transport support to secure the door during transportation.
To remove them do these steps:
1. Open the door.
2. Remove the transport support from the
door sides.
3. Remove the transport support from the
lower hinge (some models).
Some models are fitted with a silencing pad
under the cabinet. Do not remove this pad.
Removing the shelf holders
Your appliance is equipped with shelf retainers
that make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
1. Move the shelf holders in the direction of the
arrow (A).
2. Raise the shelf from the rear and push it for-
ward until it is freed (B).
3. Remove the retainers (C).
Installation
3
A
B
17
2
Rear spacers
Install the spacers provided within the accessory bag as shown in the figure.
Install the spacers on the back side of the panel.
C
Installation
18
Levelling
When placing the appliance ensure that it stands
level. If necessary adjust the feet using the adjustment spanner supplied.
Door alignment is dependent on proper levelling.
Installation of the Clean Air Control filter
The Clean Air Control filter is an active carbon filter which absorbs bad odours maintain
the best flavour and aroma for all foodstuffs without risk of odour cross contamination.
On delivery the carbon filter is in a plastic bag to preserve performance.
1. Open the air lever flap.
2. Take the filter out of the plastic bag.
3. Insert the filter in the slot found in the
back of the air lever flap.
4. Close the air lever flap.
The filter should be handled carefully so fragments do not loosen from the surface.
Make sure that the air lever flap is closed to
obtain proper function.
Door reversibility
The door reversibility is not possible.
Loading...
+ 42 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
