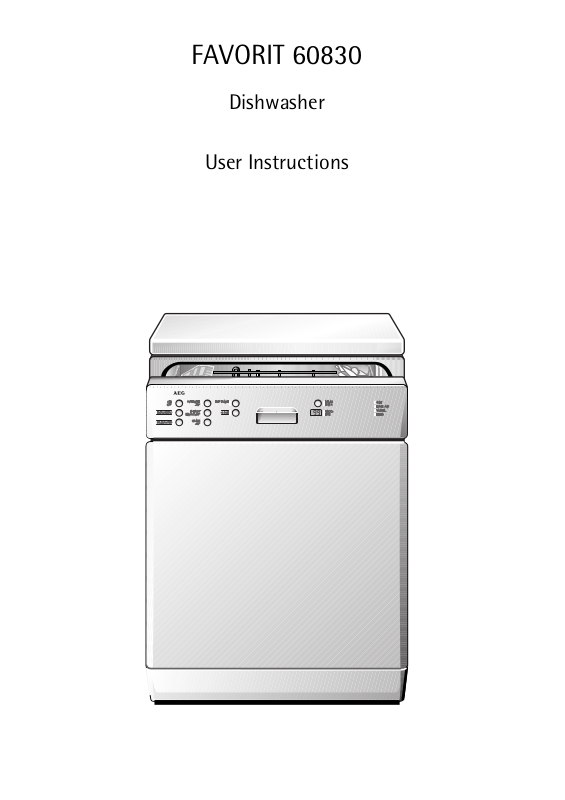

FAVORIT 60830
Dishwasher
User Instructions
Dear customer,
Pri
Please read these user instructions carefully.
Please observe the safety instructions on the first few pages of these
user instructions! Please keep these user instructions for later reference.
Pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, Caution!,
1
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
0 This symbol or numbered instruction steps lead you step by step
through the operation of the appliance.
Next to this symbol you receive additional information and practical
3
tips on using the appliance.
Tips and instructions for the economical and environmentally conscious
2
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your AEG Service
Force Centre.
In this respect please read the chapter "Service & Spare Parts".
2
nted on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
Contents
CONTENTS
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Special salt for the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the amount of special salt to be added . . . . . . . . . . . . . . . . . . . 13
Adding special salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Activating/deactivating the rinse aid dispenser . . . . . . . . . . . . . . . . . . . 15
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loading Cutlery and Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . . 21
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting the Height of the Upper Basket . . . . . . . . . . . . . . . . . . . . . . . 24
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Use of "3 in 1"/ Combi Detergent Tablets . . . . . . . . . . . . . . . . . . . . . . . . 26
Concentrated Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Detergent tablets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Automatic Wash Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . . 28
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Changing/interrupting/cancelling a programme . . . . . . . . . . . . . . . . . . 30
3 in 1 function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting or changing the start delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3
Contents
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
...Error messages are displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
...there are problems with the operation of the dishwasher. . . . . . . . . . . . 38
...the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation and Connection Instructions . . . . . . . . . . . . . . . . 41
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Built-Under Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Service and Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
4
Operating Instructions
OPERATING INSTRUCTIONS
1 Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage,
please contact your retailer.
• Before installing the appliance, ensure that the nominal voltage and
type of supply on the rating plate match that of the supply where the
appliance is to be installed. The fuse rating is also to be found on the
rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Adaptors / connectors
and extension cables must not be used.
Child Safety
• This appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the product.
• Keep all packaging away from children.
• Keep all detergents in a safe place out of children’s reach.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of an old appliance, cut off the power supply cable
and remove any door catches, to prevent young children being
trapped inside.
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact your local
AEG Service Force Centre.
5
Operating Instructions
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG Service Force) must be changed by a
service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Long bladed knives stored in an upright position are a potential hazard.
• Sharp knives and items of cutlery with sharp edges must be placed in
the cutlery tray or in the upper basket.
• When finished loading or unloading, close the door as an open door
can be a hazard.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Only use detergents specifically designed for use in domestic dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holi-
day.
• Do not sit or stand on the open door, the appliance may tip over.
6
Operating Instructions
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: remove the fuse.
2 Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE< for polyethylene, e.g. sheet wrapping material
– >PS< for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of Old Appliances
When disposing of old appliances, remove the plug and ensure that any
locks or catches are removed to prevent young children becoming
trapped inside.
Use an authorised disposal site.
2 Economical and Ecological Dishwashing
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• When you wash a small load, the load sensor calculates the amount
of water necessary and shortens the programme. It is more economical to always wash with a full load.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the detergent manufacturer.
7
Operating Instructions
Appliance Features and Control Panel
Top Spray Arm
Rubber Seal for
Connecting the
Water Feed to
the Spray Arm
Spray Arms
Water hardness switch
Container for
Salt
Container for
Detergent
Container for
Rinse Aid
8
Rating Plate
Filters
Control Panel
Function Buttons
Door Handle
Set Start Delay
Operating Instructions
Control Indicators
1
2
Function Buttons
3
4
Multi-DisplayControl Panel
The control panel consists of the ON/OFF button and the programme
buttons with LED displays.
Function buttons: In addition to the stated wash programme the following functions can also be set using these buttons:
Function Button 1 Adjust the water softener
Function Button 2 Switch rinse aid supply on and off
Function Button 3 - is not occupied -
Function Button 4 - is not occupied -
The Multi-Display can display,
– the hardness setting to which the water softener is set.
– whether the rinse aid supply is switched on/off.
– the start delay that is set.
– how long the current wash programme can be expected to last.
– which fault has occurred on the dishwasher.
9
Operating Instructions
Control Indicators have the following significance:
J
H
^
[
The [ indicator is intended to remind you to check the filters in the
3
dishwasher from time to time and, if necessary, to clean it. The indicator illuminates at regular intervals, independent of the amount of soiling of the filters.
Refill with special salt
Refill with rinse aid
Open the tap
Clean the dishwasher’s filter system
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the
baskets are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Fill with Salt for the Water Softener
3. Fill with Rinse Aid
10
Operating Instructions
Setting the water softener
To avoid scale deposits on the dishes and in the dishwasher, the dishes
must be washed with soft water, i.e. water with a low lime content. The
dishwasher therefore has a built-in water softener, in which tap water
with a hardness of 4°d (German degree) and harder is softened with the
aid of special salt.
Your local water authority will be able to inform you about the hard-
3
ness and hardness range of the water in your area.
The water softener can be set manually using the water hardness
switch; it can also be set electronically using the buttons on the control
panel.
Water hardness
1
In °d
51 - 70
43 - 50
37 - 42
29 - 36
23 - 28
19 - 22
15 - 18
11 - 14 1,9 - 2,5 II 3
4 - 10 0,7 - 1,8 I/II 2
under 4 under 0,7 I
1) (°d) German degree, measure of the hardness of water
2) [mmol/l] millimol per litre, international unit for the hardness of water
3) On this setting the length of the programme may be slightly longer.
*) Factory setting
In mmol/l
9,0 - 12,5
7,6 - 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
3,3 - 3,9
2,6 - 3,2
2
Range Manually Electronically
IV
III
Adjusting the hardness
setting
3
10
1
0*
9
8
7
6
5
4*
1
no salt
necessary
Indication on
the multi-dis-
play
10L
9L
8L
7L
6L
5L
4L
3L
2L
1L
11
Operating Instructions
Setting the water softener
Using the table as a guide, adjust the water softener to that which corresponds to the hardness of the water in your area:
0 The dishwasher must be switched off.
Manual setting:
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn the hardness range switch to 0
or 1 (see table).
4. Replace the lower basket.
Electronic setting:
1. Press the ON/OFF button.
The LED in the ON/OFF button will become illuminated.
If other indicators are also illuminated, this means that a programme
3
has started. The programme must be cancelled (RESET):
Press function buttons 1 and 2 simultaneously for approx. 2 seconds.
All other indicators will go out.
2. Press the function buttons 1 and 2 simultaneously and keep them
pressed until the LED indicators for function buttons 1 and 3 flash.
3. Press function button 1again.
The LED indicator for function button 1 will flash.
The multi-display will indicate the hardness setting.
4. Pressing function button 1 increases the hardness setting by 1 degree.
(Exception: hardness setting 1 follows hardness setting 10).
5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.
12
Operating Instructions
Special salt for the water softener
If the water hardness in your area is less than 4 °d, then the water in
3
your dishwasher does not need to be softened and you do not need to
use special salt or salt substitute.
Water can be softened in one of two ways:
• If you are using dishwasher detergent that already contains salt sub-
stitute, the detergent only is put into the detergent compartment.
– In this case the water softener must manually be set to 0 and
electronically to 1 to ensure that no special salt is added.
• If you are using dishwasher detergent and special salt separately, the
special salt is to be put into the salt container.
– In this case the water softener must manually be set to 0 and
electronically to between 2 and 10 (depending on the water
hardness in your area) to ensure that the special salt is dispensed
from the salt container.
Only use special salt intended for dishwashers. Never fill the salt supply
1
container with different types of salt (e.g. cooking or table salt) or
detergent. This would destroy the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of special salt in your hand.
Setting the amount of special salt to be added
Some appliances are equipped with an additional 3in1 function.
3
If you use 3-in-1 dishwashing tablets and select the 3in1 function
together with the programme, the inflow of special salt does not have
to be deactivated (see ”3in1 function”).
0 1. Set the water softener manually and electronically to the desired water
hardness:
Manual
setting
0 1
0 - 1 2-10
Electronic
setting
Multi-display
indicator
IL
2 l to 10 l
Addition of special salt
Do not add special salt.
Addition of special salt
via salt container
(factory setting)
13
Operating Instructions
If the water softener is electronically set at “1” for the purpose of using
3
detergent that includes special salt, the special salt indicator is deactivated.
Adding special salt
If you are using dishwasher detergent and special salt separately, add
the special salt:
– Before using the dishwasher for the first time.
– When the indicator for special salt SALT is illuminated on the control
panel.
0 1. Open the door, remove the lower
basket.
2. Undo the lid on the salt container by
turning it anticlockwise.
3. When using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the
container opening.
Fill the container with salt through
the funnel; the capacity of the container is approx. 1.0-1.5 kg depending on the grain size. Do not overfill
the salt container with salt.
SALE
SALT
SALZ
SEL
The water expelled by filling the salt container with special salt runs
3
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise dishwasher salt will leak
into the wash water, this could lead to poor wash results. To avoid this
run a rinse programme after filling the salt container with special salt.
This will wash away salt water and any salt crystals that have been spilt.
Depending on the size of the salt grains, it can take several hours for
3
the salt to dissolve in the water and for the SALT indicator to extinguish.
The setting of the water softener and thus the consumption of salt are
dependent on the hardness of the local water.
14
Operating Instructions
Rinse Aid
Rinse aid ensures thorough rinsing, spot and streak free drying of
dishes and glassware.
Rinse aid can be added in one of two ways:
• If you are using dishwasher detergent that already contains rinse aid, the
detergent including the rinse aid is put into the detergent compartment.
– In this case the dispensing of rinse aid from the dispenser must be
deactivated to avoid a double dosage.
• If you are using dishwasher detergent and rinse aid separately, the
rinse aid is to be put into the rinse aid dispenser.
– In this case the dispensing of rinse aid from the dispenser must be
activated.
– The amount of rinse aid to be dispensed must be set.
Only use rinse aid specifically designed for domestic dishwashers. Never
1
fill the rinse aid dispenser with any another substance (e.g. concentrated vinegar) or dishwasher cleaning agent. This would damage the
appliance.
Activating/deactivating the rinse aid dispenser
Some appliances are equipped with an additional 3in1 function.
3
If you use 3-in-1 dishwashing tablets and select the 3in1 function
together with the programme, the inflow of rinse aid does not have to
be cancelled (see ”3in1 function”).
0 1. Press the ON/OFF button.
The LED in the ON/OFF button will become illuminated.
If other indicators are also illuminated, this means that a programme has
3
been started. The programme must be cancelled (RESET):
Press function buttons 1 and 2 simultaneously for approx. 2 seconds.
All other indicators will go out.
2. Press the function buttons 1 and 2 simultaneously and keep them
pressed until the LED indicators for function buttons 1 and 3 flash.
3. Press function button 2 again.
The LED indicator for function button 2 will flash.
15
Operating Instructions
The multi-display will indicate the current setting:
0d
1d
Rinse aid dispenser deactivated
Rinse aid dispenser activated (factory setting)
4. Pressing function button 2 changes the setting.
5. Once the multi-display is indicating the required setting, press the ON/OFF
button.
The setting is now saved.
Adding rinse aid
If you are using dishwasher detergent and rinse aid separately, add the
rinse aid:
– Prior to using the dishwasher for the first time
–When the RINSE AID indicator on the control panel is illuminated.
The rinse aid compartment is on the inside of the dishwasher door.
0 1. Open the door.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
16
Operating Instructions
4. Fill with rinse aid exactly up to the
level marked “max”; this corresponds
to a quantity of approx. 140 ml.
5. Close the lid and press until it locks
into place.
6. Wipe up any spilt rinse aid with a
cloth. Otherwise too much foam will
be formed during the wash.
Adjusting Rinse Aid Dosing
As the dishes are washed rinse aid is released from the dispenser into
3
the wash water. The dose is factory set at 4, and can be adjusted from
1 to 6. Only change the setting if streaks, milky spots or dried on water
marks are visible on glasses or crockery.
0 1. Open the door of the dishwasher.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
4. Set the dose level.
5. Close the lid and press until it locks
into place.
6. If rinse aid has spilt, wipe up with a
cloth.
17
Operating Instructions
In Daily Use
• Check the salt and rinse aid levels.
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
Loading Cutlery and Dishes
Sponges, household cloths and any object that can absorb water should
1
not be washed in the dishwasher
For washing in the dishwasher the following cutlery/dishes
are not suitable: are of limited suitability:
.
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with glued parts that
is not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove all scraps of food.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
– To avoid damage to glasses, they must not touch
18
Operating Instructions
– Do not lay small objects (e.g. lids) in the cutlery rack
Loading Cutlery
Long bladed knives stored in an upright position are a potential hazard.
1
Long and/or sharp items of cutlery such as carving knives must be posi-
1
tioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as knives.
1
0 Place knives, small spoons and small
forks in the cutlery tray.
Place forks and spoons that do not
fit in the cutlery tray in the cutlery
basket.
To ensure that all items of cutlery in
the cutlery basket are properly
washed, you should
0 1. Place the grid insert on the cutlery
rack
2. Place forks and spoons in the grid
insert on the cutlery basket with the
handle downwards.
3. For larger items of cutlery, e.g. a
whisk, half of the top for the cutlery
basket can be left off.
19
Operating Instructions
On some models of dishwasher
it is possible to open the cutlery
basket.
To ensure that the cutlery basket
1
cannot open on removal from the
appliance, you should always hold
both parts of the two part handle.
0 1. Place the cutlery basket on a table
or work surface
2. Open the two part handle
3. Remove cutlery
4. Close the two part handle.
20
Operating Instructions
Loading Pans, Frying Pans
and Large Plates
Load large and heavily soiled dishes
in the lower basket (Plates up to
29cm in diameter).
Your dishwasher has one of the following four types of lower basket:
Type 1: None of the plate inserts in the lower basket can be removed
Type 2: The right-hand plate inserts in the lower basket can be
folded over to the left
To ease the loading of large items,
3
the two right-hand plate inserts in
the lower basket can be folded over
to the left
1. Slightly lift the right plate inserts.
2. Fold the plate inserts to the left.
21
Operating Instructions
Type 3: The right-hand plate inserts in the lower basket can be
folded across one another
To ease the loading of large items,
3
the two right-hand plate inserts in
the lower basket can be folded across
one another.
Type 4: The two rear plate inserts in the lower basket can be folded
across one another
To ease the loading of large items,
3
the two rear plate inserts in the lower
baskets can be folded across one
another.
22
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper basket.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper basket.
Operating Instructions
23
Operating Instructions
Adjusting the Height of the Upper Basket
Maximum Height of the Dishes in the
Upper Basket Lower Basket
With upper basket raised 22 cm 31 cm
With upper basket lowered 24 cm 29 cm
The height of the basket can also be adjusted when it is loaded.
3
Lowering the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket at the rear
right, lift it as far as it will go and
then lower it vertically. The upper
basket will engage in the lower position.
Raising the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket at the rear
right, lift it as far as it will go and
then lower it vertically. The upper
basket will engage in the higher position.
24
Operating Instructions
Filling with Detergent
Only use dishwasher detergent.
1
Fill with detergent:
– Prior to the start of a wash programme (not for the pre wash pro-
gramme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer's dosing and storage recommenda-
2
tions as stated on the detergent packaging.
The detergent compartment is on the
inside of the dishwasher door.
0 1. If the lid is closed:
press release button (1).
The lid springs open.
2. Fill the detergent dispenser with
detergent. The markings indicate the
dosing levels:
“20” corresponds to approx. 20 ml of
detergent,
“30” corresponds to approx. 30 ml of
detergent.
3. Close the lid and press until it locks
into place.
If the dishes are very heavily soiled
3
put additional detergent into the
adjacent chamber (2). This detergent
will take effect during the pre wash.
25
Operating Instructions
Use of "3 in 1"/ Combi Detergent Tablets
General Advice
These products are tablets with combined detergent/rinse-aid and salt
functions.
0 1. Before using these products you should first check that the water hard-
ness in your supply is compatible with the use of these products as per
the detergent manufacturers instructions (on the product packaging).
2. These products should be strictly used according to the detergent
manufacturers instructions.
Do not place the tablets in the tub or the cutlery basket as this will
1
result in poorer wash results. The tablets should be placed in the
detergent doser.
3. If you encounter problems when using "3 in1" products for the first
time then please contact the detergent manufacturers care line (the
telephone number is given on the product packaging).
Special Advice
When using combination products, the rinse-aid and salt lights are no
longer useful. It may be helpful therefore to switch the rinse aid off please note that only some dishwashers have this facility - and selecting the lowest possible setting for water hardness.
For more information please refer to your instruction manual.
If you decide to switch to the use of a standard detergent system we
advise that you:
• Refill both the salt and rinse aid compartments.
• Switch the waterhardness setting to the highest possible position
and run for three normal cycles without a load.
• Readjust the waterhardness setting again according to the conditions
for your region (as per the instruction manual).
26
Operating Instructions
Concentrated Detergent
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– conventional, alkaline detergents with caustic components
–low alkaline concentrated detergents with natural enzymes.
The use of 50 °C wash programmes in conjunction with concentrated
2
detergents reduces pollution and is good for your dishes; these wash
programmes are specially matched to the dirt-dissolving properties of
the enzymes in the concentrated detergent. For this reason 50 °C wash
programmes in which concentrated detergents are used can achieve
the same results that can otherwise only be achieved using 65 °C programmes.
Detergent tablets
Detergent tablets of different makes dissolve at different speeds. For
3
this reason some detergent tablets cannot develop their full cleaning
power during short programmes. Therefore please use wash programmes with pre wash when using detergent tablets.
Automatic Wash Programmes
During the AUTOMATIC programmes the amount of soiling on the
dishes is determined by how cloudy the water is.
If the appliance is partially loaded and the dishes lightly soiled, the “pre
wash”, “main wash” and “rinsing” elements of the programme are
shorter and the water consumption level is lower.
If the appliance is fully loaded and the dishes heavily soiled, the “pre
wash”, “main wash” and “rinsing” elements of the programme are
longer and the water consumption level is higher.
For this reason the programme duration, water and energy consumption levels can vary within the stated range for AUTOMATIC programmes (see Programme Table).
In this way, the dishes are always optimally washed while water and
electricity consumption are kept low.
During AUTOMATIC programmes the temperature of the wash water is
also automatically adjusted to between 50 °C and 65 °C depending on
the amount of soiling on the dishes.
27
Operating Instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of Dishes
In Addition
Type of Soiling
Suitable
Wash Programme:
Programme
Sequence
2
Consumption
3
Figures
Duration
4
Energy
Water
Dinner Service and
Cooking Utensils
- - -
• heavily to lightly
soiled
•dried
leftovers
AUTOMATIC
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
90 -110 minutes 30 min. 110 - 120 minutes
1.10 - 1.40 kWh 0.8 kWh 1.75 - 1.95 kWh
13 - 20 litres 9 litres 20 - 22 litres
Dishes
without Pans
• just used, average to
slightly soiled
particularly suitable
when concentrated
detergents are used.
30 MIN
Main wash
Final rinse
-
1
Dinner Service and
Cooking Utensils
•heavily
soiled
•dried on
leftovers, particularly
egg white and thickeners
INTENSIVE 70 °C
Pre Wash
Main Wash
2x Rinsing
Final Rinse
Drying
1) This programme is not suitable when left-overs have dried on.
2) Noise levels vary at different stages of the wash programme as at some programme
stages the dishes are washed more energetically so that they will be cleaned more thoroughly.
3) The consumption figures were determined under standard conditions. They are intended
as a guide only and depend on the loading. For this reason figures may vary in practice.
4) When the hardness setting is electronically adjusted to 10, the length of the dishwashing
cycle may be slightly longer.
28
Operating Instructions
Type of Dishes
In Addition
Type of
Soiling
Suitable
Wash Programme:
Programme
Sequence
2
Consumption
Figures:
Duration
3
4
Energy
Water
Dinner Service and
Cooking Utensils
with non-temperature resist-
ant dishes
• normally soiled • lightly
particularly suitable
when concentrated deter-
gents are used.
ENERGY SAVING 50°
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
130 - 150 minutes 73 minutes 12 minutes
0.95 - 1.05 kWh 0.9 kWh < 0.1 kWh
12 - 14 litres 15 litres 4 litres
Dessert Dishes and
Coffee Service
delicate glasses
soiled
1
GLASS 45°
Main Wash
2x Rinsing
Final Rinse
Drying
with
All
Types of Dishes
-
Used dishes that are
collected in the dishwasher and are to be
washed at a later
point in time.
A
Pre Wash
-
-
-
-
1) Test programme for test institutes
2) Noise levels vary at different stages of the wash programme as at some programme
stages the dishes are washed more energetically so that they will be cleaned more thoroughly.
3) The consumption figures were determined under standard conditions. They are intended
as a guide only and depend on the loading. For this reason figures may vary in practice.
4) When the hardness setting is electronically adjusted to 10, the length of the dishwashing
cycle may be slightly longer.
29
Operating Instructions
Starting a programme
0 1. Check that the dishes and cutlery are stacked in the dishwasher in such
a way that the spray arms are free to rotate.
2. Turn on the water tap fully.
3. Close the door.
4. Press the ON/OFF button.
The LED in the ON/OFF button will illuminate.
5. Press the relevant button for the programme required (see “Programme
Chart”).
The programme display will become illuminated. The remaining time
for the programme will be shown in the multi-display.
The selected programme will begin after approximately 3 seconds.
During the programme, the remaining time shown in the multi-display
3
may be adjusted according to amount of dishes, degree of soiling, etc.
If an error message is displayed in the multi-display after the pro-
3
gramme has started, please read the section “What to do if ...”.
Changing/interrupting/cancelling a programme
Only change or interrupt a programme that is in progress if it is abso-
3
lutely necessary. After the appliance has been closed again, the air that
has entered will be heated significantly and expand. As a result, water
may collect in the base of the appliance and trigger the anti-flood system.
Changing a programme
If you would like to change the programme in the first 3 seconds after
3
having selected a programme, briefly press the button for the new programme.
If you would like to change the programme after this time, proceed as
follows:
0 1. Press the button for the new programme and hold it down.
The indicator for the programme that is currently running will flash.
After several seconds only the indicator for the new programme will be
flashing.
2. Release the programme button.
The newly selected programme will begin.
30
Operating Instructions
Interrupting the programme by opening the dishwasher door
Hot steam may escape when the door is opened. There is a risk of scald-
1
ing. Open the door carefully.
0 1. Open the door of the dishwasher.
The programme will stop.
2. Close the door.
The programme will continue.
Cancelling the programme (RESET)
0 1. Press the function buttons 1 and 2 simultaneously and keep them
pressed.
The programme display for the current programme will flash for several
seconds and then go out.
2. Release the function buttons.
The programme has been cancelled.
Turning off the dishwasher will only interrupt a selected programme,
3
not cancel it. The programme will restart after turning the dishwasher
back on again.
3 in 1 function
Your appliance is equipped with a special additional function that enables optimal use of 3-in-1 dishwashing tablets and whereby the addition of rinse aid and special salt is not required.
This additional function can be selected together with all dishwashing
cycles.
0 1. Place the 3-in-1 dishwashing tablet in the detergent container.
2. Switch on the appliance.
3. Press the button for the additional 3in1 function.
The indicator for the 3 in 1 function becomes illuminated.
– The addition of special salt and rinse aid from each respective supply
container is prevented.
– The displays will no longer indicate a shortage of salt or rinse aid.
4. The function can be switched on or off by pressing the 3in1 button.
The 3in1 display will indicate the current setting:
The 3in1 indicator is illuminated Function activated
The 3in1 indicator is not illumi-
nated
Function deactivated
(ex-factory setting).
31
Operating Instructions
5. Press the relevant button for the cycle required (see ”Cycle Table”).
The selected cycle will begin after approximately 3 seconds.
The function can no longer be changed after the cycle has begun. In
this case the dishwashing cycle must be aborted by pressing RESET, and
must then be reselected.
If the additional function has been selected once, it will remain acti-
3
vated for all subsequent wash cycles unless it is deactivated by pressing
the button again.
The cycles lengths given in the cycle table may change if the additional
3
function is used.
When changing from 3-in-1 dishwashing tablets to conventional
3
detergent please be sure above all to take note of the last 3 points in
the chapter ”Using 3-in-1 dishwashing tablets”.
Setting or changing the start delay
Using the start delay timer you can adjust when within the next 19
hours the programme is to begin.
Setting the start delay:
0 1. Press the ON/OFF button.
2. Continue pressing the DELAY TIMER button until the number of hours
until the start of the programme is flashing in the multi-display.
3. Press the button for the desired programme.
The length of the selected programme will flash for a moment in the
multi-display, and then it will display the selected starting time again.
As soon as the number of hours is displayed without flashing, the start
delay has been activated.
The programme will start automatically following a countdown of the
hours set.
32
Changing the start delay:
As long as the programme has not started, you can still change the
start delay set by pressing the DELAY TIMER button until the desired
start delay is shown in the multi-display.
Cancelling the start delay:
As long as the programme has not started you are able to cancel the
start delay. Continue pressing the DELAY TIMER button until the length
of the selected programme appears in the multi-display. The selected
programme will start immediately.
Operating Instructions
Changing the programme after the start delay has been set:
As long as the programme has not started, you can still change the
start delay set by pressing a programme button.
0 1. Press the button for the new programme and hold it down.
First the indicator for the programme that has just been selected will
flash.
After several seconds only the indicator for the new programme will be
flashing.
2. Release the programme button.
The newly selected programme will start automatically following a
countdown of the hours set.
Load Sensing – Sensor Logic
If a wash programme is started even though there are only a few dishes
in the upper and/or lower basket, an intelligent electronic system
adjusts the amount of water and the duration of the wash programme
to the number of dishes. By this means it is possible to wash only a few
dishes quickly and economically. At half load (6 place settings), up to
2 litres of water and 0.2 kWh of electricity are saved.
Switching Off the Dishwasher
Switch the dishwasher off when the multi-display indicates "0" for the
remaining programme time.
0 1. Press the ON/OFF button. The ON/OFF button indicator extinguishes.
Hot steam may escape from the appliance when opening the door
1
immediately after the end of the programme.
2. Open the door carefully, as steam may escape.
Emptying the Dishwasher
• The dishes should be allowed to cool down before removing them
3
from the appliance, as hot dishes can be sensitive to knocks.
• Leave the dishes in the dishwasher for approx. 15 minutes after the
end of the programme so that they dry better and can cool down.
• First empty the lower basket, and then the upper basket. This will
avoid any water that may be remaining in the upper basket, dripping
onto the dishes in the lower basket and leaving water marks.
33
Operating Instructions
Care and Cleaning
Do not under any circumstances use furniture care products or aggres-
1
sive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Cleaning the Filter
The filters should be checked and
3
cleaned regularly. Dirty filters will
give poor wash results.
0 1. Open the door, remove the lower
basket.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter
(1/2) by the handle with the hole and
remove from the microfilter (3)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (4) from the
base of the washing compartment
and clean both faces thoroughly
34
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
The dishwasher must not be used
1
without filters under any circumstances.
Operating Instructions
35
Operating Instructions
What to do, if ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call an engineer to resolve a of fault
listed here, or to repair a fault caused by incorrect use or installation, a
charge will be made even if the appliance is in guarantee.
...Error messages are displayed.
If any of the indicators in the control panel, as listed in the table below,
are flashing or are illuminated, you can probably rectify the fault yourself.
Malfunction Possible cause Remedy
The programme indicator for
the selected programme is
flashing. The WATER indicator is continuously illuminated, error code
displayed in the multi-display: there is no water running into the dishwasher.
The programme indicator for
the selected programme is
flashing, error code
displayed in the multi-display.
Error code Å30 is displayed
in the multi-display.
Å10 is
Å20 is
The tap is blocked or furred
with lime-scale.
The tap is turned off. Turn the tap on.
The filter (where present) in
the threaded hose fitting at
the water inlet valve is
blocked.
Filters in the base of the
washing compartment are
blocked.
The water inlet hose has not
been correctly laid.
The siphon is blocked. Clean out siphon.
The water drain hose has
not been correctly laid.
The leak prevention system
has been triggered.
Clean the tap.
Clean the filter in the
threaded hose fitting.
Press the button for the
selected programme,
then cancel the programme by pressing
RESET (see chapter:
“Starting a programme”); clean out the
filters (see chapter:
“Cleaning the filters”).
Check hose installation.
Check hose installation.
Turn off the tap and
contact customer service.
36
Operating Instructions
Malfunction Possible cause Remedy
The FILTER indicator is only
intended to remind you to
The FILTER indicator is continuously illuminated.
occasionally check the dishwasher’s filter and to clean
it out when necessary. It
illuminates at regular intervals, regardless of the state
of cleanliness of the filter.
The indicator goes out
automatically at the
start of the next programme.
After remedying the FILTER error, shut the door.
After rectifying an Å10 or Å20 error, press the button for the pro-
gramme that has been started. The programme will continue.
If the fault is displayed again, please contact Service force.
For all other errors displayed, please contact Service force, stating the
3
error code.
37
Operating Instructions
...there are problems with the operation of the dishwasher.
Symptom Possible Cause Solution
The door of the dishwasher is
not closed properly.
The programme does
not start.
Rust spots are visible in
the washing compartment.
There is a whistling
noise during washing.
Mains plug is not plugged in. Insert mains plug.
House fuse is defective. Replace fuse.
A start delay is selected.
The washing compartment is
made from rust-free stainless
steel. Rust spots in the washing compartment are due to
rust particles from external
sources (rust particles from
water pipes, pans, cutlery,
et c.). R emove such s pots with
one of the stainless steel
cleaners that are generally
available on the market.
The whistling is not a cause
for concern.
...the wash results are not satisfactory.
Shut the door.
If dishes are to be washed
immediately cancel delay
start timer.
Only wash cutlery and dishes
that are suitable for dishwasher use.
Close the lid of the special
salt container securely.
Use a different brand of
detergent.
38
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were loaded is such a way that the wash waster did not
reach all items. The baskets for the dishes must not be overloaded.
– The filter in the base of the washing compartment is dirty or incor-
rectly positioned.
– Detergent was not used or too little was used.
– In the case of scale deposits on the dishes: The special salt container
is empty or the water softener is incorrectly adjusted.
– The drain hose is incorrectly laid.
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
Operating Instructions
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Lower rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufac-
turer’s customer advisor.
Technical Data
Capacity: 12 place settings including serving dishes
Permitted Water
Pressure:
Electrical Connection:
Dishwasher: Free-Standing Appliances
Dimensions: 850 x 600 x 600 (H x W x D in mm)
Max. Weight: 54 Kg
Dishwashers that Can Be Integrated, Built-In Dishwashers
Dimensions: 820 – 880 x 596 x 570 (H x W x D in mm)
Max. Weight: 50 Kg
Dishwashers that Can Be Fully Integrated
Dimensions: 820 – 880 x 596 x 546 - 550 (H x W x D in mm)
Max. Weight: 50 Kg
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
39
Operating Instructions
Notes for Test Institutes
Testing in accordance with EN 60704 must be carried out with the
appliance fully loaded and using the test programme (see Programme
Table).
Tests in accordance with EN 50242 must be carried out when the salt
dispenser and rinse aid container have been filled with salt and rinse
aid respectively and using the test programme (see Programme Table).
Full Load:
12 place settings
incl. serving dishes
Detergent Dosing: 5g + 25g (Type B) 20g (Type B)
Rinse Aid Setting: 4 (Type III) 4 (Type III)
Half Load:
6 place settings incl. serving dishes,
leaving alternate positions free
Sample loading arrangements:
Upper basket without cutlery tray Upper basket with cutlery tray
Lower basket with cutlery basket Cutlery basket
40
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted such
that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrew-
ing:
– use a screwdriver.
• For built-in dishwashers the rear feet should be adjusted from the
front of the appliance using a screwdriver.
• The drain hose, inlet hose and mains cable must be laid such that
they are free to move in the rear of the plinth recess, so that they
cannot be kinked or crushed.
Built-Under Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
can be set up as stand-alone without additional installation.
If the dishwasher is set up next to a gas or coal cooker, a heat-
1
insulating, non-flammable plate must be mounted between the
dishwasher and the cooker, flush to the top edge of the work surface
(depth 57.5 cm). The plate should have aluminium foil on the side facing the cooker.
41
Installation and Connection Instructions
If the dishwasher is installed underneath a kitchen work surface, the
original work surface of the dishwasher is to be removed as follows:
0 1. Unscrew the screws from the posi-
tioning plates on the back (1).
2. Slide the appliance's work surface
approx. 1 cm to the rear (2).
3. Lift the work surface at the front (3)
and remove.
If the dishwasher is later used as a free-standing appliance, the original
1
work surface must be re-mounted.
3 The plinth on free-standing appliances is not adjustable.
42
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the wash
water returning into the drinking water system and comply with the
applicable plumbing regulations.
• The dishwasher must be connected to a cold water supply.
•The dishwasher must not be connected to open hot water appliances
or instantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10 N/cm
Highest permitted water pressure:
10 bar (=100 N/cm
2
=100 kPa)
2
=1 MPa)
Consult your installer if the water pressure is less than 1 bar.
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
The water inlet hose must not be kinked, crushed or entangled when it
1
is being connected up.
0 Connect the threaded hose fitting (ISO 228-1:2000) on the water inlet
hose to a tap with an external thread (¾ inch). Tighten the threaded
hose fitting hand tight only.
• In order that access to the tap in the kitchen is not limited by the use
3
of the dishwasher, we recommend the installation of an additional
tap, or fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose than that supplied, VDE
approved complete hose sets are to be used. These are available from
your local Service Force Centre.
• Do not use, for connection, old hoses which have been used for
another appliance.
43
Installation and Connection Instructions
The following section is only applicable to dishwashers that have a
3
safety valve on the threaded hose fitting for the tap:
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is
next to the tap. Therefore the water inlet hose is only under pressure
while the water is running. If the water inlet hose starts to leak during
this operation, the safety valve cuts off the running water and the
draining pump in the dishwasher is switched on.
Please take care when installing the water inlet hose:
1
– The distance between the bottom
edge of the safety value and the
floor on which the dishwasher is
standing must be at least 30 cm:
– The electrical cable for the safety
valve is in the double-walled water
inlet hose. Do not immerse the
water inlet hose or the safety valve
in water.
– If the water inlet hose or the safety
valve is damaged, remove the
mains plug immediately.
– A water inlet hose with safety valve
must only be replaced by your local
Service Force Centre.
– Place the water inlet hose in such a way that it is never higher than
the bottom edge of the safety valve.
44
Installation and Connection Instructions
Water drain
Drain hose
The drain hose must not be kinked, crushed or entangled.
1
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 40 cm above the lower edge of the machine.
Extension hoses
• Extension hoses are available from
AEG Service Force. The internal
diameter of the extension hoses
must be 19 mm to ensure that the
function of the appliance is not
impeded.
• Hoses may be laid a maximum of
3 metres horizontally; the maximum
permitted height for the connection
for the drain hose is then 85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
If the dishwasher is fitted at a high position
If the dishwasher is installed at a high level, and the drainhose connection is less than 30 cm from the bottom of the appliance, adapter kit ET
111099520 must be fitted. This is available from Customer Service.
Discharging into a standpipe
When discharging into a standpipe,
the upright standpipe should have a
minimum, length of 30 cm (12“) from
the bottom of the elbow to the top
of the pipe (see diagram). Make sure
that it is designed in such a way that
the end of the drain hose cannot be
covered with water.
45
Installation and Connection Instructions
Leak Prevention System
For protection from damage due to water leaks, the dishwasher is
equipped with a leak prevention system, the AQUA CONTROL SYSTEM.
In the event of a fault, the safety valve in the appliance immediately
interrupts the inflow of water and the drain pump is activated. By this
means water can neither escape nor overflow. The remaining water in
the appliance is automatically pumped out.
The leak prevention system also works when the appliance is switched
1
off, the appliance must however not be disconnected from the mains.
46
Installation and Connection Instructions
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
WARNING - This appliance must be earthed.
1
The manufacturer declines any responsibility should these safety
measures not be observed.
Before switching on make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
Changing a fuse
The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved
(BS 1363A) fuse must be used.
Should the plug need to be
replaced for any reason, proceed as
described below.
The wires on the mains lead are
coloured in accordance with the
following code.
Blue
Green and Yellow : Earth
Blue : Neutral
Brown : Live
Green
& Yellow
Brown
Cord Clamp
• The wire coloured green and yellow must be connected to the termi-
nal marked with the letter “E“ or by the earth symbol or coloured
green and yellow.
• The wire coloured blue must be connected to the terminal “N“ or col-
oured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
WARNING! A cut off plug inserted into a 13 amp socket is a seri-
1
ous safety (shock) hazard. Ensure that, if it is necessary to cut off
the plug, it is disposed of safely and not retained.
47
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation.
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Double tap Water drain Water inlet
48
Water
inlet
Mains
cable
Water
drain
Mains socket
Mains
cable
Guarantee Conditions
GUARANTEE CONDITIONS
Standard guarantee conditions
We, AEG, undertake that if within 12 months of the date of the purchase this AEG
appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF
CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electricity or gas
supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance
with the manufacturer's operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered
with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre.
Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
• Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be
available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replace-
ment of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls
to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which
are subject to rental agreements.
• Products of AEG manufacture which are not marketed by AEG.
European Guarantee
If you should move to another country within Europe then your guarantee moves with
you to your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as
exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used
domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to
give them details of your new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after you and your appliances..
France Senlis +33 (0) 3 44 62 29 29
Germany Nürnberg +49 (0) 800 234 7378
Italy Pordenone +39 (0) 800 117511
Sweden Stockholm +46 (0) 8 672 5360
UK Slough +44 (0) 1753 219899
49
50
Service and Spare parts
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning:
08705 929 929
Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details
under the heading „What to do if.....“
When you contact the Service Force Centre you will need to give the
following details:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rat-
ing plate).
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation
is required for in-guarantee service calls.
Customer Care
For general enquiries concerning your AEG appliance or for further
information on AEG products please contact our Customer Care
Department by letter or telephone at the address below or visit our
website at www.aeg.co.uk.
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel. 08705 350350 (*)
(*) Calls may be recorded for training purposes
51
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 960 718 -00- 0403
Subject to change without notice
Loading...
