ÖKO_FAVORIT 54750 I
70°
Dishwasher
Operating instructions
Dear customer!
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages
of these user instructions! Please keep these user instructions for later
reference. Pass them on to any subsequent owner of the appliance.
The warning triangle and/or specific words (Warning!, caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step by step
through the operation of the appliance.
Next to this symbol you receive additional information and practical
tips on using the appliance.
Tips and instructions for the economical and environmentally
conscious use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see "What to do, if..."
section.
If these instructions are insufficient, please contact your nearest
customer service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time (you will find
addresses and telephone numbers in the "Customer Service Centres"
section).
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly...
2
Contents
Safety instructions 4
Disposing of packaging and old machine 6
Disposing of the packaging 6
Disposing of your old machine 6
Economical and ecological dishwashing 7
Description of the appliance
The inside of the appliance 8
Control panel 8
Before using your dishwasher for the first time 11
Setting the water hardness range 11
Filling with special salt 13
The rinse aid 14
Loading cutlery and dishes 16
The lower basket 17
Cutlery basket 17
The upper basket 18
Adjustment the height of the upper basket 19
Use of detergent 20
Bio programmes and compact powders 21
Washing programmes 22
Operating instructions 24
Maintenance and cleaning 27
Internal and external cleaning 27
Cleaning the filters 27
What do do, when... 29
8
Customer service 31
Hints for test centres 32
Technical data 33

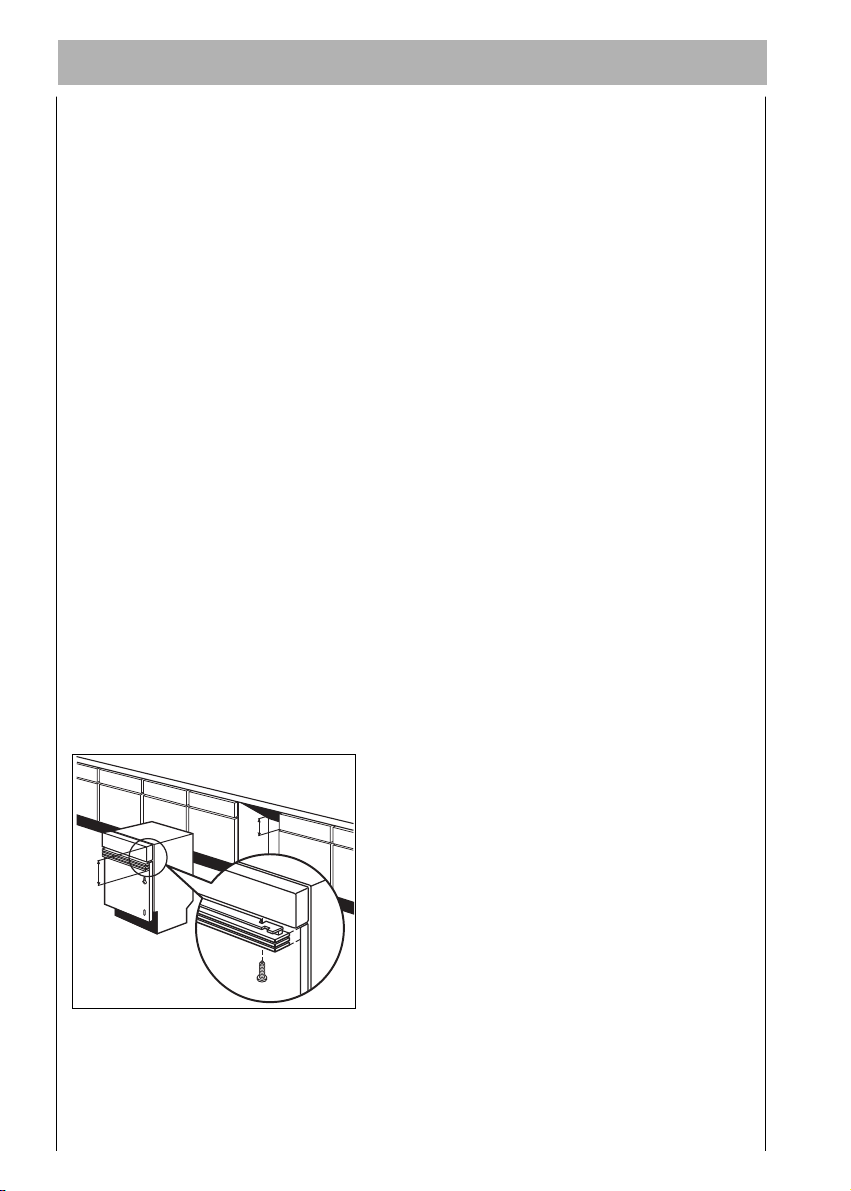

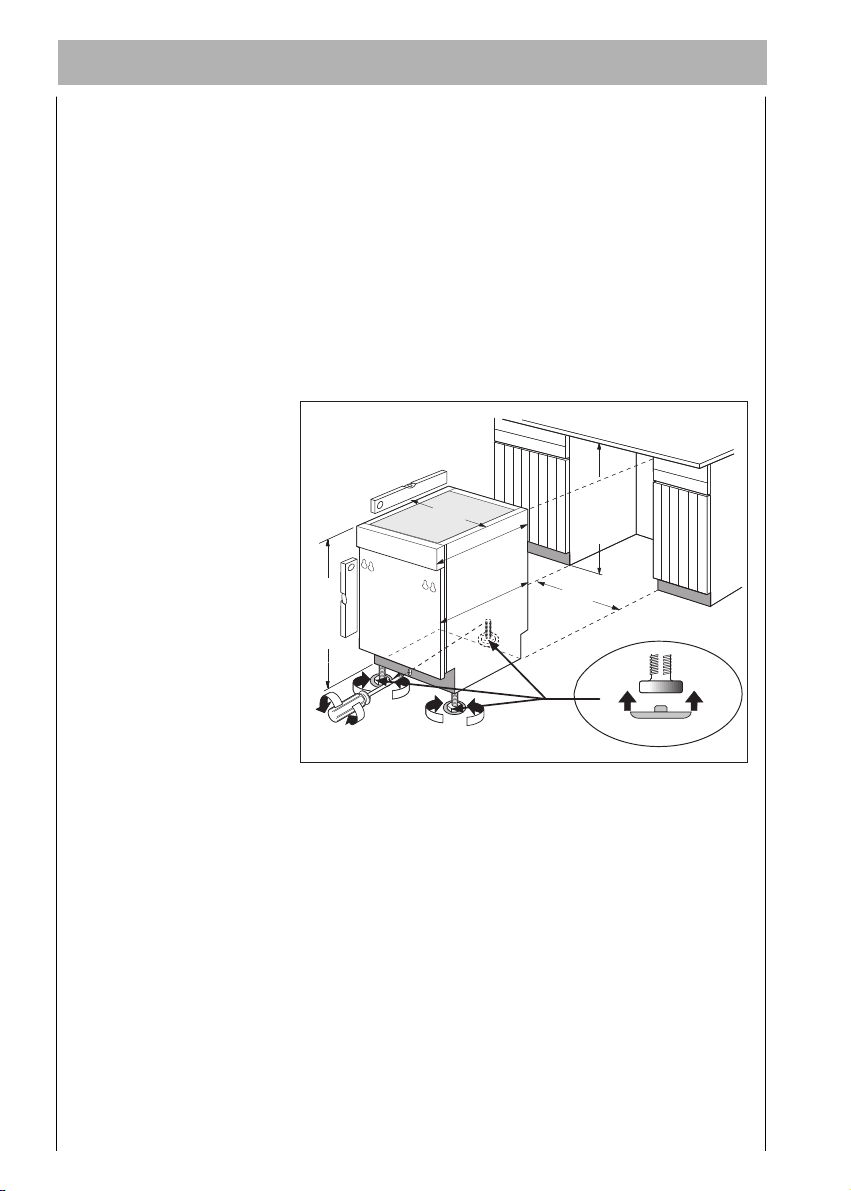

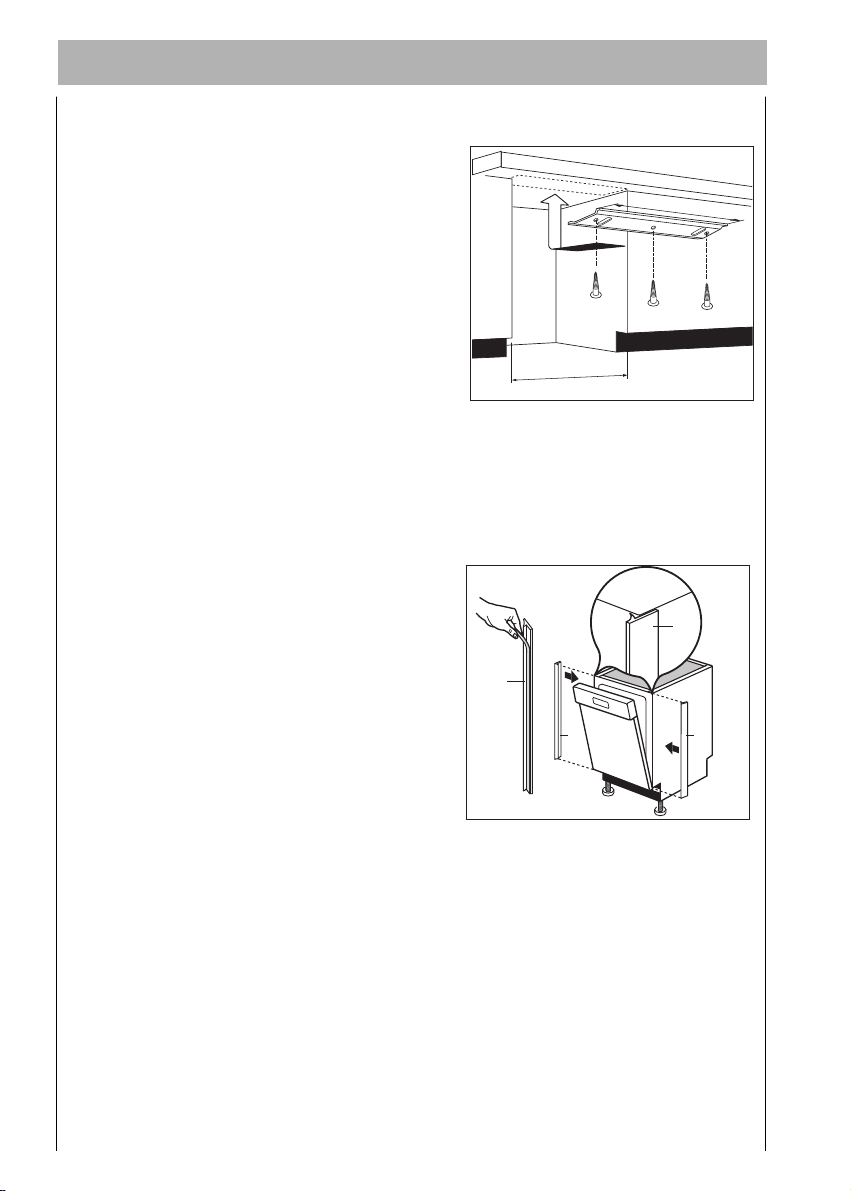

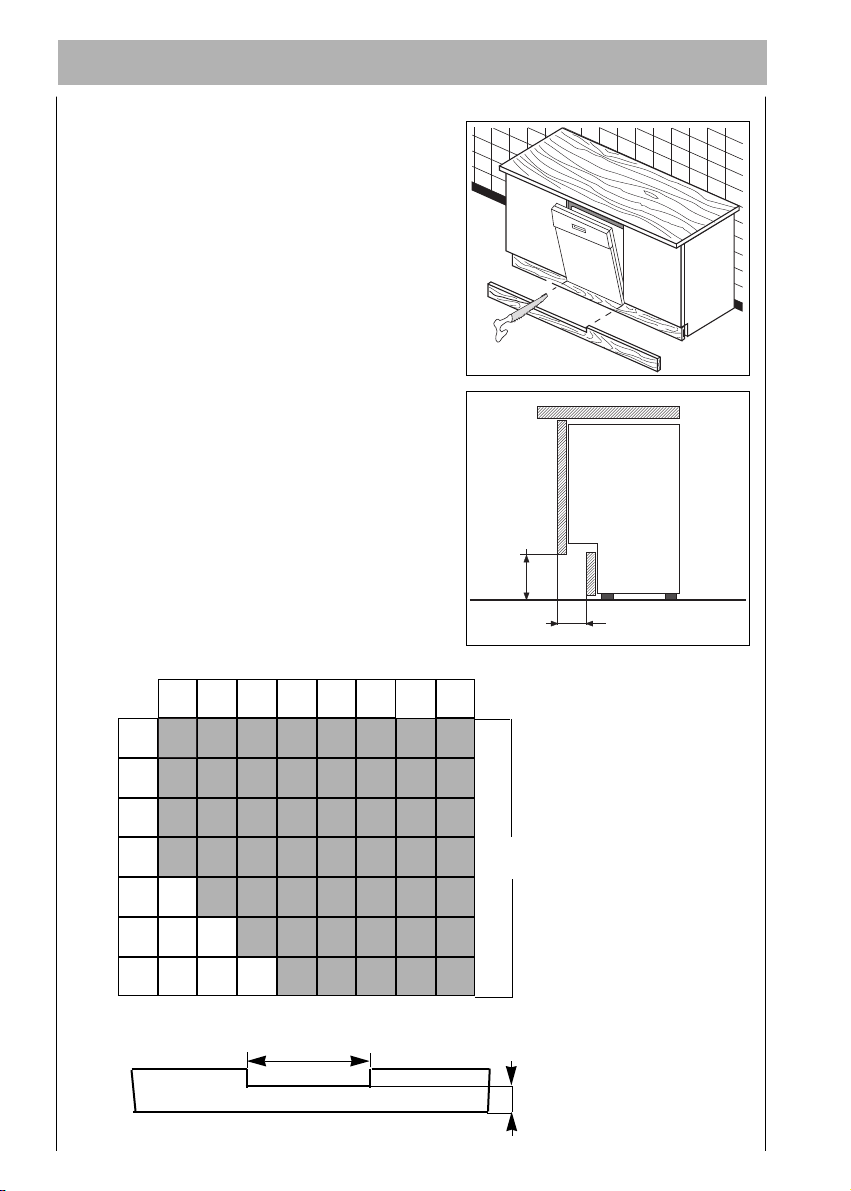

Building-in 34
Installation instructions 41
Connecting the water supply 41
Water outlet connection 41
Water protection system 43
Electrical connection 43
3
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of
technology and the Appliance Safety Act. We as manufacturers, however, see
ourselves as being obliged to familiarise you with the following safety
instructions.
Using your dishwasher for its intended purpose
● Only use your dishwasher for machine washing of household crockery. If
your machine is misused or used for any purposes other than that
for which it is intended, the manufacturer cannot be held liable for any
damage caused.
● For safety reasons, you should not convert or modify your dishwasher in
any way.
Before using your dishwasher for the first time
● Check your dishwasher for any transport damage. Never connect a
damaged machine. If your dishwasher is damaged, you should contact
your supplier.
● Your dishwasher must be correctly installed and connected. Please read
the section on "Installation" to make sure you know all about this.
● Before using your dishwasher for the first time, do not forget that the
nominal voltage and current type indicated on the rating plate of your
machine must be the same as the nominal voltage and current type at the
installation site. The necessary electrical fusing is also given on the rating
plate.
Child safety
● Packaging parts (e.g. foils, styrene foam) may be dangerous for
children,who could even be suffocated! You should therefore keep all
packaging well away from children.
● Children may not recognise the dangers of improper use of electrical
appliances. You should therefore ensure proper supervision during
operation and not allow your children to play with your dishwasher.
● Detergents may have a caustic effect on eyes, mouth and throat and may
even cause suffocation! Keep all detergents in a safe place out of
children’s reach.
4
● The water in your dishwasher should not be used for drinking. Detergent
residues may still be present in your machine. Make sure you do not
splash these caustic residues onto your skin or suffocate yourself! Keep
children well away from your dishwasher when its door is open.
Your dishwasher in day-to-day use
● Never operate your dishwasher if the electrical supply lead, supply or
drainhose, control panel, worktop or plinth are damaged.
● If there is a fault, first turn the water tap off. Then switch off your
machine and pull the plug out of the socket. If there is a fixed
connection, switch off or unscrew the fuse(s).
● Never pull the plug out of the socket by the cable - always hold the plug.
● Dishwasher repairs should only be performed by trained personnel.
Improper repairs may seriously endanger the user. If your dishwasher
needs to be repaired, you should contact our service centre or your
retailer.
● Never place any solvents in your dishwasher or you may cause an
explosion!
● Do not rest or sit on the open door or the machine could tilt.
● Before using special dishwasher salt, detergent or rinse-aid, make sure
that the manufacturer of these products expressly specifies their use in
domestic dishwashers.
● Always turn off the water tap when your dishwasher is left unattended
for any length of time, e.g. when you are away on holiday.
● Only transport the dishwasher in an upright position. Tipping it upside
down during transport could cause salty water to leak into the internal
compartment and lead to the formation of rust.
5
Disposing of packaging and old machine
Disposing of the packaging
Our dishwashers require effective protective packaging in transit, though we
always confine ourselves to what is absolutely necessary.
Warning! Packaging parts (e.g. foils, styrene foam) may be
dangerous for children, who could even be suffocated! You
should therefore keep all packaging well away from children.
All packaging materials used are environmentally compatible and reusable.
The cardboard parts are produced from recycled paper, and the wood is
untreated.
The plastics are marked as follows:
>PE< for polyethylene, e.g. packaging foils.
>PS< for polystyrene, e.g. padding (essentially CFC-Free).
>POM< for polyoxymethylene, e.g. plastic clamps.
Give the packaging for reuse to your local recycling centre. Your municipal or
local authority will give you its address.
Disposing of your old machine
When your machine finally reaches the end of its life and you withdraw it
from service, you should render it unserviceable before having it disposed of.
Warning! Children at play could lock themselves in your
machine (and suffocate) or otherwise endanger their lives.
Therefore pull out the main plug and detach and discard the
electrical supply lead.
Disable the door lock so that the door no longer closes.
Marking of plastic parts for graded recycling: all plastic parts in your
machine are marked with internationally standardised abbreviations (e.g.
<PS> for polystyrene). When your machine is disposed of, this enables plastic
waste to be sorted into individual types for environmentally conscious
recycling.
Take your decommissioned machine to your local recycling centre or dealer,
who will take it back from you for a small handling charge.
6
Economical and ecological dishwashing
● Only connect the dishwasher to the hot water supply if your hot water is
not electrically heated.
● Ensure that the water softener is correctly adjusted.
● Do not pre-rinse under running water.
● Select the wash programme to suit the nature and degree of the soiling
on the dishes.
● Do not use more detergent, special salt or rinse aid than is recommended
in these operating instructions and by the manufacturer of the respective
product.
7
1 2 3 4 5 6
Description of the appliance
2
3
4
5
6
7
8
9
IN97
1
The inside of the appliance
1. Upper basket stop
2. Upper spray arm
3. Salt container
4. Detergent dispenser
5. Control panel
6. Rinse aid dispenser
7. Filters
8. Lower spray arm
9. Upper basket
Control panel
1. On/Off indicator light
2. On/Off push button
3. Programme selection push buttons
8
4. Door handle
5. Programme phase indicator lights
As soon as you select a washing programme, this illuminates all the
phases the programme consists of.
As the programme progresses, the phase under way will illuminate. At
the end of the programme the phase indicator lights turn off.
Each phase is indicated with a symbol
VORSPÜLEN Prewash/Rinse and Hold
REINIGEN Wash
SPÜLEN Rinse
TROCKNEN Drying
6. Indicator lights
SALZ Salt
Illuminates when the salt has run out, to remind you
to refill the salt container.
KLARSPÜLER Rinse aid
Illuminates when the rinse aid has run out, to remind
you to refill the rinse aid dispenser.
9
Audible signals have been introduced to help indicate which operations
SO272
the dishwasher is performing.
"Instruction accepted" audible signal
When any of the push buttons are pressed, an audible signal informs you
that the machine has accepted the instruction given.
"Programme run" audible signal
An audible signal informs you that the washing programme is starting.
"End of programme" audible signal
An intermittent audible signal informs you that the wash programme has
ended.
"Alarm" audible signal
The machine is fitted with a number of alarm systems to help you determine
the cause of any problems (see "What to do, if...").
An audible signal informs you that an alarm is activated.
To deactivate these audible signals, press the programme push button
"NORMAL 65°" for about 3 seconds, at the end of which an audible signal
informs you that the audible signals have been deactivated.
To reactivate these audible signals, press the programme push button
"NORMAL 65°" for about 3 seconds, at the end of which an audible signal
informs you that the audible signals have been reactivated.
Both operations (to deactivate or reactivate the audible signals) must be
carried out before starting a washing programme; the setting will remain
memorised after switching off the dishwasher.
10
Before using your dishwasher for the first time
1. Ensure that the electrical and water connections comply with the
installation instructions.
2. Remove all packaging from inside the appliance.
3. Set the water softener.
4. Pour 0,5 l of water inside the salt container and then fill with salt.
5. Fill the rinse-aid dispenser.
Setting the water hardness range
The dishwasher is equipped with a water softener designed to remove
minerals and salts from the water supply, which would have a detrimental or
adverse effect on the operation of the appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, German, French degrees and
PPM (parts per Million).
The softener should be adjusted according to the hardness of the water in
your area. Your local Water Authority can advise you on the hardness of the
water in your area.
The dishwasher is factory set at level 3.
If this level is not suitable for your area the softener should be adjusted.
You may change the factory setting level by means of the wash programme
selector push buttons. Each push button corresponds to a different level (see
chart).
Level
1
2
3
4
5
Programme push button
INTENSIV 70°
NORMAL 65°
ENERGIE SPAR 50°
QUICK 50°
VORSPÜLEN
11
SO271
Water hardness
Use of saltLevel
NO
YES
YES
YES
YES
1
2
3
4
5
°dH
(german degrees)
0 - 4
5 - 11
12 - 22
23 - 39
40 - 50
°TH
(french degrees)
0 - 8
9 - 20
21 - 40
41 - 70
71 - 90
PPM
(parts per million)
0 - 80
81 - 200
201 - 400
401 - 700
701 - 900
If your water hardness is level 1 it is already soft and therefore there is
no need to use salt. With the setting of the water softener at level 0 the
salt indicator light on the control panel will always remain off.
The setting of a new level must occur with the dishwasher switched off.
To set a different level, proceed as follows:
1. Press simultaneously and keep pressed the "INTENSIV 70°" and "NORMAL
65°" programme push buttons.
2. Press the On/Off push button.
3. Always keeping pressed the "INTENSIV 70°" and "NORMAL 65°"
programme push buttons wait about 5 seconds until the indicator light
of the programme which corresponds to the current level comes on.
4. Press the "INTENSIV 70°" push button as many times as necessary until
the indicator light of the programme corresponding to the new level
comes on. 5 seconds after this push button has last been pressed the
dishwasher memorises the level selected and returns to the programme
setting mode.
12
Filling with special salt
SALE
SALT
SALZ
SEL
SR14
Caution! The packaging of dishwasher salt and detergents are often very
similar. The accidental filling of the salt compartment with detergent would
ruin the water softener. Each time you add salt, make sure the carton you
have in your hand really is salt.
Only use salt specifically designed for use in dishwashers.
All other types of salt not specifically designed for use in a
dishwasher, especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete
washing programmes (not the "Rinse and hold" programme).
This will prevent any grains of salt or salty water, which may
have been spilled, remaining on the bottom of the machine for
any period of time, which may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of
the salt container.
2. Pour 0,5 l of water inside the
container (this is necessary only
before filling with salt for the
first time).
3. Using the funnel provided, pour in
the salt until the container is full.
Do not worry if water overflows
from the unit when filling with
salt, this is quite normal.
4. Replace the cap making sure that
there is no trace of salt on the
screw thread or on the gasket.
5. Screw on the cap tightly.
When this has been done, all that is required is to periodically top up the
container with salt.
You are reminded of this by the salt indicator light on the control panel
which will illuminate when the salt has finished.
13
Important!
BR01
A
m
a
x
6
5
4
3
2
1
B
BR03
The salt refill indicator light on the control panel can remain illuminated for
2-6 hours after the salt has been replenished, assuring the dishwasher
remains on. If you are using salts that take longer to dissolve then this can
take longer. The function of the dishwasher is not affected.
The rinse-aid
The rinse-aid ensures brilliant crockery and also helps it to dry. It is
automatically dosed in during the hot rinsing cycle. The storage
compartment built in to the in side of the door can hold about 110 ml of
rinse-aid, which will be sufficient for between 16 and 40 dishwashing
programmes, according to the dosage setting.
Filling up the rinse-aid
1. Open the container by turning the
lid (A) anticlockwise.
2. Add the rinse aid until the
container is completely full. The
indicator (B) will be completely
dark.
Ensure that the lid is closed after every
refill.
Top up with rinse aid when the rinse aid
indicator light on the control panel
illuminates.
Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.
Attention! Do not put liquid detergent in
the rinse aid department.
14
Adjusting the dose
BR02
C
m
a
x
6
5
4
3
2
1
The correct dosage of the rinse-aid
should be regulated on the basis of
the shine and drying results.
For this purpose, set the quantity of
liquid by means of the six-position
selector (C) located on the inside of
the filler opening (minimum quantity
is position 1, maximum quantity is
position 6).
Use the tip of a knife or a screwdriver
to rotate the selector. If drops of
water or white marks remain on the
crockery after it has been washed,
gradually increase the dosage. If the
crockery comes out with whitish,
sticky streaks, reduce the dosage.
Start from position 3.
15
Loading cutlery and dishes
Sponges, household cloths and any object that can absorb water
may not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
● Cutlery with wooden, horn, china or
mother of pearl handles.
● Plastic items that are not heat resistant.
● Older cutlery with cement that is not
temperature resistant.
● Bonded cutlery items or dishes.
● Pewter or copper items.
● Lead crystal glass.
● Steel items subject to rusting.
● Wooden platters.
● Items made from synthetic fibres.
● Only wash stoneware in the dishwasher
● Glazed patterns may fade if machine
● Silver and aluminium parts have a
● Some types of glass can become dull
are of limited suitability:
if it is specifically marked as being
dishwasher-safe by the manufacturer.
washed frequently.
tendency to discolour during washing.
Left-overs, e.g. egg white, egg yolk and
mustard often cause discolouring and
staining on silver. Therefore always
clean left-overs from silver immediately,
if it is not to be washed straight after
use.
after a large number of washes.
Attention!
When buying new dishes, ensure that they are dishwasher proof.
Before placing dishes in the machine, remove any scraps of food, to avoid
clogging the filters and consequently reducing the performance.
Do not load very small items which can fall through the baskets.
Open the door and slide out the baskets.
16
The lower basket
UI51
The lower basket is designed to take
saucepans, lids, plates, salad bowls,
cutlery etc.
Serving dishes and large lids should be
arranged around the edge of the
basket, ensuring that the upper spray
arm can turn freely.
The two rear rows of prongs on the lower
basket can be easily lowered to allow tou to
load pots, pans and bowls.
To lower the prongs:
1. Slightly pull them upward and let them
drop down (see picture).
UI12
2. To bring them back to the standing
position, just pull them up again.
UI18
Cutlery basket
Place knives, forks and spoons in the cutlery basket with their handles
pointing downwards.
Arrange cutlery loosely and distribute it in all compartments so that each
individual article has good contact with washing water. Also do not arrange
spoons and forks with their dirty side in contact with each other.
17
To unload your dishwasher more easily, you can take the cutlery basket out
UI25
US60
of the lower basket and unfold it. This makes it easier to remove small pieces
of cutlery.
Important note! To prevent the full cutlery basket from inadvertently
unfolding when being taken out, place your hand right round the two-piece
handle and hold it firmly.
1. Place the cutlery basket on a firm support (table, worktop) and unfold
both handle parts.
2. After unfolding, fold back both handle parts.
UI20
Long bladed knives stored in an upright position are a
potential hazard.
Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as
knives.
The upper basket
The upper basket is designed for plates
(dessert plates, saucers, dinner plates up to
24 cm in diameter), salad bowls, cups and
glasses; these should be arranged as
shown in the pictures.
Glasses with long stems can be placed
upside-down in the raised cup-racks
The cup-rack on the left folds upwards to
increase your loading flexibility.
18
Arrange items on and underneath the fold-down cup racks so that water can
A
RC01
reach all surfaces.
Light items (plastic bowls etc.) should be loaded in the upper basket and
arranged so they do not move.
Before closing the door , ensur e that the spray arms can r otate freely.

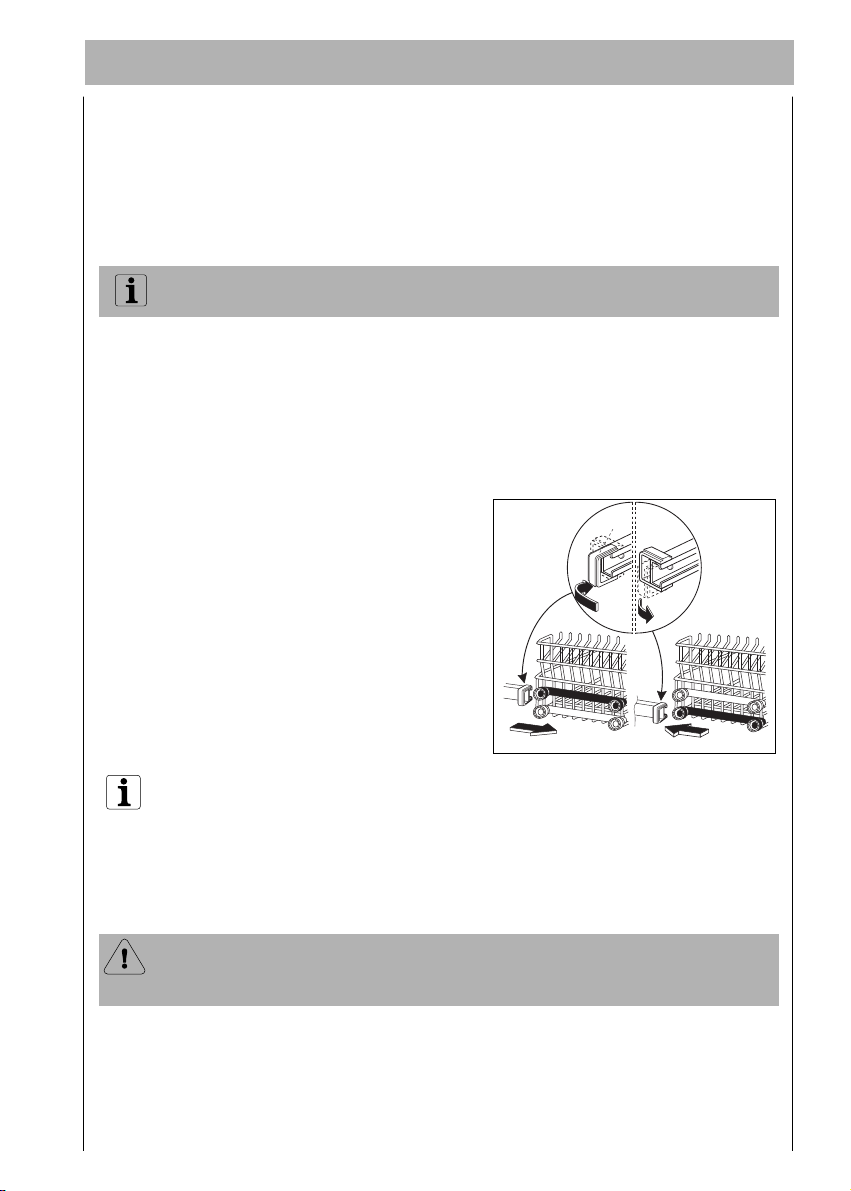

Adjusting the height of the upper basket
If washing very large plates (over 27 cm and up to 31 cm in diameter) you
can load them in the lower basket after moving the upper basket to the
higher position.
To move to the higher position proceed
as follows:
1. Move the front runner stops (A) of
the upper basket outwards and
slide the basket out.
2. Refit the basket in the higher
position and replace
the stops (A) in their original
position.
Attention!
When the top basket is in the higher position it will only take
plates up to 20 cm in diameter and you will not be able to use the
raised cup racks.
After loading your machine always close the door, as an open door
can be a hazard.
19

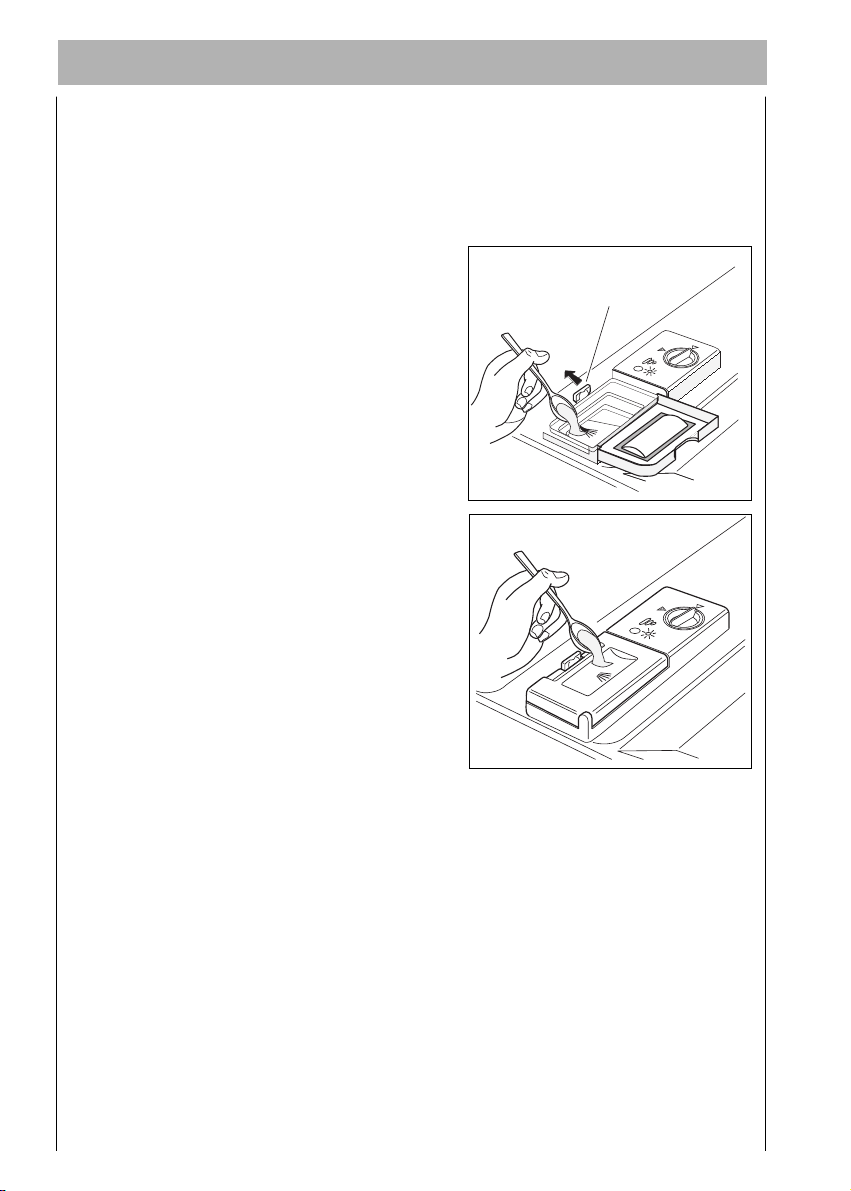

Use of detergent
DE02
Attention!
Only use detergents specifically designed for use in dishwashers.
If using powder detergents proceed
as follows:
1. Open the dispenser lid by pulling
the catch (D).
2. Add the detergent. As all
detergents are not the same, please
pay attention to the dosage
instructions from the manufacturer
of your brand.
Min = 15 g
Max = 30 g
D
MIN
MAX
3. Always close the lid.
DE17
4. If the programme has a prewash
add the required detergent over
the lid of the dispenser.
If using detergent in tablets proceed
as follows:
1. For all programmes; place 1 tablet
inside the detergent dispenser.
2. Always close the lid.
3. For all programmes with prewash;
place a portion of a further tablet
on the lid of the detergent
dispenser.
At the end of any washing programme the lid is always open, ready for the
next wash.
Since not all detergents are the same, you should also consult the
instructions on the packet.
20
Remember that insufficient quantities of detergent will produce
poor washing results whereas an excessive amount of detergent
does not improve washing results and is also wasteful.
Using no more than correct amount of detergent also contributes to
reducing pollution.
BIO programmes and compact powders
On the basis of their chemical composition, dishwasher detergents can be
classified into two groups:
- conventional, alkaline detergents with caustic components:
- low-alkaline compact powders with natural enzymes.
The enzymes in low-alkaline compact powders have a dirt-dissolving effect
and are also biodegradable. These enzymes deploy their full dirt-dissolving
power within a temperature range of 40-50°C. In BIO washing programmes,
the temperature range and duration of the heating phases are precisely
matched to the dirt-dissolving properties of the enzymes.
In combination with low-alkaline compact powders, BIO washing
programmes, at a temperature as low as 50°C, therefore achieve the same
cleaning results that would otherwise be achievable only with 65°C
programmes.
The lack of any caustic components in low-alkaline compact powders and
the lower cleaning temperature of BIO washing programmes not only relieve
the environment, but also care for your crockery.
21
Washing programmes
Programmes
Intensive
70°C
Normal
65°C
Economy
Bio 50°C
Quick
*
50°C
Rinse
and Hold
Type of soil
Type of load
Heavy soil.
Crockery, cutlery,
pots and pans
Normal soil.
Crockery and cutlery
Normal soil.
Crockery and cutlery
Light soil.
Crockery and party crockery
Partial load to be completed later in the
day. This programme does not require
detergent.
Required
push buttons
On
INTENSIV
Off
On
NORMAL
Off
On
Off
ENERGIE
SPAR 50°
On
Off
On
VORSPÜLEN
Off
70°
65°
QUICK
50°
This is a special programme for quick washing a full load of lightly soiled
*
dishes, glasses and crockery (except pots) so that you may re-use them
promptly.
Due to the shortness of this programme, no drying phase is provided.
22
Cycle description
Hot prewash
Main wash up to 70°C
2 cold rinses
1 hot rinse
Drying
Warm prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Cold prewash
Main wash up to 50°C
1 cold rinse
1 hot rinse
Drying
Main wash up to 50°C
1 cold rinse
1 hot rinse
1 cold rinse
(to avoid food scraps from sticking
to the dishes).
Approximate values
Programme
duration in
minutes
105 ÷ 115
90 ÷ 100
135 ÷ 145
35 ÷ 45
10
Energy
consumption
in kWh
1,4
1,2 15
0,8
0,7
0,1
**
Water
consumption
in litres
18
14
11
8
The times and consumption values are intended as a guide, and depend
**
on the pressure and temperature of the water and also by the variations
of the power supply.
23
Operating instructions
1. Check the filters
Ensure they are clean and properly positioned (see "Maintenance and
cleaning").
2. Press the On/Off push button
The On/Off indicator light will illuminate.
3. Check that there is rinse aid and salt
The corresponding indicator lights will illuminate if refilling is
necessary.
4. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the saucepans, plates and
cutlery in it.
Pull the upper basket out and arrange the plates, saucers, glasses and
cups etc. in it.
Slide the baskets back into the machine.
5. Ensure that the spray arms can rotate freely.
6. Add the detergent
As all detergents are not the same, you should also consult the
instructions on the packet.
Close the detergent dispenser lid.
7. Open the water tap
The setting of the programme may occur:
With open door, in this case the selected programme will start
automatically 5 seconds after the closure of the door.
With closed door, in this case the selected programme will start
automatically 5 seconds after the last pressure of a push button.
24
8. Setting and starting of the programme
● Select the wash programme by simply pressing one of the programme
push buttons, the indicator lights of the phases corresponding to the
programme will illuminate.
● If the setting of the programme has been made with the door
opened:
close the door and the programme will start automatically after 5
seconds. Until the door remains open you still have the possibility to
modify the setting made.
● If the setting of the programme has been made with the door
closed:
the programme will start automatically after 5 seconds from the last
pressure of a push button.
● The starting of the programme will be confirmed by an audible signal,
the indicator lights of the phases turn off except for the light of the
phase under way.
9. At the end of the washing programme
● The dishwasher will automatically stop and an audible signal informs
you that the programme has ended. The indicator lights of the
programme and phases turn off.
Press the On/Off push button to switch the dishwasher off and open
the door.
● Wait a few minutes before removing the dishes, in this way they will
be cooler and the drying will be improved.
Empty the lower basket first and then the upper one, this will avoid
water dripping from the upper basket onto the dishes in the lower
one.
● When the wash programme has finished, it is recommended that the
dishwasher is unplugged and the water tap turned off.
25
10. To cancel a programme
● This is possible either with an open or closed door.
● To cancel a wash programme in progress, press for about 5 seconds
the push button of the programme in progress. Once past 5 seconds
the dishwasher returns to setting mode and a new washing
programme can be selected.
● During the setting of a programme with open door, to cancel the
setting simply press the On/Off push button.
● Before the elapse of the 5 seconds from the last pressure of a
push button, to cancel the setting simply press the On/Off push
button.
Caution!
In general it is not advisable to open the door while the machine
is working; if the door is opened however, a safety device ensures
that the machine stops.
A programme underway is interrupted when you open the door.
- Close the door again. The programme will start again at the point it
was interrupted.
26
Caution!
Opening the door could let very hot steam escape: you risk being
scalded! Open the door with great care.
Do not open the door during the hot phase: this may cause hot
water escape.
Maintenance and cleaning
MA15
MA17
Internal and external cleaning
Do not under any circumstances use furniture care products or
aggressive cleaners.
If necessary, clean the controls only with a soft cloth and pure warm water.
The spray arms do not need cleaning.
Occasionally check the internal containers, door seal and water inlet for
soiling, clean if necessary.
We recommend every 3 months to run a 65°C wash programme without
dishes using detergent.
Cleaning the filters
The filters in the base of the washing compartment are to large extent
self-cleaning. Nevertheless the filters should be checked and cleaned
from time to time. Dirty filters will degrade the washing result.
1. Open the door, remove the
lower basket.
2. The dishwasher filter system
comprises a coarse/fine filter,
microfilter and a flat filter.
Unlock the filter system
using a handle on the
microfilter, and remove.
3. Turn the handle about
1
/4a
turn anticlockwise and
remove.
4. Take hold of the coarse/fine
filter (1/2) by the handle with
the hole and remove from
the microfilter (3).
5. Clean all filters thoroughly
under running water.
27

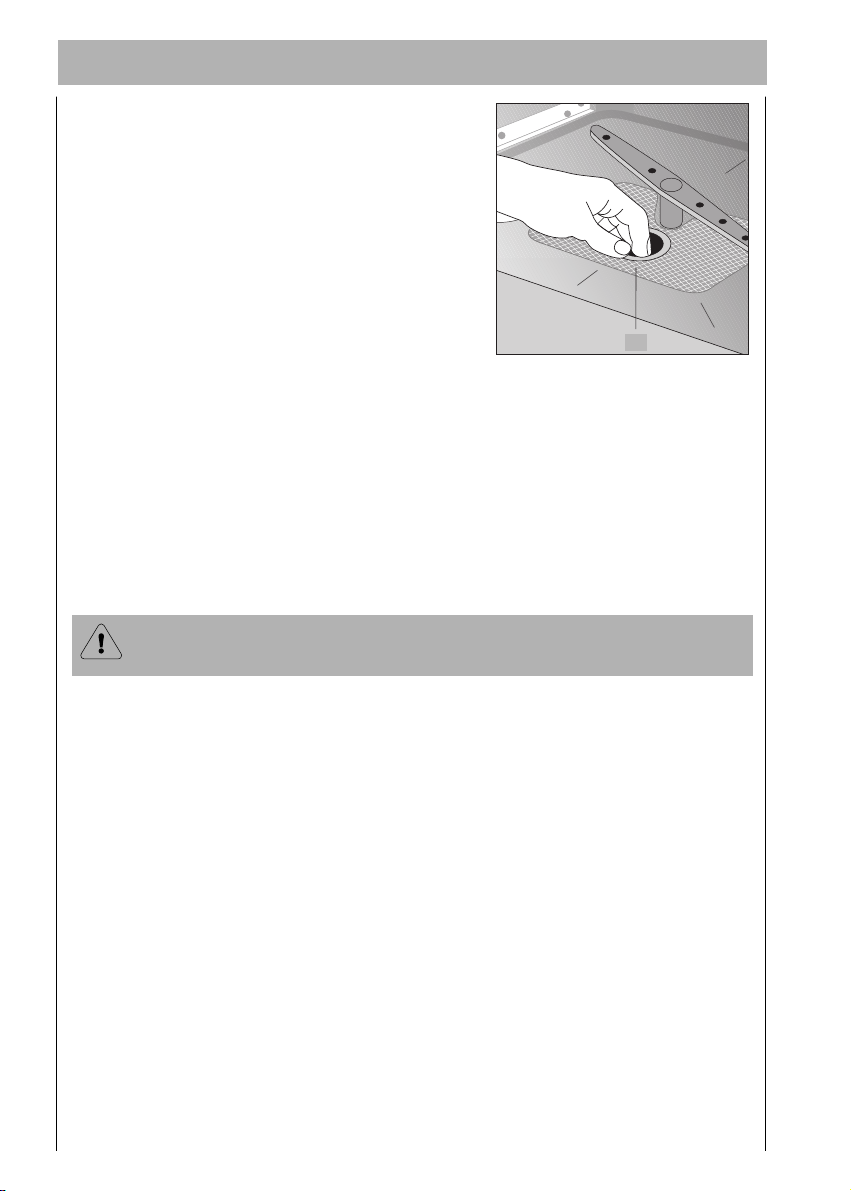

6. Remove the flat filter (4)
MA16
4
from the base of the washing
compartment and clean both
faces thoroughly.
7. Put the flat filter back in the
base of the washing
compartment.
8. Place the coarse/fine filter in
the microfilter and press
together.
9. Put the filter combination in
place and lock by turning the
handle clockwise to the stop.
During this process ensure
that the flat filter does not
protrude above the base of
the washing compartment.
Under no circumstances may the dishwasher be used without
filters.
28
What to do, when...
Try to rectify minor faults on the dishwasher with the aid of the instructions
given here.
...a flashing fault code appears
an audible signal informs you that an alarm has been activated, one or more
indicator lights of the phases is/are flashing.
They are indicative of a fault in the dishwasher that you can probably rectify
yourself.
- press the On/Off push button to switch the dishwasher off
- open the door and carry out the following suggested corrective actions.
Fault code
"VORSPÜLEN" and
"SPÜLEN" phase indicator
lights are flashing
"REINIGEN" and "SPÜLEN"
phase indicator lights
are flashing
"SPÜLEN" phase indicator
light is flashing
Other phase indicator
lights are flashing
Possible cause Remedy
The water tap is closed. Open the water tap.
The mains water supply has
been cut off.
The inlet hose may be
squashed or bent.
The inlet hose may be
blocked.

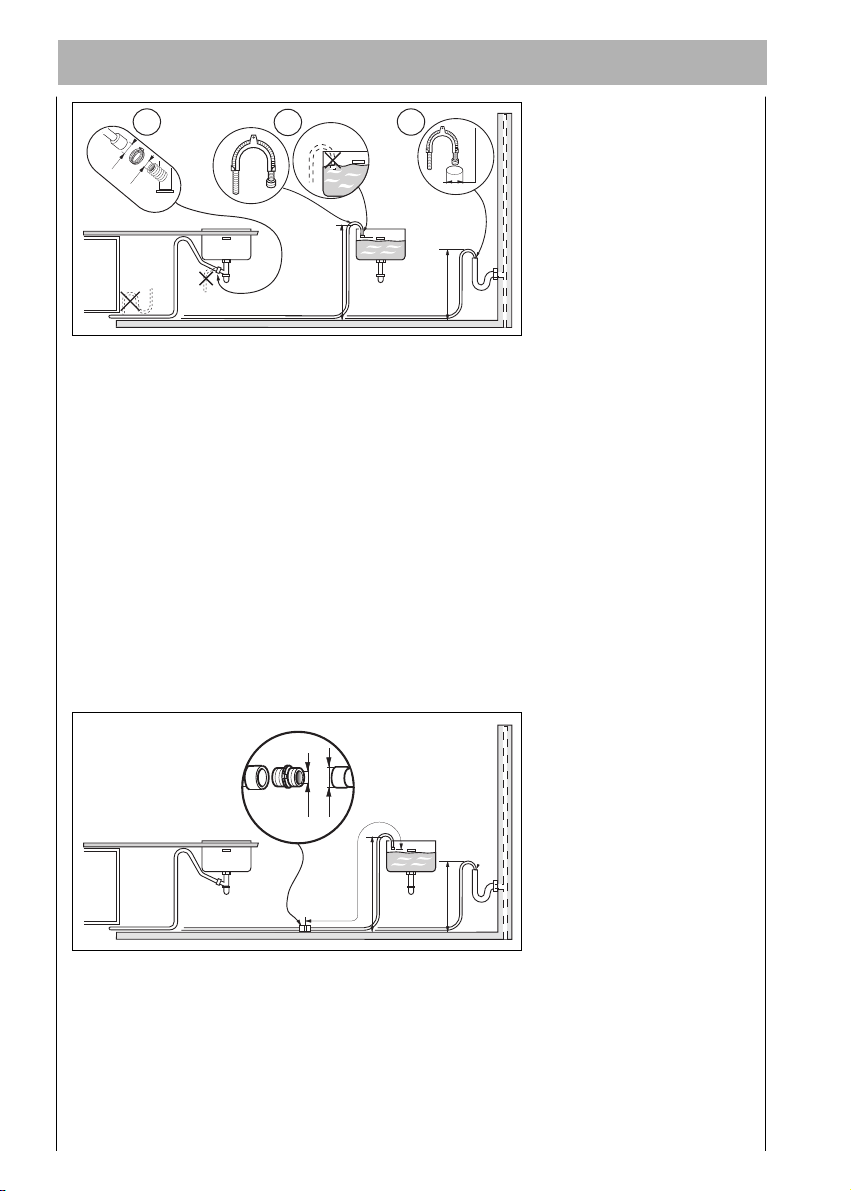

The drain hose may be
squashed or bent. The drain
hose extension is not
correct.
The sink may be blocked.
Protection against flooding
is active.
General
Reposition correctly the
hose.
Switch off the water
supply and clean the filter.
Reposition correctly the
drain hose. Follow the
instructions for
connecting to the waste.
Clear any blockages.
Close the water tap and
contact the Service
Centre.
Open the door, switch off
the dishwasher, switch
back on and start a wash
programme.
Once checked the possible causes listed above, switch on the dishwasher and
start a wash programme, if the fault code reappears contact the Service
Centre.
29
...problems occur during use of the dishwasher
Malfunction
The programme does not
start
The machine is noisy
The door is difficult to
close
Possible cause
The door has not been
properly closed.
The plug is not properly
inserted in the power
socket.
There is no current at the
socket.
Dishes are rattling against
each other.
The spray arms are
knocking against the
dishes.
The dishwasher is not level,
or not properly built-in.
Close the door.
Insert the plug.
Load correctly crockery,
cutlery, pots and pans.
Refer to "Loading cutlery
and dishes"
Refer to "Building-in"
instructions.
...the wash results are not satisfactory
Visible lime deposits or white film on the dishes
● Check that the right level of the water softener is setted.
● Check that there is salt.
The dishes are not quite dry
● The rinse aid has run out or too little is being used.
Remedy
The dishes are not clean
● The baskets are too full.
● The dishes have not been arranged properly.
● The spray arms do not rotate because incorrect loading of the baskets.
● The filters are clogged.
● The filters are not in position.
● Not enough detergent has been used or it is unsuitable.
● The detergent is old or has gone hard.
● The salt container cap is not properly closed.
● The washing programme is too gentle.
30
Customer service
F-NR
......
E- NR
......
Prod.No.
........
Ser. No.
.........
Mod.
........
In the section “Servicing", we have listed the most important faults which
you can rectify yourself. Should you still wish to call our Service Centre for
any of the specified faults or because the appliance is being wrongly
operated, the service engineer's visit cannot be made free of charge even
during the guarantee period.
Should you find no reference to a fault in the operating instructions, you
should call our Service Centre.
When making your call, quote the E-No. (product number) and F-No. (serial
number) indicated on the rating plate. It is located on the right inside edge
of the door.
To keep these numbers handy, we recommend you enter them here.
E-No .................................
F-No .................................
Your specifying these details enables the Service Centre to make precise
identification of the spare part required so that the appliance can be repaired
at the service engineer's first visit without your having to pay extra costs for
repeated journeys by the service engineer.
31
Hints for test centres
UI51
Before starting any test it is necessary to fill completely with salt the salt
container and with rinse aid the rinse aid dispenser.
Test standard
Reference programme
Load
Rinse aid selector
Detergent dosage
US65
EN 50242
- Economy BIO 50°C
9 standard place settings
position 4
- 20 g in the dispenser
- 5 g on the dispenser lid
Arrangement upper basket Arrangement lower basket
32
Technical data
Technical specifications
Dimensions
Electrical connection
Motor rating during wash
Power of heating element
Overall power
Water supply pressure
Capacity
This appliance complies with the following E.E.C. Directives:
- 73/23/CEE of 19/02/73 (Low Voltage Dir ective) and subsequent
modifications;
- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility
Directive) and subsequent modifications.
Width 44,6 cm
Height 81,8 - 87,8 cm
Max depth 57,5 cm
Max depth with open door 115,2 cm
230 V - 50 Hz
200 W
2100 W
2300 W
Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
9 place settings
33
Building-in
450
+
-
820
880
÷
818
878
÷
II98
446
575
max
550
max
This dishwasher is designed to be fitted under a kitchen counter or
worksurface.
It is essential that the recess dimensions indicated in the diagram are
followed.
No further openings for venting of the dishwasher are required, but only to
let the water fill and drain hose and power supply cable pass through.
The recess height may be anywhere between 820 and 880 mm from the floor
as the dishwasher incorporates adjustable feet (max 60 mm).
A distance of 2 mm should be allowed between the top of the dishwasher
and the counter top.
Adjusting the height of the appliance
To adjust the height proceed as follows:
1. Loosen or tighten the two front feet.
2. The rear foot is adjusted by turning the screw in the middle of the front
kick plate to the left or right.
34

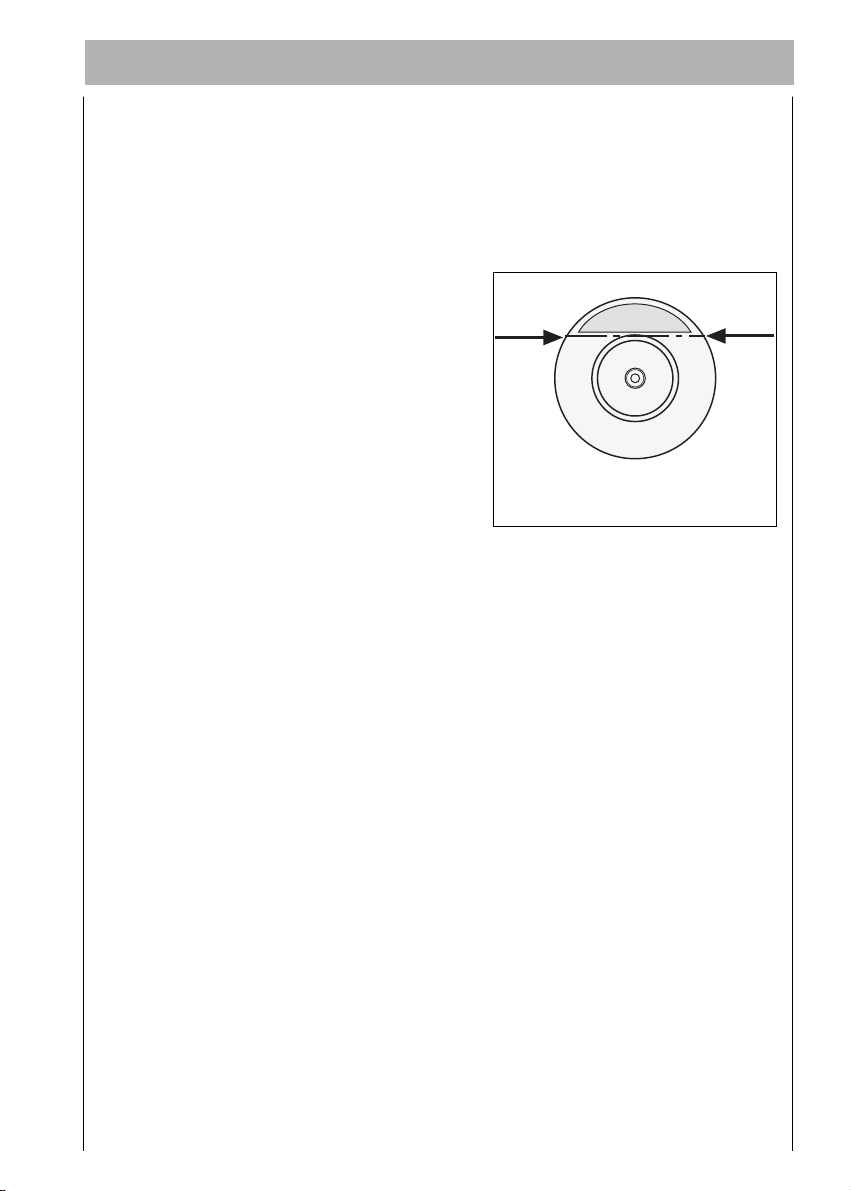

Pads are supplied for the feet to make sliding the appliance in and out of the
II52
recess easier.
To fit the pads, press them onto the feet.
If required, the dimensions of these pads can be reduced by breaking them
where marked.
Good levelling is essential for correct closure and sealing of the door. When
the appliance is correctly levelled, the door will not catch on the levelling
spacers, either side of the cabinet.
If the door does not close correctly, loosen or tighten the adjustable feet
until the machine is perfectly level.
35
The furniture door
II04
A
A
The door on this appliance is designed for the overlay of a panel having the
following dimensions:
Width 446 mm
Height 594 mm max
Thickness 20 mm max
Weight 1,5 - 6 kg max
The height of the panel depends on the height of adjacent kitchen units (see
kitchen plinth adjustment).
Attention!
The panel height should be no more than indicated, otherwise complete
opening of the door will not be possible as the furniture door panel will
hit against the dishwasher plinth.
Furtermore, it is possible to line up the control panel to correspond with the
height of the drawers of adjacent pieces of furniture, thus perfectly coordinating with style of the rest of the unit furniture in your kitchen.
Add one or more of the fillets provided until you reach the desired height.
Secure the fillets as shown in the picture, by means of two screws 4,2 x 55
provided therewith.
36
Prepare the panel as follows:
400
II96
1. Measure the distance (B) between the
part below the control panel (or fillets)
and the reference notch (X) on the
door.
B
1
X
2. Drill the panel with a Ø 2 x 14 bit
according to the dimensions given in
the picture.
3. Screw the two fastening pivots into the
holes indicated in the picture.
4. Mount the decor panel by inserting the
two fastening pivots into the slotted
holes of the door.
Lift the decor panel until perfect
alignment with the fascia panel is
obtained.
5. Once the correct position has been
found, open the door and fasten the
decor panel by means of the four 4 x
40 screws provided, using the holes
through the inner door.
II99
B
=
525
II91
=
2
II84
37
Fitting the vapour protection
450 mm
450 mm
II37
Screw the vapour protecting strip onto the
front part of the worktop using four 3,5 x
16 screws.
Fitting the sealing strips to the sides of the appliance
To ensure closer contact with adjacent
kitchen units, fit the plastic sealing strips
down both sides of the front of the
machine before inserting it into the
recess.
A
A
A A
II101
38
Securing under a counter
A
II100
Secure the dishwasher to the counter on
the front part by means of two 3.5 x 16
screws provided (see fig. - point A).
The dishwasher must be secured against
tilting. Therefore, make sure that the
counter it is fitted under, is suitably
secured to a fixed structure (adjacent
kitchen cabinets, wall).
Attention!
The sides of the dishwasher must never be drilled to prevent damage to
hydraulic components.
Adjusting the door balance
After the door panel, the adjustment of the door balance may be necessary.
The door of the dishwasher is balanced when it is open in any position.
For this purpose use the two front screws.
- Open the door.
- Remove the caps and screw or unscrew
the screws. In this way the tension of
the door balancing springs is increased
or decreased respectively.
- Insert the caps again.
45°
II102
Important!
The weight of the panel should be within the limits given in "The
furniture door" otherwise balancing the door will not be possible
39
Kitchen plinth adjustment
II59
To allow correct opening of the door it is
sometimes necessary to cut the kitchen
plinth. Refer to the cutting table.
According to dimensions (a) and (b) as
shown on the figure, you will find on the
following table the depth (x) of the cut to
be made on the plinth.
The dimensions (a) and (b) of the table are
those most frequently used in the kitchen
furnitures.
a
40
50
60
70
80
Depth (b)*
90
100 / /
(*) dimensions in mm
40
Height (a)*
170 160150 140 130 120110 100
136 131 125 118 110 100 93 85
135 131 125 118 110 102 92 85
137 132 125 118 110 102 94 85
138 134 128 120 110 104 95 85
/
139 130 124 115 105 98 88
/ /
/
138 129 120 110 100 90
135 125 115 105 95
450 mm
minimum
Dimensions of the cut on the plinth
II15
b
X
X
Installation instructions
Connecting the water supply
● Your dishwasher can be connected to either a cold or hot water supply of
max. 60°C.
● Never connect your dishwasher to open hot water appliances and
continuous flow heaters!
Nevertheless we advise you a cold water supply. A hot water supply is not
always efficient with very soiled crockery as it shortens the washing
programmes.
Avoid bends or kinks in the hose which could prevent or slow down the
water supply.
If the machine is connected to new pipes or pipes which have not been used
for a long time, you should run the water for a few minutes before
connecting the inlet hose. This will prevent deposits of sand or rust clogging
the inlet hose.
The water pressure must be within the limits given in the technical
specifications.
Your dishwasher has been built in accordance with the valid regulations
governing water-consuming appliances and is equipped with safety devices
which prevent used water from flowing back into the drinking water mains.
Water outlet connection
The end of the drain hose can be connected as follows:
1. To the sink outlet siphon, securing it if necessary with a clip.
2. Hooked over the edge of the sink using the special curved plastic guide
provided.
3. To a wall outlet provided with vent-hole, minimum internal diameter
4 cm.
The waste connection must be at a height of between 30 cm (minimum) and
100 cm (maximum) from the floor.
It makes no difference which way the drain hose faces, either to the right or
left of the dishwasher.
Avoid bending or kinking the hose as this could prevent or slow down the
discharge of water.
41
min 30 cm
max 100 cm
max 100 cm
+ 2 m max
CS10
Ø 18
Ø 21
2
31
CS09
Ø 21
Ø 18
max 100 cm
min 4 cm
min 30 cm
max 100 cm
Extension hoses
The necessary extension hoses can be obtained from specialist shops or from
our technical assistance centres.
The extension hose must be no longer than 2 metres and its internal
diameter must be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connection to the
waste outlet must be no smaller than the diameter of the drain hose.
Arrange the extension hose horizontally along the floor and allow it to rise
only where it is to be connected to the drain.
42
Water protection system
To protect your dishwasher from water damage, it is equipped with a water
protection system.
In cases of malfunction on the control panel the phase indicator light
"SPÜLEN" starts flashing.
In this case turn off the water tap and call the Service Centre.
Electrical connection
Before plugging the appliance into the wall socket, make sure that:
1. The mains voltage corresponds to the voltage given in the technical
specifications.
2. The meter, fuses, mains power supply and wall socket can all take the
maximum load required.
Make sure that the socket and plug are compatible without having to use
any type of adaptor. If necessary, have the domestic wiring system socket
replaced.
Safety standards require the appliance to be earthed.
The Manufacturer accepts no liability for failure to observe the
above safety precautions.
43
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
GB
152983 78/0
Loading...
