Electric oven
INSTRUCTION BOOKLET
35678-2101
Mod. EOQ 965
AU
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner
can get to know the functions of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the
appliance.
Installation
This oven is heavy and care must be taken when moving it.
Ensure that all packaging, both inside and outside the
oven, has been removed before the oven is used.
The oven must be installed according to the instructions
supplied. Any electrical work must be undertaken by a
qualified electrician.
It is dangerous to alter the specifications in any way.
After installation, please dispose of the packaging with due
regard to safety and the environment.
Child Safety
The appliance is not intended for use by young children or
infirm persons without supervision. Young children must
not be allowed to tamper with the controls or play near or
with the oven.
Ovens become very hot, and retain their heat for a long
period of time after use. Children should be kept well away
from the oven until it has cooled.
CAUTION - accessible parts will become hot when in use.
To avoid burns and scalds children should be kept away.
During Operation
Do not use this oven if it is in contact with water and never
operate it with wet hands.
Ensure that the oven shelves are installed in the correct
way.
Take great care when heating fats and oils as they will ignite
if they become too hot.
This oven has been designed for cooking edible foodstuffs
only and must not be used any other purposes.
Never place plastic or any other material which may melt in
or on the oven.
Only clean this oven in accordance with the instructions.
Take care to follow the recommendations given for tending
the food when grilling. Use the handles provided in the
recommended way.
Always grill with the oven door closed.
Always use oven gloves to remove and replace food in the
oven.
Ensure that you support the grill pan when removing it
from the oven.
Never line any part of the oven with aluminium foil.
Do not allow heatproof cooking material, e.g. roasting bags,
to come into contact with oven elements.
Always stand back from the oven when opening the oven
door, to allow any build-up of steam or heat to release.
Stand clear when opening the drop down oven door.
Do not allow it to fall open - support it using the door handle,
until it is fully open.
Do not place sealed cans or aerosols inside the oven. They
may explode if they are heated.
Do not hang towels or clothes from the oven or its handle.
They are a safety hazard.
After Use
Ensure that all control knobs are in the OFF position when
not in use.
For hygiene and safety reasons, this oven should be kept
clean at all times. A build-up of fats or other foodstuffs could
result in a fire, especially in the grill pan.
Only clean this oven in accordance with the instructions.
Always allow the oven to cool down before switching off at
the wall prior to carrying out any cleaning or maintenance
work.
Do not leave utensils containing foodstuffs, e.g. fat or oil in
or on the oven in case it is inadvertently switched ON.
Under no circumstances should you attempt to repair the
appliance yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning. Refer
to your local Service Centre. Always insist on genuine spare
parts.
Environmental Information
After installation, please dispose of the packaging with due
regard to safety and the environment.
When disposing of an old appliance, make it unusable, by
cutting off the cable. Remove any door catches, to prevent
small children being trapped inside.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS, contact the
Customer Care Department.
Guide to use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
F
Hints and Tips
Environmental Information
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
2
Contents
For the User
Important Safety Information 2
Grilling 15
Description of the Oven 3
Control Panel 4
Using the Oven 7
Before the First Use 7
Hints and Tips 8
Programming the Oven 9
Safety and Energy Saving Functions 10
The Fan Oven 11
The Conventional Oven 12
Defrosting 14
Pizza Oven 18
Baking Function 18
Cleaning the Oven 19
Care of catalytic liners 20
Something not working 22
For the Installer
Electrical Connection 23
Installation 23
Building In 24
Description of the Oven
B
Control
Panel
Grill Element
Oven Light
Fan
Telescopic
Runners
Rating Plate
Anti-tip shelf
Dripping pan
3
Control Panel
Cooking Function Display Time display
}
B
1 2 3 4 5 6 7 8 9
Push Buttons
1. ON / OFF
2. Oven Function Control
3. Fast Heat Up / Defrost Function
4. Temperature Control / Current Temperature
5. Decreasing Control (Time or Temperature)
6. Increasing Control (Time or Temperature)
7. Minute Minder
8. Cooking Time
9. End of Cooking Time
"On/Off" Push Button
The oven must be switched on before setting any cooking
function or programme. When button is pressed, the
pilot light above will come on, and the oven light will switch
on.
To switch off the oven, you can press button at any
time. Any cooking function or programme will stop, the
oven light will switch off and the time display will show
the time of day only.
When button is pressed, the display will show
the current internal temperature if the oven has
not completely cooled down.
Temperature
display
}
Programming
Controls
All the oven functions are controlled by an electronic
programmer.
You can select any combination of cooking function,
cooking temperature and automatic timing.
In the event of a power failure, the programmer will
keep all the settings (time of day, programme
setting or program in operation) for about 3
minutes. If power is not restored within 3 minutes,
all the settings will be cancelled. When the power
is restored, the numbers on the display will flash,
and the clock/timer has to be reset.
Oven Function Control Push
Button
Push button allows you to select the cooking function.
Each time you push this button, a pilot light will come on
in the Oven Function Display, showing which cooking
function has been chosen.
Increase and Decrease Push
Buttons
Push buttons and allow you to increase or decrease
temperature or time settings.
4
How to set the Time of Day
The oven has a 24 hour clock.
When the oven is first connected to the electrical supply,
the display will automatically show 12:00.
If no button is pressed within 10 seconds, the numbers
will stop flashing and the clock will start running from
12.00.
To set the correct time of day :
If numbers are flashing:
press button or . When the correct time is
F
F
displayed, confirm the setting by pressing button
. The clock will start running.
If numbers are static:
press buttons and at the same time and
keep them pressed until the numbers start flashing.
Release buttons and , then adjust the
time by pressing buttons or and confirm by
pressing button .
How to select a Cooking
Function and Temperature
The oven has 8 different cooking functions. For each of
them, a pre-set temperature will be automatically
selected.
1) Switch on the oven by pressing the "ON"
F
button.
2) Press button to select the required oven
function. Each time button is depressed, a
pilot light will come to the left of the currently
selected cooking function symbol.
3) If the pre-set temperature is not suitable, press
button or to adjust the temperature in 5
degree steps.When the required temperature is
reached an acoustic alarm will sound for a short
time.
You can also get the current internal temperature by
pressing button once.
If the internal temperature is higher than the
selected temperature (e.g. when a cooking
function has been completed and the oven is still
hot) the internal temperature will not be displayed.
5
Cooking Function Symbols

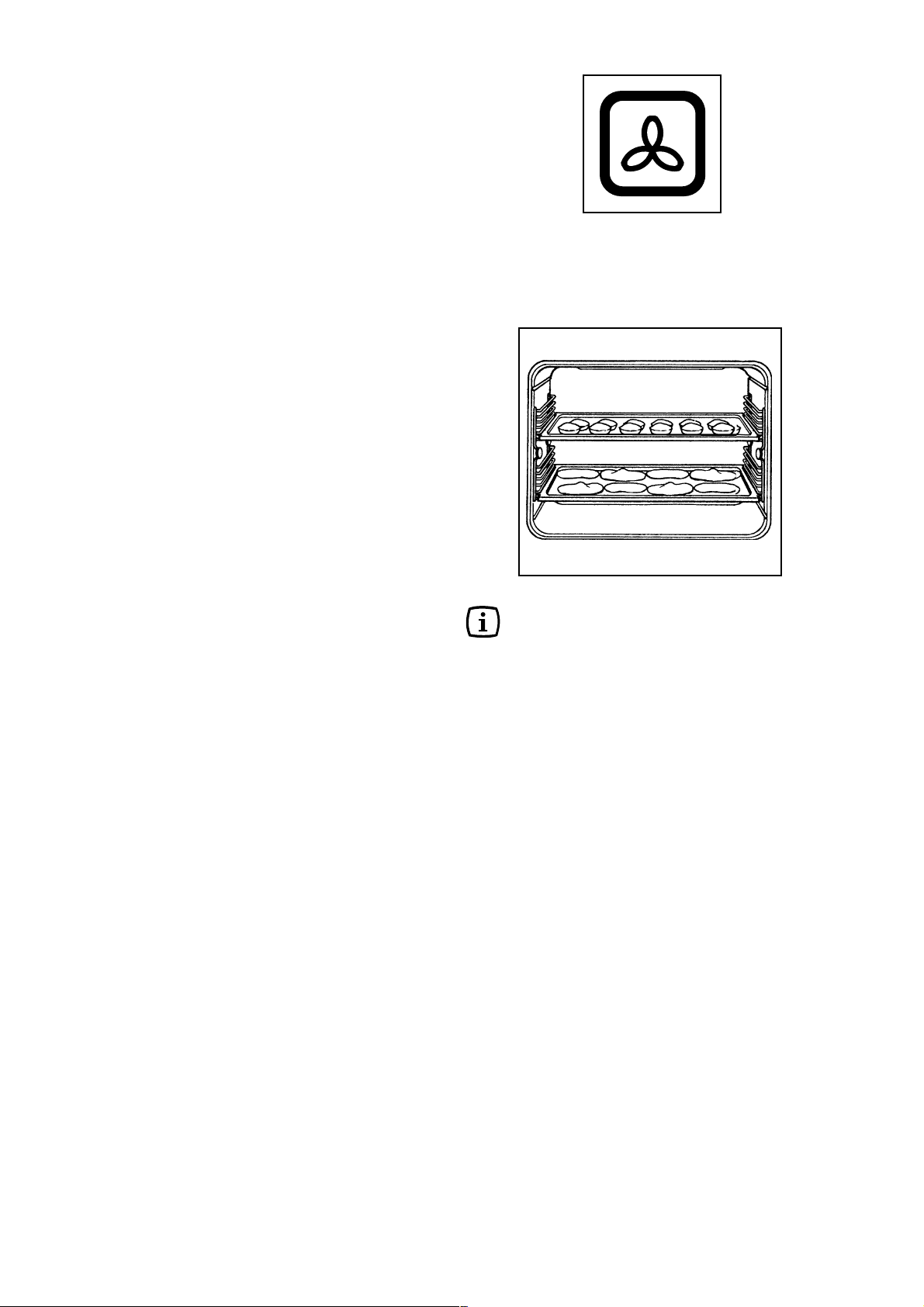

Fan cooking - This setting allows you to roast or
roast and bake simultaneously using any shelf,
without flavour transference.
Conventional cooking - The heat comes from
both the top and bottom element, ensuring even
heating inside the oven.

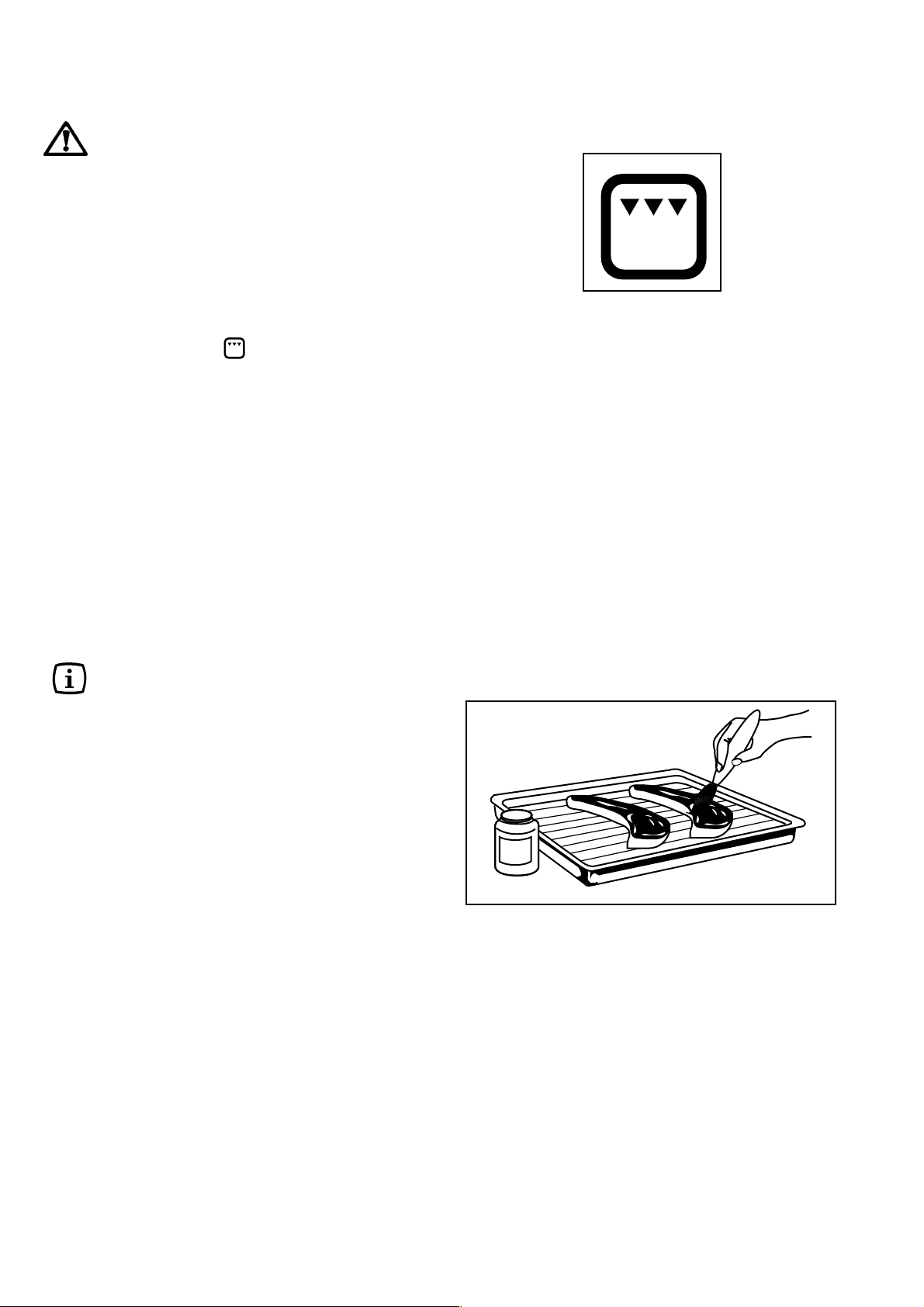

Full Grill - The full grill element will be on.
Recommended for large quantities.
Pizza Oven - The bottom element provides direct
heat to the base of pizzas, quiches or pies, while
the fan ensures air is circulated to cook the pizza
toppings or pie fillings.
"Fast Heat Up" function
After a cooking function has been selected and the
temperature has been adjusted, the cavity will gradually
heat up until the selected temperature is reached. This
will take from 10 to 15 minutes, depending on selected
function and temperature.
If it is necessary to reach the required temperature in a
shorter time, the "Fast Heat Up" Function can be used.
1) Switch the oven on by pressing button .
F
2) Set the required cooking function and
temperature as explained in the previous pages.
Thermal Grilling - This function offers an alternative method of cooking food items, normally
associated with conventional grilling. The grill
element and the oven fan operate together,
circulating hot air around the food. Select a
maximum temperature of 200°C.
Baking Function - The top and bottom elements
heat the oven cavity and the fan circulates hot air
around your dishes. Best for baking cakes, biscuits
or bread.
Bottom heating element - The heat comes from
the bottom of the oven only, to allow you finish your
dishes.
Inner grill element only - can be used for grilling
small quantities.
3) Press button
display will show "FHU".
4) When the required temperature is reached, an
acoustic alarm will sound for a short time, and the
temperature display will revert to the set
temperature.
This function can be used with any cooking function or
temperature.
once. The temperature
B
Defrost Function
It is possible for the oven fan to operate without heat and
circulate the air, at low temperature, inside the oven.
This increases the speed of defrosting.
1) Switch the oven on by pressing button .
F
2) Press button
display will show "32". This temperature setting
cannot be changed.
3) To switch the "defrost" function off, just press
button
and the display will only show the time of day.
once again. The oven will switch off,
B
twice. The temperature
B
This function is particularly suitable for defrosting delicate
food which could be damaged by heat, e.g. cream filled
gateaux, iced cakes, pastries, bread and other yeast
products.
6
Before the First Use
Remove all packaging, both inside and outside
the oven, before using the oven.
Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.
1. Switch on the oven by pressing the "ON" push button.
2. Press button twice. The pilot light to the left of
symbol will come on.
3. Set the temperature to 250°C using the "Increase"
button (push button ).
4. Open a window for ventilation.
5. Allow the oven to run empty for approximately 45
minutes.
This procedure should be repeated with the full grill
function and the fan oven function for
approximately 5-10 minutes.
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the oven door.
Telescopic shelf supports
Shelf level 2 is fitted with telescopic shelf
F
supports.
1. Pull the right and left hand telescopic shelf supports
completely out, as shown in the diagram.
2. Place the shelf or the grill pan on the telescopic
shelf supports, as shown in the diagram, then gently
push them all inside the oven.
Do not attempt to close the oven door if the
telescopic shelf supports are not completely
inside the oven. This could damage the door
enamel and glass.
The oven has four shelf levels, counted from the
bottom, as shown in the diagram. Your oven is
supplied with three anti-tip shelves.
It is important that these shelves are correctly
positioned as shown in the diagram. Shelf level 2
is fitted with telescopic shelf supports.
Do not place cookware directly on the oven
base.
4
3
2
1
YES
Attention!
Do not place pans, dripping pans, biscuit pans or
aluminium foil on the oven bottom. This could cause a
heat build-up which would affect the baking results and
damage the oven enamel.
NO
7
Hints and Tips
Condensation and steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back from
the oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
Use any oven proof cookware which will withstand
temperatures of 250°C.
Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back
of the oven, or placed on the oven base.
Do not use baking trays larger than 30 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation of
heat and may affect performance.
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat to
the food inside them.
A Aluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and base browning.
B Enamelled cast iron, anodized aluminium, aluminium
with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and base browning.
Cooling fan
The cooling fan operates during cooking. Air is expelled
through vents between the oven door and the control
panel, as shown in the diagram.
The cooling fan may run on after the oven is switched off
to keep the controls cool. This is quite normal.
The Safety Thermostat
This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Force Centre. Under no circumstances should you
attempt to repair the appliance yourself.
8
Programming the Oven
How to set the minute minder
F
1) Press button to select the Minute Minder
Function. The relevant pilot light will flash and the
control panel will display 0.00.
2) Press button or within 3 seconds to select the
required time (up to 19 hours 59 minutes). The Minute Minder will wait 3 seconds and then start running.
3) The display will revert to the time of day. To check the
minute minder, press button .
4) When the programmed time has elapsed, an acoustic
alarm will be heard. The oven will NOT switch off if in
use.
5) To switch off the acoustic alarm, press any button
between 4 and 9. The Minute Minder pilot light will
go out.
To cancel the Minute Minder:
F
press button and, while keeping it pressed,
press button too.
To programme the Oven to
F
switch off
1) Place food in the oven, select a cooking function and
adjust the cooking temperature if required.
2) Press button to select the Cooking Duration
function. The Cooking Duration pilot light will flash
and the control panel will display 0.00.
3) Press button or to select the required time (up
to 19 hours 59 minutes). The programmer will wait 3
seconds and then start running.
4) The display will revert to the time of day. To check the
cooking time, press button .
5) When cooking time is over, the oven will be switched
off automatically and an acoustic alarm will be heard.
6) To switch off the acoustic alarm, press any button
between 4 and 9. The Cooking Duration pilot light will
go out.
To cancel the Duration Time:
F
press button and, while keeping it pressed,
press button too.
If this operation is carried out while a
program is running on, the oven will NOT
switch off.
When a Cooking Duration time is set, the oven
will switch off a few minutes before the end of the
programmed time, and use the residual heat. See
Safety and Energy Saving Functions.
9
To programme the Oven to
F
switch on and off
1) Carry out the cooking duration setting as described
in To programme the Oven to switch off.
2) Press button
will be selected, and the relevant pilot lamp will
flash. The control panel will display the end of
cooking time (that is, the actual time + cooking
duration).
3) Press button or within 3 seconds to select the
required end of cooking time.
4) The programmer will wait 3 seconds, then the
cooking duration time will appear on the control
panel. When the oven switches on, the display will
revert to the time of day.
If you press button the display will show the
end of cooking time.
5) The oven will switch on and off automatically. The
end of cooking will be marked by an acoustic alarm.
6) To switch off the acoustic alarm, press any button
between 4 and 9. The pilot lamps will go off.
To cancel the programme, simply cancel the
F
Duration Time.
Press button and, while keeping it pressed,
press button too.
If this operation is carried out while a programme
is running on, the oven will NOT switch off.
. The "End of Cooking" function
Safety and Energy Saving Functions
Safety Cut-Off Function
If no changes are made to the oven settings, the oven will
switch off automatically according to the following table:
If temperature setting is: the oven will switch off:
250°C or more after 1 1/2 hours
from 120 up to 250°C after 5 hours
less than 120°C after 12 hours
Child Safety Function
F
To avoid children switching on the oven, it is possible to
lock the oven controls.
1) Turn off the oven by pressing button .
2) Press buttons and at the same time and keep
them pressed for about 3 seconds. A flashing dot will
be displayed after the time of day.
3) The oven is now locked. Neither oven functions nor
temperatures can be selected.
Residual Heat Function
When a Cooking Duration time is set, the oven will
automatically switch off a few minutes before the end of
the programmed time, and use the residual heat to finish
your dishes without energy consumption. The oven pilot
light will remain on until the Cooking Duration time is
over.
This function will not operate when the Cooking Duration
time is less than 15 minutes.
To unlock the oven:
F
Press buttons and at the same time and
keep them pressed for about 3 seconds. The
flashing dot will go off. The oven can now be
operated.
10
The Fan Oven
The air inside the oven is heated by the element around
the fan situated behind the back panel. The fan circulates
hot air to maintain an even temperature inside the oven.
The advantages of cooking with this function are:
l
Faster Preheating
As the fan oven quickly reaches temperature, it is not
usually necessary to preheat the oven although you
may find that you need to allow an extra 5-7 minutes
on cooking times. For recipes which require higher
temperatures, best results are achieved if the oven
is preheated first, e.g. bread, pastries, scones,
souffles, etc.
l
Lower Temperatures
Fan oven cooking generally requires lower
temperatures than conventional cooking.
Follow the temperatures recommended in the
cooking chart. Remember to reduce temperatures by
about 20-25°C for your own recipes which use
conventional cooking.
l
Even Heating for Baking
The fan oven has uniform heating on all shelf
positions. This means that batches of the same food
can be cooked in the oven at the same time.
However, the top shelf may brown slightly quicker
than the lower one.
This is quite usual. There is no mixing of flavours
between dishes.
1. Switch the oven on.
F
2. Press the Oven Function Control button once.
3. If necessary adjust temperature setting using
the "Increase" or "Decrease" buttons.
THINGS TO NOTE
l
The oven light will come on when the oven is switched
on.
l
The cooling fan will operate continually during cooking.
It may run on after the oven is switched off to keep
the controls cool. This is quite normal.
NOTE
The action of the cooling fan will depend on how long the
oven has been used and at what temperature. It may not
switch on at all at lower temperature settings nor run on
where the oven has only been used for a short time.
FAN OVEN FUNCTION SYMBOL
PRE-SET TEMPERATURE: 175°C
TEMPERATURE SELECTION: 50°C - 250°C
FO 2079
Hints and Tips
Shelf positions are not critical, but make sure the shelves
are evenly spaced.
When cooking more than one dish in the fan oven, place
dishes centrally on the shelves rather than several dishes
on one shelf.
When the oven is full, you may need to allow a slightly
longer cooking time.
A shelf may be placed on the floor of the oven. Place
dishes on a shelf in this position rather than on the oven
base, to allow air circulation around the food.
When the oven is full of the same food, e.g. equal trays
of small cakes or equal size victoria sandwich cakes,
then they will be cooked in the same time and removed
from the oven together. When different sizes of trays or
types of food, e.g. biscuits and cakes are cooked, they
will not necessarily be ready together.
The fan oven can be used to heat foods through without
thawing first, e.g. fruit tarts, mince pies, sausage rolls,
and other small pastry items. Use a temperature of 190200°C and allow 20-40 minutes (depending on the quantity
of food in the oven).
The use of too high temperatures can cause uneven
browning. Check with the recommendations for oven
temperatures given in the cooking charts, but be prepared
to adjust the temperature by 10°C if necessary.
Remember to reduce temperatures by about 20-25°C for
your own conventional recipes.
The meat tin should not be placed on a heated hotplate
or burner as this may cause the enamel to crack.
11
The Conventional Oven
When using this setting, heat comes from both the top
and bottom elements. This allows you to cook on a single
level and is particularly suitable for dishes which require
extra base browning such as quiches and flans.
Gratins, lasagnes and hotpots which require extra top
browning also cook well in the conventional oven. This
form of cooking gives you the opportunity to cook without
the fan in operation.
How to Use the
F
Conventional Oven
1. Switch the oven ON.
2. Select the Conventional Oven Function by pressing
the Oven Function control button until the pilot light
to the left of symbol comes on.
Bottom oven element only
This function is particularly useful when blind-baking
pastry. It may also be used to finish off quiches or flans
to ensure the base pastry is cooked through.
Pre-set temperature is 250°C.
THINGS TO NOTE
During cooking, the cooling fan will operate in the same
way as described for the fan oven function.
Hints and Tips
The middle shelf position allows for the best heat
distribution. To increase base browning simply lower the
shelf position. To increase top browning, raise the shelf
position.
CONVENTIONAL OVEN FUNCTION SYMBOL
PRE-SET TEMPERATURE: 200°C
TEMPERATURE SELECTION: 50°C - 250°C
The material and finish of the baking trays and dishes
used will affect base browning. Enamelware, dark, heavy
or non-stick utensils increase base browning, while oven
glassware, shiny aluminium or polished steel trays reflect
the heat away and give less base browning.
Always place dishes centrally on the shelf to ensure
even browning.
Stand dishes on suitably sized baking trays to prevent
spillage onto the base of the oven and make cleaning
easier.
Do not place dishes, tins or baking trays directly on the
oven base as it becomes very hot and damage will occur.
For faster preheating use the Fast Heat-Up Function.
Single level cooking gives best results. If you require
more than one level cooking use the fan oven function.
12
Cooking Chart - Fan and
Conventional Oven
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures
by 10 °C to suit individual preferences and requirements.
NOTE: Shelf positions are counted from bottom of the oven.
Fan Oven Conventional Oven
Food Shelf Cooking Shelf Cooking
Position Temp (°C) Position Temp (°C)
Biscuits 180-190 2 - 3 180-190
Bread 210-220 2 210-220
Casseroles 130-140 2 150-180
Cakes: Small and queen 160-170 2 170-180
Sponges 160-170 2 180-190
Madeira 140-150 2 160-170
Rich Fruit 130-140 2 150-160
Christmas 130-140 1 - 2 130-140
Meringues 90-100 2 100-110
Fish 170-190 2 170-190
Fruit Pies and Crumbles 190-200 2 190-200
Milk Puddings 130-140 2 130-140
Pastry: Choux 2 - 3 160-170
Shortcrust
Flaky 190-200 2 190-200
Puff
Plate Tarts 180 1 - 2 190-200
Quiches/Flans 170-180 1 - 2 190-200
Scones 210-220 2 230
Roasting: Meat & Poultry 160-180 2 180-200
}
Shelf
positions
are not
critical but
ensure that
oven
shelves are
evenly
spaced
when more
than one is
used.
13
Defrosting
The oven fan operates without heat and circulates the
air, at room temperature, inside the oven. This increases
the speed of defrosting. However, please note that the
temperature of the kitchen will influence the speed of
defrosting.
This function is particularly suitable for defrosting delicate food which could be damaged by heat, e.g. cream
filled gateaux, iced cakes, pastries, bread and other yeast
products.
How to Use Defrosting
F
1) Switch the oven on by pressing button 1.
2) Press button 3 twice.
Hints and Tips
Cover food with a lid, aluminium foil or plastic film to
prevent drying out during defrosting.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
Frozen food should be placed in a single layer when
ever possible and turned over half way through the
defrosting process.
Only joints of meat and poultry up to 2 kg. (4 lb.) are
suitable for defrosting in this way.
Refer to the following table for approximate defrosting
times.
B
DEFROSTING FUNCTION SYMBOL
PRE-SET TEMPERATURE: 32°C
TEMPERATURE SETTING CANNOT BE
CHANGED
Food
Chicken 1000 g. 100-140 20-30 Place the chicken on an inverted
Meat 1000 g. 100-140 20-30 Defrost open and turn at
Meat 500 g. 90-120 20-30 As above
Trout 150 g. 23-35 10-15 Defrost open
Strawberries 300 g. 30-40 10-20 Defrost open
Butter 250 g. 30-40 10-15 Defrost open
Cream 2 x 200 g. 80-100 10-15 Defrost open (cream is
Cake 1400 g. 60 60 Defrost open
The times quoted in the chart should be used as a guide only, as the speed of defrosting will depend on the kitchen
temperature. For example, the colder the room temperature, the longer the defrosting time.
Defrosting time
(Mins)
Standing time
(Mins)
Notes
saucer on a large plate. Defrost open
and turn at half time or defrost
covered with foil. Remove giblets
as soon as possible.
half time or cover with foil
easy to whip even if parts
of it are still slightly frozen)
14
Grilling
Grilling must be carried out with the oven door
closed.
Always use oven gloves to remove and replace
food in the oven.
Ensure that you support the grill pan when
removing it from the oven.
How to Use the Grill
F
1. Switch the oven ON.
2. Press the Cooking Function Control Button until the
pilot light to the left of comes on.
3. If necessary, press the "Increase" or the "Decrease"
buttons to adjust the temperature setting.
4. Adjust the grid and grill pan runner position to allow
for different thicknesses of food. Position the food
close to the element for faster cooking and further
away for more gentle cooking.
Preheat the grill on a full setting for a few minutes before
sealing steaks or toasting. Adjust the heat setting and
the shelf as necessary, during cooking.
GRILLING FUNCTION SYMBOL
PRE-SET TEMPERATURE: 250°C
TEMPERATURE SELECTION 50°C - 250°C
During cooking, the cooling fan and the thermostat
control light will operate in the same way as described
for the fan oven function.
Hints and Tips
- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish lightly
with a little oil or melted butter to keep them moist
during cooking.
- When toasting bread, we suggest that the top runner
position is used with the grid in its 'high' position.
- The food should be turned over during cooking, as
required.
The grill element is controlled by the thermostat.
During cooking, the grill cycles on and off to
prevent overheating.
O
L
I
15
How to Use the Inner Grill
F
Element
The inner grill provides quick direct heat to the central
area of the grill pan. Use the inner grill element for
cooking small quantities, it can help to save energy.
1. Switch the oven ON.
2. Press the Cooking Function Control Button until the
pilot light to the left of comes on.
3. If necessary, press the "Increase" or the "Decrease"
buttons to adjust the temperature setting.
4. Adjust the grid and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.
How to Use the Thermal
F
Grill
Thermal grilling offers an alternative method of cooking
food items normally associated with conventional
grilling. The grill element and the oven fan operate
alternately, circulating hot air around the food. The need
to check and turn the food is reduced. Thermal grilling
helps to minimize cooking smells in the kitchen.
With the exception of toast and rare steaks, you can
thermally grill all the foods you would normally cook
under a conventional grill. Cooking is more gentle,
therefore food generally takes a little longer to cook with
thermal grilling compared with conventional grilling. One
of the advantages is that larger quantities can be cooked
at the same time.
INNER GRILL ELEMENT SYMBOL
PRE-SET TEMPERATURE: 250°C
TEMPERATURE SELECTION 50°C - 250°C
THERMAL GRILLING
PRE-SET TEMPERATURE: 180°C
TEMPERATURE SELECTION 50°C - 200°C
DO NOT EXCEED 200°C
1. Switch the oven ON.
2. Press the Cooking Function Control Button until the
pilot light to the left of comes on.
3. If necessary, press the "Increase" or the "Decrease"
buttons to adjust the temperature setting.
4. Adjust the grid and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.
Hints and Tips
Prepare foods in the same way as for conventional grilling.
Brush lean meats and fish lightly with a little oil or butter
to keep them moist during cooking.
16
Cooking Chart - Grilling
A general guide to cooking times is given below but these
times may vary slightly depending on the thickness and
quantity of food being cooked.
GRILL - INNER GRILL
TYPE OF FOOD
Pieces
Grams
Quantity
pre-heat
minutes
shelf
level
Temp
°C
.
cooking time (in mins) *
1st side
2nd side
800 4
600 4 Pork chops - 4 250 8-10 5-8
800 8 Spare ribs - 4 250 6-8 4-6
500 8 Sausages - 4 250 8-10 4-6
700 4 Kebabs - 4 250 10-12 5-7
500 4 Chicken breasts - 4 250 10-12 5-7
500 6 Sole - 4 250 6-8 4-6
Beef fillets - 4 250 8-10 4-6
6 Toast bread - 4 250 3-4 1-2
THERMAL GRILLING
TYPE OF FOOD
Pieces
Grams
Quantity
1000 2
800 4 Quartered chicken - 3 200 25-30 15-20
1000 2 Chickens - 3 190 30-35 25-30
800 1 Guinea fowl - 2 180 35-40 30-35
500 2 Pigeons - 3 180 35-40 30-35
500 4 Quail - 3 200 25-30 20-25
600 2 Mackerel - 3 200 10-20 6-8
800 4 Fish slices - 3 200 10-15 8-10
Rolled joints
Vegetable gratin - 3 200 15-25 4 Toasted sandwiches - 3 200 3-5 1-2
9 St. Jacques shells - 3 200 15-20 -
{
Beef
Lamb
Pork
pre-heat
minutes
Select a maximum temperature of 200°C
Temp
shelf
level
- 3 180 30-40 20-30
.
°C
cooking time in (mins) *
1st side
2nd side
(*) Food should be turned during cooking using these times as a guide
The times quoted above are given as a guide and should be adjusted to suit personal taste.
17
Pizza Oven
The bottom element provides direct heat to the base of
pizzas, quiches or pies, while the fan ensures air is
circulated to cook the pizza toppings or pie fillings.
To obtain the best results use the lower shelf levels.
1. Switch the oven ON.
2. Press the Cooking Function Control Button until the
pilot light to the left of comes on.
3. If necessary, press the "Increase" or the "Decrease"
buttons to adjust the temperature setting.
PIZZA OVEN FUNCTION SYMBOL
PRE-SET TEMPERATURE: 175°C
TEMPERATURE SELECTION: 50°C - 250°C
TYPE OF FOOD
Cooking time
PIZZA OVEN
Shelf Temp °C
Pizza, large 1 210-230 15-20
Pizza, small 1 200-220 10-20
Quiche 1 160-180 30-40
Sweet Tart (treacle) 1 170-180 20-30
Fruit Tart 1 170-180 25-30
Blind Baked Flan Cases 1 170-180 15-20
Egg Custard Tart 1 160-170 40-50
Baking Function
When using this function, the top and bottom elements
will heat the oven cavity and the fan will circulate hot air
around your dishes. This offers an alternative cooking
method particularly suitable for baking.
1. Switch the oven ON.
2. Press the Cooking Function Control Button until the
pilot lamp to the left of symbol comes on.
TEMPERATURE SELECTION: 50°C - 250°C
BAKING FUNCTION SYMBOL
PRE-SET TEMPERATURE: 175°C
minutes
TYPE OF FOOD
Cooking time
BAKING FUNCTION
Shelf Temp °C
Cookies 160-170 10-15
Boiled Fruit Cake 140-150 25-30
Queen Cake 150-160 20-25
Viennese Tarts 150-160 15-20
Wholemeal Bread 180-200 25-35
Bread Rolls 190-210 15-20
Teacakes 180-190 15-20
Shelf positions are not
critical but ensure that
oven shelves are evenly
spaced when more than
one is used.
18
minutes
Cleaning the Oven
Before cleaning always allow the cooling fan to
cool the oven down before switching off at the
electricity supply.
This appliance cannot be cleaned with steam or
with a steam cleaning machine.
The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your oven,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door and
door seal using a soft cloth well wrung out in warm
water to which a little washing up liquid has been added.
To prevent damaging or weakening the door
glass panels avoid the use of the following:
Household detergent and bleaches
Impregnated pads unsuitable for non-
stick saucepans
Steel wool pads
Chemical oven pads or aerosols
Rust removers
Bath/Sink stain removers
Clean the outer and inner door glass using warm soapy
water.
DO NOT clean the oven door while the glass
panels are warm. If this precaution is not
observed the glass panel may shatter.
If the door glass panel becomes chipped or has
deep scratches, the glass will be weakened and
must be replaced to prevent the possibility of
the panel shattering. Contact your local Service
Centre who will be pleased to advise further.
Oven Cavity
The enamelled oven cavity is best cleaned whilst the oven
is still warm.
Wipe the oven over with a soft cloth soaked in warm soapy
water after each use. From time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.
DO NOT attempt to clean catalytic liners.
Oven Shelves and Shelf
Supports
To clean the oven shelves and the shelf supports, soak
in warm soapy water and remove stubborn marks with a
well wetted soap impregnated pad. Rinse well and dry
with a soft cloth.
The shelf supports can be removed for easy cleaning
(see diagram). Please, ensure the retaining nuts are
secure when refitting the shelf support.
When cleaning the shelf supports, take care not
to remove the lubricating grease behind the
telescopic runners. This is to ensure their correct
operation.
19
Care of catalytic liners
Catalytic liners destroy splashes of food and fats when
the oven temperature is raised to around 220°C.
To aid this process it is a good idea to run the oven for
an hour or two per week, without food, to ensure
continued good performance from the Catalytic liners.
Hints and Tips
Manual cleaning of the Catalytic liner is not
recommended. Damage will occur if soap
impregnated steel wool pads, aerosol cleaners and
any other abrasives are used.
Slight discolouration and polishing of the Catalytic
surface may occur in time. This does not affect the
Catalytic properties in any way.
Follow the recommendations in Cooking to reduce
soilage
Cooking to reduce soilage
Cook at the recommended temperatures. Higher
temperatures during roasting will increase soilage. Try
cooking at lower temperatures for an increased length
of time, you will save energy and often the joint is more
tender.
Use minimal, if any, extra oil or fat when roasting meat;
potatoes only require brushing with fat before cooking.
Extra fat in the oven during roasting will increase
splashing and soilage. It is NOT necessary to add water
to the meat tin when roasting. The water and the fat
juices from the joint create excessive splattering during
cooking, even at normal temperatures, as well as
causing condensation.
Covering joints during cooking will also prevent
splashing onto the interior surfaces; removing the
covering for the last 20-30 minutes will allow extra
browning, if required. Some large joints and turkeys
especially benefit by this method of cooking, allowing
the joint to cook through before the outside is
overbrowned.
Do use the roasting tin. During roasting, the fat from
the joint will be contained beneath the trivet and
therefore prevent it from splattering onto the 'Catalytic'
liner.
20
Cleaning the hinged grill
This model has been fitted with a hinged grill element to
enable you to clean the roof of the oven easily.
Before proceeding ensure the oven is cool and
is disconnected from the electricity supply.
1) Undo the screws which holds the grill in place (see
diagram). When doing this operation for the first time,
we recommend using a screwdriver.
2) Then gently pull the grill downward to allow access
to the oven roof (see diagram).
3) Clean the oven roof with a suitable cleaner and wipe
dry before replacing the hinged grill element.
4) Gently push up the grill element into place and firmly
screw into place the holding nuts.
Ensure the grill holding nuts are firmly in place to
avoid the grill falling down when in use.
Replacing the Oven Light
Disconnect the appliance.
If the oven bulb needs replacing, it must comply with the
following specifications:
- Electric power: 15W,
- Electric rate: 230-240 V (50 Hz),
- Resistant to temperatures of 300°C,
- Connection type: E14.
These bulbs are available from your local Service Force
Centre.
To replace the faulty bulb:
F
1. Ensure the oven is disconnected from the electrical
supply.
2. Turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace with the new one.
4. Refit the glass cover.
5. Reconnect to the electrical supply.
FO 0287
21
Grease Filter
To prevent a build-up of fats on the fan impellor, the
grease filter must be fitted by clipping it over the vents
in the back panel.
To clean the grease filter
When the oven has cooled down, remove the filter by
pushing the protruding tongue on the filter upward, and
wash carefully.
The grease filter should be cleaned after every use. The
filter may be washed in a dishwasher on a 65°C wash.
If the filter is heavily soiled, place the filter in a saucepan
of water with approximately 1 teaspoon of automatic
washing powder or dishwasher powder. Bring to the boil
and leave to soak for approximately 30 minutes or
longer depending on the degree of soiling. Ensure the
solution does not boil over as it could mark your hob.
Rinse filter in clean water and dry.
Remember to refit the filter before using the oven again.
FO 0018
Something not working
If the oven is not working correctly, please carry out the following checks, before contacting your local Service Force
Centre.
SYMPTOM
n The oven does not come on
n The oven light does not come on
n It takes too long to finish the dishes, or they are
cooked too fast.
n Steam and condensation settle on the food and the
oven cavity.
SOLUTION
u Press the OVEN ON button, then select a cooking
function.
u Check the fuse and ensure the socket switch or the
switch from the mains supply to the oven are ON.
u Switch on the oven using push button 1.
u Check the light bulb, and replace it if necessary (see
"Replacing the Oven Light")
u The temperature may need adjusting
u Refer to the cooking function sections and to any
cooking chart provided
u Leave dishes inside the oven no longer than 15-20
minutes after the cooking is completed.
n The timer does not work
n The oven fan is noisy
22
u Check the instructions for the timer.
u Check that shelves and bakeware are not vibrating in
contact with the oven back panel.
Installation
The oven must be installed according to the
instructions supplied.
Technical Data
Dimensions of recess
Height 580 mm.
Width 560-570 mm.
Depth 550 mm.
Dimensions of the oven cavity
Height 325 mm.
Width 420 mm.
Depth 390 mm.
Oven capacity 53 litres
This oven must be installed according to
standards and regulation currently in force.
Heating elements rating
Oven element 1,880 W
Top element 835 W
Bottom element 1,045 W
Convection element 2,090 W
Grill element 1,830 W
Double Grill element 2,665 W
Pizza Oven Function 3,135 W
Convection Fan 30 W
Oven Light 15 W
Cooling Fan 25 W
Total Rating 3,200 W
Supply voltage (50 Hz) 230-240 V
Electrical Connection
The oven is designed to be connected to 230 -240 V
(50Hz) electricity supply.
The oven has an easily accessible terminal block which
is marked as follows.
Letter L Live terminal
Letter N Neutral terminal
Earth
The cable used (of the types: H05 V2V2-F T90, H05 BBF T90) must have a min. cross section of 1.5 mm2.
In order to connect it to the oven it is necessary to
remove the hatch at the back of the oven to reach the
terminal block.
For direct connection to the mains supply a two pole
switch with a minimum rating of 13 A and a minimum
distance of 3 mm between its contacts must be fitted
between the supply and appliance.
This switch must not break the yellow/green earth cable
at any point.
The appliance must be earthed
Important
After installation and connecting, the cable must be
placed so that is cannot at any point reach a temperature more than 50°C above the ambient temperature.
Before the appliance is connected check that:
- the main fuse and the domestic installation can
support the load;
- the power supply is properly earthed;
- the double pole switch used to connect the appliance
to the supply is easily accessible after installation.
23
Building In
It is important that the dimension and materials of the
surround or cabinet into which the oven will be built are
correct and that proper arrangements are made for a
continuous supply of air to the oven so it does not
overheat.
NOTE: The outer cabinet should have a 600mm width.
Dimensions of the oven and recess required are given
in the relevant diagrams.
FO 0374
FO 0292
Securing The Oven To The
Cabinet
1. Fit the oven into the cabinet recess,
2. Open the oven door,
3. Secure the oven to the kitchen cabinet with four wood
screws, which fit the holes provided in the oven frame.
FO 0290
FO 0039
24
ELECTROLUX WARRANTY AUSTRALIA
Nothing in this warranty, limits any rights you may have under the Trade Practices Act or any other Commonwealth
or State legislation. Such rights cannot be changed by the conditions in this warranty.
Subject to the conditions below, this appliance is warranted by Electrolux Home Products Pty. Ltd. A.B.N. 51 004
762 341, (the Company), to be free from defects in materials and workmanship for a period of 24 months
following the date of purchase (the Warranty Period).
Conditions of the warranty:
1 During the Warranty Period the Company, or its service agent, will only pay the cost of repairing or replacing all
Company parts on your appliance which the Company finds to be defective.
2 The Company will decide if there are any defects in material and/or workmanship.
3 Light globes, batteries and filters are replaceable parts and are not covered under this warranty.
4 This warranty applies only for mainland Australia and Tasmania.
5 The appliance must be installed and operated in accordance with the Companys instructions.
6 This warranty does not apply to normal wear and tear, or any service, which is needed after an accident, alteration,
negligence, misuse, fire or flood.
7 This warranty does not apply to damage caused if your appliance has been dismantled, repaired or serviced by
any person other than someone authorised by the Company.
8 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the
cost of transport of the appliance for service nor the service agents travelling costs to and from your home.
9 If you are required to transport the appliance to the Company or its service agent, you must ensure it is securely
packed and insured. The Company does not accept any responsibility for loss or damage of the appliance prior
to it being received by the Company or its service agent.
10 This warranty does not cover loss, damage or expense to this appliance caused directly or indirectly by power
surges, electrical storm damage or incorrect power current.
11 The Company (and any company related to the Company) will not be liable for any special, incidental or
consequential damages or for loss, damage or expense or for personal injury or loss or destruction of property
arising directly or indirectly from the use or inability to use this appliance or any of its parts.
12 This warranty applies only to the original buyer.
13 This warranty is the only express warranty given by the Company.
14 If you are the original buyer, please keep your proof of purchase, which will be required, if you request service
under this warranty.
15 The Warranty Period is only applicable when your appliance is used at home by you and your family as consumers.
16 Use of this appliance for commercial purposes is covered by this warranty for a period of 3 months from the date
of purchase.
FOR SERVICE IN AUSTRALIA FOR SPARE PARTS IN AUSTRALIA
PLEASE CALL PLEASE CALL
13 13 49 13 13 50
25
ELECTROLUX APPLIANCE WARRANTY NEW ZEALAND
This appliance is warranted by Electrolux Home Products (NZ) Ltd (the Company) from the date of purchase. The
following terms and conditions apply:
1 The Company or its Authorised Service Centre will pay the cost of repairing or replacing all parts of the appliance
which the Company or its Authorised Service Centre find defective for a period of 24 months following the date
of purchase (the Warranty Period).
2 During the Warranty Period the Company or its Authorised Service Centre, will pay the cost of repairing or
replacing all parts, which they find are defective.
3 Light globes, batteries and filters are replaceable parts and are not covered under this warranty.
4 The appliance must be installed and operated in accordance with the Companys instructions.
5 This Warranty does not apply to normal wear and tear, or any service, which is needed after an accident,
negligence, alteration or misuse.
6 This Warranty also does not apply to damage caused if your appliance has been dismantled, repaired or serviced
by any person other than someone authorised by the Company.
7 If you live outside the service area of the Company or its Authorised Service Centre, this warranty does not cover
the cost of transport of the appliance for service nor the Authorised Service Centres travelling costs to and from
your home.
8 If you are required to transport the appliance to the Company or its Authorised Service Centre, it must be
securely packed and insured. The Company does not accept any responsibility for loss or damage prior to it
being received by the Company or its Authorised Service Centre.
9 This warranty is the only express warranty given by the Company.
10 This Warranty does not cover loss, damage or expense to this appliance caused directly or indirectly by power
surges, electrical storm damage or incorrect power current.
11 The Company (and any company related to the Company) will not be liable for any special incidental or
consequential damages or for loss, damage or expense directly or indirectly arising from the use or inability to
use this appliance, or for personal injury or loss or destruction of other property.
12 Nothing in this warranty is intended to limit the rights you may have under the Consumer Guarantees Act 1993,
except to the extent permitted by that Act, and all provisions of this warranty shall be read as modified to the
extent necessary to give effect to that intention.
13 The Consumer Guarantees Act 1993 does not apply if your appliance is acquired for the purposes of a business
(as defined in that Act).
14 This warranty is limited to 90 days from date of purchase if the appliance is used for commercial use.
IMPORTANT NOTICE
Before calling a service technician please carefully check the warranty terms and conditions, the operating instructions
and service booklet if applicable. If the product fails for any of the customer responsibility reasons detailed therein,
a service fee will be charged. Please present proof of purchase to any Authorised Service Centre should warranty
service be required.
SERVICE CENTRES
PLEASE PHONE
0800 10 66 10
For your nearest Authorised
Service Centre please look in
The Yellow Pages under
Home Appliance Servicing
OR
Call 0800 10 66 10
26
27
Grafiche MDM - Forlì
The Electrolux Group. The worlds No.1 choice.
The Electrolux Group is the worlds largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55
million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn
mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
10/02
Loading...
