AEG-Electrolux EOD6335K, EOD6335U User Manual

Model EOD6335

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the information in this book contact the Customer Care Department.

INSTALLATION

The appliance must be installed according to the instructions supplied. The installation work must be undertaken by a qualified electrician or competent person. The appliance should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used. The appliance must be installed in an adequately ventilated room. It is imperative that the appliance is left in the base to protect both the appliance and the floor. This appliance is heavy and care must be taken when moving it. Do not attempt to lift or move this appliance by the handles. All packaging, both inside and outside the appliance must be removed before the appliance is used. It is dangerous to alter the specifications or modify the appliance in any way. After installation please dispose of the packaging with due regard for safety and the environment. Your local authority can arrange this.

CHILD SAFETY

Do not allow children to play with any part of the

packaging. Do not allow children to sit or climb on the drop down doors. This appliance is designed to be operated by adults. Young children must not be allowed to tamper with the controls or play near or with the appliance.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

DURING USE

This appliance is not intended to be operated by means of an external timer or separate remote control system. This appliance has been designed for domestic use to cook edible foodstuffs only and must not be used for any other purposes. Take great care when heating fats and oils as they will ignite if they become too hot. Never place plastic or any other material which may melt in or on the oven. Always support the grill pan when it is in the withdrawn or partially withdrawn position.

Always use oven gloves to remove and place food in the oven. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. Ensure that all vents are not obstructed to ensure ventilation of the oven cavity. Never line any part of the appliance with foil. Always stand back from the appliance when opening the doors to allow any build up of steam or heat to release.

Never leave the appliance unattended when the oven door is open.

Do not place sealed cans or aerosols inside the

oven. They may explode if they are heated. Ensure that all control knobs are in the OFF position when not in use. Do not stand on the appliance or on the open oven doors. Do not hang towels, dishcloths or clothes from the appliance or its handles.

Do not use this appliance if it is in contact with water. Never operate it with wet hands.

CLEANING AND MAINTENANCE

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire especially in the grill pan.

Do not leave the cookware containing foodstuffs,

e.g. fat or oil in the appliance in case it is inadvertently switched on. Always allow the appliance to cool before switching off at the wall prior to carrying out any cleaning / maintenance work. Only clean this appliance in accordance with the instructions given in this book.

AT THE END OF THE APPLIANCE'S LIFE

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CONTENTS

FOR THE USER

Important Safety Information 2 Description Of The Appliance 4

Getting To Know Your Appliance 5 Before Using The Appliance 6 Rating Plate 6 Preparing To Use Your Appliance 6 When First Switching On 6 The Cooling Fan For The Controls 6 Control Panel Indicator Neon(s) 6 Condensation And Steam 6 Cookware 6 Grill And Oven Furniture 6

Electronic Timer 7 The Dual Grill 10

Using The Dual Grill 10 Things To Note 10 The Grill Pan and Handle 10 Hints And Tips 11 Grilling Chart 11

The Top Oven 12 Using The Top Oven 12 Things To Note 12 To Fit The Top Oven Shelf 12 Hints And Tips 12 Top Oven Cooking Chart 13

The Main Oven 14 Using The Main Oven 14 Things To Note 14 To Fit The Main Oven Shelves 14 Hints And Tips 15

Main Oven Cooking Chart 16 Roasting Chart 17

Turbo Grill 18

Using Turbo Grill 18 Things To Note 18 Hints And Tips 19 Turbo Grilling Chart 19

Main Oven Dual Grill 20 Using Main Oven Dual Grill 20 Things To Note 20 The Grill Pan And Handle 20 Hints And Tips 21 Grilling Chart 21

The Conventional Oven 22 Using The Conventional Oven 22 Things To Note 22 Hints And Tips 22

Bottom Heat 24 Using Bottom Heat 24

Defrost Feature 25 Using Defrost Feature 25 Things To Note 25 Hints And Tips 25

Care and Cleaning 26 Cleaning Materials 26 Cleaning The Outside Of The Appliance 26 Removing and Replacing Wirework Runners 26 Cleaning Inside The Ovens 27 Cleaning The Door(s) 27 Cleaning The Grill And Oven Furniture 29 Replacing An Oven Light Bulb 29

Something Not Working 30 Service and Spare Parts 31 Guarantee Conditions 32

FOR THE INSTALLER

Technical Details 33 Installation Instructions 34

Warnings 34 Things To Note 34 Choice Of Electrical Connection 35 Preparing Cabinet For Fitting Of Oven 35 Recommended Cabinet Dimensions 36 How To Finish Unpacking 37 To Remove Cover Of Mains Terminal 37 Connecting To The Mains Terminal 38 Checking Electrical Connections 38 Connecting To A Hob Or Cooker Point 38 Fitting Into The Cabinet 39 Notes 40

To help you the following symbols will be found in the text.

Hints and Tips

Safety Instructions

Please read the instruction book carefully before use and retain for future reference.

DESCRIPTION OF THE APPLIANCE

BUILT-IN ELECTRIC DOUBLE OVEN

Electronic Timer

Control Panel

Top Oven/Grill

Main Oven

Your built-in appliance comprises of a conventional oven and dua l grill in the top compartment. The main oven can be automatically controlled by the electronic timer.

GETTING TO KNOW YOUR APPLIANCE

THE CONTROL PANEL

A - Main Oven Temperature Control B - Main Oven Indicator Neon C - Main Oven Function Control

Oven Light

D - Electronic Timer E - Top Oven/Grill Temperature Control F - Top Oven Indicator Neon G - Top Oven/Grill Function Control

Fan Oven Turbo Grill

Half Grill Full Grill Conventional Bottom Heat Defrost

BEFORE USING THE APPLIANCE

RATING PLATE

This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

PREPARING TO USE YOUR APPLIANCE

Wipe over the base of the oven(s) with a soft cloth and hot soapy water and wash the furniture before use. We suggest that you run the oven elements for 10 – 15 minutes at 220°C to burn off any residue from their surfaces. The procedure should be repeated with the grill for approximately 5 – 10 minutes. During this period and odour may be emitted, it is therefore advisable to open a window for ventilation.

WHEN FIRST SWITCHING ON

The oven has a 24 hour clock. When the oven is first switched on at the wall the electronic display will automatically show 12.00 and the 'Time' ( ) neon will also flash.

THE COOLING FAN FOR THE CONTROLS

The cooling fan comes on immediately when the grill is switched on and after a short time when the oven is in use. It runs on after the controls are switched off until the appliance has cooled. During the initial period the cooling fan may turn ON and OFF, this is quite normal.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning or maintenance work.

CONTROL PANEL INDICATOR NEON(S)

The indicator neon will operate when the grill (where applicable) or oven(s) is switched on. The indicator neon will glow. It may turn on and off during use to show that the setting is being maintained. If the neon does not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and reset following the instructions for the required setting.

CONDENSATION AND STEAM

When food is heated it produces steam similar to a boiling kettle. The vents allow some of this steam to escape. However, always stand back from the appliance when opening the door(s) to allow any build up of steam or heat to release.

If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance. To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

COOKWARE

Baking trays, dishes etc., should not be placed directly against the grid covering the fan at the back of the oven. Do not use baking trays larger than 30cm x 35cm (12” x 14”) as they will restrict the circulation of heat and may affect performance.

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have been supplied with the appliance. If you require replacements of any of the items listed below please contact your local Service Force Service, quoting the relevant part number.

1 grill pan (311409401)

1 grill pan handle (311468100)

NOTE:

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

1 grill pan grid (311419801)

1 cranked shelf (for grilling and top oven cooking only)

2 straight shelves (for main oven cooking)

ELECTRONIC TIMER

KEY

A COOK TIME

B END TIME

C COUNTDOWN

D TIME

E DECREASE CONTROL

F SELECTOR CONTROL

G INCREASE CONTROL

NOTE: The time of day must be set before the main oven

will operate manually.

1. HOW TO SET THE TIME OF DAY

The oven has a 24 hour clock. When the electricity supply is first switched ON, the

display will show 12.00 and the 'Time' ( ) indicator neon will flash as Fig. 1.

To set the correct time press the increase control button ( + ) and if necessary, the decrease control button ( - ) until the correct time on the 24 hour clock is reached, e.g. 10.00am as Fig.2. The 'Time' indicator neon ( ) will flash for 5 seconds and then go out.

Note: The increase and decrease control buttons operate slowly at first, and then more rapidly. They should be pressed separately.

2. HOW TO SET THE COUNTDOWN

The 'Countdown' gives an audible reminder at the end of any period of cooking. This cooking period may be up to 2 hrs 30 mins. It is not part of the automatic control.

To set, press the Selector Control button ( ) until the 'Countdown' indicator neon ( ) is illuminated the display reads 0.00 as Fig.3.

To set the correct time duration depress the increase control ( + ) until the display indicates the interval to be timed, e.g. 1hr 45 mins as Fig. 4. If necessary depress the decrease control ( - ) to achieve the correct time interval.

G F

Fig.1

Fig.2

Fig.3

NOTE: This must be completed within 5 seconds of first pressing the Selector Control button.

During the operation of the 'Countdown', the remaining time period will be shown in the display. The 'Countdown' will sound intermittently for up to 2 minutes at the end of the timed period. The sound can be stopped by pressing any button.

Fig.4

TO CANCEL THE COUNTDOWN

If you change your mind and want to cancel the 'Countdown', press the Selector Control button until the 'Countdown' indicator neon ( ) flashes and then the decrease control ( - ) until 0.00 shows in the display as Fig. 5. The 'Countdown' indicator neon ( ) will continue to flash for a few seconds and then return to the time of day.

3. SETTING THE OVEN TIMER CONTROL

The main oven only can be automatically timed. When using the timer control for the very first time, it is advisable to let it operate while you are at home. The displays can be checked to show that it is operating correctly and you will feel confident to leave a meal to cook automatically in the future.

A) TO SET THE TIMER TO SWITCH ON

AND OFF AUTOMATICALLY

i) Ensure the electricity supp ly is switched ON and

that the correct time of day is displayed, e.g.

9.am. as Fig. 6.

ii) Place food in the oven. iii) To set the length of cooking time, press the

Selector control button ( ) until the 'Cook Time' indicator neon is illuminated ( ). Press the increase control ( + ) until the required length of cooking time is displayed, e.g. 2 hrs 15 mins as Fig. 7. If necessary depress the decrease control ( - ) until the correct time interval is achieved.

The maximum cooking time is 10 hours.

iv) Release the buttons. The 'Cook Time' indicator

neon ( ) will be illuminated.

Remember, this must be completed within 5 seconds of first pressing the Selector Control

button.

v) To set the 'End Time'. Press the Selector Control

button until the 'End Time' indicator neon ( ) flashes. Press the increase control ( + ) until the required stop time is displayed, e.g. 12.15 p.m. as Fig. 8. If necessary press the decrease control ( - ) until the correct time interval is achieved.

vi) Release the buttons. The time of day will be

displayed after 5 seconds. The 'Cook Time'

( ) and 'End Time' ( ) indicator neons will be

illuminated. The 'End Time' must not be more than 23 hours

59 minutes from the time of day. For example, if the time of day is 09.00 a.m., the latest 'End Time' would be 08.59 a.m. the next day.

vii) Set the main oven control to the required

temperature. The oven indicator neon should be OFF.

Fig.5

Fig.6

Fig.7

Fig.8

NOTE: When the automatic timed period starts, the oven indicator neon will glow. It may turn on and off during use to show that the setting is being maintained.

B) TO SET THE TIMER TO SWITCH OFF

ONLY

i) Ensure the electricity supp ly is switched ON and

that the correct time of day is displayed, e.g.

10.00am as Fig. 9.

ii) Place food in the oven. iii) To set the length of cooking time, press the

Selector Control button until the 'Cook Time'

( ) indicator neon is illuminated. Press the

increase control ( + ) until the required length of cooking time is displayed, e.g. 2 hrs 15 mins as Fig. 10. Depress the decrease control ( - ) if necessary.

iv) Release the buttons. The 'Cook Time' indicator

neon ( ) will illuminate and the time of day will be displayed after 5 seconds.

v) Set the oven temperature. The oven indicator

neon should be ON.

vi) To check the 'End Time' during the cooking

period, simply press the Selector Control button once and the remaining time will be displayed, as Fig. 11.

4. TO CANCEL AN AUTOMATIC PROGRAMME

i) To cancel an automatic programme press the

Selector Control button until the 'Cook Time' indicator neon ( ) flashes . Press the dec rea se control ( - ) until the display reads 0.00 as Fig.

12.

ii) Release the buttons. The 'Cook Time' indicator

neon ( ) will flash and after 5 seconds return to the time of day.

iii) Turn off the oven controls.

5. TO RETURN THE APPLIANCE TO MANUAL

At the end of a timed cooking period, the indicator neon will flash and an alarm will sound for up to 2 minutes.

i) To stop the sound press any of the three buttons,

as Fig. 13.

ii) The display will return to the time of day. iii) Turn off the oven controls.

6. THINGS TO NOTE

In the event of an interruption of the electricity supply, the timer will reset itself to zero, and all programming will be cancelled.

Fig.9

Fig.10

Fig.11

Fig.12

7. AUTOMATIC COOKING

It is advisable to leave food in the oven for as

short a time as possible before automatic cooking. Always ensure commercially prepared food is well within its use by date and that home prepared food is fresh and of good quality.

When cooking is complete, do not leave food to

stand in the oven, but remove and cool it quickly if the food is not to be consumed immediately. Always ensure food in the oven has been covered before cooking if it is not possible to remove food immediately after cooking.

Fig.13

THE DUAL GRILL

WARNING – Accessible parts may become hot when the grill is in use. Keep children away.

The grill is a dual circuit grill which means that the full area of the grill can be used, or for economy purposes, the centre section only can be used when cooking smaller quantities of food.

USING THE DUAL GRILL

• To operate the grill turn the top oven/grill function selector to full grill.

• Turn the top oven/grill function selector to centre section only.

• Turn the top oven/grill temperature control knob to the right as far as it will go. This is the hottest setting.

• To use the grill at lower settings, turn the temperature control knob to 100°C or 150°C.

The grill door must be left open when grilling.

THINGS TO NOTE

• The oven light will illuminate.

• The cooling fan for the controls may operate after

a time.

• The dual grill operates independently of the oven.

Ensure the grill pan is properly located.

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle. To attach the handle, place the wirework under the

cut out in the pan so that the metal plate hooks over the top of the grill pan. Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan. Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill. To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to attend to food during cooking.

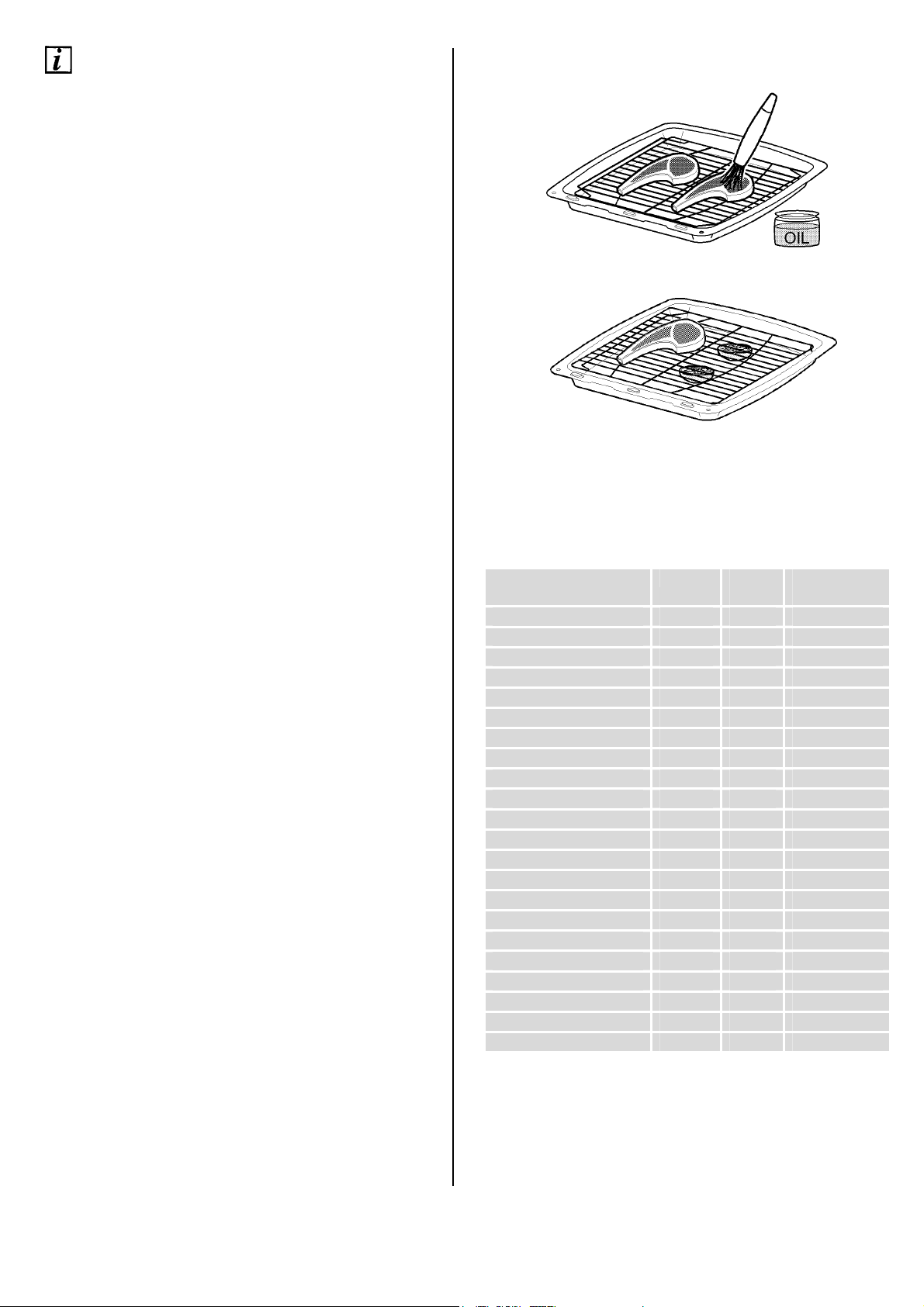

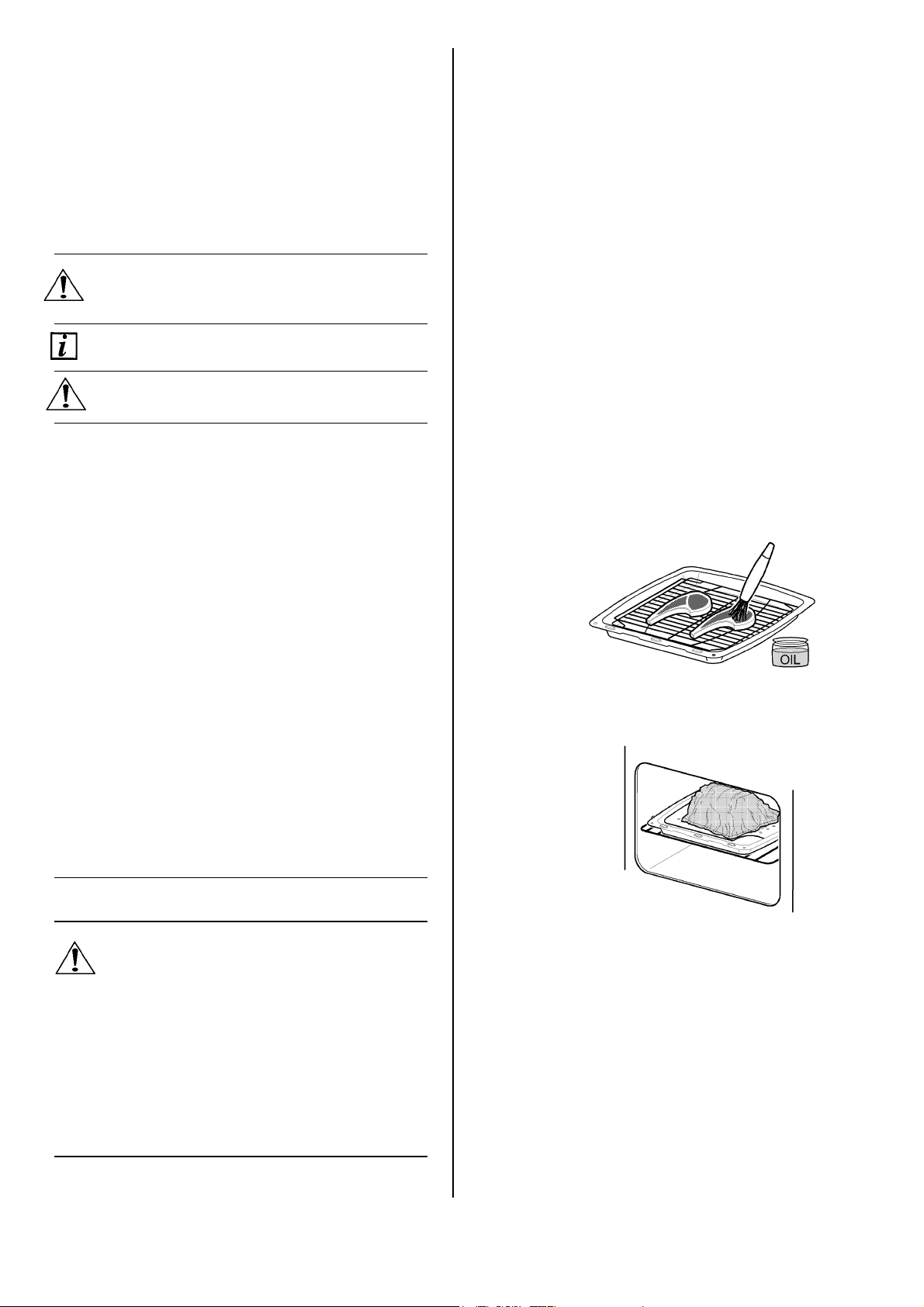

HINTS AND TIPS

• Most foods should be placed on the grid in the

grill pan to allow maximum circulation of air to lift the food out of the fats and juices.

• Adjust the grid and grill pan runner position to

allow for different thicknesses of food. Position the food close to the element for faster cooking and further away for more gentle cooking.

• Food should be thoroughly dried before grilling to

minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

• Accompaniments such as tomatoes and

mushrooms may be placed around the outer edges or underneath the grid when grilling meats.

• When toasting bread use the cranked shelf in

position 2 with the grid in the high position.

• When using the centre section grill, ensure food

is placed centrally on the grilling grid directly beneath the grill element.

• Preheat the grill on full setting for a few minutes

to seal meat or for toasting. Adjust the heat setting and the shelf position as necessary during cooking.

• The food should be turned over during cooking

as required

GRILLING CHART

FOOD POSITION GRILL TIME

(mins in total)

Bacon Rashers 5 - 6

Beefburgers 10 - 15

Chicken Joints 30 - 40

Chops – Lamb 15 - 20

Pork 20 - 30

Fish – Whole

Trout/Mackerel

Fillets -

Plaice/Cod

Kebabs 20 - 30

Kidneys –

Lamb/Pig

Liver –

Lamb/Pig

Sausages 20 - 30

Steaks – Rare 6 - 12

Medium 12 - 16

Well Done 14 - 20

Toasted

Sandwiches

Adjust

grill

setting

and

grill

pan

grid

suit

different

thicknesses

food

15 - 25

10 - 15

8 - 12

10 - 20

3 - 4

The times quoted above are given as a guide and should be adjusted to suit personal taste.

THE TOP OVEN

The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use the top oven when you want to warm plates. Use the lowest setting on the top oven temperature control.

USING THE TOP OVEN

• Turn the top oven/grill function selector to.

• Turn the top oven/grill temperature control to the

required setting.

THINGS TO NOTE

• The oven light will illuminate.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan for the controls may operate after

a time.

Do not place dishes, tins and trays directly on the oven base as it becomes very hot and damage will occur.

TO FIT THE TOP OVEN SHELF

The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. To remove a shelf slide the shelf towards you until the shelf stop is reached. Tilt shelf up at the front so that the stops clear the side supports. Lift shelf clear. To install a shelf, reverse the above steps. Each shelf position has an upper and lower support wire, ensure the shelf is placed between these two support wires.

HINTS AND TIPS

• Arrange the shelf in the required position before

switching the oven ON. Shelf positions are counted from the bottom upwards.

• There should always be at least 2.5cm (1”)

between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc. When cooking cakes, pastry, scones bread etc., place the tins or baking trays centrally on the shelf.

• Ensure that food is placed centrally on the shelf

and there is sufficient room around the baking tray/dish to allow for maximum circulation.

• Stand dishes on a suitably sized baking tray on

the shelf to prevent spillage onto the oven base and to help reduce cleaning.

• The material and finish of the baking tray and

dishes used will affect the degree of base browning. Enamelware, dark, heavy or non-stick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat away and give less base browning.

• Do not place baking trays directly on the oven

base as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

• Because of the smaller cooking space and lower

temperatures, shorter cooking times are sometimes required.

• For economy leave the door open for the shortest

possible time, particularly when placing food into a pre-heated oven.

Do not place cookware and cooking pots with rough bases e.g. cast iron on the oven door as damage to the glass may occur.

TOP OVEN COOKING CHART

FOOD Position Cooking Temp°C Biscuits 2crk. 180-190

Bread 1crk.* 210-220

Casseroles 1crk.* 130-140

Cakes: Small/queen 2crk. 180-190 Sponges 2crk. 160-170 Madeira 1crk. 140-150 Rich Fruit 1crk. 130-140 Christmas 1crk. 130-140

Fish 1crk. 170-190

Fruit Pies & Crumble 1crk. 190-200

Milk Puddings 1crk. 140-150

Pastry: Choux 1crk. 160-170

- Shortcrust

- Flaky Depending

- Puff On dish

Plate Tarts 2crk. 190

Quiches/Flans 1crk. 180

Scones 2crk. 210-220

Roasting: Meat&Poultry 1crk.* 170-180

crk. = cranked shelf *or on a straight shelf from the main oven on the base. Shelf positions are counted from the bottom of the oven upwards.

THE MAIN OVEN

The fan oven is particularly suitable for cooking larger quantities of food.

The advantages of fan oven cooking are:

PREHEATING

The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven first.

COOKING TEMPERATURES

Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures recommended in the cooking chart. As a guide reduce temperatures by about 20C° 25°C for your own recipes, using a conventional oven.

BATCH BAKING

The fan oven cooks evenly on all shelf levels, especially useful when batch baking.

USING THE MAIN OVEN

• Turn the Main Oven function selector to Fan

Oven.

• Turn the main oven temperature control to the

required setting.

THINGS TO NOTE

• The oven light will illuminate.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan for the controls may operate after

a time.

• The oven fan will operate.

• If an automatic programme has been set, the

oven fan and light do not come on until cooking begins.

TO FIT THE MAIN OVEN SHELVES

The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. To remove a shelf slide the shelf towards you until the shelf stop is reached. Tilt shelf up at the front so that the stops clear the side supports. Lift shelf clear. To install a shelf, reverse the above steps. Each shelf position has an upper and lower support wire, ensure the shelf is placed between these two support wires.

HINTS AND TIPS

• Arrange the shelves in the required positions before switching the oven on. Shelf positions are counted from the bottom upwards.

• When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.

• When batch baking one type of food, e.g. Victoria sandwich cakes, those of similar size will be cooked in the same time.

• It is recommended that when baking larger quantities the shelf positions should be evenly spaced to suit the load being cooked. A slight increase in cooking time may be necessary.

• Do not place baking trays directly on the oven base as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

Do not place cookware and cooking pots with rough bases e.g. cast iron on the oven door as damage to the glass may occur.

MAIN OVEN COOKING CHART

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by a further 10°C to suit individual preferences and requirements.

FAN OVEN CONVENTIONAL OVEN

Food Shelf Cooking Shelf Cooking Position Temp °C Position Temp °C Biscuits 180-190 2 180-190 Bread 210-220 2 210-220 Casseroles 130-140 2 150-180 Cakes: Small & Queen 160-170 2 170-180 Sponges

Madeira Rich Fruit Christmas

Fish 170-190 2 170-190 Fruit Pies and Crumbles 190-200 3 190-200 Milk Puddings 130-140 3 130-140 Pastry: Choux

Shortcrust Flaky Puff

Plate Tarts 180-190 2 190-200 Quiches / Flans 170-180 2 190-200 Scones 210-220 3 230 Roasting:Meat and Poultry

Shelf

positions

are not

critical

but ensure

that oven

shelves are

evenly

spaced when more than one is

used

160-170 2 170-180 140-150 2 160-170 130-140 2 150-160 130-140 1 130-140

2 160-170

190-200 3 190-200

160-180 2 180-200

ROASTING CHART

INTERNAL TEMPERATURES – Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C

MEAT Beef/ Beef boned 160-180°C

Mutton/Lamb 160-180°C 25-35 minutes per ½kg (1lb)

Pork/Veal/Ham 160-180°C 30-40 minutes per ½kg (1lb)

Chicken 160-180°C 15-20 minutes per ½ kg (1l b)

Turkey/Goose 160-180°C 15-20 minutes per ½kg (1lb)

Duck 160-180°C 25-35 minutes per ½kg (1lb)

Pheasant 160-180°C 35-40 minutes per ½kg (1lb)

Rabbit 160-180°C 20 minutes per ½kg (1lb)

The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. However, lower temperatures and longer cooking times are recommended for less tender cuts or larger joints.

Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.

TEMPERATURE

COOKING TIME 20-35 minutes per ½kg (1lb)

and 20-35 minutes over

and 25-35 minutes over

and 30-40 minutes over

and 20 minutes over

up to 3½kg (7lb) then 10 minutes per ½kg (1lb) over 3½kg (7lb)

and 25-30 minutes over

and 35-40 minutes over

and 20 minutes over

TURBO GRILL

Turbo grilling in the main oven offers an alternative method of cooking food items normally associated with conventional grilling.

Turbo grilling helps to minimise cooking smells in the kitchen and allows you to grill with the oven door closed. With the exception of toast and rare steaks you can Thermal grill all the foods you would normally cook under a conventional grill.

The lower part of the oven can be used to cook accompaniments at the same time, e.g. tomatoes and mushrooms with a mixed grill or breakfast.

Dishes prepared in advance such as shepherd's pie, lasagne and au gratins can be heated through and browned on the top using the Turbo grilling function.

COOKING TIMES

Cooking is more gentle, therefore food generally takes a little longer to cook when turbo grilling compared with conventional grilling. One of the advantages is that larger quantities can be cooked at the same time.

USING TURBO GRILL

Always Turbo Grill with the oven door closed and with the grill pan handle removed.

• Turn the main oven multifunction selector to Turbo Grilling.

• Turn the main oven temperature control to the required setting. (A temperature of between 140°C and 220°C is suitable for turbo grilling).

• Remove the handle from the grill pan and close

the oven door.

THINGS TO NOTE

• The oven light will illuminate.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan for the controls may operate after

a time.

• The oven fan will operate.

HINTS AND TIPS

• Prepare foods in the same way as for conventional grilling. Brush lean meats and fish lightly with a little oil or butter to keep them moist during cooking.

• Most food should be placed on the grill pan grid in the 'high' position in the grill pan to allow maximum circulation of air around the food.

• Accompaniments such as tomatoes and mushrooms may be placed below the grid when grilling meats, or in a separate dish on a lower shelf.

• Foods will cook more quickly the closer they are to the grill element and the higher the temperatures selected. Be prepared to adjust temperatures and shelf positions during cooking if necessary.

• Turn food over during cooking as necessary.

• Ensure that ready prepared or cooked chilled

dishes e.g. shepherds pie, moussaka, lasagne, etc., are piping hot throughout before serving.

• A temperature range of 140°C - 220°C is suitable for most foods. Be prepared to make suitable adjustments during cooking to suit individual requirements. If thermal grilling on more than one level, it may be necessary to interchange the food on the shelves during cooking.

TURBO GRILLING CHART

FOOD SHELF TEMP

(°C) Bacon Rashers 4 200 8-12 Beefburgers 4 190 10-15 Chicken Joints 4 160 35-45 Chops - Lamb/Pork 4 170 20-25 4 170 25-35 Fish - Whole Trout/Mackerel 3 170 10-20 Fillets - Plaice/Cod 3 170 10-15 Kebabs 4 170 20-30 Kidneys - Lamb/Pig 4 180 10-15 Liver - Lamb/Pig 4 180 20-30 Sausages 4 190 10-15 Steaks - Medium 4 220 8-10 each side Steaks - Well Done 4 220 10-12 each side

Heating through 3 170 20-30 and Browning, e.g. depends on Au -gratin, Lasagne, size Shepherd's Pie.

TIME (mins

In total)

NOTE: Shelf positions are counted from the bottom of the oven. Times quoted above are given as a guide and should be adjusted to sit personal taste.

MAIN OVEN DUAL GRILL

CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY.

The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food.

USING MAIN OVEN DUAL GRILL

• Turn the Main Oven/Grill Function to Full for full grill.

• Turn the Main Oven/Grill Function to Half for centre section only.

• Turn the Main Oven Temperature control knob to the right as far as it will go. This is the hottest setting.

• To use the grill at lower settings, turn the Main Oven Temperature control knob to 110°C or 150°C.

THINGS TO NOTE

• The oven light will illuminate.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan may operate after a time.

• Some smoke from fat splashes may be evident

as the grill cleans itself.

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle. To attach the handle, place the wirework under the

cut out in the pan so that the metal plate hooks over the top of the grill pan. Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

HINTS AND TIPS

• Most foods should be placed on the grid in the

grill pan to allow maximum circulation of air to lift the food out of the fats and juices.

• Adjust the grid and grill pan runner position to

allow for different thicknesses of food. Position the food close to the element for faster cooking and further away for more gentle cooking.

• Food should be thoroughly dried before grilling to

minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

• Accompaniments such as tomatoes and

mushrooms may be placed around the outer edges or underneath the grid when grilling meats.

• When toasting bread we suggest that the top

runner position is used with the grid in the high position.

• When using the centre section grill, ensure food

is placed centrally on the grilling grid directly beneath the grill element.

• Preheat the grill on full setting for a few minutes

to seal meat or for toasting. Adjust the heat setting and the shelf position as necessary during cooking.

• The food should be turned over during cooking

as required.

GRILLING CHART

FOOD POSITION GRILL TIME

(mins in total)

Bacon Rashers 5 - 6

Beefburgers 10 - 15

Chicken Joints 30 - 40

Chops – Lamb 15 - 20

Pork 20 - 30

Fish – Whole

Trout/Mackerel

Fillets -

Plaice/Cod

Kebabs 20 - 30

Kidneys –

Lamb/Pig

Liver –

Lamb/Pig

Sausages 20 - 30

Steaks – Rare 6 - 12

Medium 12 - 16

Well Done 14 - 20

Toasted

Sandwiches

The times quoted above are given as a guide and should be adjusted to suit personal taste.

Adjust

grill

setting

and

grill

pan

grid

suit

different

thicknesses

food

15 - 25

10 - 15

8 - 12

10 - 20

3 - 4

THE CONVENTIONAL OVEN

This form of cooking gives you the opportunity to cook without the fan in operation. It is particularly suitable for dishes which require extra base browning such as pizzas, quiches and flans. Gratins, lasagnes and hotpots which require extra top browning also cook well in the conventional oven. For best results cook on one level.

USING THE CONVENTIONAL OVEN

• Turn the main oven multifunction selector to conventional oven.

• Turn the main oven temperature control to the required setting.

THINGS TO NOTE

• The oven light will illuminate.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan for the controls may operate after

a time.

• If an automatic programme has been set, the

oven light will not come on until cooking begins.

HINTS AND TIPS

• Single level cooking gives best results. If you

require more than one level of cooking use the main fan oven.

• The middle shelf allows for the best heat

distribution. To increase base browning simply lower the shelf position. To increase top browning raise, the shelf position.

• There should always be at least 2.5cm (1”)

between the top of the food and the grill element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc. When cooking cakes, pastry, scones bread etc., place the tins or baking trays centrally on the shelf.

• Ensure that food is placed centrally on the shelf

and there is sufficient room around the baking tray or dish to allow for maximum circulation.

• Stand dishes on a suitably sized baking tray on

the shelf to prevent spillage onto the oven base and to help reduce cleaning.

• The material and finish of the baking tray and

• Do not place baking trays directly on the oven

base as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

• For economy leave the door open for the shortest

possible time, particularly when placing food into a pre-heated oven.

Do not place cookware and cooking pots with rough bases e.g. cast iron on the oven door as damage to the glass may occur.

BOTTOM HEAT

This function can be used to finish off dishes that may require extra base heat or where base browning and crispness are required by pizzas or pies. Some pizzas should be cooked directly on the oven shelf. To prevent soiling the oven base, place a baking tray in one of the lower positions.

USING BOTTOM HEAT

• Towards the end of the cook time, turn the Main Oven Function selector to Bottom Heat.

• Turn the Main Oven Temperature control to the required setting.

• The internal oven light will come on.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

Do not place dishes, tins and trays directly on the oven base as it becomes very hot and damage will occur.

NOTE:

This function should not be used for the entire cooking time. It is intended as a support function only.

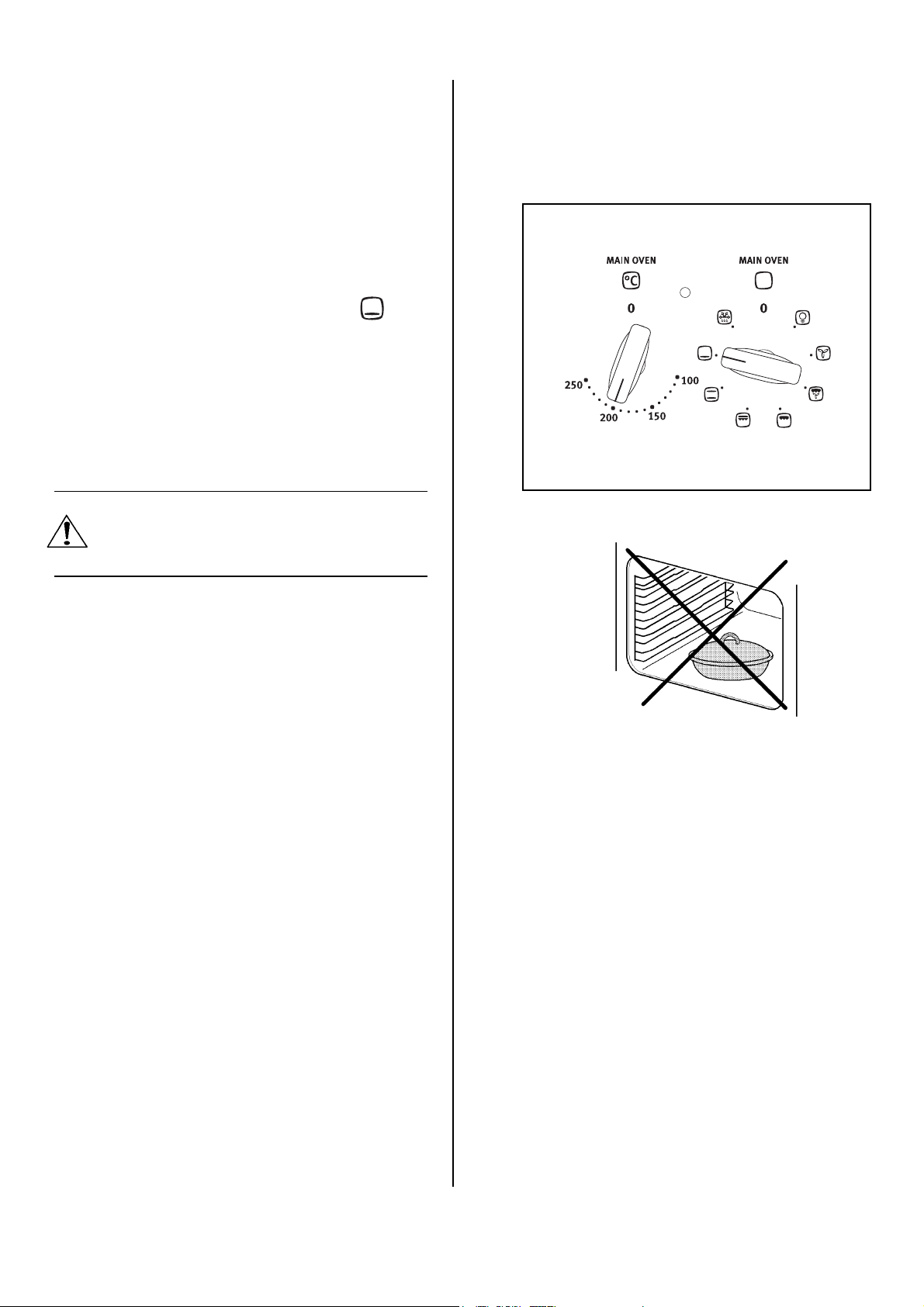

DEFROST FEATURE

This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones, etc.

USING DEFROST FEATURE

• Turn the Main Oven Function selector to Defrost.

• This function DOES NOT require a temperature

setting on the Main Oven Temperature control.

• The oven fan and internal oven light will operate.

THINGS TO NOTE

• The oven fan and internal oven light will come on.

• The cooling fan does not operate.

HINTS AND TIPS

• Place the frozen food in a single layer where possible and turn it over half way through the defrosting process.

• The actual speed of defrosting is influenced by room temperature. On warm days defrosting will be faster than on cooler days.

• It is preferable to thaw fish, meat and poultry slowly in the fridge. However, this process can be accelerated by using the defrost function. Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 – 2 hours.

• A 1kg/2¼lb oven ready chicken will be thawed in approximately 5 hours. Remove the giblets as soon as possible during the thawing process.

• Joints of meat up to 2kg/4½lb in weight can be thawed using the defrost function.

• All joints of meat and poultry must be thawed thoroughly before cooking.

• Always cook thoroughly immediately after thawing.

• Do not leave food at room temperature once it is defrosted. Cook raw food immediately or store cooked food in the fridge, once it has cooled.

• Care must always be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial growth and cross contamination when defrosting, preparing, cooking, cooling and freezing foods.

CARE AND CLEANING

Before cleaning always allow the cooling fan

to cool the appliance down before switching off at the electricity supply.

CLEANING MATERIALS

Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives and scourers should also be avoided as damage will occur.

CLEANING THE OUTSIDE OF THE APPLIANCE

Do not use abrasive cleaning materials e.g. Hob

Brite, Brillo pads or scourers on painted or printed finishes as damage may occur. Regularly wipe over the control panel, doors and handles using a soft cloth and hot soapy water. To prevent streaking finish with a soft cloth. Stainless Steel cream cleaners are abrasive and should be avoided as they may dull the surface finish. Any spillage on the stainless steel finish

must be wiped off immediately.

Do not attempt to remove any of the control knobs from the appliance as this may cause damage and is a safety hazard.

Under no circumstances should the door assembly be detached from the product for cleaning.

REMOVING AND REPLACING WIREWORK RUNNERS

Remove all shelves and furniture from the oven. Hold the wirework at the bottom, unclip from the

cavity side and gently pull towards the centre of the oven.

Unhook the runner at the top and remove from the cavity.

To replace the runners, hook the wirework side runner into the cavity, slide back and press into place.

Ensure the wirework runners are firmly in position before replacing the oven shelves.

CLEANING INSIDE THE OVENS

The sides and back of the grill/second oven and main oven compartments are coated with a special Stayclean coating. They should not be cleaned manually. The vitreous enamel main oven base and grill compartment base can be cleaned using normal oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.

Aerosol cleaners must not come into contact with elements or the door seal as this may cause damage.

HINTS AND TIPS

Aerosol cleaners must not be used on Stayclean surfaces.

Stayclean surfaces destroy splashes of food and fats when the oven temperature is raised to around 220°C. It is a good idea to run the oven for an hour or two per week to ensure continued good performance from the Stayclean finish. Slight discolouration and polishing of the Stayclean surfaces may occur in time. This DOES NOT affect the Stayclean properties in any way. Use minimal, if any, extra oil or fat when roasting meat, potatoes only require brushing with fat before cooking. Extra fat in the oven during roasting will increase splashing and soilage. It is NOT necessary to add water to a meat tin when roasting. The water and the fat juices from the joint create excessive splattering during cooking – even at normal temperatures, as well as causing condensation. Covering joints during cooking will also prevent splashing onto the interior surfaces. Removing the covering for the last 20-30 minutes will allow extra browning if required. Some large joints and turkeys especially benefit by this method of cooking, allowing the joint to cook through before the outside is overbrowned.

CLEANING THE DOOR(S)

To prevent damaging or weakening the

door glass panels avoid the use of the following:

• Household detergents and bleaches

• Impregnated pads unsuitable for non-

stick saucepans

• Brillo/Ajax pads or steel wool pads

• Chemical oven pads or aerosols

• Rust removers

• Bath/Sink stain removers

The main oven and second oven inner door glass panels are removable for cleaning.

Under no circumstances should the door assembly be detached from the product for cleaning. Please refer to the cleaning instructions.

TO REMOVE THE INNER GLASS

1. Fully open the oven door.

2. Firmly grasp the rear edge of the inner glass panel

with both hands.

3. Push the glass panel towards you until it clears

the hinge location points at the rear.

4. With one hand, carefully lift the glass panel to

disengage it from the location points under the handle. (With your other hand, hold the outer

door to ensure it does not spring shut on removing the inner panel).

5. Close the oven door.

If the door glass panel becomes chipped or has deep scratches the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Please contact your local Service Force Centre who will be pleased to advise further.

TO CLEAN THE INNER GLASS DOOR PANELS

Clean the inner door glass panels using a soft cloth and hot water to which a little washing up liquid has been added. If the inner panel is heavily soiled, Hob Brite may be used. Do not use abrasive cleaning materials on the door glass. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the glass.

Do not clean stainless steel outer panels (where fitted) with Hob Brite as damage to the finish will occur. See cleaning instructions for stainless steel models.

TO REPLACE THE INNER GLASS PANEL

1. Holding the glass panel in your right hand fully open the oven door with your left.

2. Gently ease and push the glass into the location points under the handle before lowering and sliding the glass into position under the hinge location points at the rear.

Ensure the glass is properly located and the text 'This way up' is facing towards you and at the top edge of the door.

Do Not attempt to use the oven without the

glass being in place.

CLEANING THE GRILL AND OVEN FURNITURE

All removable parts, except the grill pan handle can be washed in the dishwasher. The grill pan, grill pan grid and oven shelves may be cleaned using a soap impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier.

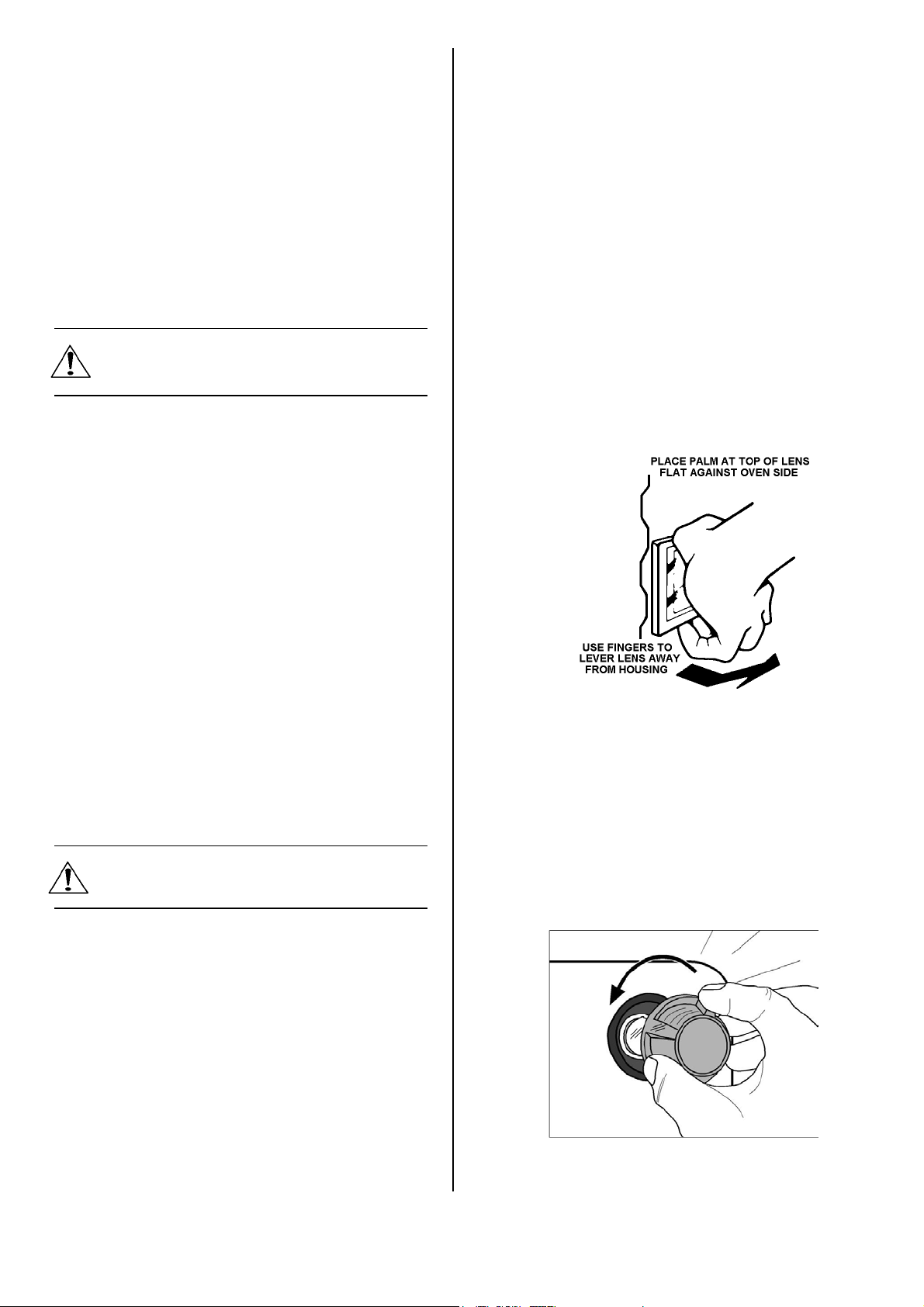

REPLACING AN OVEN LIGHT BULB (MAIN OVEN)

The type of bulb required is a 300°C 25 watt small Edison Screw.

Disconnect the appliance from the electricity supply before replacing the bulb.

1. Make sure the appliance is cool before replacing

the bulb.

2. Open the oven door and remove the shelves and

wirework runners.

3. Pull the glass bulb cover towards you and then

pull it off. If necessary, use a screwdriver to carefully lever off the cover, taking care not to damage the oven cavity.

4. Unscrew the bulb by turning it to the left.

5. Fit a new bulb and then replace the glass bulb

cover.

4. Refit the wirework runners and replace the oven

shelves.

5. Restore the electricity supply and reset the time of

day.

REPLACING AN OVEN LIGHT BULB (TOP OVEN)

The type of bulb required is a 300°C 25 watt small Edison Screw.

Disconnect the appliance from the electricity supply before replacing the bulb.

1. Make sure the appliance is cool before replacing the bulb.

2. Open the door and remove the shelves and wirework runners.

3. Remove the glass cover by turning it to the left.

4. Unscrew the bulb by turning it to the left.

5. Fit a new bulb and then replace the glass bulb cover.

6. Refit the wirework runners and replace the oven shelves.

7. Restore the electricity supply and reset the time of day.

SOMETHING NOT WORKING

Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call.

In-guarantee customers should make sure that the checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for in-guarantee service calls.

PROBLEM POSSIBLE SOLUTION

The grill, ovens and timer do not work.

The grill and top oven work but the main oven does not.

The grill does not work or cuts out after being used for a long period of time.

The timer does not work.

The indicator neons are not working correctly.

The oven is not cooking evenly.

Check that the appliance has been wired in to the appliance supply and is switched on at the wall.

Check that the main appliance fuse is working. If you have checked the above:

Allow the appliance to cool for a couple of hours. The appliance should now be working normally.

Check that the time of day has been set on the clock. Check that the oven is set for manual cooking.

Ensure the cooling fan is running when the grill is on. If the cooling fan fails, the grill will not operate correctly. Contact your local Service Force Centre.

Leave the grill door open and allow the grill to cool. After a couple of hours check that the grill works as normal

Check that the instructions for the operation of the timer are being closely followed.

Check that you have selected only the function you require. Ensure all other controls are in the Off position.

Check that the appliance is correctly installed and is level.

Check that the recommended temperatures and shelf positions are being used.

The oven light fails to illuminate.

The oven fan is noisy.

The oven temperature is too high or too low.

The oven light bulb may need replacing.

If the Main Oven is set for automatic cooking the light will illuminate when the cook time begins.

Check that the oven is level.

Check that the shelves and bakeware are not vibrating in contact with the oven back panel.

Check that the recommended temperatures and shelf positions are being used. Be prepared to adjust the temperature up or down by 10°C to achieve the results you want.

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the

website at www.serviceforce.co.uk Before calling out an engineer, please ensure you have read the details under the heading "Something Not

Working". When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating plate).

5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Service in Ireland please contact us at the address below: Electrolux Group (Irl) Ltd

Long Mile Road Dublin 12 Republic of Ireland

Tel: +353 (0) 1 4090753 Email: service.eid@electrolux.ie

CUSTOMER CARE DEPARTMENT

For general enquires concerning your Electrolux appliance, or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below:-

Customer Care Department Electrolux 55 – 77 High Street Slough Berkshire SL1 1DZ Tel: 0870 5 950950 (*)

*calls to this number may be recorded for training purposes.

GUARANTEE CONDITIONS

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s instructions.

• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

• All service work under this guarantee must be undertaken by a Service Force Centre.

• Any appliance or defective part replaced shall become the Company’s property.

• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

• Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.

• The guarantee is for the same period and to the same extent for labour and parts as exists in the new

country of use for this brand or range of products.

• This guarantee relates to you and cannot be transferred to another user.

• Your new home is within the European Community (EC) or European Free Trade Area.

• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 20 13 Germany Nürnberg +49 (0) 800 234 7378 Italy Pordernone +39 (0) 800117511 Sweden Stockholm +46 (0) 20 78 77 50 UK Slough +44 (0) 1753 219898 Ireland Dublin +353 (0) 1 4090753

TECHNICAL DETAILS

Voltage: 230-240 Volts AC 50Hz

Wattage: 5.2-5.6kW

Height: 888mm

Width: 592mm

Depth: 563mm (excluding handles and knobs)

Weight: 55kg

This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC.

INSTALLATION INSTRUCTIONS

WARNINGS

• This appliance must be installed by a qualified electrician/competent person. Safety may be impaired if installation is not carried out in accordance with these instructions.

• This appliance must be earthed.

• Do not remove the screws from the earth tab

extending from the oven mains terminal block (Fig. 1).

• Before connecting the appliance make sure

that the voltage of your electricity supply is the same as that indicated on the rating plate. This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).

• Do not alter the electrical circuitry of this

appliance.

THINGS TO NOTE

Fig.1

• This appliance is designed to be fitted in cabinets of the recommended dimensions as shown (Fig.3).

• If your cabinet interior dimension is between 565570mm the oven may still be fitted. However, a minor modification to the cabinet will be required to reduce the aperture size down to 560-565 mm, to allow the product to be securely screwed into the cabinet.

• The dimensions given provide adequate air circulation around the unit within the cabinet, ensuring compliance with BS EN60-335.

• Enquiries regarding the installation of the cooker point, if required, should be made to your Regional Electricity Company to ensure compliance with their regulations.

• The appliance socket switch should be outside the cabinet but within 2m of the appliance to make it accessible to switch off the appliance in case of an emergency.

• To protect the hands, wear gloves when lifting the oven into its housing.

Do not lift the appliance by the handles.

NOTE: HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

CHOICE OF ELECTRICAL CONNECTION

• There are three possible ways to connect your appliance. In each case the appliance should be operated using at least 6mm PVC insulated. Please choose from the most appropriate after reading the different methods:-

a) By connecting the appliance to a cooker point

(having a double pole isolating switch with at least 3mm contact separation in all poles and neutral) and protected with a fuse or miniature circuit breaker at your mains fuse box.

Subject to Regional Electricity Companies regulations if you wish to connect the oven and hob to the power supply you may use one of the following two methods:-

b) By connecting the appliance together with a hob

directly to a cooker point(s). Having a double pole isolating switch with at least 3mm contact separation in all poles and neutral.

c) If you wish to connect an oven and a hob to a

cooker point you can by connecting the oven and hob separately to the cooker point. Oven and hob units should be separately connected to a cooker point. See Fig. 2.

twin core and earth

Fig. 2

NOTE: It is good practice to :

• Fit an Earth Leakage Circuit Breaker to your house wiring.

• Wire your appliance to the latest IEE regulations.

PREPARING CABINET FOR FITTING OF OVEN

• Make sure that the cabinet is the correct size for the appliance to be fitted (Ref. Fig. 3).

• If the size is between 565-570mm, then the cabinet should be modified so that at the screw fixing points the recommended dimension of at least 560-565mm is maintained. The modification should ideally be localised to ensure that after screw fitment the oven is securely fixed into position.

• The cabinet must be stable and level by firmly securing it to the wall or floor. If necessary, make arrangements to ensure the shelf upon which the oven will rest is level.

• When the appliance is installed ensure a minimum gap of 2mm is maintained between the trim on the bottom edge of the appliance, and any corresponding door / panel underneath.

RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES)

Fig. 3 Built In Installation

Cross section through cabinet showing oven positioned

HOW TO FINISH UNPACKING

• Place packed appliance next to the space in which it will be installed.

• Remove the appliance packing except for bottom tray, which should be left in position until the appliance is ready to be fitted into its cabinet.

NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor.

• Ensure the user is given these operating instructions.

Important: Switch off at the mains, miniature circuit breaker and if appropriate, remove fuse before commencing any electrical work.

TO REMOVE COVER OF MAINS TERMINAL

From the rear of the appliance, remove mains input terminal cover to gain access to terminal block.

• First remove retaining screw with pozidrive screwdriver. See Fig. 4.

• Prise cover loose using screwdriver in position (1) then lever off with screwdriver in position (2) at either side. See Fig. 5.

• Lift cover and remove screw from cable clamp. See Fig. 6.

Fig. 4

Fig.5

Fig.6

CONNECTING TO THE MAINS TERMINAL

Warning: This appliance must be earthed.

• We recommend you use a new length of 6mm

twin core and earthed cable to ensure your safety.

• Make connection as shown in Fig. 7 by proceeding as follows:-

• Preform wires to the appropriate shape to suit fitting into the mains terminal block.

• Strip inner insulation on wires using wirestrippers.

• Twist the bared wires using pliers.

• Cut bared wires 10mm away from the end of the

inner insulation. Where uninsulated Earth wires are used ensure they are suitably sheathed to leave 10mm bare wire to fit into the terminal.

• Clamp bare wires into the relevant terminal and check they are held by tugging each one in turn.

• Clamp the mains cable securely ensuring 5mm of the outer insulation is inside the terminal block and that the wires are not taught but not so slack as to cause any fouling. See Fig. 7.

• Place fuse/miniature circuit breaker in circuit and switch on at mains.

Fig.7

CHECKING ELECTRICAL CONNECTIONS

Correct electrical connec tion can be confirmed when switching on the appliance as the timer will be flashing.

NOTE: HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

CONNECTING TO A HOB OR COOKER POINT

• Either follow in general terms the instructions for connecting to the terminal block or refer to the hob suppliers installation instructions.

Feed the cable through the cabinet and arrange to route the cable away from the appliance which may become hot.

FITTING INTO THE CABINET

IMPORTANT: Ensure that the oven is switched off at the wall before any further work is carried out.

• Using a tape measure establish the internal width of the cabinet. Refer to page 37 if greater than 565mm.

• Position the appliance in front of the cabinet. See Fig. 8.

• Take out all oven furniture before installation to reduce the weight you need to lift. The oven door should be taped up to keep it closed whilst lifting.

• To place the appliance into the cabinetry follow the procedure below:

• N.B. Two people will be required to carry out the lifting procedure.

Warning: Do not attempt to lift this appliance by the handle(s).

a) Each person should squat either side of the

appliance.

Fig. 8

b) Tilt the appliance so that your hands can support

the underside of the appliance.

c) Keeping your back straight, raise the appliance to

the correct height by straightening at the knees.

d) Rest the rear underside of the appliance on the

cabinet floor while your hands support the front.

e) The appliance can be pushed fully into the

cabinet. Take care to avoid fouling the mains lead.

f) Ensure the appliance is central and level. g) Do not remo ve spacers fitted behind fixing holes. h) When the appliance is fully housed screw the

stability screws (supplied with the appliance) into the side of the cabinet taking care not to distort the side trims (See Fig 9). It is advisable to turn each screw alternatively to avoid damaging the trims.

i) Switch on the appliance then refer to the

operating instructions.

Fixing points fo stability screws

Fig. 9

IMPORTANT NOTICE

In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice.

This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed.

ELECTROLUX

55 – 77 HIGH STREET,

SLOUGH,

BERKSHIRE,

SL1 1DZ.

TELEPHONE 0870 5 950950

www.electrolux.co.uk

Part Number: 311652204

Electrolux plc 2005

AEG-Electrolux EOD6335K, EOD6335U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
