AEG-Electrolux EOB966X User Manual

Electric built-in oven

INSTRUCTION BOOKLET

Please read this instruction booklet before using the appliance

35688-4301

Model EOB 966

GB

Important Safety Information

You MUST read these warnings carefully before installing or using the oven. If you need
assistance, contact our Customer Care Department on 08705 950950

Installation

• This oven must be installed by qualified personnel to
the relevant British Standards.

• This oven is heavy. Take care when moving it.

• Remove all packaging, both inside and outside the
oven, before using the oven.

• Do not attempt to modify the oven in any way.

Child Safety

• This oven is designed to be operated by adults. Do not
allow children to play near or with the oven.

• The oven gets hot when it is in use. Children should be
kept away until it has cooled.

During Use

• This oven is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.

• Appliances become very hot with use, and retain their
heat for long periods after use. Care should be taken
to avoid touching heating elements inside the oven.

• Always stand back from the oven when opening

the oven door during cooking or at the end of it
to allow any build up of steam or heat to release.

• Never line any part of the oven with aluminium foil.

• Do not allow heatproof cooking material, e.g. roasting
bags, to come into contact with oven elements.

• When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the oven.

Maintenance and Cleaning

• Only clean this oven in accordance with the instructions.

• The oven should be kept clean at all times. A build-up
of fats or other foodstuffs could result in a fire,
especially in the grill pan.

• Never use steam or high pressure steam cleaners to
clean the appliance.

• Always allow the oven to cool down and switch off the
electrical supply before carrying out any cleaning or
maintenance work.

Service

• This oven should only be repaired or serviced by an
authorised Service Engineer and only genuine approved
spare parts should be used.

Environmental Information

• After installation, please dispose of the packaging
with due regard to safety and the environment.

• When disposing of an old appliance, make it unusable,
by cutting off the cable. Remove any door catches,
to prevent small children being trapped inside.

• Never place plastic or any other material which may
melt in or on the oven.

• Do not place sealed cans or aerosols inside the oven.
They may explode if they are heated.

• Do not hang towels, dishcloths or clothes from the
oven or its handle.

• Do not use this oven if it is in contact with water and
never operate it with wet hands.

• Take great care when heating fats and oils as they will
ignite if they become too hot.

• Always use oven gloves to remove and replace food in
the oven.

• Ensure that all control knobs are in the OFF position
when not in use.

• Do not leave cookware containing foodstuffs, e.g. fat
or oil in or on the oven in case it is inadvertently
switched ON.

2

The symbol on the product or on its packaging
indicates that this product may not be treated as

household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential ne­gative consequences for the environment and human
health, which could otherwise be caused by inappropriate
waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where you
purchased the product.

Keep this instruction book for future reference

and ensure it is passed on to any new owner.

Contents

For the User For the Installer

Important Safety Information 2

Description of the Oven 4

Controls 5

Before the First Use 6

Electronic Programmer 7

Using the Oven 9

Hints and Tips 9

The Fan Oven 10

Cooking Chart - Fan Oven 11

Grilling 12

Defrosting 13

Cleaning the Oven 14

Replacing the Oven Light 15

Something not Working 15

Service and Spare Parts 16

Customer Care 16

Technical Data 18

Installation 18

Electrical Connection 18

Building In 19

Guarantee Conditions 17

Guide to use the instructions

The following symbols will be found in the text to guide
you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation



Hints and Tips

Environmental information

This appliance complies with the following E.E.C.

Directives:
*73/23 - 90/683 (Low VoltageDirective);
*93/68 (General Directives);
*89/336 (Electromagnetical Compatibility Directive)

and subsequent modifications.

3

Description of the Oven

65 234

1

8

9

10

7

Oven accessories

Removable

handle

1. Control panel

2. Oven Control Function Knob

3. Electronic Programmer

4. Thermostat Control Knob

5. Mains on Light

Grill Pan Grid

6. Thermostat Control Light

7. Oven Light

8. Grill

9. Oven Fan

10.Rating Plate

Anti-tip shelf (x 2)

Grill / Roasting pan

4

Controls

Oven Function Control Knob

0

The oven is off

Oven light - The oven light will be on without

any cooking function

Inner grill element only - Can be used for grilling

small quantities

Full Grill - The full grill element will be on.

Recommended for large quantities.

Thermal Grilling - This function offers an al-

ternative method of cooking food items,
normally associated with conventional grilling.
The grill element and the oven fan operate
together, circulating hot air around the food.

Fan cooking - This allows you to roast or roast

and bake simoultaneously using any shelf,
without flavour transference

Defrost Setting - This setting is intended to

assist in thawing of frozen food.

Thermostat Control Knob (°C)

Turn the thermostat control knob clockwise to select
temperatures between 50 °C and 230 °C (MAX).

Thermostat Control Light

The thermostat control light will come on when the
thermostat control knob is turned. The light will remain on
until the correct temperature is reached. It will then cycle
on and off to show the temperature is being maintained.

Mains on Light

The mains on light will come on when the oven function
control knob is set.

The Safety Thermostat

This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequential
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Force Centre. Under no circumstances should you
attempt to repair the appliance yourself.

5

The cooling fan

The cooling fan operates during cooking. Air is expelled
through vents between the oven door and the control panel,
as shown in the diagram.
The cooling fan may run on after the oven is switched off
to keep the controls cool. This is quite normal.

Before the First Use

Remove all packaging, both inside and outside
the oven, before using the oven.

Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.

The oven will work only if the time of day has
been set.

1. Set the time of day with the electronic programmer



(see chapter "Electronic Programmer").

2. Switch the oven function control knob to fan

cooking .

3. Set the thermostat control knob to MAX.

4. Open a window for ventilation.

5. Allow the oven to run empty for approximately 45

minutes.

This procedure should be repeated with the full grill
function for approximately 5-10 minutes.

6

Electronic Programmer

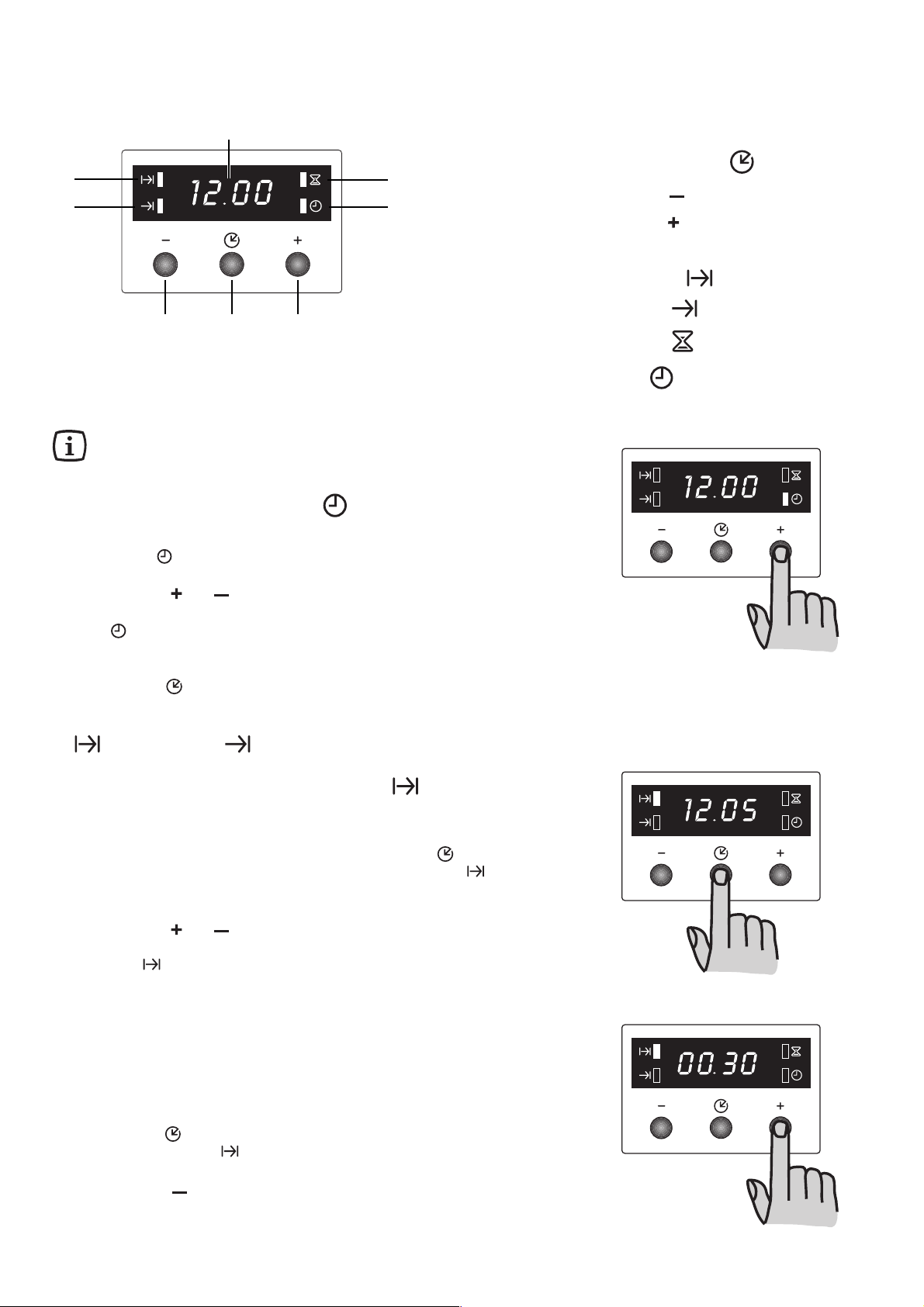

4

1. Push button for selecting a function

5
6

123

The oven will only work if the time of day has been set.

However, the oven can also be operated without any programme.

Setting the time of day

7

2. Decreasing control button “ ”

8

3. Increasing control button “ ”

4. Display

5. “Cooking Duration” pilot lamp

6. “End of cooking” pilot lamp

7. “Minute minder” pilot lamp

8. “Time of day” pilot lamp

When the power supply is switched on, or after a power failure, the “Time of
day” pilot lamp will flash on the display.

To set the correct time of day:

1. Press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds: the “Time of day” pilot

lamp will go out and the display will show the set time. The appliance
is ready for use.

To reset the correct time of day:

1. Press button repeatedly to select the “Time of day” function. The

relevant pilot lamp will start flashing. Then proceed as described above.
The time of day can only be reset if no automatic function (cook duration

or end of cooking ) has been set.

“Cooking Duration” function

This function allows the oven to automatically switch off at the end of a
programmed cooking duration time. Place food in the oven, select a cooking
function and adjust the cooking temperature. Press button repeatedly to
select the “Cooking Duration” function. The relevant pilot lamp will start
flashing. Then, proceed as follows:

To set the duration time:

1. Press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds: the "Cooking Duration"

pilot lamp will come on and the display will revert to the time of day.

3. When cooking time is over, the oven will be switched off automatically
and an acoustic alarm will be heard, while the pilot lamp will start flashing.
Turn the oven function and the thermostat control knob to zero.
To switch off the acoustic alarm, press any button.
NOTE: turning the acoustic alarm off will reset the oven to manual, and
if the oven function and the thermostat knobs are not set to zero the
oven will start to heat again.

To cancel the duration time:

1. Press button repeatedly to select the “Cooking Duration” function.

The relevant pilot lamp will flash and the display will show the remaining
cooking time.

2. Press button “ ” until the display shows “0:00”. After 5 seconds the
pilot lamp will go out and the display will revert to the time of day.

7

“End of cooking” function

With this function, you can set the oven to switch off automatically when a
programmed end of cooking time is over. Place food in the oven, select a cooking
function and adjust the cooking temperature. Press button repeatedly to select
the “End of cooking” function. The relevant pilot lamp will start flashing. Then,
proceed as follows:

To set the End of cooking time:

1. Press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds: the “End of cooking” pilot

lamp will come on and the display will revert to the time of day.

3. When cooking time is over, the oven will be switched off automatically and an
acoustic alarm will be heard, and the pilot lamp will start flashing. Turn the
oven function and the thermostat control knob to zero.
To switch off the acoustic alarm, press any button. NOTE: turning the acoustic
alarm off will reset the oven to manual, and if the oven function and the
thermostat knobs are not set to zero the oven will start to heat again.

To cancel the End of cooking time:

1. Press button repeatedly to select the “End of cooking” function. The

relevant pilot lamp will flash and the display will show the programmed
End of cooking time.

2. Press button “ ” until the display shows the current time of day. The
programmer will beep and the pilot lamp will go out.

“Cooking duration” and “End of cooking
time” combined

The functions “Cooking duration” and “End of cooking time” can be used

simultaneously to set the oven to switch on and off automatically at a later time.

1. With the “Cooking duration” function (carry out the cooking duration setting
as described in the relevant chapter) set the duration time. Then, press button

: the display will show the programmed setting.

2. With the “End of cooking time” function (carry out the End of cooking
setting as described in the relevant chapter) set the end of cooking time.
The relevant pilot lamps will come on and the display will show the time of
day. The oven will switch on and off according to the set programmes.

“Minute minder” function

The minute minder alarm will sound at the end of a timed period, but THE OVEN
WILL REMAIN ON, if it is in use.

To set the minute minder:

1. Press button repeatedly to select the “Minute minder” function. The relevant

pilot lamp will start flashing.

2. Then, press button “ ” or “ ” (maximum: 2 hours, 30 minutes).

3. After the setting is carried out, wait for 5 seconds: the “Minute minder” pilot

lamp will come on.

4. At the end of the timed period, the pilot lamp will start flashing and an acoustic
alarm will be heard. To switch off the acoustic alarm, press any button.

To cancel the minute minder:

1. Press button repeatedly to select the “Minute minder” function. The relevant

pilot lamp will flash and the display will show the remaining time.

2. Press button “ ” until the display shows “0:00”. After 5 seconds the pilot
lamp will go out and the display will revert to the time of day.

How to switch off the display

1. Press two or three programmer push buttons simoultaneously and keep

them pressed for about 5 seconds. The display will switch off.

2. To switch on the display, press any button.

The display can be switched off only if no other functions have been
set.

8

Using the Oven

Always cook with the oven door closed.

Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the
door using the door handle, until it is fully open.

The oven has four shelf levels, and is supplied
with two shelves. The shelf positions are counted
from the bottom of the oven as shown in the
diagram.

It is important that these shelves are correctly
positioned as shown in the diagram.

Do not place cookware directly on the oven
base.

Attention! - Do not place objects on the oven base

and do not cover any part of the oven with
aluminium foil while cooking, as this could cause
a heat build-up which would affect the baking
results and damage the oven enamel. Always
place pans, heat-resisting pans and aluminium
trays on the shelf which has been inserted in the
shelf runners.

4

3

2

1

Hints and Tips

Condensation and Steam

The oven is supplied with an exclusive system which
produces a natural circulation of air and the constant
recycling of steam. This system makes it possible
to cook in a steamy environment and keep the
dishes soft inside and crusty outside. Moreover,
the cooking time and energy consumption are
reduced to a minimum. During cooking steam may
be produced which can be released when opening
the oven door. This is absolutely normal.

However, always stand back from the oven
when opening the oven door during cooking or
at the end of it to allow any build up of steam
or heat to release.

If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense
and produce water droplets. This is quite normal and
is not a fault with the oven. To prevent discolouration,
regularly wipe away condensation and also soilage
from surfaces.

The effects of dishes
on cooking results

Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat to
the food inside them.
A Aluminium, earthenware, oven glassware and bright

shiny utensils reduce cooking and base browning.

B Enamelled cast iron, anodized aluminium, aluminium

with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and base browning.

Cookware

• Use any oven proof cookware which will withstand
temperatures of 230 °C.

• Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back of
the oven, or placed on the oven base.

• Do not use baking trays larger than 30 cm x 35 cm (12
in x 14 in) as they will restrict the circulation of heat
and may affect performance.

9

The Fan Oven

The air inside the oven is heated by the element around
the fan situated behind the back panel. The fan circulates
hot air to maintain an even temperature inside the oven.

The advantage of cooking with this function is
energy saving through:

 Faster Preheating

As the fan oven quickly reaches temperature, it is
not usually necessary to preheat the oven although
you may find that you need to allow an extra 5-7
minutes on cooking times. For recipes which require
higher temperatures, best results are achieved if the
oven is preheated first, e.g. bread, pastries, scones,
souffles, etc.

 Lower Temperatures

Fan oven cooking generally requires lower
temperatures than conventional cooking.
Follow the temperatures recommended in the cooking
chart. Remember to reduce temperatures by about
20-25°C for your own recipes which use conventional
cooking.

 Even Heating for Baking

The fan oven has uniform heating on all shelf positions.
This means that batches of the same food can be
cooked in the oven at the same time. However, the
top shelf may brown slightly quicker than the lower
one. This is quite usual. There is no mixing of flavours
between dishes.

How to use the Fan Oven



1. Turn the oven function control knob to .

2. Turn the thermostat control to the required temperature.

Things to note

• The oven light will come on when the oven function
control knob is set.

• The oven fan will operate continually during cooking.

• The thermostat control light will remain on until the
correct temperature is reached. It will then cycle on
and off to show the temperature is being maintained.

The cooling fan

During cooking the cooling fan will operate continually.
It may run on after the oven is switched off to keep the
controls cool. This is quite normal.

Hints and Tips

- Shelf positions are not critical, but make sure the
shelves are evenly spaced.

- When cooking more than one dish in the fan oven,
place dishes centrally on the shelves rather than
several dishes on one shelf.

- When the oven is full, you may need to allow slightly
longer cooking time.

- When the oven is full of the same food, e.g. equal
trays of small cakes or equal size victoria sandwich
cakes, then they will be cooked in the same time and
removed from the oven together. When different sizes
of trays or types of food, e.g. biscuits and cakes are
cooked, they will not necessarily be ready together.

- The fan oven can be used to heat foods through without
thawing first, e.g. fruit tarts, mince pies, sausage rolls,
and other small pastry items. Use a temperature of
190-200°C and allow 20-40 minutes (depending on
the quantity of food in the oven).

- The use of too high temperatures can cause uneven
browning. Check with the recommendations for oven
temperatures given in the cooking charts, but be
prepared to adjust the temperature, if necessary.
Remember to reduce temperatures by about 20-25°C
for your own conventional recipes.

- When roasting do use the trivet in the meat tin. Fat
and meat juices will drain into the meat tin below and
can be used to make gravy. The trivet also prevents
splashes of fat from soiling the oven interior.

NOTE

The action of the cooling fan will depend on how long the
oven has been used and at what temperature. It may not
switch in at all at lower temperature settings nor run on
where the oven has only been used for a short time.

10

- The meat tin should not be placed on a heated
hotplate as this may cause the enamel to crack.

Cooking Chart- Fan Oven

Cooking

time

NOTES

minutes

TYPE OF DISH

Weight (gr.)

Level

4
3
2
1

cooking

temperature

(°C)

CAKES

Whisked recipes 2 (1 and 3)* 160 45 ~ 60 In cake mould
Shortbread dough
Butter-milk cheese cake

2 (1 and 3)* 160 20 ~ 30 In cake mould

2 150 60 ~ 80 In cake mould
Apple cake 2 (1 and 3)* 170 40 ~ 60 In cake mould
Strudel 2 150 60 ~ 80
Jam-tart 2 (1 and 3)* 160 30 ~ 40
Fruit cake 1 160 45 ~ 60 In bread tin
Sponge cake 2 (1 and 3)* 160 30 ~ 40 In cake mould
Christmas cake 1 160 40 ~ 60 In cake mould
Plum cake 1 160 50 ~ 60 In bread pan
Small cakes 2 (1 and 3)* 160 25 ~ 35 In baking tray
Biscuits 2 (1 and 3)* 150 20 ~ 30 In baking tray
Meringues 2 (1 and 3)* 100 90 ~ 120 In baking tray
Buns 2 (1 and 3)* 180 12 ~ 20 In baking tray
Pastry: Choux 2 (1 and 3)* 190 15 ~ 25 In baking tray

BREAD AND PIZZA

1000 White bread 2 180 40 ~ 60 1-2 pieces

500 Rye bread 1 180 30 ~ 45 In bread tin
500 Bread rolls 2 (1 and 3)* 175 20 ~ 35 6-8 rolls
250 Pizza 2 (1 and 3)* 190 15 ~ 30 on baking tray

FLANS

Pasta flan 2 (1 and 3)* 175 40 ~ 50 in mould
Vegetable flan 2 (1 and 3)* 175 45 ~ 60 in mould
Quiches 2 (1 and 3)* 180 35 ~ 45 in mould
Lasagne 2 160 45 ~ 60 in mould
Cannelloni 2 175 40 ~ 55 in mould

MEAT

1000 Beef 2 175 50 ~ 70 On grid
1200 Pork 2 175 100 ~ 130 On grid
1000 Veal 2 175 90 ~ 120 On grid
1500

English roast beef

1500 rare 2 200 50 ~ 60 On grid
1500 medium 2 200 60 ~ 70 On grid
1500 well done 2 200 70 ~ 80 On grid
2000 Shoulder of pork 2 170 120 ~ 150 With rind
1200 Shin of pork 2 160 100 ~ 120 2 pieces
1200 Lamb 2 175 110 ~ 130 Leg
1000 Chicken 2 175 60 ~ 80 Whole
4000 Turkey 2 160 210 ~ 240 Whole
1500 Duck 2 160 120 ~ 150 Whole
3000 Goose 2 160 150 ~ 200 Whole
1200 Rabbit 2 175 60 ~ 80 Cut in pieces
1500 Hare 2 175 150 ~ 200 Cut in pieces

800 Pheasant 2 175 90 ~ 120 Whole

Meat loaf 2 160 40 ~ 60 in bread pan

FISH

1200 Trout/Sea bream 2 (1 and 3)* 175 30 ~ 40 3-4 fishes
1500 Tuna fish/Salmon 2 (1 and 3)* 175 25 ~ 35 4-6 fillets

This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal requirements.
NOTE: Shelf positions are counted from bottom of the oven.

We recommend to pre-heat the oven for about 10 minutes before cooking.

11

Grilling

Grilling must be carried out with the oven door
closed.
The grill pan handles must be removed from
the pan during grilling. Always use oven gloves

to remove and replace the grill pan handles.
Ensure that you support the grill pan when
removing it from the oven.

How to Use the Full Grill



1. Set the oven control function knob to .

2. Set the thermostat control knob to the required tem­perature.

3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food. Position the food
close to the element for faster cooking and further
away for more gentle cooking.

Preheat the grill on a full setting for a few minutes before
sealing steaks or toasting. Adjust the heat setting and
the shelf as necessary, during cooking.
During cooking, the cooling fan and the thermostat
control light will operate in the same way as described
for the fan oven function.

Hints and Tips

- Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air and to lift the
food out of the fats and juices. Food such as fish,
liver and kidneys may be placed directly on the grill
pan, if preferred.

- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish lightly
with a little oil or melted butter to keep them moist
during cooking.

- Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling meats

- When toasting bread, we suggest that the top runner
position is used.

- The food should be turned over during cooking, as
required.

The grill element is controlled by the thermostat.
During cooking, the grill cycles on and off to
prevent overheating.

How to Use the Inner Grill



Element

The inner grill provides quick direct heat to the central
area of the grill pan. By using the inner grill element for
cooking small quantities, it can help to save energy.

1. Set the oven control function knob to .

2. Set the thermostat control knob to the required
temperature.

3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.

O

L

I

Cooking chart - Grilling -

Quantity

TYPE OF DISH

Pieces Weight

Fillet steaks
Beef-steaks 4 600 3 250 10 ~ 12 6 ~ 8
Sausages 8 — 3 250 12 ~ 15 10 ~ 12
Pork chops 4 600 3 250 12 ~ 16 12 ~ 14
Chicken (cut in two) 2 1000 3 250 30 ~ 35 25 ~ 30
Kebabs 4 — 3 250 10 ~ 15 10 ~ 12
Chicken (breast) 4 400 3 250 12 ~ 15 12 ~ 14
Hamburger 6 600 3 250 10 ~ 15 8 ~ 10
Fish (fillets) 4 400 3 250 12 ~ 14 10 ~ 12
Sandwiches 4 - 6 — 3 250 3 ~ 7 —
Toast 4 - 6 — 3 250 2 ~ 4 2 ~ 3

4 800 3 250 12 ~ 15 12 ~ 14

Level

4
3
2
1

Temperature

°C

Cooking time

(minutes)

Upper

side

Lower

side

The chart is intended as a guide only and should be adjusted according to taste.
Cooking time depends on the thickness of the meat and not on its weight.

12

How to Use the Thermal Grill



Thermal grilling offers an alternative method of cooking
food items normally associated with conventional grilling.
The grill element and the oven fan operate alternately,
circulating hot air around the food. The need to check
and turn the food is reduced. Thermal grilling helps to
minimize cooking smells in the kitchen.
With the exception of toast and rare steaks, you can
thermally grill all the foods you would normally cook
under a conventional grill. Cooking is more gentle,
therefore food generally takes a little longer to cook with
thermal grilling compared with conventional grilling. One
of the advantages is that larger quantities can be cooked
at the same time.

1. Turn the oven control function knob on .

2. Turn the thermostat control knob on the required
temperature. Select a maximum temperature of

200°C

3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.

Cooking chart - Thermal grilling

Hints and Tips

Prepare foods in the same way as for conventional grilling.
Brush lean meats and fish lightly with a little oil or butter
to keep them moist during cooking.

When using the thermal grill cooking function, select a maximum temperature of 200°C.

TYPE OF DISH Quantity Temperature Time in minutes

(gr.) °C lower upper

Rolled joints
Chicken (cut in two) 1000 3 200 25 ~ 30 20 ~ 30
Chicken legs — 3 200 15 ~ 20 15 ~ 18
Quail
Vegetable gratin — 3 200 20 ~ 25 —
St. Jacques shells — 3 200 15 ~ 20 —
Mackerel — 3 200 15 ~ 20 10 ~ 15
Fish slices 800 3 200 12 ~ 15 8 ~ 10

(turkey) 1000 3 200 30 ~ 40 20 ~ 30

500 2 200 25 ~ 30 20 ~ 25

Level

4
3
2
1

side side

Defrosting

The oven fan operates without heat and circulates the
air, at room temperature, inside the oven. This increases
the speed of defrosting. However, please note that the
temperature of the kitchen will influence the speed of
defrosting.
This function is particularly suitable for delicate food which
could be damaged by heat, e.g. cream filled gateaux,
iced cakes, pastries, bread and other yeast products.

How to Use Defrosting



1. Turn the oven function control knob to .

Hints and Tips

• Cover food with a lid, aluminium foil or plastic film to
prevent drying out during defrosting.

• ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.

• Frozen food should be placed in a single layer when
ever possible and turned over half way through the
defrosting process.

• Only joints of meat and poultry up to 2 kg. (4 lb.) are
suitable for defrosting in this way.

2. Ensure the thermostat control knob is in the OFF
position.

13

Cleaning the Oven

Before cleaning always allow the cooling fan to
cool the oven down before switching off at the
electricity supply.
This appliance cannot be cleaned with steam or
with a steam cleaning machine.

The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.

Cleaning materials

Before using any cleaning materials on your oven, check
that they are suitable and that their use is recommended
by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives should
also be avoided.

External cleaning

Regularly wipe over the control panel, oven door and door
seal using a soft cloth well wrung out in warm water to
which a little mild washing-up liquid has been added.

To prevent damaging or weakening the door glass
panels avoid the use of the following:

• Household detergent and bleaches

• Impregnated pads unsuitable for non-stick
saucepans

• Brillo/Ajax pads or steel wool pads

• Chemical oven pads or aerosols

• Rust removers

• Bath/Sink stain removers

Clean the outer and inner door glass using warm soapy
water. Should the inner door glass become heavily soiled
it is recommended that a cleaning product such as Hob
Brite is used. Do not use paint scrapers to remove soilage.

DO NOT clean the oven door while the glass
panels are warm. If this precaution is not observed
the glass panel may shatter.
If the door glass panel becomes chipped or has
deep scratches, the glass will be weakened and
must be replaced to prevent the possibility of the
panel shattering. Contact your local Service Force
Centre who will be pleased to advise further.

Models in stainless steel or
aluminium

We recommend to clean the oven door using only a wet
sponge and dry it after cleaning with a soft cloth.
Never use steel wool, acids or abrasive products as they
can damage the oven surface.
Clean the oven control panel following the same
precautions.

Oven Cavity

The enamelled oven cavity is best cleaned whilst the
oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.

Oven Shelves

To clean the oven shelves, soak in warm soapy water and
remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft cloth.

14

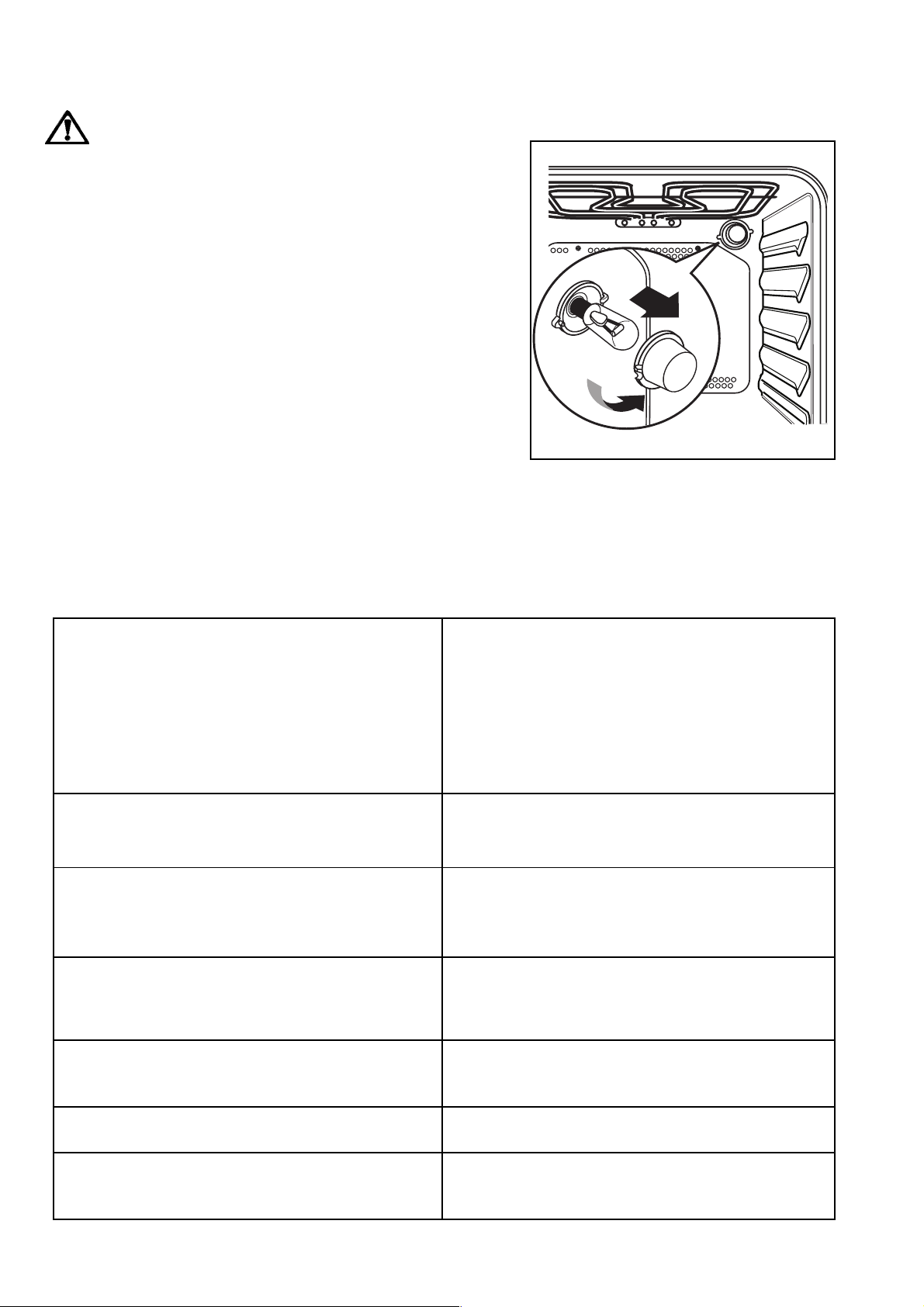

Replacing the Oven Light

Disconnect the appliance from the power
supply.

If the oven bulb needs replacing, it must comply with the
following specifications:

- Wattage power: 15 W,

- Voltage: 230 V (50 Hz),

- Resistant to temperatures of 300 °C,

- Connection type: E14.
These bulbs are available from your local Service Force
Centre.

To replace the faulty bulb:



1. Ensure the oven is disconnected from the

electrical supply.

2. Turn the glass cover anticlockwise.

3. Remove the faulty bulb and replace with the new one.

4. Refit the glass cover.

5. Reconnect to the electrical supply.

Something not working

If the oven is not working correctly, please carry out the following checks, before contacting your local Service Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation,
a charge will be made even if the appliance is under guarantee.

SYMPTOM

 The oven does not come on

 The oven temperature light does not come on

 The oven light does not come on

 It takes too long to finish the dishes, or they are

cooked too fast.

SOLUTION
 Check that the current time of day has been set on the

programmer (see chapter "Setting the time of day")

 Check that both a cooking function and temperature

have been selected.

 Check the oven is wired in properly, and the socket

switch or the switch from the mains supply to the oven
are ON.

 Select a temperature with the thermostat control knob
 Select a function with the oven function control knob.

 Select a function with the oven function control knob
 Check the light bulb, and replace it if necessary (see

"Replacing the Oven Light")

 The temperature may need adjusting
 Refer to the contents of this booklet, especially to the

chapter “Using the Oven”.

 Steam and condensation settle on the food and the

oven cavity.

 The electronic programmer does not work

 The oven fan is noisy

 Leave dishes inside the oven no longer than 15-20

minutes after the cooking is completed.

 Check the instructions for the timer.

 Check that shelves and bakeware are not vibrating in

contact with the oven back panel.

15

Service and Spare Parts

In the event of your appliance requiring service, or if you
wish to purchase spare parts, please contact your local
Electrolux

Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not Work­ing.”
When you contact the Service Force Centre you will need
to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance (found
on the rating plate)

5. The purchase date

Service Force Centre by telephoning:

0870 5 929929

For general enquiries concerning your
appliance or for further information on
products, please contact our Customer Care Department
by letter or telephone at the address below or visit our
website at www.electrolux.co.uk

Electrolux
Electrolux

Customer Care Department

Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950950 (*)
* calls to this number may be recorded for training
purposes.

For Customer Service in the Republic of Ireland please
contact us at the address below:

Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland

Tel: [phone]
Email: [e-mail]

16

Guarantee Conditions

Electrolux Guarantee conditions

We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this
any part thereof is proved to be defective by any reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:

* The appliance has been correctly installed and used

only on the gas and electricity supply stated on the
rating plate.

* The appliance has been used for normal domestic

purpose only, and in accordance with the
manufacturer's instructions.

* The appliance has not been serviced, maintained,

repaired, taken apart or tampered with by any person
not authorised by us.

* All service work under this guarantee must be

undertaken by a Electrolux Service Centre.

* Any appliance or defective part replaced shall become

the Company's property.

* This guarantee is in addition to your statutory and

other legal rights.

Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside these
hours, in which case a premium will be charged.

Electrolux

appliance or

European Guarantee

If you should move to another country within Europe then

your guarantee moves with you to your new home
subject to the following qualifications:

* The guarantee starts from the date you first

purchased your product.

* The guarantee is for the same period and to the same

extent for labour and parts as exist in the new country
of use for this brand or range of products.

* This guarantee relates to you and cannot be

transferred to another user.

* Your new home is within the European Community

(EC) or European Free Trade Area.

* The product is installed and used in accordance with

our instructions and is only used domestically, i.e. a
normal household

* The product is installed taking into account

regulations in your new country.

Before you move, please contact your nearest Customer
Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after
you and your appliances.

France Senlis [phone]

Exclusions

This guarantee does not cover:

* Damage or calls resulting from transportation,

improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.

* Costs incurred for calls to put right an appliance

which is improperly installed or calls to appliance
outside the United Kingdom.

* Appliances found to be in use within a commercial or

similar environment, plus those which are the subject
to rental agreements.

* Products of

marketed by

Electrolux

Electrolux

manufacture which are not

.

Germany Nürnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

U K Slough [phone]

17

Installation

The oven must be installed according to the
instructions supplied.

Technical Data

Dimensions of recess

Height undertop: 593 mm; in column 580 mm

Width 560 mm

Depth 550 mm

Dimensions of the oven cavity

Height 335 mm

Width 405 mm

Depth 400 mm

Oven capacity 56 litres

Heating elements rating

Top element 800 W

Convection element 2,000 W

Inner Grill element 1,650 W

Double Grill element 2,450 W

Thermal Grilling 2,480 W

Oven Light 15 W

Cooling Fan 25 W

Convection Fan 30 W

Total Rating 2,500 W

Supply voltage (50 Hz) 230 V

Electrical Connection

This oven must be installed by qualified
personnel to the relevant British Standards.

The oven is designed to be connected to 230 V (50 Hz)
electricity supply.
The oven has an easily accessible terminal block which
is marked as follows:

Letter L - Live terminal
Letter N - Neutral terminal

or E - Earth terminal

THIS OVEN MUST BE EARTHED

The cable used to connect the oven to the electrical
supply must comply to the specifications given below.

For Uk use only

Connection Min. size Cable / flex Fuse
via Cable/flex type

• 13 A socket 2.5 mm
outlet butyl min.

• 13 A insulated
spur box

• Cooker 2.5 mm
Control twin and
Circuit earth

2

3 core 13 A

2

PVC/PVC

15 A min.
20 A max.

It is necessary that you install a double pole switch
between the oven and the electricity supply (mains), with
a minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance with
the current rules.

The switch must not break the yellow and green earth
cable at any point.

Important

After installation and connecting, the cable must be
placed so that it cannot at any point reach a temperature
of more than 50 °C above the ambient temperature.

Before the oven is connected, check that the main fuse
and the domestic installation can support the load; and
that the power supply is properly earthed.

The manufacturer disclaims any responsibility should
these safety measures not be carried out.

For Europe use only

Min. size Cable/flex Cable / flex type Fuse

1.5 mm

2

H07 RN-F, H05 RN-F, 13 A
H05 RR-F, H05 VV-F,

H05 V2V2-F (T90),
H05 BB-F

18

Building In

Please ensure that when the oven is installed it is
easily accessible for the engineer in the event of a
breakdown.

Building In

The surround or cabinet into which the oven will be built
must comply with these specifications:

 the dimensions must be as shown in the relevant

diagrams;

 the materials must withstand a temperature increase

of at least 60 °C above ambient;

 proper arrangements must be made of a continuous

supply of air to the oven to prevent the oven overheating.

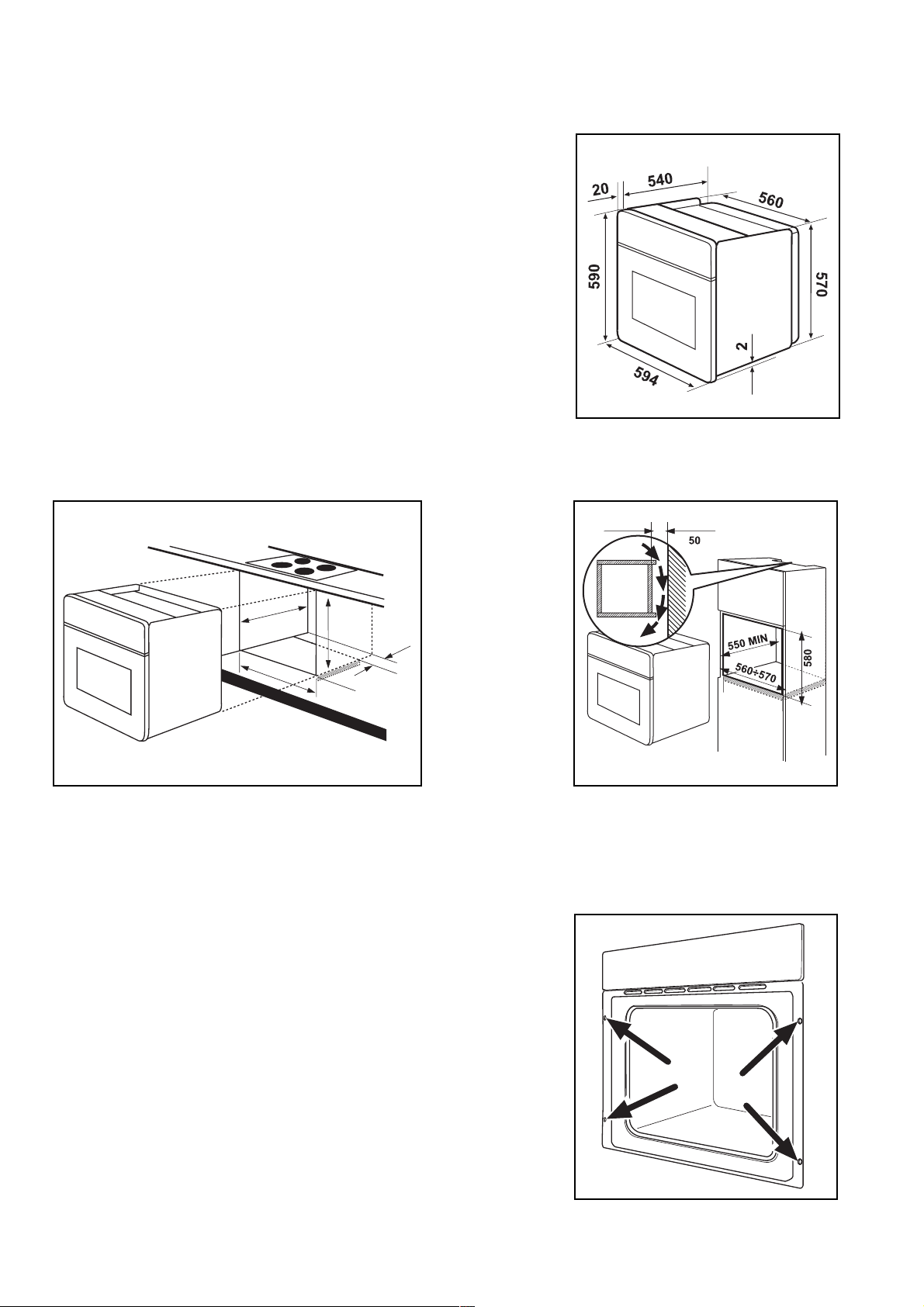

Dimensions of the oven and recess required are given in
the relevant diagrams.

550 MIN

593

5

6

0

- 5
7

0

0

0

1

÷

0

8

Securing The Oven To The
Cabinet

1. Fit the oven into the cabinet recess,

2. Open the oven door,

3. Secure the oven to the kitchen cabinet with four wood
screws, which fit the holes provided in the oven fra­me.

19

EOB966

A

0,79 kWh

0,78 kWh

56,0

43 min.

41 min.

1130 cm²

CUSTOMER CARE

Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel.: [phone]

© Electrolux plc 2004

The Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than
55 Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are
sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

09/04

Grafiche MDM - Forlì
