Built-In Electric Oven
User information
822 923 225-B-290605-07
EOB2610
g
Dear Customer,
Please read this instruction book carefully.
Above all, please observe the “safety” section on the first few pages. Please
retain this instruction book for later reference. Pass them on to any subsequent owners of the appliance.
The following symbols are used in the text:
1 Safety Instructions
Warning: Information concerning your personal safety.
Important: Information on how to avoid damaging the appliance.
3 Information and practical tips
2 Environmental information
1. These numbers indicate step by step how to use the appliance.
2. …
3. …
These operating instructions contain information on steps you can take
yourself to rectify a possible malfunction. Refer to the section “What to do
if...”.
2
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Oven Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Oven Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Attaching/Removing the Grill Pan Handle. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Minute Minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Usage, Tables and Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Baking Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Roasting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Infrared Grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Preserving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Exterior of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Oven Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Oven Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Oven Door Glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oven Interior Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Regulations, Standards, Directives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety Instructions for the Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Warranty conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service and Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4
Operating Instructions
1 Safety instructions
5 This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
• This appliance must be connected by a qualified electrician only.
• In the event of a fault or damage to the appliance: take the fuses out or
switch off.
• Repairs to the appliance must only be carried out by qualified service
engineers. Considerable danger may result from improper repairs. If re-
pairs become necessary, please contact your local Service Force Centre.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety whilst Using
• This appliance is intended to be used for cooking, roasting and baking
food in the home.
• Take care when connecting electric appliances to sockets nearby. Do not
allow connecting leads to come into contact with or to catch beneath the
hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot during use.
• Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not
have embers, sparks or naked flames in the vicinity when opening the
door.
5
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place baking trays,
pots, etc. on the oven floor, as the heat that builds up will damage the
oven enamel.
• Fruit juices dripping from the baking tray will leave stains, which you will
not be able to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause
damage to the enamel and discoloration.
• Rough handling, especially around the edges of the front panel, can cause
the glass to break.
• Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
• Do not store any moist foods inside the oven. This could damage the oven
enamel.
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled.
The plastic components are identified by markings, e.g. >PE<, >PS<, etc.
Please dispose of the packaging materials in the appropriate container at
your local waste disposal facilities.
2 Old appliance
The symbol
uct may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.
W on the product or on its packaging indicates that this prod-
1 Warning: Before disposing of old appliances please make them inoperable
so that they cannot be a source of danger.
To do this, disconnect the appliance from the mains supply and remove
the mains cable from the appliance.
6
Description of the Appliance
General Overview
Control panel
Door
handle
Full glass
door
Control Panel
Oven Functions
Minute Minder (timer)
Temperature Pilot Light
Temperature Selection
7
Oven Features
Top heat and heating elements
Shelf positions
Oven shelf runners, removable
Oven Accessories
Combination shelf
For dishes, cake tins, items for roasting
and grilling.
Oven lighting
Bottom Heat
Grill pan with handle
Support for the grill tray as a collecting
vessel for fat
Grill tray
Insert for the grill pan for grilling smaller
amounts of food
8
Before using for the first time
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1 Caution: Do not use any caustic, abrasive cleaners! The surface could be
damaged.
3 To clean any metal front panels use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting L.
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid and dry.
4. Wipe the front of the appliance with a damp cloth.
9
Operating the Oven
Switching the Oven On and Off
Temperature Pilot Light
Oven Functions
1. Turn the “oven functions” switch to the required function.
2. Turn the “temperature selection” switch to the required temperature.
The red temperature pilot light is only illuminated whilst the oven is heating
up.
3. To switch off the oven, turn the “oven functions” switch and the “temperature selection” switch to the zero position.
Temperature Selection
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces
cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.
10
Oven Functions
The oven has the following functions:
L Oven lighting
With this function you can illuminate the oven interior e.g. for cleaning.
The heating element is not in use.
¡ Conventional
For baking or roasting on one level.
The conventional heating elements are in use.
O Top Heat
For browning foods topped with breadcrumbs and foods cooked au
gratin.
The top heating element is in use.
U Bottom Heat
For crisping cakes that require a crisp base.
The bottom heating element is in use.
¸ Infrared Grill
For grilling flat foods that are arranged in the middle of the shelf such as
steaks, escalopes, fish or for toasting.
The grill heating element is in use.
º Grill
For grilling flat foods in larger quantities, such as steaks, escalopes, fish
or for toasting.
Top heat and the grill element are used.
11
Attaching/Removing the Grill Pan Handle
The handle is particularly useful for removing the grill pan and tray more
easily from the hot oven.
Attaching the handle
Insert the handle at an angle from above
into the recess in the side of the grill pan
(1) press and hold the release button, lift
the handle gently and then lower it (2) let
go of the release button.
1 Warning: Risk of burning!
Important: Check that the handle is securely attached!
Removing the handle
Press the release button on the top of the
handle (1) and lift up the handle (2) to remove it.
1 Important: Never leave the handle in the
heated oven! Overheating can cause the
handle to deform or break, and may
cause an injury.
12
Minute Minder
This function has no effect on the oven
operation.
Turn the control knob to 60 minutes, then
turn it back to the desired length of time.
(60 minutes maximum).
A signal is sounded when the set time
has elapsed.
To change your setting, just turn the knob
to the desired duration.
To stop the timer before the set time has
elapsed, simply turn the
knob back to OFF.
13
Usage, Tables and Tips
Baking
Use conventional ¡ oven function for baking.
Baking tins
Coated baking tins and tins made of dark metal are suitable for
conventional ¡ heat.
Shelf positions
Baking with conventional ¡ is only possible on one shelf position at a time.
1 Baking tray:
Shelf position 3
1 Baking tin:
Shelf position 1
14
General information
• Always count the shelf positions from the bottom upwards.
• Insert baking sheets with the bevelled edge to the front!
• Always place cake tins in the middle of the shelf.
• You can also bake with two cake tins simultaneously with conventional ¡.
In this case place the cake tins side by side on the shelf. The cooking time
is increased but only slightly.
3 When frozen foods are used the trays inserted may distort during cooking.
This is due to the large difference in temperature between the freezing temperature and the temperature in the oven. Once the trays have cooled the
distortion will disappear again.
Notes on the baking tables
In the tables you will find information on temperatures cooking times and
shelf positions for a selection of dishes.
• The temperatures and cooking times are for guidance only since these are
dependent on the mixture quantity and cake tin used.
• When using for the first time we recommend setting the lower temperature
and only if necessary e.g. if increased browning is required or the cooking
time is too long select a higher temperature.
• If you cannot find specific information for one of your own recipes use information given in a similar recipe for guidance.
2 For longer cooking times switch off the oven approx. 10 minutes before the
end of the cooking time to make use of the residual heat.
Unless otherwise stated the information in the tables assumes starting with
a cold oven.
15
Baking Table
Top/Bottom heat ¡
Baking type
Cake mixture
Ring cake or 'Gugelhupf' 160-180 1 50-70
Frankfurter ring cake
(half tin)
Royal/Madeira cake
(rectangular tin)
Pie pastry 150-190* 2 15-25
Fancy apple gateau 150-190* 1 45-60
Short pastry
Cheese flan
(750 gr. cottage cheese)
covered fruit gateau 170-190 2 50-60
Cheese flan (tray) 160-180* 2 50-70
Puff pastry
French. apple gateau 190-200* 1 40-50
Temperature
in °C
150-170 1 45-60
150-170* 1 70-85
170-190 1
Shelf position
Suggested
baking time in
minutes
65-90 + 10
Min.
After-heating
Sponges
Sponge cake (DIN) 160-180* 3 25-40
Fruit ingredients 170-190* 3 20-25
Swiss roll 180-200* 3 10-20
Raised pastry
Ring cake or 'Gugelhupf' 160-180 1 45-55
Plaited buns 170-190 3 15-40
Cakes with cream filling,
or sugar/almond toppings
With sugar vermicelli 160-180* 3 20-40
16
180-200* 3 20-35
Top/Bottom heat ¡
Suggested
baking time in
minutes
Baking type
Fruit cakes (tray) with
sugar vermicelli (DIN)
Temperature
in °C
Shelf position
170-190 3 25-50
Cheese/yeast cake 170-190 3 45-50
Christmas loaf (500 gr.
flour)
160-180* 3 40-70
Pizza (fresh) 250-275* 1 10-25
Biscuits
Meringues 100-200 3 100-200
Macaroons 120-140* 3 20-30
Small biscuits & cakes
(DIN)
160-180* 3 15-30
Walnut cakes 170-180 3 25-30
Puff pastry 180-210* 3 20-30
Pastry (made with yeast
dough)
* Pre-heat the oven
170-190* 3 20-40
17
Roasting
Use conventional ¡ oven function for roasting.
Ovenware for roasting
• Any heat-resistant dish is suitable for roasting.
• If the dish has plastic handles, check that they are heat-resistant.
• When roasting, use an oven rack and an all-purpose tray together.
• Always place the all-purpose tray in the first rung from the bottom.
• Large joints can be roasted directly in the fat tray or on the shelf unit
with the fat tray placed below (e.g., turkey, goose,
3-4 chickens, 3-4 knuckles of veal).
• We recommend that all lean pieces of meat should be roasted in a casse-
role dish with a lid (e.g. veal, marinated beef, pot roast, frozen meat.) In
this way the meat will retain its juices.
• In order to obtain a tasty outside crust we recommend roasting pieces of
meat in a casserole dish without a lid (e.g. roast pork, lamb and mutton,
meat loaf, duck, 1-2 knuckles of veal, 1-2 chickens, small fowl, roast beef,
fillets, game).
3 Tip: The oven will be less dirty if you always use a dish for roasting!
Shelf positions
• Please see the following table for the shelf positions to be used.
• Be sure to count the rungs from bottom to top.
3 Notes on the roasting table
Information is given in the table on suitable oven functions, temperature settings, cooking times and shelf positions for various types of meat. The information is for guidance.
• We recommend roasting meat and fish with a minimum weight of 1 kg in
the oven.
• To stop meat juices or fat burning onto dishes or the oven, we recommend
adding a little water to the roasting dish.
• Turn the joint as required (after 1/2 - 2/3 of the cooking time).
3 Baste large joints and poultry several times during cooking with the meat
juices. This will produce better roasting results.
2 Switch the oven off approx. 10 minutes before the end of the roasting time
to make use of the residual heat.
18
Roasting Table
Type of meat
Beef
Pot roast 1-1.5 kg 2 200-250 2:00-2:30
Roast beef or fillet 2
- rare
- medium rare
- well done
Pork
Shoulder, neck
ham joint
Chop, smoked loin
chop
Meat loaf 750 g -1 kg 2 170-180 0:45-1:00
Knuckle of pork
(pre-cooked)
Quantity
Weight
per cm of
thickness
per cm of
thickness
per cm of
thickness
1-1.5 kg 2 210-220 1:30-2:00
1-1.5 kg 2 180-190 1:00-1:30
750 g -1 kg 2 210-220 1:30-2:00
Shelf
position
2 230-250* 0:06-0:08
2 230-250* 0:08-0:10
2 210-230* 0:10-0:12
Tempera-
ture
ºC
Time
Hrs.:Mins.
per cm of
thickness
Vea l
Roast veal 1 kg 2 210-220 1:30-2:00
Knuckle of veal 1.5-2 kg 2 210-225 2:00-2:30
Lamb
Leg of lamb, roast
lamb
Saddle of lamb 1-1.5 kg 2 210-220 1:00-1:30
Game
Saddle of hare,
haunch of hare
Saddle of venison 1.5-2 kg 2 210-220 1:00-1:30
Haunch of venison 1.5-2 kg 2 200-210 1:15-1:50
1-1.5 kg 2 210-220 1:15-2:00
up to 1 kg 3 220-250* 0:25-0:40
19
Type of meat
Poultry
Quantity
Weight
Shelf
position
Tempera-
ture
ºC
Time
Hrs.:Mins.
Poultry portions
4-6 pieces
Chicken halves
2-4 pieces
Chicken,
poulard
per
200-250g
per
400-500 g
3 220-250 0:35-0:50
3 220-250 0:35-0:50
1-1.5 kg 2 220-250 0:45-1:15
Duck 1.5-2 kg 2 210-220 1:00-1:30
Goose 3.5-5 kg 2 200-210 2:30-3:00
2.5-3.5 kg 2 200-210 1:30-2:00
Turkey
4-6 kg 2 180-200 2:30-4:00
Fish (steaming)
Trout 200-250g 3 200-210* 0:15-0:20
Whole fish 1-1.5 kg 2/3 210-220 0:45-1:15
* Pre-heat the oven
20
Grilling
For grilling use the infrared grill ¸ oven function or infrared wide-area grill º
with temperature setting.
1 Warning: Always close the oven door when grilling.
3 Always pre-heat the empty oven using the grill functions for 5 minutes!
Ovenware for grilling
• Use the shelf unit and universal tray together for grilling.
Shelf positions
• For grilling flat foods you should mostly use the 4th shelf position from
the bottom.
Notes on the grilling table
The grilling times are only for guidance and will vary depending on the type
and quality of meat or fish.
• Grilling is particularly suitable for flat pieces of meat and fish.
• Turn the food approx. halfway through grilling.
Infrared Grilling
Food for grilling Function
Infrared
4-8 Pork chops
2-4 Pork chops
marinated pork
steaks
Fillet steak, rare
4 fillet steaks, medium
wide-
area grill
Infrared
grill
Infrared
wide-
area grill
Infrared
grill
Infrared
wide-
area grill
Tem pe r-
ature in
°C
275 1 4 15 10
275 1 4 12 12
275 1 4 12 12
275 1 4 5-7 4-6
275 1 4 6-8 5-7
Universal tray
Shelf positions
Grill
tray
Grilling time
in minutes
1st
Side
2nd
Side
21
Food for grilling Function
Tem pe r-
ature in
°C
Universal tray
Grill
tray
Grilling time
in minutes
2 Half chicken
pieces
4 Half chicken
pieces
1-4 Chicken
thighs
4-6 Chicken
thighs
Grilled sausage,
up to 6 items
Grilled sausage,
more than 6 items
Coiled sausages,
up to 4 items
Coiled sausages,
up to 6 items
Infrared
grill
Infrared
wide-
area grill
Infrared
wide-
area grill
Infrared
wide-
area grill
Infrared
grill
Infrared
wide-
area grill
Infrared
grill
Infrared
wide-
area grill
Shelf positions
1st
Side
2nd
Side
250 1 4 15-20 15-20
250 1 3 15-20 15-20
250 1 4 20 10
250 1 4 20 15
275 1 4 5-10 5
275 1 4 5-10 5
275 1 4 10 9
275 1 4 10 9
22
Whole fish
Toast (without
topping)
Infrared
wide-
area grill
Infrared
wide-
area grill
250 1 3 10 ---
275 1 4 1-2 1-2
Preserving
When preserving use the bottom heat oven function U.
Preserving jars
• When preserving use only commercially available jars that are the same
size.
3 Jars with twist-off tops or with a bayonet fastening and metal contain-
ers are not suitable.
Shelf positions
• Use the 1st shelf position from the bottom for preserving.
Notes on preserving
• Use the baking tray for preserving. There is room for up to six jars, each
with a capacity of 1 litre.
• The jars should all be filled to the same level and closed.
• Position the jars on the baking tray so that they do not come into contact
with one another.
• Pour approx. 1/2 litre of water into the baking tray to create sufficient
moisture in the oven.
• As soon as bubbles begin to appear in the first jars (for 1-litre jars this
takes about 35-60 minutes), switch off the oven or reduce the temperature
to 100 °C (see table).
Preserving Table
The preserving times and temperatures quoted are for guidance
Preserves
Soft fruit
Strawberries,
blueberries,
raspberries, ripe
gooseberries
Unripe gooseberries
Cooking
Te mp e r-
ature in
°C
160-170 35-45 - -
160-170 35-45 10-15 -
time until
bubbles
form
Mins.
Continued
cooking
at 100 °C
Mins.
Standing time
with oven
switched off
23
Preserves
Fruit with stones
Te mp e r-
ature in
°C
Cooking
time until
bubbles
form
Mins.
Continued
cooking
at 100 °C
Mins.
Standing time
with oven
switched off
Pears, quinces,
plums
160-170 35-45 10-15 -
Vegetables
Carrots 160-170 50-60 5-10 60
Mushrooms 160-170 40-60 10-15 60
Gherkins 160-170 50-60 - -
Mixed Pickles 160-170 50-60 15 -
Kohlrabi, peas,
asparagus
160-170 50-60 15-20 -
Beans 160-170 50-60 - -
Plum purée
160-1705045
- 6-8 hours--
24
Cleaning and care
1 Warning: For safety reasons cleaning the appliance with a steam jet cleaner
or high-pressure water cleaner is not permissible!
Exterior of the Appliance
• Wipe the front of the appliance with a soft cloth dipped in warm soapy
water.
• Do not use scourers, caustic cleaners or abrasive items.
• Use commercially available cleaners for metal fronts.
Oven Interior
1 Warning: The oven must be switched off and cold before cleaning.
Clean the appliance after each use. This is the easiest way to remove spills
and prevents them being burnt on.
1. Switch on the oven lighting when cleaning.
2. Every time you use the oven, wipe it out afterwards with water and wash-
ing-up liquid, then dry. Do not use any abrasive items.
3. Remove stubborn marks with special oven cleaners.
1 Important: Always follow the manufacturer's instructions when using oven
spray!
Accessories
Wash all slide-in units (shelf unit, baking tray, shelf support rails etc.) after
each use and dry well. Soak briefly to make them easier to clean.
25
Shelf Support Rails
The shelf support rails on the left and right hand sides of the oven can be removed for cleaning the side walls.
Removing the shelf support rails
First pull the front of the rail away from
the oven wall (1) and then unhook at the
back (2).
Fitting the shelf support rails
3 Important! The rounded ends of the
guide rails must be pointing forwards!
To re-insert, first hook the rail into place
at the back (1) and then insert the front
and press into place (2).
26
Oven Lighting
1 Warning: Risk of electric shock! Prior to changing the oven light bulb:
– Switch off the oven!
– Disconnect from the electricity supply.
3 Place a cloth on the oven floor to protect the oven light and glass cover.

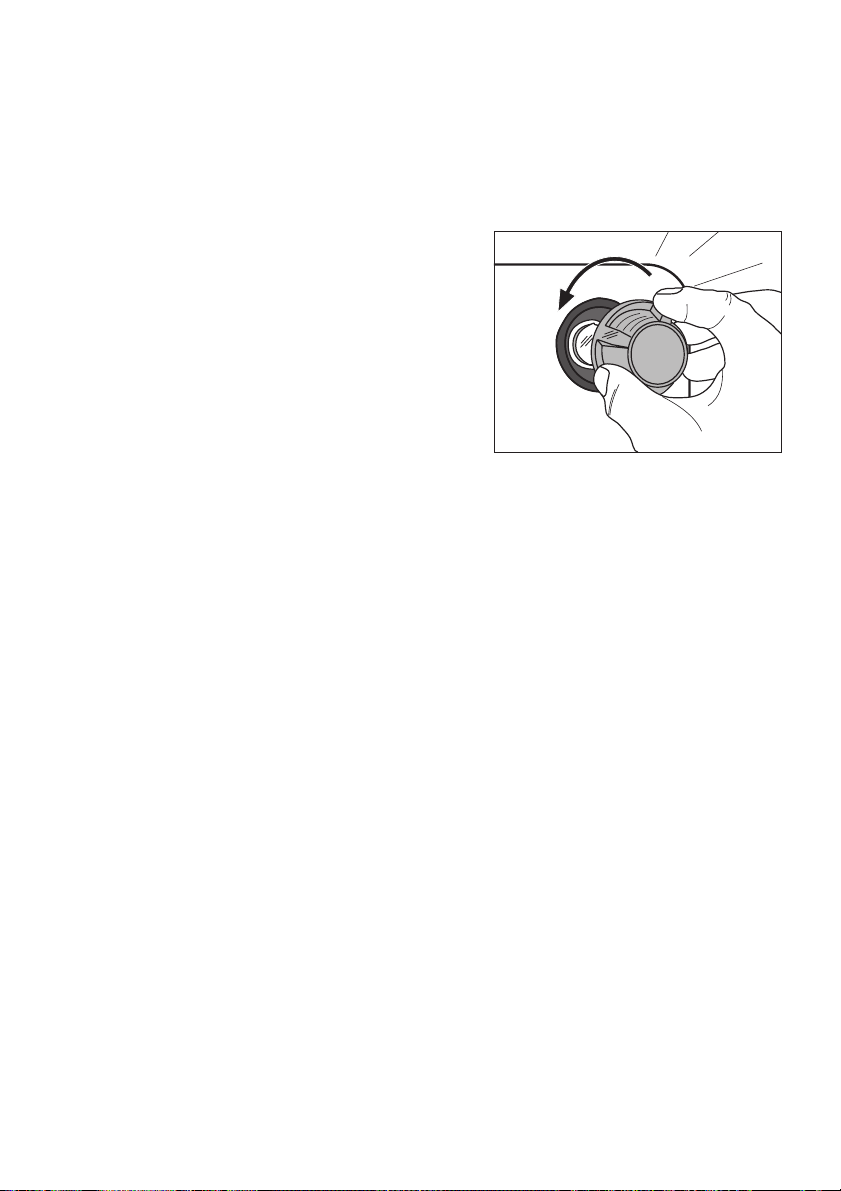

Changing the oven light bulb/cleaning
the glass cover
1. Remove the glass cover by turning it
anti-clockwise and then clean it.
2. If necessary: replace with
25 watt, 230 V, 300 °C heat-resistant
oven lighting.
3. Refit the glass cover.
27
Oven Door
The door of your appliance may be removed for cleaning.
Removing the oven door
1. Open the oven door completely.
2. Completely fold back the clamping
levers on both door hinges.
3. Grip the oven door with both hands
and close it about 3/4 going past the
point of resistance.
4. Pull the door away from the oven (Caution: the door is heavy!)
5. Place the door, with the outer surface
downwards, on a soft, flat surface, (for
example on a blanket) to avoid scratches.
Hanging the oven door
1. From the side of the door on which the
handle is positioned, take hold of the
sides of the door with both hands.
2. Hold the door at an angle of approx.
60°.
3. Insert the door hinges as far as possible into the two slots on the right and
left at the bottom of the oven at the
same time.
4. Lift the door up until resistance is met
and then open it fully.
5. Fold the clamping levers on both door
hinges back into their original position.
6. Close the oven door
28
Oven Door Glass
The oven door is fitted with two glass panels mounted one behind the other.
The inner panel can be removed for cleaning.
1 Caution: the following steps must be performed only with the oven door re-
moved! If the glass is removed while the door is attached, the lighter
weight may cause it to spring up and cause injury.
1 Important! Rough handling of the glass, especially at the edges of the front
panel, may cause it to break.

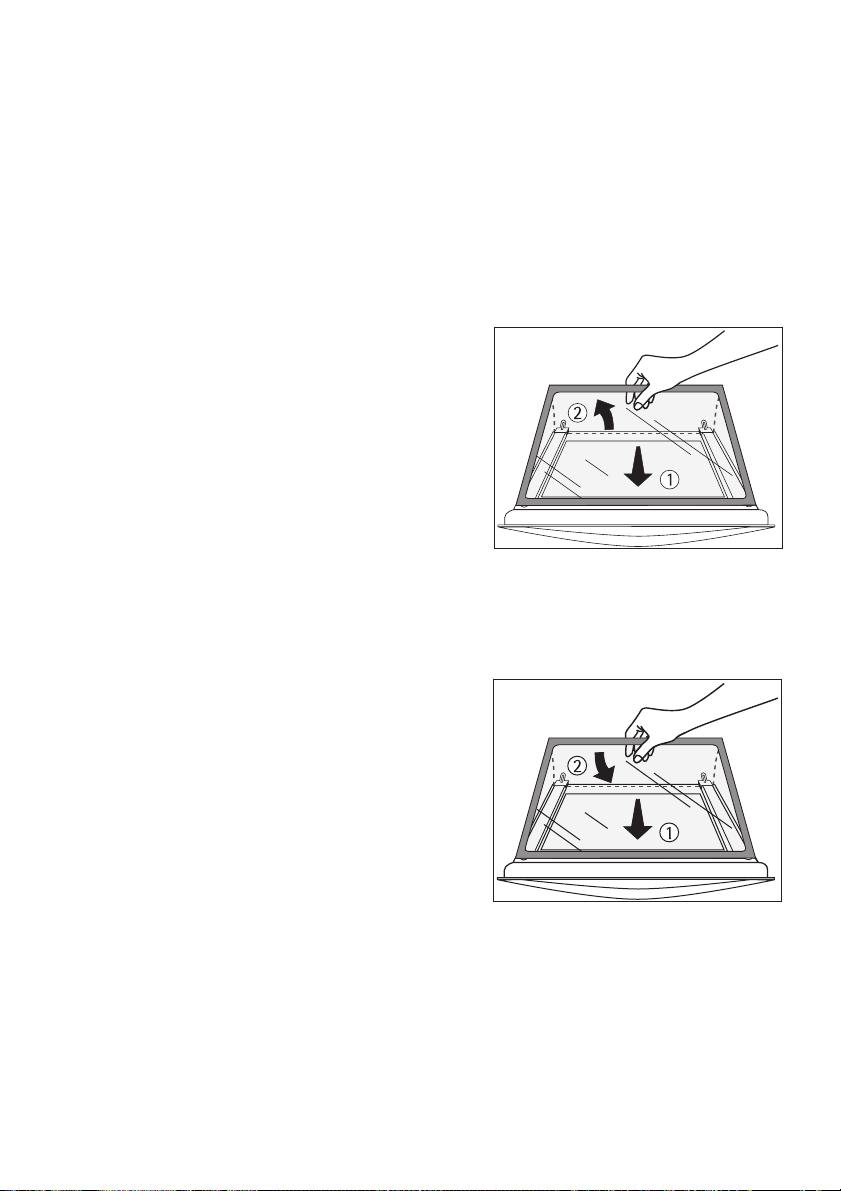

Removing the glass from the door
1. Detach the door and, with the handle
downwards, place it on a soft, even
surface.
2. Grasp the top glass panel underneath,
and push it towards the door handle
against the pressure spring, until it
comes free (
3. Hold the panel gently underneath, and
slide it out (
Clean the glass panel
á ).
à ).
Inserting the glass to the door
1. Insert the panel at an angle from above
into the section of the door in which the
handle is located (
2. Lower the panel. Place the glass
against the pressure spring at the handle end, and in front of the retaining
frame at the bottom of the door, then
push it into the frame (
The glass panel must be firmly attached!
Re-hang the door to the oven.
á ).
à ).
29
What to do if …
Fault Possible cause Remedy
The oven does not
heat.
The oven light does not
come on.
If you are unable to remedy the fault with the above assistance, please
contact your specialist dealer or Service Force Centre.
The oven has not been
switched on.
The required settings
have not been made.
The domestic electrical
protection device (fuse)
has been tripped.
The bulb has blown. Replace the bulb.
Switch the oven on.
Check the settings.
Check the fuses or protection devices.
If these are tripped repeatedly, you should
call a qualified electrician.
1 Warning: Repairs to the appliance may only be carried out by approved
service engineers. Repairs carried out by inexperienced persons may cause
serious injury to the user. If the appliance has been used incorrectly, the
customer service engineer’s visit or that of the specialist dealer will not be
free of charge, even during the warranty period.
3 Advice on cookers with metal fronts:
Because of the cooler surface at the front of the cooker, opening the
oven door during (or just after) baking or roasting may cause the glass
to steam up.
30
Technical Data
Oven Interior Dimensions
Height x Width x Depth 31 cm x 41 cm x 41 cm
Capacity (usable capacity) 52 l
Regulations, Standards, Directives
This appliance meets the following standards:
• EN 60 335-1 and EN 60 335-2-6
relating to the safety of electrical appliances for household use and similar
purposes and
• EN 60350, or DIN 44546 / 44547 / 44548
relating to the operating features of electric cookers, hobs, ovens, and
grills for household use.
• EN 55014-2
• EN 55014
• EN 61000-3-2
• EN 61000-3-3
relating to basic requirements for electro-magnetic compatibility protection (EMC)
5 This appliance complies with the following EU Directives:
• 73/23/EWG dated 19.02.1973 (Low Voltage Directive)
• 89/336/EWG dated 03.05.1989 (EMC Directive including Amending Direc-
tive 92/31/EWG).
31

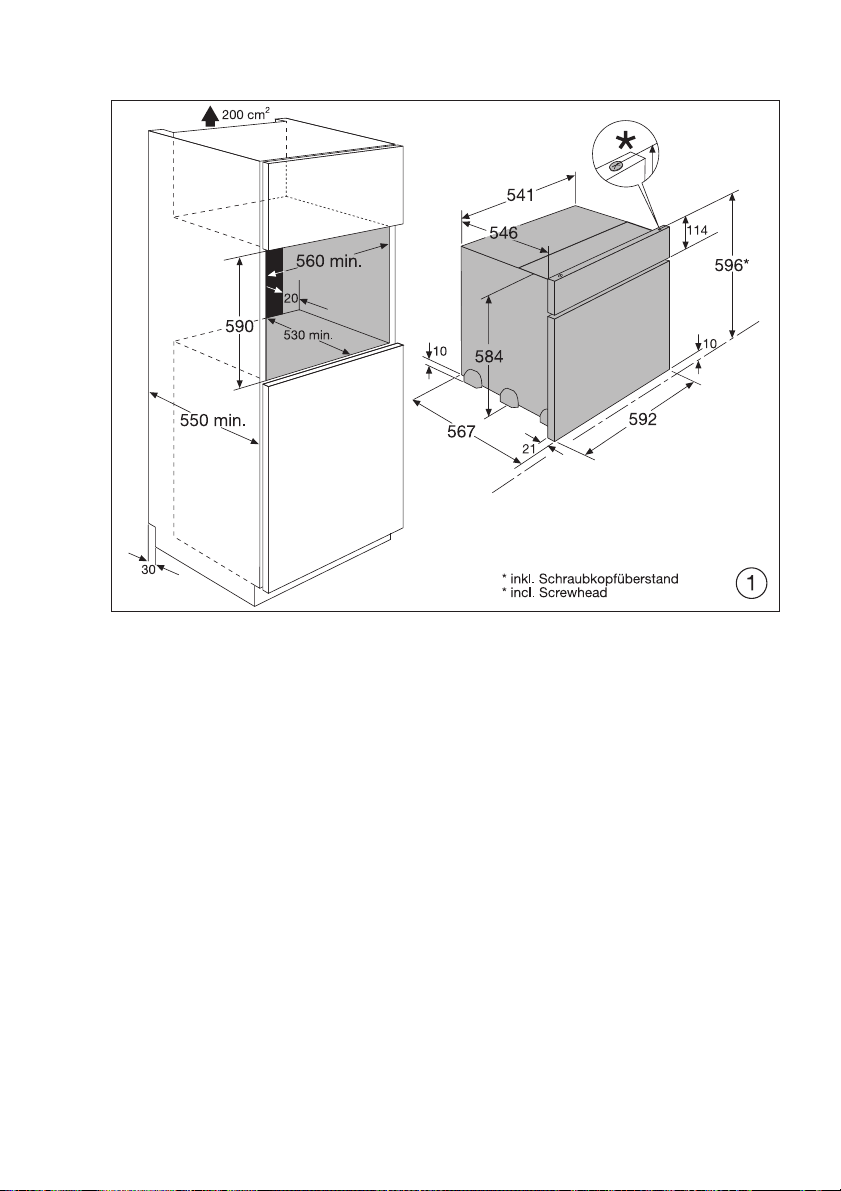

Installation Instructions
1 Important: The new appliance may only be installed and connected by a
qualified electrician / competent person.
1 Please observe this instruction, otherwise the warranty will not cover any
damage that may occur.
Safety Instructions for the Installer
• A device must be provided in the electrical installation which allows the
appliance to be disconnected from the mains at all poles with a contact
opening width of at least 3 mm.
Suitable isolation devices are, for example, circuit breakers, fuses (screwtype fuses are to be removed from the holder), earth leakage trips and
contactors.
• The installation must guarantee shock protection.
• The stability of the unit in which the appliance is fitted must satisfy the re-
quirements of DIN 68930.
• Built-in ovens and hobs are fitted with special connector systems. They
may only be combined with appliances with a matching system.
32

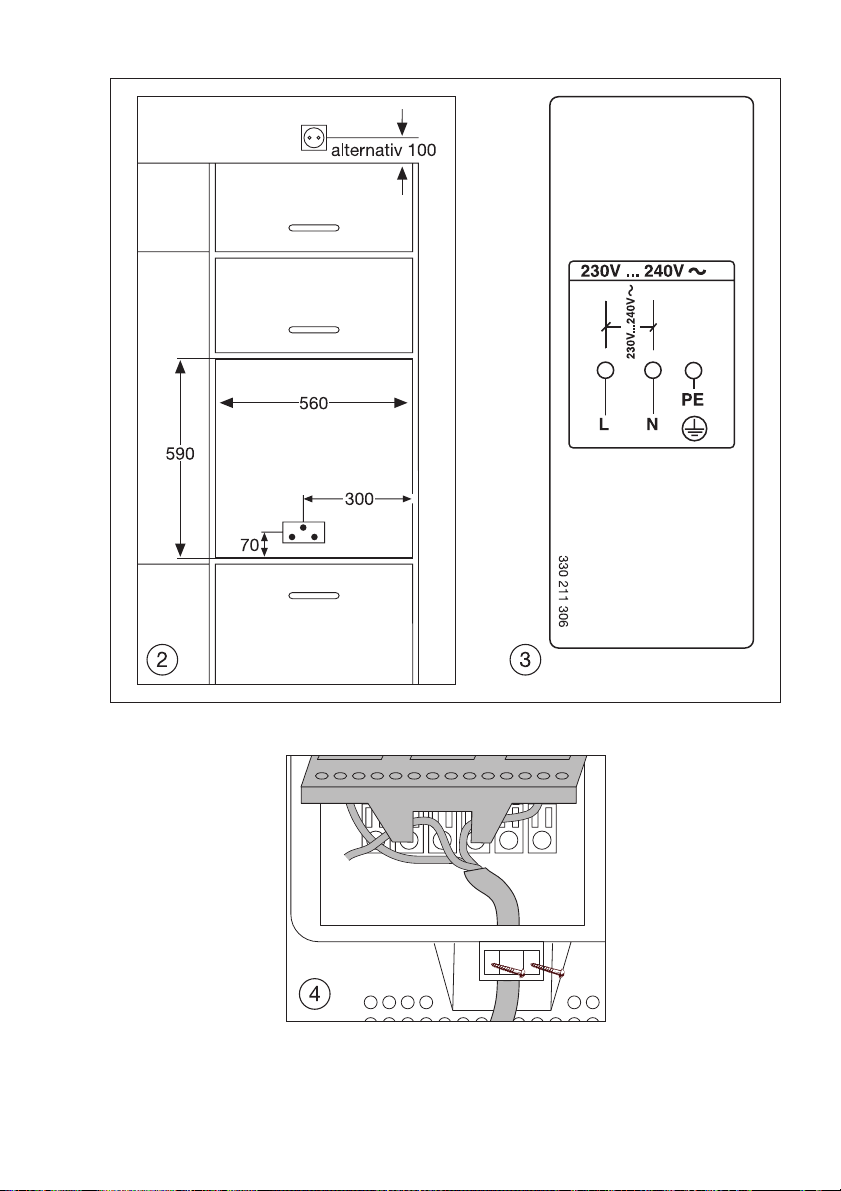

Electrical Connection
The oven is designed to be connected to 230-240V~(50Hz) electricity
supply.
The oven has an easily accessible terminal block which is marked as
follows:
Letter L - Live terminal
Letter N - Neutral terminal
E -Earth terminal
1 This oven must be earthed!
The cable used to connect the oven to the electrical supply must
comply to the specifications given below.
For UK use only
Connection
via
Cooker Control
Circuit
It is necessary that you install a double pole switch between the oven and
the electricity supply (mains), with a minimum gap of 3mm
between the switch contacts and of a type suitable for the required load in
compliance with the current regulations.
The switch must not break the yellow and green earth cable at any point.
Important
After installation and connecting, the cable must be placed so that it cannot
at any point reach a temperature of more than 50°C above the ambient temperature.
Before the oven is connected, check that the main fuse and the domestic
installation can support the load; and that the power supply is properly
earthed.
The manufacturer declines any responsibility should these safety
measures not be carried out.
Min. size
Cable/flex
2,5 mm
Cable/flex
type
2
PVC/PVC
twin and earth
Fuse
min: 15A
max: 20A
33
35
34
37
36
3,5x25
Warranty conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective
by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage
on condition that:
• The appliance has been correctly installed and used only on the electricity
supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in
accordance with the manufacturer’s instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or
tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service
Force Centre.
• Any appliance or defective part replaced shall become the Company’s
property.
• This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits
may be available outside these hours in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect,
the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus
those which are subject to rental agreements.
• Products of Electrolux manufacture which are not marketed by Electrolux.
38
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour
and parts as exists in the new country of use for this brand or range of
products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free
Trade Area.
• The product is installed and used in accordance with our instructions and
is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed
below, to give them details of your new home. They will then ensure that the
local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis +33 (0) 3 44 62 20 13
Germany Nürnberg +49 (0) 800 234 7378
Italy Pordernone +39 (0) 800 11 7511
Sweden Stockholm +46 (0) 20 78 77 50
UK Luton +44 (0) 8705 950 950
39
40
41
Index
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . 8
C
Cleaning
accessories
initial cleaning
Oven door glass
Oven light bulb
shelf support rails
Combination shelf
Control panel
Conventional
Customer service
D
Description of the appliance . . . . . . . . . . 7
G
Grill pan . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Grill tray
O
Oven
accessories
functions
light bulb
operating
P
Preserving . . . . . . . . . . . . . . . . . . . . . . . 23
Preserving Table
R
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . 5
S
Shelf support rails . . . . . . . . . . . . . . . . . 26
T
Tables and tips . . . . . . . . . . . . . . . . . . . 14
Top Heat
W
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 38
What to do if ...
. . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . 30
42
Service and Spare Parts
If the event of your appliance requiring service, or if you wish to purchase
spare parts, please contact Service Force by telephoning:
0870 5 929 929
Your telephone call will be automatically routed to the Service Force Centre
covering your post code area.
For the address of your local Service Force Centre and further information
about Service Force, please visit the website at
www. serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading „What to do if...“
When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating
plate)
5. The purchase date.
Please note that a valid purchase receipt
or guarantee documentation is required
for in-guarantee service calls.
Customer Care
For general enquiries concerning your
Electrolux appliance, or for further information on Electrolux products please
contact our Customer Care Department
by letter or telephone at the address below or visit our website at
www.electrolux.co.uk.
Customer Care Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: 08705 350350 (*)
For Customer Service in the Republic of
Ireland please contact us at the address
below:
AEG/ Electrolux Group (Ire) Ltd
Long Mile Road/ Dublin 12
Republic of Ireland
Tel: +353 (0) 1 4090753
Email: service.eid@electrolux.ie
(*) Calls may be recorded for training purposes
43
©
Electrolux plc 2003
822 923 225-B-290605-07 Subject to change without notice
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
Loading...
