AEG-Electrolux EN3881AOY User Manual
EN3881AOY
EN3881AOX
................................................ .............................................
EN FRIDGE FREEZER USER MANUAL
www.electrolux.com
2
CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8.
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

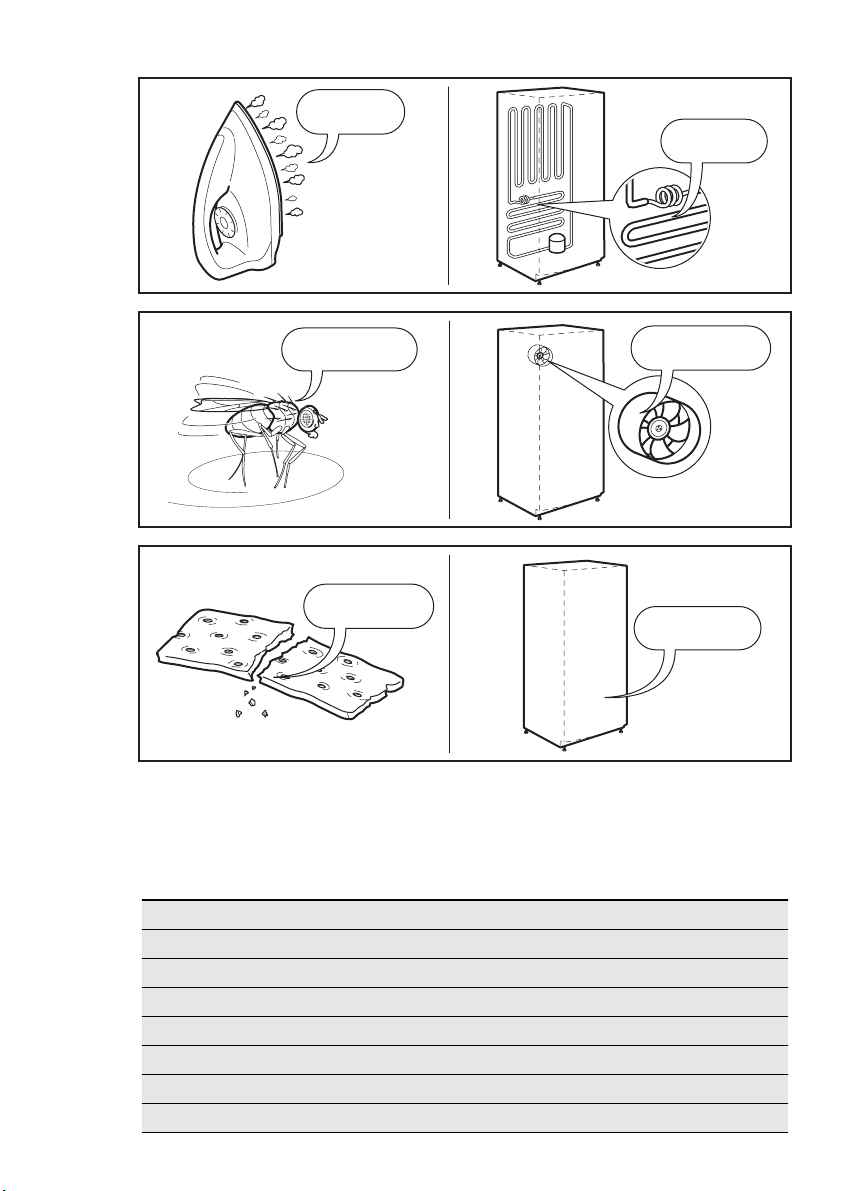

9. NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10.
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH 3
1.
SAFETY INSTRUCTIONS
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and make
sure that they remain with the appliance if
it is moved or sold, so that everyone using
it through its life will be properly informed
on appliance use and safety.
For the safety of life and property keep
the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
1.1 Children and vulnerable
people safety
• This appliance is not intended for use
by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to
prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic
door seals is to replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make that spring
lock unusable before you discard the
old appliance. This will prevent it from
becoming a death trap for a child.
1.2 General safety
WARNING!
Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household and similar applications such
as:
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type environments;
– bed and breakfast type environ-
ments;
– catering and similar non-retail appli-
cations.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is
contained within the refrigerant circuit of
the appliance, a natural gas with a high
level of environmental compatibility,
which is nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of
the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of ig-
nition
– thoroughly ventilate the room in
which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a
short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel to avoid hazard.
www.electrolux.com
4
• This appliance is heavy. Care should be
• Do not remove nor touch items from
• Avoid prolonged exposure of the appli-
• Bulb lamps (if foreseen) used in this ap-
1.3 Daily Use
• Do not put hot pot on the plastic parts
• Do not store flammable gas and liquid
• Do not place food products directly
• Frozen food must not be re-frozen once
• Store pre-packed frozen food in ac-
• Appliance's manufacturers storage rec-
• Do not place carbonated or fizzy drinks
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is
not squashed or damaged by the
back of the appliance. A squashed
or damaged power plug may overheat and cause a fire.
3.
Make sure that you can come to
the mains plug of the appliance.
4.
Do not pull the mains cable.
5.
If the power plug socket is loose,
do not insert the power plug. There
is a risk of electric shock or fire.
6.
You must not operate the appliance without the lamp cover (if
foreseen) of interior lighting.
taken when moving it.
the freezer compartment if your hands
are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
ance to direct sunlight.
pliance are special purpose lamps selected for household appliances use
only. They are not suitable for household room illumination.
in the appliance.
in the appliance, because they may explode.
against the air outlet on the rear wall. (If
the appliance is Frost Free)
it has been thawed out.
cordance with the frozen food manufacturer's instructions.
ommendations should be strictly adhered to. Refer to relevant instructions.
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
1.4 Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove
frost from the appliance. Use a plastic
scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is
blocked, water will collect in the bottom
of the appliance.
1.5 Installation
For electrical connection carefully
follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if
there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to
the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient
ventilation follow the instructions relevant to installation.
• Wherever possible the back of the
product should be against a wall to
avoid touching or catching warm parts
(compressor, condenser) to prevent
possible burn.
• The appliance must not be located
close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If
a water connection is foreseen).
1.6 Service
• Any electrical work required to do the
servicing of the appliance should be
carried out by a qualified electrician or
competent person.
• This product must be serviced by an
authorized Service Centre, and only
genuine spare parts must be used.
1.7 Environment Protection
This appliance does not contain
gasses which could damage the
2. PRODUCT DESCRIPTION
2 64 8 1110
1
3 975
ENGLISH 5
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according
to the applicable regulations to
obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
are recyclable.
bol
CrispFresh drawer
1
Freshzone drawer
2
Glass shelves
3
Dynamic Air Cooling
4
Humidity control
5
13
Bottle rack
6
Control panel
7
Butter shelf
8
Door shelves
9
Half shelf
10
12
www.electrolux.com
6
Bottle shelf
11
Freezer baskets
12
3. CONTROL PANEL
Rating plate
13
1
27
6
5
Display
1
Temperature regulator
2
Plus button
Temperature regulator
3
Minus button
Mode button
4
DrinksChill button and ON/OFF but-
5
ton
Freezer compartment button
6
Fridge compartment button
7
It is possible to change predefined sound
of buttons to a loudly one by pressing together Mode button and Minus button for
some seconds. Change is reversible.
3
4
3.1 Display
AC
B
O
N
M
L
K
J
• A. Demo function
• B. Fridge temperature indicator
• C. Holiday function
• D. FridgeEco Mode function
D
E
F
G
H
I
• E. Extra Humidity function
• F. Shopping function
• G. Drinks Chill function
•H. Time
• I. Freezer temperature indicator
• J. Fast Freeze function
• K. Freezer OFF mode
• L. FreezerEco Mode function
• M. Alarm indicator
• N. Child lock function
• O. Fridge OFF mode
After selection of the fridge or
freezer compartment the anima-
tion starts
After selection of the temperature
the animation flashes for a few minutes.
3.2 Switching on
To switch on the appliance do these
steps:
1.
Connect the mains plug to the power
socket.
2.
Press the ON/OFF button if the display is off.
3.
The alarm buzzer could operate after
few seconds.
To reset the alarm refer to "High temperature alarm".
4.
The temperature indicators show the
set default temperature.
To select a different set temperature refer
to "Temperature regulation".
3.3 Switching off
To switch off the appliance do these
steps:
1.
Press the Appliance ON/OFF button
for 3 seconds.
2.
The display switches off.
3.
To disconnect the appliance from the
power disconnect the mains plug
from the power socket.
3.4 Switching off the fridge
To switch off the fridge:
1.
Press the Fridge Compartment button
for few seconds.
2.
The fridge OFF indicator is shown.
3.5 Switching on the fridge
To switch on the fridge:
1.
Press the Fridge Compartment button.
The fridge OFF indicator goes off.
To select a different set temperature refer
to "Temperature regulation".
3.6 Temperature regulation
Select the fridge or freezer compartment.
Press the temperature button to set the
temperature.
Set default temperature:
• +4°C for the fridge
• -18°C for the freezer
The temperature indicators show the set
temperature.
The set temperature will be reached within 24 hours.
After a power failure the set temperature remains stored.
3.7 EcoMode for Fridge and
Freezer Compartment
For optimal food storage select the EcoMode .
To switch on the function:
1.
Select the fridge/freezer compart-
ment.
2.
Press the Mode button until the cor-
responding icon appears.
The EcoMode indicator flashes for
few seconds.
The temperature indicator shows the
set temperature:
– for the fridge: +4°C
– for the freezer: -18°C
3.
The EcoMode indicator is shown.
To switch off the function:
ENGLISH 7
1.
Select the fridge/freezer compartment.
2.
Press the Mode button until the EcoMode indicator flashes.
3.
The EcoMode indicator goes off.
The function switches off by selecting a different set temperature.
3.8 ChildLock mode
To lock any possible operation through
the buttons select the ChildLock mode.
To switch on the function:
1.
Press the Fridge Compartment and
Freezer Compartment button for few
seconds.
2.
The ChildLock mode indicator is
shown.
To switch off the function:
1.
Press the Fridge Compartment and
Freezer Compartment button for few
seconds.
2.
The ChildLock mode indicator goes
off.
3.9 HolidayMode
This function allows you to keep the refrigerator closed and empty during a long
holiday period without the formation of a
bad smell.
The fridge compartment must be
empty with holiday function on.
To switch on the function:
1.
Press the Mode button until the corresponding icon appears.
The Holiday indicator flashes for few
seconds.
The fridge temperature indicator
shows the set temperature.
To switch off the function:
1.
Press the Mode button until the Holiday indicator flashes.
2.
The Holiday indicator goes off.
The function switches off by selecting a different fridge set temperature.
3.10 DrinksChill mode
The DrinksChill mode is to be used to set
an acoustic alarm at the preferred time,
www.electrolux.com
8
useful for example when a recipe requires
to cool down a mixture for a certain period of time, or when a reminder is needed
in order not to forget the bottles placed in
the freezer for fast cooling.
To switch on the function:
1.
2.
3.
At the end of the countdown the DrinksChill indicator flashes and an audible
alarm sounds:
1.
2.
It is possible to deactivate the function at
any time during the countdown:
1.
2.
It is possible to change the time during
the countdown and at the end by pressing the Temperature colder button and
the Temperature warmer button.
3.11 ShoppingMode
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the ShoppingMode to chill the products
more rapidly and to avoid warming the
other food which is already in the refrigerator.
To switch on the function:
1.
The ShoppingMode shuts off automatically after approximately 6 hours.
To switch off the function before its automatic end:
1.
2.
Press the DrinkChill button.
The DrinksChill indicator appears.
The Timer shows the set value (30 mi-
nutes).
Press the Temperature colder button
and Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
The Timer start to flash (min).
Remove any drinks contained in the
freezer compartment.
Press the DrinkChill button to switch
off the sound and terminate the func-
tion.
Press the DrinkChill button.
The DrinksChill indicator goes off.
Press the Mode button until the cor-
responding icon appears.
The ShoppingMode indicator flashes
for few seconds.
Press the Mode button until the
ShoppingMode indicator flashes.
The ShoppingMode indicator goes
off.
The function switches off by selecting a different fridge set temperature.
3.12 FastFreeze mode
To switch on the function:
1.
Select the freezer compartment.
2.
Press the Mode button until the corresponding icon appears.
The FastFreeze indicator flashes for
few seconds.
This function stops automatically after 52
hours.
To switch off the function before its automatic end:
1.
Select the freezer compartment.
2.
Press the Mode button until the Fast-
Freeze indicator flashes.
3.
The FastFreeze indicator goes off.
The function switches off by selecting a different freezer set temperature.
3.13 Extra Humidity function
If you need to increase the humidity in the
refrigerator, we suggest activating the Extra Humidity function.
To switch on the function:
1.
Press the Mode button until the cor-
responding icon appears.
The Extra Humidity indicator flashes.
2.
Press the Mode button to confirm.
The Extra Humidity indicator is
shown.
To switch off the function:
1.
Press the Mode button until the Extra
Humidity indicator flashes.
2.
Press the Mode button to confirm.
3.
The Extra Humidity indicator goes off.
3.14 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
a power failure) is indicated by:
• flashing the alarm and freezer tempera-
ture indicators
• sounding of buzzer.
To reset the alarm:
1.
Press any button.
2.
The buzzer switches off.
3.
The freezer temperature indicator
shows the highest temperature
reached for a few seconds. Then
show again the set temperature.
4.
The alarm indicator continue to flash
until the normal conditions are re-
stored.
When the alarm has returned the alarm indicator goes off.
3.15 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door
open alarm conditions are indicated by:
4. DAILY USE
ENGLISH 9
• flashing Alarm indicator
• acoustic buzzer
When normal conditions are restored
(door closed), the alarm will stop.
During the alarm, the buzzer can be
switched off by pressing any button.
4.1 Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours.

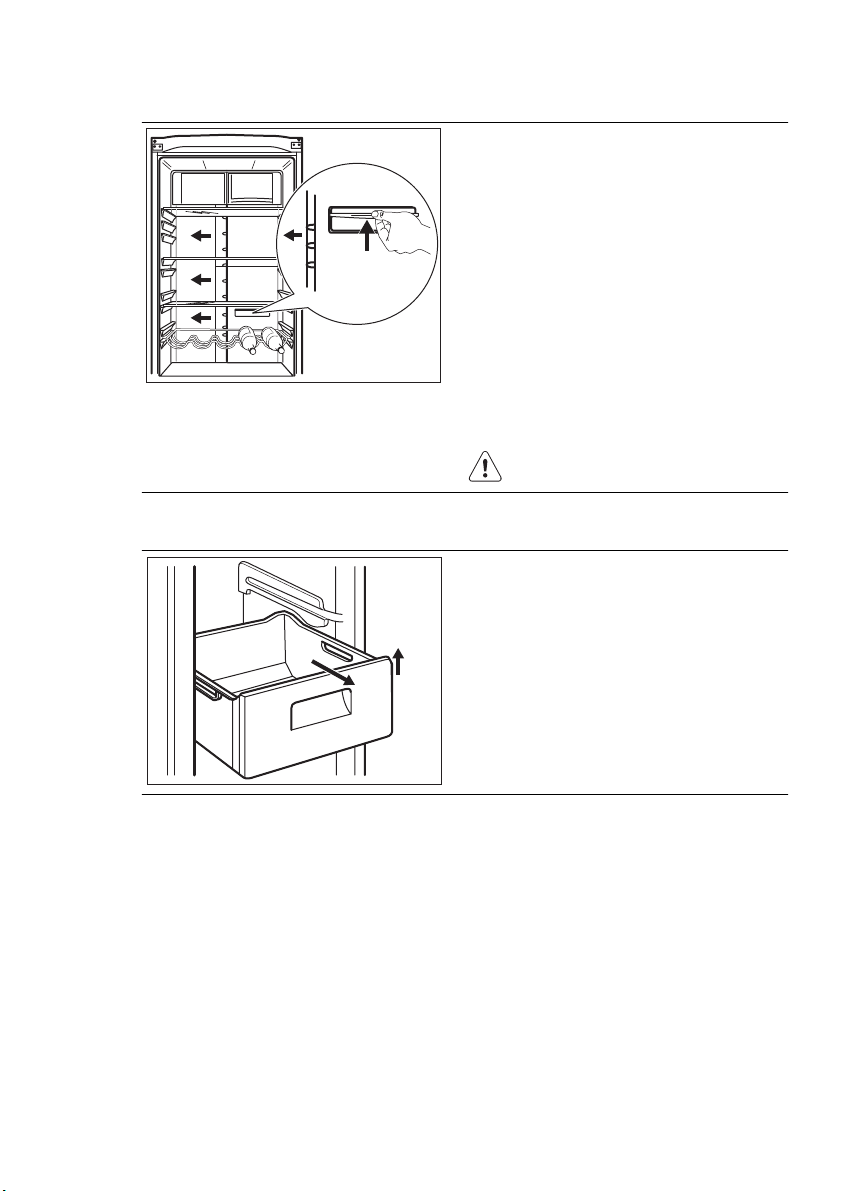

The freezer drawers ensure that it is quick
and easy to find the food package you
want. If large quantities of food are to be
stored, remove all drawers except for the
bottom drawer which needs to be in place
to provide good air circulation. On all
shelves it is possible to place food that
protrude until 15 mm from the door.
In the event of accidental defrosting, for example due to a power
failure, if the power has been off
for longer that the value shown in
the technical characteristics chart
under "rising time", the defrosted
food must be consumed quickly
or cooked immediately and then
re-frozen (after cooling).
4.2 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Fast
Freezing function at least 24 hours before
placing the food to be frozen in the freezer
compartment.
Place the fresh food to be frozen in the
bottom compartment.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating plate, a label located on the inside of
the fridge.
The freezing process lasts 24 hours: during this period do not add other food to
be frozen.
After 24 hours, when the freezing process
is completed, deactivate the Fast Freezing
function (see "Fast Freezing function").
4.3 Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
Loading...
