user manual
Cooker
EKK511510
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Product description 5
Before first use 6
Hob - Daily Use 6
Hob - Helpful hints and tips 7
Hob - Care and Cleaning 7
Oven - Daily Use 7
SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
• For your own safety and the safety of
your property
• For the protection of the environment
• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
Children and vulnerable people safety
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge to use the appliance.
They must have supervision or instruction
for the operation of the appliance by a
person who is responsible for their safety.
• Keep all packaging away from children.
There is the risk of suffocation or physical
injury.
• Keep children and animals away from the
appliance when the door is open or the
appliance is in operation. There is the risk
of injury or other permanent disability.
• If the appliance has Child lock or Key
lock function, use it. It prevents children
and animals from accidental operation of
the appliance.
General safety
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
• Do not let the appliance stay unattended
during operation.
Using the accessories 8
Oven - Helpful hints and tips 9
Oven - Care and Cleaning 13
What to do if… 16
Installation 17
Environment concerns 19
Subject to change without notice
• Switch off the appliance after each use.
Installation
• The adjustment conditions for this appliance are described on the label (or data
plate).
• Only an approved technician can install
and connect the appliance. Contact an
approved service centre. This is to prevent the risks of structural damage or
physical injury.
• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary,
contact the supplier.
• Remove all packaging, stickers and layers from the appliance before first use.
Do not remove the rating plate. It can invalidate the guarantee.
• Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety
regulations, recycling regulations, electrical or gas safety rules etc.).
• Be careful when you move the appliance.
The appliance is heavy. Always use safety gloves. Do not pull the appliance by
the handle.
• Make sure that the appliance is disconnected from the power supply during the
installation (if applicable).

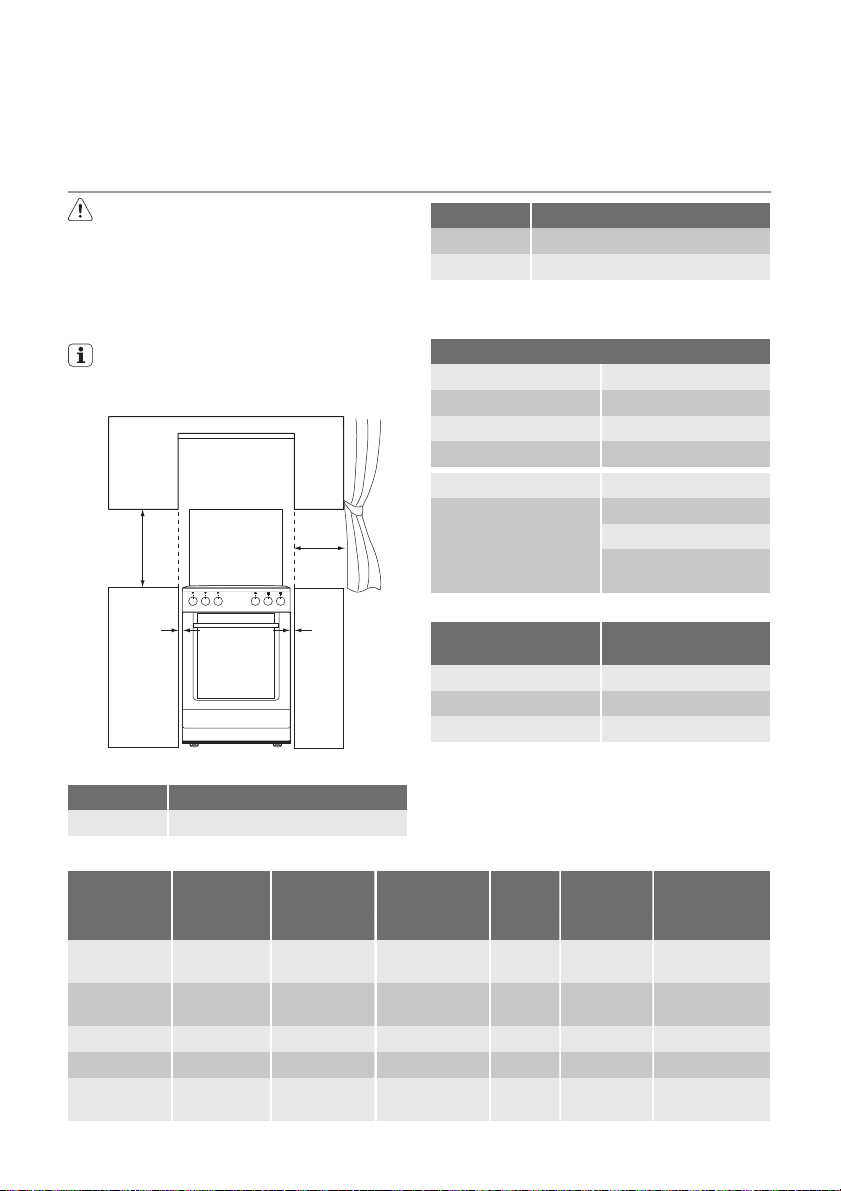

• Keep the minimum distances to the other
appliances and units.
• Do not put the appliance on a base.
Electrical connection
• Only an approved electrician can install
and connect the appliance. Contact an
electrolux 3
approved service centre. This is to prevent the risks of structural damage or
physical injury.
• The appliance must be earthed.
• Make sure that the electrical data on the
rating plate agree with your domestic
power supply.
• Information on the voltage is on the rating
plate.
• You must have the correct isolation devices: line protecting cut-outs, fuses
(screw type fuses removed from the
holder), earth leakage trips and contactors.
• When you connect electrical appliances
to mains sockets, do not let cables touch
or come near the hot appliance door.
• Do not use multi-way plugs, connectors
and extension cables. There is a risk of
fire.
• Make sure not to squash or cause damage to the mains plug (if applicable) and
cable behind the appliance.
• Make sure that the mains connection is
accessible after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug
(if applicable).
• Do not replace or change the mains cable. Contact the service centre.

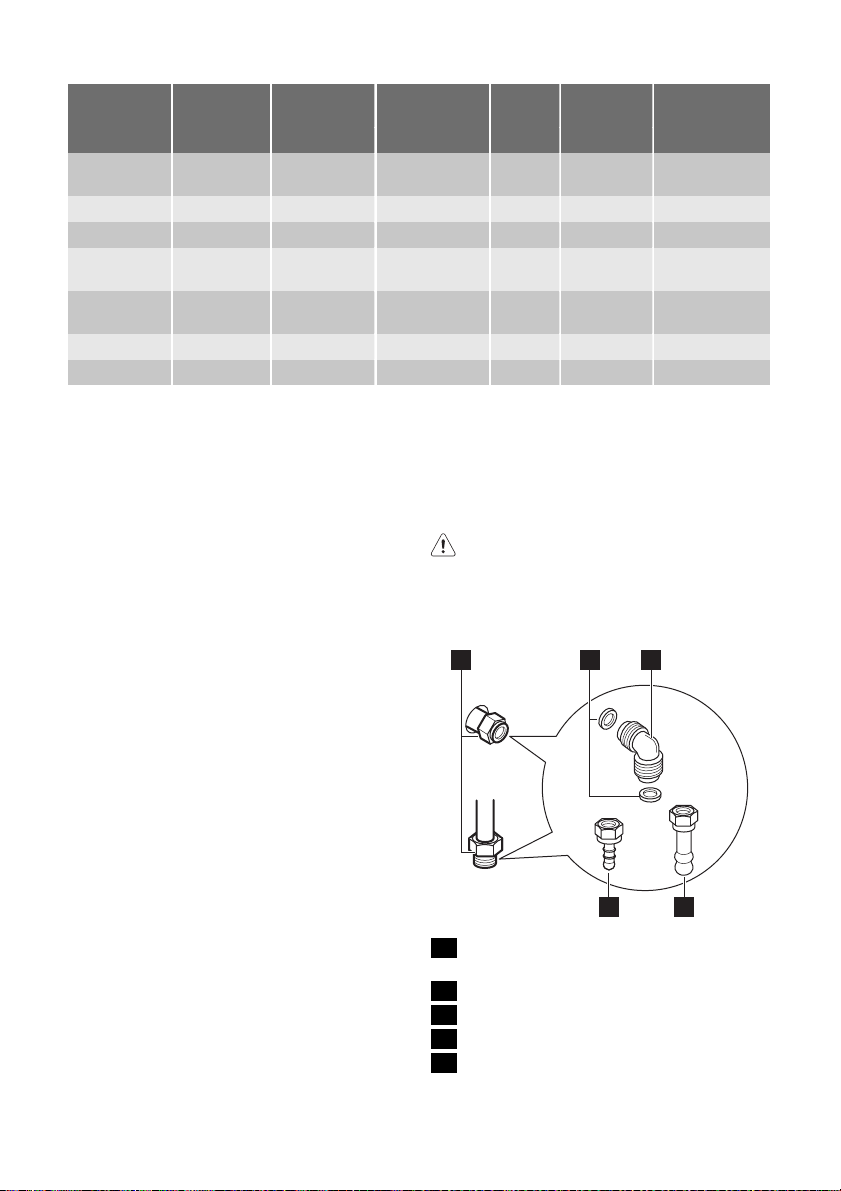

Gas connection
• Only an approved gas installer can install
and connect the appliance. Contact an
approved service centre. This is to prevent the risks of structural damage or
physical injury.
• Make sure that airflow around the appliance is good. A defective air supply can
cause lack of oxygen.
• Before installation, make sure that the local distribution conditions (gas type and
pressure) and the adjustment of the appliance are compatible.
• Information about the gas supply is on
the rating plate.
• This appliance is not connected to a
combustion products evacuation device.
It must be installed and connected in accordance with current installation regulations. Particular attention must be given
to the relevant requirements regarding
ventilation.
• The use of a gas cooking appliance
cause heat and moisture in the room in
which it is installed. Make sure that ventilation in the kitchen is good: keep natural
ventilation holes open or install a mechanical ventilation device (mechanical
extractor hood).
• More ventilation (for example opening of
a window or increasing the level of mechanical ventilation where present) is
necessary when you operate the appliance intensively for a long time .
Use
• Only use the appliance for domestic
cooking tasks. Do not use the appliance
for commercial and industrial use. This is
to prevent physical injury to persons or
prevent damage to property.
• Always monitor the appliance during operation.
• Always stay away from the appliance
when you open the door while the appliance is in operation. Hot steam can release. There is a risk of burns.
• Do not use this appliance if it is in contact
with water. Do not operate the appliance
with wet hands.
• Do not use the appliance as a work surface or storage surface.
• The cooking surface of the appliance becomes hot during use. There is a risk of
burns. Do not put metallic objects, for example cutlery or saucepans lids, on the
surface, as they can become hot.
• The interior of the appliance becomes hot
during use. There is a risk of burns. Use
gloves when you insert or remove the accessories or pots.
• The appliance and its accessible parts
become hot during use. Take care to
avoid touching the heating elements.
Young children must be kept away unless continuously supervised.
• Open the door carefully. The use of ingredients with alcohol can cause a mixture
of alcohol and air. There is the risk of fire.
• Do not let sparks or open flames come
near the appliance when you open the
door.
• Do not put flammable products or items
that are wet with flammable products,
and/or fusible objects (made of plastic or
4 electrolux
aluminium) in, near or on the appliance.
There is a risk of explosion or fire.
• Set the cooking zones to "off" after each
use.
• Do not use the cooking zones with empty
cookware or without cookware
• Do not let cookware boil dry. This can
cause damage to the cookware and hob
surface.
• If an object or cookware falls on the hob
surface, the surface can be damaged.
• Do not put hot cookware near to the
control panel because the heat can
cause a damage to the appliance.
• Be careful when you remove or install the
accessories to prevent damage to the
appliance enamel.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the hob surface if you move them
on the surface.
• Discoloration of the enamel has no effect
on the performance of the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put any objects directly on the
appliance floor and do not cover it with
aluminium foil;
– do not put hot water directly into the
appliance;
– do not keep moist dishes and food in
the appliance after you finish the cooking.
• Do not apply pressure on the open door.
• Do not put flammable materials in the
compartment below the oven. Keep
there only heat-resistant accessories (if
applicable).
• Do not cover oven steam outlets. They
are at the rear side of the top surface (if
applicable).
• Do not put anything on the hob that is liable to melt.
• Use only stable cookware with the correct shape and diameter to prevent accidental tilting or spilling. There is a risk of
burns.

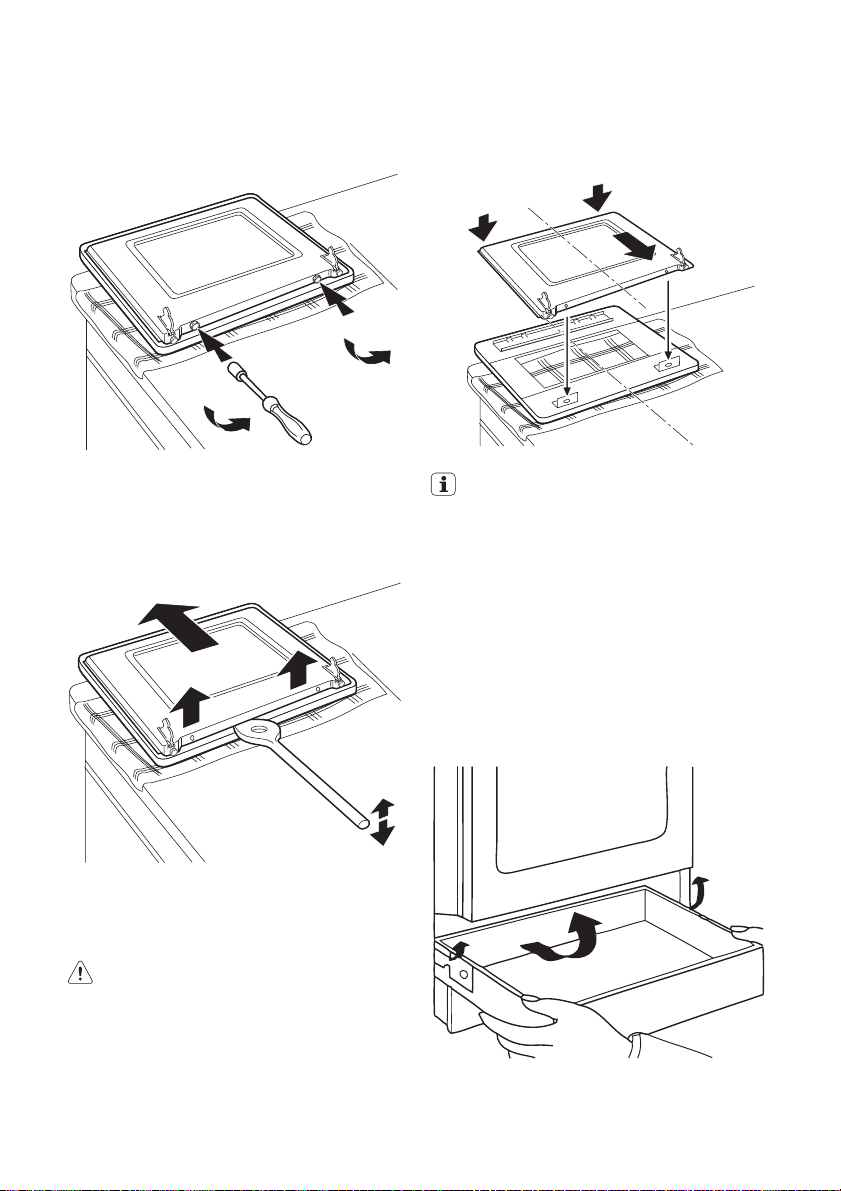

Lid
• The lid protects the appliance from dust
when closed and collects splashes of
grease when opened. Do not use it for
other functions.
• Keep the lid clean all the time.
• Always remove any spillage from the surface of the lid before you open it.
• Do not close the lid until the hob and
oven are completely cold.
• Glass lids can shatter when hot. Turn off
all the burners before shutting the lid.
Care and cleaning
• Before maintenance, make sure that the
appliance is cold. There is a risk of burns.
There is a risk that the glass panels can
break.
• Keep the appliance clean at all times. A
build-up of fats or other foodstuff can result in a fire.
• Regular cleaning prevents the surface
material from deteriorating.
•For your personal safety and the safety of
your property, only clean the appliance
with water and soap. Do not use flammable products or products that can cause
corrosion.
• Do not clean the appliance with steam
cleaners, high-pressure cleaners, sharp
objects, abrasive cleaning agents, abrasive sponges and stain removers.
• If you use an oven spray, follow the instructions from the manufacturer. Do not
spray anything on the heating elements
and the thermostat sensor (if applicable).
• Do not clean the glass door with abrasive
cleaning agents or metal scraper. Heat
resistant surface of the inner glass can
break and shatter.
• When the door glass panels are damaged they become weak and can break.
You must replace them. Contact the
service centre.
• Be careful when you remove the door
from the appliance. The door is heavy.
• Bulb lamps used in this appliance are
special lamps selected for household appliances use only. They cannot be used
for the full or partial illumination of a
household room.
• If it becomes necessary to replace the
lamp use one of the same power and
specifically designed for household appliances only.
• Disconnect the appliance from the power
supply before the replacement of the
oven lamp. There is the risk of electrical
shock. Cool down the appliance. There is
a risk of burns.
electrolux 5
Service centre
• Only an approved engineer can repair or
work on the appliance. Contact an approved service centre.
• Use only original spare parts.
Disposal of the appliance
• To prevent the risk of physical injury or
damage:
PRODUCT DESCRIPTION
General overview
1 2 3
4
9
3
2
1
4
5
6
7
8
– Disconnect the appliance from the
power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents
children or small animals from being
closed inside of the appliance. There is
a risk of suffocation.
1 Hob control knobs
2 Control knob for Minute minder
3 Control knob for oven temperature
4 Temperature indicator
5 Control knob for oven functions
6 Grill
7 Oven lamp
8 Fan
9 Shelf runner
Cooking surface layout
1
4
Accessories
Oven shelf
•
For cookware, cake tins, roasts.
• Flat baking tray
2
1 Auxiliary burner
2 Semi-rapid burner
3 Semi-rapid burner
4 Rapid burner
3
For cakes and biscuits.
• Storage drawer
Below the oven cavity is the storage
drawer.
6 electrolux
Warning! The storage drawer can
become hot when the appliance
operates.
BEFORE FIRST USE
Warning! Refer to "Safety information"
chapter.
Caution! To open the oven door,
always hold the handle in the centre.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Caution! Do not use abrasive cleaning
agents! This can damage the surface.
Refer to chapter "Care and Cleaning".
Preheating
1.
Set function
ature.
and maximum temper-
HOB - DAILY USE
Warning! Refer to "Safety information"
chapter.
Ignition of the burner
Warning! Be very careful when you
use open fire in kitchen environment.
Manufacturer decline any responsibility
in case misuse of the flame
Always light the burner before you put
cookware.
To light the burner:
1. Turn the control knob counterclockwise
to the maximum position (
push it down.
2. Keep the control knob pushed for ap-
proximately 5 seconds; this will let thermocouple to warm up. If not, the gas
supply will be interrupted.
3. Adjust the flame after it is regular.
If after some tries the burner does not
light, check if the crown and its cap are
in correct positions.
) and
• Optional telescopic runners
To put the shelves or trays on it. You can
order them separately.
2. Run an empty oven for 45 minutes.
3.
Set function
ature.
4. Run an empty oven for 15 minutes.
This is to burn off any residue from the cavity surface. Accessories can become more
hot than in normal use. During this period
an odour and smoke can be emitted. This
is normal. Make sure the airflow is sufficient.
1 Burner cap
2 Burner crown
3 Ignition candle
4 Thermocouple
Warning! Do not keep the control
knob pushed for more than 15
seconds.
If the burner does not light after 15
seconds, release the control knob, turn
it into off position and try to light the
burner again after minimum 1 minute.
and maximum temper-
1
2
3
4
electrolux 7
Important! You can light the burner
without electrical device (e.g. when there is
no electricity in the kitchen). To do so, put
the flame near the burner, push the related
control knob down and turn it
counterclockwise to the maximum gas
release position.
If the burner accidentally goes out, turn
the control knob to the off position and
try to light the burner again after minimum 1 minute.
The spark generator can start automatically when you switch on the mains,
HOB - HELPFUL HINTS AND TIPS
Warning! Refer to "Safety information"
chapter.
Energy savings
• If possible, always put the lids on the
pans.
• When the liquid starts to boil, turn down
the flame to barely simmer the liquid.
Use pots and pans with bottom applicable to the dimension of the burner.
HOB - CARE AND CLEANING
Warning! Refer to "Safety information"
chapter.
Warning! Switch the appliance off and
let it cool down before you clean it.
Warning! For safety reasons, do not
clean the appliance with steam
cleaners or high-pressure cleaners.
Warning! Do not use abrasive
cleaners, steel wool pads or acids, they
can cause damage to the appliance.
• To clean the enamelled parts, cap and
crown, wash it with warm soapy water.
after installation or a power cut. It is
normal.
Turning the burner off
To put the flame out, turn the knob to the
symbol
Use cookware with the bottom as thick and
flat as possible.
• Stainless steel parts wash with water,
and then dry with a soft cloth.
• The pan supports are not dishwasher
proof; they must be washed by hand.
• Make sure you position the pan supports
correctly after cleaning.
• To make burners work correctly, make
sure that the arms of the pan supports
are in the centre of the burner.
Be very careful when you replace the
•
pan supports to prevent the hob top
from damage.
After cleaning, dry the appliance with a soft
cloth.
.
Warning! Always turn the flame down
or switch it off before you remove the
pans of the burner.
Burner Diameters of cookware
Rapid 160 mm - 280 mm
Semi-rapid 140 mm - 240 mm
Auxiliary 120 mm - 180 mm
OVEN - DAILY USE
Warning! Refer to "Safety information"
chapter.
Activating and deactivating the
appliance
1. Turn the oven functions control knob to
an oven function.
8 electrolux
2. Turn the temperature control knob to a
temperature.
The temperature indicator comes on
while the temperature in the appliance
increases.
3. To deactivate the appliance, turn the
oven functions control knob and the
temperature control knob to the Off po-
Safety thermostat
To prevent dangerous overheating (due to
incorrect use of the appliance or defective
components), the oven has a safety thermostat, which interrupts the power supply.
The oven switches back on again automatically, when the temperature drops.
sition.
Oven functions
Oven function Application
OFF position The appliance is OFF.
Conventional cook-
ing
Bottom heating ele-
ment
Top heating ele-
ment
Grill
Fan cooking
Defrost
Minute minder
Use it to set a countdown time.
First turn the Minute minder control knob
(refer to "Product description") clockwise as
Heats both from the top and bottom element. To bake and roast
Heats only from the bottom of the oven. To bake cakes with crispy
Heats only from the top of the oven. To finish cooked dishes.
To grill flat food items in small quantities in the middle of the shelf.
To make toasts. Maximum temperature for this function is 210
To roast or roast and bake the food that requires the same cooking
temperature, using more than one shelf, without flavour transfer-
Thaws frozen food. The temperature control knob must be on off
appliance automatically deactivates. Turn
the Minute minder control knob to
the control knobs for oven functions oven
temperature to the OFF position.
far as it goes. Then turn it counterclockwise
to necessary time period. A signal sounds
after the time period is completed and the
on one oven level.
or crusty bases.
°C
ence.
position.
, and
To cook without a set time period, turn
the Minute minder control knob to
.
USING THE ACCESSORIES
Warning! Refer to "Safety information"
chapter.
Inserting the oven accessories
Put in the slide-in accessories so that the
double side edges are at the back of the
oven and point down to the bottom. Push
the slide-in accessories between the guidebars of one of the oven levels.
Inserting the oven shelf and deep
roasting pan together
electrolux 9
Put the oven shelf on the deep roasting
pan. Push the deep roasting pan between
the guide-bars of one of the oven levels.
OVEN - HELPFUL HINTS AND TIPS
Caution! Use a deep baking tray for
very moist cakes. Fruit juices can
cause permanent stains on the enamel.
• The appliance has four shelf levels. Count
the shelf levels from the bottom of the
appliance floor.
• You can cook different dishes on two lev-
els at the same time. Place the shelves
on level 1 and 3.
• Moisture can condense in the appliance
or on the glass doors. This is normal. Always stand back form the appliance
when you open the appliance door while
cooking. To decrease the condensation,
run the appliance for 10 minutes before
cooking.
• Wipe away moisture after every use of
the appliance.
• Do not put the objects directly on the appliance floor and do not cover the components with aluminium foil when you
cook. This can change the baking results
and damage the enamel coating.
Baking cakes
• Preheat the oven for approximately 10
minutes before baking.
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one level empty between
them.
10 electrolux
Cooking meat and fish
• Do not cook meat with weight below 1
kg. Cooking too small quantities makes
the meat too dry.
• Use a dripping pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15 minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
dripping pan. To prevent the smoke condensation, add water each time after it
dries up.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.
Conventional cooking
Food Weight (g) Tray type Shelf level
Pastry
stripes
Flat cake 1000 enamelled 2 10 160-170 30-35
Yeast cake
with apples
Apple pie 1200+1200 2 round alu-
Small cakes 500 enamelled 2 10 160-180 25-30
Fatless
sponge
cake
Drip pan
cake
Chicken,
whole
Chicken,
half
Pork roast
cutlet
Flan bread 800 enamelled 2 20 230-250 10-15
Stuffed
yeast cake
250 enamelled 3 - 150 25-30
2000 enamelled 3 - 170-190 40-50
minized
trays (diameter: 20 cm)
350 1 round alu-
minized tray
(diameter:
26 cm)
1500 enamelled 2 - 160-170
1350 oven shelf
at level 2,
roasting
tray at level
1
1300 oven shelf
at level 3,
roasting
tray at level
1
600 oven shelf
at level 3,
roasting
tray at level
1
1200 enamelled 2 10-15 170-180 25-35
1 15 180-200 50-60
1 10 160-170 25-30
2 - 200-220 60-70
3 - 190-210 30-35
3 - 190-210 30-35
Preheating
time (mi-
nutes)
Tempera-
ture (°C)
Cooking /
baking
time (mi-
nutes)
45-55
1)
electrolux 11
Cooking /
baking
time (mi-
nutes)
Food Weight (g) Tray type Shelf level
Preheating
time (mi-
nutes)
Tempera-
ture (°C)
Pizza 1000 enamelled 2 10-15 200-220 30-40
Cheese
2600 enamelled 2 - 170-190 60-70
cake
Swiss apple
1900 enamelled 1 10-15 200-220 30-40
flan
Christmas
cake
Quiche Lorraine
2400 enamelled 2 10-15 170-180
1000 1 round tray
1 10-15 220-230 40-50
(diameter:
55-65
26 cm)
Peasant
bread
750+750 2 round alu-
minized
1
18
3)
180-200 60-70
trays (diameter: 20 cm)
Romanian
sponge
cake
600+600 2 round alu-
minized
trays (diam-
2/2 10 160-170 40-50
eter: 25 cm)
Romanian
sponge
cake - traditional
600+600 2 round alu-
minized
trays (diameter: 20 cm)
2/2 - 160-170 30-40
Yeast buns 800 enamelled 2 10-15 200-210 10-15
Swiss roll 500 enamelled 1 10 150-170 15-20
Meringue 400 enamelled 2 - 100-120 40-50
Crumble
1500 enamelled 3 10-15 180-190 25-35
cake
Sponge
600 enamelled 3 10 160-170 25-35
cake
Buttered
600 enamelled 2 10 180-200 20-25
cake
1) After you switch off the appliance, leave the cake in the oven for 7 minutes.
2) After you switch off the appliance, leave the cake in the oven for 10 minutes.
3) Set the temperature to 250 °C for preheating.
Fan cooking
Food Weight (g) Tray type
Pastry
250 enamelled 3 10 150-160 20-30
stripes
Pastry
250 + 250 enamelled 1/3 10 140-150 25-30
stripes
Shelf
level
Pre-
heating
time
(mi-
nutes)
Tempera-
ture
(°C)
Cooking /
baking time
(minutes)
2)
12 electrolux
Pre-
Food Weight (g) Tray type
Shelf
level
heating
time
(mi-
Tempera-
ture
(°C)
Cooking /
baking time
(minutes)
nutes)
Pastry
stripes
250 + 250 +
250
enamelled 1/2/4 10 150-160 30-35
Flat cake 1000 enamelled 2 10 150-160 30-40
Flat cake 1000 +
enamelled 1/3 10 140-150 45-55
1000
Flat cake 1000 +
1000 +
enamelled 1 /2/
4
10 140-150 55-65
1000
Yeast cake
2000 enamelled 3 10 170-180 40-50
with apples
Apple pie 1200 +
1200
2 round aluminized
trays (diameter: 20
2/3 10 170-180 50-60
cm)
Small cakes 500 enamelled 3 10 140-150 30-35
Small cakes 500 + 500 enamelled 1/3 10 140-150 25-30
Small cakes 500 + 500 +
enamelled 1/2/4 10 150-160 25-30
500
Fatless
sponge
cake
Drip pan
cake
Chicken,
whole
350 1 round aluminized
3 10 150-160 30-40
tray (diameter: 26
cm)
1200 enamelled 3 - 150-160
1400 oven shelf at level 2,
2 - 170-190 50-60
roasting tray at level
40-50
1
Pork roast
cutlet
600 oven shelf at level 3,
roasting tray at level
3 - 180-200 30-40
1
Flan bread 800 enamelled 2 15 230-250 10-15
Stuffed
1200 enamelled 3 20-30 160-170 20-30
yeast cake
Pizza 1000 +
enamelled 1/3 - 180-200 50-60
1000
Cheese
2600 enamelled 2 - 150-170 60-70
cake
Swiss apple
1900 enamelled 3 15 180-200 30-40
flan
Christmas
cake
Quiche Lorraine
Peasant
bread
2400 enamelled 3 10 150-170
1000 1 round tray (diame-
2 15 210-230 35-45
ter: 26 cm)
750+750 2 round aluminized
trays (diameter: 20
3
15
3)
180-190 50-60
50-60
cm)
1)
2)
electrolux 13
Pre-
Food Weight (g) Tray type
Romanian
sponge
cake
Romanian
sponge
cake - traditional
Yeast buns 800 enamelled 3 10 180-200 10-15
Yeast buns 800 + 800 enamelled 1/3 10 180-200 15-20
Swiss roll 500 enamelled 3 10 150-170 10-15
Meringue 400 enamelled 2 - 100-120 50-60
Meringue 400 + 400 enamelled 1/3 - 100-120 55-65
Meringue 400 + 400 +
Crumble
cake
Sponge
cake
Buttered
cake
1) After you switch off the appliance, leave the cake in the oven for 7 minutes.
2) After you switch off the appliance, leave the cake in the oven for 10 minutes.
3) Set the temperature to 230 °C for preheating.
600+600 2 round aluminized
trays (diameter: 25
cm)
600+600 2 round aluminized
trays (diameter: 20
cm)
enamelled 1/2/4 - 115-125 65-75
400
1500 enamelled 2 10 170-180 20-30
600 enamelled 2 10 150-170 20-30
600 + 600 enamelled 1/3 10 150-170 20-30
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food
(specially the one which contains starch),
Shelf
acrylamides can pose a health risk. Thus,
we recommend that you cook at the lowest
temperatures and do not brown food too
much.
heating
level
2/2 10 150-170 40-50
2/2 - 160-170 30-40
time
(mi-
nutes)
Tempera-
ture
(°C)
Cooking /
baking time
(minutes)
OVEN - CARE AND CLEANING
Warning! Refer to "Safety information"
chapter.
• Clean the front of the appliance with a
soft cloth with warm water and cleaning
agent.
• To clean metal surfaces use a usual
cleaning agent
• Clean the oven interior after each use.
Thus you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft
cloth with warm water and cleaning
agent) after each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It
can destroy nonstick coating!
14 electrolux
Shelf Support Rails
Removing the shelf support rails
1. Pull the front of the shelf support rail
away from the side wall.
2. Pull the rear shelf support rail away
from the side wall and remove it.
To prevent this you must replace them.
For more instructions, contact your
local Service Centre.
Removing the oven door and the glass
panel
1. Open the door fully and hold the two
door hinges.
2. Lift and turn the levers on the two hinges.
Installing the shelf support rails
Install the shelf support rails in opposite sequence.
The rounded ends of the shelf support
rails must point to the front!
Cleaning the oven door
The oven door has two panels of glass installed one behind the other. To make the
cleaning easier remove the oven door and
the internal panel of glass.
Warning! The oven door can close if
you try to remove the internal panel of
glass when the door is still assembled.
Warning! Make sure that the glass
panels are cool, before you clean the
glass door. There is risk that the glass
breaks.
Warning! When the door glass panels
are damaged or have scratches, the
glass becomes weak and can break.
3. Close the oven door to the first opening
position (halfway). Then pull forward
and remove it from its seat.
electrolux 15
4. Place the door on a stable surface protected by a soft cloth.
Use a screwdriver to remove 2 screws
from bottom edge of door
1
1
Important! Do not loose the screws
5. Use a spatula made of wood or plastic
or equivalent to open the inner door
Hold the outer door, and push the inner
door against the top edge of the door
3
2
2
Inserting the door and the glass panel
When the cleaning procedure is completed,
insert the oven door. To do so, do the
steps in opposite way.
4
4
6
5
5
Stainless steel or aluminium appliances:
Clean the oven door with a wet sponge
only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive materials as they can damage the
oven surface. Clean the oven control
panel with the same precautions
Removing the drawer
The drawer below the oven can be removed for cleaning.
Removing the drawer
1. Pull the drawer out until it stops.
6. Lift the inner door
7. Clean inner side of the door
Clean the glass panel with water and soap.
Dry it carefully.
Warning! Only clean the glass panel
with water and a soap. Abrasive
cleaning agents, stain removers and
sharp objects (e.g. knives or scrapers)
can cause damage to the glass.
2. Slowly lift the drawer.
3. Pull the drawer out fully.
Installing the drawer
16 electrolux
To install the drawer, do the above steps in
the opposite sequence.
Warning! Do not keep flammable
items (such as cleaning materials,
plastic bags, oven gloves, paper or
cleaning sprays) in the drawer. When
you use the oven, the drawer can
become hot. There is a risk of fire.
Oven lamp
Warning! Be careful! There is the risk
of electrical shock!
Before you change the oven lamp:
• Remove the fuses in the fuse box or
switch off the circuit breaker.
Put a cloth on the bottom of the oven
for protection of the oven light and
glass cover.
1. Turn the glass cover anti-clockwise to
remove it.
2. Clean the glass cover.
3. Replace the oven light bulb with appli-
cable 300°C heat-resistant oven light
bulb.
Use the same oven lamp type.
4. Install the glass cover.
• Switch off the oven.
WHAT TO DO IF…
Problem Possible cause Remedy
There is no spark when lighting
the gas
There is no spark when lighting
the gas
There is no spark when lighting
the gas
The flame is blow out immediately after ignition
The gas ring burns unevenly Burner crown is blocked with
The appliance does not operate The fuse in the fuse box is re-
The oven does not heat up The oven is not switched on Switch on the oven
The oven does not heat up The necessary settings are not
The oven lamp does not operate
Steam and condensation settle
on the food and in the oven
cavity
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
We recommend that you write the data here:
Model (MOD.) .........................................
There is no electrical supply Make sure that the unit is con-
There is no electrical supply Examine the house electrical in-
Burner cap and crown are
placed uneven
Thermocouple is not heated
sufficient
food residues
leased
set
The oven lamp is defective Replace the oven lamp
You left the dish in the oven for
too long
nected and the electrical supply
is switched on.
stallation fuse.
Make sure that the burner cap
and crown are in correct positions.
After lightning the flame, keep
the knob pushed for approximately 5 seconds.
Make sure that the injector is
not blocked and the burner
crown is clear of food particles.
Control the fuse. If the fuse is
released more than one time,
refer to a qualified electrician.
Control the settings
Do not leave the dishes in the
oven for longer than 15-20 minutes after the cooking process
ends
The necessary data for the service centre is
on the rating plate. The rating plate is on
the front frame of the oven cavity.
Product number (PNC) .........................................
Serial number (S.N.) .........................................
INSTALLATION
Warning! Refer to "Safety information"
chapter.
Location of the appliance
You can install your freestanding appliance
with cabinets on one or two sides and in
the corner.
Keep a distance of about 1 cm between the appliance and the wall to
make sure that the lid opens.
A
C
B
C
Dimension mm
B 150
C 20
Technical Data
Appliance class 2, sub class 1 and class 1.
Dimensions
Height 855 mm
Width 500 mm
Depth 600 mm
Total electricity power 2035,6 W
Gas Category II2HS3B/P
Gas Supply G20 (2H) 25 mbar
G25.1 (2S) 25 mbar
G30/31 (3B/P) -
30/30 mbar
By-pass diameters
Burner Ø By-pass in 1/100
mm.
Auxiliary 30
Semi-rapid 32
Rapid 42
electrolux 17
Minimal distances
Dimension mm
A 690
Gas burners
Burner Normal
Auxiliary
burner
1,03 0,35 Natural Gas
1,00 0,35 Butane G30 28-30 0,50 72,71
0,85 0,31 Propane G31 28-30 0,50 60,70
Semi-rapid
burner
power
kW kW mbar mm g/h
1,03 0,35 Natural Gas
1,90 0,45 Natural Gas
Reduced
power
Type of gas Pres-
sure
25 0,70 -
G20
25 0,74 -
G25.1
25 0,92 -
G20
Inj. Diam-
eter
Cons.
18 electrolux
Burner Normal
2,00 0,45 Natural Gas
2,00 0,43 Butane G30 30 0,71 145,43
1,70 0,38 Propane G31 30 0,71 121,40
Rapid burner
3,00 0,75 Natural Gas
3,00 0,72 Butane G30 30 0,88 218,14
2,60 0,63 Propane G31 30 0,88 185,68
power
kW kW mbar mm g/h
3,00 0,75 Natural Gas

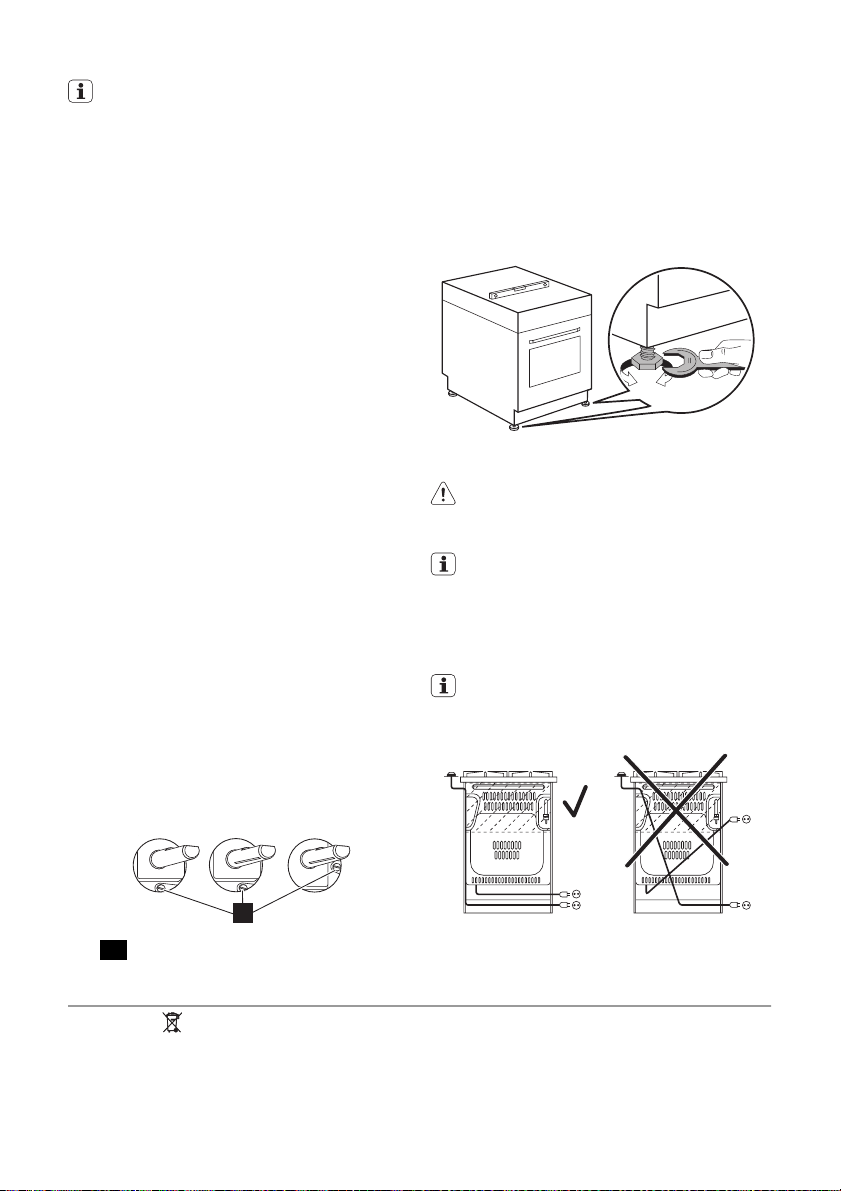

Gas Connection
Choose fixed connections or use a flexible
pipe in stainless steel in compliance with
the regulation in force. If you use flexible
metallic pipes, be careful they do not come
in touch with mobile parts or they are not
squeezed.
Flexible nonmetal pipes connection
If it is possible to easily control the connection in its full area, you can use a flexible
pipe. The flexible pipe must be tightly attached by clamps.
Reduced
power
Type of gas Pres-
sure
G25.1
G20
G25.1
Inj. Diam-
eter
25 1,06 -
25 1,13 -
25 1,27 -
Important! When installation is complete,
make sure that the seal of each pipe fitting
is correct. Use a soapy solution, not a
flame!
The gas supply ramp is on the rear side of
the control panel.
Warning! Before gas connection
disconnect the mains plug from the
mains socket or switch off the fuse
in the fuse box. Close the primary
valve of the gas supply.
31 2
Cons.
Installation: use the pipe holder. Always engage the gasket. Then continue with the
gas connection. The flexible pipe is prepared for apply when:
– it can not get hot more than room tem-
perature, higher than 30°C;
– it is no longer than 1500 mm;
– it shows no throttles;
– it is not subject to traction or torsion;
– it does not get in touch with cutting
edges or corners;
– it can be easily examined in order to
check its condition.
The control of preservation of the flexible
pipe consists in checking that:
– it does not show cracks, cuts, marks of
burnings on the two ends and on its full
length;
– the material is not hardened, but shows
its correct elasticity;
– the fastening clamps are not rusted;
1 Gas connection point (only one point is
applicable for appliance)
2 Gasket
3 Adjustable connection
4 LPG pipe holder
5 Natural Gas pipe holder
4 5
– expired term is not due.
If one or more defects are visible, do not repair the pipe, but replace it.
electrolux 19
The appliance is set to default gas, to
change the setting choose pipe holder
from the list. Always use the gasket
sealing
Injectors replacement
1. Remove the pan supports.
2. Remove the caps and crowns of the
burner.
3. With a socket spanner 7 remove the injectors and replace them with the ones
which are necessary for the type of gas
you use.
4. Assemble the parts, follow the same
procedure backwards.
5. Replace the rating plate (it is near the
gas supply pipe) with the one for the
new type of gas supply. You can find
this plate in the package supplied with
the appliance.
If the supply gas pressure is changeable or
different from the necessary pressure, you
must fit an applicable pressure adjuster on
the gas supply pipe.
Adjustment of minimum level
To adjust the minimum level of the burners:
1. Light the burner.
2. Turn the knob on the minimum position.
3. Remove the control knob.
4. With a thin screwdriver, adjust the bypass screw position. If you change
from natural gas 20 mbar to liquid gas,
fully tighten the adjustment screw in. If
you change from liquid gas to natural
gas 20 mbar, undo the by-pass screw
approximately 1/4 of a turn.
5. Make sure the flame does not go out
when you quickly turn the knob from
the maximum position to the minimum
position.
Levelling
Use small feet on the bottom of appliance
to set same level of cooker top surface with
other surfaces
Electrical installation
Warning! Only a qualified and
competent person must do the
electrical installation.
The manufacturer is not responsible if
you do not follow safety precautions
from chapter "Safety information".
This appliance is supplied with a main plug
and a main cable.
The power cable must not touch the
part of the appliance shown in the illustration.
1
1 Minimum adjustment screw
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
20 electrolux
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Packaging material
The packaging material is environmentally-friendly and recyclable. Plastic
parts are marked with international abbreviations such as PE, PS, etc. Dis-
pose of the packaging material in the
containers provided for this purpose at
your local waste management facility.
Warning! Your appliance should be
made inoperable before it is disposed
of, so that it does not constitute a
danger.
To do this, take the mains plug from
the socket and remove the mains cable
from the appliance.
electrolux 21
22 electrolux
electrolux 23
www.electrolux.com/shop
892942103-C-122011
Loading...
