AEG-Electrolux 1051VIELECTRON User Manual
ÖKO-LAVAMAT 1051 VI
ELECTRONIC
La lavatrice ecologica
La lavadora ecológica
A máquina de lavar roupa ecológica
The environmentally friendly washing machine
Libretto d’istruzioni
Instrucciones para el uso
Manual de instruções
Instruction booklet
AUS ERFAHRUNG GUT
1000
900
700500
95
E
60
50
40
30
60
50
40
30
40
30
40
30
O
G
F
D
C
B
A
Contents
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Discarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Tips for environmental protection
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Main features of your washing machine . . . . . . . . . . . . . . . . . . . . . . . . 141
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Programme selector dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Mains-on light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
START/PAUSE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
DELAYSTART button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Programme Option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
STAIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
PREWASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
RINSE PLUS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
SPIN SPEED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Programme progress display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Cancelling a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Modification of a programme which is running. . . . . . . . . . . . . . . . . . 148
Opening the door after the programme has started . . . . . . . . . . . . . . . 148
Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Before the first wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Preparing the wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Sorting out and preparing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Weight of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Types of fabric and care labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Detergents and additives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Which detergent and additive? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
How much detergent? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Liquid detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Adding a water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Information on water hardness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
135
Dear customer,
Please read these operating instructions carefully and pay particular
attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct
functioning of the appliance.
This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instruc-
tions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the
machine are marked with the clover symbol.
Should any problems arise, this booklet provides instructions on how to
solve them by yourself; see section “Something not working?”.
If this information is not sufficient, please contact our nearest SERVICE
CENTRE (address and telephone numbers are indicated on the enclosed
leaflet).
Printed on recycled paper.
People who think ecologically, act accordingly…
134
Safety instructions
The safety of AEG appliances complies with the industry standards and
with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes.
General safety
• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious
danger. Contact your local AEGService Force Centre.
• Never start the machine if the electrical supply cable is damaged or
the control panel or worktop are so damaged that inner components
can be reached.
• Unplug the appliance before carrying out any cleaning or maintenance operations.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never spray the machine with a jet of water. Danger of electric shock!
• During high temperature wash programmes the door glass may get
hot. Do not touch it!
• Let the water cool down before carrying out emergency emptying or
before opening the door in an emergency.
• Small animals can gnaw electric wires and water hoses causing electrocution hazard and damage due to water leaks.
Positioning, connection, starting up
• Follow the instructions for positioning and connection.
• Carry out a first wash without laundry (COTTONS 60, with half the
amount of detergent) in order to remove any manufacturing residue
from the tub and the drum.
• Should the machine be purchased in winter, when temperatures can
be below 0°, leave the appliance for 24 hours at ambient temperatur e
before starting it.
137
How to wash
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Add detergent and additives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Switching the machine on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Selection of the desired wash programme . . . . . . . . . . . . . . . . . . . . . . . . . 155
Selection of the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Selection of the STAIN, PREWASH or QUICK WASH option. . . . . . . . . . . . 155
Selection of the RINSE PLUS and/or RINSE HOLD option. . . . . . . . . . . . . . 155
Selection of the DELAY START option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
At the end of the programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Programme charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158-159
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
After each wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Periodical cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Bodywork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Water inlet filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Emergency emptying out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Frost precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Something not working?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Unsatisfactory washing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Instructions for installation and electrical connection. . . . . . . . . . . . . 170
Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Dimensions of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Front view and side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

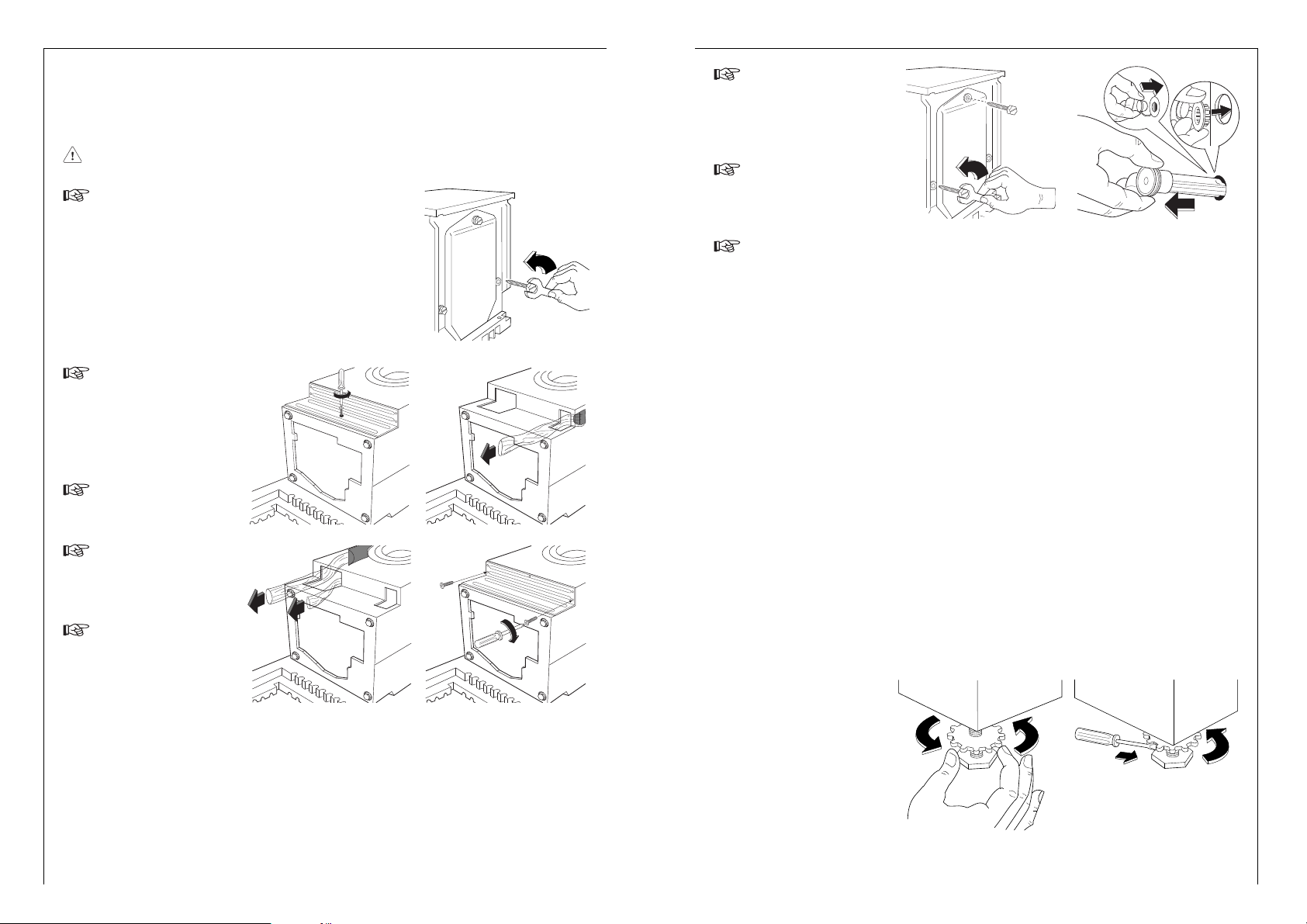

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Levelling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Water inlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Permanent connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Bulding-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
136
Contents
Discarding
Packaging materials
The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in
appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance. Help to keep your
country tidy!
139
Child safety
• Children are often not aware of how dangerous electrical appliances
can be. When the machine is working, they should be carefully supervised and not be allowed to play with the appliance - there is a risk
that they could become trapped inside.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum.
• When the appliance is to be scrapped, cut off the electrical supply
cable and destroy the plug with the remaining cable. Disable the door
catch in order to prevent children from becoming trapped inside
while playing.
Proper use
• This appliance is designed for domestic use only. If the machine is
used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur .
• For safety reasons, the appliance must not be modified.
• Use only detergents suitable for washing machines and follow the
manufacturer’s instructions.
• Garments which have been in contact with flammable solvents
should not be machine washed.
• Do not use your machine for dry cleaning.
• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held responsible for any damage.
• Always unplug the appliance and turn off the water tap after use.
138
Safety instructions
Main features of your washing machine
• Programme and temperature setting using the programme selector.
• Stain programme for effectively treating stained washing.
• Energy saving programme for normally soiled cotton items.
• Speed for the final spin can be reduced to 900-700 or 500 rpm.
• RINSE HOLD can be added: the laundry is left immersed in the final
rinse water to avoid the formation of creases.
• The possibility of selecting all the other options offered by this
machine gives you truly “customised washing”.
• Delay timer: programme start can be delayed by 1 to max. 19 hours
(e.g. to times with a more economical power rate).
• Programme progress display showing the programme steps selected
and the programme phase which is running.
• Because of its gentle washing action, the special wool cycle washes
your garments with extreme care, without felting them.
• 4-compartment drawer for detergent, fabric softener and bleaching
agent.
• Unbalance detection device: secure position and silent operation of
the appliance.
141
Tips for environmental protection
To save water, energy and to help protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order
to save detergent, water and time (the environment is pr otected too!).
• Use the energy saving programme when washing normally soiled cotton
garments.
• The machine works more economically if it is fully loaded.
• When small loads are washed, use only half to two thirds of the recommended amount of detergent.
• With adequate pre-treatment, stains and limited soiling can be
removed; the laundry can then be washed at a lower temperature.
• If the water has a medium or high degree of hardness (starting from
degree of hardness II, see “Detergents and additives”) water softeners
must be added.
The amount of detergent can then be adjusted to degree of hardness
I (= soft).
140
143
Description of the appliance
Front view
142
Control panel
A = Mains-on light
B = ON/OFF button
C = Delay start button
D = Display
E = Option buttons
F = START/PAUSE button
G = Spin speed button
H = Programme progress display
J = Programme selector dial
Programme selector dial
The programme selector determines
the type of washing cycle (e.g. water
level, drum movement, number of
rinses) and the washing temperature,
according to the type of laundry.
The selector is divided into 5 sectors:
• Cotton
• Synthetics
• Delicates
• Wool
• Special programmes A-G and
• RESET programme
O
.
The selector dial can be turned either clockwise or anticlockwise.
AB CDE FG H J
1000
900
700500
95
E
60
50
40
30
60
50
40
30
40
30
40
30
O
G
F
D
C
B
A
Description of the appliance
Cotton
Synthetics
Delicates
Wool
RESET
DELICATE SPIN
SPIN
DRAIN
SOFTENERS
DEL.RINSES
SOAK
95
E
60
50
40
30
60
50
40
30
40
30
40
30
O
G
F
D
C
B
A
Detergent drawer
Control panel
Door
Drain filter
Adjustable feet
1000
900
700500
95
E
60
50
40
30
60
50
40
30
40
30
40
30
O
G
F
D
C
B
A
START/PAUSE button, the machine starts its countdown (every hour).
During the last hour, the remaining time is displayed every 5 minutes.
The delayed start function cannot be used with the SPIN F-G and
DRAIN programme D.
To modify or cancel the preset delay, press the START/PAUSE button,
then press the DELA Y START button until the required value is displayed
or, if you wish to cancel the delay, until the symbol
0 h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the duration of the wash
programme previously selected.
Programme Option buttons
Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and
before depressing the START/PAUSE button.
When these buttons are pressed, the corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.
If an incorrect option is selected, the pilot lights flash for about 3 seconds
and the message Err is displayed.
STAIN
To treat heavily soiled washing or stained washing with stain remover
(extended main wash with time optimised stain action phase, not selectable for wool and with temperatures lower than 40°C).
QUICK
By pressing this button the washing time is reduced. For use when
washing lightly soiled laundry.
This option is not available with the wool programme.
PREWASH
The machine performs a prewash cycle at 40°C max. The prewash cycle
ends with a short spin in programmes for Cotton and Synthetics, and
with emptying of the water only for Delicates.
This option is not available with the wool programme.
For use when washing heavily soiled laundry.
Important: the STAIN, PREWASH and QUICK WASH options cannot be
selected together: one automatically disables the others.
145144
Description of the appliance
Position E corresponds to the ENERGY SAVING programme at approx.
67°C for normally soiled laundry, extended washing time (cannot be
combined with STAIN and QUICK ).
Position corresponds to COLD WASH. To be used for extremely delicate
items.
ON/OFF button
Press this button to switch the machine on. Press it again to switch the
machine off.
Mains-on light
This light comes on when the ON/OFF button is pressed, and goes out
when it is pressed again.
START/PAUSE button
This button has three functions:
a) Start
After having selected the required pr ogramme, pr ess this button to start
the machine; the corresponding pilot light stops flashing.
b) Pause
To interrupt a programme which is running, press the START/PAUSE
button: the corresponding pilot light and the light of the programme
phase which is running will start to flash.
To restart the programme from the point at which it was interrupted,
press the START/PAUSE button again.
c) Empty out water
At the end of a programme which ends with water in the drum (RINSE
HOLD option), or after the “soak” programme A, press the START/P AUSE
button to empty out the water: after the soak programme, the machine
will empty only; after RINSE HOLD programmes, the machine will empty and
spin.
DELAY START button
This button allows starting of the machine to be delayed from 1 hour
up to a maximum of 19 hours.
The button must be pressed after selecting the programme and
before pressing the START/PAUSE button .
The figures indicating the required delay appear for about 2 seconds in
the display next to the button. The duration of the selected wash programme is then displayed. One minute after depressing the
Description of the appliance
• delayed start, programmed using the special button (C).
The selected delay (19 hours max.) is indicated in the display. The
countdown is updated every hour, and every 5 minutes during the last
hour.
• Machine heating phase. A dot to the right of the figures in the dis-
play indicates that the machine is heating the water. During this
phase the user can therefore decide whether to use other electrical
appliances simultaneously.
• Incorrect option selection. If an option which is not compatible with
the set wash programme is selected, the message Err is displayed.
Programme progress display
By selecting the wash programme, the pilot
lights corresponding to the various phases making up the programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme
has finished, the END pilot light comes on.
Cancelling a programme
To cancel a programme which is running, turn the programme selector
dial to the RESET O position: three flashing dashes will be displayed.
Warning! After a programme which ends with water in the drum
(RINSE HOLD option ), turn the selector dial first to RESET O and
then to the DRAIN programme D.
147146
Description of the appliance
PREWASH
WASH
RINSES
RINSE HOLD
DRAIN
SPIN
END
RINSE PLUS
Can be used with all programmes except the wool programme. The
machine performs 4 rinses instead of 3.
This option is recommended for people who are allergic to detergents
and in areas where the water is very soft.
RINSE HOLD
When this button is pressed, the last rinse water is not emptied out, to
prevent the fabrics from creasing. When the pr ogr amme has finished, the
corresponding pilot light on the programme progress display flashes to
indicate that the water must be emptied out.
To empty out water:
• press the START/PAUSE button : after emptying, the machine performs the spin cycle required for the type of wash selected;
• select the DRAIN programme D to empty out the water without spinning.
Warning! The progr amme selector dial must be turned fir st to RESET O
and then to programme “DRAIN” D.
This option can also be selected for the wool programme: the last
rinse water is emptied out but the machine does not spin.
If the water is not emptied out, the machine automatically empties
itself after 18 hours.
SPIN SPEED
Press this button to reduce the maximum speed of the final speed proposed
by the machine for the selected programme.
The maximum spin speed for cotton is 1000 rpm, for synthetics and
wool 900 rpm and for delicates 700 rpm.
Display
The display shows the following information:
• if the programme selector dial is on the RESET
O
position, three flashing
dashes appear immediately after pressing the ON/OFF button to indicate
that the machine is ready to receive instructions for the required wash
programme;
• duration of the selected wash programme, calculated automatically on
the basis of the maximum recommended load for each type of fabric.
• When the programme has finished, three flashing zeros are dis-
played;
Description of the appliance
Loading...
