AEG RH460LD User Manual

MANUAL

RH 436D

RH 447D RH 430LD RH 440LD RH 441LD RH 455LD RH 456LD RH 460LD RH 461LD

RH 456LDE

Type H20 / 60 821 2693 -61

T.D. 04/02

English

miniBar

1.0 INTRODUCTION 3

2.0 FOR YOUR SAFETY 3

2.1 Warnings and Safety Advice 3

2.2 Coolants 3

3.0 WARRANTY AND 3 CUSTOMER SERVICE

4.0 INSTALLATION 4

4.1 The Purpose of this Manual 4

4.2 Tools/Materials Required 4

4.3 Unpacking 4

4.4 Cleaning 4

4.5 Installation 5

4.6 Securing 6

4.7 Connecting the Device to the 7

Electricity Supply

4.8 Changing the Sliding Hinge 8

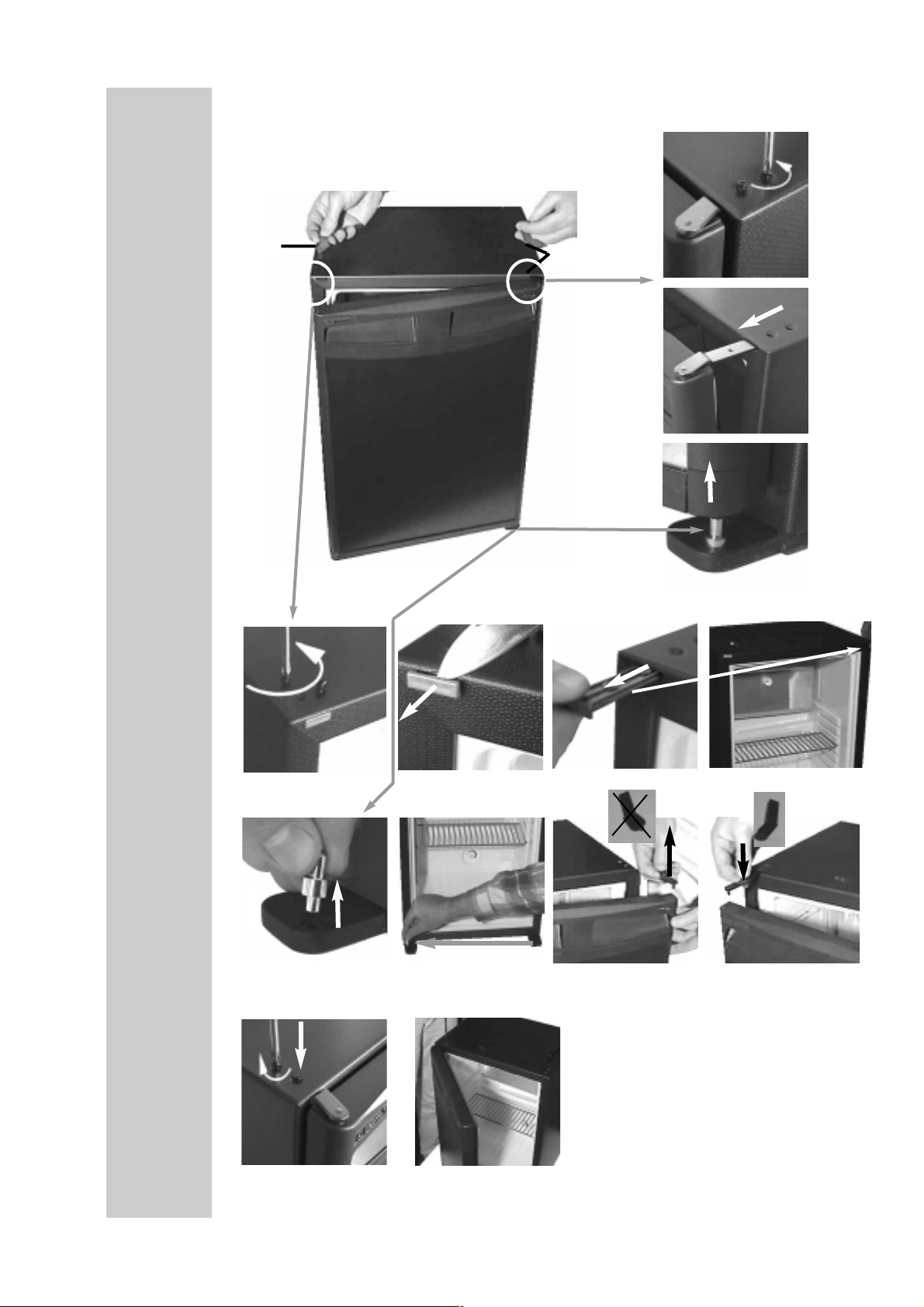

4.9 Changing the Doorhang 9

5.0 INSTRUCTION FOR USE 10

5.1 Initial Operation 10

5.2 Temperature Control 10

5.3 Automatic Defrost Function 10

5.4 Leakage Detection 10

5.5 Automatic Door Control (ADC) 11

5.6 Interior Light 12

5.7 Environmental Advice 13

5.8 Disposal 13

5.9 Energy Saving Tips 13

5.10 Declaration 13

5.11 Check List 14

5.12 Technical Data 15

TABLE OF CONTENTS

INTRODUCTION

You have made an excellent choice by choosing the Dometic miniBar. We are convinced that you will be satisfied with your new appliance in every way. Silent in operation, the miniBar fulfils high quality standards and guarantees an efficient use of resources and energy during its entire working life, i.e. during manufacturing, use and disposal. Please study the installation and operating instructions carefully before attempting to operate the miniBar.

FOR YOUR SAFETY

Warnings and Safety Advice

 In the interests of children's safety:

When disposing of the refrigerator, remove all doors and leave the shelves inside. This prevents children from being accidentally trapped or suffocated in the refrigerator.

 Never open the cooling unit - it is under high pressure.  Never store explosive substances, such as lighter fuel, petrol, ether or

similar products in the miniBar.

 The minibar is not suitable for the proper storage of medications.  The miniBar must be installed in such a way that accidental contact with

the cooling unit (which heats up when in use) is impossible.

 The appliance has to be connected to a properly earthed socket in line

with the relevant valid country regulations.

 Servicing must only be carried out by authorised service personnel.

Coolants

Ammonia is used as a coolant. This is a natural compound also used in household cleaning agents (1 litre of Salmiak cleaner contains up to 200g of ammonia - about twice as much as is used in the refrigerator). Sodium chromate is used for corrosion protection (less than 2% of the coolant). If a leak occurs (which can be easily detected due to the unpleasant smell):

 Switch the device off (pull mains plug, if applicable);  Ventilate room thoroughly.  Inform hotel personnel.

For the safety of hotel guests and personnel, it has been established by inspectors that the coolant poses no threat to health.

WARRANTY AND CUSTOMER SERVICE

Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concerned.

For warranty or other servicing, please contact our Dometic Service department. Any damage due to improper use is not covered by the warranty. The warranty does not cover any modifications to the appliance or the use of non-original Dometic parts; the warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained. Parts can be ordered throughout Europe from our Dometic Service department. When contacting customer service, please always state model, product, MLC-Code and serial number! You can find this information on the model label inside the device.

1.0

2.0

2.1

3.0

2.2

e.g.

INSTALLATION

The Purpose of this Manual

The manual shows you how to:

 install the miniBar correctly.  operate the miniBar correctly.  guarantee the miniBar´s correct maintenance and functioning.  deal with faults by yourself.

Tools / Materials Required

You will need the following tools for initial operation:

Unpacking

Check during unpacking that the device is defect-free.

 Report transport damage to the transport company within 48 hours.  Check that the voltage noted on the model label corresponds to the

mains voltage.

Depending on the model, the following parts can be found in the miniBar :

Cleaning

Before operating the miniBar, we recommend you clean it both inside and outside.

 Use a soft cloth, lukewarm water and a mild detergent.  Following this, wash out the miniBar using clean water and dry

thoroughly.

 At annual intervals, remove dust from fridge aggregate using a brush or

soft cloth.

WARNING:

To prevent material damage:

 Do not use soap or detergents which are harsh, coarse or

which contain soda.

 Keep the door seal free from oil and grease.  The cylinder locks have been lubricated in the factory to be long-lasting.

4.1

4.2

4.4

4.0

4.3

mild detergent

Installation

4.5

1. The refrigerator must be level both directions

2. There sould be 20mm clearance to the wall

3. Ventilation must be provided as shown in alternatives A,B,C or D

4. The ventilation duct must at least measure 105mm x the wt

dth of the refrigerator

5. Only the entire cooling unit must project into the duct as shown

6 Air p

assing through the duct must not be

preheated by any source of heat

7. Ventilation grills, if used, must have openings of at least 200cm² each

Please follow the installation details below carefully. Guarantee is valid for products installed as described only.

IMPORTANT:
