AEG Mastery RCB732E5MX User Manual
RCB732E5MX
USER
MANUAL
User Manuel
EN
Freezer - Fridge
BEDIENUNGSANLEITUNG
DE
Kühl-Gefrierkombi
Manual de Uso
ES
Refrigerador - Congelador
Bruksanvisning
SE
Frys - Kylskåp
Návod k Obsluze
CZ
Chladnička - Mraznička
Ohjekirja
FI
Pakastin - Jääkaappi
EN FIRE Warning; Risk of fire / flammable materials
EN -2-
INDEX
BEFORE USING THE APPLIANCE ...................................................... 5
General warnings ............................................................................................. 5
Old and out-of-order fridges or freezer ............................................................. 9
Safety warnings ................................................................................................ 9
Inalling and operating your fridge freezer .................................................... 10
Before Using your Fridge ............................................................................... 11
THE VARIOUS FUNCTION AND POSSIBILITIES ..............................11
Information about New Generation Cooling Technology ................................ 11

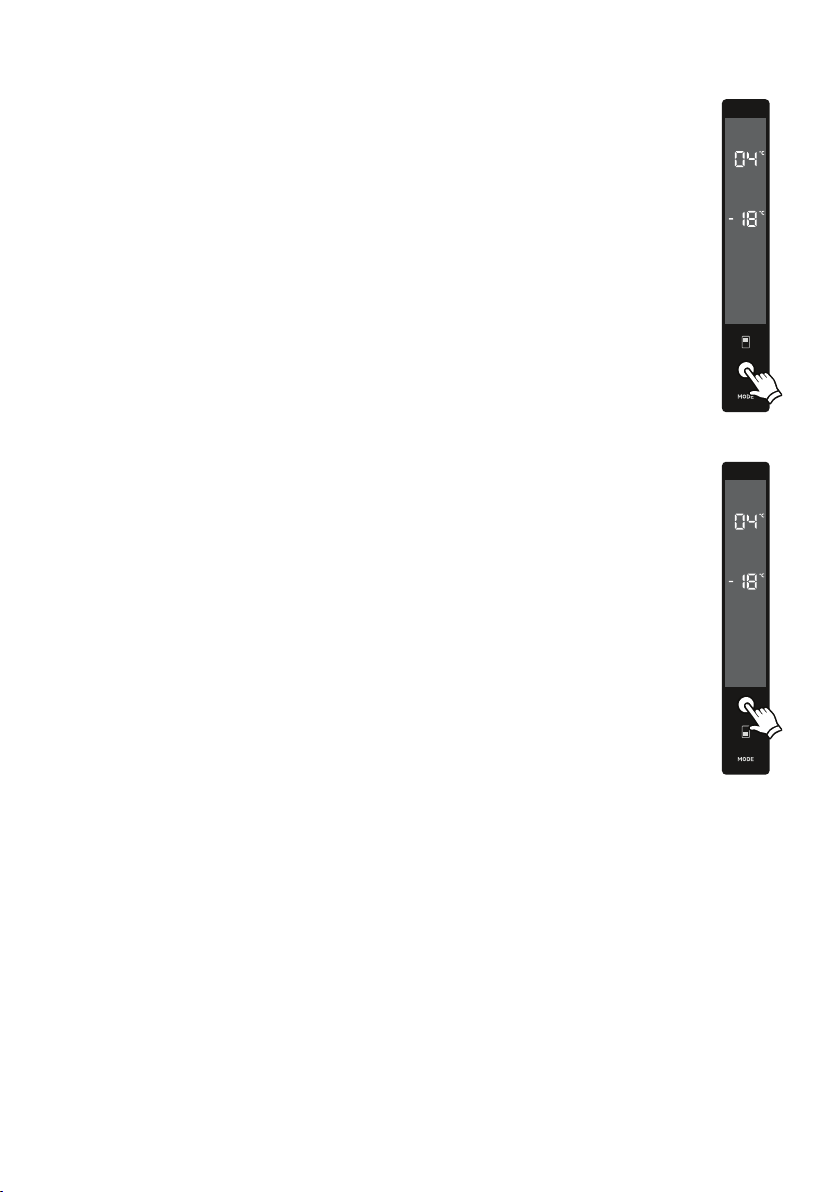

Display and Control Panel .............................................................................. 12
Operating Your Fridge Freezer ....................................................................... 12
Super Freeze Mode ................................................................................................12
Super Cool Mode ....................................................................................................13
Economy Mode .......................................................................................................13
Holiday Mode ..........................................................................................................14
Drink Cool Mode .....................................................................................................14
Screen Saver Mode ................................................................................................15
The Child Lock Function .........................................................................................15
Door Open Alarm Function ......................................................................................15
Temperature Settings ..................................................................................... 16
Freezer Temperature Settings .................................................................................16
Cooler Temperature Settings ..................................................................................16
Temperature Adjument Warnings ................................................................ 17
Accessories .................................................................................................... 18
Ice Tray ...................................................................................................................18
The Freezer Box .....................................................................................................18
Extra Chill Compartment .........................................................................................18
The Fresh Dial .........................................................................................................19
CustomFlex .............................................................................................................19
ARRANGING FOOD IN THE APPLIANCE ......................................... 20
Refrigerator compartment .............................................................................. 20
Freezer compartment ..................................................................................... 21
CLEANING AND MAINTENANCE ....................................................... 24
Defrosting ................................................................................................................25
TRANSPORTATION AND CHANGING OF INSTALLATION
POSITION .............................................................................................. 25
EN -3-
Repositioning the Door ................................................................................... 25
BEFORE CALLING YOUR AFTER SALES SERVICE ...................... 26
Hints for Energy Saving .................................................................................. 29
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 30
EN -4-
PART - 1.
BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
WARNING: In order to avoid any hazards resulting from the
instability of the appliance, it must be fixed in accordance with
the following instructions:
If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take care
during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a leak
due to damage of the cooler elements, move your fridge away
from open flames or heat sources and ventilate the room where
the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
EN -5-
• This appliance is intended to be used in household and
domestic applications such as:
- staff kitchen areas in shops, offices and other working
environments.
- farm houses and by clients in hotels, motels and other
residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes or 10 amperes
according to country where the product will be sold. If there
is no such socket in your house, please have it installed by
an authorized electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances. Children are not expected
to perform cleaning or user maintenance of the appliance,
very young children (0-3 years old) are not expected to use
appliances, young children (3-8 years old) are not expected to
use appliances safely unless continuous supervision is given,
older children (8-14 years old) and vulnerable people can
EN -6-
use appliances safely after they have been given appropriate
supervision or instruction concerning use of the appliance.
Very vulnerable people are not expected to use appliances
safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualified
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.
To avoid contamination of food, please respect the
following instructions:
• Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
• Clean regularly surfaces that can come in contact with food
and accessible drainage systems
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto other
food.
• Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice cream and making ice
cubes.
• One-, two- and three-star compartments are not suitable for
the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to
prevent mould developing within the appliance.
EN -7-
Service
• To repair the appliance contact the Authorised Service Centre.
Use original spare parts only.
• Please note that self-repair or nonprofessional repair can
have safety consequences and might void the guarantee.
• The following spare parts will be available for 7 years after
the model has been discontinued: thermostats, temperature
sensors, printed circuit boards, light sources, door handles,
door hinges, trays and baskets.
• Please note that some of these spare parts are only available
to professional repairers, and that not all spare parts are
relevant for all models.
• Door gaskets will be available for 10 years after the model
has been discontinued.
EN -8-
Old and out-of-order fridges or freezer
• If your old fridge or freezer has a lock, break or remove the lock before discarding it,
because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Disposal of your old appliance
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or common
use. Such use will cause the guarantee of the appliance to be cancelled and our company
will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not connect your fridge freezer to the mains electricity supply using
an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to
play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short
circuit or electric shock.
EN -9-
• Do not place glass bottles or cans in the ice-making compartment as
they will burst when the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks
with high alcohol content vertically in the fridge compartment and make
sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may
cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes
immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food
poisoning.
Installing and operating your fridge freezer
Before using your fridge freezer for the first time, please pay attention to the following points:
• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge freezer may have an odour when it is operated for the first time. This is normal
and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate
(voltage and connected load) matches that of the mains electricity supply. If in doubt,
consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no
ground contact or the plug does not match, we recommend you consult a qualified
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power
supply (AC) and voltage at the operating point must match with the details on the name
plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores,
and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between
them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge freezer with lace. This will affect the performance
of your fridge freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do
not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Use the adjustable front legs to make sure your appliance is level and stable.
You can adjust the legs by turning them in either direction. This must be
done before placing food in the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
EN -10-
• Before using your fridge freezer, wipe all parts with a solution of warm water and a
teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts
to the fridge freezer after cleaning.
• Install the two plastic distance guides (the parts on the black vanes
-condenser- at the rear) by turning it 90° (as shown in the figure) to
prevent the condenser from touching the wall.
• The distance between the appliance and back wall must be a maximum
of 75 mm.
Before Using your Fridge
• When using your fridge for the first time, or after transportation, keep it
in an upright position for at least 3 hours before plugging into the mains.
This allows efficient operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the first time. This
is normal and the smell will fade away when your fridge starts to cool.
PART - 2.
THE VARIOUS FUNCTION AND POSSIBILITIES
Information about New Generation Cooling Technology
Fridges with new-generation cooling technology have a different operating
system to static fridges. Other (static) fridges may experience a build up
of ice in the freezer compartment due to door openings and humidity in
the food. In such fridges, regular defrosting is required; the fridge must
be switched off, the frozen food moved to a suitable container and the
ice which has formed in the freezer compartment removed.
In fridges with new-generation cooling technology, a fan blows dry cold
air evenly throughout the fridge and freezer compartments. The cold air
cools your food evenly and uniformly, preventing humidity and ice build-up.
In the refrigerator compartment, air blown by the fan, located at the top
of the refrigerator compartment, is cooled while passing through the gap
behind the air duct. At the same time, the air is blown out through the
holes in the air duct, evenly spreading cool air throughout the refrigerator
compartment.
There is no air passage between the freezer and refrigerator compartments,
therefore preventing the mixing of odours.
As a result, your fridge, with new-generation cooling technology, provides
you with ease of use as well as a huge volume and aesthetic appearance.
EN -11-
Display and Control Panel
5
1
2
3
4
6
Using the Control Panel
7
1. It is cooler set value screen.
8
2. It is super cooling indicator.
9
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is economy mode symbol.
6. It is holiday mode symbol.
7. It is child-lock symbol.
8. It is alarm symbol.
10
9. Door open alarm symbol.
10. It enables the modes (economy, holiday…) to be activated if
desired.
Operating Your Fridge Freezer
Super Freeze Mode
Purpose
• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.
How Would It Be Used?
Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer
will sound beep beep. Mode will be set.
During This Mode:
• Temperature of cooler and super cool mode may be adjusted. In this case super
freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.
EN -12-
Notes:
• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is
shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate Super Freeze
mode 3 hours before you put fresh food into the freezer.
• At the end of this period, the fridge will sound an audible alarm notifying that it is ready.
Super freeze mode will automatically cancel after 24 hours or when the freezer sensor
temperature drops below -32 °C.
Super Cool Mode
Purpose
• To cool and store a large quantity of food in the fridge compartment.
• To quickly cool drinks.
How Would It Be Used?
Press cooler set button until super cool symbol will be seen on the screen. Buzzer
will sound beep beep. Mode will be set.
During This Mode:
• Temperature of freezer and super freeze mode may be adjusted. In this case
super cool mode continues.
• Economy and holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.
Economy Mode
Purpose
Energy savings. During periods of less frequent use (door opening) or absence from home,
such as a holiday, Eco program can provide optimum temperature whilst saving power.
How Would It Be Used?
• Push "MODE" button until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3
times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Economy symbol and E will light till mode finishes.
During This Mode:
• Freezer may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is
automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the
selected mode is activated.
• To cancel, you will just need to press on mode button.
EN -13-
Holiday Mode
How Would It Be Used?
• Push "MODE" button until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink
3 times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode finishes.
During This Mode:
• Freezer may be adjusted. When holiday mode will be cancelled, the selected
setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is
automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the selected
mode is activated.
• To cancel, you will just need to press on mode button.
Drink Cool Mode
Purpose
This mode is used to cool drinks within an adjustable time frame.
How Would It Be Used?
• Press freezer button for 3 seconds.
• Special animation will start on freezer set value screen and 05 will blink on
cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
• When you select the time the numbers will blink 3 times on screen and sound
beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 3 seconds.
EN -14-
Screen Saver Mode
Purpose
This mode saves energy by switching off all control panel lighting when the panel
is left inactive.
How To Use?
• This mode will be activated when you press on "MODE" button for 3 seconds.
• If no button is pressed within 30 seconds when he mode is active, lights of the
control panel will go off.
• If you press any button when lights of control panel are off, the current settings
will appear on the screen, and then you can maket he adjustment as you want.
If you neither cancel screen saver mode nor press on any button in 30 seconds,
the control panel will go off again.
• To cancel screen saver mode press on "MODE" button for 3 seconds again.
• When screen saver mode is active you can also activate child lock.
• If no button is pressed within 30 seconds after child lock is activated, the lights of the
control panel will turn off. You can see latest status of settings or modes after you pres
any button. While control panel ‘s light is on, you can cancel child lock as described in
the instruction of this mode.
The Child Lock Function
Purpose
Child lock can be activated to prevent any accidental or unintentional changes being
made to the appliance settings.
Activating Child Lock
Press on freezer and cooler buttons simultaneously for 5 seconds.
Deactivating Child Lock
Press on freezer and cooler buttons simultaneously for 5 seconds.
Child lock will also be deactivated if electricity is interrupted or the fridge is
unplugged.
Door Open Alarm Function
If cooler door is opened more than 2 minutes, appliance sounds ‘beep beep’ and door
open icon will be light.
EN -15-
Temperature Settings
Freezer Temperature Settings
• The initial temperature value for the freezer setting indicator is -18°C.
• Press the set freezer button once.
• When you first push this button, the last set value will blink on the screen.
• Whenever you press this button, temperature will decrease respectively.
• When you push the set freezer button until the super freeze symbol appears,
and if you do not push any other button within 1 second, super freeze will flash.
• If you continue to press it, it will restart from -16 °C.
• The temperature value selected before holiday mode, super freeze mode,
super cool mode or economy mode is activated and will remain the same when
the mode is over or cancelled. The appliance continues to operate with this
temperature value.
Cooler Temperature Settings
• Initial temperature value for the cooler setting indicator is +4 °C.
• Press the cooler button once.
• When you first push this button, the last value will appear on the cooler setting
indicator.
• Whenever you press this button, temperature will decrease respectively.
• When you push the cooler set button until the super cool symbol appears, and
if you do not push any button within 1 second, super cool will flash.
• If you continue to press the button, it will restart from +8 °C.
• The temperature value selected before holiday mode, super freeze mode,
super cool mode or economy mode is activated and will remain the same when
the mode is over or cancelled. The appliance continues to operate with this
temperature value.
EN -16-
Temperature Adjustment Warnings
• It is not recommended that you operate your fridge in environments colder than 10°C
in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings,
the quantity of food kept inside the fridge and the ambient temperature in the location
of your fridge.
• In order to allow your fridge to reach the operating temperature after being connected to
mains, do not open the doors frequently or place large quantities of food in the fridge.
Please note that, depending on the ambient temperature, it may take 24 hours for your
fridge to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge
when connecting or disconnecting to mains, or when an energy breakdown occurs. Your
fridge will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the
ambient temperature (T/SN = 10°C - 43°C) intervals
stated in the standards, according to the climate
class displayed on the information label. We do
not recommend operating your appliance out of
the stated temperature limits in terms of cooling
effectiveness.
Important installation instructions
This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110
degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen
food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So
you may then install your appliance in an unheated room without having to worry about frozen
food in the freezer being spoilt. When the ambient temperature returns to normal, you may
continue using the appliance as usual.
Climate class Ambient (oC)
T 16 to 43 (oC)
ST 16 to 38 (oC)
N 16 to 32 (oC)
SN 10 to 32 (oC)
EN -17-
Accessories
Ice Tray
• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely frozen, you can twist the tray as shown below to remove
the ice cubes.
The Freezer Box
The freezer box allows food to be accessed more
easily.
Removing the freezer box:
• Pull the box out as far as possible
• Pull the front of the box up and out
Carry out the opposite of this operation when
refitting the sliding compartment.
Always keep hold of the handle of the box while
removing it.
Freezer boxes
Extra Chill Compartment
Ideal to preserve the taste and texture of fresh
cuts and cheese. The pull out drawer assures an
environment with a lower temperature compared
to the rest of the fridge, thanks to the active
circulation of cold air.
To remove the Chiller Shelf:
• Pull the chiller shelf towards you by sliding
it on the rails.
• Pull the chiller shelf up from the rail and
remove it from the fridge.
(In some models)
Chiller shelf
EN -18-
The Fresh Dial
(In some models)
If the crisper is full, the fresh dial located in front of the
crisper should be opened. This allows the air in the crisper
and the humidity rate to be controlled, to increase the life
of food within.
The dial, located behind the shelf, must be opened if any
condensation is seen on the glass shelf.
CustomFlex
CustomFlex offers you the freedom to customize the space in your
refrigerator. Inside of the door there are a storage container and
mobile containers, so you can tailor the space to your needs. The
containers are even removable, so you can remove them from the
refrigerator for easy access.
Fresh dial
• Lid of CustomFlex storage container can
be pulled towards arrow for opening.
• For closing, lid can be pulled towards
reverse direction.
Visual and text descriptions in the accessories section may vary according
to the model of your appliance.
EN -19-
PART - 3.
ARRANGING FOOD IN THE APPLIANCE
Refrigerator compartment
• To reduce humidity and avoid the consequent formation of frost, always store liquids in
sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of
the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room
temperature and should be arranged to ensure adequate air circulation in the refrigerator
compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will
develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass
shelf just above the vegetable bin where the air is cooler, as this provides the best
storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables
(green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana,
peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an
uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables.
Water leaking from meat may contaminate other products in the refrigerator. You should
package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.
NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.
The table below is a quick guide to show you the most efficient way to store the major
food groups in your refrigerator compartment.
Food Maximum storage time How and where to store
Vegetables and fruits 1 week Vegetable bin
Meat and fish 2 - 3 Days
Fresh cheese 3 - 4 Days On the designated door shelf
Butter and margarine 1 week On the designated door shelf
Bottled products e.g.
milk and yoghurt
Eggs 1 month On the designated egg shelf
Cooked food 2 Days All shelves
Until the expiry date
recommended by the
producer
Wrap in plastic foil, bags, or in a meat
container and store on the glass shelf
On the designated door shelf
EN -20-
Freezer compartment
• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• To use the maximum capacity of the freezer compartment, use the glass shelves for the
upper and middle section, and use the lower basket for the bottom section.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to
be frozen quickly) more quickly because of the freezing shelf’s greater freezing power.
Fast freezing shelf is the bottom drawer of the freezer compartment.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should
be air tight and shouldn’t leak. Special freezer bags, aluminum foil polythene bags and
plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen
food. If no information is provided food, should not be stored for more than 3 months
from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate
conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer
as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal
swelling. It is probable that it has been stored at an unsuitable temperature and that
the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting,
how often the door is opened, the type of food, and the length of time required to transport
the product from the shop to your home. Always follow the instructions printed on the
packaging and never exceed the maximum storage life indicated.
• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated
on the appliance label.
NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will
not open easily. This is normal. Once equilibrium has been reached, the door will open easily.
Important note:
• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar,
assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.)
changes and they assume a strong taste when they are stored for a long period of time.
Therefore, add small amounts of spices to food to be frozen, or the desired spice should
be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine,
calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in
plastic folios or bags.
EN -21-
The table below is a quick guide to show you the most efficient way to store the major
food groups in your freezer compartment.
Meat and fish Preparation
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/
salami
Chicken and turkey Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild
boar
Freshwater fish
(Salmon, Carp,
Crane, Catfish)
Lean fish (Bass,
Turbot, Flounder)
Fatty fishes (Tuna,
Mackerel, Bluefish,
Anchovy)
Shellfish Clean and in a bag 4 - 6
Caviar
Snails
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after
defrosting, it must not be re-frozen.
Should be kept packaged even if it has a
membrane
In 2.5 kg portions or as fillets 6 - 8
After cleaning the bowels and scales of the
fish, wash and dry it. If necessary, remove the
tail and head.
In its packaging, or in an aluminium or plastic
container
In salty water, or in an aluminium or plastic
container
Maximum storage time
(months)
2
4
2 - 4
2 - 3
3
Vegetables and Fruits Preparation
String beans and
beans
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6 - 8
Carrot Clean, cut into slices and boil in water 12
Pepper
Wash, cut into small pieces and boil in water 10 - 13
Cut the stem, cut into two pieces, remove the
core and boil in water
Maximum storage time
(months)
8 - 10
EN -22-
Vegetables and Fruits Preparation
Spinach Wash and boil in water 6 - 9
Cauliflower
Eggplant Cut into pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and
Blackberry
Cooked fruits Add 10 % of sugar to the container 12
Plum, cherry,
sourberry
Remove the leaves, cut the heart into pieces
and leave it in water with a little lemon juice
for a while
Wash and hull 8 - 12
Wash and hull the stems 8 - 12
Maximum storage time
(months)
10 - 12
Maximum storage
time (months)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)
Dairy products Preparation
Packet
(Homogenized) Milk
Cheese - excluding
white cheese
Butter, margarine In its packaging 6
In its own packet 2 - 3
In slices 6 - 8
Thawing time at
room temperature
(hours)
Maximum storage
time (months)
Thawing time in oven
(minutes)
Storage conditions
Pure Milk – in its own
packet
Original packaging may
be used for short-term
storage. Keep wrapped in
foil for longer periods.
EN -23-
PART - 4.
Disconnect the unit from the power supply before cleaning.
Do not wash your appliance by pouring water on it.
Do not use abrasive products, detergents or soaps for cleaning the
appliance. After washing, rinse with clean water and dry carefully. When
you have finished cleaning, reconnect the plug to the mains supply with dry
hands.
• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate
of soda and lukewarm water.
CLEANING AND MAINTENANCE
• Clean the accessories separately by hand with soap and water.
Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year.
This will help you to save on energy costs and increase
productivity.
The power supply must be disconnected during cleaning.
EN -24-
Defrosting
Your refrigerator performs automatic defrosting. The water formed as a
result of defrosting passes through the water collection spout, flows into
the vaporisation container behind your refrigerator and evaporates there.
• Make sure you have disconnected the plug of your refrigerator
before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing
the screws as indicated. Clean it with soapy water at specific time
intervals. This will prevent odours from forming.
Replacing LED Lighting
To replace any of the LEDs, please contact the nearest Authorised Service Centre.
Note: The numbers and location of the LED strips may change according to the model.
Evaporating
tray
PART - 5.
Transportation and Changing Positioning
• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the
instructions for transportation on the packaging.
• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them
into the appliance against shocks using bands when re-positioning or transporting.
Always carry your appliance in the upright
position.
TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Repositioning the Door
• It is not possible to change the opening direction of your appliance door if door handles
are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest
Authorised Service Centre to change the opening direction.
EN -25-
PART - 6.
BEFORE CALLING YOUR AFTER SALES SERVICE
Errors
Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels
or if a problem occurs with the appliance. Warning codes are displayed in the freezer and
cooler indicators.
ERROR TYPE MEANING WHY WHAT TO DO
E01
E02
E03
E06
E07
E08
E09
Sensor warning
Low Voltage
Warning
Freezer
compartment is not
cold enough
Power supply to the
device has dropped to
below 170 V.
Likely to occur after
long term power failure.
Call Service for assistance as
soon as possible.
- This is not a device failure, this
error helps to prevent damages
to the compressor.
- The voltage needs to be
increased back to required
levels
If this warning continues an
authorised technician needs
to be contacted.
1. Set the freezer temperature
to a colder value or set Super
Freeze. This should remove
the error code once the
required temperature has been
reached. Keep doors closed
to improve time taken to reach
the correct temperature.
2. Remove any products which
have thawed/defrosted during
this error. They can be used
within a short period of time.
3. Do not add any fresh produce
to the freezer compartment
until the correct temperature
has been reached and the
error is no longer.
If this warning continues an
authorised technician needs
to be contacted.
EN -26-
ERROR TYPE MEANING WHY WHAT TO DO
1. Set the fridge temperature to
a colder value or set Super
Cool. This should remove the
error code once the required
temperature has been reached.
Keep doors closed to improve
time taken to reach the correct
temperature.
2. Please empty the location
at the front area of air duct
channel holes and avoid
putting food close to the
sensor.
E10
Fridge
compartment is not
cold enough
Likely to occur after:
- Long term power failure.
- Hot food has been left in
the fridge.
If this warning continues an
authorised technician needs
to be contacted.
1. Check is Super Cool mode is
activated
2. Reduce the fridge
compartment temperature
3. Check to see if vents are clear
and not clogged
E11
Fridge
compartment is too
cold
Various
If this warning continues an
authorised technician needs
to be contacted.
If you are experiencing a problem with your refrigerator, please check the following before
contacting the after-sales service.
Your refrigerator does not operate
Check if:
• Your fridge is plugged in and switched on
• The fuse has blown
• Is the temperature adjustment right?
• The socket is faulty. To check this, plug another working appliance into the same socket.
Your refrigerator is performing poorly
Check if:
• Is the temperature adjustment right?
• Is the door of your fridge opened frequently and left open for a long while?
• The appliance is overloaded
• The doors are closed properly
• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge
so as to prevent the air circulation?
• Is your fridge filled excessively?
• There is an adequate distance between the appliance and surrounding walls
• Is the ambient temperature within the range of values specified in the operating manual?
EN -27-
Your refrigerator is operating noisily
The following noises can be heard during normal operation of the appliance.
Cracking (ice cracking) noise occurs:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).
Clicking noise occurs: When the thermostat switches the compressor on/off.
Motor noise: Indicates the compressor is operating normally. The compressor may cause
more noise for a short time when it is first activated.
Bubbling noise and splashing occurs: Due to the flow of the refrigerant in the tubes
of the system.
Water flowing noise occurs: Due to water flowing to the evaporation container. This
noise is normal during defrosting.
Air blowing noise occurs: During normal operation of the system due to the circulation
of air.
There is a build-up of humidity inside the fridge
Check if:
• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge doors are opened frequently. Humidity of the room will enter the fridge each
time the doors are opened. Humidity increases faster if the doors are opened frequently,
especially if the humidity of the room is high.
• There is a build-up of water droplets on the rear wall. This is normal after automatic
defrosting (in Static Models).
The doors are not opening or closing properly
Check if:
• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed properly
• The door gaskets are broken or torn
• Your fridge is level.
The edges of the fridge in contact with the door joint are warm
Especially during summer (warm weather), the surfaces in contact with the door joint may
become warmer during operation of the compressor. This is normal.
Important Notes:
• In the case of a power failure, or if the appliance is unplugged and plugged in again, the
gas in the cooling system of your refrigerator will destabilise, causing the compressor
protective thermal element to open. Your refrigerator will start to operate normally after
5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays),
disconnect the plug. Defrost and clean the refrigerator, leaving the door open to prevent
the formation of mildew and odour.
• If the problem persists after you have followed all the instructions above, please consult
the nearest Authorised Service Centre.
EN -28-
• This appliance is designed for domestic use and for the stated purposes only. It is not
suitable for commercial or common use. If the consumer uses the appliance in a way
that does not comply with these instructions, we emphasise that the manufacturer and
the dealer will not be responsible for any repair or failure within the guarantee period.
Hints for Energy Saving
1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near
a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment. The low temperature of the frozen
food will help cool the refrigerator compartment while the food is thawing. This will save
energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered,
the humidity inside the appliance will increase, therefore the appliance uses more energy.
Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm
air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller)
closed.
7. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable,
replace the gasket. If not detachable, you have to replace the door.
8. Eco mode / default setting function preserves fresh and frozen foods while saving energy.
9. Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the
configuration with the drawers in the bottom part of the appliance, and shelves evenly
distributed, position of door bins does not affect energy consumption.
10. Frozen Compartment (Freezer): The internal configuration of the appliance is the one that
ensures the most efficient use of energy.
11. Do not remove the cold accumulators from the freezer basket (if present.).
EN -29-
PART - 7.
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
A
15
1
2
3
4
5
6
7
14
13
12
B
8
9
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.
A) Refrigerator compartment
B) Freezer compartment
1) Wine rack *
2) Refrigerator shelves
3) Chiller *
4) Crisper cover
5) Crisper
6) Freezer upper basket
7) Freezer midle basket
8) Freezer bottom basket
9) Levelling feet
10) Ice box tray
11) Freezer glass shelves *
12) Bottle shelf
13) CustomFlex
14) CustomFlex with lid
15) Egg holder
EN -30-
11
10
* In some models
Loading...
