AEG LL1620 User Manual
LAVAMAT
LAVALOGIC 1620
Washing Machine
User information
Dear Customer,
Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Switching on the appliance for the first time – setting the language 7
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control panel with display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Main control features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programme overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Carrying out a wash programme prior to first use. . . . . . . . . . . . . . . . . . . . . 14
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Running a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching on the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TIME SAVING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DELAY START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
SENSITIVE/STAIN/PRE WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Opening the door/Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CURRENT LOAD/DETERGENT display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

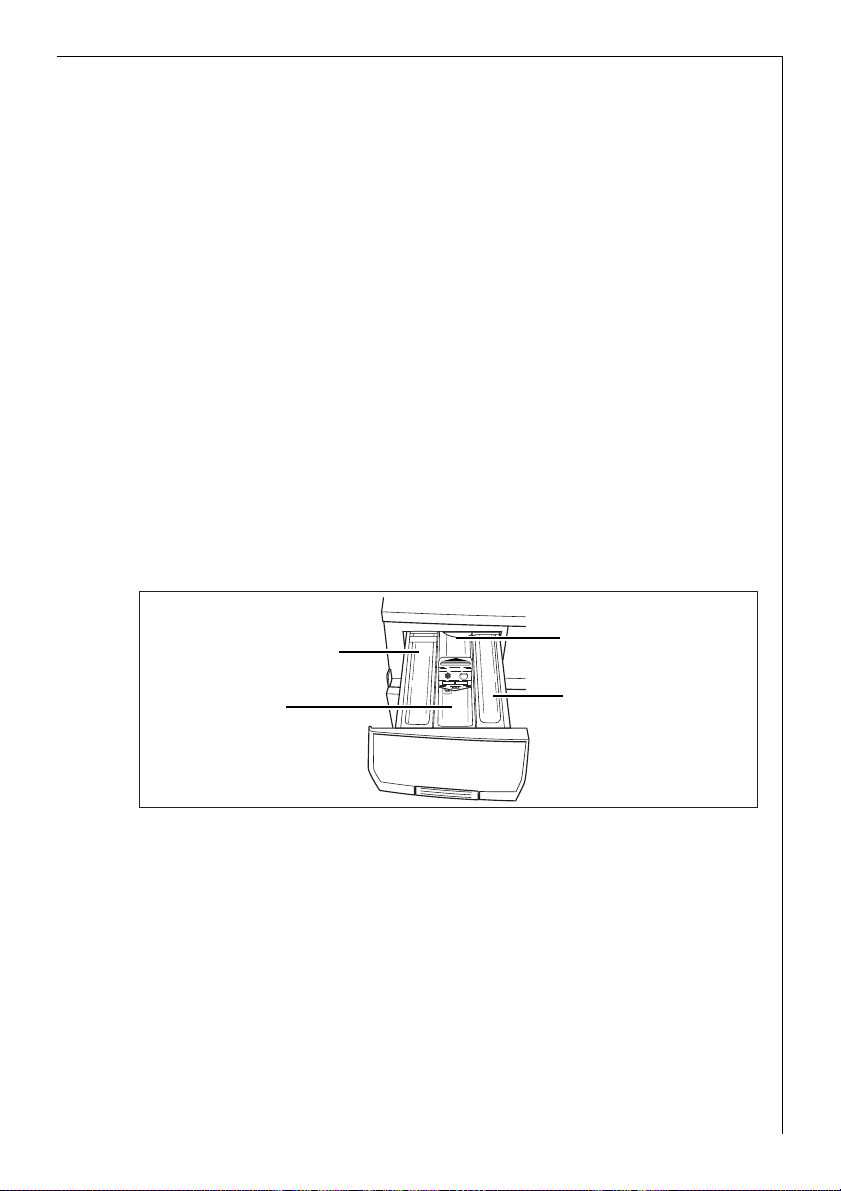

Adding detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Starting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Interrupting a programme/Adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Washing cycle complete/Removing the washing . . . . . . . . . . . . . . . . . . . . . . 21
Setting extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Saving a programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Clearing a stored programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
RINSE+, GENTLE SPIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
Programme protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

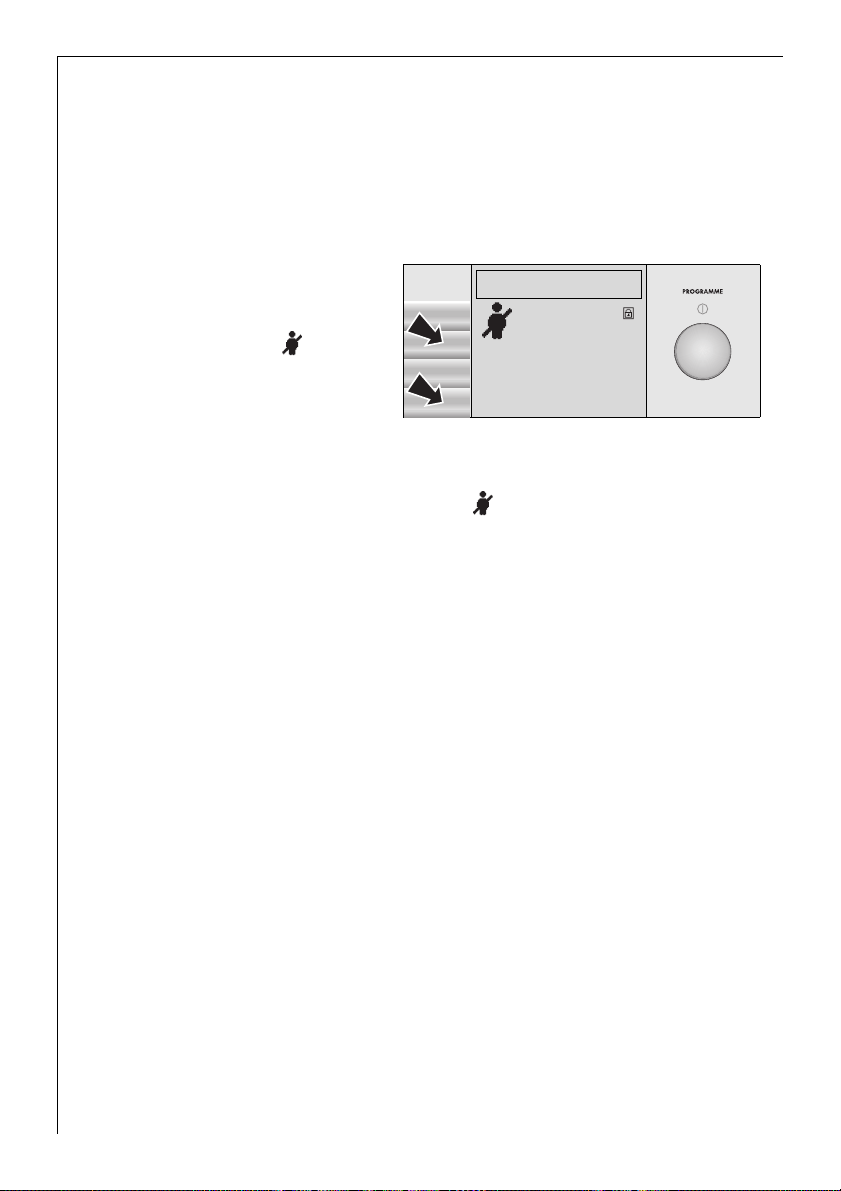

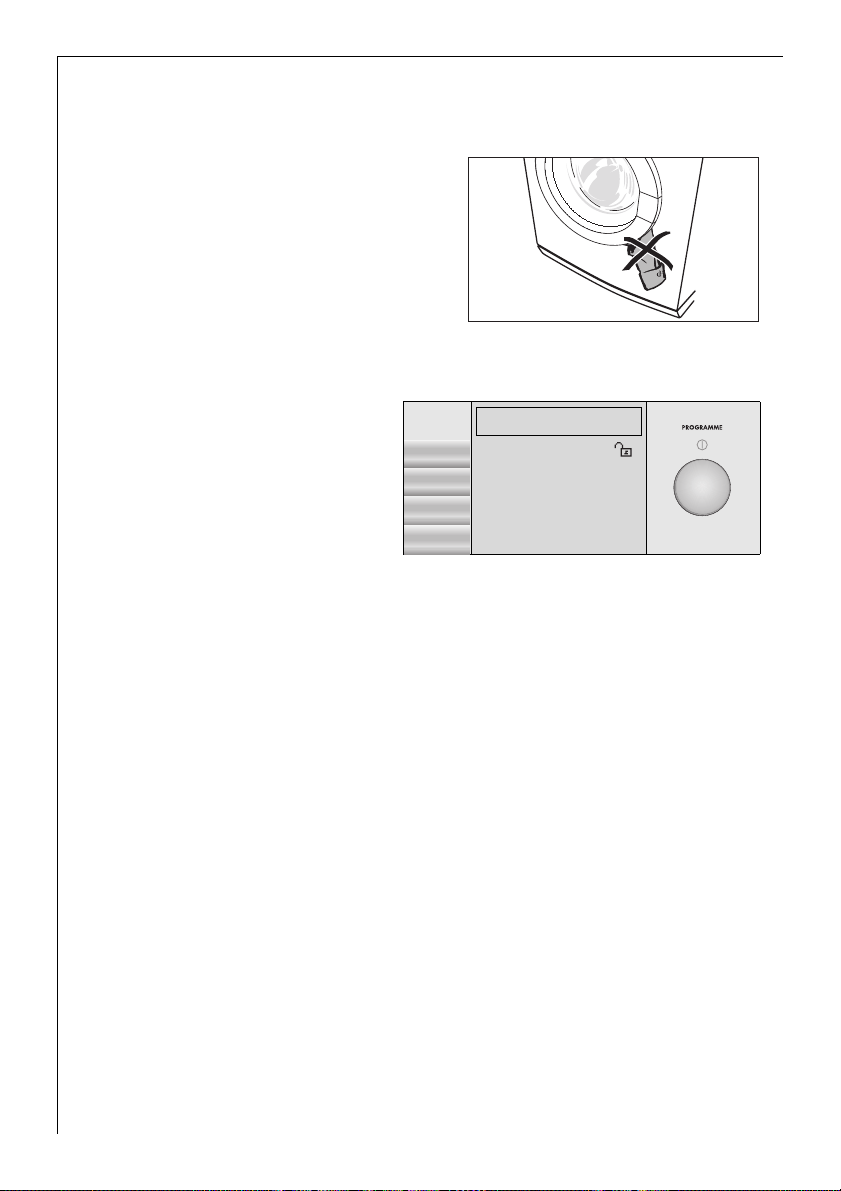

Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Remedying small malfunctions yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
If the wash result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

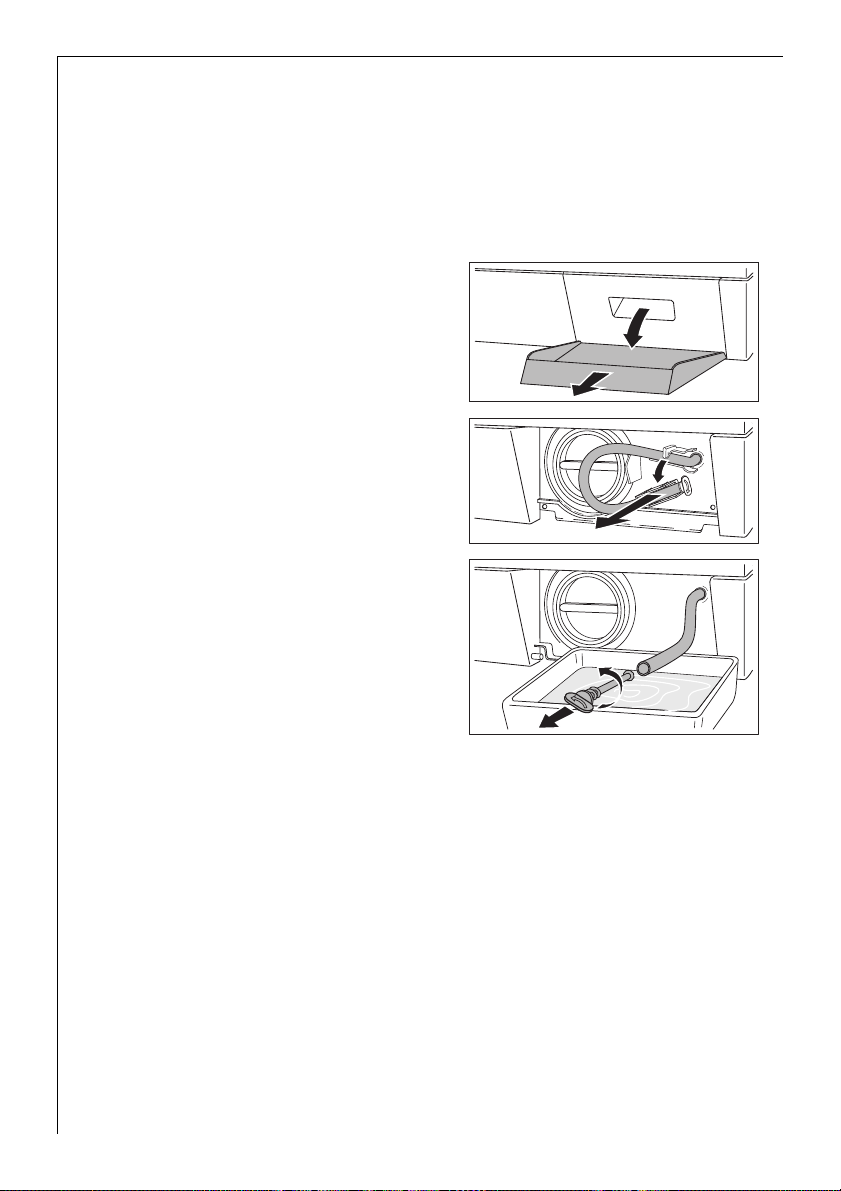

Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

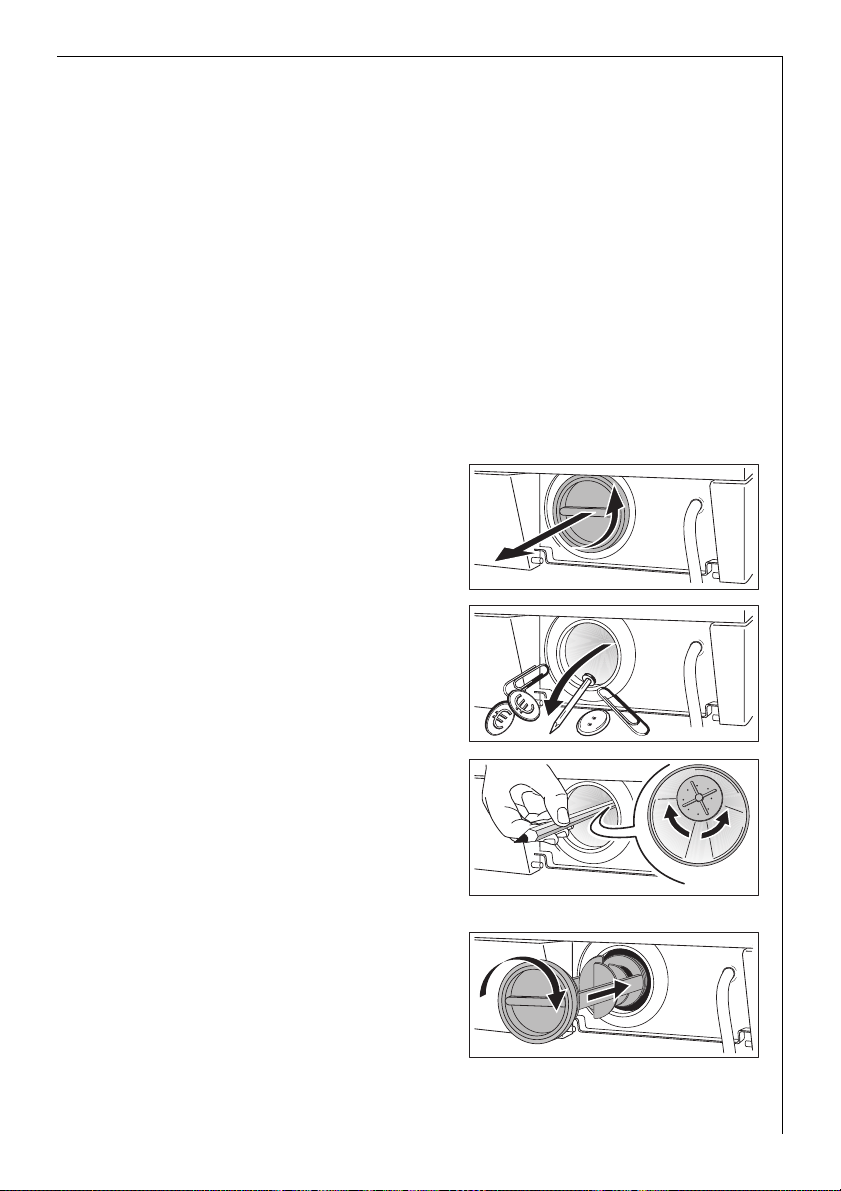

Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Installation and connection instructions. . . . . . . . . . . . . . . . . 36
Safety information concerning installation . . . . . . . . . . . . . . . . . . . . . . . . 36
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Transporting the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

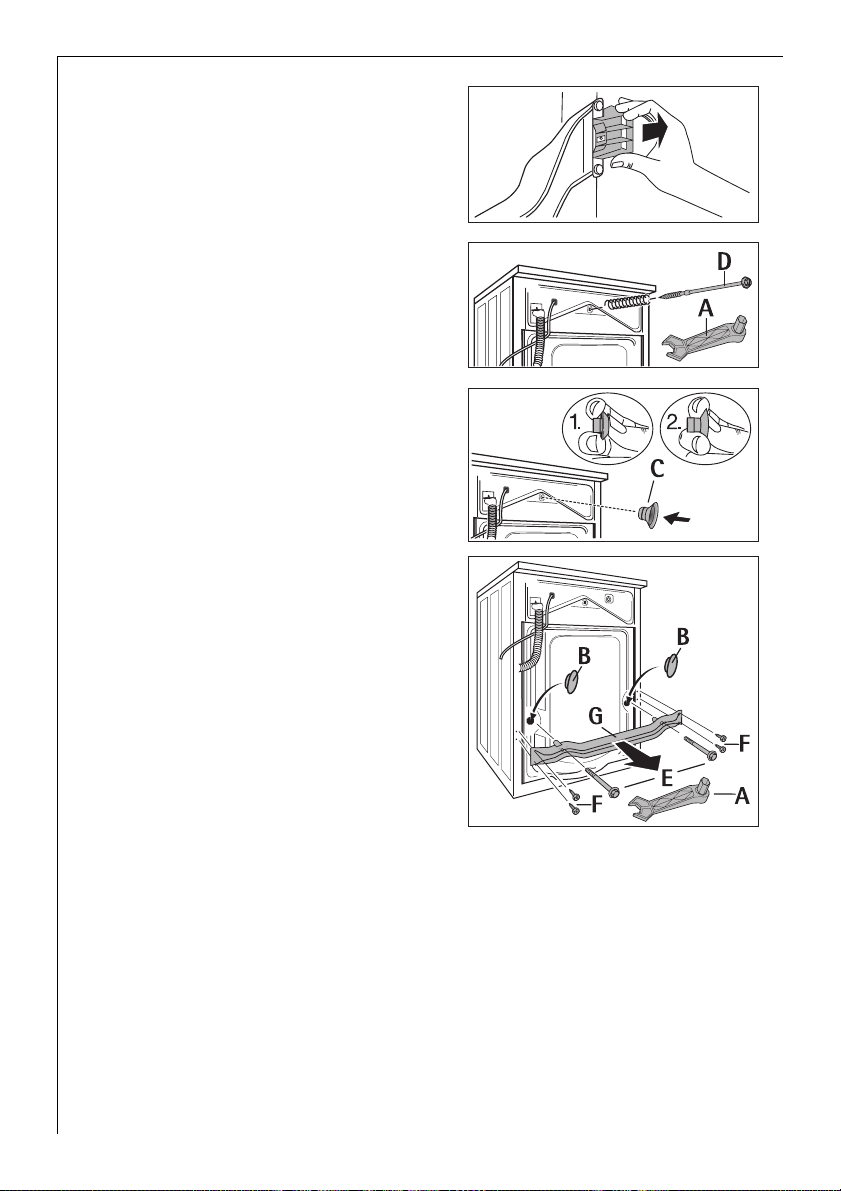

Removing the transit packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

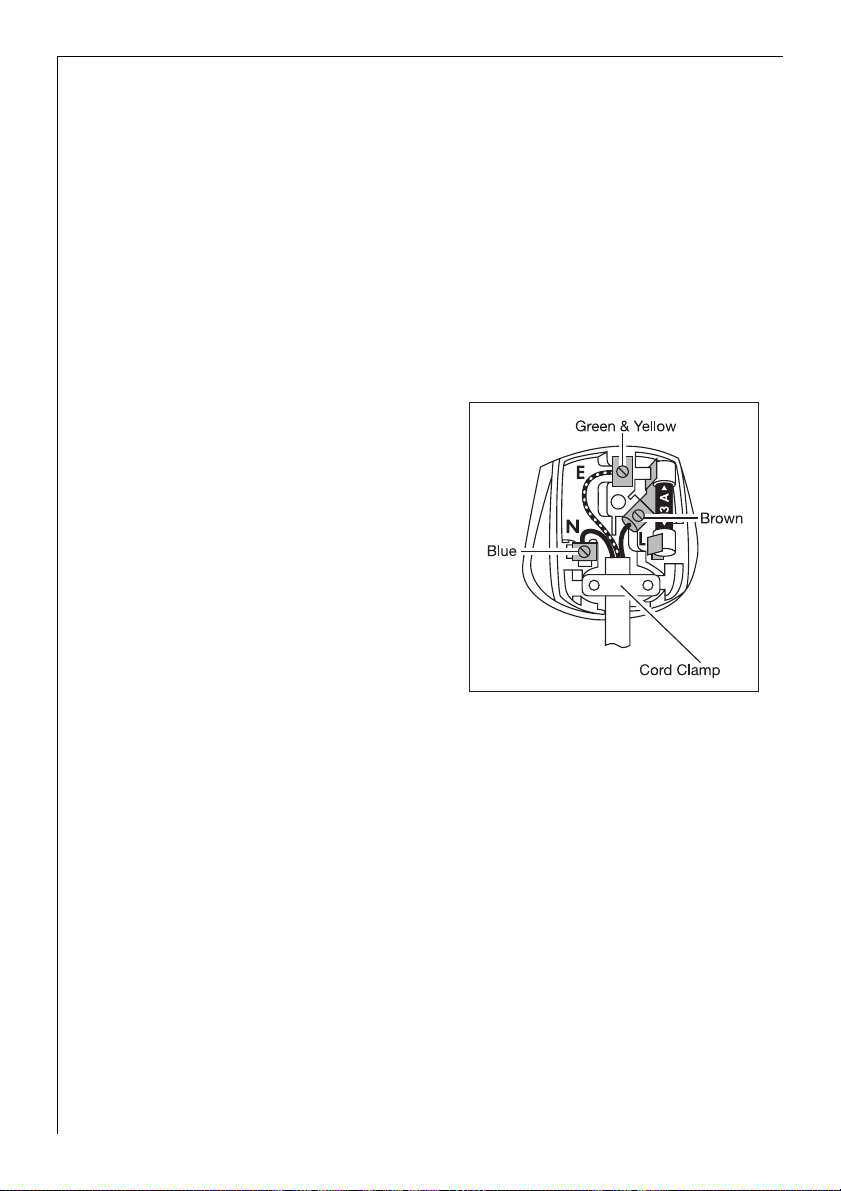

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Connecting the appliance to the water supply . . . . . . . . . . . . . . . . . . . . . 41

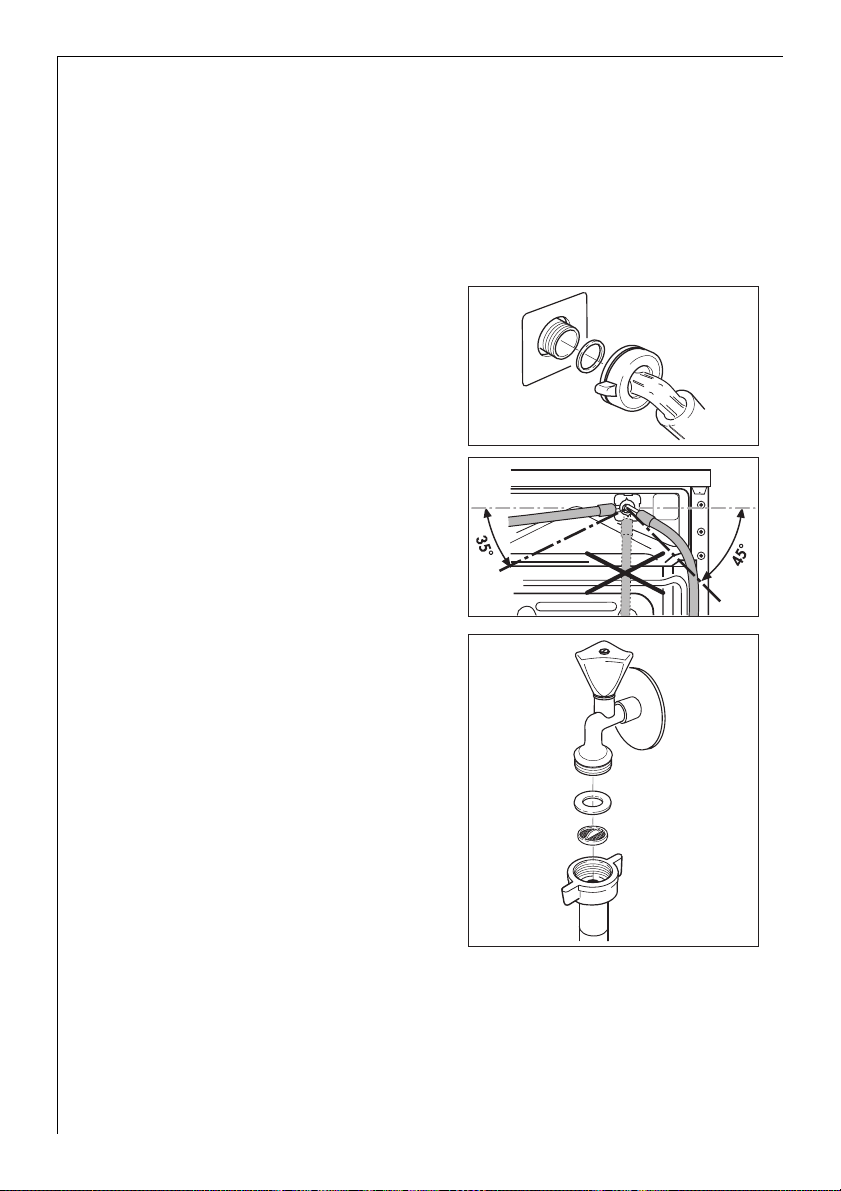

Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

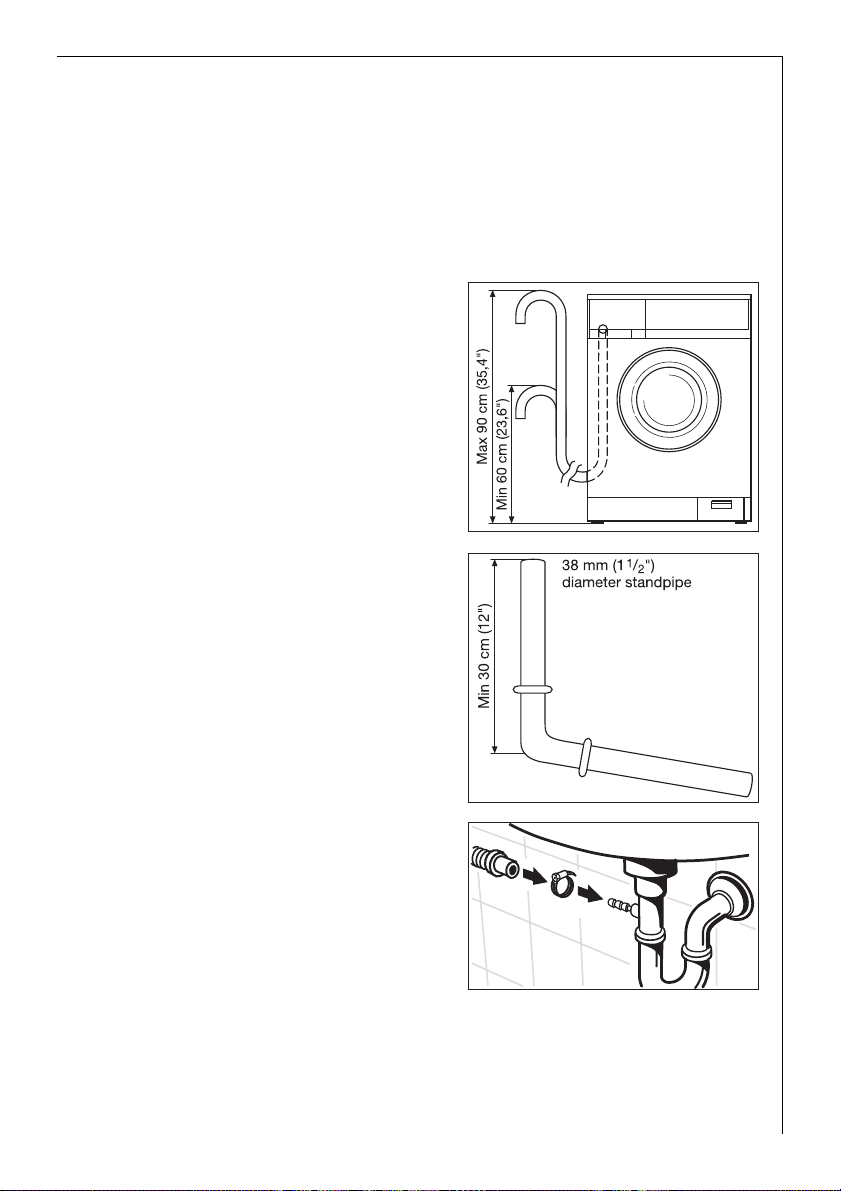

Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Customer Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
4
Operating Instructions
1 Safety
Prior to using the appliance for the first time
• Follow the “Installation and connection instructions”.
• If the appliance is delivered in the winter months when there are mi-
nus temperatures: store the washing machine at room temperature
for 24 hours before using for the first time.
Correct use
• The washing machine is only designed for the washing of normal domestic laundry at home.
• Additions or modifications to the washing machine are not permitted.
• Only use detergents/conditioners that are suitable for use in domestic
washing machines.
• The washing must not contain any flammable solvent. The risk of explosion exists.
• Do not use the washing machine for dry cleaning.
• Dyes/colour removers may only be used in the washing machine, if
the manufacturer of these products expressly permits this. We cannot
accept liability for any damage arising.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsupervised.
• Make sure that children and pets don’t climb into the drum of the
washing machine. The risk of death exists.
5
General safety
• Repairs to the washing machine may only be carried out by qualified/
authorised service engineers.
• Never use the appliance when the electrical cable is damaged or the
control panel, worktop or plinth area are damaged to such an extent
that the inside of the appliance is openly accessible.
• Switch off the washing machine prior to cleaning it and carrying out
maintenance. In addition, remove the power plug from the power
point or – if the appliance has been hard-wired – switch off the cutout in the fuse box or completely remove the fuse.
• If operation is stopped, disconnect the appliance from the mains supply and turn off the tap.
• Never remove the power plug from the power point by pulling on the
cable. Always pull the plug.
• Multiway-plugs, connectors and extension cables must not be used.
Resulting overheating may constitute a fire hazard.
• Never wash the washing machine down with a water jet. Danger of
electric shock.
• When using wash programmes with high temperatures the glass in
the door will become hot. Do not touch it!
• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.
• Small animals can nibble on electrical cables and water hoses. This
can constitute a risk of electrocution and water damage. Keep small
animals away from the washing machine.
6
Switching on the appliance for the first time
– setting the language
When switching on the appliance for the first time you should be sure
to set the language in which you want the indicators in the display to
appear.
1. Press the control knob.
The appliance is now
switched on. The languages
that can be chosen will appear in the display. In the
factory the language is preset to German.
Important: If the display is not showing any languages, the appliance
has been switched on before. If this happens, please see the section
“Setting extra options: Language”, if you want to change the language
setting.
2. Use the control knob to
highlight the desired language.
3. Press the SELECT key.
From now on all indicators in
the display will appear in this
language.
4. Press the control knob to
switch off the appliance.
EXTRAS
SPRACHE
ä
ANWÄHLEN
ZURÜCK
EXTRAS
LANGUAGE
SELECT
BACK
EXTRAS
LANGUAGE
SELECT
BACK
§
ENGLISH§
DEUTSCH)
ITALIANO§
FRANÇAIS§
ä
§§
ENGLISH!)
DEUTSCH§§
ITALIANO§§
FRANÇAIS§§
ä
§§
ENGLISH!)
DEUTSCH§§
ITALIANO§§
FRANÇAIS§§
7
Description of the appliance
Control panel with display
Drawer for
detergent and
conditioner
Three screw feet
(height adjustable);
rear left:
Automatic foot
Control panel with display
Buttons
LINEN/EASY-C. 60°C
1600 RPM 10:17-12:16
START
60°
1600
OPTIONS WOOLLENS
î
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES

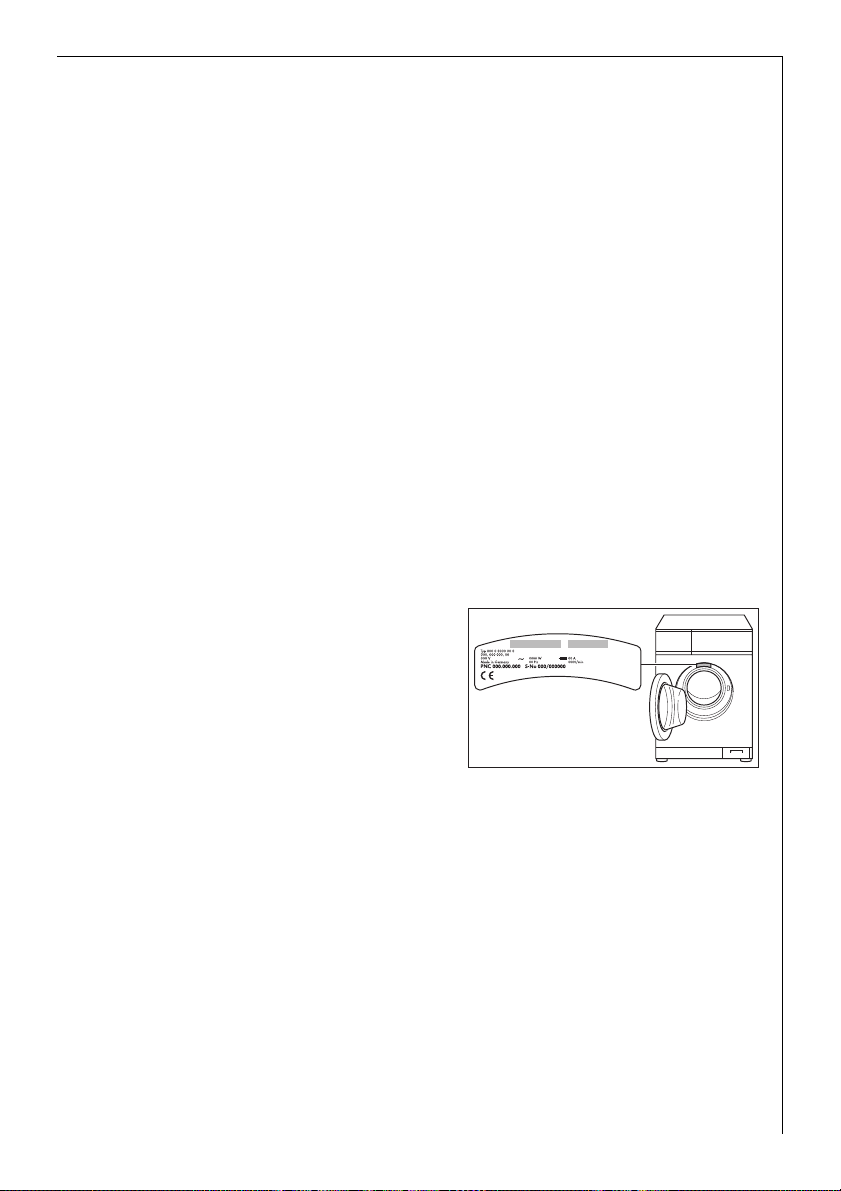

Rating plate
(behind door)
Door
Drain pump
cover
Control knob
Display
Indicators in the display
Information panel
shows programme,
temperature and
spin speed
Symbol row
shows options
selected and extras
8
1600 RPM 10:17-12:16
START
60°
1600
OPTIONS
LINEN/EASY-C. 60°C
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES
WOOLLENS
î
Current time –
end time of selected
programme
Navigation
display
Selection
Programme,
options,
extras
Main control features
Control knob
Switching the appliance on and off
Press the control knob to
switch the appliance on and
off.
Highlighting
You can highlight the entries
on the right of the display by
turning the control knob.
Cancelling settings
If you would like to cancel settings that have been made by mistake,
switch the appliance off and on again using the control knob. You are
now able to re-set the programme.
WOOLLENS 40°C
1200 RPM 10:17-10:54
START
40°
1200
OPTIONS WOOLLENS )
î
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES
Keys
Using the keys you can:
– activate an entry on the
left-hand side of the display, e.g. START
– change the temperature
and the spin speed
– select OPTIONS and EX-
TRAS.
LINEN/EASY-C. 60°C
1400 RPM 10:17-12:16
START
60°
1400
OPTIONS WOOLLENS
î
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES
3 You can set one or more options for each programme.
The basic rule: First set the programme, then set the option.
3 The programmes and functions are divided into different levels and
pages. In the navigation display you can see the level and the page you
are currently on (e.g. ì: level 3, page 1 of 2).
9
Programme overview
Programme
max. load
(dry washing)
1)
LINEN/EASY-CARES
60, 50, 40, 30, 20
7kg
or
3,5kg
TIME SAVING
QUICK
2)
•
•2)• • •
Options Spin speed
DELAY START
SENSITIVE
STAIN
PRE WASH
1600
1400
VERY QUICK
3)
• • • • • •
1200
1000/800/600/400
RINSE HOLD
ENERGY SAVING
4)
COTTONS 95 7kg1)•
DELICATES
40, 30, 20
WOOL (Handwash)
40, 30, COLD
1)
7kg
2)
• • • • • • • • •
•2)• • • • • • • • •
3,5kg • • •3)• • • •
2kg • • • •
SILK (Handwash) 30 1kg • • • •
LINGERIE 40 1kg • • • •
40 -60 MIX 7kg
EASY IRON
60, 50, 40, 30, 20
1)
• • • • • • • • •
1kg • • • •3)• • • •
REFRESH 30 3,5kg • • • •
FASHION 40 3,5kg • • • • • • •
1) In the case of excessively large volume washing of a fleecy nature, e.g. terry towelling, flannelette, it may be
that the drum is already full before the maximum load is reached.
2) Recommended load for short progammes is 3,5kg; full loading is possible however with somewhat reduced
cleaning results.
3) STAIN can only be selected with wash temperatures of 40°C and above, as stain treatment products are only
effective at higher temperatures.
4) Programme settings for tests in accordance with or support of EN 60 456 and IEC 60 456 are described in
the section “Consumption values”.
10
Use/Features
Care-
symbols
1)
General programme for coloured and easy-care items made of cotton/linen as
well as for easy-care mixed fibres and synthetics. The wash programme is adjusted according to the different fabric types and load sizes. If loading only with
easy-care washing, do not load more than 3,5 kg.
Energy-saving and water-saving programme which washes at 60 °C for lightly to
normally soiled whites/coloureds made of cotton/linen.
Programme for normally to heavily soiled whites made of cotton/linen.
Gentle programme for delicate fabrics such as bonded fabrics, microfibres, synthetics, net curtains (max. load for net curtains 20 to 25 m
also suitable for fabrics with climate membrane, e.g. outdoor clothing.
Particularly delicate programme for machine washable and hand washable wool
or wool mixtures.
Specially gentle programme for machine and hand-washable silk. Wash very delicate items individually.
Gentle programme for fine, sensitive fabrics.
IMPORTANT: Place lingerie containing wires in a washing net or bag.
Programme for coloureds, which are labelled for different wash temperatures.
Items, which according to the care symbols are normally to be washed separately
at 40°C or at 60°C, can be washed together in this programme. Achieves the
washing results of a normal 60° programme.
Special programme for easy-care fabrics, which afterwards are to be ironed only
lightly or not at all.
Special programme, approx. 20 minutes long, for quickly washing through slightly dirty or new clothes.
Gentle special programme for fabrics such as viscose, modal, cupro, lyocell, with
a more gentle machine action than in the Delicates programme and a more intensive cleaning action than the Handwash programme.
1) The figures in the care symbols indicate the maximum temperatures.
2
). With RINSE HOLD
I K N
J
M
M O
O
I K
Q L H
Q L H
K L
J M
K N
J M O
I K N
K L
11
Options Spin speed
TIME SAVING
Programme
max. load
(dry washing)
QUICK
SHORT SPIN 3,5kg • • •
SPIN 7kg • • • • •
STARCH 7kg • • • • • •
DRAIN •
VERY QUICK
DELAY START
SENSITIVE
STAIN
PRE WASH
1600
1400
1200
1000/800/600/400
RINSE HOLD
12
Use/Features
Care-
symbols
1)
Drain and short spin after a rinse hold, or separate short spin of handwashed delicates, woollens, silk.
Drain and spin, e.g. after a rinse hold, or separate spin for hand-washed cottons/
linens and easy-cares.
Separate starching, conditioning, stiffening, treating of damp washing.
Draining of the water after a rinse hold.
1) The figures in the care symbols indicate the maximum temperatures.
I K N
Q L
H
J M O
J M O
I K N
13
Before the first wash
Setting the time
So that the current time and the end of the programme are correctly
displayed, please check the display and set the current time, if necessary. (See “Setting extra options: Timer”.)
Carrying out a wash programme prior to first use
Before doing your first wash, run a washing cycle without any washing
in the machine (programme LINEN/EASY-C. 60°, option TIME SAVING/
VERY QUICK, use approx. 1/4 measuring cup of washing powder).
This will remove any residues from the drum and water container which
have been left as a result of the production process.
Preparing and sorting washing
Preparing washing
• Empty the pockets. Remove foreign bodies (e.g. coins, paper clips,
nails, etc.).
• Do up zips, button up covers to prevent damage to washing.
• Remove the runners from net curtains or cover them with a net or a
bag.
• Wash delicate and small items in a net/pillowcase, e. g. net curtains,
tights, small socks, handkerchiefs, bras.
Important: Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appliance.
14
Sorting washing
• By colour: Wash white and coloured washing separately. Washing can
run.
• By temperature, type of washing and care symbol.
Important: Do not wash fabrics with the G care symbol (= do not
wash!) in the washing machine.
Running a wash cycle

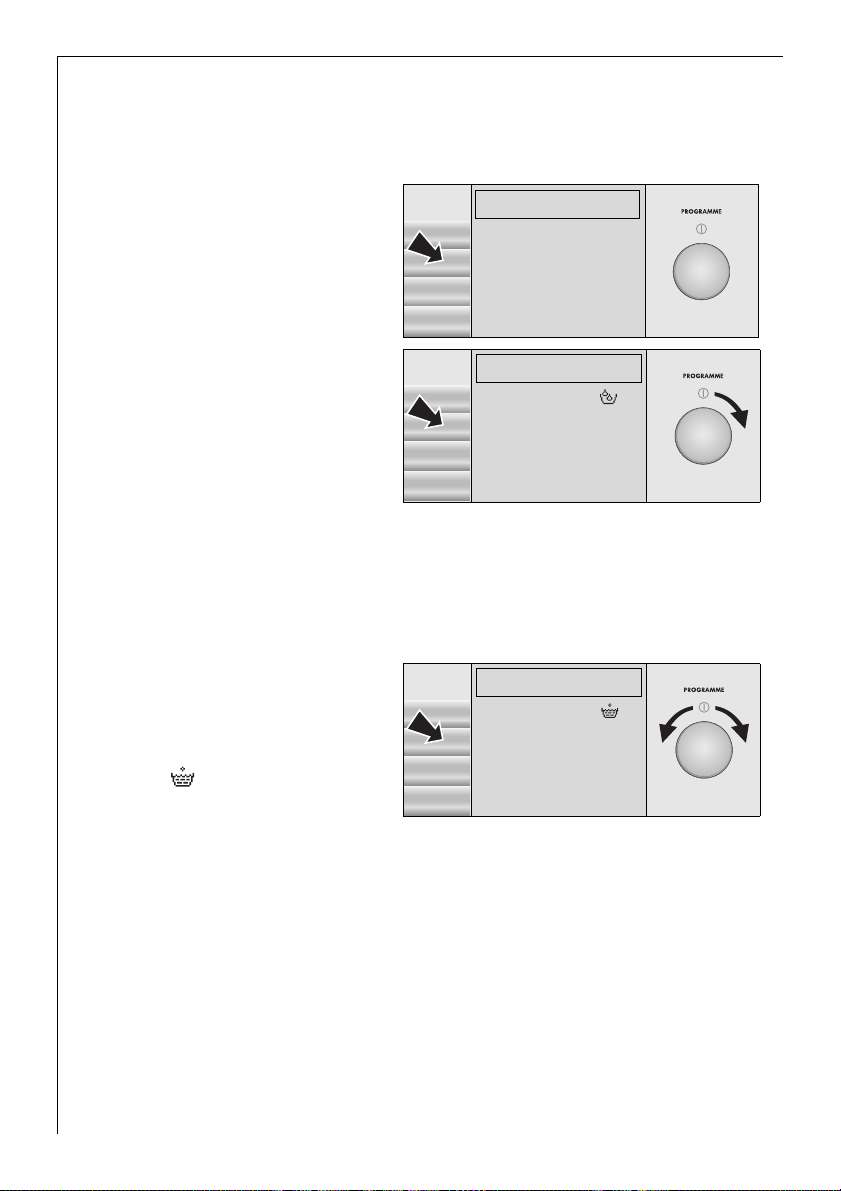

Switching on the appliance
Press the control knob.
The appliance is now
switched on.
3 Before switching the appli-
ance on, make sure that the
drum is empty. If you do not,
the washing will subsequently not be registered properly by the load sensor.

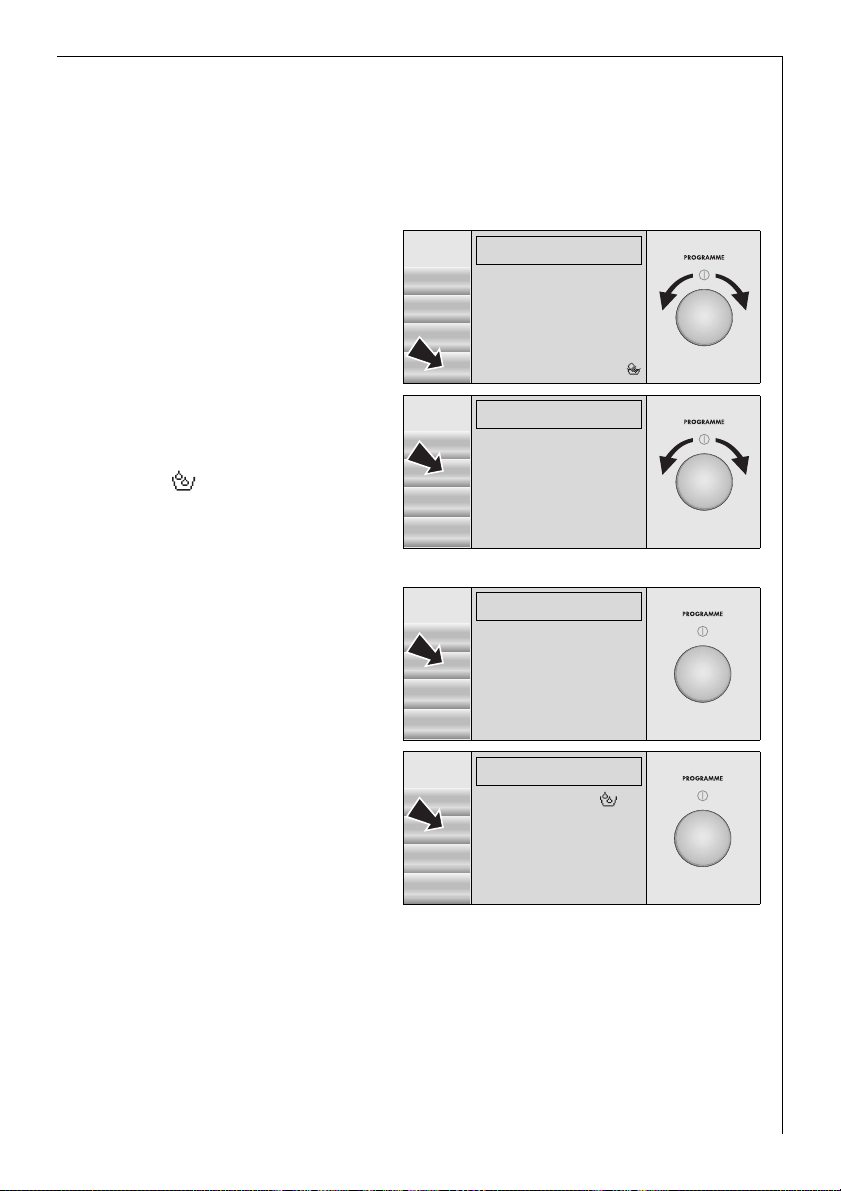

Setting a programme
5. Highlight the desired pro-
gramme, e.g. DELICATES.
Changing the temperature
6. Press the temperature key
repeatedly, until the desired
temperature appears, e.g.
30°C. Please note: a temperature cannot be increased
for fabric type selected. Only
decreased.
DELICATES 40°C
1200 RPM 11:25-12:36
START
40°
1200
OPTIONS WOOLLENS
DELICATES 30°C
1200 RPM 11:25-12:36
START
30°
1200
OPTIONS WOOLLENS
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
î
î

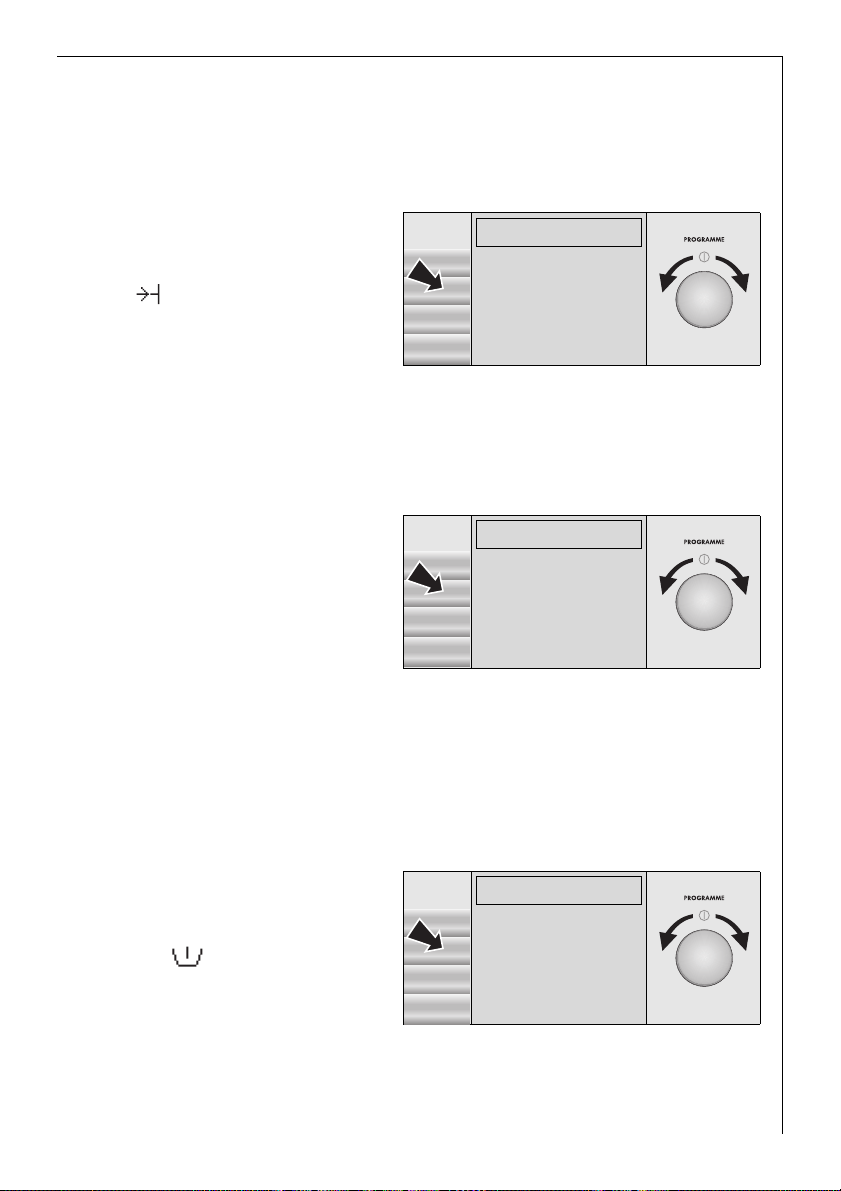

Changing the spin speed
7. Press the key for the spin
speed repeatedly until the
desired spin speed appears
e.g. 1000 or the RINSE HOLD.
Please note: the spin speed
cannot be increased for a
fabric type selected. Only decreased.
DELICATES 30°C
1000 RPM 11:25-12:36
START
30°
1000
OPTIONS WOOLLENS
î
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
.
15
3 RINSE HOLD means: the washing is left to soak in the last rinse water
and is not spun.
If required, set options.
Selecting options
You can select different options on top of the programme that has
been selected. Only options that can be combined with the programme
that has already been selected will be offered.
TIME SAVING Shortened wash programme for more lightly soiled
washing.
DELAY START The start of a programme can be delayed in steps
of 30 minutes to a max. of 20 hours.
SENSITIVE Enhanced rinse action through an additional rinse
cycle together with improved fabric care (decreased drum movement). This is ideal when frequent washes are necessary, for example in cases
of highly sensitive skin. An additional rinse cycle
can also be permanently set (see section “Setting
extra options: Rinse+”).
STAIN For heavily soiled or stained washing. In-wash
stain treatments are washed in at the optimum
time as the programme progresses.
PRE WASH A warm pre-wash cycle prior to the main wash cy-
cle, which follows automatically.
16
Loading...
