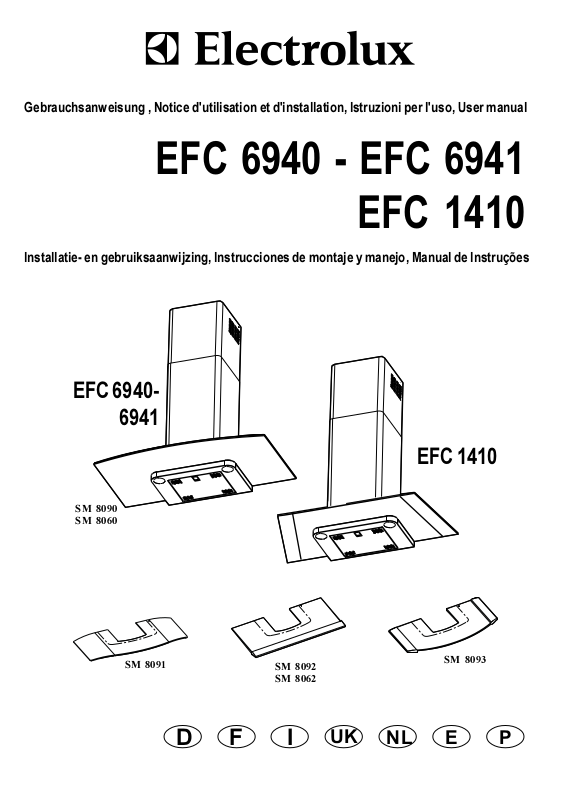

Gebrauchsanweisung , Notice d'utilisation et d'installation, Istruzioni per l'uso, User manual
EFC 6940 - EFC 6941
EFC 1410
Installatie- en gebruiksaanwijzing, Instrucciones de montaje y manejo, Manual de Instruções
EFC 6940-
6941
SM 8090
SM 8060
SM 8091
SM 8092
SM 8062
EFC 1410
SM 8093
F ID
UK
NL
E P
Page 2
Contents
Safety warnings................................................................................................................................................... 36
for the installer ....................................................................................................................................................... 36
for the user .............................................................................................................................................................36
Description of the appliance ............................................................................................................................ 37
Extractor version....................................................................................................................................................37
Filter Version ..........................................................................................................................................................37
Control Panel - EFC 6940-6941 ...................................................................................................................... 38
Control Panel - EFC 1410 ................................................................................................................................39
Maintenance and care ....................................................................................................................................... 40
Cleaning ................................................................................................................................................................. 40
Metal grease filter .................................................................................................................................................. 40
Charcoal filter ........................................................................................................................................................ 41
Changing the light bulb ...........................................................................................................................................41
What to do if ....................................................................................................................................................... 4 2
UK
Technical Specifications .................................................................................................................................... 42
Special accessories............................................................................................................................................ 42
Technical assistance service............................................................................................................................ 43
Installation .......................................................................................................................................................... 45
Electrical connection .............................................................................................................................................. 45
Mounting accessories included .............................................................................................................................. 45
Wall unit mounting ..................................................................................................................................................46
Special accessories/Vapour screen................................................................................................................. 83
Before you use the cooker hood we recommend that you read through the whole user manual giving a direct
description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is important that the
cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
35
Page 3
Safety warnings
for the installer
When used as an extractor unit, the hood must
be fitted with a 150mm diameter hose.
Should there already be a pipe of diameter 125
mm that ducts to the outside through the walls
or roof, it is possible to use the 150/125 mm
reduction flange provided. In this case the hood
will be slightly more noisy.
When installing the hood, make sure you
respect the following minimum distance
from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
coal and oil cookers 700 mm min.
The national standard on fuel-burning systems
specifies a maximum depression of 0.04 bar in
such rooms.
The air outlet must not be connected to chimney
flues or combustion gas ducts. The air outlet
must under no circumstances be connected to
ventilation ducts for rooms in which fuel-burning
appliances are installed.
It is advisable to apply for authorization from the
relevant controlling authority when connecting
the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the
regulations laid down by the relevant authorities.
When the unit is used in its extractor version, a
sufficiently large ventilation hole must be
provided, with dimensions that are
approximately the same as the outlet hole.
National and regional building regulations
impose a number of restrictions on using hoods
and fuel-burning appliances connected to a
chimney, such as coal or oil room-heaters and
gas fires, in the same room.
Hoods can only be used safely with appliances
connected to a chimney if the room and/or flat
(air/environment combination) is ventilated from
outside using a suitable ventilation hole approximately 500-600 cm
possibility of a depression being created during
operation of the hood.
If you have any doubts, contact the relevant
controlling authority or building inspectors
office.
Since the rule for rooms with fuel burning
appliances is outlet hole of the same size as the
ventilation hole, a hole of 500-600 cm2, which
2
large to avoid the
is to say a larger hole, could reduce the performance of the extractor hood.
If the hood is used in its filtering function, it will
operate simply and safely in the above
conditions without the need for any of the
aforementioned measures.
When the hood is used in its extractor function,
the following rules must be followed to obtain
optimal operation:
short and straight outlet hose
keep bends in outlet hose to a minimum
never install the hoses with an acute angle,
they must always follow a gentle curve only
keep the hose as large as possible
(preferably the same diameter as the outlet
hole).
Failure to observe these basic instructions will
drastically reduce the performance and increase
the noise levels of the extractor hood.
for the user
Always cover lighted elements, to prevent
excess heat from damaging the appliance. In
the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
Also, when frying, keep the deep frying pan on
the cooker top/cooker under careful control.
The hot oil in the frying pan might ignite due to
overheating.
The risk of self-ignition increases when the oil
being used is dirty.
It is extremely important to note that
overheating can cause a fire.
Never carry out any flambé cooking under
the hood.
Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb
(take the cartridge fuse out of the fuse holder or
switch off the automatic circuit breaker).
It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause
grease deposits to build up, resulting in a
fire hazard.
36
Page 4
Description of the appliance
Extractor version
The hood is supplied as an extractor unit and
can also be used with a filtering function by
fitting one charcoal filter (special accessory).
You will need original ELECTROLUX charcoal
filter for this function (see Special Accessories).
The air is discharged to the outside through a
pipe, which must be fitted to connection flange
D. Fig. 1.
In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Should there already be a pipe of diameter 125
mm that ducts to the outside through the walls
or roof, it is possible to use the 150/125 mm
reduction flange provided. In this case the hood
will be slightly more noisier.
D
Filter Version
The air is filtered through a charcoal filter and
returned to the kitchen through the top grill of
the outlet pipe.
You will need an original ELECTROLUX Type
20 charcoal filter for the filtering function. (See
Special Accessories).
Fix the deflector using 4 screws Ø 2,9x6.5 mm.
Fig. 2.
Optionally, the position of the chimney elements
can be changed.
When using the hood in the filter version the
chimney must be fixed at the top, with the air
outlet grill at the side.
Fig. 1
Fig. 2
37
Page 5
Control Panel - EFC 6940-6941
The hood is fitted with one motor having several speed. Turn the hood on a few minutes before you start
cooking, you will then get an under pressure in the kitchen. The hood should be left on after cooking for
about 15 minutes or until all the odours have disappeared.
The control switches are located on the units front panel:
The hood operation may be controlled via the control ball or with the remote control (the remote control is a
special accessory and is ordered separately).
Every status change (changing speed, switching on the lights, etc.) and is recognizable from the variation of
light emitted by the control ball and by an acoustic signal.
The control ball serves also as a light signal :
No signal :
The hood is switched off.
Static green light :
Hood is switched on at power level 1
(minimum).
Static orange light :
Hood is switched on at power level 2 (medium).
Static red light :
Hood is switched on at power level 3
(maximum).
Alternating red light :
Hood is switched on at intensive power level
(timed at 5 minutes)
Alternating green light :
Indicates the grease filter saturation - clean the
grease filter
Alternating orange light :
Indicates the charcoal filter saturation - clean
or replace the charcoal filter
Attention!
The control Ball flashes orange to indicate the
saturation of the odor filter even when the
charcoal filter is not installed inside the cooker
hood.
However perform the signal reset operation as
follows: select the intensive speed (the control
ball lights up with a red flashing light), depress
again and hold depressed for about 3 seconds
until a bip sound indicates the reset.
depress towards
the right to switch
on the hood
depress towards
the left to switch
on the light.
Fig. 3
Control device for grease or
charcoal filter
The air duct, in this hood, is provided with a device
that signals when the filter requires cleaning or
changing .
Led signal for grease filter
The LED signal flickers (flickering green light)
when the grease filter requires cleaning, occurs at
about 40 operating hours.
Carefully note the device for grease filter
maintenance!
Led signal for charcoal filter
The LED signal flickers (flickering orange light)
when the grease filter requires cleaning, occurs at
about 160 operating hours.
Carefully note the device for charcoal filter
maintenance!
Switching on the hood - Fig. 3
The control ball is a balancer switch.
Depressing the control ball repeatedly towards the
right switches on the hood and you may select the
suction level desired, depressing once again on the
right the hood switches off.
Switching on the light - Fig. 3
Depress the control ball towards the left :
once for submersed lighting,
once again for full lighting,
depress again to switch off the light.
Resetting the saturation
indicator
After cleaning or replacing the filter, select the
intensive speed (the control ball lights up with a red
flashing light), depress again and hold depressed
for about 3 seconds until a bip sound indicates the
reset.
Correct ventilation
If the cooker hood is to work correctly there must
be an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open
38
Page 6
Control Panel - EFC 1410
The hood is fitted with one motor having several
speed. Turn the hood on a few minutes before
you start cooking, you will then get an under
pressure in the kitchen. The hood should be left
on after cooking for about 15 minutes or until all
the odours have disappeared.
The control switches are located on the units
front panel:
the light switch switches the hood lamp on and
off;
Light switch: this switch is used to turn the
light fitted in the hood on and off.
Extractor fan switch/Push-button 1: used to
turn the fan off and to set the fan to speed 1.
Push-button 2: used to set the fan to speed 2.
Push-button 3: used to set the fan to speed 3.
Correct ventilation
Lamp indicator
Extractor fan
Push-button
Light switch
Fig. 4
switch/
1
Push-button
Push-button
3
2
If the cooker hood is to work correctly there must
be an under pressure in the kitchen. It is important
to keep the kitchen windows closed and have a
window in an adjacent room open
39
Page 7
Maintenance and care
The hood must always be disconnected from the electricity supply before beginning any
maintenance work.
Cleaning
Warning: always disconnect the hood from the
mains power supply before cleaning it.
Never insert pointed objects in the motors
protective grid.
Wash the outside surfaces using a delicate
detergent solution. Never use caustic detergents
or abrasive brushes or powders.
Only ever clean the switch panel and filter grille
using a damp cloth and delicate detergents.
It is extremely important to clean the unit and
change the filters at the recommended intervals.
Failure to do so will cause grease deposits to
build up that could constitute a fire hazard.
Metal grease filter
The purpose of the grease filters is to aspirate
grease particles which form during cooking and
it must always be used, either in the external
evacuation or internal recycling function.
Attention: the metal grease filters must be
removed and washed, either by hand or in the
dishwasher, every four weeks.
Warning
Failure to observe the instructions on cleaning
the unit and changing the filters will cause a fire
hazard. You are therefore strongly
recommended to follow these instructions.
The manufacturer declines all responsibility for
any damage to the motor or any fire damage
linked to inappropriate maintenance or failure to
observe the above safety recommendations.
Open the metal grease filter
Pull out the spring-lock to release the grease
filter. Fig. 5.
Hand washing
Soak grease filters for about one hour in hot
water with a grease-loosening cleaner, then
rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters
when they are dry.
Dishwasher machine
Place grease filters in dish washer. Select most
powerful washing programme and highest
temperature, at least 65°C. Repeat the process.
Refit the grease filters when they are dry.
When washing the metal grease filter in the
dishwasher a slight discoloration of the filter can
occur, this does not have any impact on its
performance.
Clean the inner housing using a hot detergent
solution only (never use caustic detergents,
abrasive powders or brushes).
Fig. 5
40
Page 8
Charcoal filter
The charcoal filter should only be used if you
want to use the hood in its filtering function.
To do this you will need an original
ELECTROLUX charcoal filter (see special
accessories).
Cleaning/replacing the carbon filter
Unlike other carbon filters, the LONGLIFE
charcoal filter can be cleaned and reactivated.
At normal use the filter should be cleaned every
second month. The best way to clean the filter
is in the dishwasher. Use normal detergent and
choose the highest temperature (65º C). Wash
the filter separately so that no food parts gets
stuck on the filter and later causes bad odours.
To reactivate the charcoal, the filter should be
dried in an oven for 10 minutes with a tempera-
ture of maximum 100º C.
After approximately three years of use, the
carbon filter should be replaced with a new, as
the odour reduction capacity will be reduced.
Mounting
Remove the frame i which supports the filter h
by turning 90° the two knobs g, Fig. 6. Insert
the coal mattress inside the frame and put all
parts back in their place.
To dismount proceed in reverse order.
Always specify the hood model code number
and serial number when ordering replacement
filters. This information is shown on the
registration plate located on the inside of the
unit.
The charcoal filter can be ordered from the
ELECTROLUX technical assistance service.
h
i
Fig. 6
g
g
g
g
Changing the light bulb
Disconnect the cooker hood from the main
supply.
Remove the lamp cover, use a screw driver as a
lever. Fig. 7.
Replace the old bulb with a new one of the
same type.
Remount the lamp cover.
If the light does not come on, make sure the
bulb has been inserted in correctly before
contacting the technical assistance service.
Fig. 7
41
Page 9
What to do if
If your appliance fails to work properly please carry out the following checks.
Symptom Solution
The cooker hood will not start... Check that: The hood is connected to the electricity supply.
Check that a fan speed has been selected
The cooker hood is not working Check that: The fan speed is set high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to allow the entry of fresh air.
If set up for recirculation, check that the charcoal filter is still effective.
If set up for extraction, check that the ducting and outlets are not blocked.
The cooker hood has The safety cut-out device has been tripped.
switched off during operation... Turn off the hob and then wait for the device to reset.
If the hood has been installed below the heights indicated in the
installation instructions the motor will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Technical Specifications
Model EFC 6940-6941 EFC 1410
Dimensions (cm) Height
Width 89,8 (59,8 with vapour screen 85-105
Depth 50 50,3
Lighting 2 x 20 W 2 x 20 W
Grease filter 1 1
power absorption 210 W 210 W
Electrical connection 220 - 240 V 230 V
We reserve the right to generate constructive and chromatic modifications as required by technological growth.
Special accessories
Charcoal filter Type 20
Model EFC 6940-6941 only
Remote control RM 6940 942 120 692
Vapour screen see page 83
70-113 (Filter version 78-122) 66-112 (Filter version 75,5-122)
SM 8060 or SM 8062)
42
Page 10
Technical assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list of technical assistance centres)
whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the grease filter.
We reserve the right to change specifications and colours as a result of our policy of continuing technological
development.
Service and spare parts for UK
In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local AEG
Service Force Centre by telephoning: 08705 929 929
Your telephone call will be automatically routed to the Service Centre covering your post code area. For the
address of your local Service Force Centre and further information about Service Force, please visit the website
at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will make a charge if the fault is
not a mechanical or electrical breakdown even the appliance is under warranty. Please note that proof of
purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
Your name
Address and post code
Telephone number
Clear and concise details of the fault
Name and model of the appliance*
E number*
* This information can be found on the rating plate, which can be seen when the grease filters are removed.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website at
www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950950 (*)
* calls to this number may be recorded for training purposes.
43
Page 11
Guarantee Conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturers
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Companys property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday.
Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0)3 44 62 20 13
Germany Nürnberg +49 (0)800 234 7378
Italy Pordenone +39 (0) 800 117511
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0) 1753 219898
44
Page 12
Installation
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.
Placement
The hood is to be mounted on the wall.
When installed, the hood must be not less than 50
cm. above electric burners or 65 cm. above gas or
mixed-fuel burners (fig. 8).
Electrical connection (not for
UK)
Safety warnings for the electrician
Before connecting the appliance to the power
supply, check that the voltage indicated on the
rating plate corresponds to the mains power supply
available. Appliances fitted with a plug can be
connected to any standard power socket within
easy access.
Should it be necessary to provide a fixed
connection, the hood must only be installed by an
electrician authorised by the local electricity board.
When installing, a double pole switch with a
distance of at least 3 mm between contacts must
be provided.
Fixed connection of the appliance must only be
carried out by an authorised electrician.
Min
50 cm
Min
65 cm
Fig. 8
Mounting accessories included
Electrical connection for UK
only
Safety warnings for the electrician
Connect the hood to the mains supply via a double
pole switch
which has 3 mm minimum separation between the
contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow
must be connected to the terminal which is
marked with the letter E or by the earth symbol
(
), or coloured green or green and yellow;
- the wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black, -
- the wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.
1 allen spanner (for TORX screws)
1 support bracket
5 wood-screws 5 x 45 mm (for wall mounting)
5 wall plugs Ø 8 mm (for wall mounting)
4 metal screws 2,9 x 6,5 (for chimney flue
mounting)
4 metal screws 4 x 8 (to assemble the chimney
support)
4 metal screws 3,5 x 9,5 (to affix the deflector to
the support)
2 metal screws 3,5 x 13 (to assemble the deflector)
4 metal screws 4 x 20 (to affix the screen to the
cooker hood)
4 metal screws 3 x 9 (EFC 1410 only: to affix the
frame to the cooker hood)
1 deflector (3 pieces to assemble)
1 chimney support (3 pieces to assemble)
1 reduction flange Ø 125-120 mm
45
Page 13
Installation
Wall unit mounting - Fig. 9-10-11-12-13
First decide which functioning version is better for you.
If you decide to use the hood in exhausting version we suggest to position the upper section of the chimney so
that the oulet slots are not visible once installation has ended, on the contrary if is decided to use the hood in
recycling version BE SURE that the side with slots is up (see also A-B-C sequence on on Fig. 9).
Assembling the chimney flue support/bracket (3 parts):
The three parts should be fixed with 4 screws, the support extension is adjustable and should correspond to
the internal width of the telescopic chimney flue. Fig. 10.
Assembling the deflector (3 parts only for filter version):
The three parts should be fixed with 2 screws, the deflector extension is adjustable and should correspond to
the width of the chimney flue support, to which it is then fixed. Fig. 10.
Model EFC 6940-6941 only
The vapour screen is not supplied and must be purchased, see the cover and page 83 and choose the preferred
one.
Model EFC 1410 only, Fig. 11:
Assemble the frame to the motor group (a).
Connect lamps and control panel to the motor housing (b).
Fix the frame to the motor group using 4 screws (c).
Sign the wall with a center line, this will aid mounting procedure (1), position the template so that the mid line
printed on the template matches with the center line previously signed, the lower side of the template
corresponds to the lower side of the hood once mounted (2).
Drill two holes Ø 8mm and fix the support bracket with two wall plugs and screws (3).
Hang the hood (4) adjust its position (5-6) and from the inside of the hood sign one point for definitive fixing
(7), remove the hood and drill an hole Ø 8mm (8), fit a wall plugs, hang the hood again and fix it definitively
with a screw (9).
Drill two holes Ø 8mm on the upper side close to the ceilling (10), fit two wall plugs and fix the chimney
support with two screws (11).
In case the hood is to be used in filter version, mount the deflector F on the chimney support with four
screws 2,9x6,5 and fit an exhausting pipe (12) to connect deflector to the outlet hole D of the hood.
In case the hood is to be used in exhausting version, then the deflector must not be mounted and fit an
exhausting pipe (12) to connect outlet hole D of the hood to the outside.
Attention: The pipe is not supplied and must be purchased separately.
Make electrical connection (13), but leave the hood disconnected from the home general electric panel.
Insert the vapour screen on the motor housing and fix it with four screws (14).
Model EFC 1410 only: The side vapour screen moulds can be slided in Width, partially unscrew
the two fixing screw of each mould to slide them, then screw then again. Fig. 13.
Fix the chimney first up (15a) to the chimney support (15b), then on the bottom (16a) to the upper side of the
frame (16b) using four screws 2,9x6,5.
Connect the hood the the home general electric panel and check if the hood work properly.
46
Page 14
B
180°
G
=
=
X
F
X
=
=
b
a
A
C - OK!
X
G
F
H
c
Fig. 9 Fig. 10
10
15b
G
15b
3
11
F
1
4
16a
15a
H
12
Fig. 11 - EFC 1410
15a
16a
12
Ø 125mm
Ø 120mm
13
2
D
6
5-6
5
8
7
16b
5-6
16b
14
Fig. 13 - EFC 1410
9
14
Fig. 12
47
Page 15
Sonderzubehör/Wrasenschirm
Accessoires/Séparateur de vapeur
Accessori speciali/Mantelli in vetro
Special accessories/Vapour screen
Extra leverbare accessoires/Dampscherm
Accesorios especiales/Mantel de vidrio
Acessórios/Manta em vidro
A
SM 8090 (A = 90cm)- E-Nr. 942 120 654
SM 8060 (A = 60cm)- E-Nr. 942 120 700
SM 8091 - E-Nr. 942 120 655
SM 8092 (A = 90cm)- E-Nr. 942 120 656
SM 8062 (A = 60cm)- E-Nr. 942 120 701
SM 8093 - E-Nr. 942 120 657
A
83
Page 16
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux
Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value
of approx. USD 14 billion in more than 150 countries around the world.
© Electrolux 2003
LI1WWF Ed. 08/04
Loading...
