AEG EFC9441X, EFC6441X User Manual
Montage- und Gebrauchsanweisung , Installatie- en gebruiksaanwijzing, Notice dutilisation et dinstallation
EFC 6441
EFC 9441
Operating and Installation Instructions, Instrucciones de montaje y manejo, Manual de Instruções
D
NL
F E P
UK
Contents
Safety warnings................................................................................................................................................... 3 8
For the installer ......................................................................................................................................................38
For the user ............................................................................................................................................................38
Description of the Appliance ............................................................................................................................ 39
Extraction mode ..................................................................................................................................................... 39
Recirculation mode ................................................................................................................................................39
Control Panel ...................................................................................................................................................... 40
Grease and charcoal filter maintenance indicator.................................................................................................. 41
Maintenance and Care ...................................................................................................................................... 42
Cleaning the hood ..................................................................................................................................................42
Metal grease filter ..................................................................................................................................................42

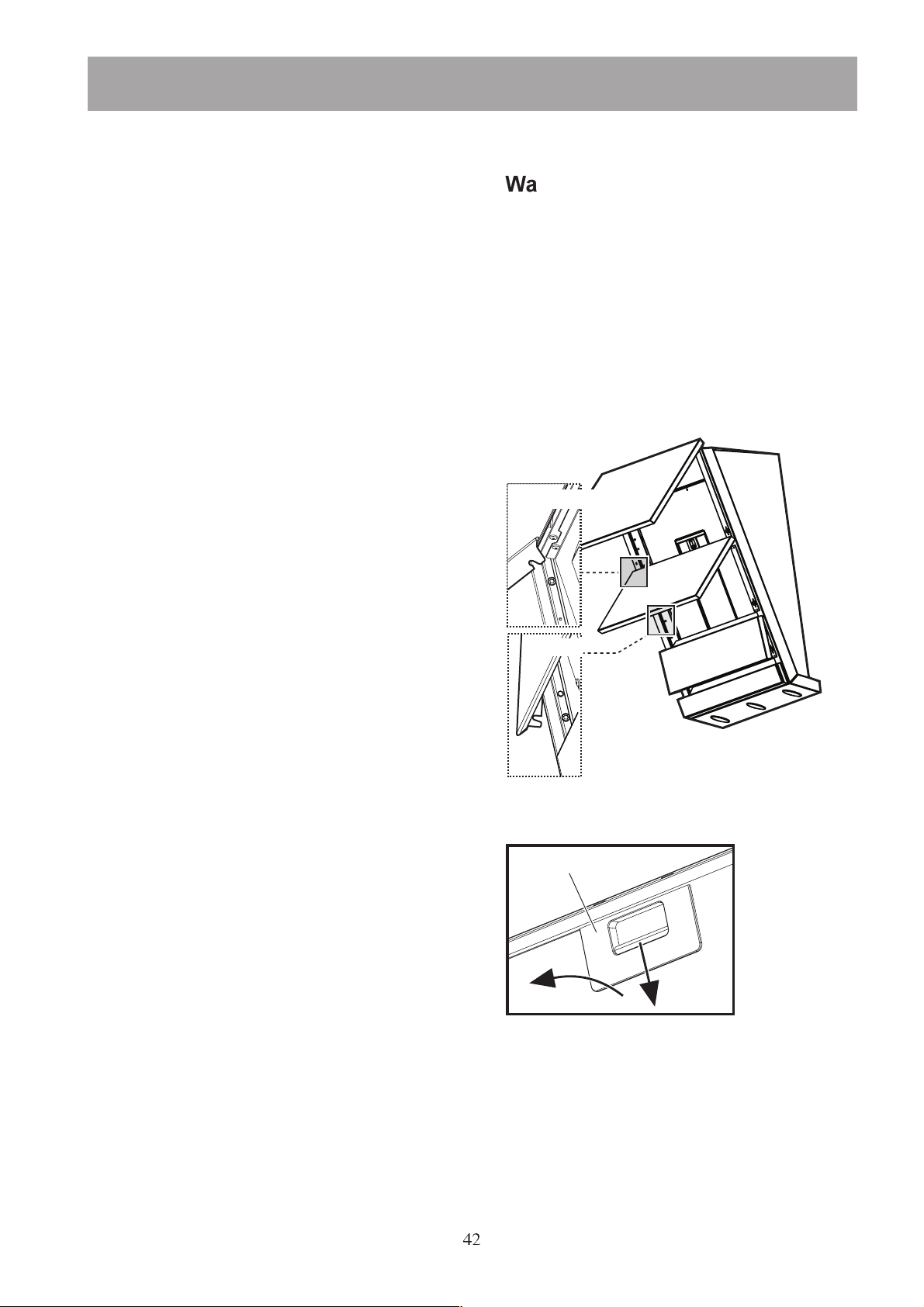

Removing the front panels: ....................................................................................................................................42
Removing the metal grease filter ........................................................................................................................... 42
Charcoal filter ........................................................................................................................................................43

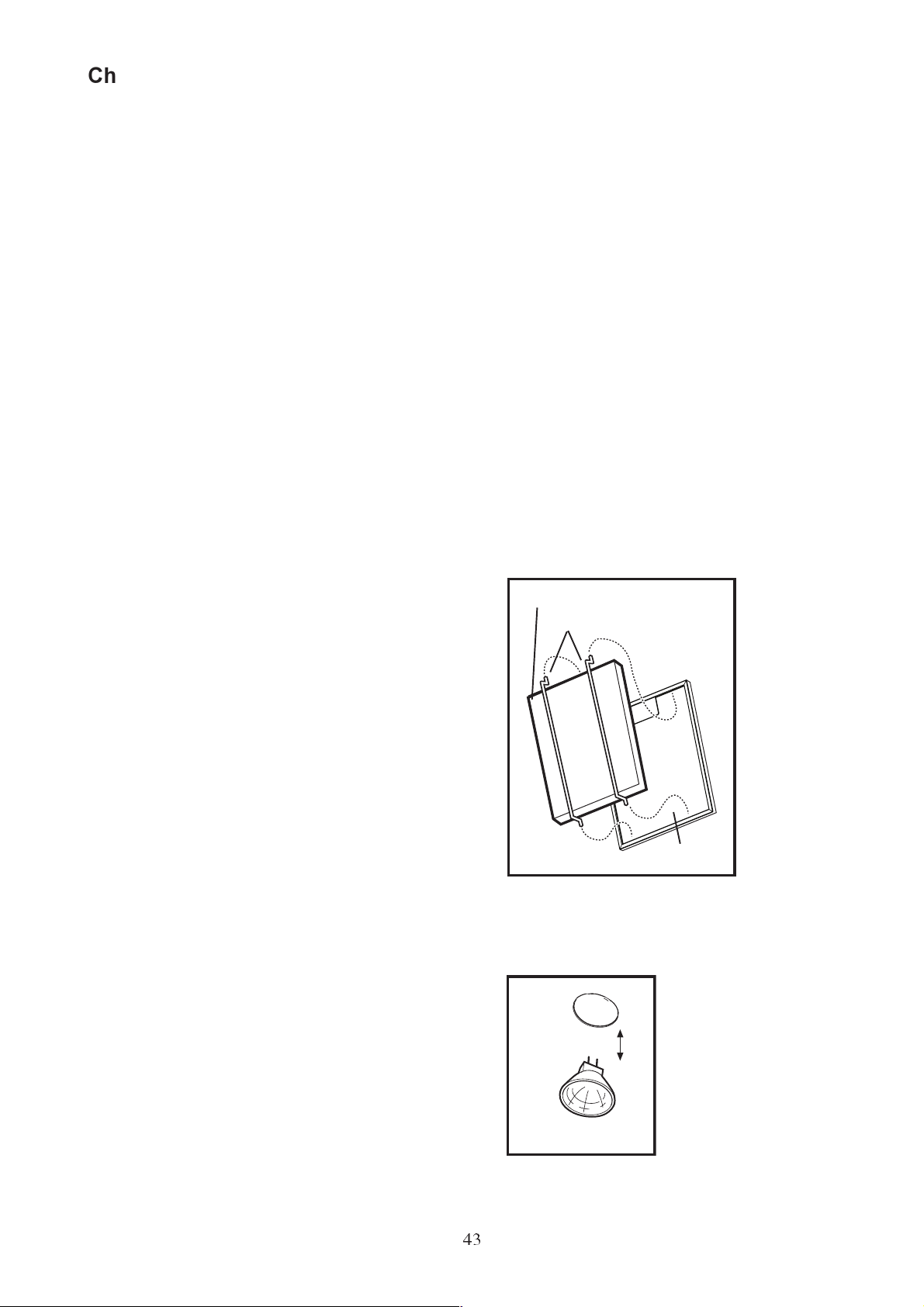

Changing the light bulb........................................................................................................................................... 43
What to do if ....................................................................................................................................................... 44
GB
Special Accessories ........................................................................................................................................... 44
Technical assistance service............................................................................................................................ 45
Guarantee Conditions ....................................................................................................................................... 46
Technical Details................................................................................................................................................ 47
Installation .......................................................................................................................................................... 47
Unpacking .............................................................................................................................................................. 47
Fitting .....................................................................................................................................................................47
Electrical connection .............................................................................................................................................. 47
Electrical connection for UK only .........................................................................................................................47
Mounting accessories included ..............................................................................................................................48

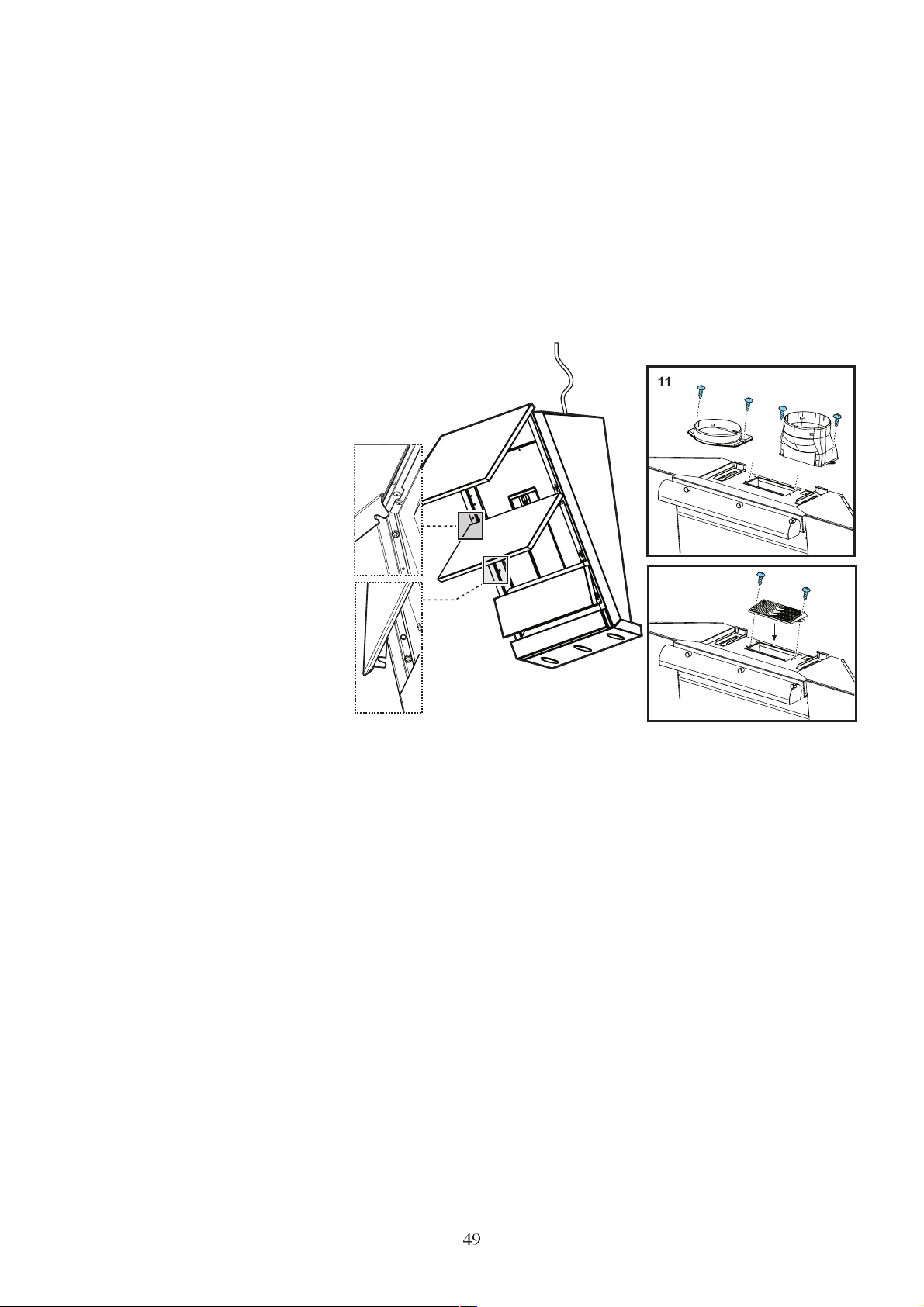

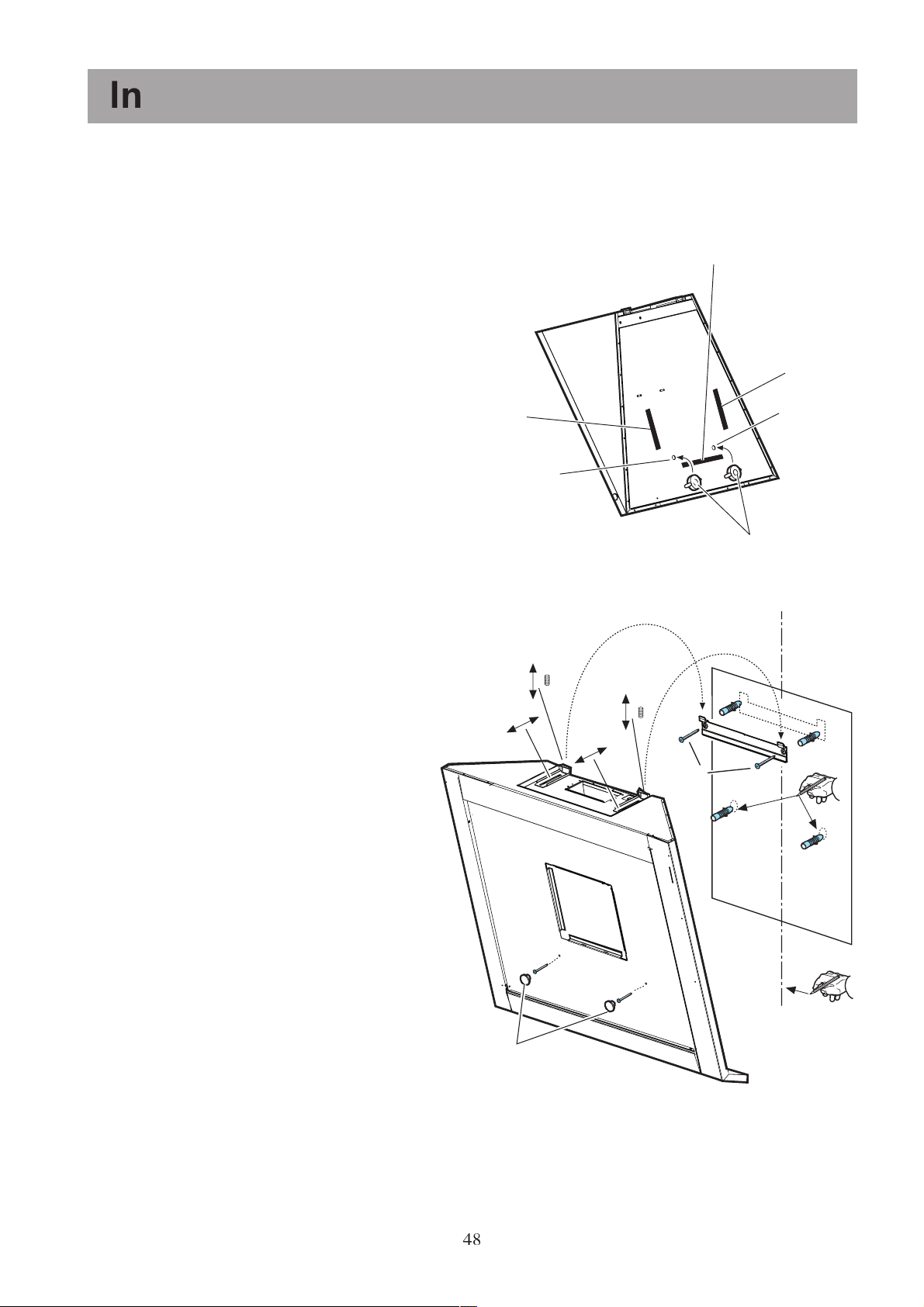

Wall mounting ........................................................................................................................................................48
Before installing or using this appliance please read this instruction book carefully paying particular attention to
the safety warnings on the following page.
If you have any queries regarding this appliance please contact Customer Care for advice.
Please keep this instruction book for future reference and pass it on to any future owner of the appliance.
37
Safety warnings
For the installer
When used as an extractor unit, the hood must
be fitted with a 150mm diameter hose.
Attention: The hose is not supplied and
must be purchased separately.
When installing the hood observe the
following minimum distances from the
cooking top:
Electric cooking tops 300mm
Attention! The hood must not be installed
over gas hob.
The national Standard on fuel-burning systems
specifies a maximum depression of 0.04 mbar in
such rooms.
The air outlet must not be connected to chimney
flues or combustion gas ducts. The air outlet
must under no circumstances be connected to
ventilation ducts for rooms in which fuel-burning
appliances are installed.
The air outlet installation must comply with the
regulations laid down by the relevant local
authorities.
When the unit is used in extraction mode, a
sufficiently large ventilation hole must be
provided, with dimensions that are approximately the same as the outlet hole.
National and regional building regulations
impose a number of restrictions on using hoods
and fuel-burning appliances connected to a
chimney, such as coal or oil room-heaters and
gas fires, in the same room.
Hoods can only be used safely with appliances
connected to a chimney if the room and/or flat
(air/environment combination) is ventilated from
outside using a suitable ventilation hole approximately 500-600 cm
possibility of a depression being created during
operation of the hood.
If you have any doubts, contact the relevant
controlling authority or building inspectors
office.
Since the rule for rooms with fuel burning
appliances is outlet hole of the same size as the
ventilation hole, a hole of 500-600 cm
is to say a larger hole, could reduce the performance of the extractor hood.
If the hood is used in its recirculation mode, it
will operate simply and safely in the above
conditions without the need for any of the
aforementioned measures.
When the hood is used in its extraction mode,
the following rules must be followed to obtain
optimal operation:
short and straight outlet hose
keep bends in outlet hose to a minimum
2
large to avoid the
2
, which
never install the hoses with an acute angle,
they must always follow a gentle curve.
keep the hose as large as possible
(preferably the same diameter as the outlet
hole).
the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the airflow.
Failure to observe these basic instructions will
drastically reduce the performance and increase
the noise levels of the extractor hood.
For the user
The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
Always cover lighted elements, to prevent
excess heat from damaging the appliance. In
the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
Also, when frying, keep the deep frying pan on
the cooker top/cooker under careful control.
The hot oil in the frying pan might ignite due to
overheating.
The risk of self-ignition increases when the oil
being used is dirty.
It is extremely important to note that
overheating can cause a fire.
Never carry out any flambé cooking under
the hood.
Always disconnect the unit from the power
supply before carrying out any work on the
hood, including replacing the light bulb
(take the cartridge fuse out of the fuse holder or
switch off the automatic circuit breaker).
It is very important to clean the hood and
replace the filter at the recommended
intervals. Failure to do so could cause
grease deposits to build up, resulting in a
fire hazard.
The appliance is not intended for use by young
children or infirm persons without supervision.
Older children must be supervised if using the
appliance.
Young children should be supervised to ensure
that they do not play with the appliance.
WARNING - Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
38
Description of the Appliance
The cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
The hood is supplied as an extractor unit and
can also be used with a recirculation mode by
fitting a charcoal filter.
You will need an original charcoal filter for this
function (Available from your local Service
Force Centre).
Extraction mode
In this mode fumes are extracted to the outside
via a hose connected to the coupling ring A.
Fig. 1.
In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Recirculation mode
The air is filtered through a charcoal filter and
returned to the kitchen.
You will need an original charcoal filter for the
recirculation mode. (See Special Accessories).
Fix the deflector using 2 screws Ø 3.5x9.5 mm.
Fig. 2.
Fig. 1
coupling ring
Deflector
39
Fig. 2
Control Panel
a
b
Fig. 3
Best results are obtained by using a low speed for normal conditions and a high speed when odours are more
concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared.
The hood can also be commanded from the control panel or the remote control. (the remote control is a
special accessory and is ordered separately).
The control panel is low on the left (lights and reset filters) and right (speed control suction power).
12 3 4 5 6 7 8
1 - Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into the "stand by" position (point "b" is
illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns OFF, ALL the controls (except the light push
button) are disabled (the display is off).
Press again for more than 1 1/2 seconds to reset the cooker hood to "stand by".
2 - Cooking lower lights key: OFF - suffused full light - OFF- .
3 - Reset indicators of filters saturation key
4 - Upper lights key: OFF full light-OFF-
5 - Start and choice of motor speed 1-2-3-1-2.........
6 - Display
7 - Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood will revert to previous speed after 5
minutes.
If the hood is off when the Intensive speed is activated, the hood will automatically turn off after 5
minutes.
To interrupt the Intensive speed, press button 1 or 7.
The letter P appears on the display and the remaining time (the point a is flashing), if interrupted an
acoustic signal is heard.
8 - Self-Timer: times all the speed levels (the point b is flashing), and then the cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
P speed level 5 minutes
The display shows the remaining operation time, at the end of the time an acoustic signal is heard.
Depressing the push-button again exits the function.
Should the hood or the controls fail to operate: disconnect the power supply for at least 5 seconds. After
reconnecting the power supply wait 15 seconds and then check that the cooker hood is now operating
correctly.
